Axial Pump CFD analysis

This study shows a smooth workflow of performing a complex CFD analysis of an axial pump using TCFD®

TCFD® Main Page - Download This Tutorial - Pump Results Report


TCFD - Turbomachinery CFD scheme automated workflow


TCFD® is automated workflow


CFD SUPPORT introduces the new generation of CFD simulations. TCFD® brings an extreme increase of productivity to CFD simulations. TCFD® is extremely popular project, because it successfully merged benefits of an open-source (perpetual, unlimited users, jobs, and cores, customizable, ...) with benefits of commercial codes (professional support, well tested, ready for the industry, robust, accurate, automated, GUI, ...).

TCFD - Turbomachinery CFD scheme automated workflow

TCFD® is fully automated, it can run the whole workflow by a single command: data input, new case is written down, mesh is created, case is set-up, case is simulated, results are evaluated and the results report is written down. Both GUI and batch mode. Data in - data out. TCFD® is mainly focused on supporting the engineers in their real value added work. TCFD® is fully automated and the beauty of TCFD® is that it is the user who decides how deep to dive into a CFD or not at all. And all the options remain open at the same time.


Axial Pump Turbomachinery CFD Inlet Tube Mesh    Axial-Pump-Turbomachinery-CFD-Rotor-Mesh    Axial-Pump-Turbomachinery-CFD-Stator-Mesh


The Input Data & the Mesh

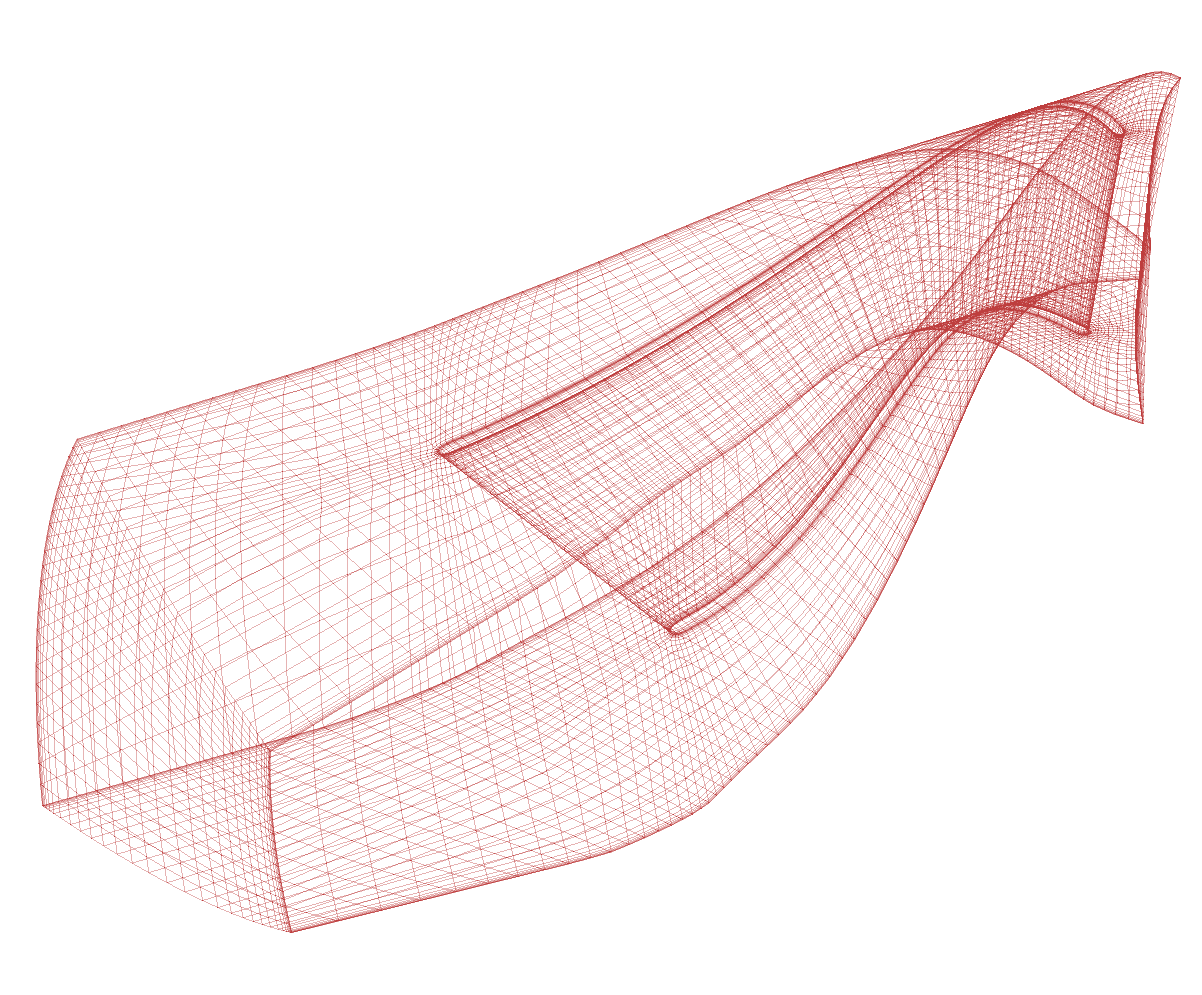

The pump model is converted from the external .msh mesh format to OpenFOAM® mesh format. This tutorial is computed as a periodic segment. The mesh has four individual components: the inlet tube, rotor part, stator partand the outlet part. Each component has its own mesh. All the meshes are merged into one mesh and they are connected with the interfaces. In Turbomachinery CFD, any number of model components is allowed.

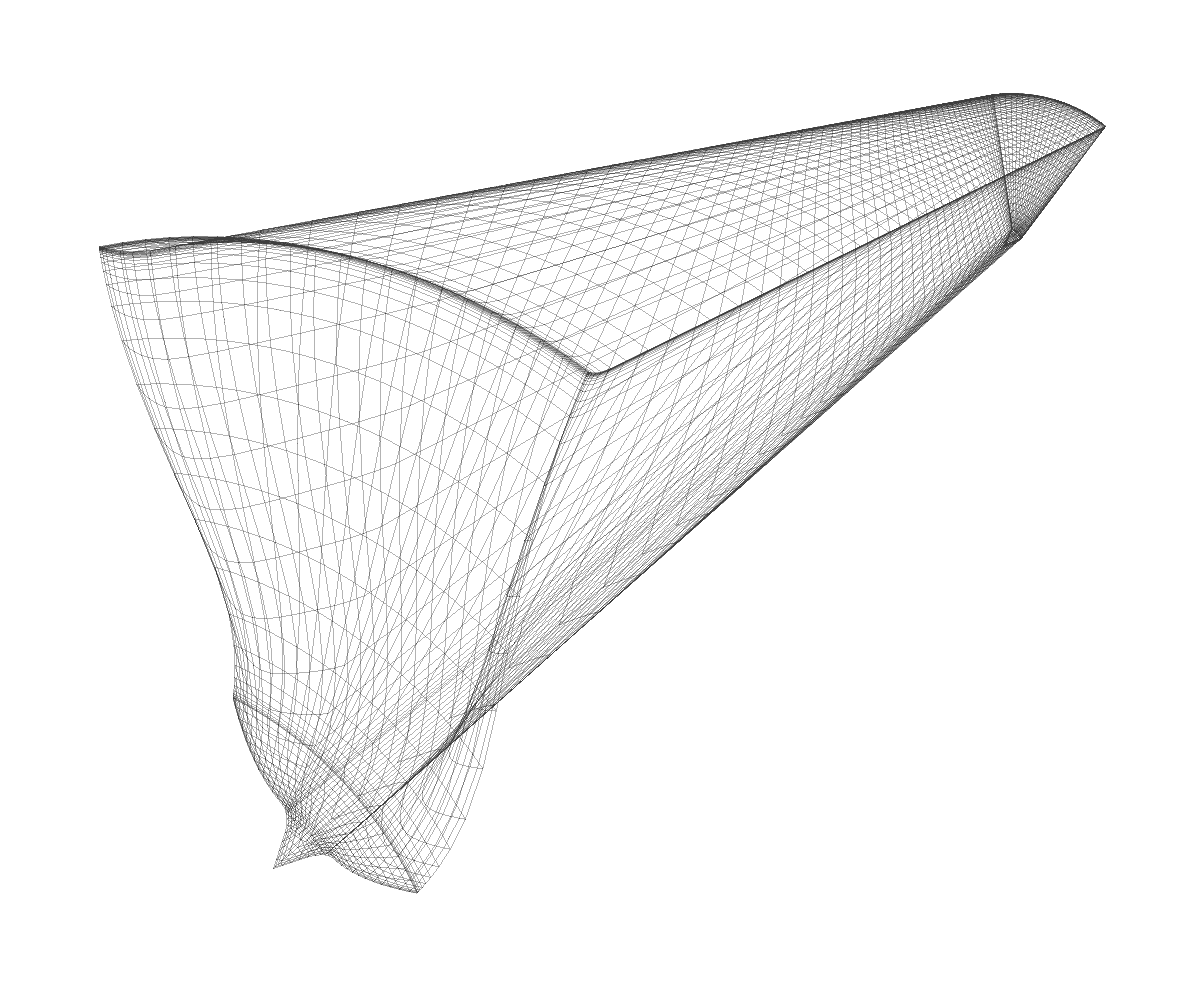

Axial-Pump-Turbomachinery-CFD-Outlet-Tube-Mesh    Axial-Pump-Turbomachinery-CFD-Outlet-Tube-Mesh

Periodic segment or not?

The computational mesh can be used as a whole impeller as well as a single blade periodic segment. There can be also any combinanation of periodic and whole components. The only condition is the interfaces should match at the hub and shroud. Periodic segment approach can save reasonable amount of the mesh cells. That is resulting in reduction of simulation CPU time. The full impeller approch is more robust. And also full impeller allows the transient simulation on the same mesh.

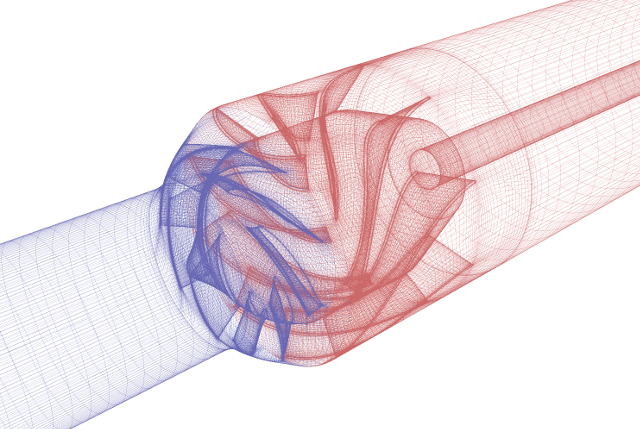

Axial Pump Turbomachinery CFD Inlet Tube Mesh    Axial-Pump-Turbomachinery-CFD-Stator-Mesh    Axial-Pump-Turbomachinery-CFD-Rotor-Mesh    Axial-Pump-Turbomachinery-CFD-Outlet-Tube-Mesh


The component graph

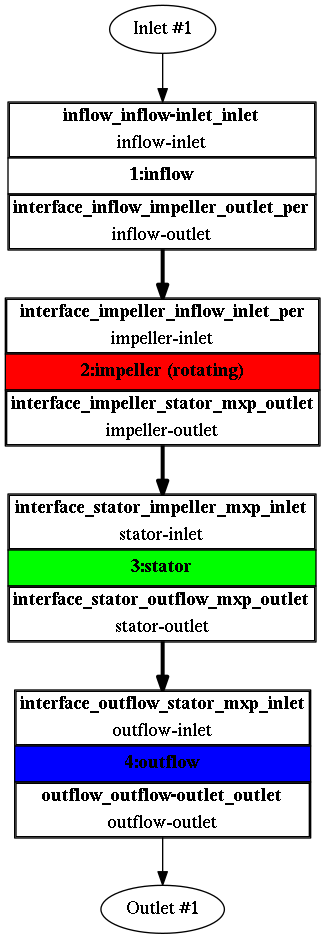

Any project simulated in TCFD® has its component graph. The component graph shows how the components are organized - the model topology. What is the inlet, the outlet and how the components are connected via interfaces.


TCFD manifold tcfd tutorial component graph


CFD Simulation Set-up

  • Incompressible flow model
  • Steady-state flow model
  • Medium: Water
  • Viscosity: ν = 8.899e-7 [m2/s]
  • Rotation speed: 294 [RPM]
  • Flow Rate: 14 [m3/s]
  • Interface: mixingInterface (radial averaging)
  • Turbulence Model: k-ω SST
  • Mesh: external hexa mesh
  • Mesh Cells (segment): 210580
  • Mesh Average y+: 100 [-]
  • CPU time (segment): 8 [core.hours]

For more details of CFD Simulation Set-up see TCFD® Manual.

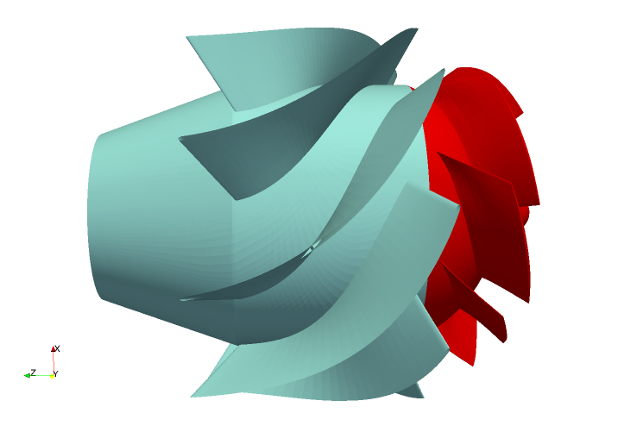

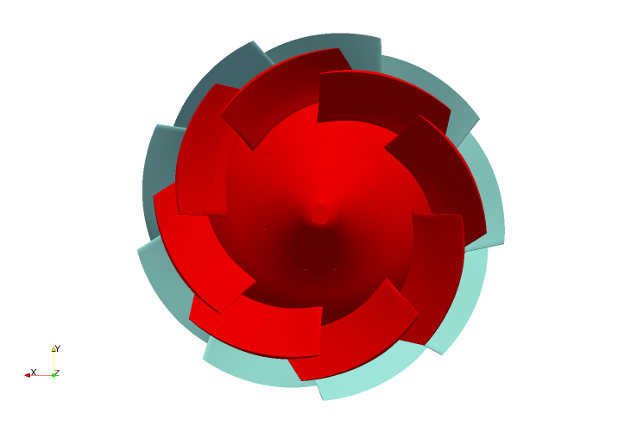

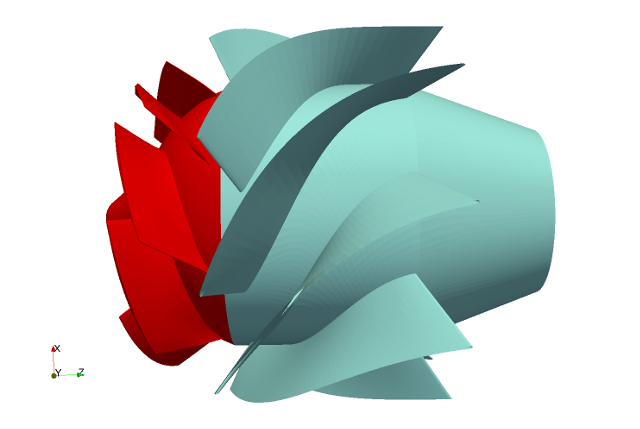

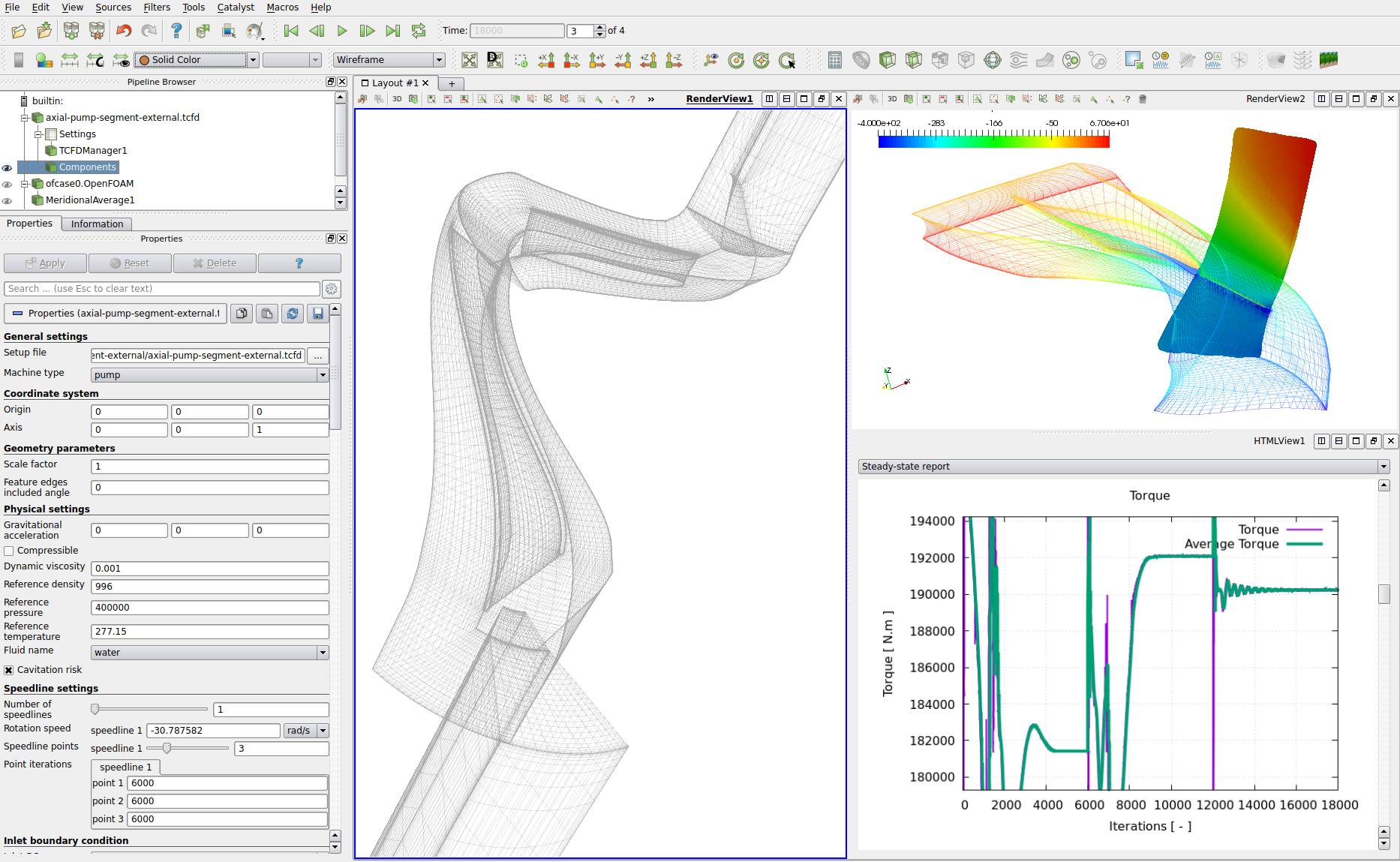

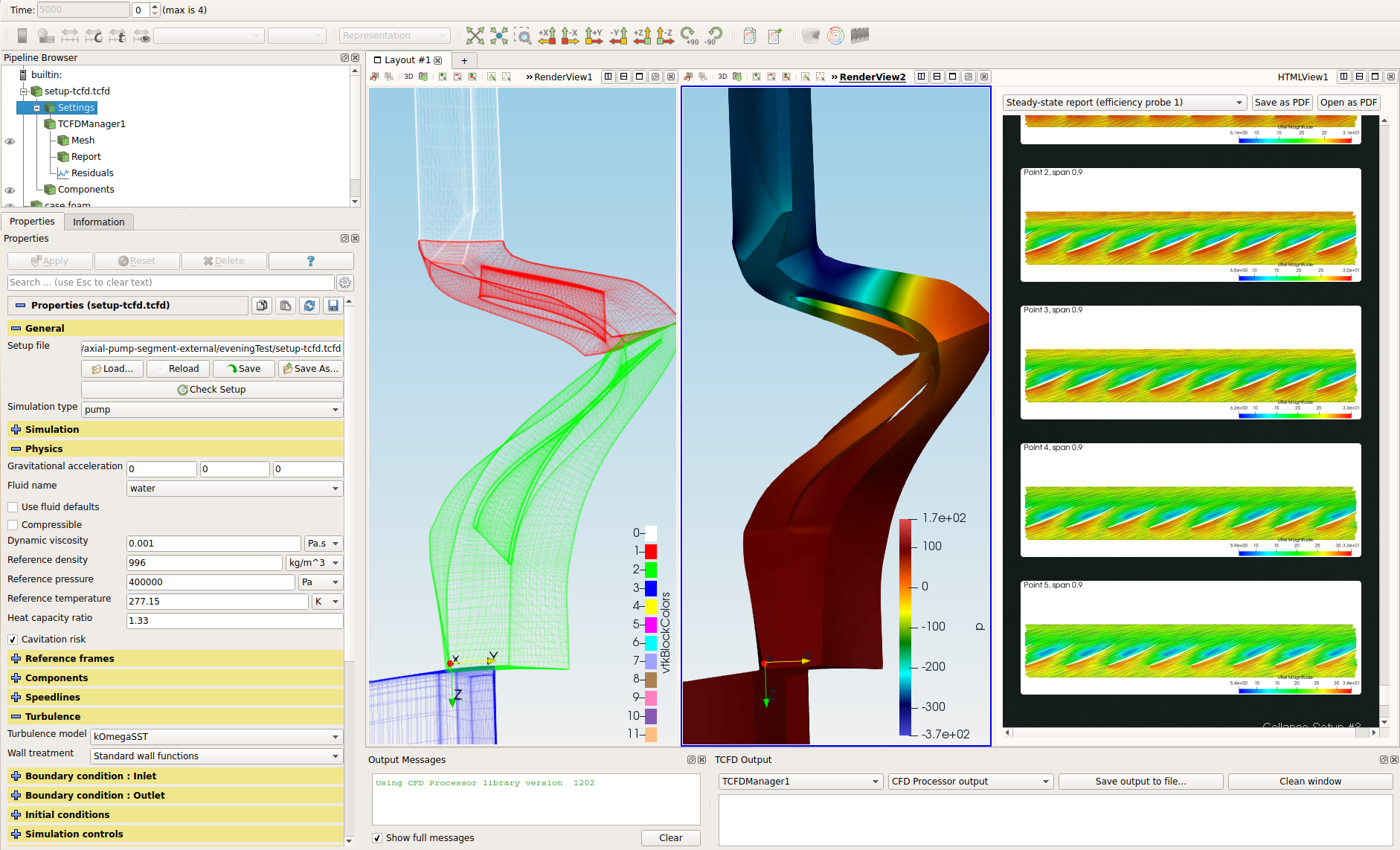

Turbomachinery CFD axial pump in graphical interface

Running CFD Simulation

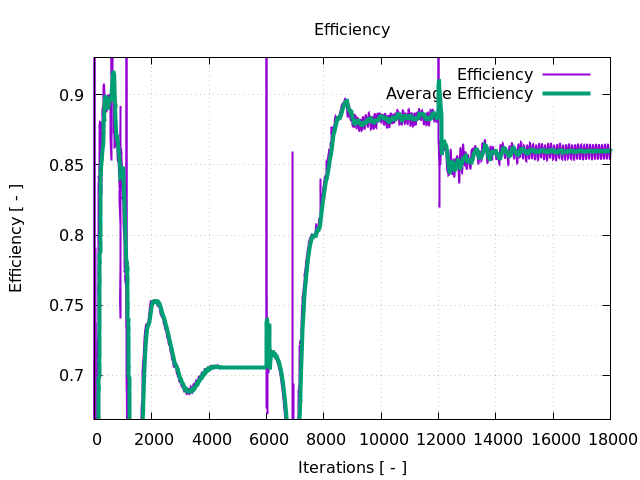

The simulation can be run on any number of parallel processors. Immediately after the simulation is started the user can watch the progress of all the important quantities: flow rates, residuals, efficiency, torque or pressure difference. This run-time function gives the user valuable information of the convergence and also the availability to stop the simulation before its standard end. The current results and the .html results report can be updated anytime during the simulation run.

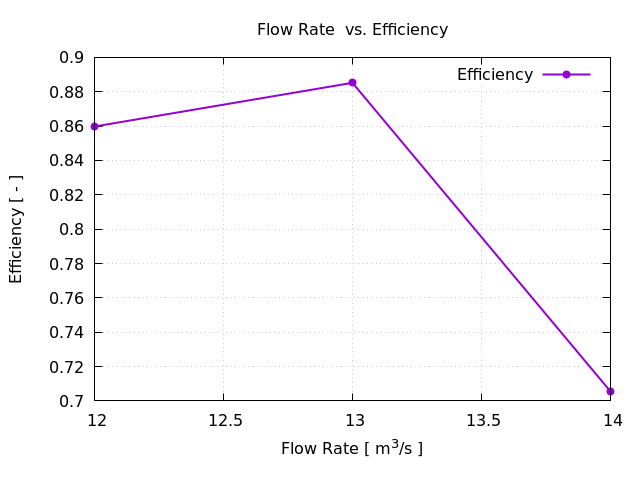

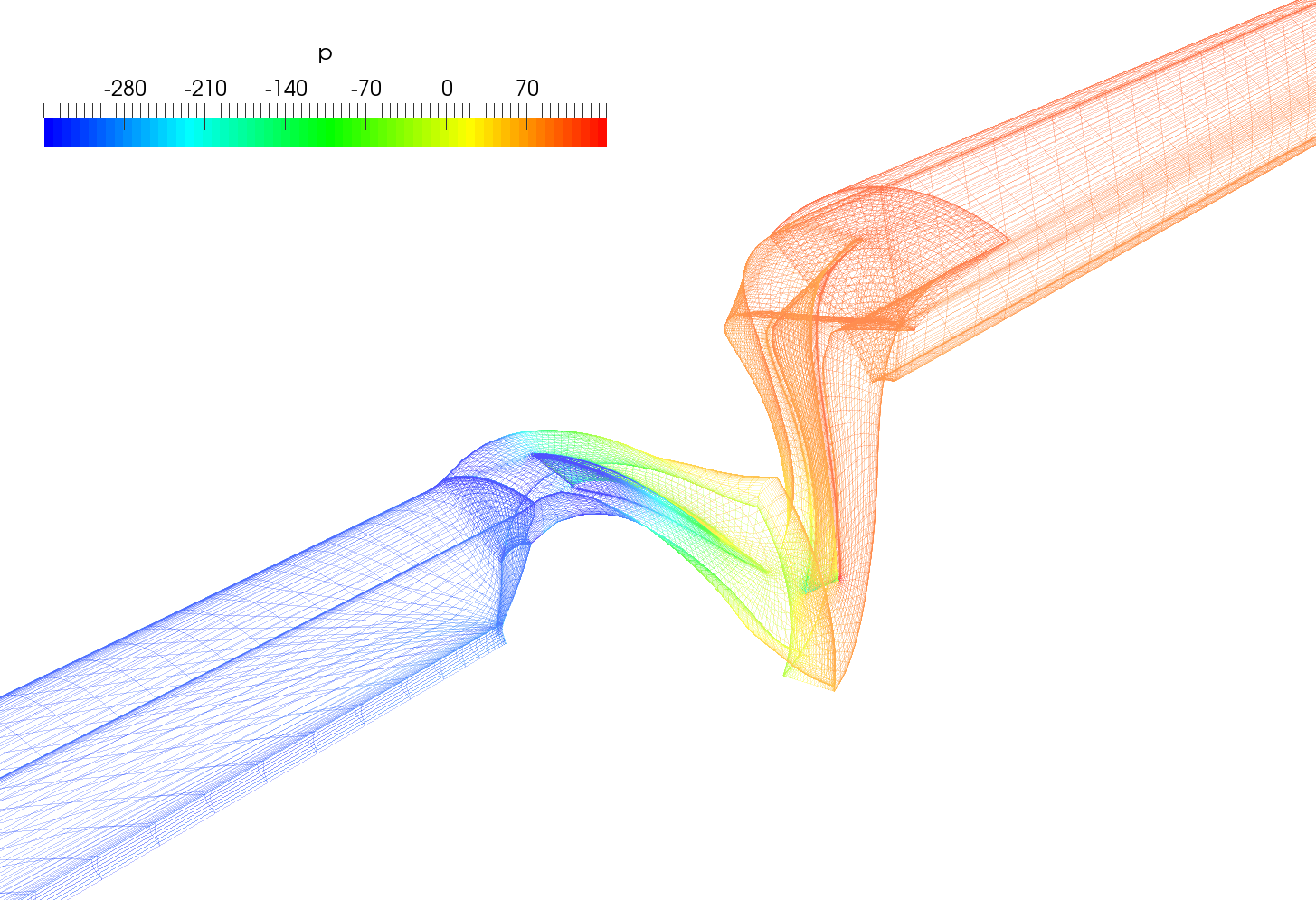

TCFD Axial Pump Gnuplot Efficiency FLow Rate    Turbomachinery CFD Axial Pump Gnuplot Efficiency Iterations    Axial Pump Turbomachinery CFD Mesh Pressure

Every simulation performed in TCFD® has its report in .html format: Axial Pump Simulation Report Example.



Visual Postprocessing using Turbo Blade Post

The visual simulation results are watched in ParaView (included in any OpenFOAM distribution). ParaView is CFD postprocessing tool providing all standard features for analyzing CFD data.

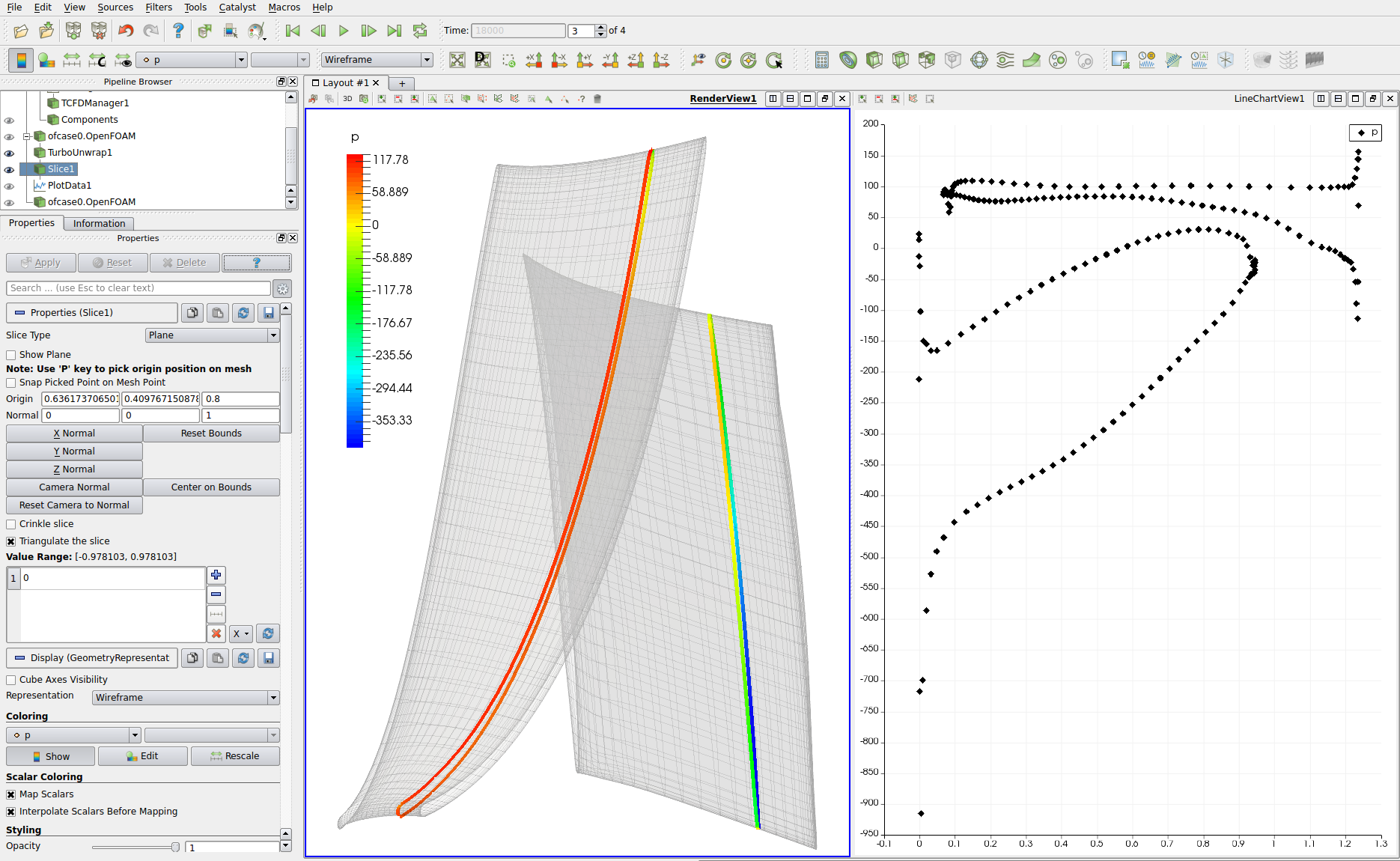

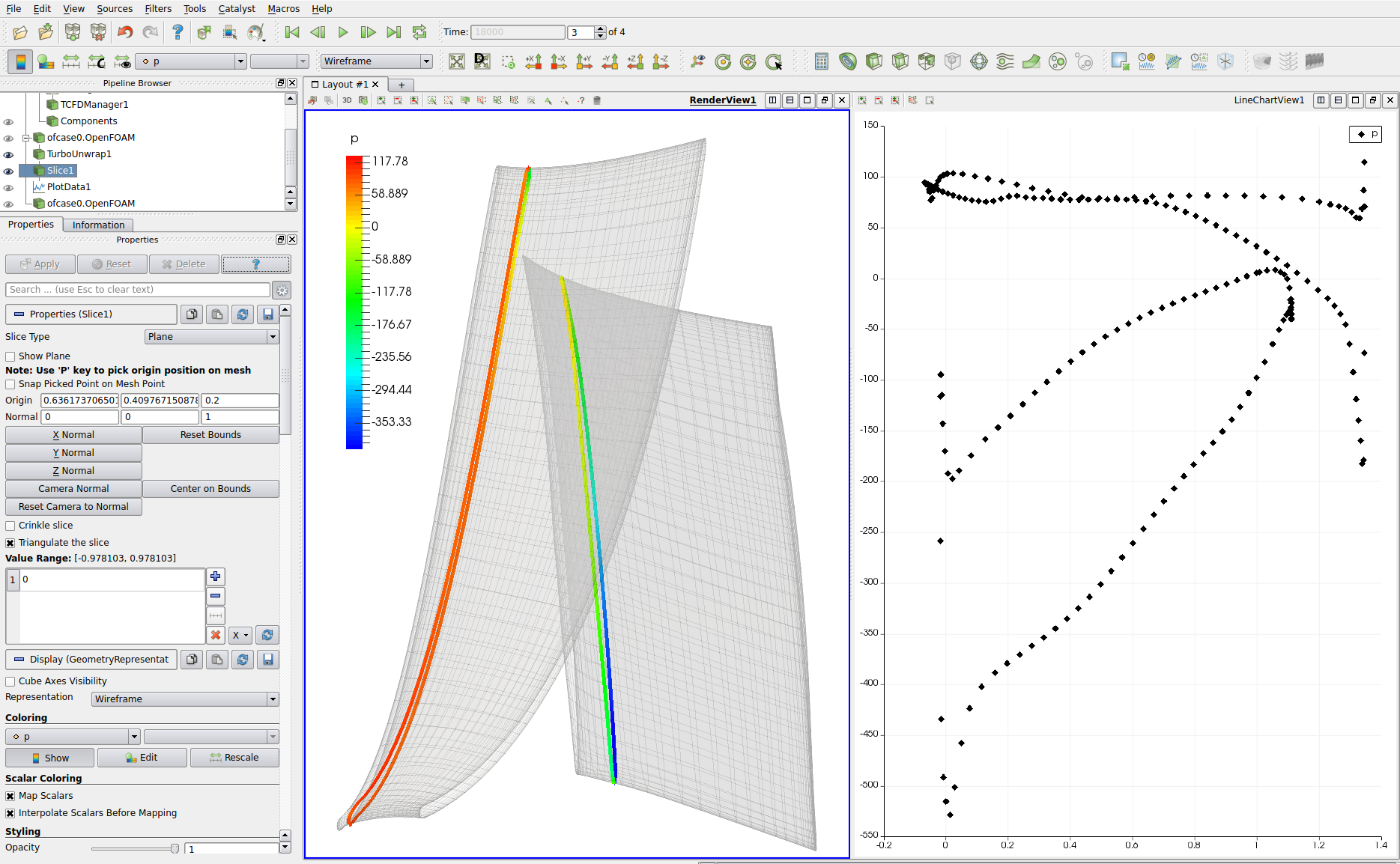

Axial Pump Turbomachinery CFD Blade-to-Blade Plot Around Blade20      Axial Pump TCFD Blade-to-Blade Plot Around Blade 80

CFD Support developed a special extension to ParaView for postprocessing of rotating machinery: Turbo Blade Post. It is special a set of special filters for ParaView to enable for example blade-to-blade view, or meridional average view. Turbo Blade Post detailed manual is available on-line: Turbo Blade Post Manual

Turbo Blade Post can create Blade to Blade view, display surface LIC on surfaces - the streamtraces in the plane. Turbo Blade Post allows displaying relative velocity, it can explore the angle of attack at the leading edge. The same at the trailing edge.

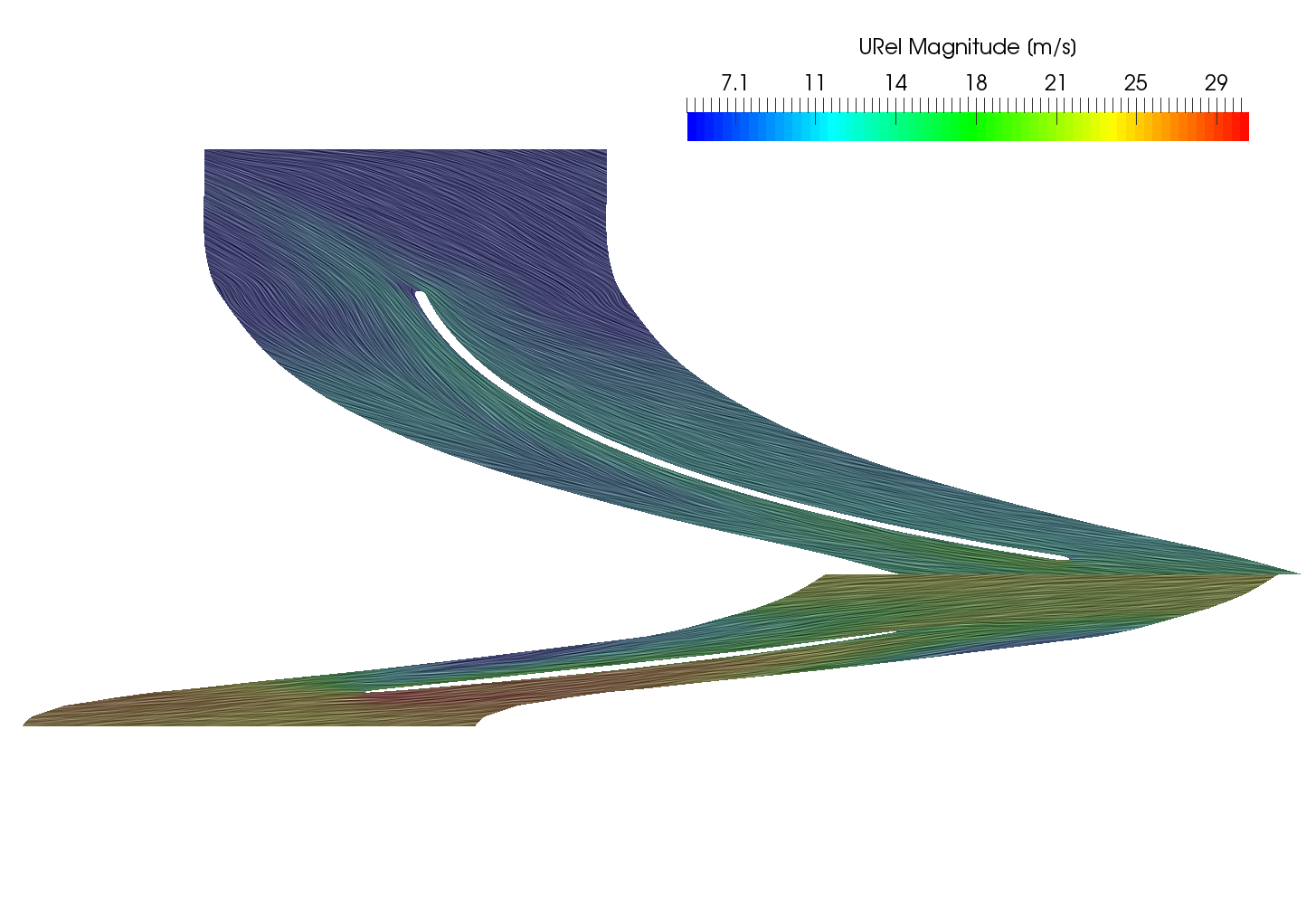

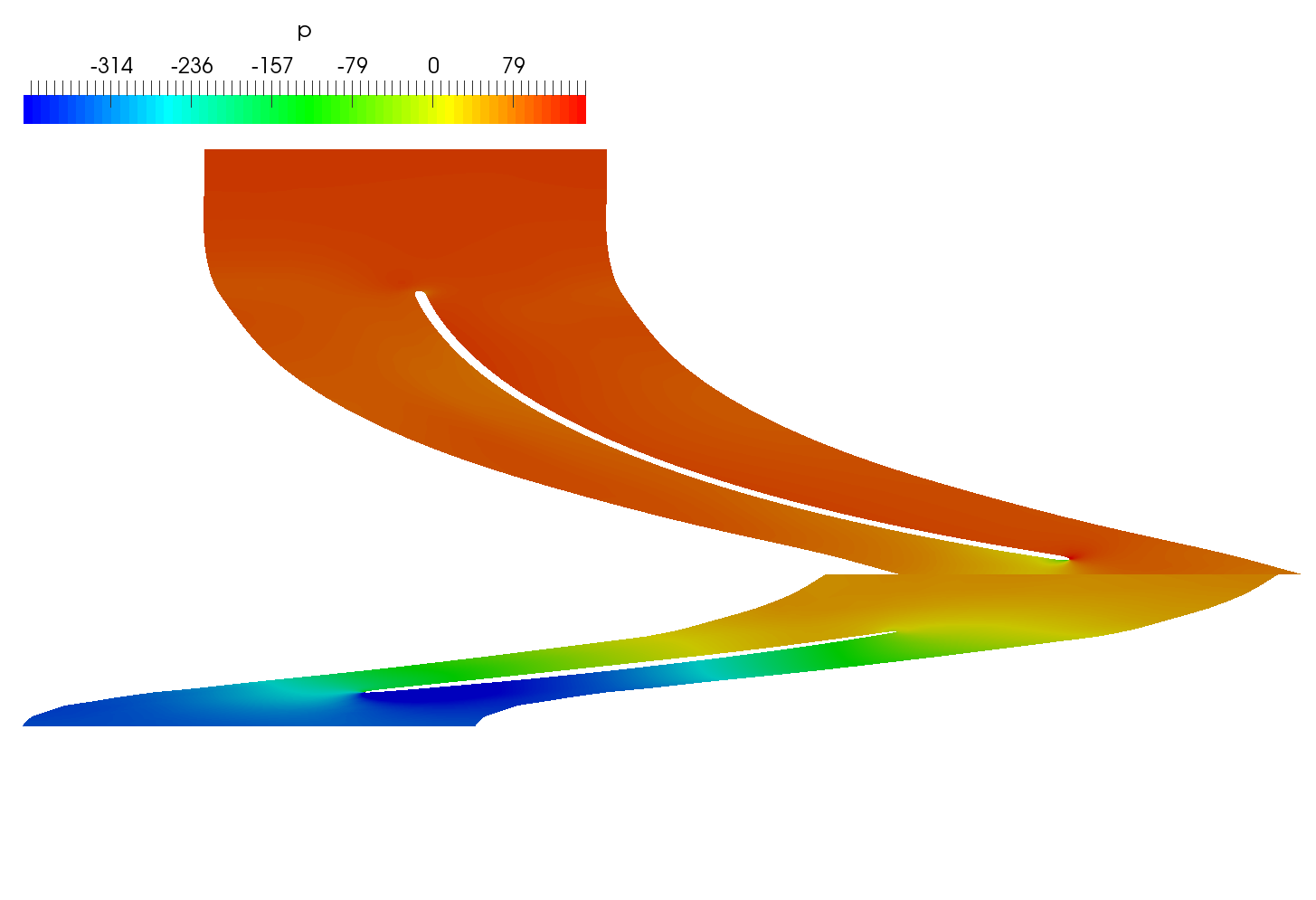

Axial Pump TCFD Blade-to-Blade Relative Velocity LIC      Axial Pump TCFD Blade-to-Blade Pressure

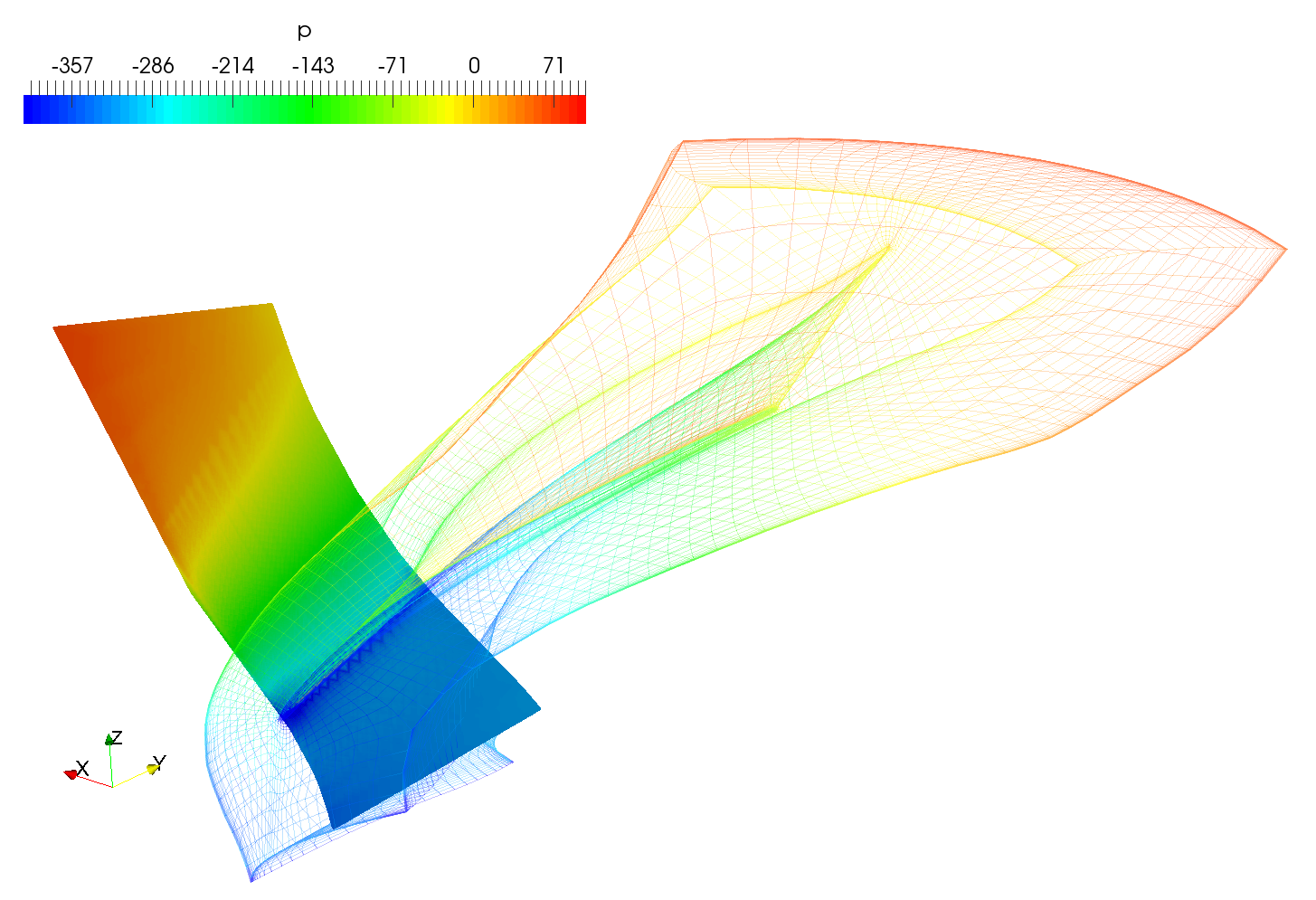

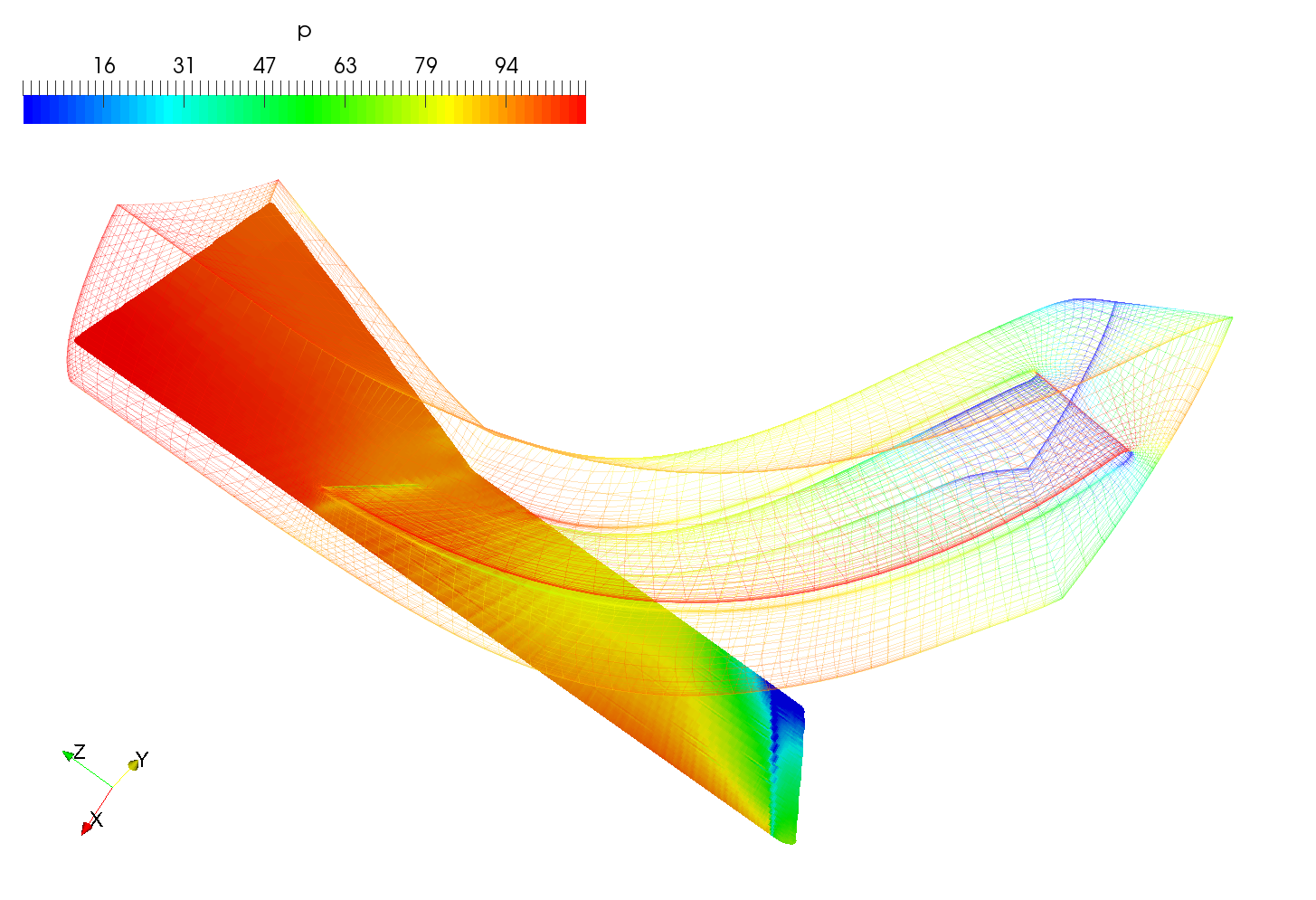

Within Turbo Blade Post the machine parts can be unwrapped to be able to slice the computed quantities at the same height along the blade. Within such a unwrapped mesh it is also possible to plot quantities around the blade at the certain height. Another Turbo Blade Post function is Meridional Average which creates a meridional plane of circumferential averages of simulated quantities.

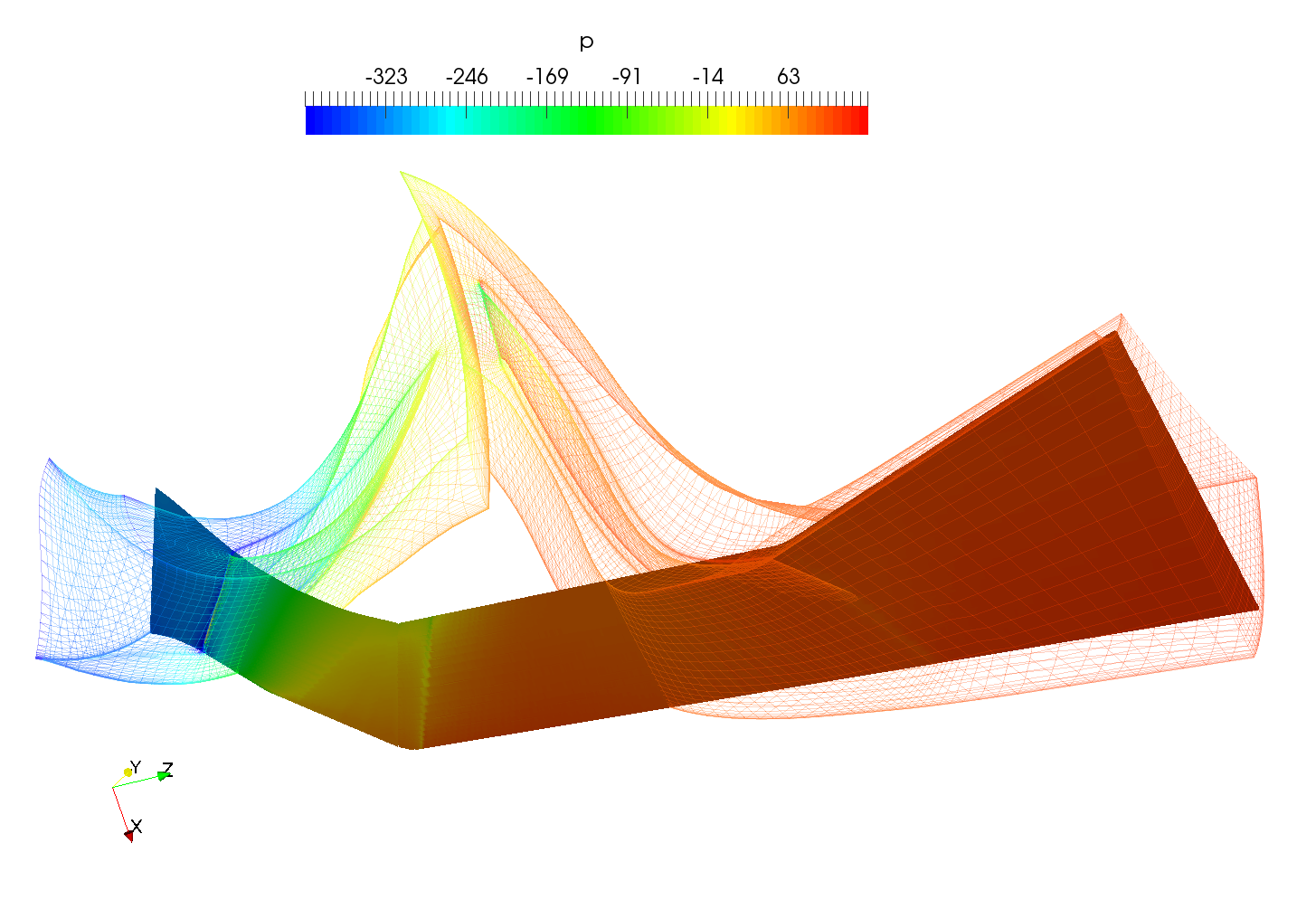

Axial-Pump-Turbomachinery-CFD-Rotor-Meridional-Average      Axial-Pump-Turbomachinery-CFD-Stator-Meridional-Average      Axial-Pump-Turbomachinery-CFD-Rotor-Stator-Meridional-Average
