Close the Model and Separate the Inlet and the Outlet

  • In the following section there will be shown how to close the surface model. Particularly, how to create the inlet and the outlet boundary.
  • The second step would be to split the valve model into two parts – inlet part and outlet part. Between these two parts there will be an interface where a user can evaluate his CFD results.
  • The interface between these two regions will be located in the middle of the original region. Exactly at that location, where the cuts 3 and 4 were made in the previous section (see figurecrossref).
  • Use those faces from the valve body shell and cuts and show only the faces needed for the inlet region as it is displayed in the figure crossref.
31

Figure: The inlet part with no inlet and outlet (interface)

Create a new shell from the faces of the inlet part – as it is shown in the figure crossref

32 1

Figure: Inlet part shell creation – region1

  • There are three “openings” in the model of the inlet region of the valve.
  • It is necessary to close them to make the model waterproof. Create three faces to close all these three openings. The first one is inlet boundary, the second one is interface between inlet and outlet region. The third one is the top closure around the valve’s plug.
  • To close openings of the surface model you should use Suppress Holes functionality.
  • In the upper menu navigate to Repair – Suppress holes

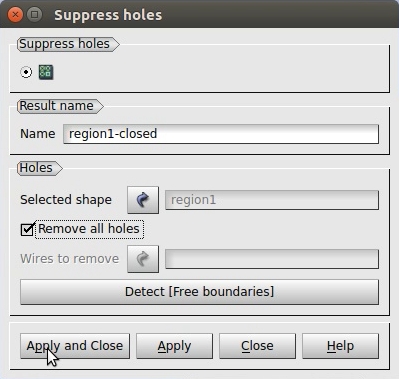

  • Fill out the form in the Suppress holes window in a way as it is shown in the figure crossref and click Apply and close
33
  • All three openings are closed now. Displayed in figure crossref
34 1

Figure: Inlet region shell creation – region1

  • After that repeat the same procedure for the outlet region.
  • You can see resulting shell of the closed outlet region in the figure crossref
35

Figure: Outlet region

  • Save your progress.
  • BTW: The current state can be loaded anytime as an original file: “part3.hdf“.
