Manifold CFD Simulation

This study shows a smooth workflow of performing a complex CFD analysis of manifold pipe using TCFD®

TCFD® Main Page - Download This Tutorial - Manifold - Results Report


TCFD tutorial manifold piping multiple inlet interface


TCFD® is automated workflow


CFD SUPPORT introduces the new generation of CFD simulations. TCFD® brings an extreme increase of productivity to CFD simulations. TCFD® is extremely popular project, because it successfully merged benefits of an open-source (perpetual, unlimited users, jobs, and cores, customizable, ...) with benefits of commercial codes (professional support, well tested, ready for the industry, robust, accurate, automated, GUI, ...).

TCFD - Turbomachinery CFD scheme automated workflow

TCFD® is fully automated, it can run the whole workflow by a single command: data input, new case is written down, mesh is created, case is set-up, case is simulated, results are evaluated and the results report is written down. Both GUI and batch mode. Data in - data out. TCFD® is mainly focused on supporting the engineers in their real value added work. TCFD® is fully automated and the beauty of TCFD® is that it is the user who decides how deep to dive into a CFD or not at all. And all the options remain open at the same time.


Input data

The surface model data in .stl file format together with physical inputs are loaded in TCFD®. Other option would be loading an external mesh in OpenFOAM® mesh format, or loading an MSH mesh format (Fluent mesh format). This CFD methodology employs a multi component approach, which means the model is split into a certain number of regions. In TCFD® each region can have its own mesh and individual meshes comunicate via interfaces.

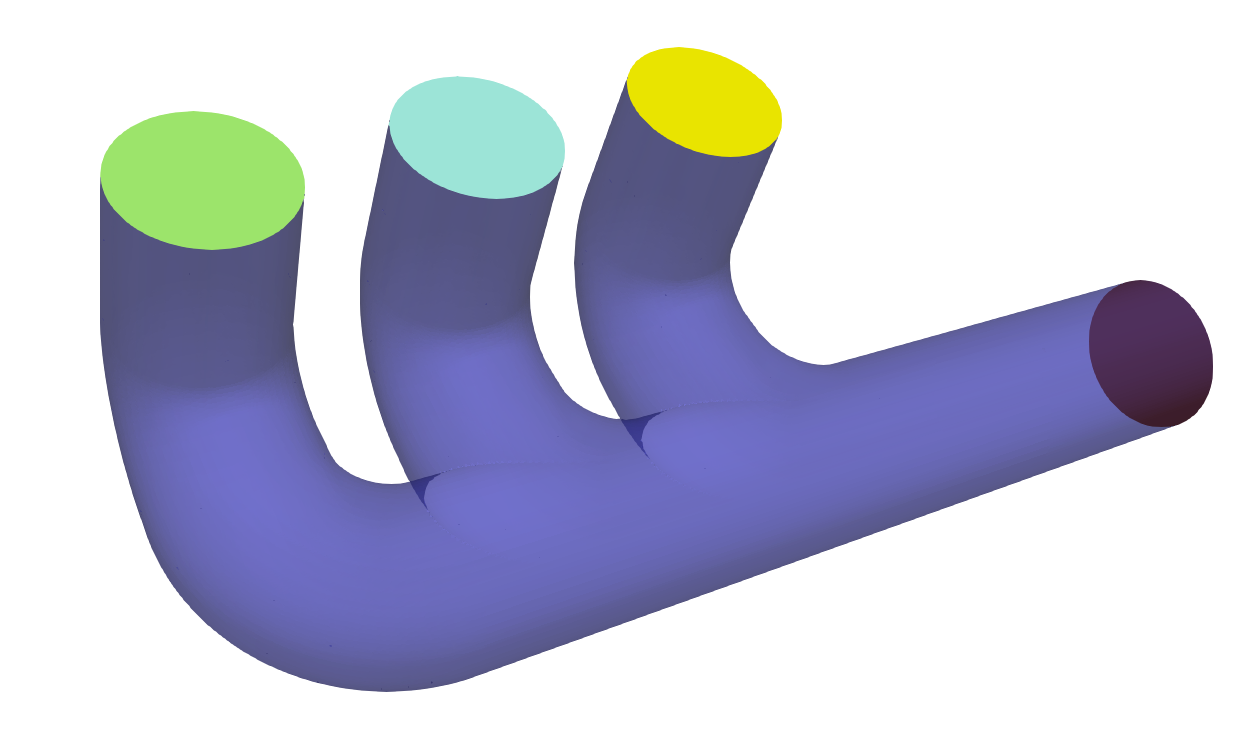

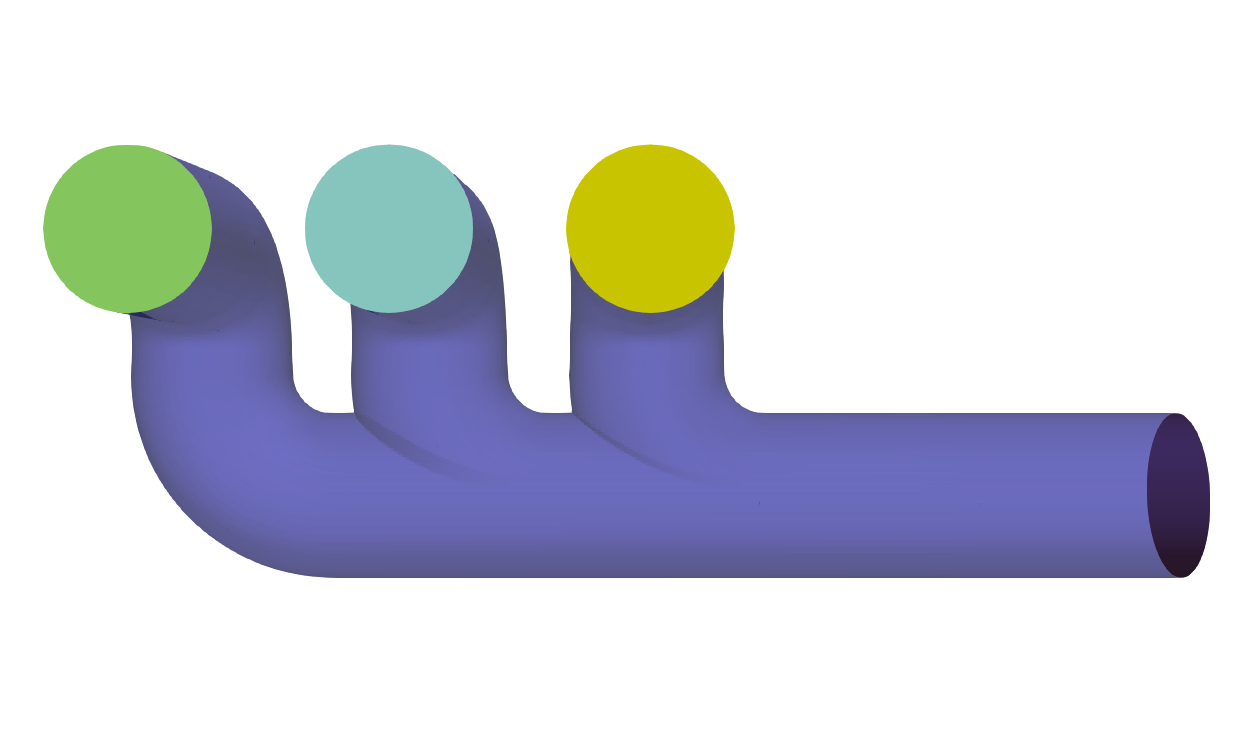

TCFD manifold tutorial geometry front view      TCFD manifold tutorial geometry left view


Grapgical interface

All the case settings are set in a graphical intergace. The TCFD® graphical interface is based on ParaView. Most of the users prefer to use a graphical interface against the command line.

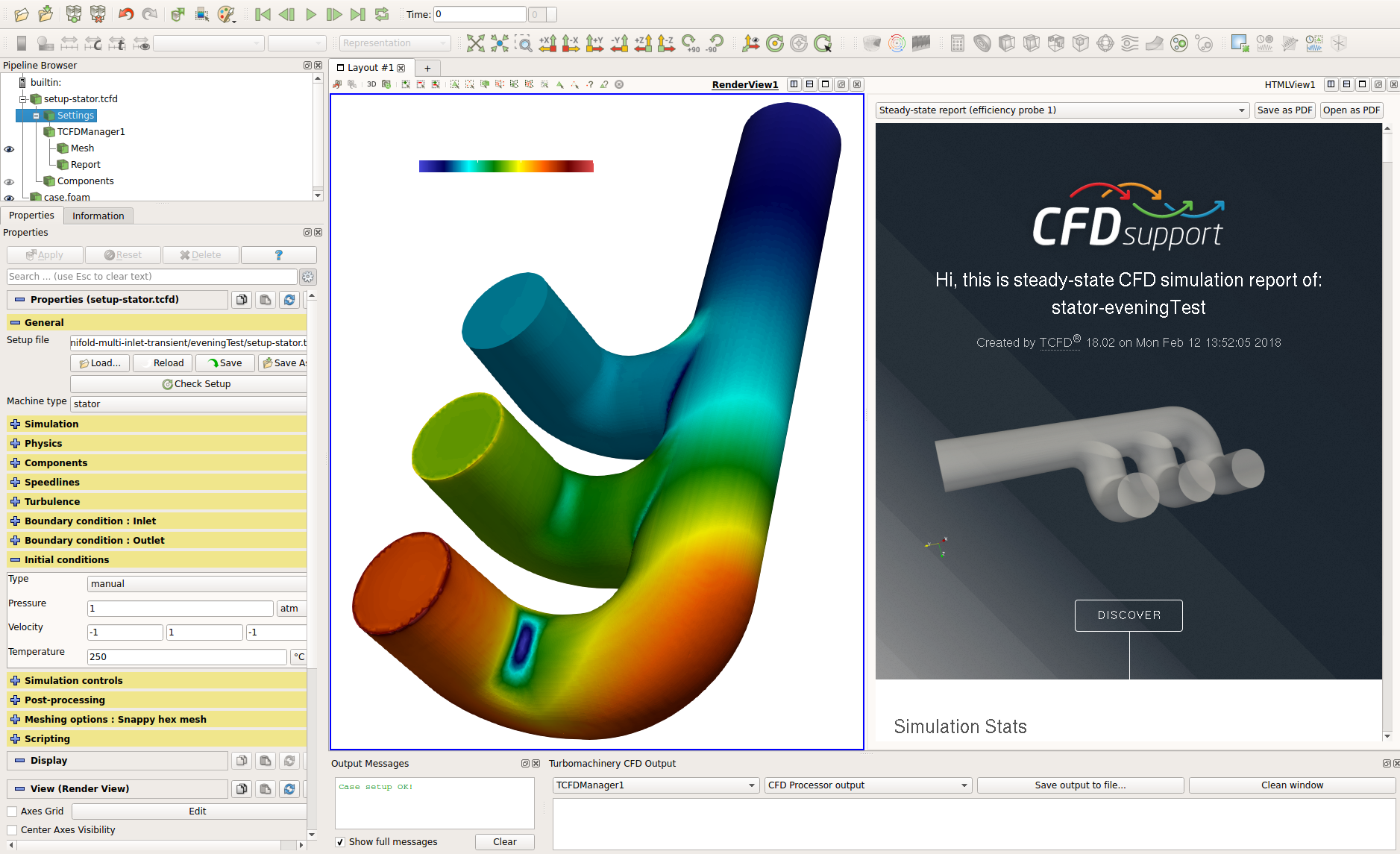

TCFD tutorial manifold piping multiple inlet interface




Easy to test the mesh sensitivity

In practise the rough mesh with no boundary layer (CPU time: 4 core*hours/single point) can give the same results as the fine mesh with boundary layer (CPU time: 20 core*hour/point). So finally, the rough mesh effect can eliminate the lack of boudary layer. Anyway, with fully automated workflow it is easy to make many tests to callibrate to actual machine data.

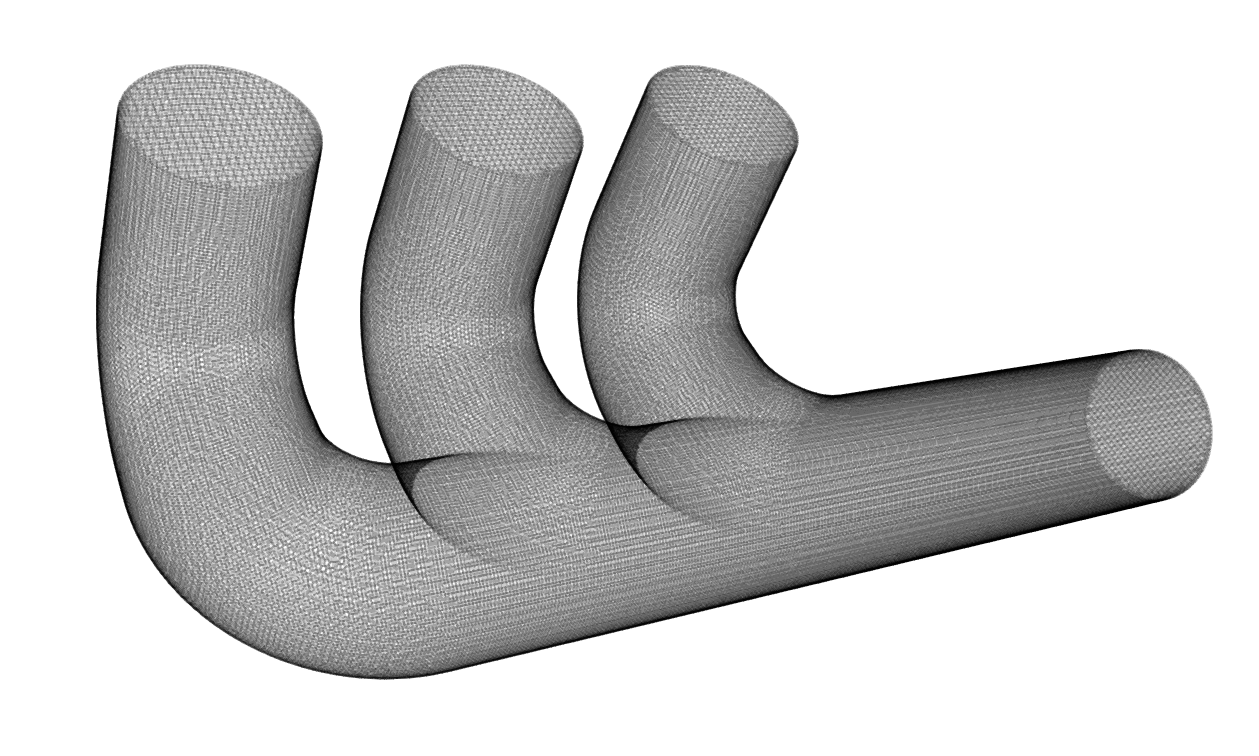

TCFD manifold tutorial mesh snappyHexMesh mesh

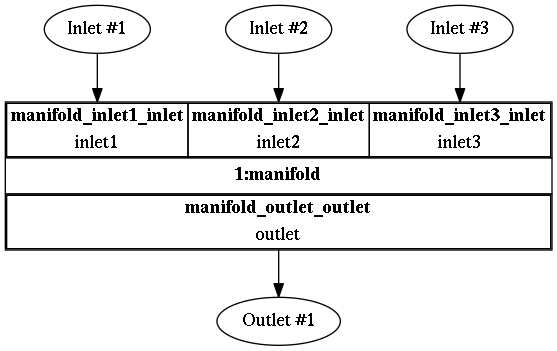

The component graph

Any project simulated in TCFD® has its component graph. The component graph shows how the components are organized - the model topology. What is the inlet, the outlet and how the components are connected via interfaces.


TCFD manifold tcfd tutorial component graph


CFD Simulation Set-up

  • Compressible flow model
  • Transient flow model
  • Medium: Hot air
  • Temperature at inlet: T = 543 [K]
  • Viscosity: μ = 1.831e-5 [Pa.s]
  • Mass Flow Rate: 0.00468 [kg/s]
  • Interface: None
  • Turbulence Model: k-ω SST
  • Mesh: snappyHexMesh, hexadominant
  • Mesh Cells: 345250
  • Number of components: 1 [-]
  • CPU time: 3 [core.hours]

For more details of CFD Simulation Set-up see TCFD® Manual.


Running CFD Simulation

The simulation can be run on any number of parallel processors. Immediately after the simulation is started, the user can follow the progress of all the important quantities in a HTML report: flow rates, residuals, efficiency, torque, pressure difference and many others. These run-time functions give the user valuable information of the simulation convergence and also the availability to stop the simulation before its expected end.

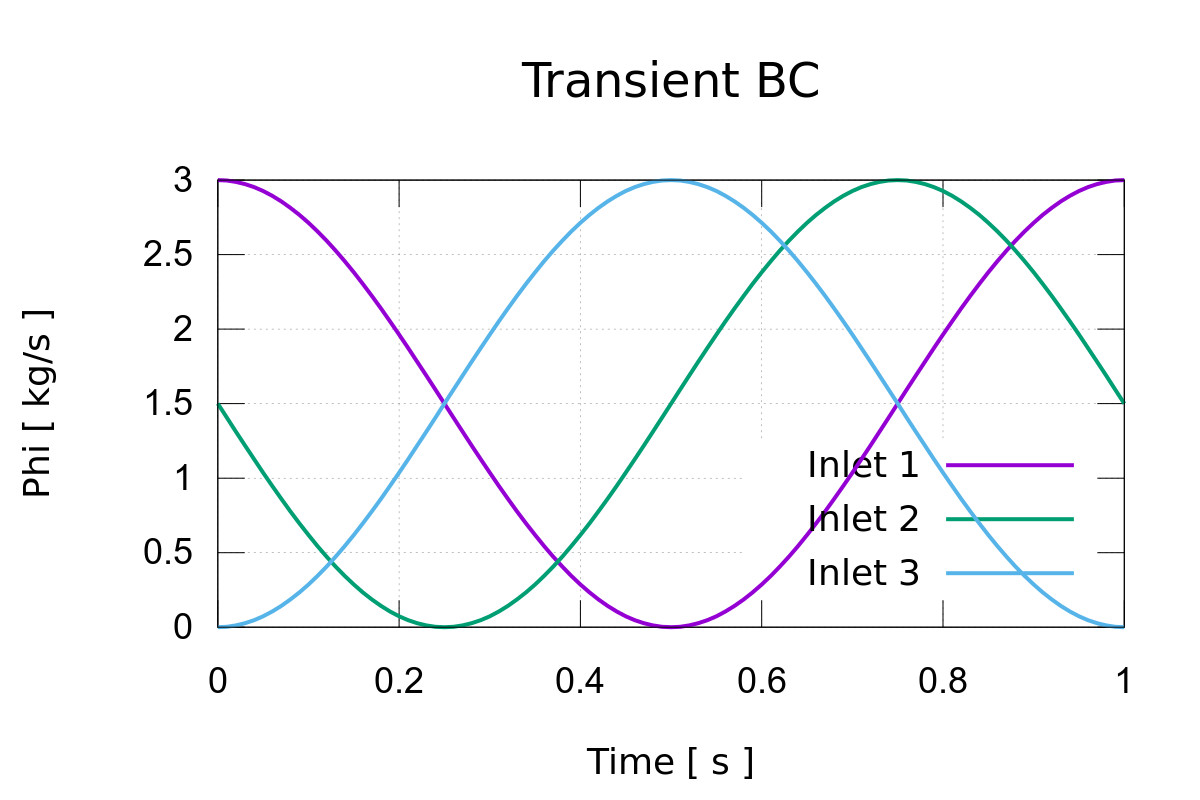

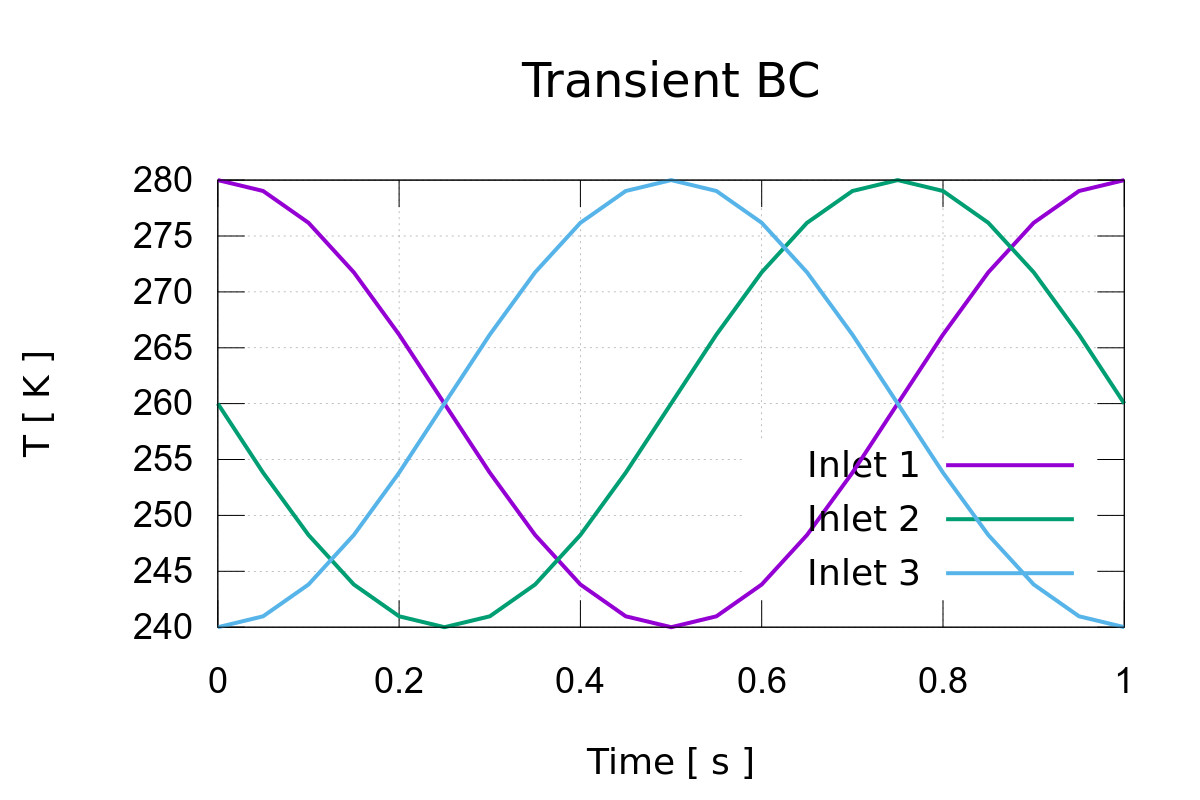

Manifold Inlet BC Mass Flow Rate        Manifold Inlet BC Mass Temperature

This manifold tutorial is special because of transient boundary conditions at the inlet. Mass flow rate and temperature change periodicaly in time.

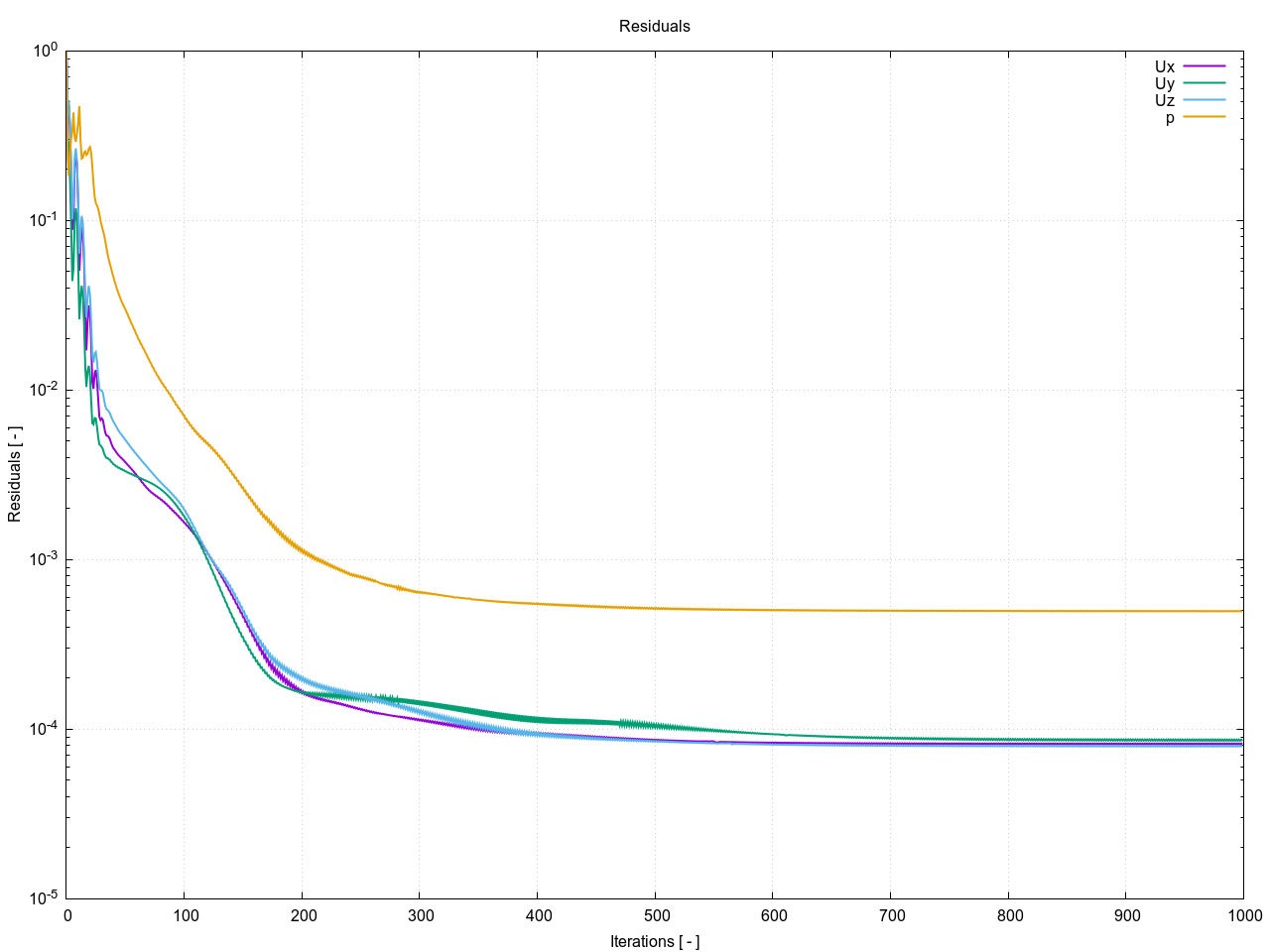

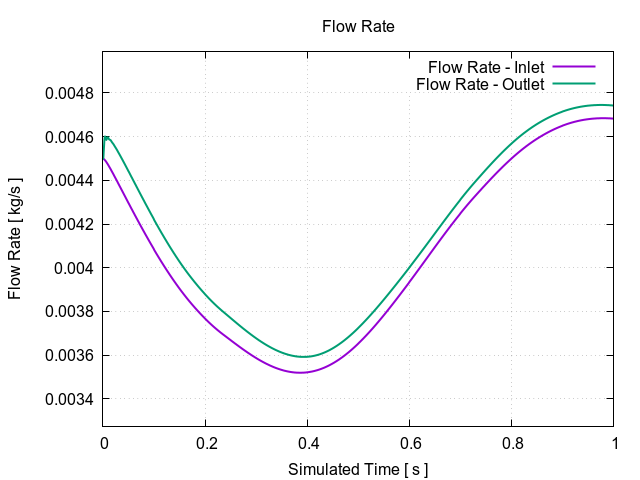

Manifold Residuals Convergence        Manifold Mass Flow Rate


Every simulation performed in TCFD® has its report in web responsive .html and pdf format: Manifold - Results Report.

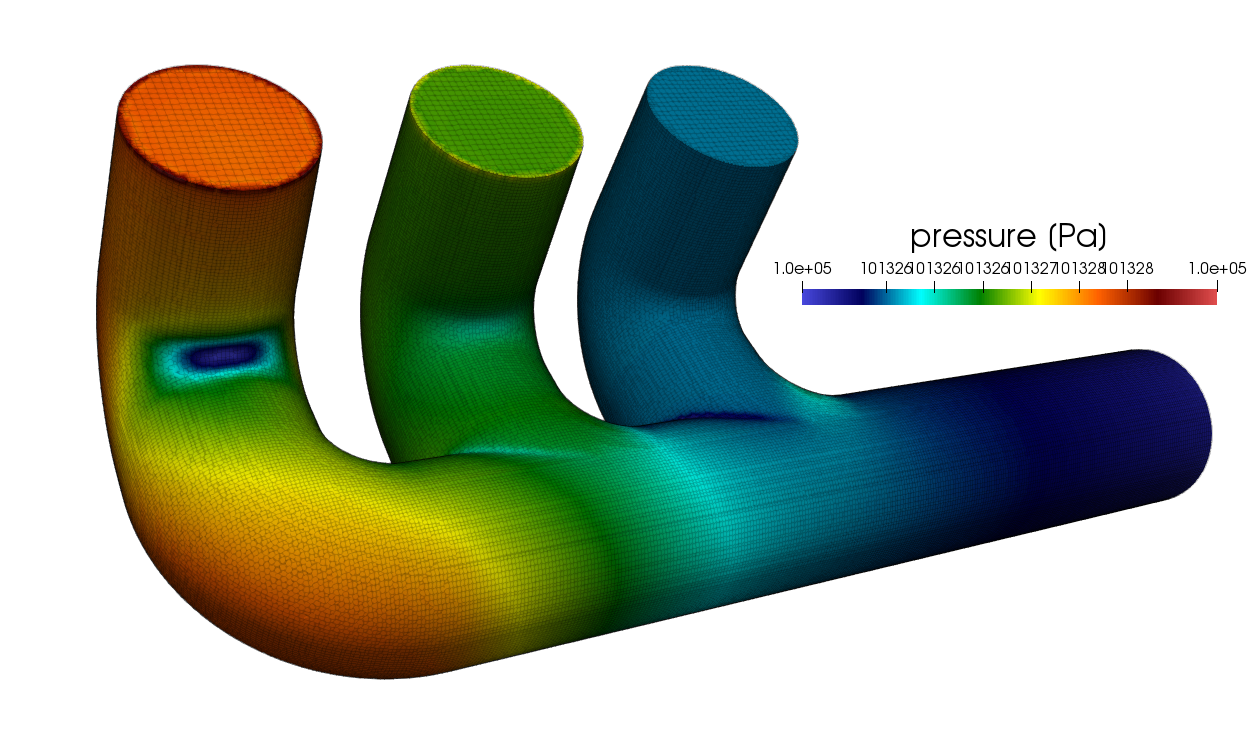

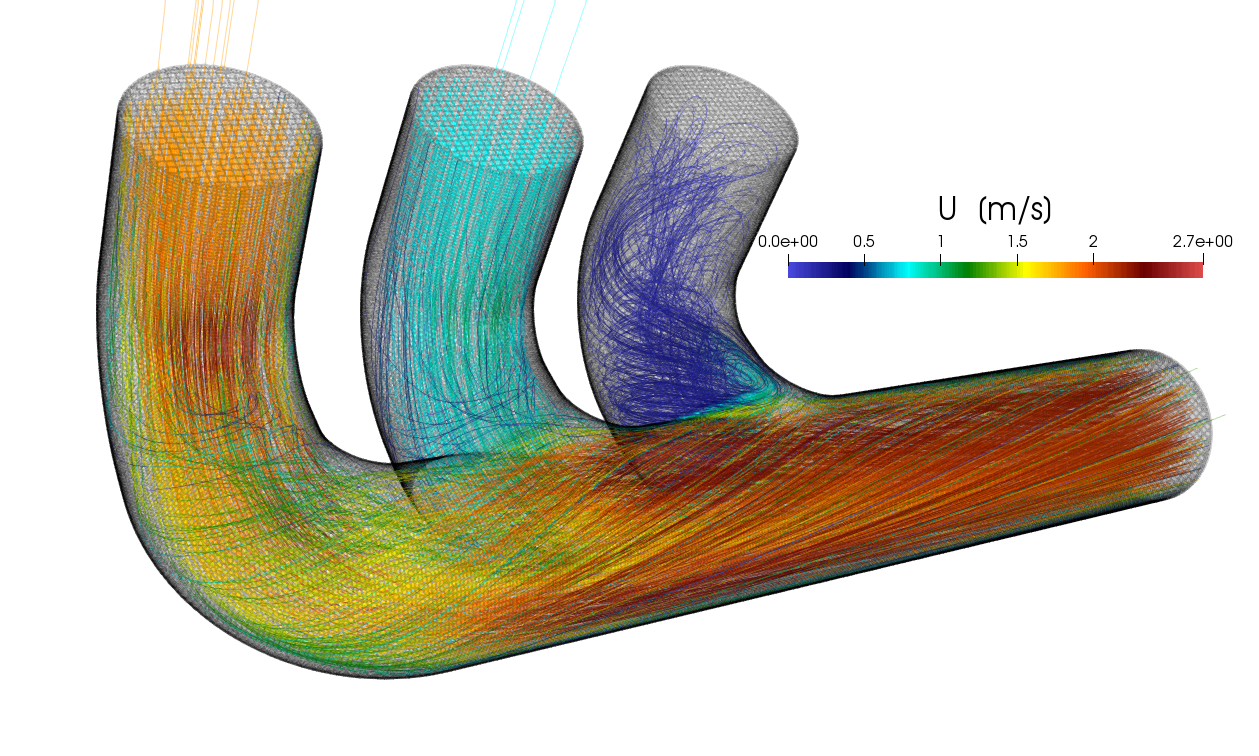

ParaView Contour Pressure Manifold Tutorial      Manifold Paraview StreamTraces Velocity
