Result Examples - Radial Turbine

viewt1ModelMXPp

Figure: Stator-rotor interface pressure distribution. Rotor part (left), mixingPlane average on stator outlet (right).

viewt1Statorp

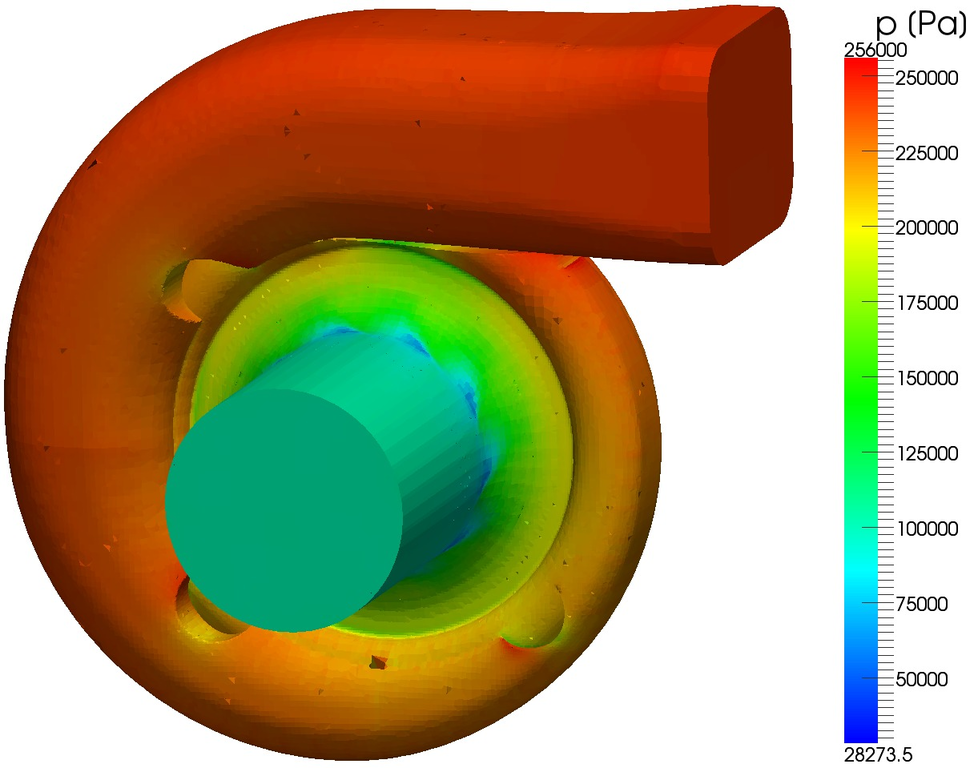

Figure: Stator and rotor pressure distribution.

viewt1Modelp

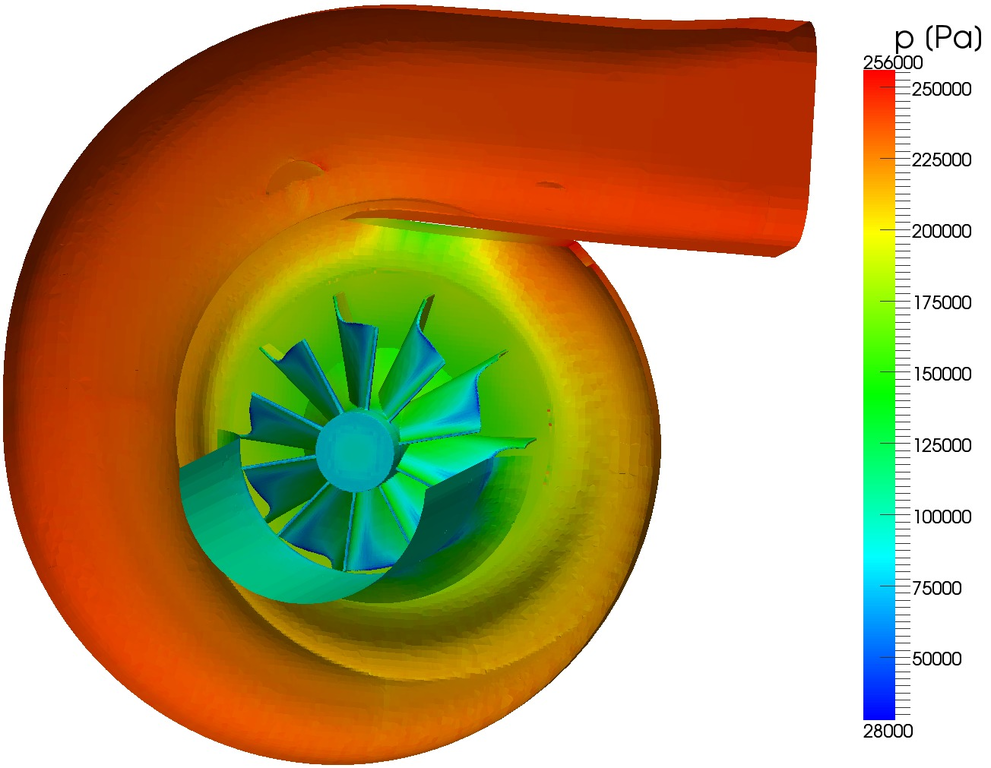

Figure: Stator, rotor and turbine wheel pressure distribution.

viewt1RotorWheelT

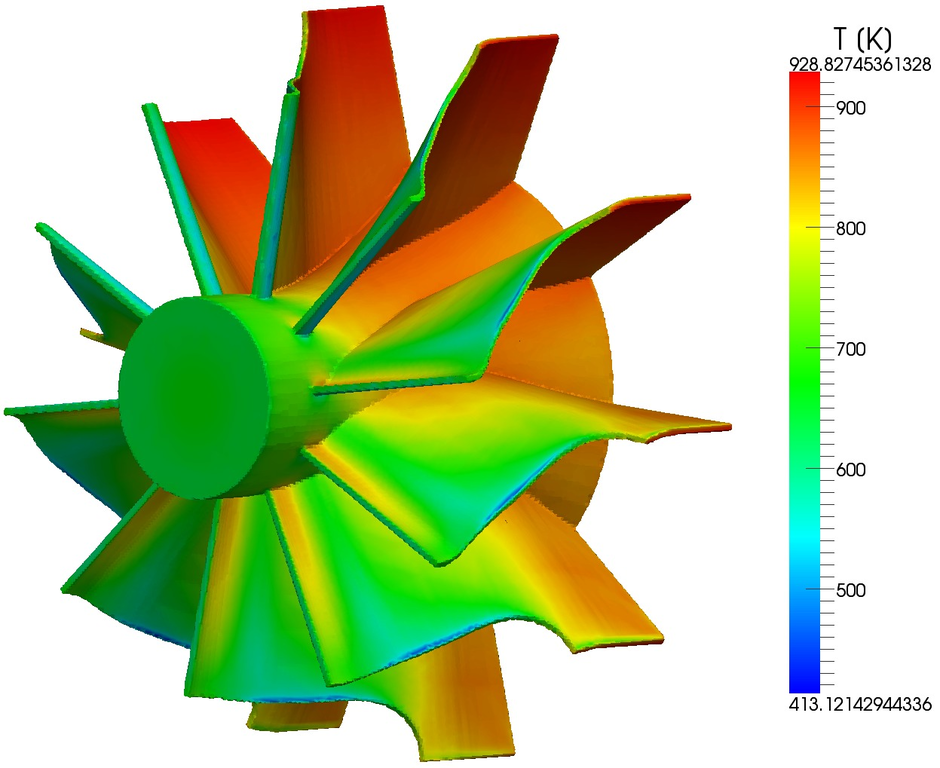

Figure: Turbine wheel temperature distribution.

viewt1RotorWheelp

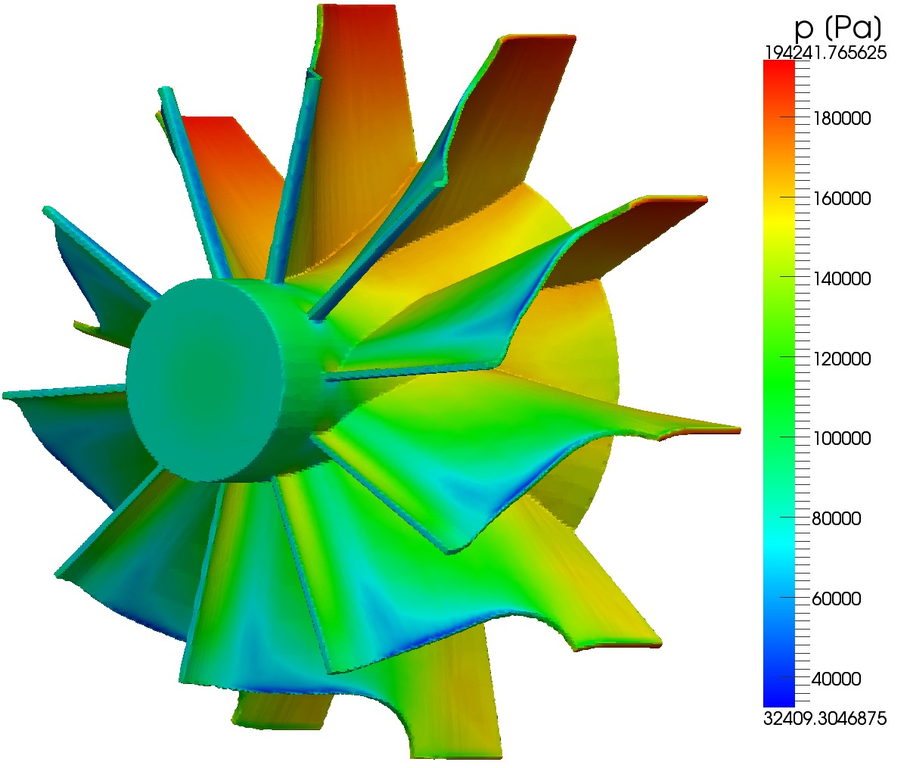

Figure: Turbine wheel pressure distribution.

viewt1SolidT

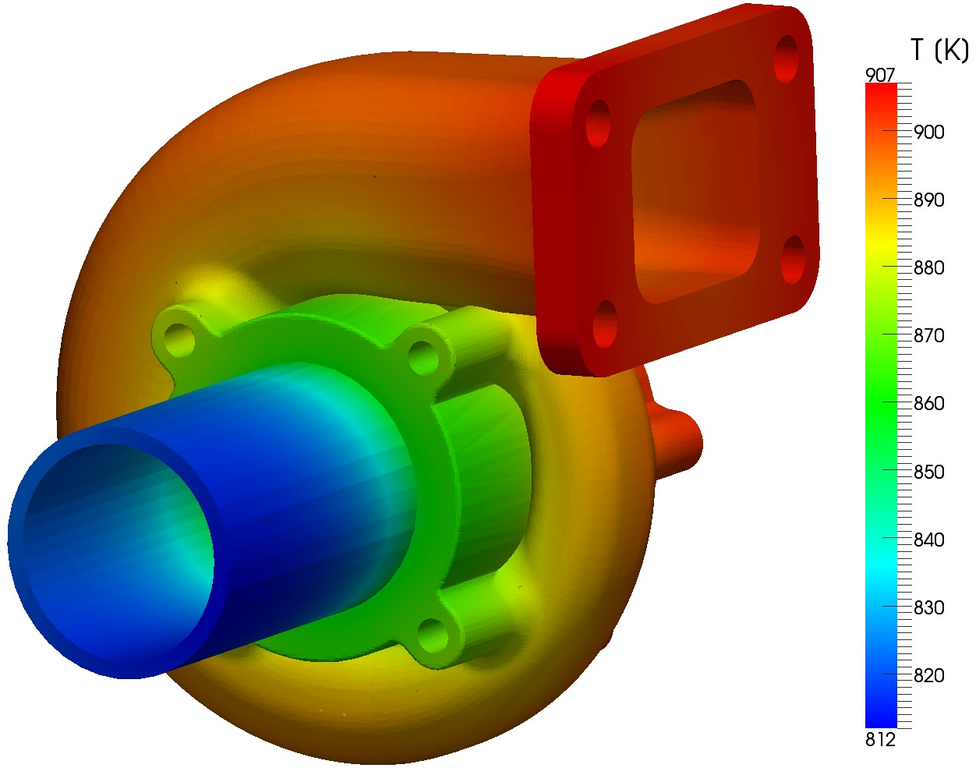

Figure: Solid part temperature distribution.

viewt1StatorStreamp

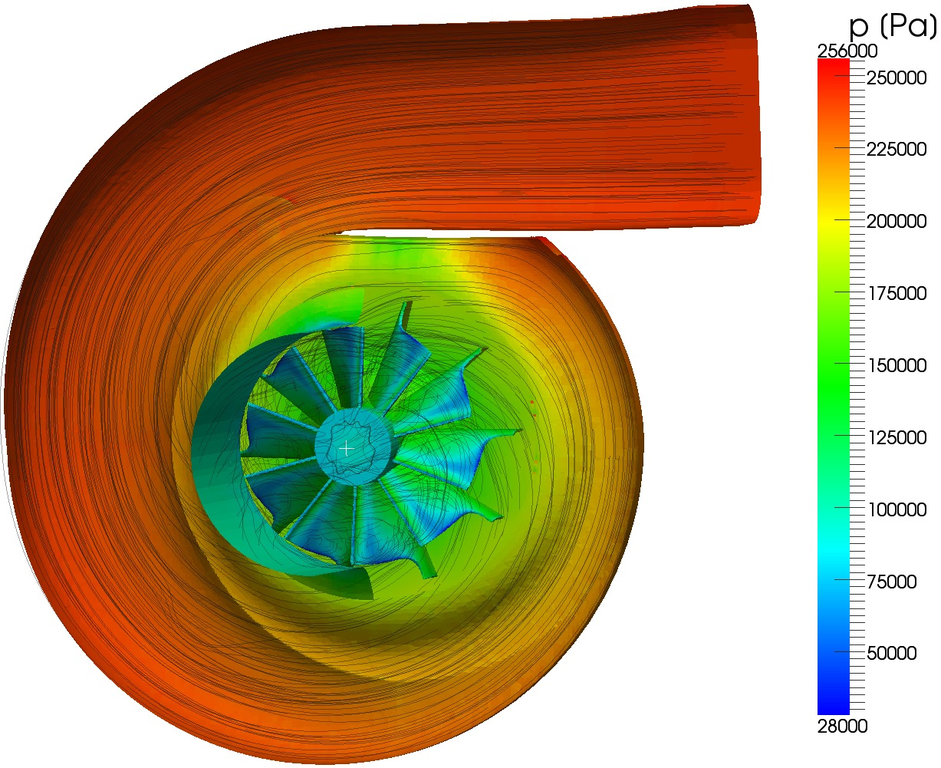

Figure: Stator, rotor pressure distribution and gas stream lines visualization.

viewt1StreamT

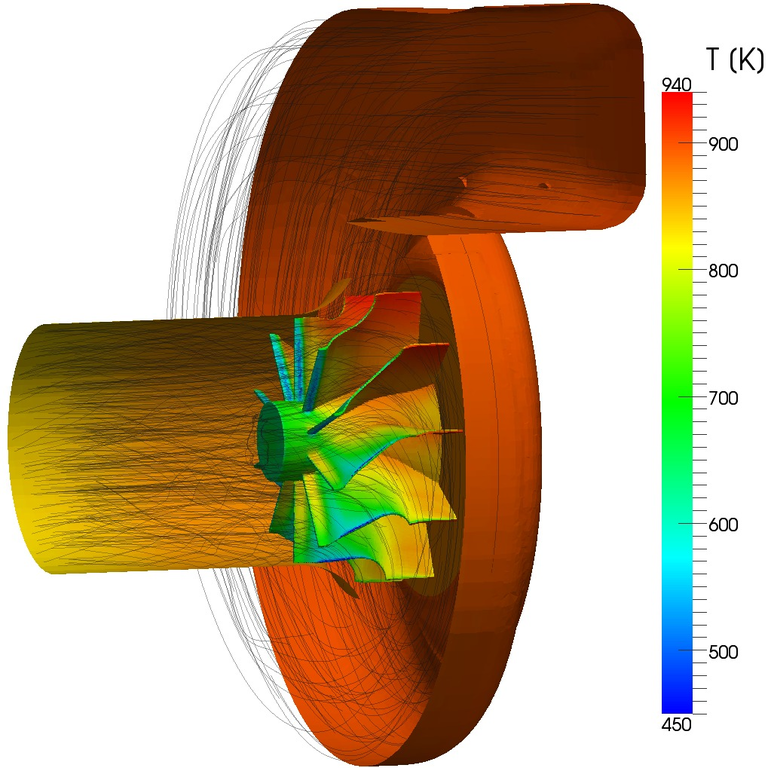

Figure: Stator, rotor temperature distribution and gas stream lines visualization.
