General information

Methodology will be shown on the following test case. The computational geometry of radial turbine is extracted from the turbocharger:

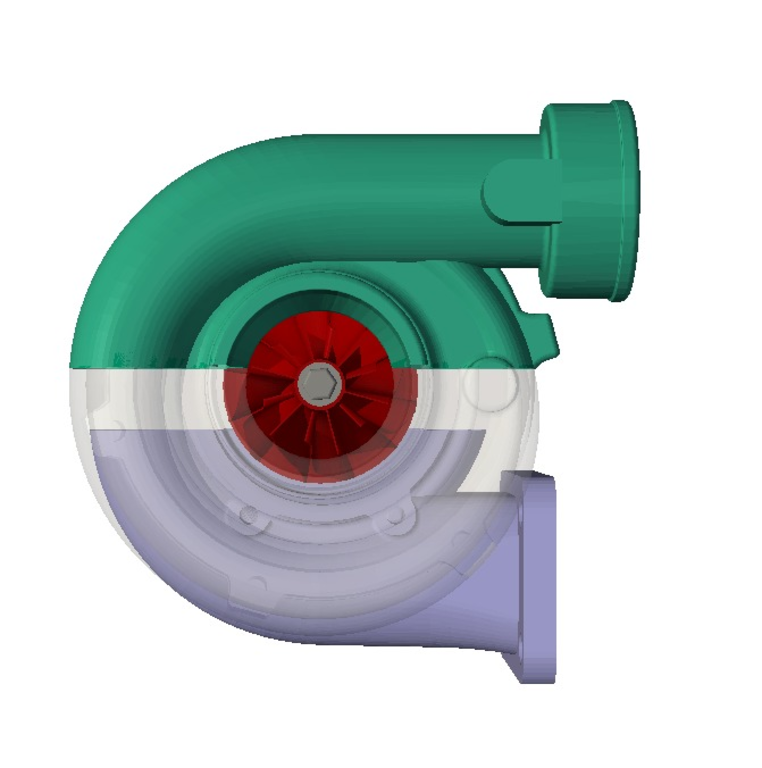

turbocharger z

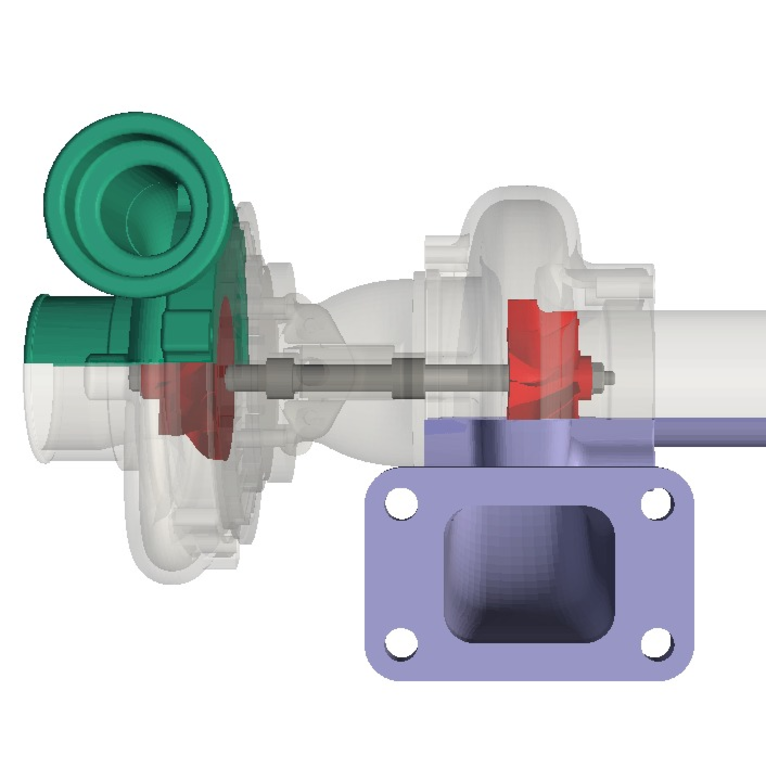

turbocharger y
turbocharger z

Figure: Original turbocharger geometry, radial turbine part depicted in purple.

The input for this methodology consists of surface geometry in (.STL) file format12.1. Original files can be found in directory tutorials/meshFactory/STLSTL model can be viewed in paraview by opening following files:



  • t-housing.stl
  • t-wheel.stl
  • t-back.stl
  • schaft.stl
