Phase ratio initialization

  • Following method can be applied to any quantity



  • Field initialization using setFields utility reading set up from system/setFieldsDict:
    defaultFieldValues
(
    volScalarFieldValue alpha.water 0
);

regions
(
    boxToCell
    {
        box (-100 -100 -100) (100 0 100);
        fieldValues
        (
            volScalarFieldValue alpha.water 1
        );
    }
);



  • First phase bottom, second phase top



  • Initialize phases using utility setFields:

    # mv 0/alpha.water.orig 0/alpha.water
    # setFields

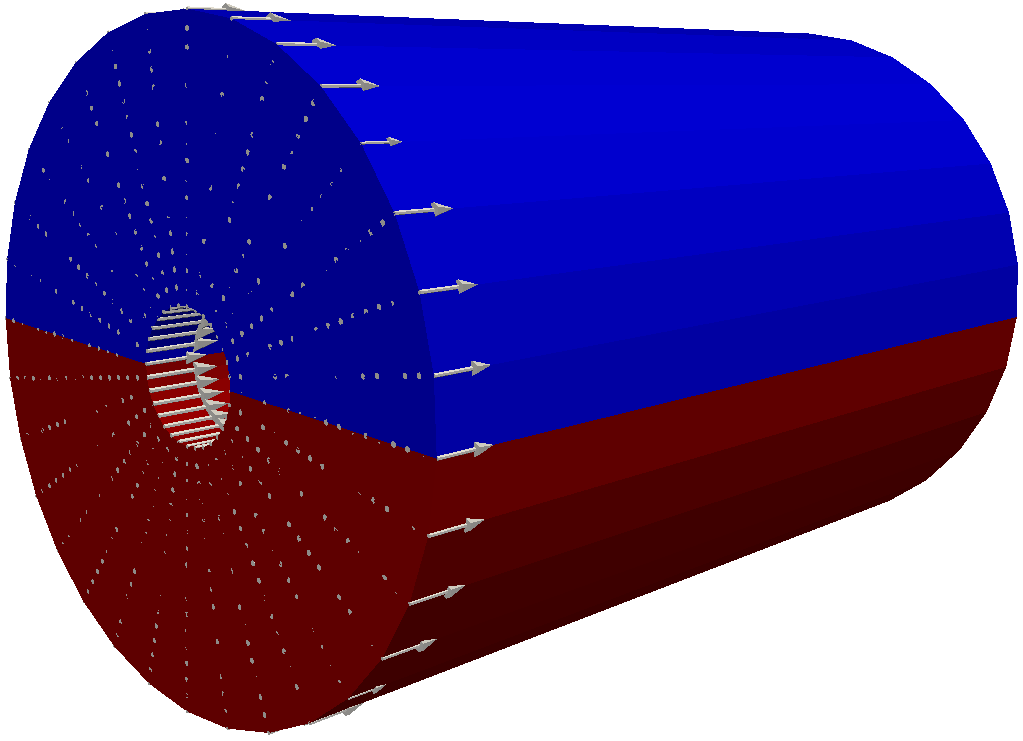

Figure: Initial phases magnitude
