Running SnappyHexMesh - Stator Region

Utility snappyHexMesh refines the background mesh in the direction to the surface model, reading set-up from system/snappyHexMeshDict. Create the mesh running snappyHexMesh utility:
1 3 snappyHexMesh

Renumber mesh using renumberMesh utility:
1 3 renumberMesh -latestTime

When finished, check the mesh running checkMesh and view the mesh in paraview:
1 3 checkMesh
1 3 paraFoam


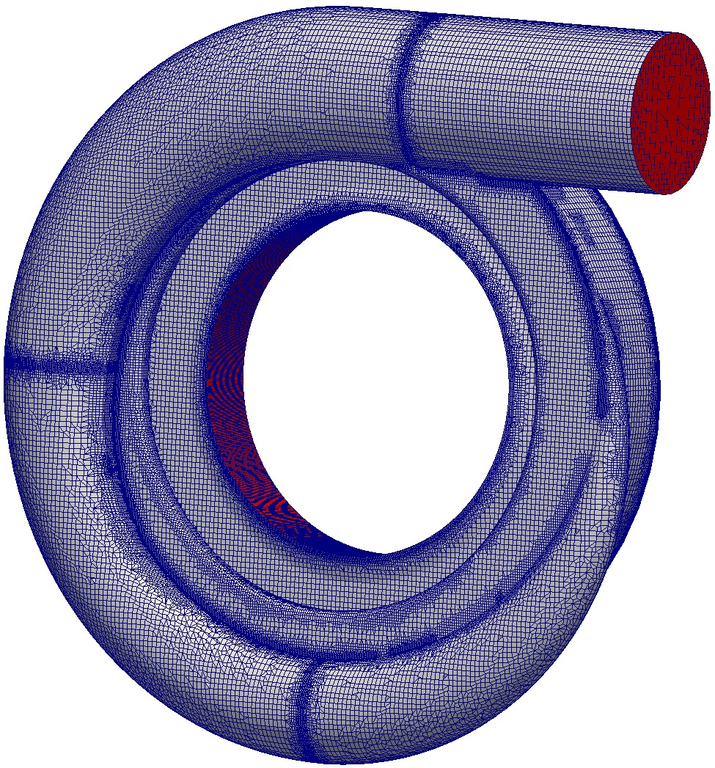

Figure: Stator mesh view.
