Running SnappyHexMesh - Spiral Region

Utility snappyHexMesh reads set-up from system/snappyHexMeshDict and refines background mesh in direction to the surface model. The snappyHexMeshDict dictionary is already set.

Create the mesh running snappyHexMesh utility:
# snappyHexMesh

When finished, check the mesh running checkMesh and view the mesh in paraview:
# checkMesh -latestTime
# paraFoam

Created meshes are located in directories named after numbers.

kaplan turbine cfd openfoam mesh spiral 1

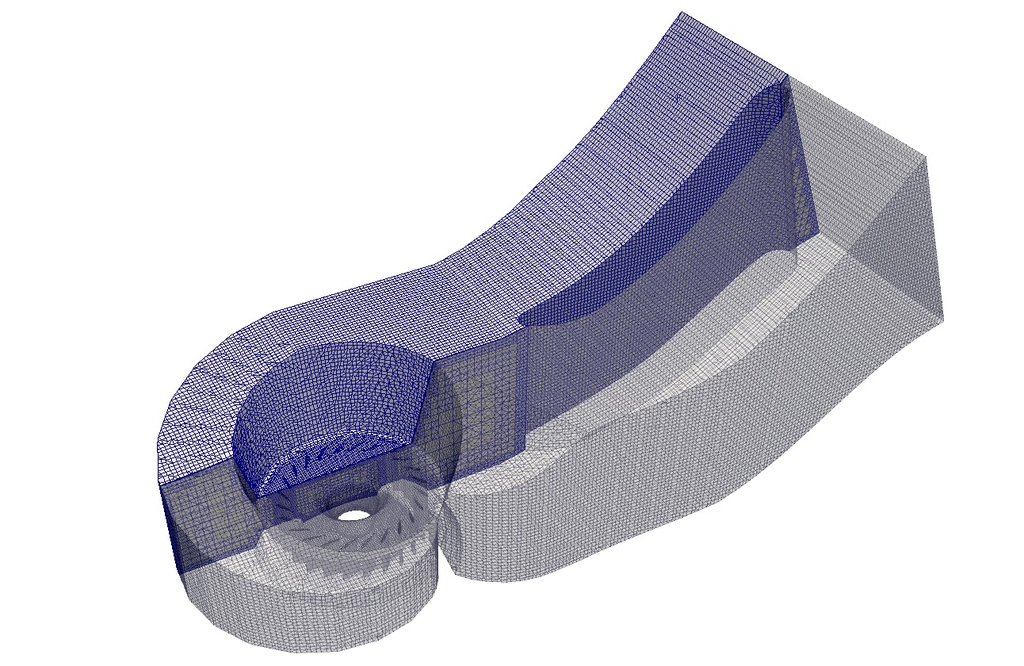

Figure: Kaplan turbine spiral region mesh view.
