Running snappyHexMesh - Spiral Region

Utility snappyHexMesh reads set-up from system/snappyHexMeshDict and refines background mesh in direction to the surface model. The snappyHexMeshDict dictionary is already set.

Create the mesh running snappyHexMesh utility:

# snappyHexMesh

When finished, check the mesh running checkMesh and view the mesh in paraview:
# checkMesh -latestTime
# paraFoam

francis turbine cfd openfoam spiral mesh 1

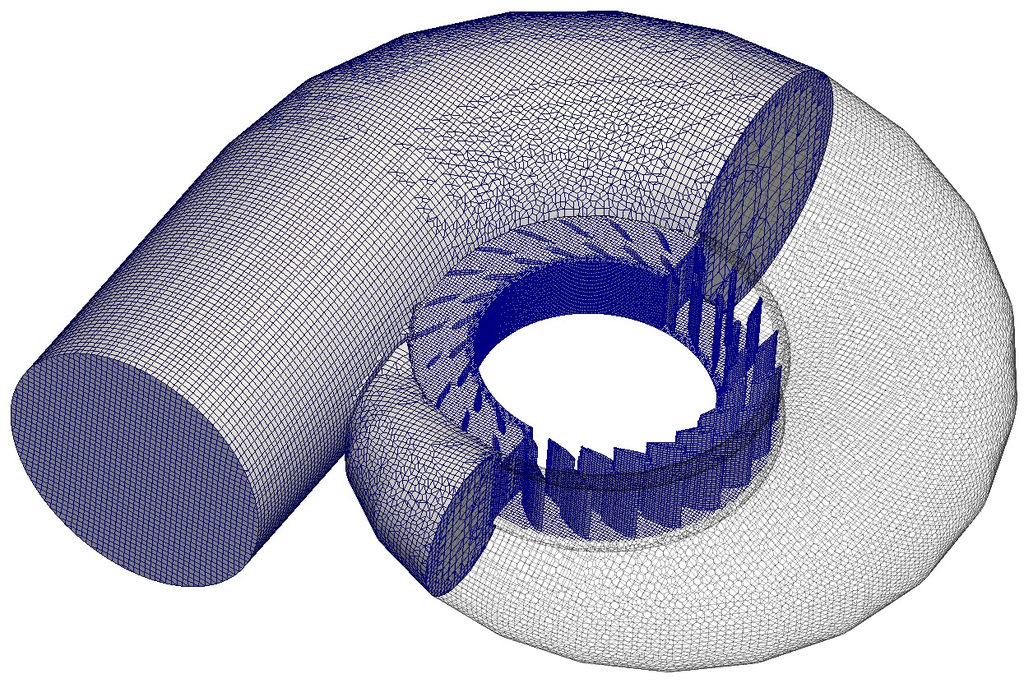

Figure: Francis turbine spiral region mesh view.
