Modifications to Practice

  • In file blockMeshDict we can change computational mesh to 50×50 cells8.1.
    # gedit constant/polyMesh/blockMeshDict



    blocks
    (
        hex (0 1 2 3 4 5 6 7) (50 50 1) simpleGrading (1 1 1)
    );

  • Run blockMesh:
    # blockMesh



  • Let us change time step to 0.0005s and computation time to 1.5s. Solution will be saved in times 0.1, 0.2, 0.3, …, 1.5s (instead of number of time steps). Let’s modify controlDict, e.g.:
    # gedit system/controlDict



    stopAt          endTime;

    endTime         1.5;

    deltaT          0.0005;

    writeControl    runTime;

    writeInterval   0.1;




  • Run icoFoam on background and forward output into the text file log:
    # icoFoam > log &



  • It is useful to watch the log file content to see how the computation goes:
    # tail -f log



  • By pressing ctrl+c one can jump back to the console



  • Results can be viewed during computation in paraview (button Refresh Times always rereads the time layers):
    # paraFoam
openfoam cavity velocity distribution
openfoam cavity velocity vectors

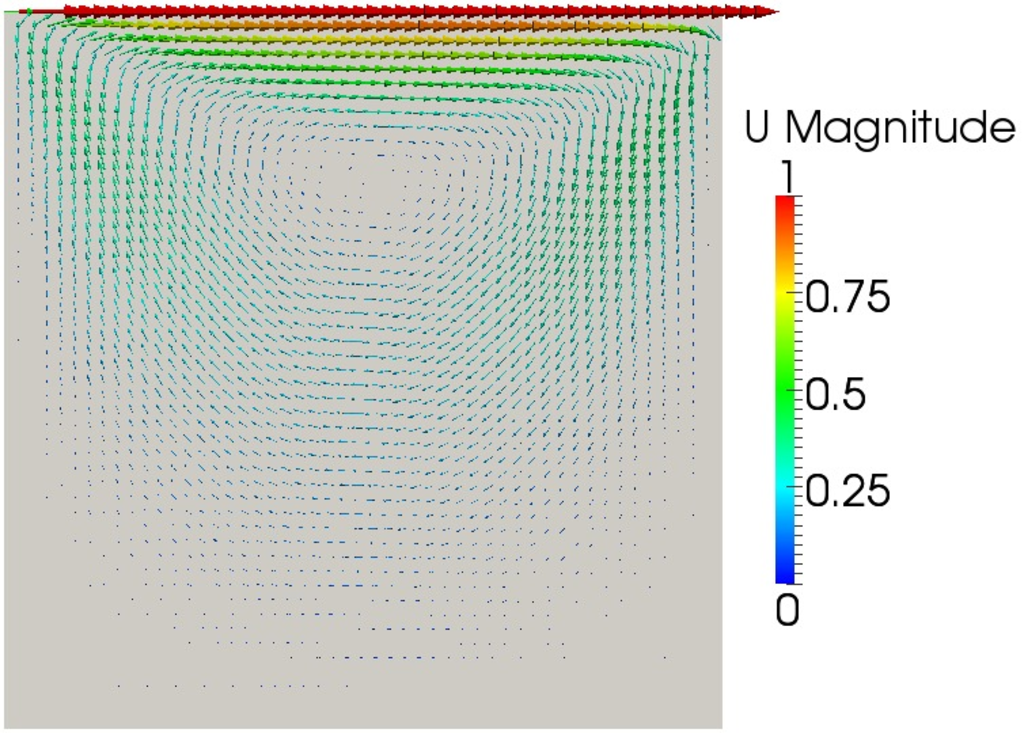

Figure: Lid driven cavity: velocity magnitude and vector field.
