Test case modification

    • Modify the test case in the following way. Whole domain will be extended into three dimensions along the z axis.



    • The domain is a cylinder with radius R = 10 cm and height V = 30 cm.



    • In the z axis direction there will be 10 cells.



    • The cylinder will be filled with water in the bottom part (first phase), rest of the channel (top part) will be filled with other fluid with lower density (second phase)



    • First phase: Newtonian fluid, $ \rho$ $ =$ $ 1000$ $ \frac{kg}{m^3}$, $ \nu$ $ =$ $ 10^{-4}$ $ \frac{m^{2}}{s}$



    • Second phase: Newtonian fluid, $ \rho$ $ =$ $ 500$ $ \frac{kg}{m^3}$, $ \nu$ $ =$ $ 10^{-4}$ $ \frac{m^{2}}{s}$



    • Both phases velocity inlet: $ U$ $ =$ $ 1$ $ \frac{m}{s}$



    • Rotor revolutions per minute: $ N$ $ =$ $ 600$ $ RPM$

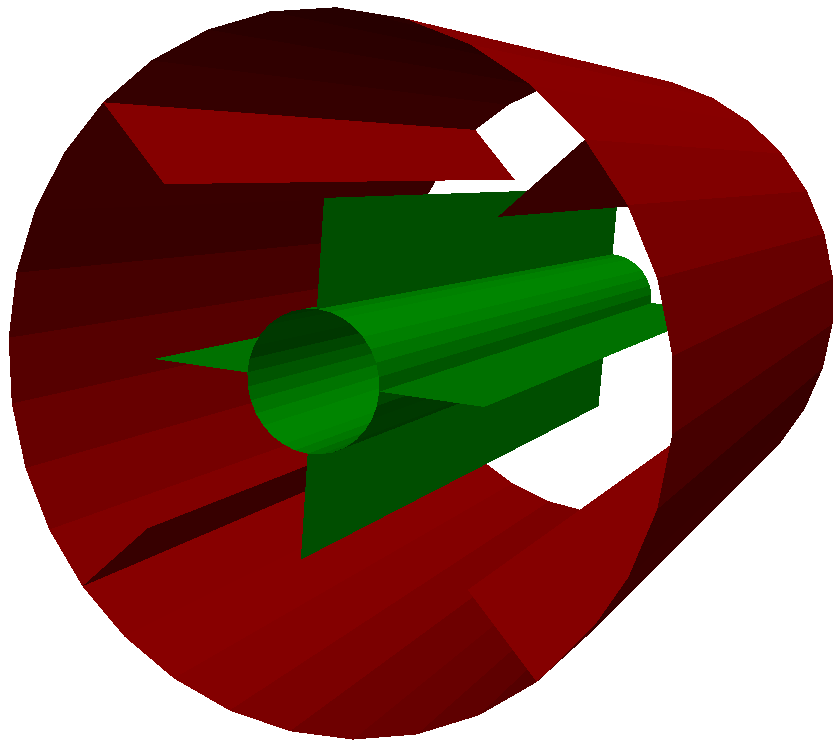

Figure: mixerVessel2D geometry
