Hi, this is transient CFD simulation report of:

windTurbine-eveningTest

Created by TCFD^® 18.06 on Mon Jun 4 09:52:28 2018

Simulation Stats

Test Case Name

windTurbine-eveningTest

Number of Points [ – ]

Machine Type

windTurbine

Rotation Speed [ RPM ]

Number of Components [ – ]

( )

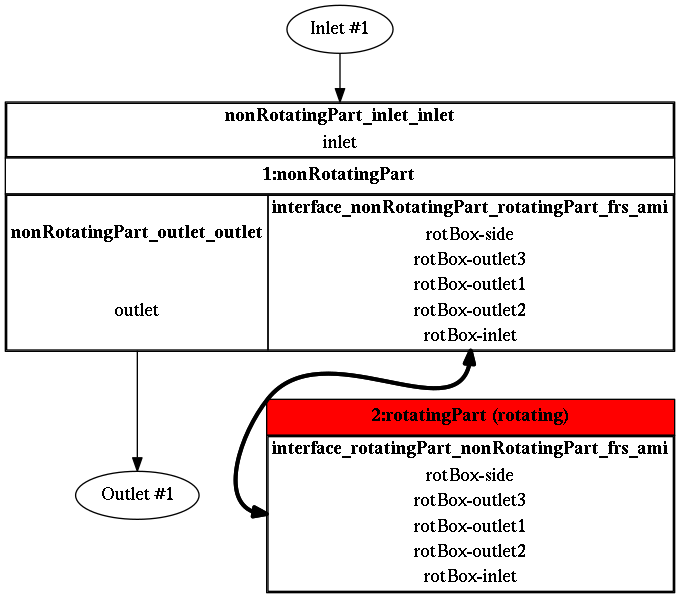

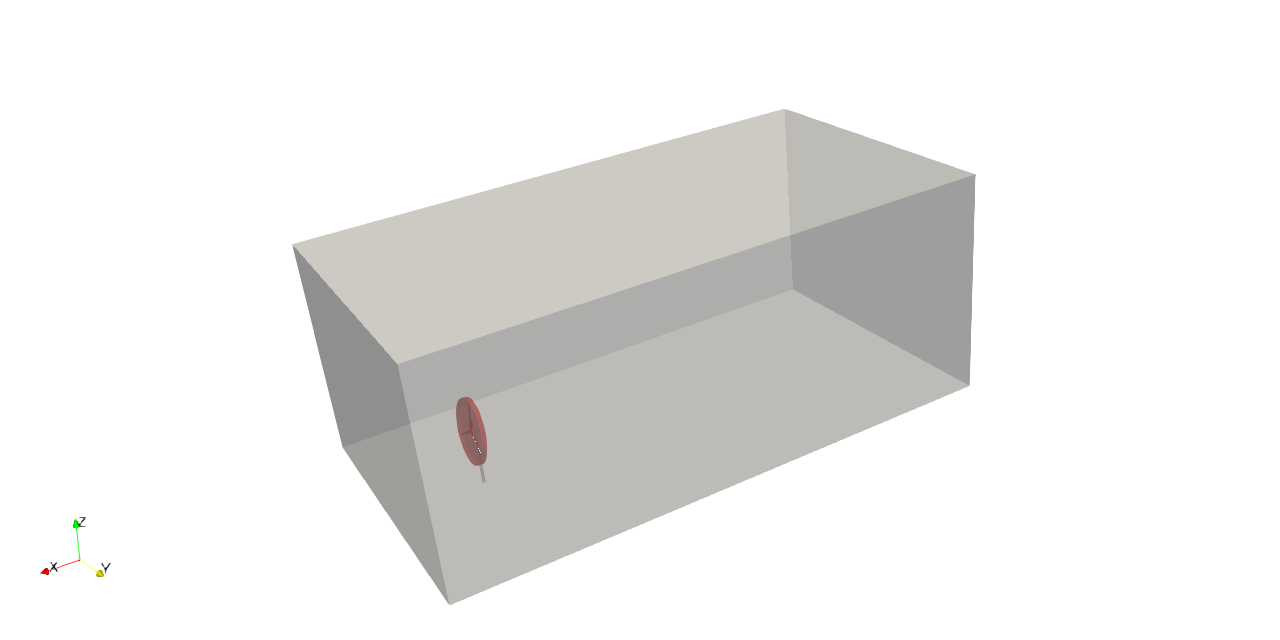

Mesh Size [ cells ]

( )

nonRotatingPart : 12415998

rotatingPart : 2308071

Total : 14724069

Average y+ at walls [ – ]
( )

557.611

Wall-clock time [ hh:mm:ss ]

50:15:32

Parallel Processors [ – ]

Fluid Name

air

Compressibility

incompressible

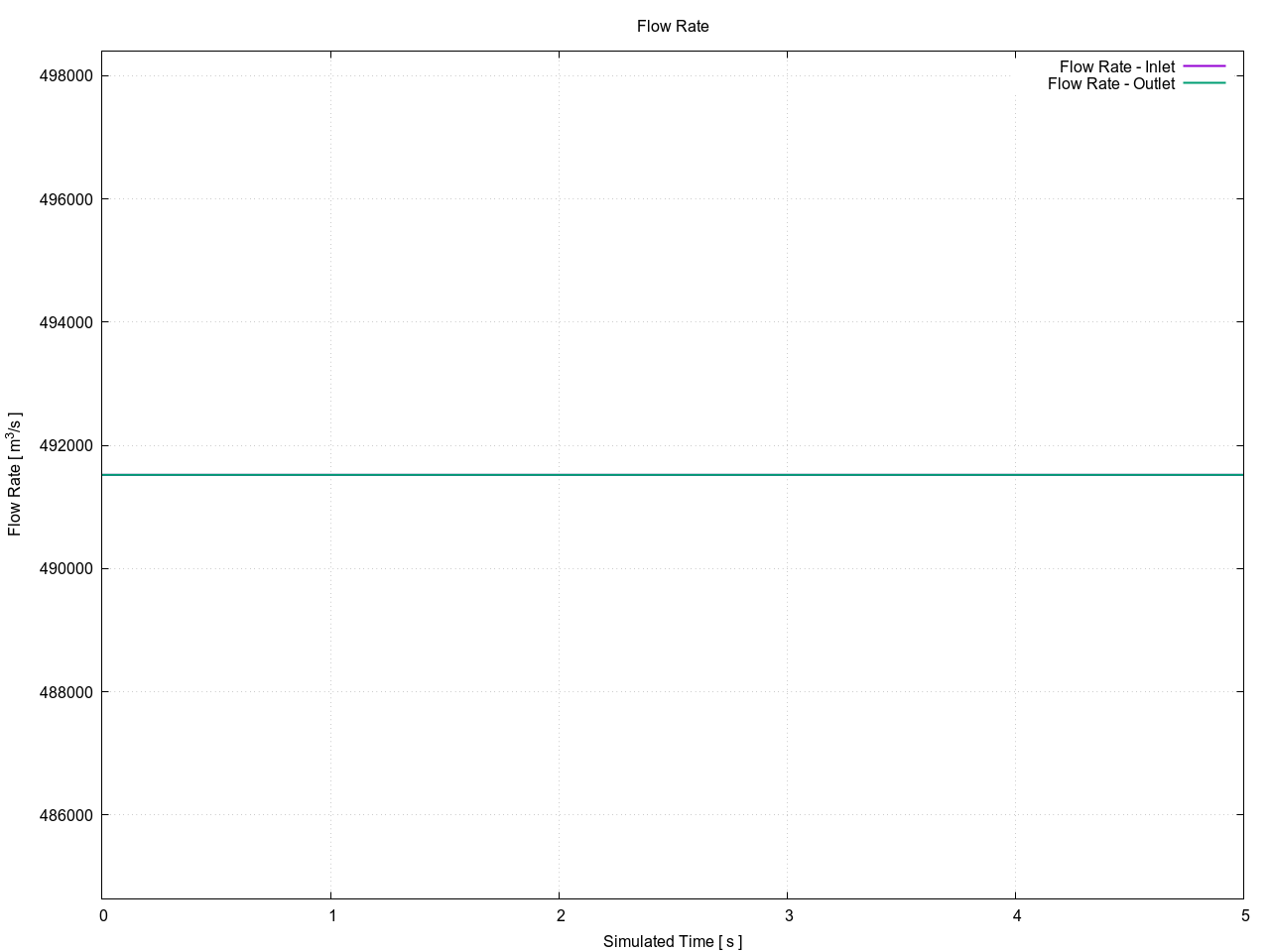

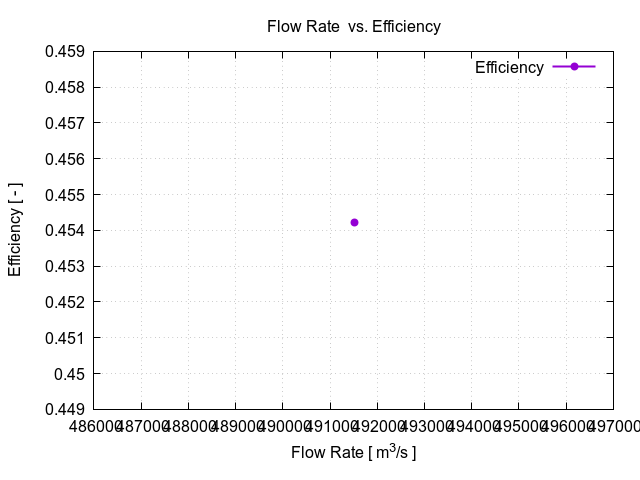

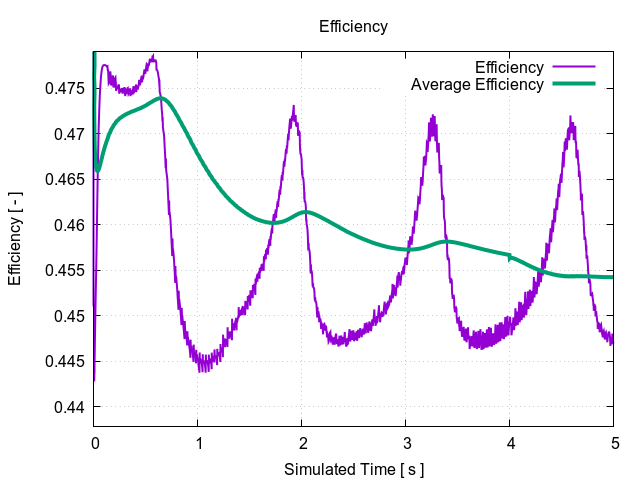

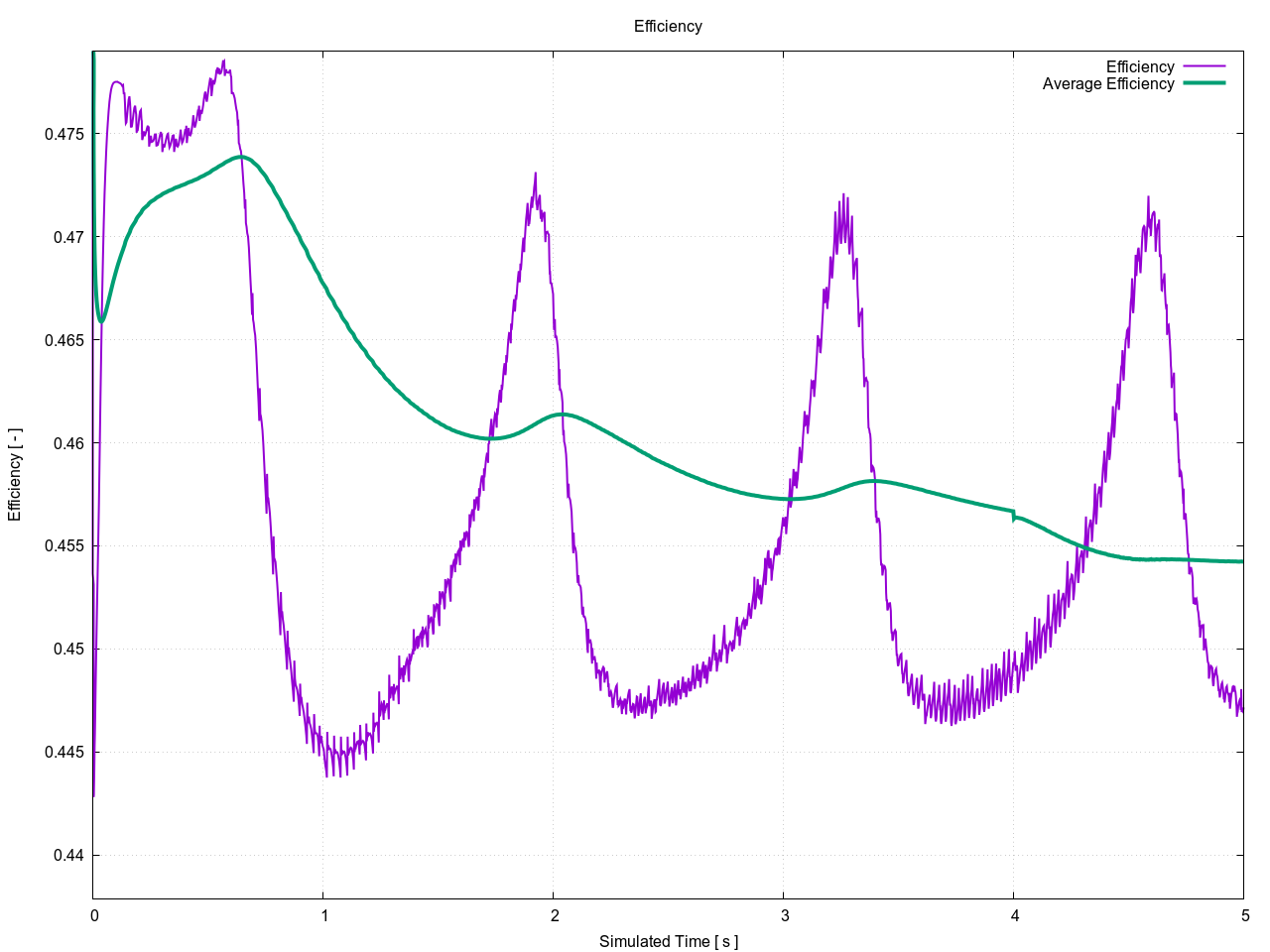

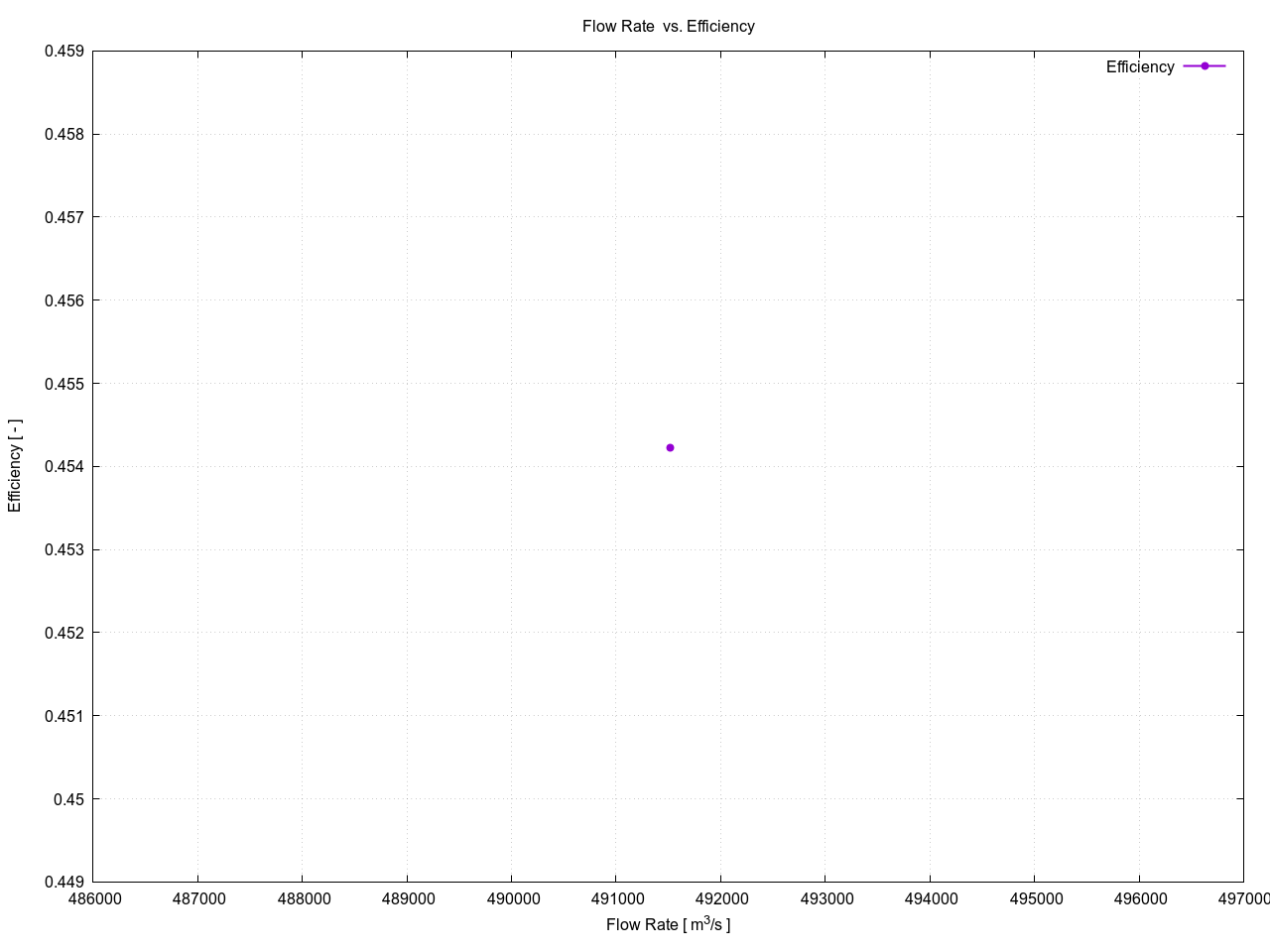

Efficiency

1:inlet — 1:outlet

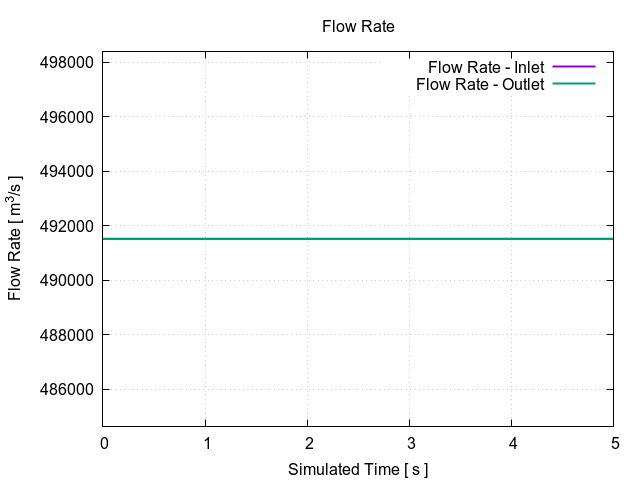

Point Nr.	Flow Rate [ m³/s ]	Efficiency [ – ]
1	491520	0.454229

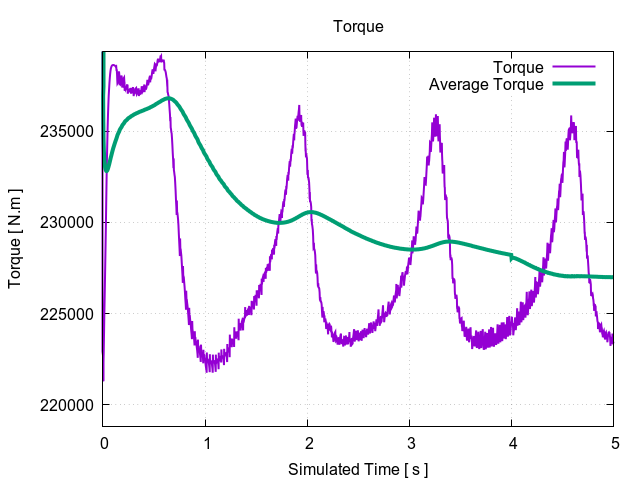

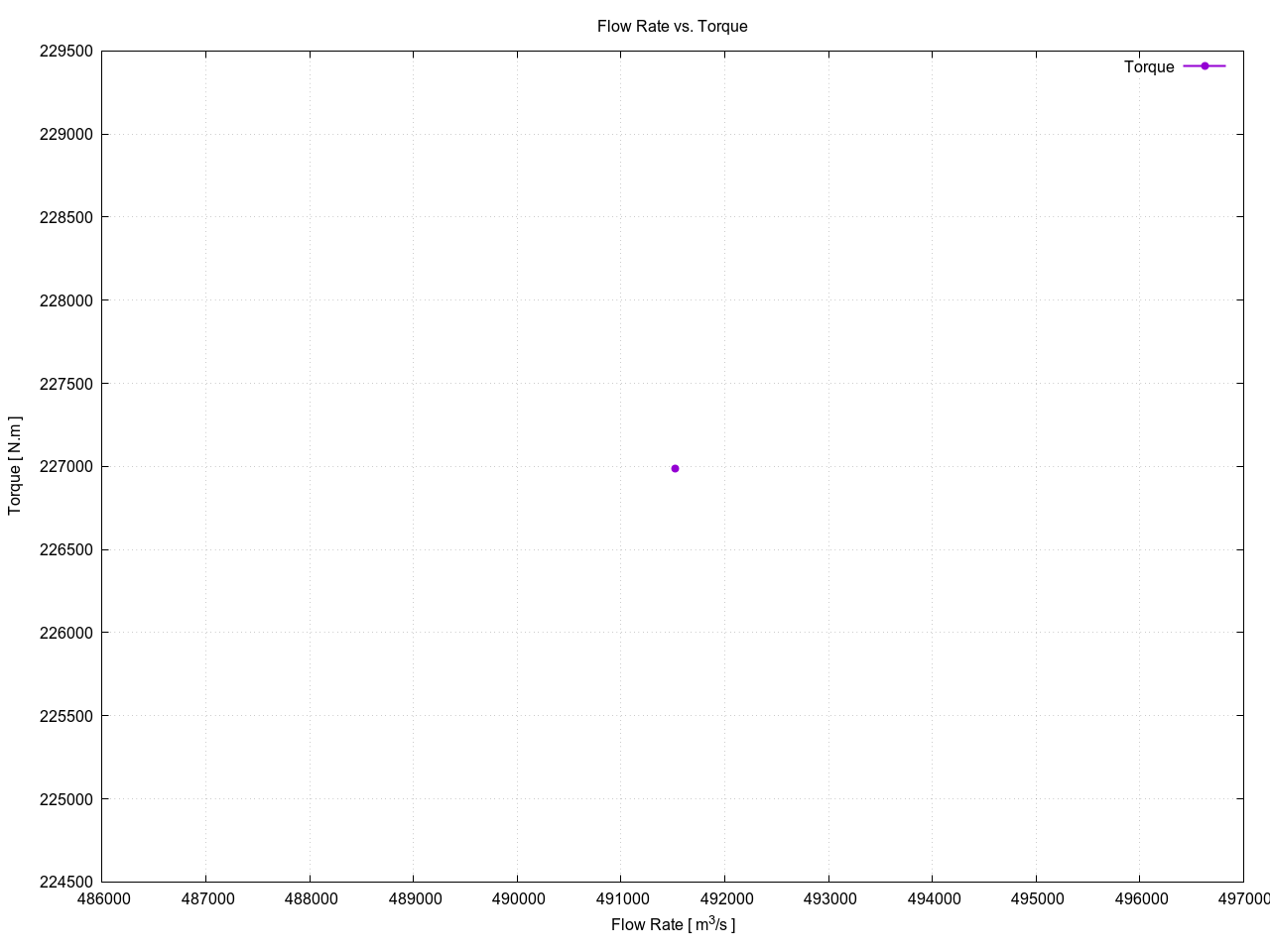

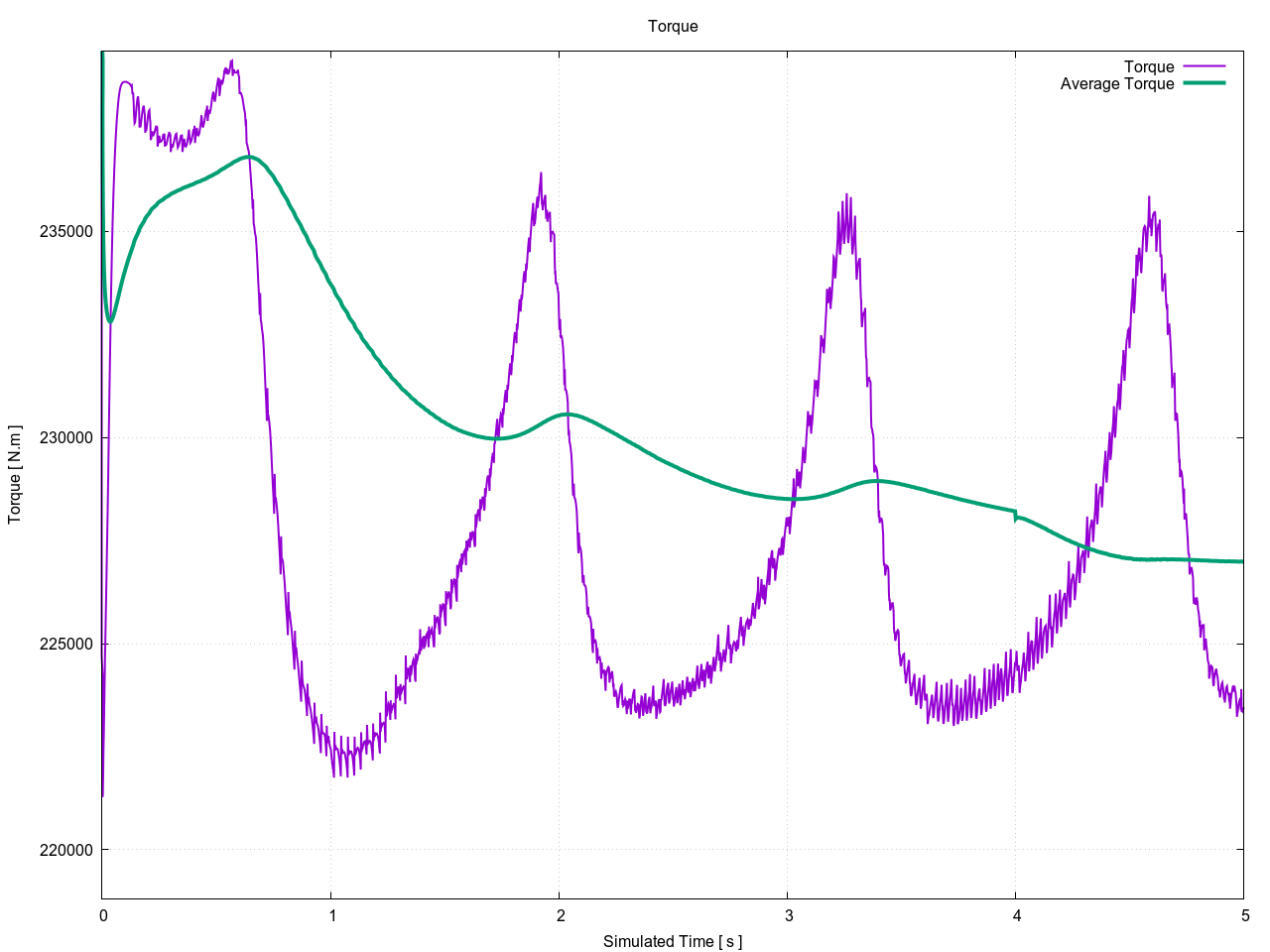

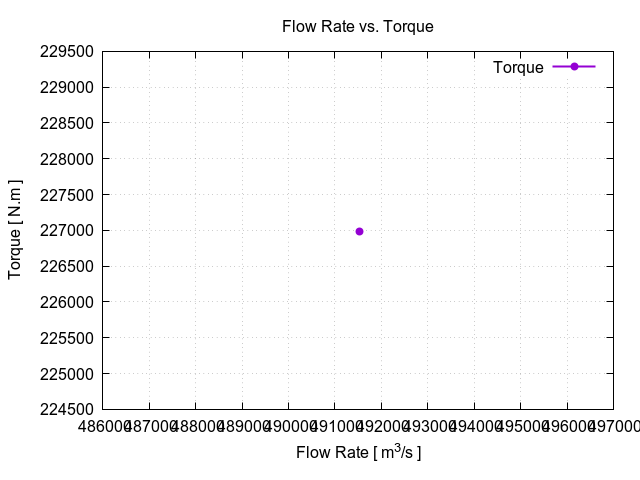

Torque

Point Nr.	Flow Rate [ m³/s ]	Torque [ N.m ]
1	491520	226988

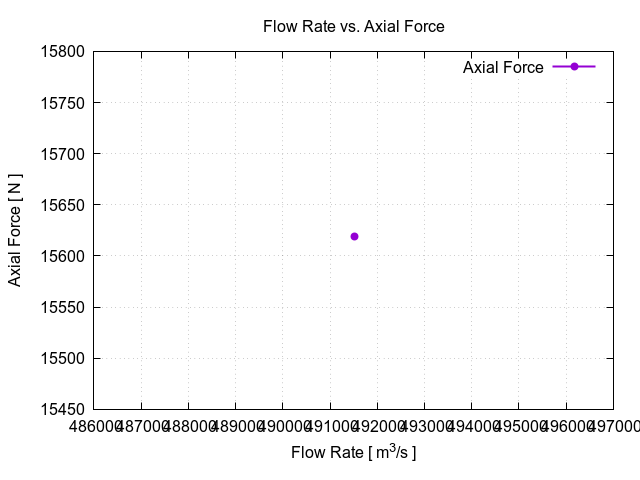

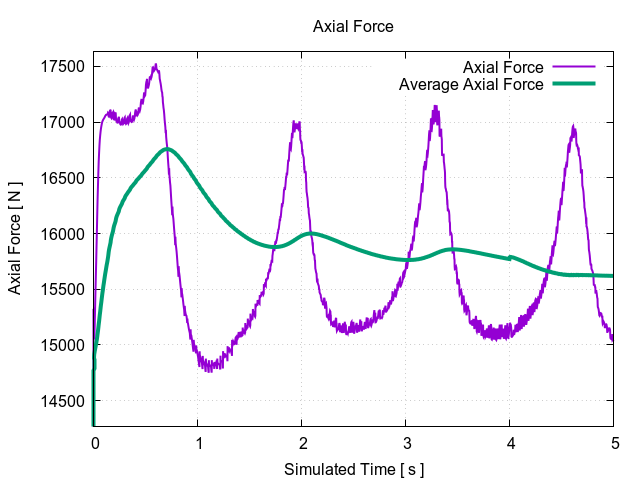

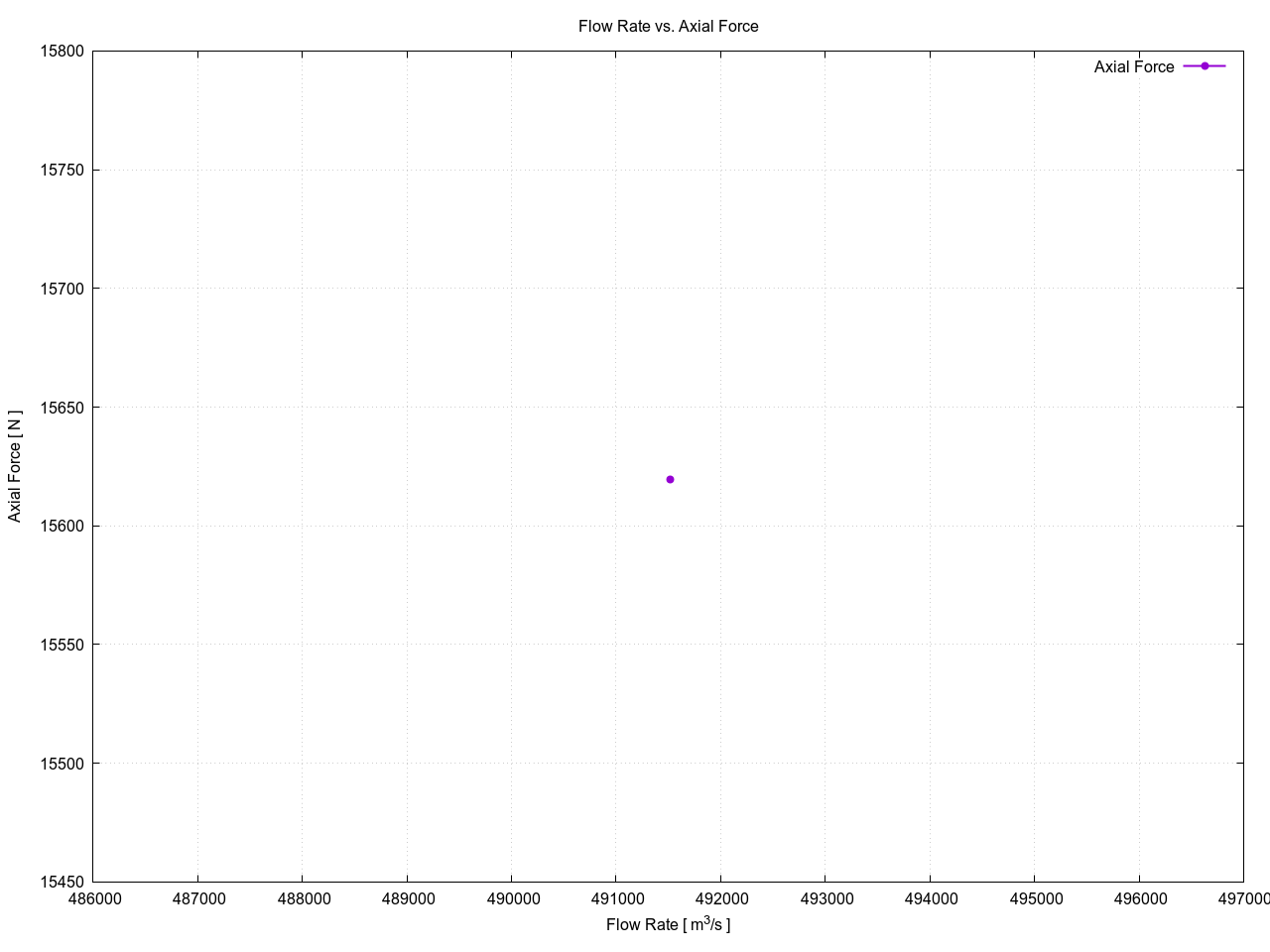

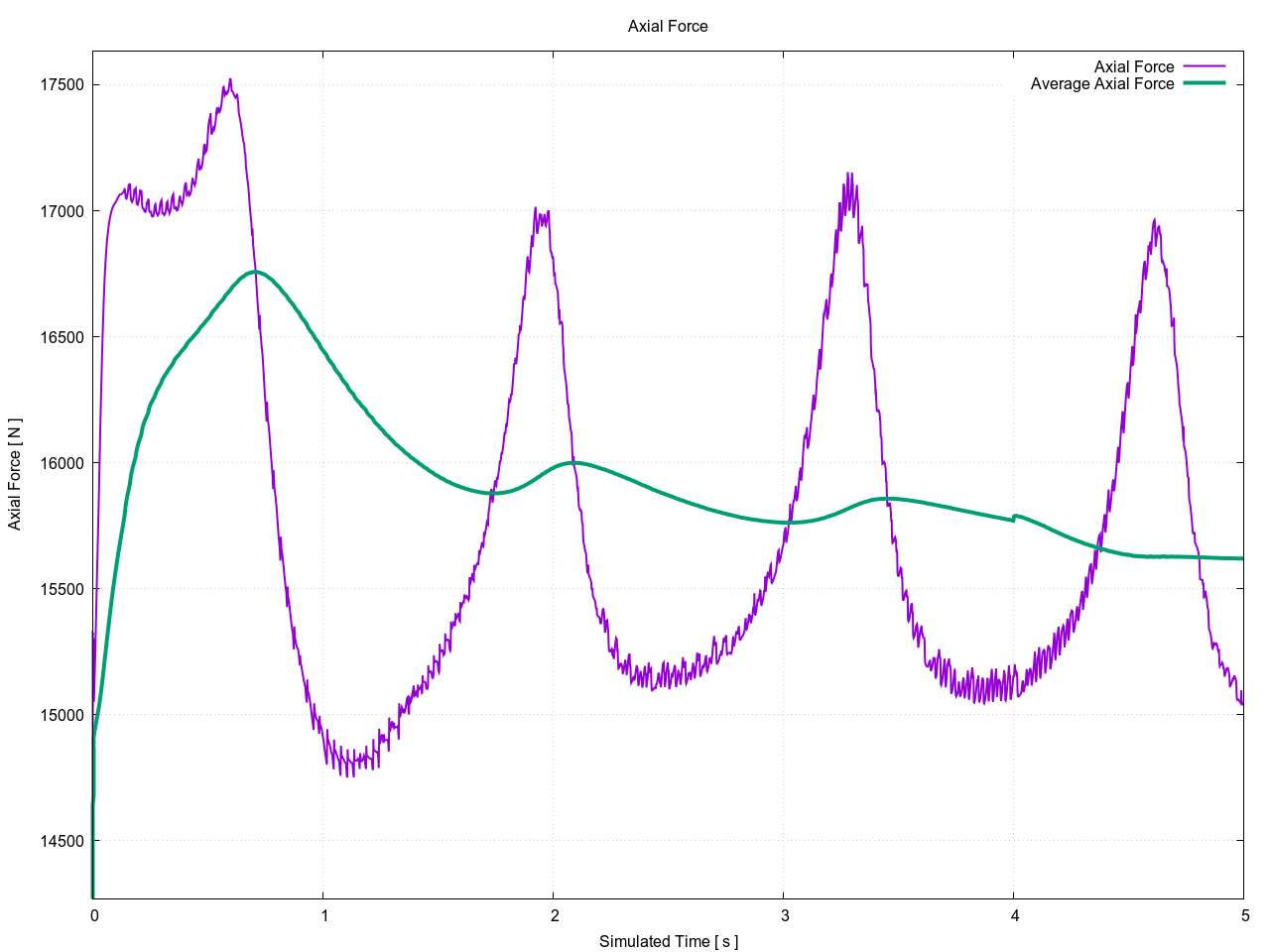

Axial Force

Point Nr.	Flow Rate [ m³/s ]	Axial Force [ N ]
1	491520	15619.4

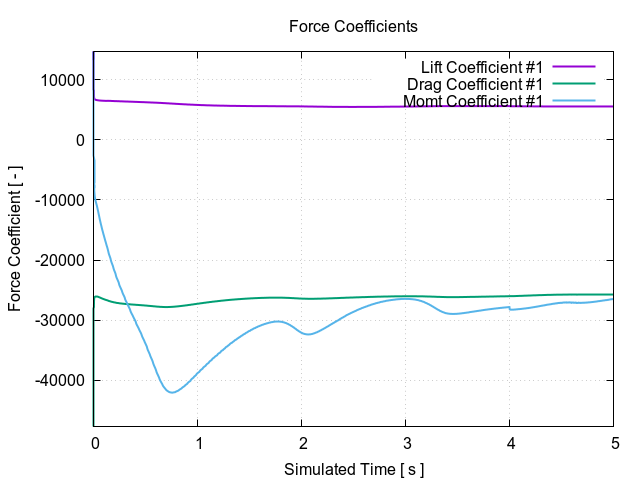

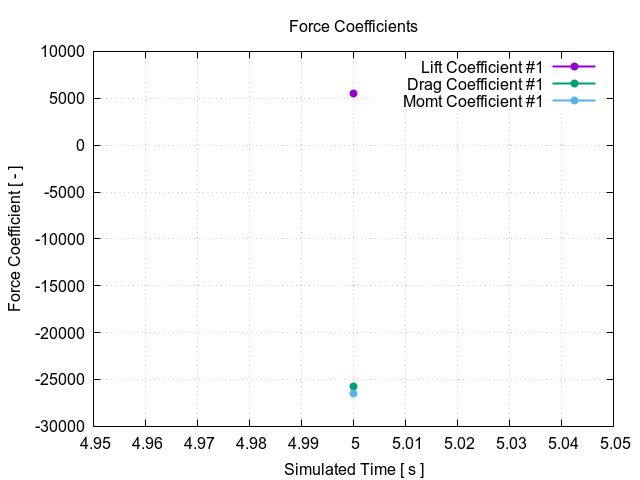

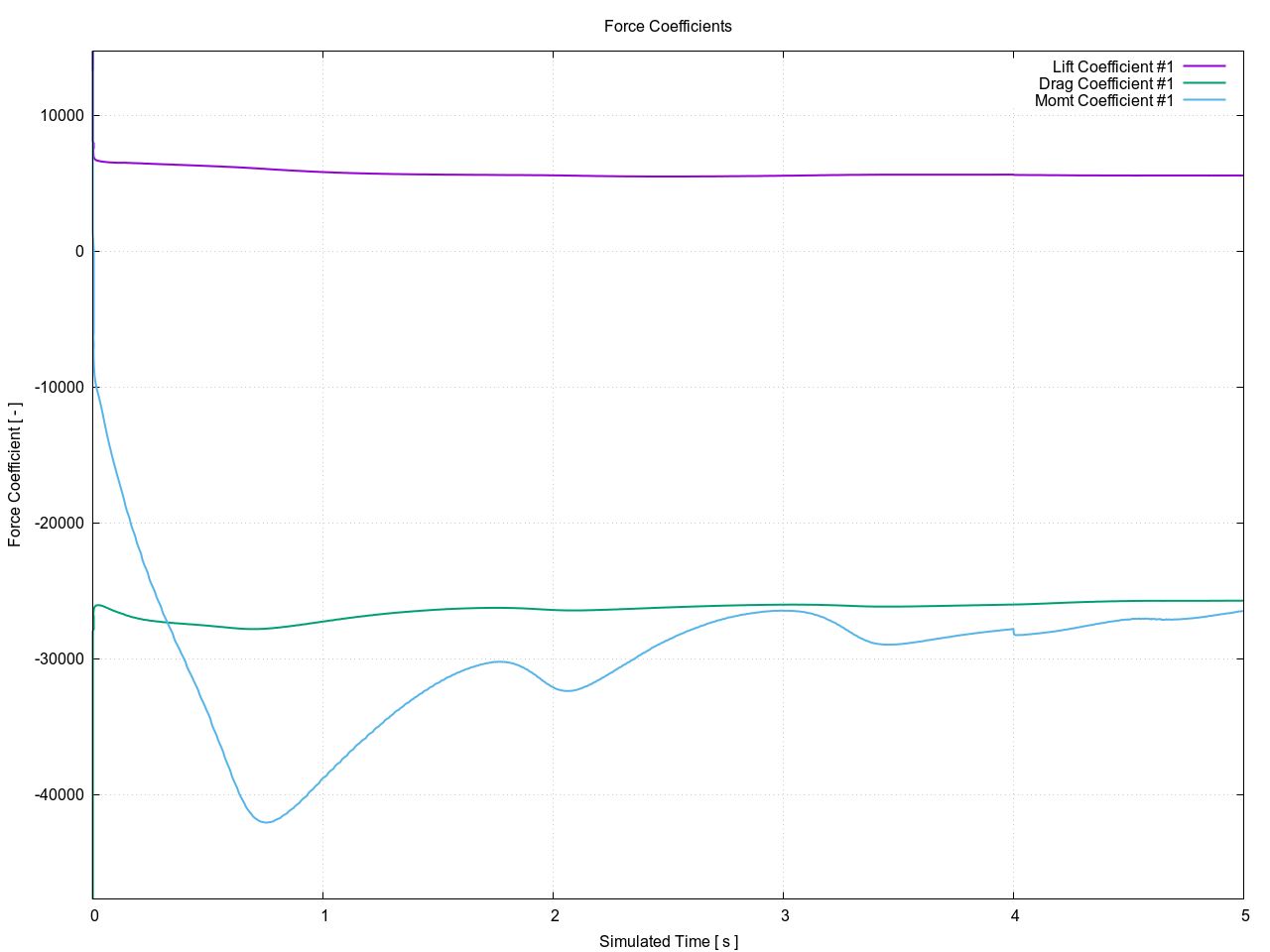

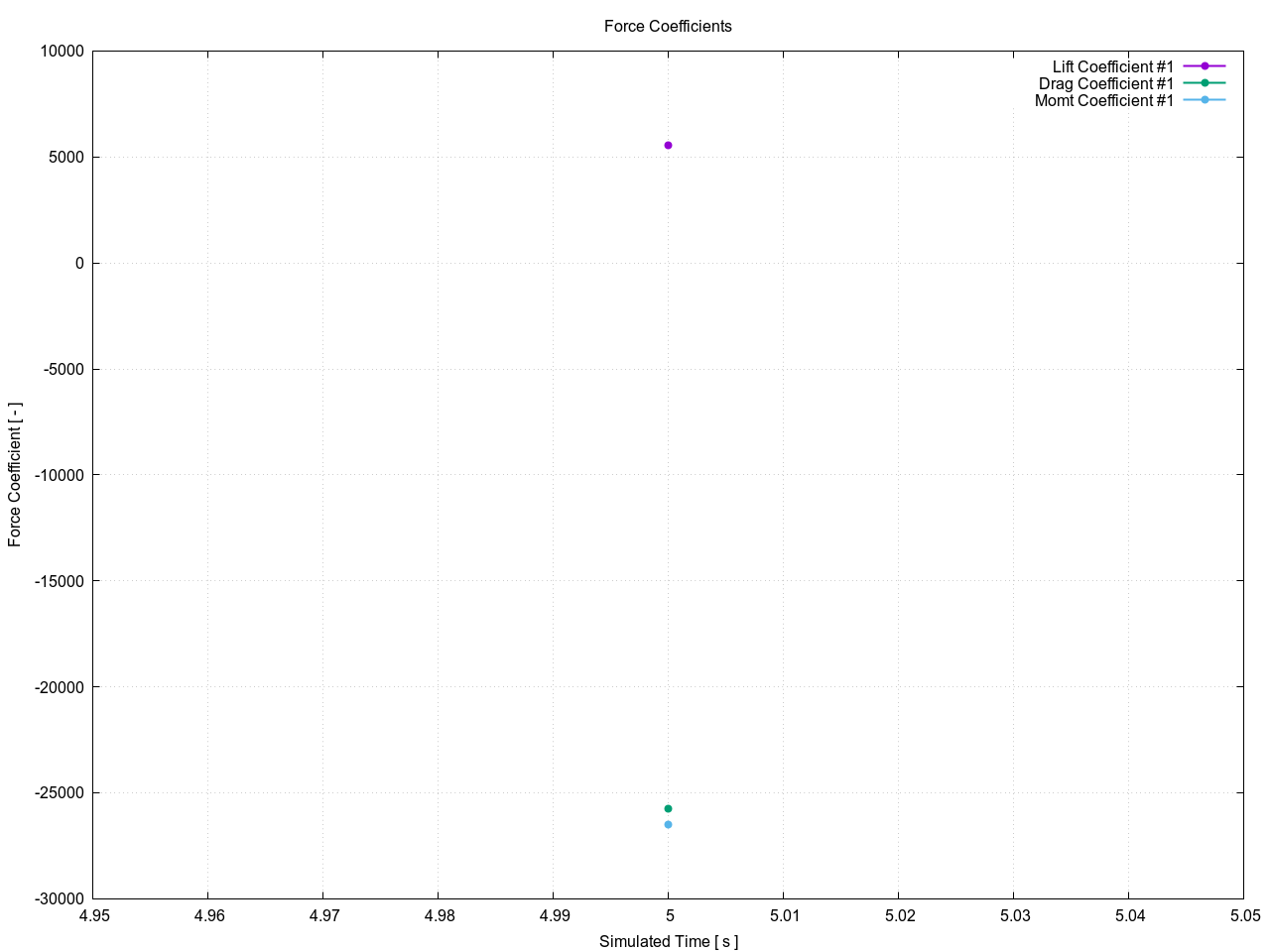

Force Coefficients

#1: 2:blade3-suctionSide1, 2:blade2-pressureSide2, 2:blade1-pressureSide1, 2:blade2-suctionSide1, 2:blade3-cap, 2:blade1-suctionSide1, 2:blade3-pressureSide2, 2:blade3-pressureSide1, 2:blade2-cap, 2:blade2-pressureSide1, 2:blade1-cap, 2:blade2-suctionSide2, 2:blade3-suctionSide2, 2:blade1-suctionSide2, 2:blade1-pressureSide

Setup Nr.	Point Nr.	Lift Coeff [ – ]	Drag Coeff [ – ]	Moment Coeff [ – ]
1	1	5557.97	-25739.7	-26484

Design: HTML5 UP

TCFD^® 19.10 license is issued for CFDSUPPORT Test Licence as Limited and will be valid until Oct 06, 2022.

Component	Property	Min	Max	Avg
1	cellOpenness	N/A	4.54781e-16	N/A
1	cellVolume	736330	4.21593e+10	N/A
1	faceArea	36.4083	1.30178e+07	N/A
1	aspectRatio	N/A	5.37838	N/A
1	nonOrthogonality	N/A	64.8656	3.30106
1	skewness	N/A	4.44169	N/A
1	edgeLength	N/A	N/A	N/A
1	concaveAngle	N/A	79.7679	N/A
1	faceFlatness	0.327979	N/A	0.999987
1	cellDeterminant	0.0244912	N/A	8.77003
1	faceInterpolationWeight	0.117423	N/A	0.496818
1	faceVolumeRatio	0.0263846	0.983393	N/A
1	Warnings:	3 skew faces 221 faces with low quality or negative volume decomposition tets 372 faces with concave angles 13 warped faces 100843 concave cells
2	cellOpenness	N/A	3.68402e-16	N/A
2	cellVolume	844.636	1.16355e+07	N/A
2	faceArea	0.47087	72525.2	N/A
2	aspectRatio	N/A	6.54449	N/A
2	nonOrthogonality	N/A	64.9842	11.7667
2	skewness	N/A	16.723	N/A
2	edgeLength	0	314.608	N/A
2	concaveAngle	N/A	79.9222	N/A
2	faceFlatness	0.187024	N/A	0.997672
2	cellDeterminant	0.013205	N/A	19.061
2	faceInterpolationWeight	0.0891051	N/A	0.459255
2	faceVolumeRatio	0.0107838	0.786456	N/A
2	Warnings:	72 skew faces 1679 faces with low quality or negative volume decomposition tets 9 points on short edges 11923 faces with concave angles 74 warped faces 133984 concave cells

Point	Patch	Min	Max	Avg
1	nonRotatingPart_right_wall	97.4923	606.847	217.248
1	nonRotatingPart_top_wall	102.481	662.776	216.933
1	nonRotatingPart_tower_wall	1.26594	74.511	12.6523
1	nonRotatingPart_ground_wall	12.4419	687.258	557.611
1	nonRotatingPart_left_wall	97.9247	606.213	217.212
1	nonRotatingPart_nacelle_wall	0.61753	95.4826	16.9192
1	rotatingPart_hub_wall	8.64933e-05	6.8911	0.276808
1	rotatingPart_blade3-suctionSide2_wall	0.000132832	0.764024	0.152199
1	rotatingPart_blade3-suctionSide1_wall	0.00151903	1.37053	0.289535
1	rotatingPart_blade1-pressureSide2_wall	0.000112416	1.00374	0.204774
1	rotatingPart_blade2-pressureSide1_wall	0.0209064	2.09655	0.566098
1	rotatingPart_blade1-cap_wall	0.283159	1.07065	0.51694
1	rotatingPart_blade2-suctionSide1_wall	0.00666836	1.752	0.388819
1	rotatingPart_blade3-cap_wall	0.262499	1.09618	0.510305
1	rotatingPart_blade1-suctionSide2_wall	8.14446e-05	0.766396	0.151405
1	rotatingPart_blade2-suctionSide2_wall	0.00175871	1.15209	0.207239
1	rotatingPart_blade3-pressureSide1_wall	0.00960247	1.78031	0.518292
1	rotatingPart_blade2-pressureSide2_wall	0.00107475	1.41552	0.248466
1	rotatingPart_blade1-pressureSide1_wall	0.0173783	2.01827	0.525245
1	rotatingPart_blade1-suctionSide1_wall	0.000231764	1.5482	0.290289
1	rotatingPart_blade2-cap_wall	0.497566	1.27577	0.749222
1	rotatingPart_blade3-pressureSide2_wall	0.000231809	2.29267	0.197194
