parametric-axial-blood-pump CFD Simulation Resuls

Simulation Stats

Project Name

parametric-axial-blood-pump

Number of Points [ ⁠–⁠ ]

9

Machine Type

pump

Rotation Speed [ RPM ]

-8000.00

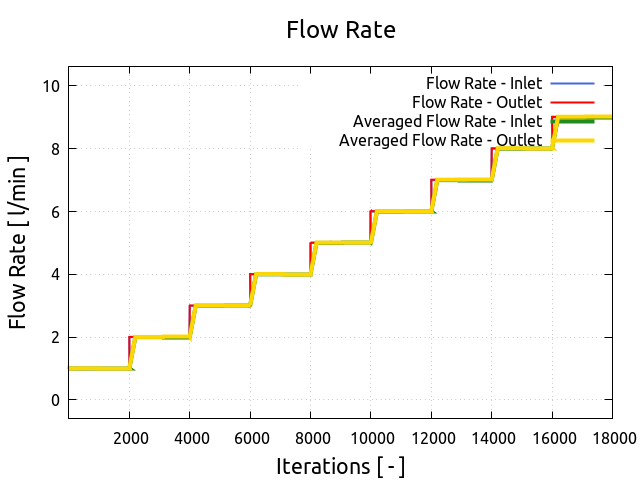

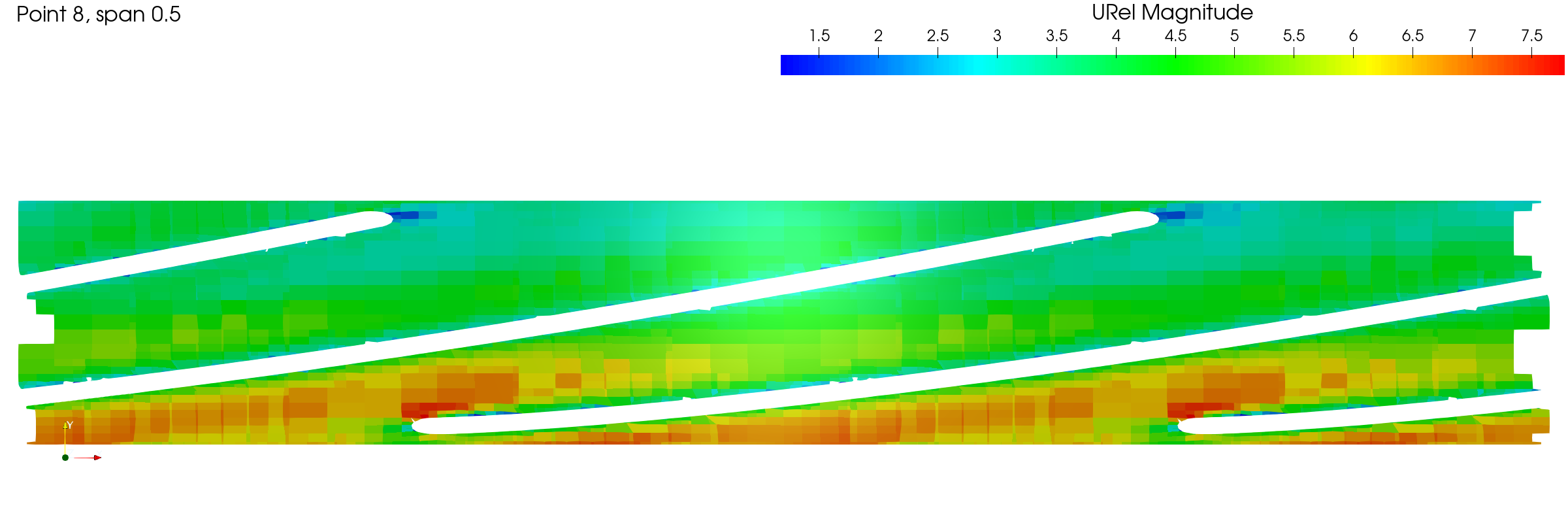

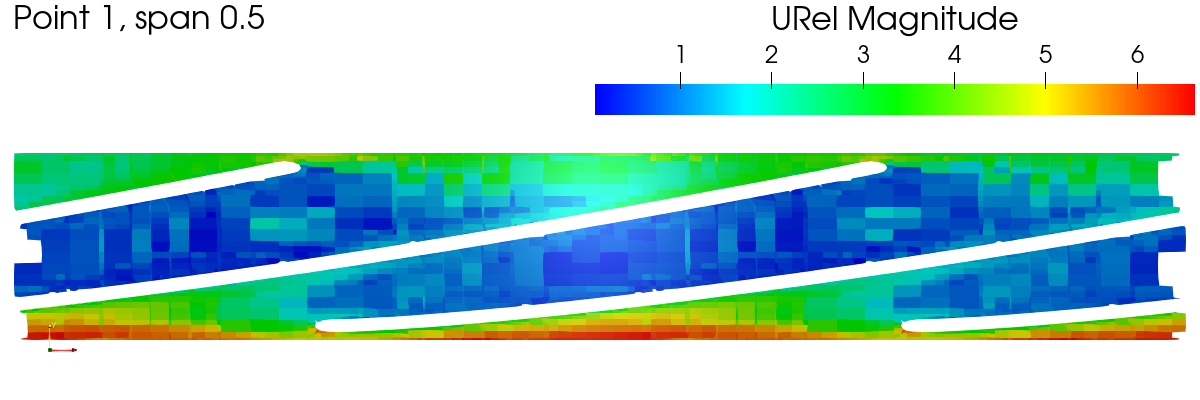

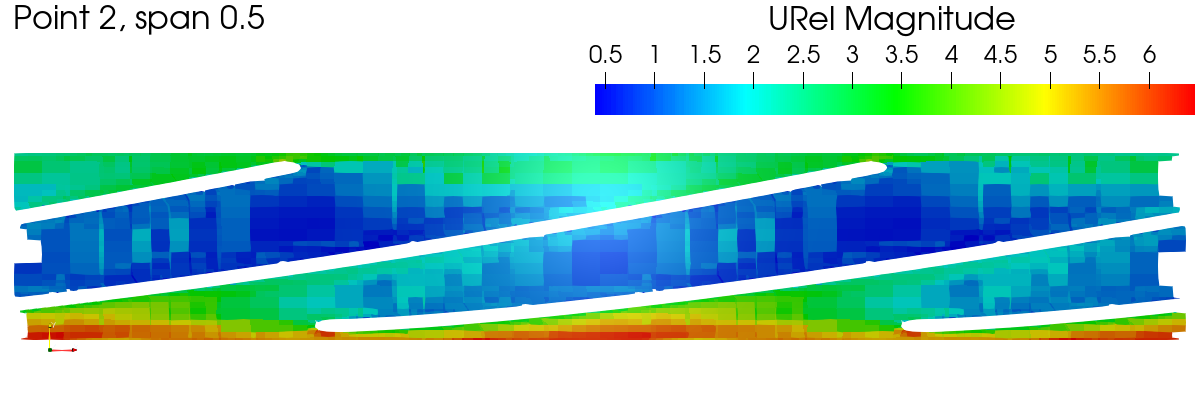

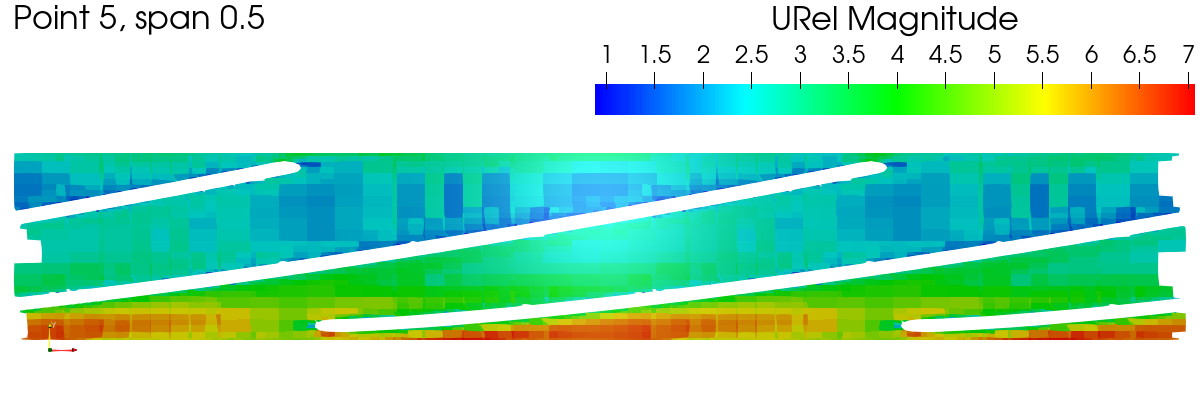

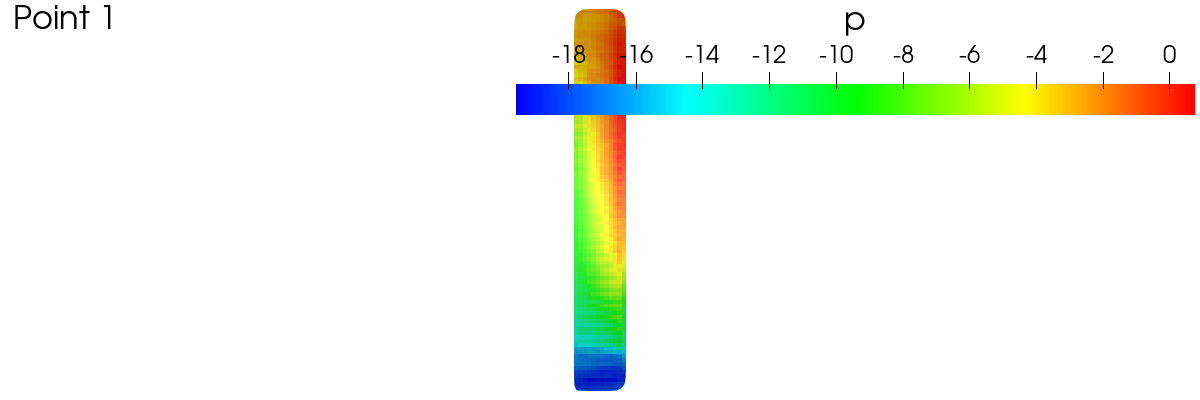

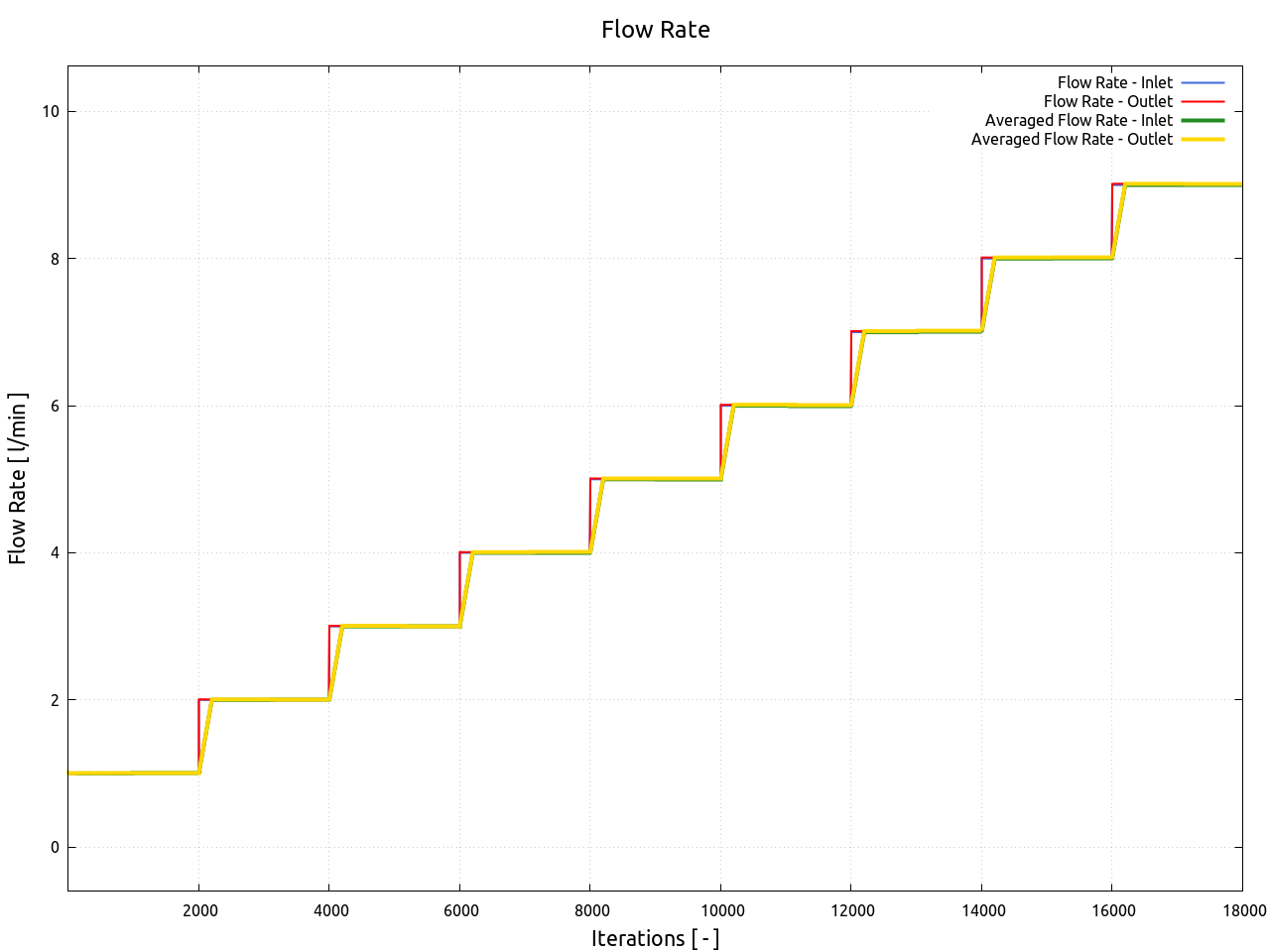

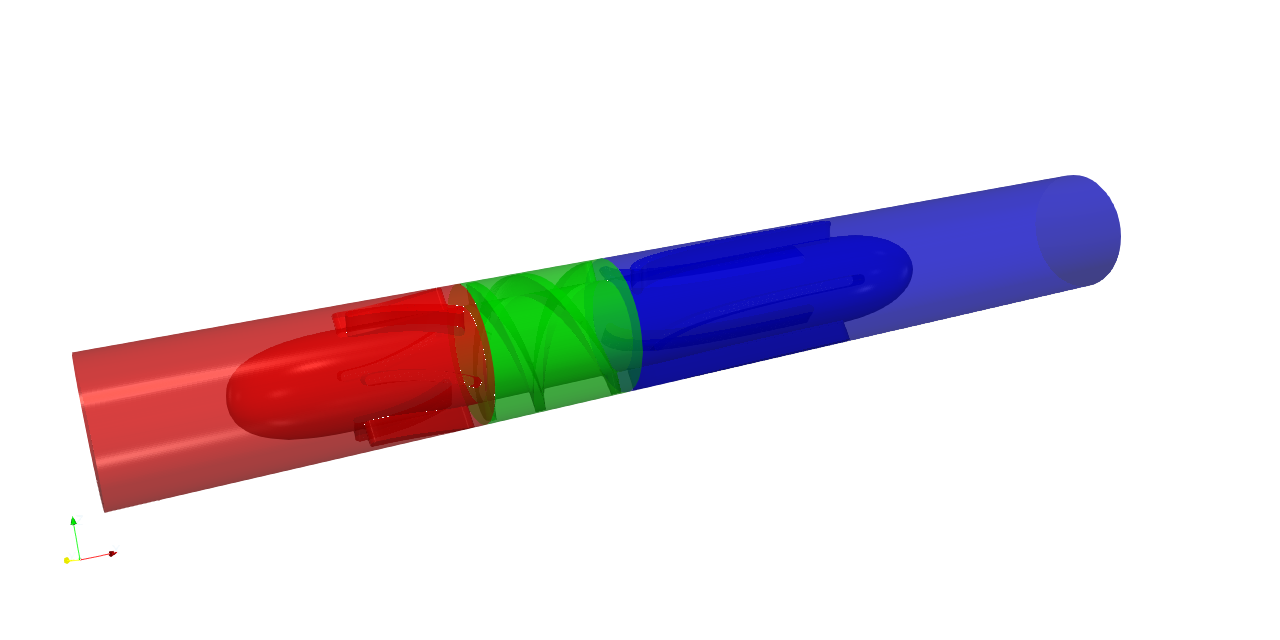

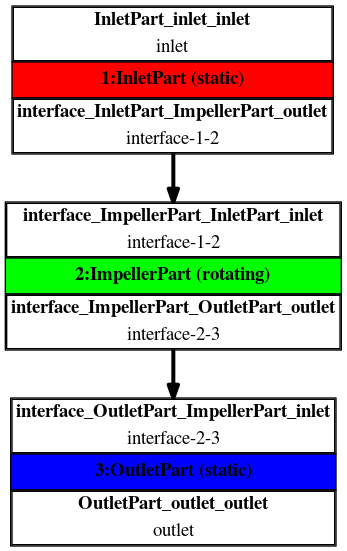

Number of Components [ ⁠–⁠ ]

3

(topology)

Mesh Size [ cells ]

InletPart : 40185

ImpellerPart : 115316

OutletPart : 67073

Total : 222574

(details)

Simulation Score [ ⁠–⁠ ]

expand

Average y+ at Walls [ ⁠–⁠ ]

0.467253

(details)

y+ details:

Point	Patch	Min	Max	Avg
1	InletPart_statorin-blades_wall	1.49868 × 10^-6	13.3711	0.478675
1	InletPart_statorin-hub_wall	9.20312 × 10^-6	4.66789	0.369651
1	InletPart_statorin-shroud_wall	3.14937 × 10^-6	18.2510	0.780650
1	ImpellerPart_impeller-blade_wall	2.02256 × 10^-4	15.1034	0.651493
1	ImpellerPart_impeller-blade-cap_wall	3.37436 × 10^-5	8.20971	0.203118
1	ImpellerPart_impeller-hub_wall	0.00457241	18.2596	2.87445
1	ImpellerPart_impeller-shroud_wall	4.20210 × 10^-5	24.7291	1.15420
1	OutletPart_statorout-blades_wall	5.35293 × 10^-8	15.0359	0.618892
1	OutletPart_statorout-hub_wall	7.62045 × 10^-6	12.8917	1.29044
1	OutletPart_statorout-shroud_wall	2.81263 × 10^-7	19.4857	0.854004
2	InletPart_statorin-blades_wall	4.34037 × 10^-8	0.0546402	0.00140030
2	InletPart_statorin-hub_wall	1.78674 × 10^-6	0.182235	0.00911950
2	InletPart_statorin-shroud_wall	1.99658 × 10^-7	0.183987	0.00802731
2	ImpellerPart_impeller-blade_wall	1.23111 × 10^-5	12.3474	0.294281
2	ImpellerPart_impeller-blade-cap_wall	3.06439 × 10^-6	3.65996	0.0709620
2	ImpellerPart_impeller-hub_wall	1.73812 × 10^-4	16.4637	1.85232
2	ImpellerPart_impeller-shroud_wall	1.91539 × 10^-5	23.5100	0.734866
2	OutletPart_statorout-blades_wall	3.12990 × 10^-8	14.2095	0.633829
2	OutletPart_statorout-hub_wall	5.85390 × 10^-6	13.0323	1.35606
2	OutletPart_statorout-shroud_wall	2.98667 × 10^-7	17.5860	0.965797
3	InletPart_statorin-blades_wall	1.06780 × 10^-7	0.0483519	0.00259840
3	InletPart_statorin-hub_wall	3.08784 × 10^-6	0.348482	0.0196192
3	InletPart_statorin-shroud_wall	8.39439 × 10^-7	0.308243	0.0145276
3	ImpellerPart_impeller-blade_wall	4.54257 × 10^-6	9.67708	0.133624
3	ImpellerPart_impeller-blade-cap_wall	2.80159 × 10^-6	2.47228	0.0160035
3	ImpellerPart_impeller-hub_wall	5.48373 × 10^-5	13.5073	0.929381
3	ImpellerPart_impeller-shroud_wall	1.24100 × 10^-6	22.0229	0.303842
3	OutletPart_statorout-blades_wall	1.98214 × 10^-5	13.8395	0.666744
3	OutletPart_statorout-hub_wall	1.93369 × 10^-4	12.9707	1.54628
3	OutletPart_statorout-shroud_wall	2.60025 × 10^-5	16.4517	1.05511
4	InletPart_statorin-blades_wall	1.68508 × 10^-7	0.101608	0.00642923
4	InletPart_statorin-hub_wall	2.68242 × 10^-6	0.539341	0.0367914
4	InletPart_statorin-shroud_wall	3.51709 × 10^-6	0.441558	0.0277917
4	ImpellerPart_impeller-blade_wall	5.26106 × 10^-6	1.22755	0.0158251
4	ImpellerPart_impeller-blade-cap_wall	1.20397 × 10^-7	0.104667	0.00116406
4	ImpellerPart_impeller-hub_wall	2.08117 × 10^-4	1.81271	0.102861
4	ImpellerPart_impeller-shroud_wall	3.75593 × 10^-7	3.95962	0.0310042
4	OutletPart_statorout-blades_wall	6.38214 × 10^-6	12.2763	0.268009
4	OutletPart_statorout-hub_wall	1.61848 × 10^-4	13.1622	1.03407
4	OutletPart_statorout-shroud_wall	7.28858 × 10^-6	11.8165	0.564066
5	InletPart_statorin-blades_wall	1.38814 × 10^-7	0.187208	0.0125238
5	InletPart_statorin-hub_wall	1.12386 × 10^-5	0.747123	0.0618452
5	InletPart_statorin-shroud_wall	1.29090 × 10^-5	0.582393	0.0487121
5	ImpellerPart_impeller-blade_wall	8.30412 × 10^-6	0.289123	0.0103186
5	ImpellerPart_impeller-blade-cap_wall	2.30951 × 10^-7	0.0263192	4.61994 × 10^-4
5	ImpellerPart_impeller-hub_wall	1.22369 × 10^-4	0.403248	0.0571570
5	ImpellerPart_impeller-shroud_wall	2.59388 × 10^-7	0.958284	0.0114923
5	OutletPart_statorout-blades_wall	4.73610 × 10^-7	11.0969	0.0802073
5	OutletPart_statorout-hub_wall	1.91094 × 10^-5	8.73396	0.387017
5	OutletPart_statorout-shroud_wall	9.08350 × 10^-6	11.5957	0.260832
6	InletPart_statorin-blades_wall	1.23191 × 10^-7	0.293432	0.0219113
6	InletPart_statorin-hub_wall	3.28662 × 10^-5	0.968781	0.100597
6	InletPart_statorin-shroud_wall	3.58379 × 10^-5	0.729723	0.0835250
6	ImpellerPart_impeller-blade_wall	1.67809 × 10^-5	0.578191	0.0186987
6	ImpellerPart_impeller-blade-cap_wall	1.13150 × 10^-7	0.0227234	5.34167 × 10^-4
6	ImpellerPart_impeller-hub_wall	2.11756 × 10^-4	0.806590	0.116034
6	ImpellerPart_impeller-shroud_wall	2.39774 × 10^-7	0.802260	0.0131943
6	OutletPart_statorout-blades_wall	3.85120 × 10^-6	5.38289	0.0782781
6	OutletPart_statorout-hub_wall	6.49943 × 10^-5	11.6707	0.481790
6	OutletPart_statorout-shroud_wall	2.66471 × 10^-5	11.7208	0.462780
7	InletPart_statorin-blades_wall	7.73536 × 10^-7	0.454191	0.0367794
7	InletPart_statorin-hub_wall	7.47549 × 10^-5	1.20363	0.160886
7	InletPart_statorin-shroud_wall	1.05313 × 10^-4	1.25955	0.145564
7	ImpellerPart_impeller-blade_wall	4.47670 × 10^-5	0.580062	0.0435510
7	ImpellerPart_impeller-blade-cap_wall	4.23243 × 10^-8	0.0460044	0.00102444
7	ImpellerPart_impeller-hub_wall	6.99514 × 10^-4	1.74726	0.284818
7	ImpellerPart_impeller-shroud_wall	8.08508 × 10^-8	1.43198	0.0247029
7	OutletPart_statorout-blades_wall	2.18763 × 10^-6	11.8233	0.159812
7	OutletPart_statorout-hub_wall	2.13698 × 10^-5	13.4820	0.976936
7	OutletPart_statorout-shroud_wall	6.16541 × 10^-5	12.1682	0.785480
8	InletPart_statorin-blades_wall	5.62183 × 10^-6	0.658846	0.0597478
8	InletPart_statorin-hub_wall	2.05543 × 10^-4	1.45082	0.254082
8	InletPart_statorin-shroud_wall	2.60737 × 10^-4	2.50920	0.256584
8	ImpellerPart_impeller-blade_wall	1.22236 × 10^-4	1.69376	0.117777
8	ImpellerPart_impeller-blade-cap_wall	6.97013 × 10^-8	0.0975135	0.00255865
8	ImpellerPart_impeller-hub_wall	0.00298041	4.98841	0.812521
8	ImpellerPart_impeller-shroud_wall	1.87169 × 10^-7	3.29072	0.0586688
8	OutletPart_statorout-blades_wall	4.67620 × 10^-6	11.7108	0.283696
8	OutletPart_statorout-hub_wall	5.22308 × 10^-4	13.2420	1.98798
8	OutletPart_statorout-shroud_wall	8.94611 × 10^-5	12.2208	1.35324
9	InletPart_statorin-blades_wall	2.80684 × 10^-5	0.917197	0.0975215
9	InletPart_statorin-hub_wall	4.27236 × 10^-4	2.14550	0.400655
9	InletPart_statorin-shroud_wall	3.90328 × 10^-4	5.27899	0.454558
9	ImpellerPart_impeller-blade_wall	3.45898 × 10^-4	5.91302	0.350275
9	ImpellerPart_impeller-blade-cap_wall	2.28744 × 10^-7	0.232211	0.00773479
9	ImpellerPart_impeller-hub_wall	0.0126144	13.3861	2.44841
9	ImpellerPart_impeller-shroud_wall	3.56674 × 10^-7	8.32376	0.160576
9	OutletPart_statorout-blades_wall	5.92703 × 10^-5	11.7722	0.452789
9	OutletPart_statorout-hub_wall	0.00192046	13.7485	3.23328
9	OutletPart_statorout-shroud_wall	1.10398 × 10^-4	12.9389	2.35469

Wall-clock Time [ hh:mm:ss ]

00:00:40 (meshing)

00:09:03 (calculation)

Parallel Processors [ ⁠–⁠ ]

32

Fluid Name

custom

Physical Model

incompressible

Numerical Order

second

Turbulence Model

kOmegaSST

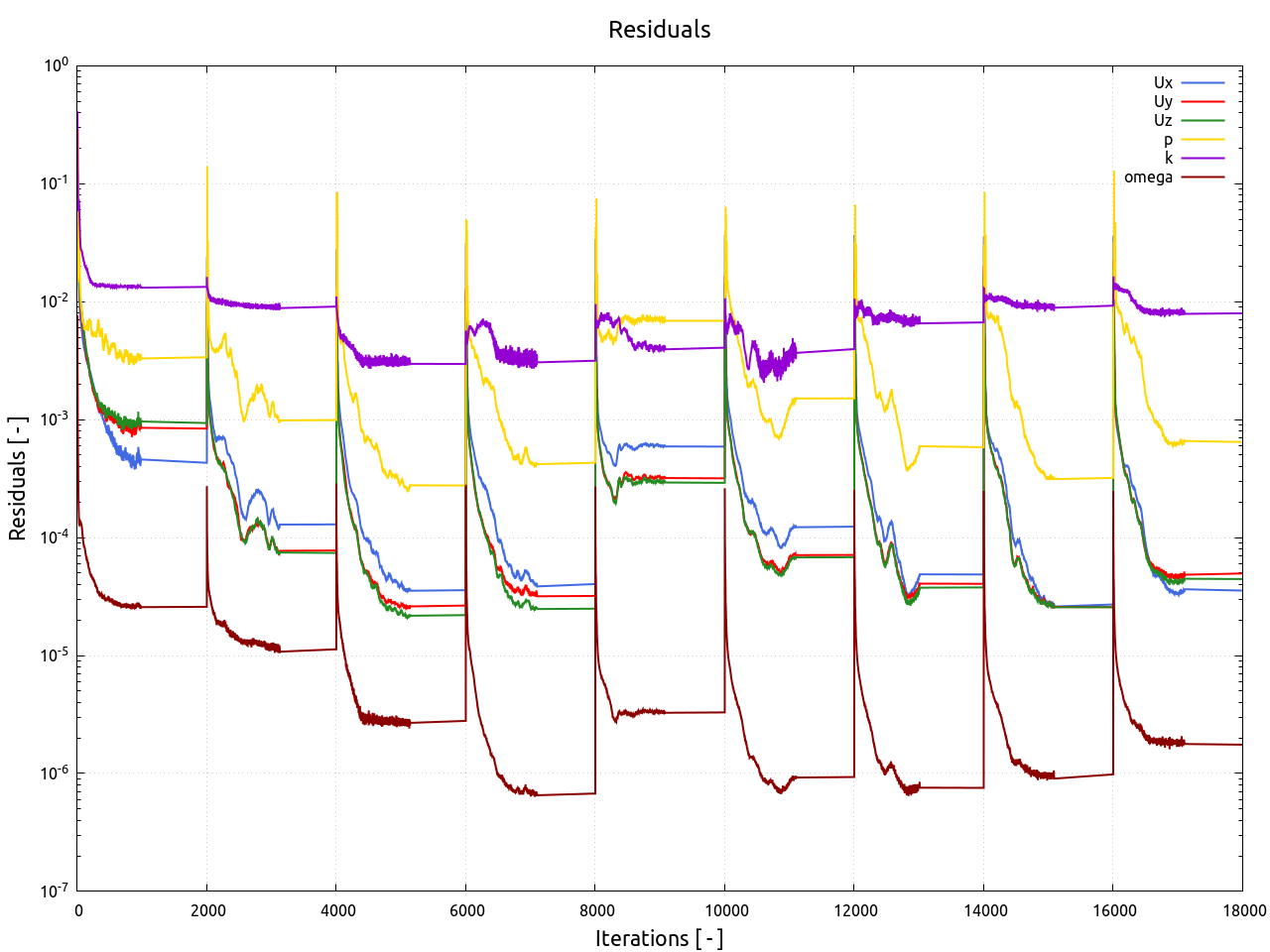

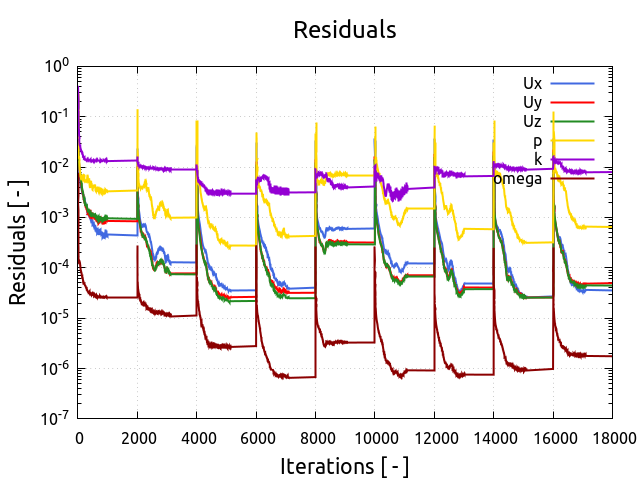

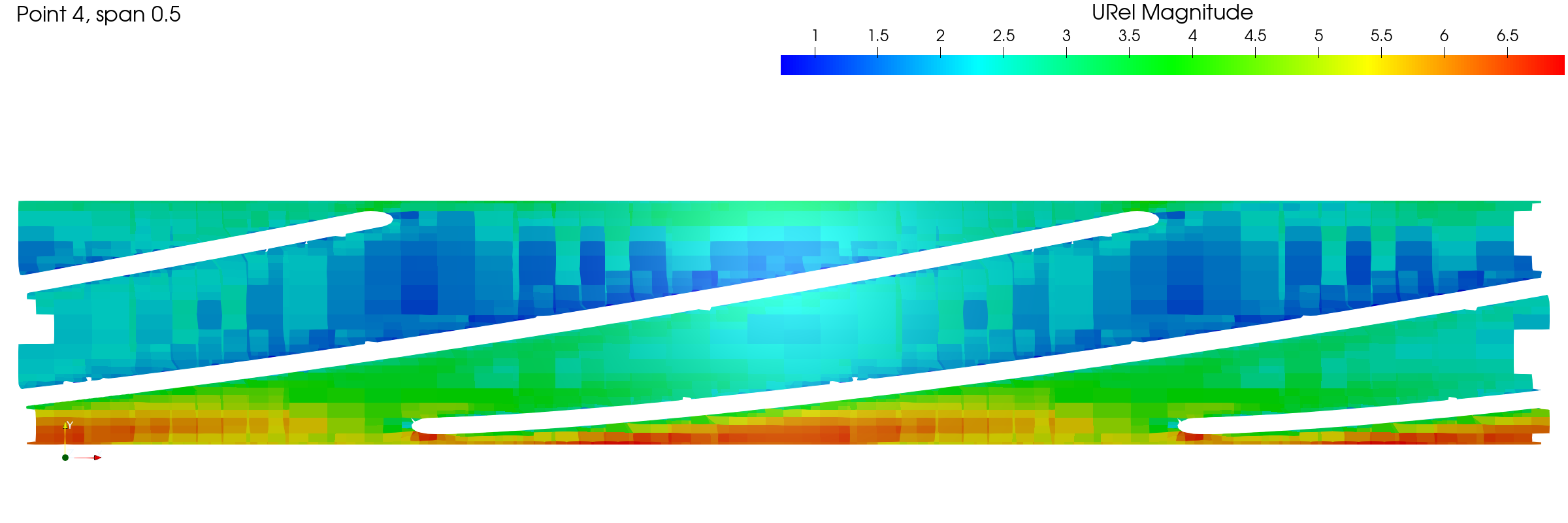

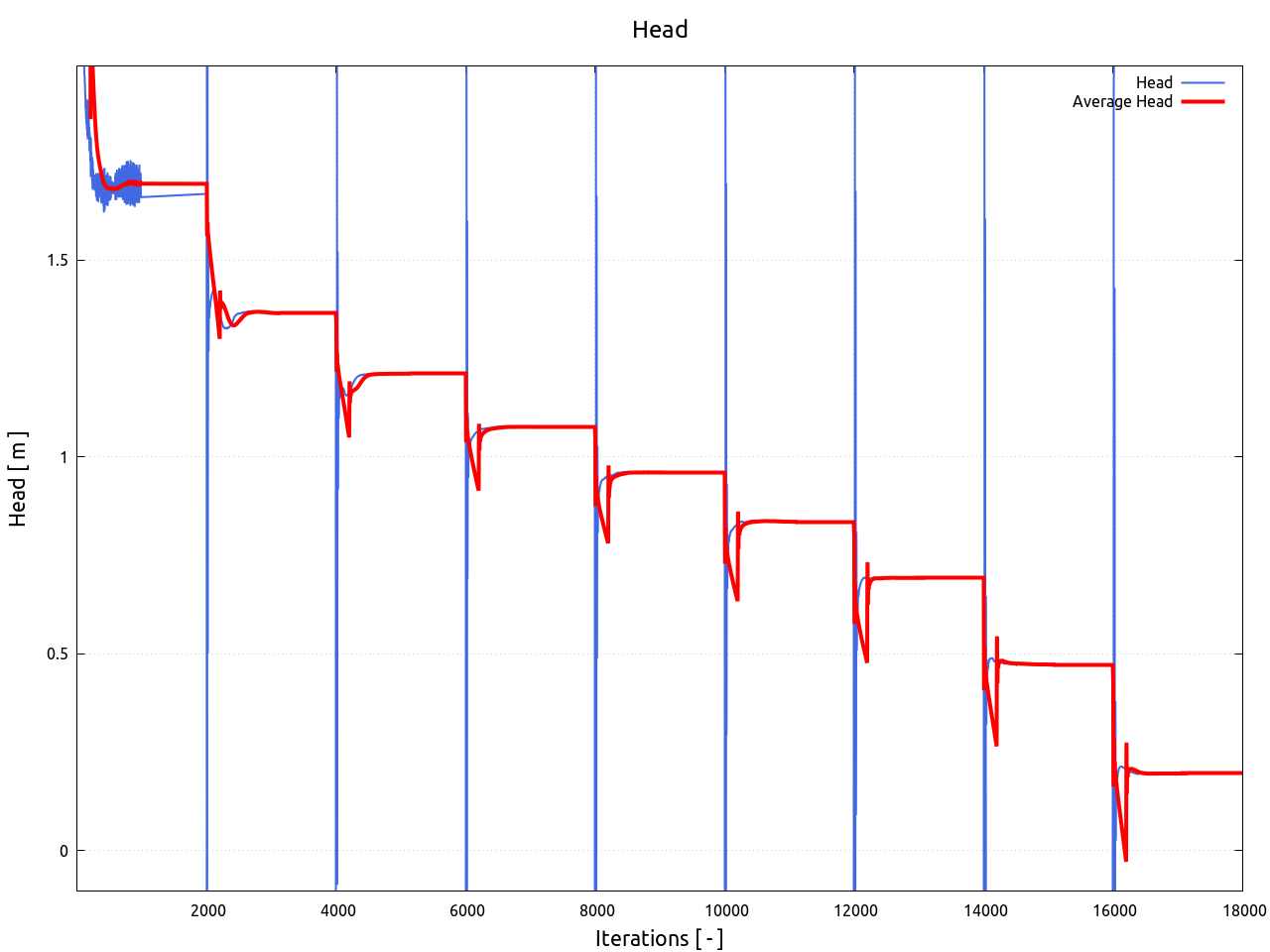

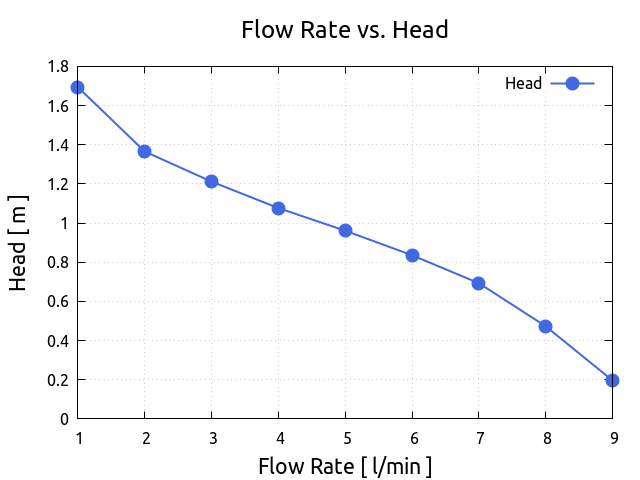

Head

1:inlet — 3:outlet

Point Nr.	Flow Rate [ l/min ]	Head [ m ]
1	1.00000	1.69379
2	1.99999	1.36521
3	2.99999	1.21159
4	3.99999	1.07638
5	4.99999	0.960708
6	5.99999	0.835579
7	7.00001	0.692913
8	7.99996	0.473093
9	8.99998	0.196371

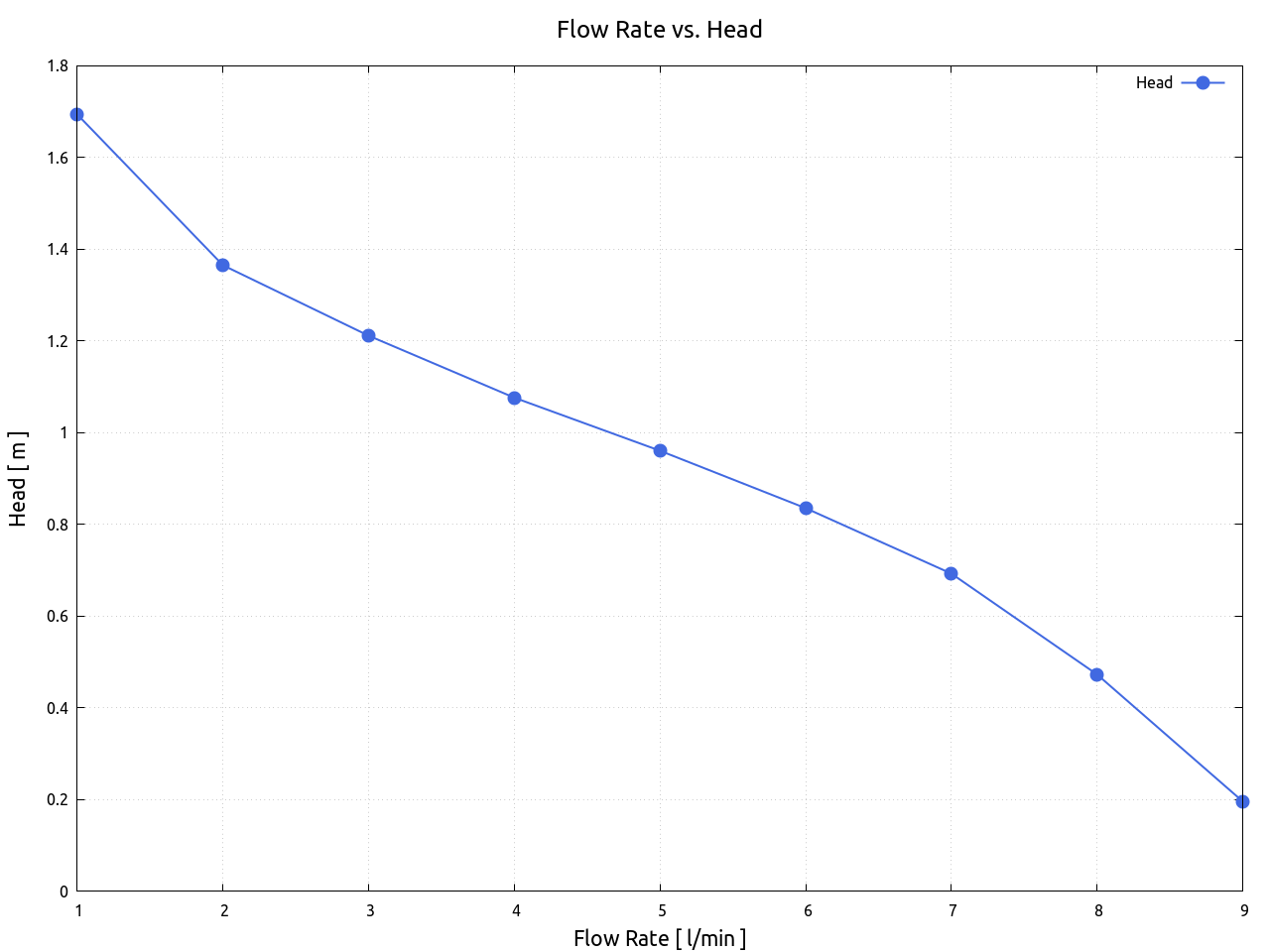

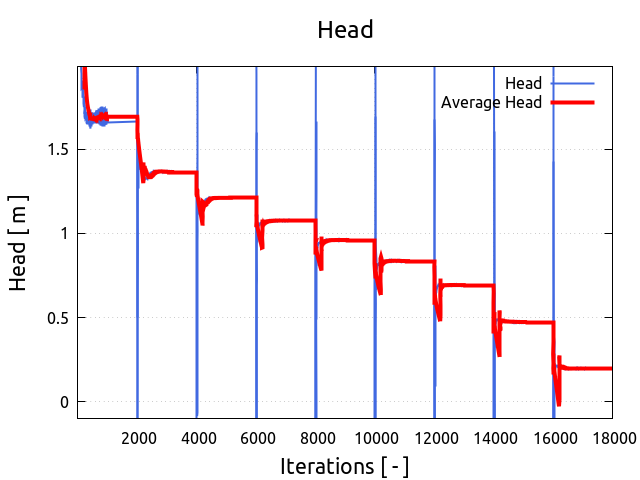

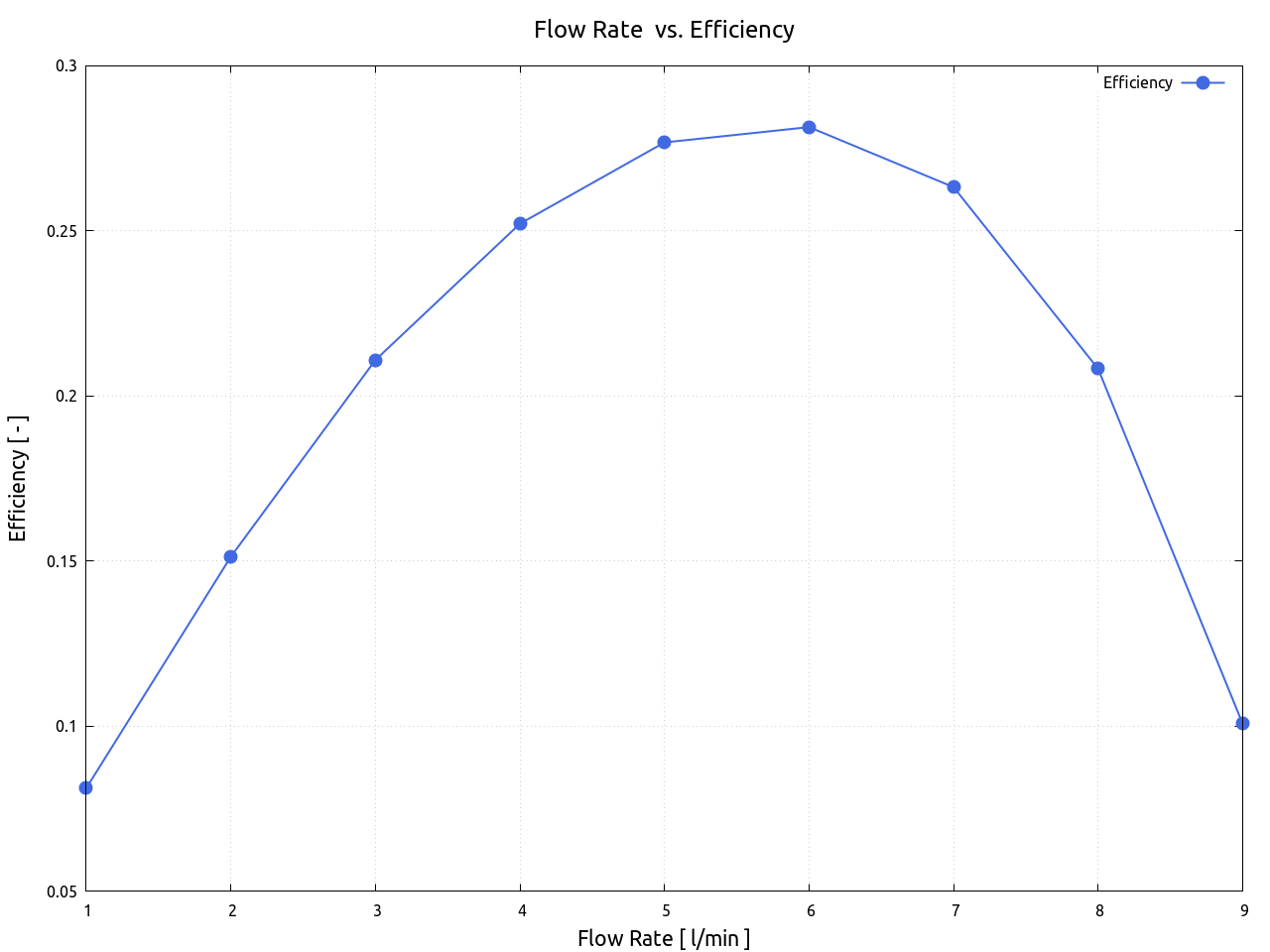

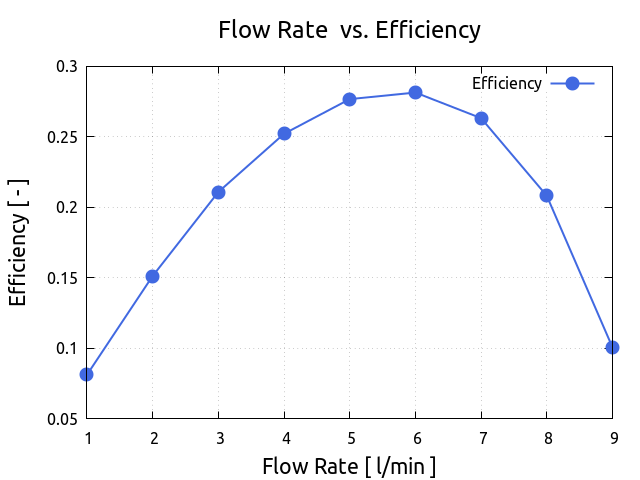

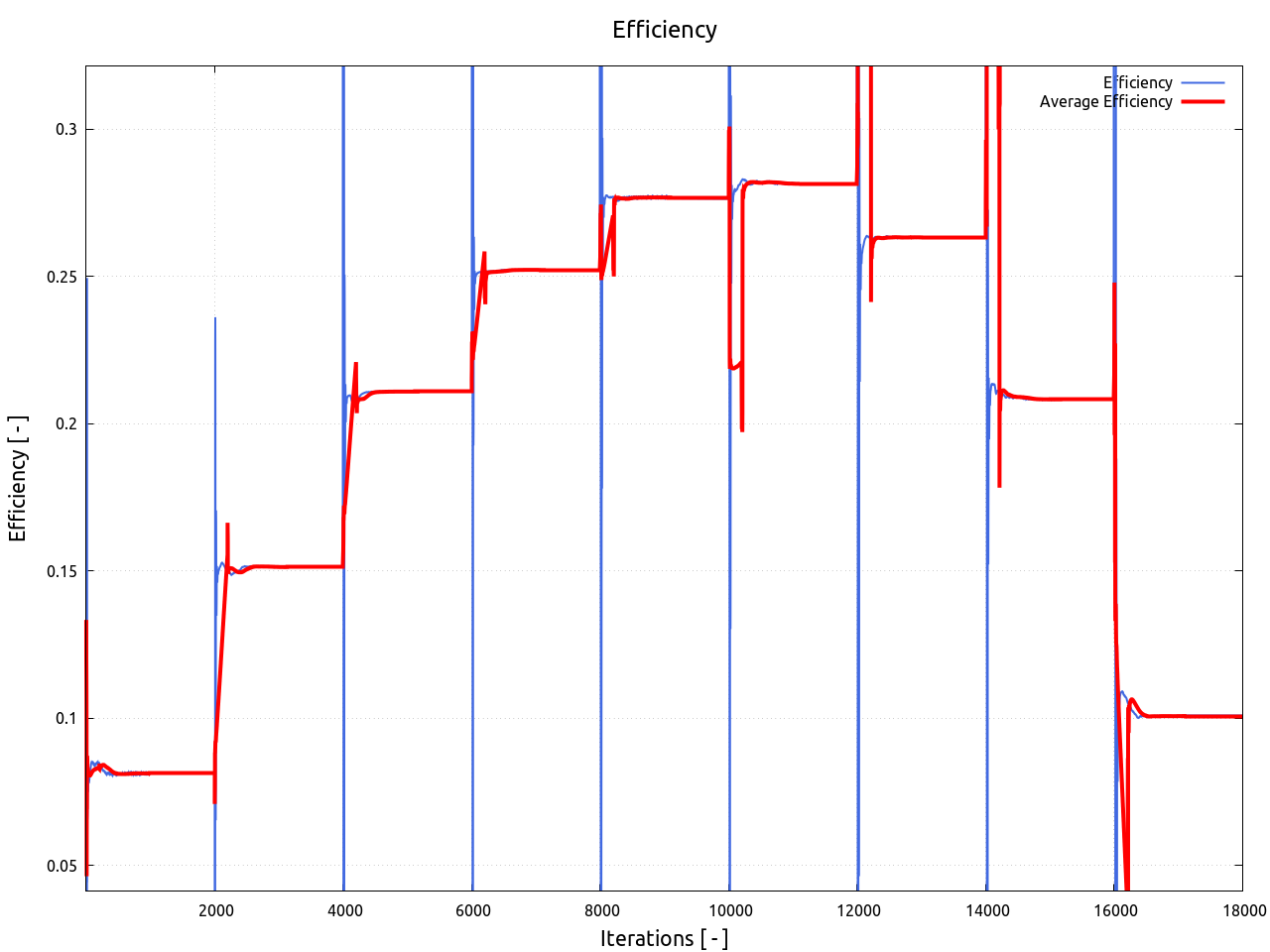

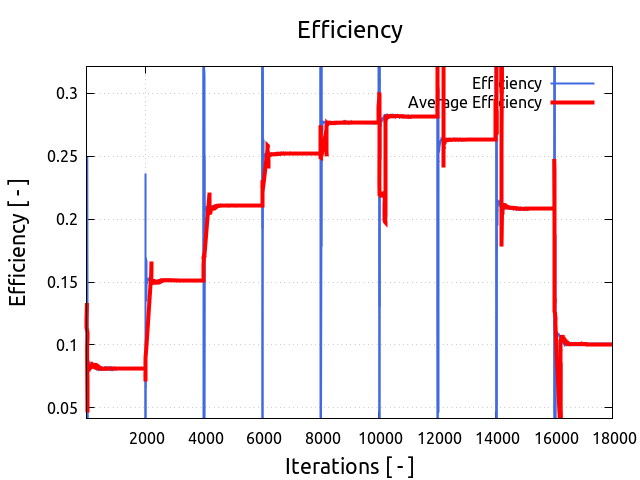

Efficiency

1:inlet — 3:outlet

Point Nr.	Flow Rate [ l/min ]	Efficiency [ – ]
1	1.00000	0.0812622
2	1.99999	0.151352
3	2.99999	0.210903
4	3.99999	0.252194
5	4.99999	0.276810
6	5.99999	0.281458
7	7.00001	0.263260
8	7.99996	0.208259
9	8.99998	0.100769

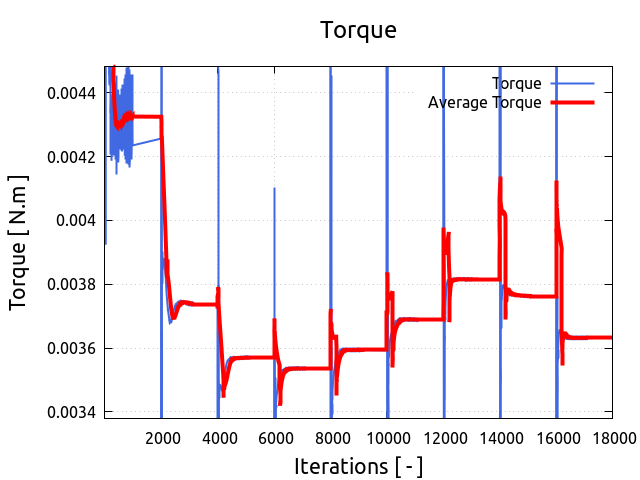

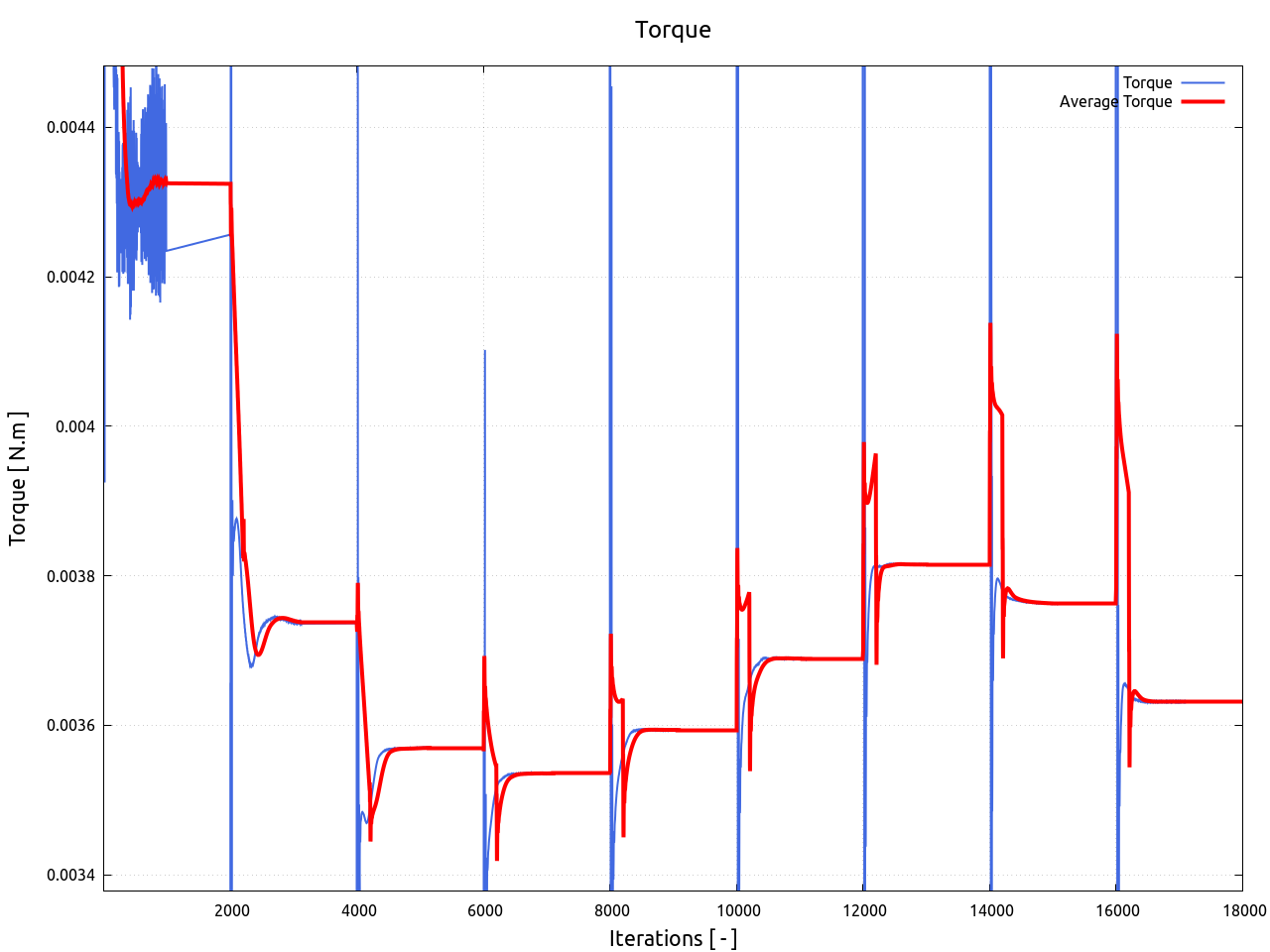

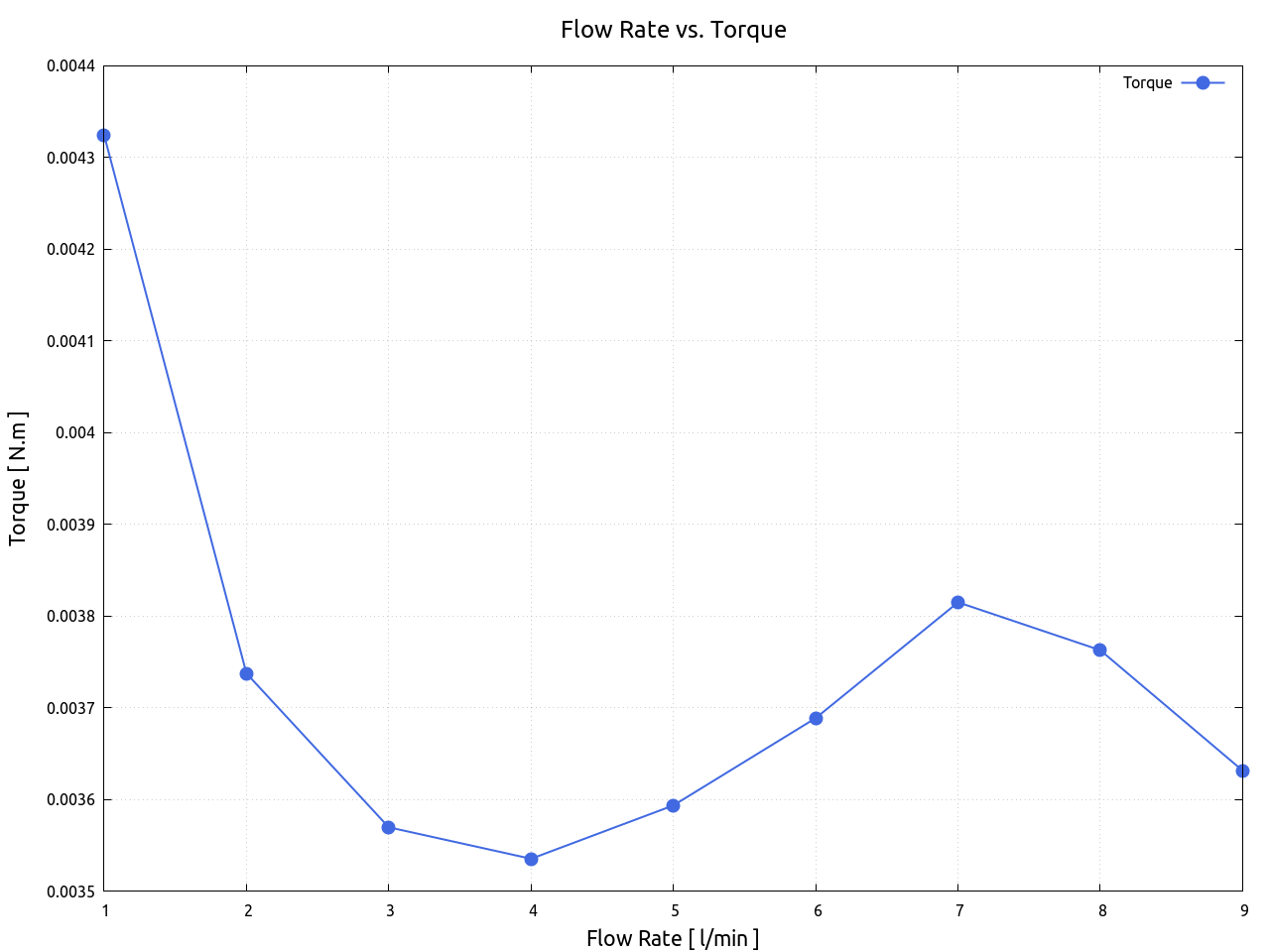

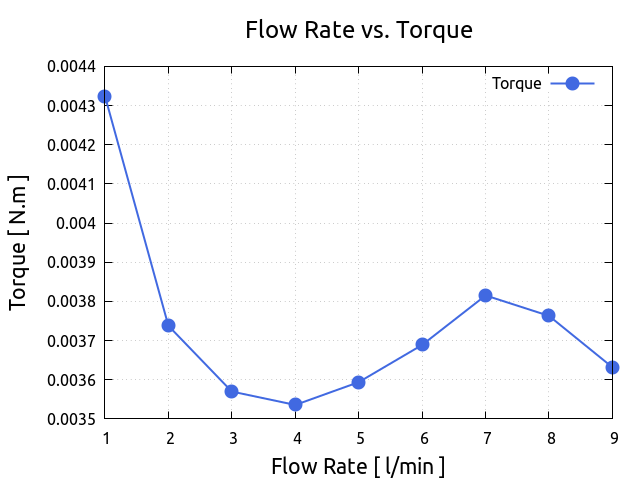

Torque

Point Nr.	Flow Rate [ l/min ]	Torque [ N.m ]
1	1.00000	0.00432444
2	1.99999	0.00373770
3	2.99999	0.00356987
4	3.99999	0.00353557
5	4.99999	0.00359381
6	5.99999	0.00368895
7	7.00001	0.00381515
8	7.99996	0.00376292
9	8.99998	0.00363166

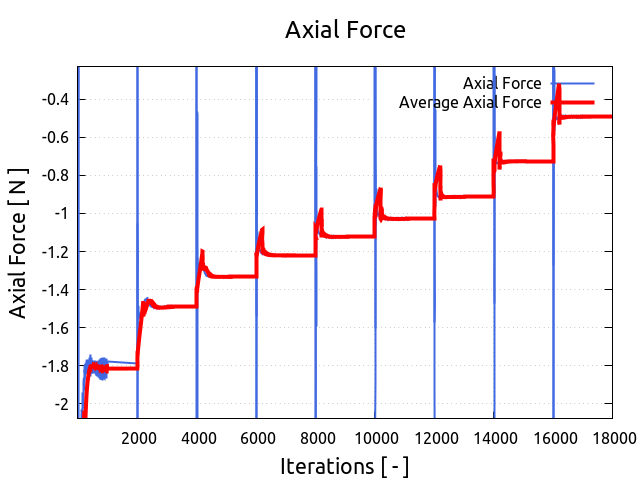

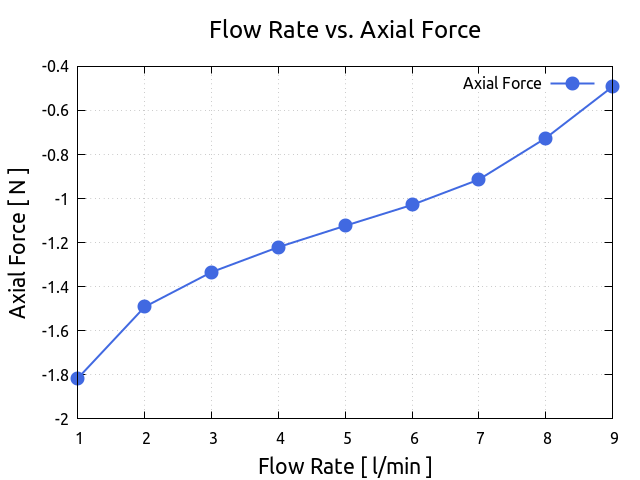

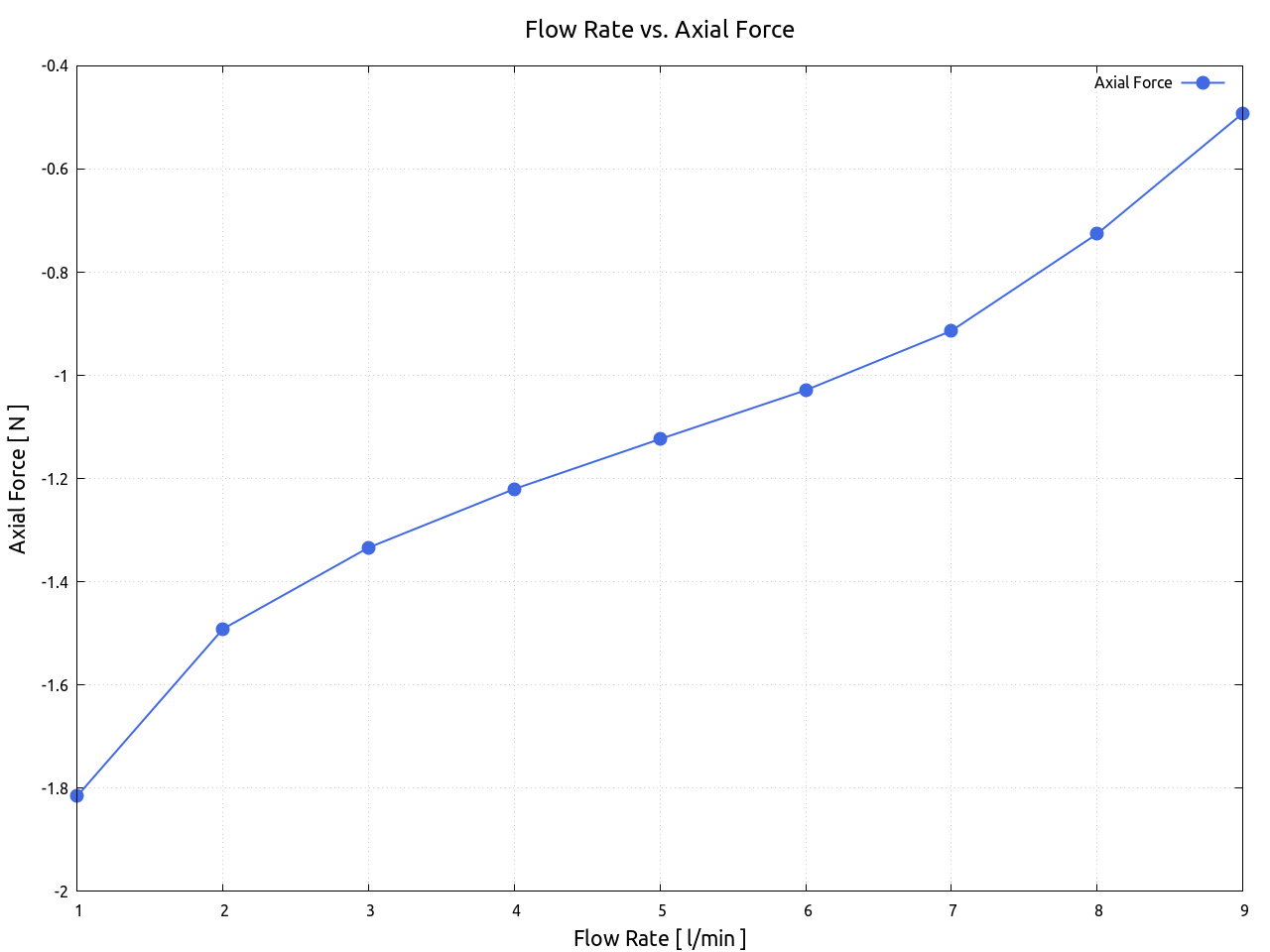

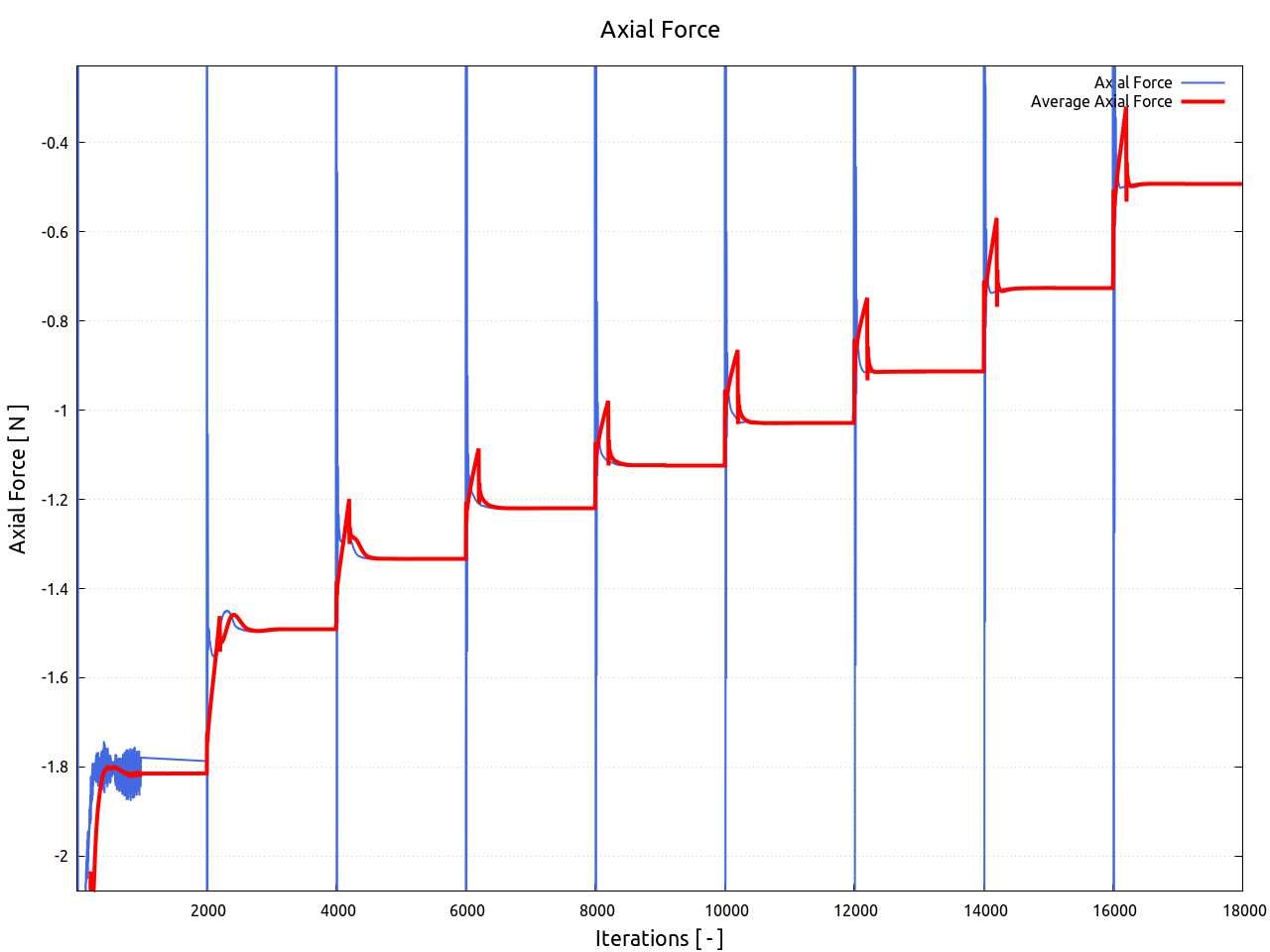

Axial Force

Point Nr.	Flow Rate [ l/min ]	Axial Force [ N ]
1	1.00000	-1.81479
2	1.99999	-1.49127
3	2.99999	-1.33358
4	3.99999	-1.22011
5	4.99999	-1.12328
6	5.99999	-1.02867
7	7.00001	-0.913518
8	7.99996	-0.725732
9	8.99998	-0.492160

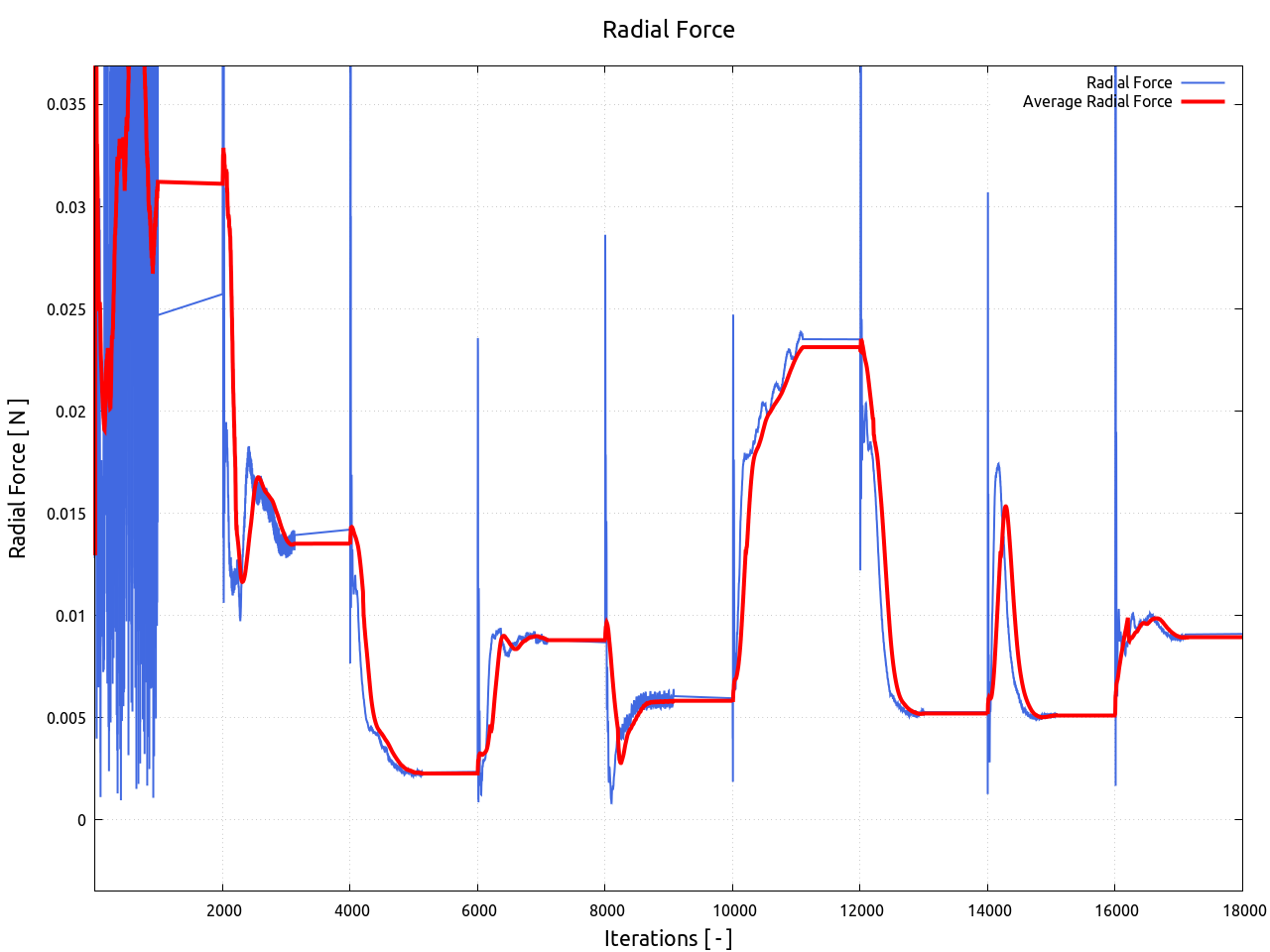

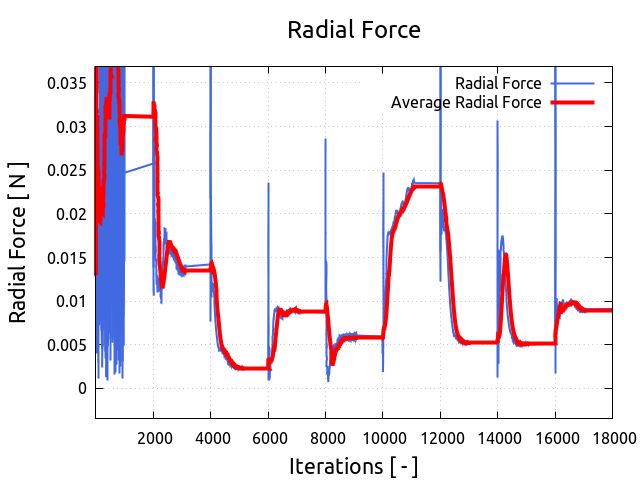

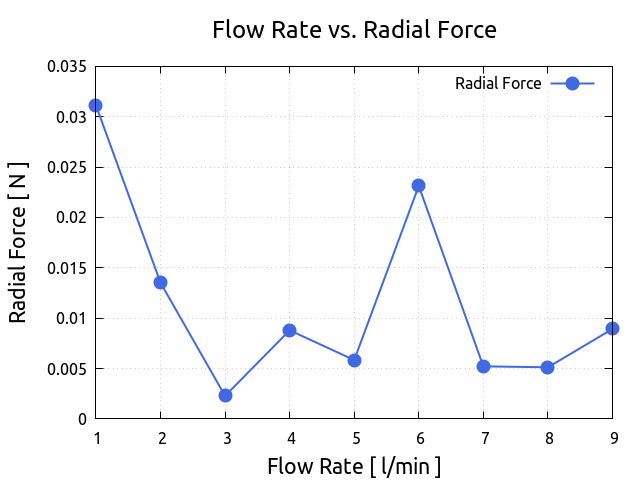

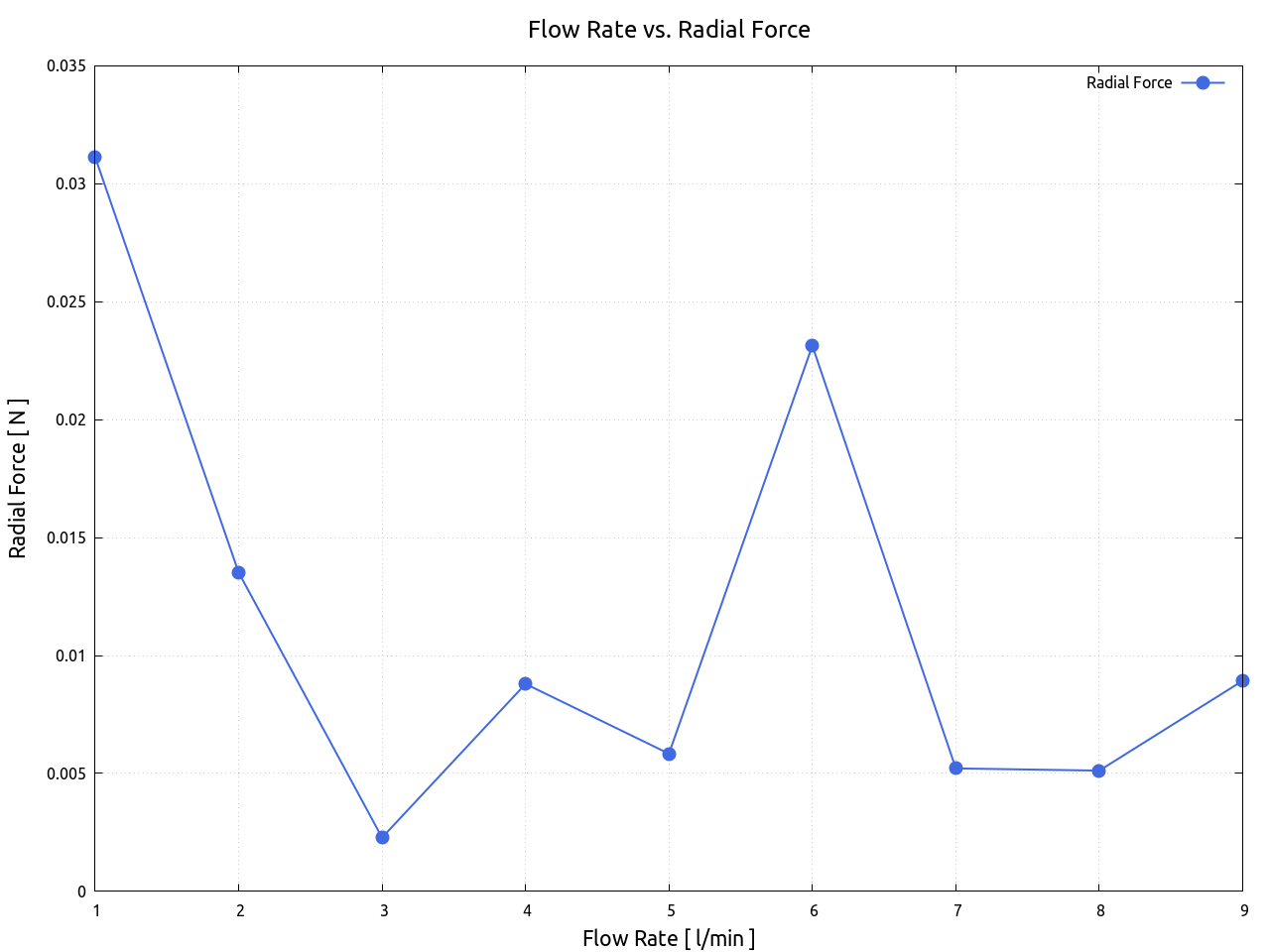

Radial Force

Point Nr.	Flow Rate [ l/min ]	Radial Force [ N ]
1	1.00000	0.0311253
2	1.99999	0.0135238
3	2.99999	0.00228126
4	3.99999	0.00879604
5	4.99999	0.00583677
6	5.99999	0.0231357
7	7.00001	0.00521580
8	7.99996	0.00512165
9	8.99998	0.00893220

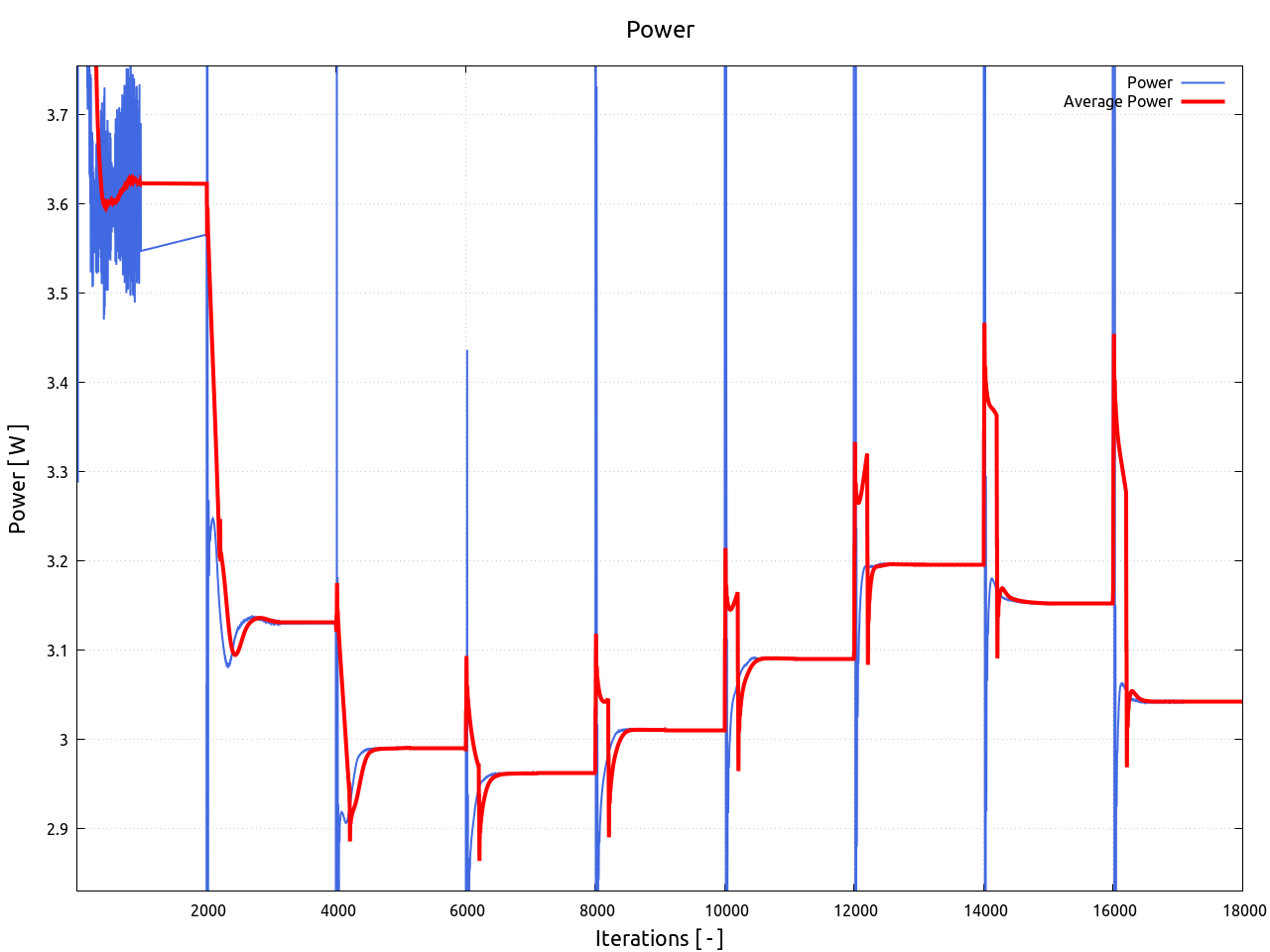

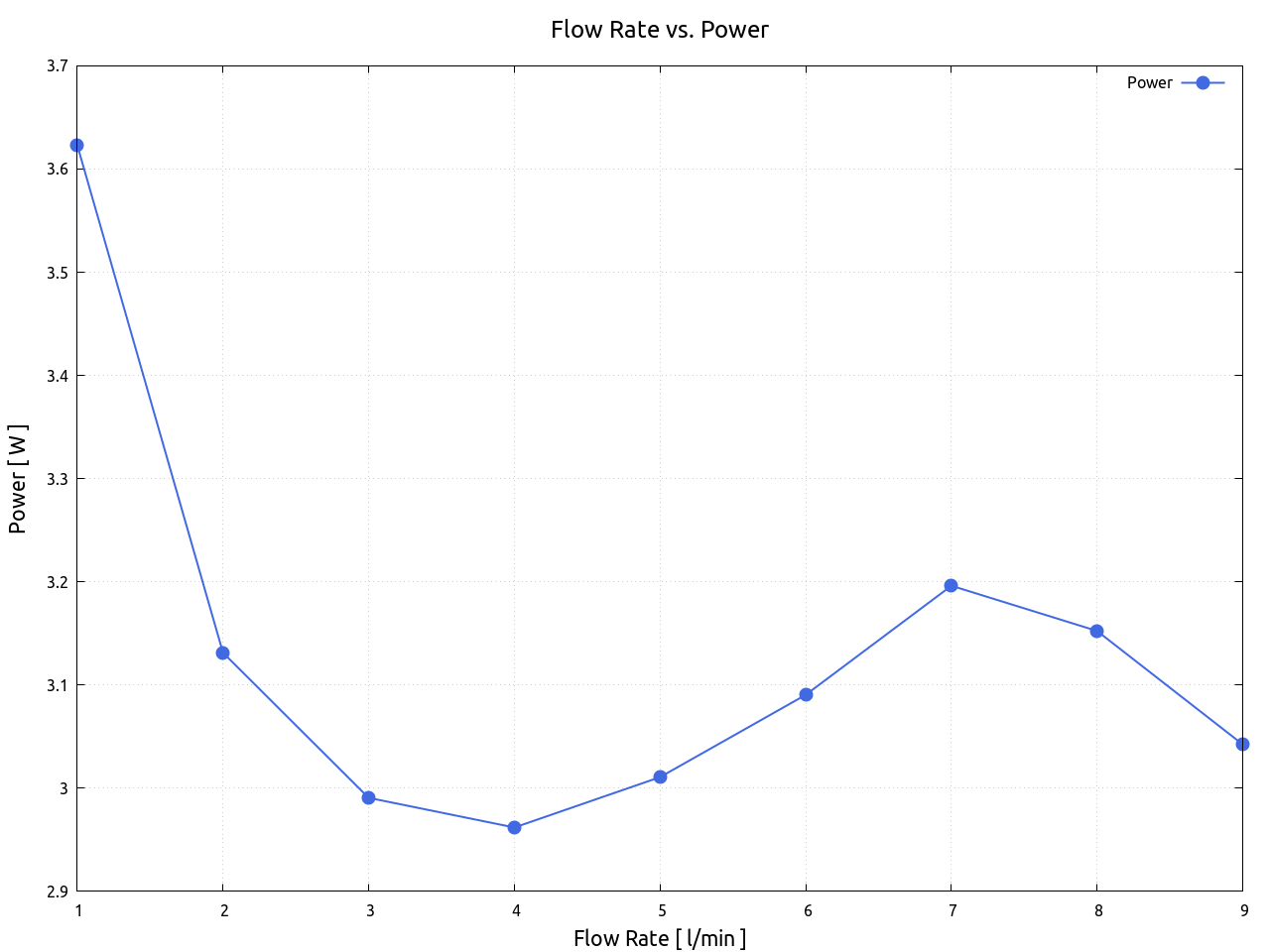

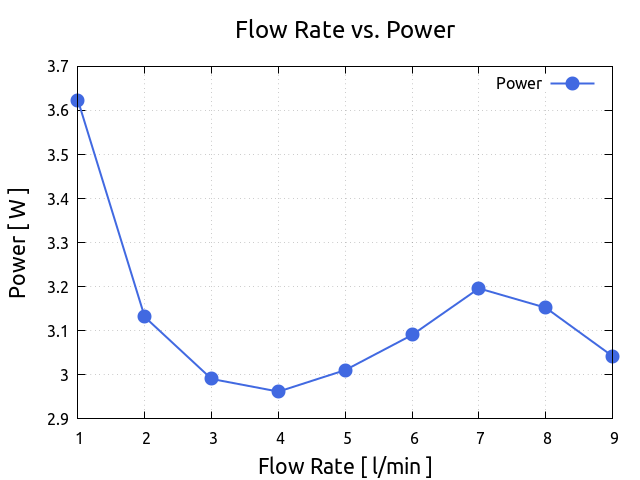

Power

Point Nr.	Flow Rate [ l/min ]	Power [ W ]
1	1.00000	3.62283
2	1.99999	3.13129
3	2.99999	2.99068
4	3.99999	2.96196
5	4.99999	3.01074
6	5.99999	3.09045
7	7.00001	3.19617
8	7.99996	3.15242
9	8.99998	3.04245

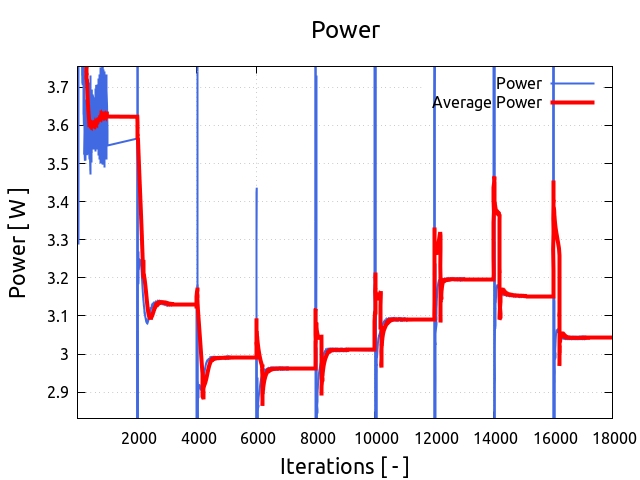

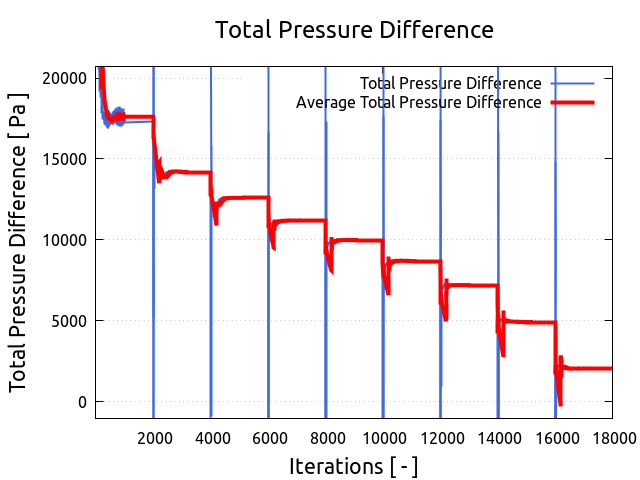

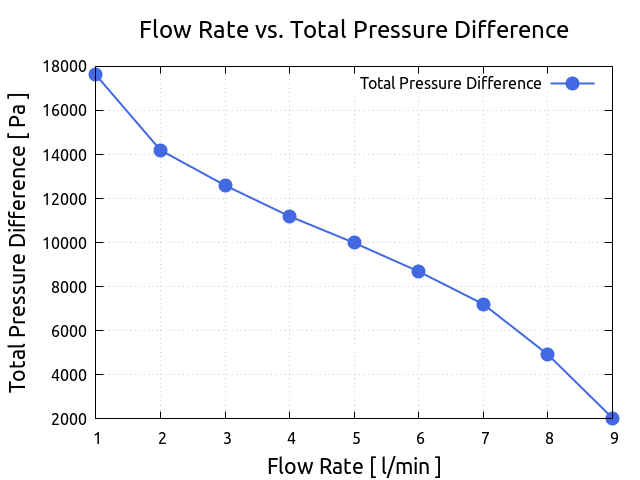

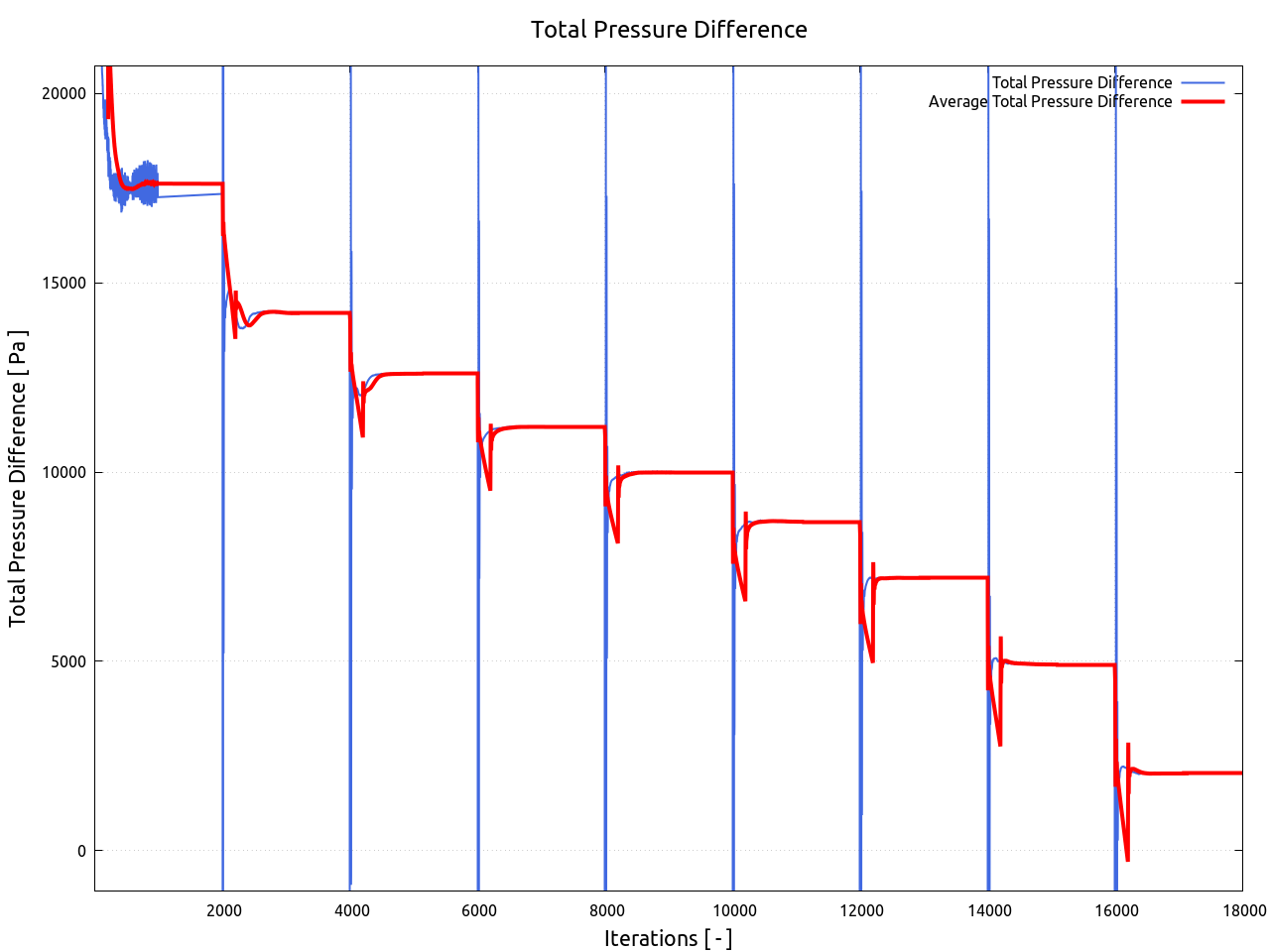

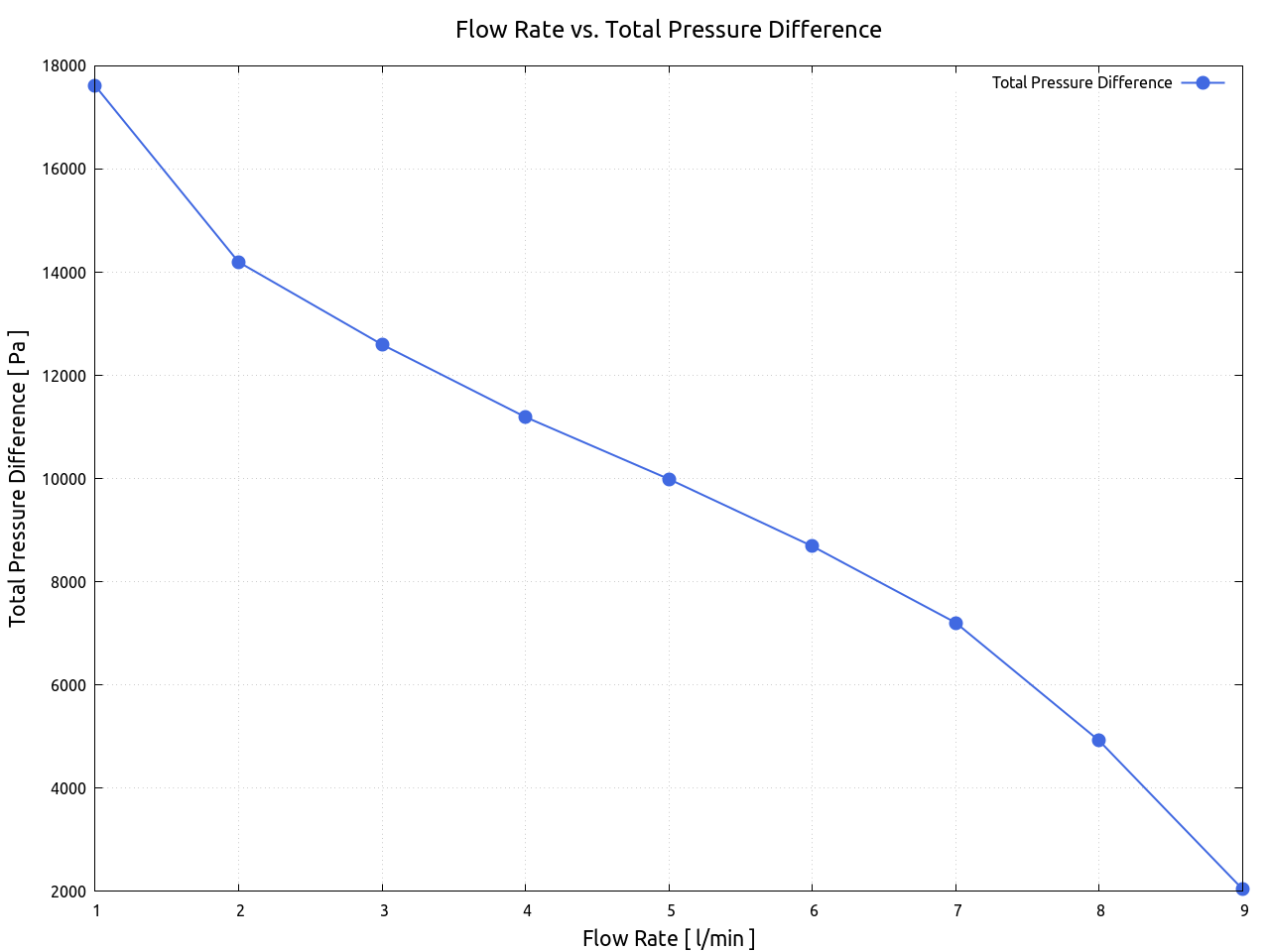

Total Pressure Difference

1:inlet — 3:outlet

Point Nr.	Flow Rate [ l/min ]	Total Pressure Difference [ Pa ]
1	1.00000	17613.0
2	1.99999	14196.2
3	2.99999	12598.9
4	3.99999	11192.8
5	4.99999	9990.01
6	5.99999	8688.85
7	7.00001	7205.32
8	7.99996	4919.51
9	8.99998	2041.98

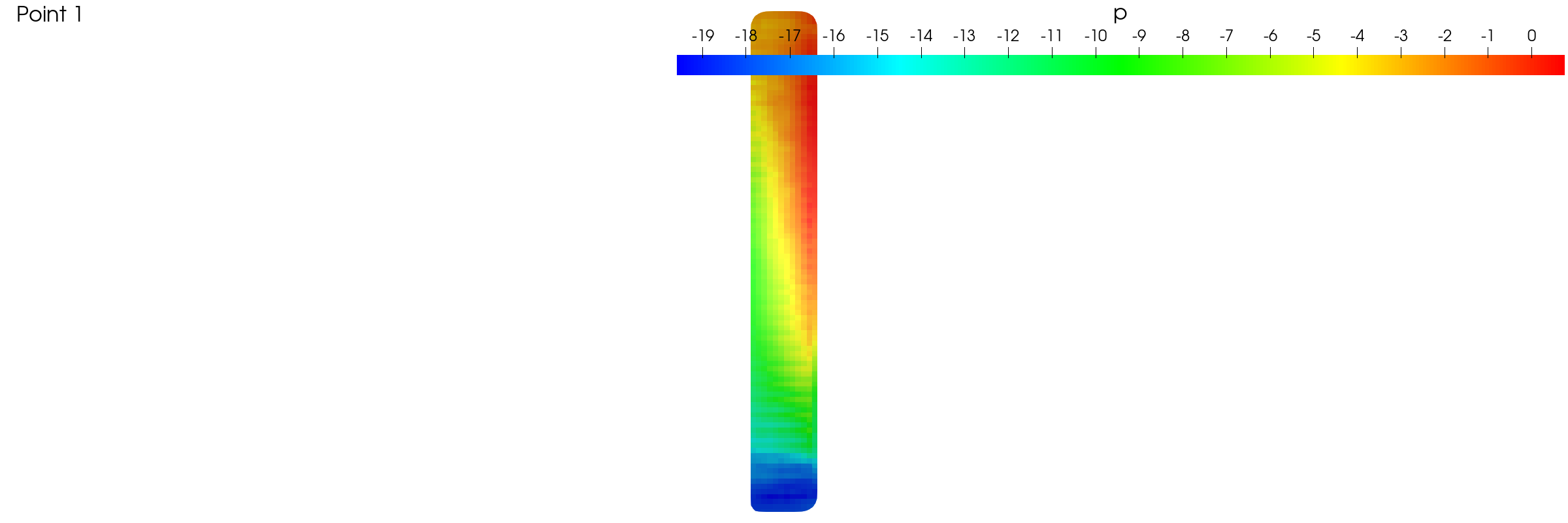

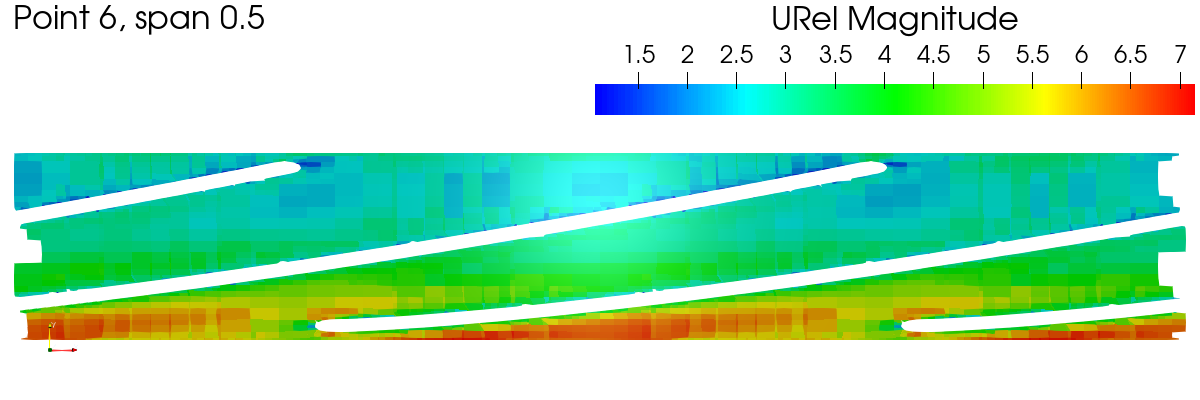

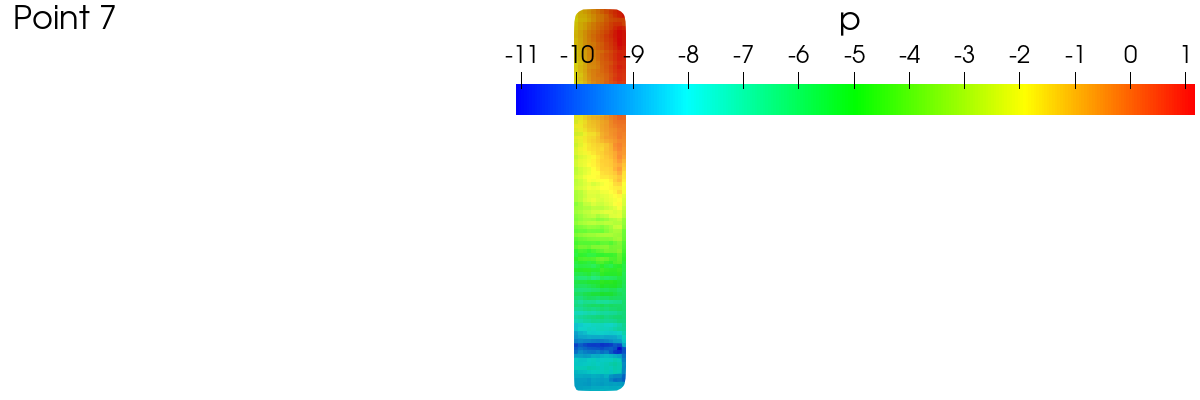

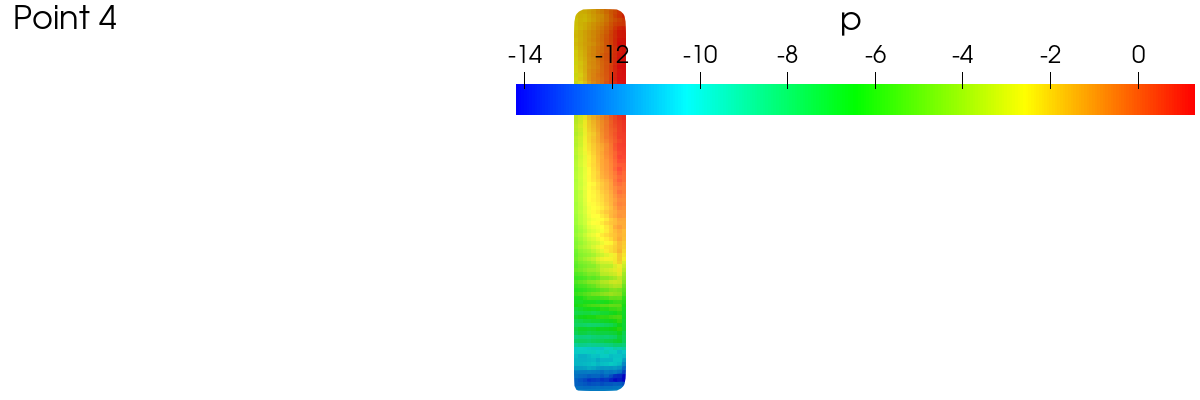

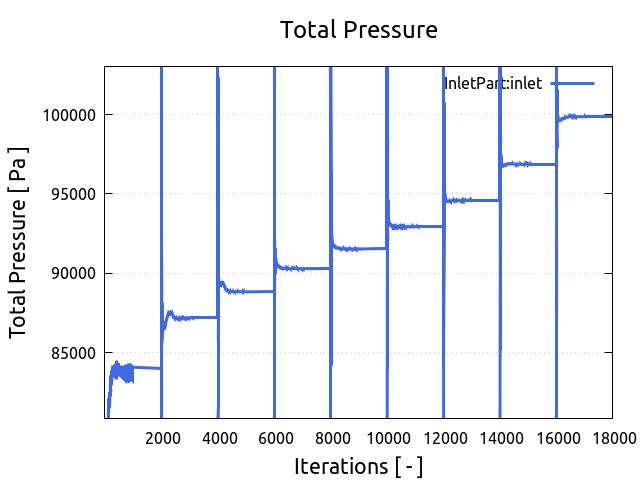

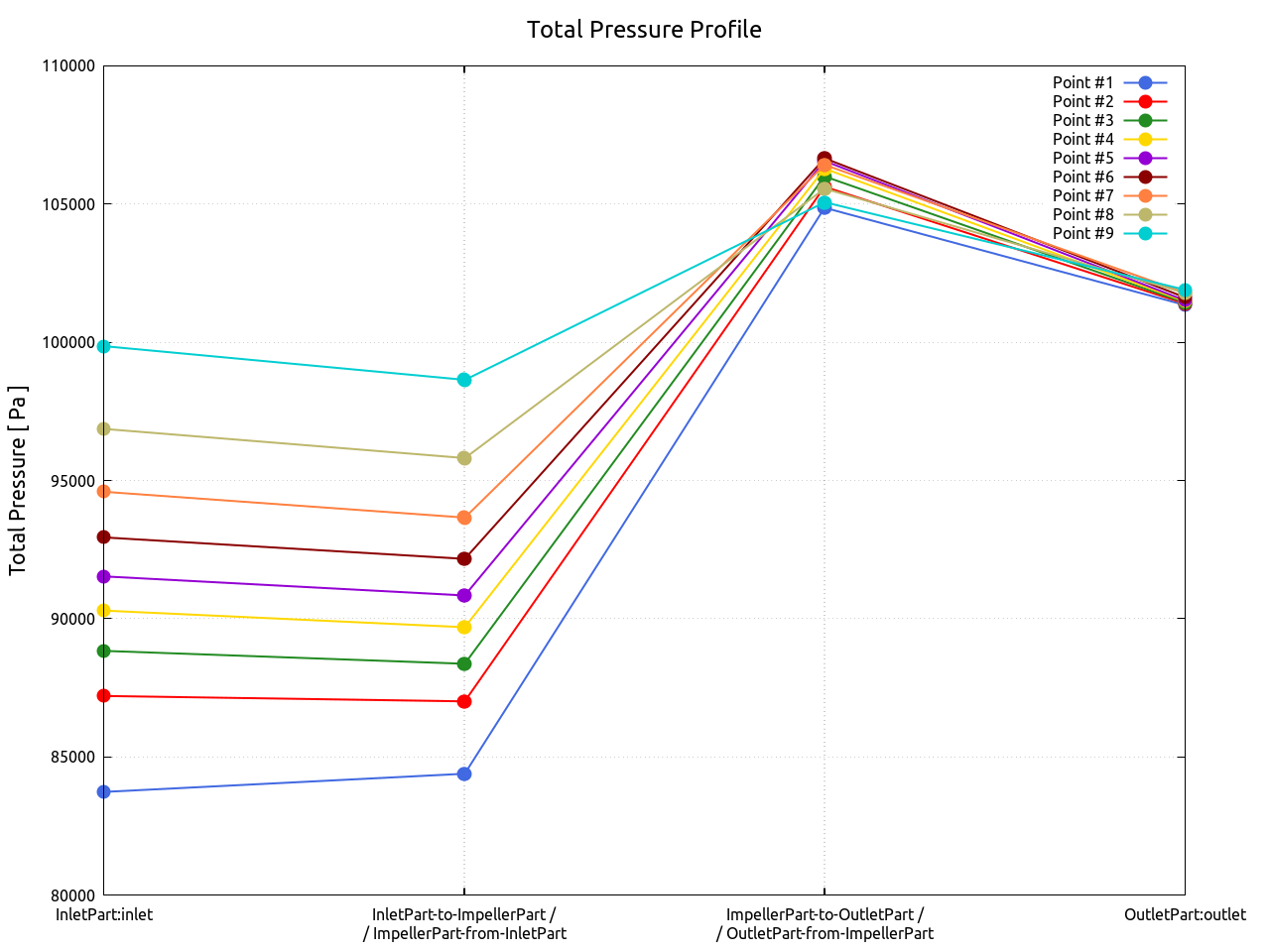

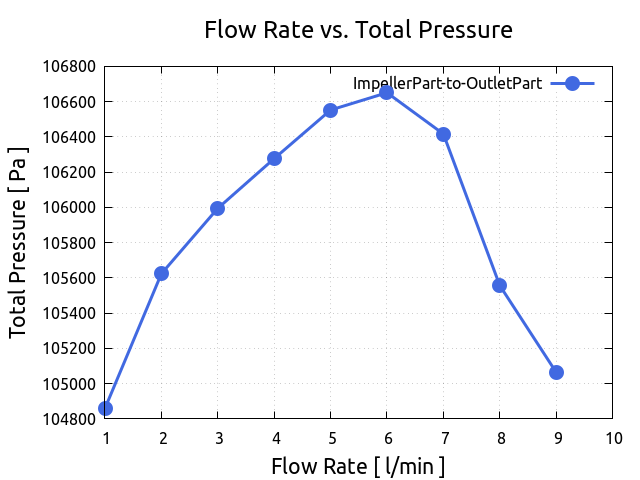

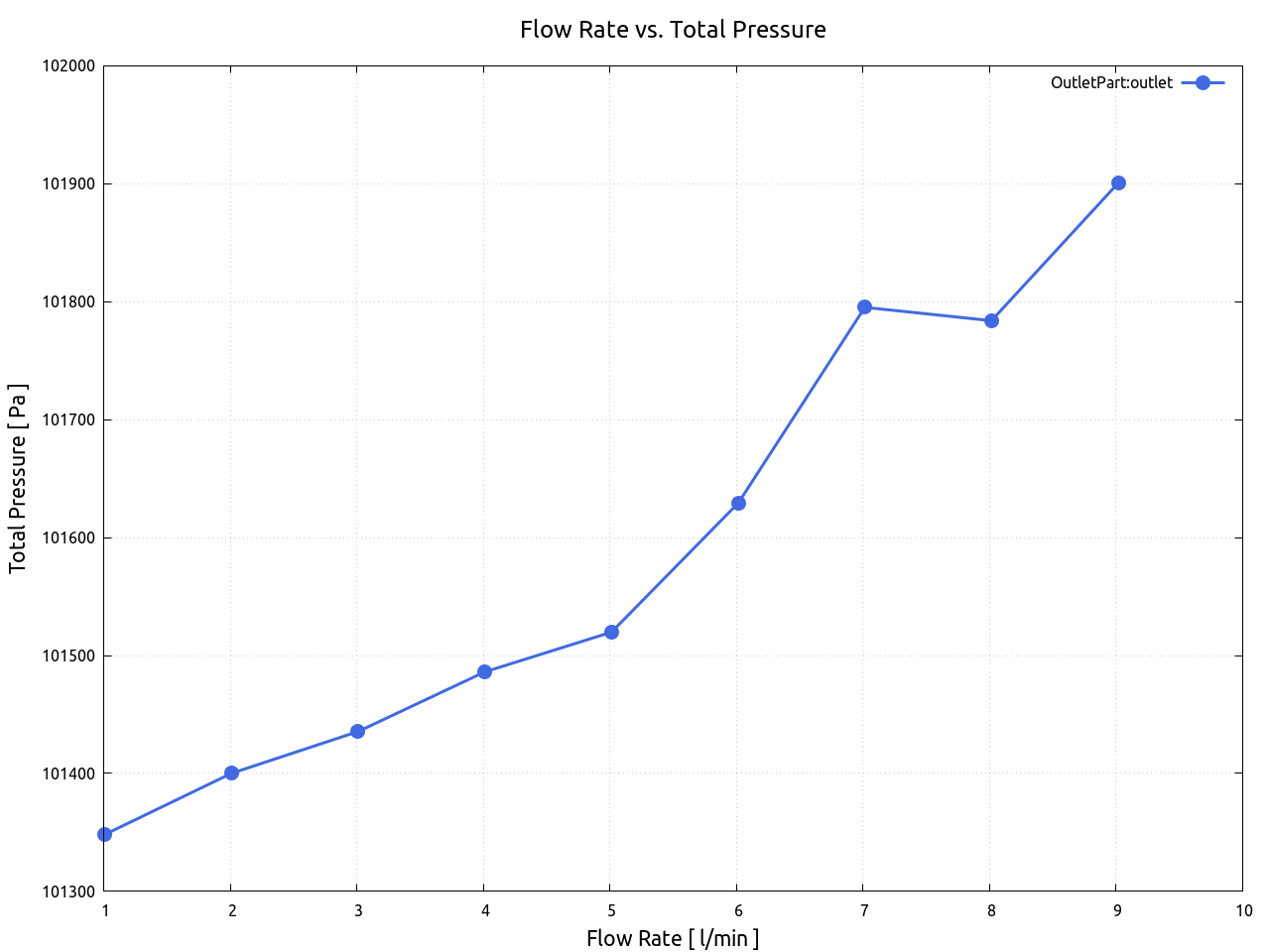

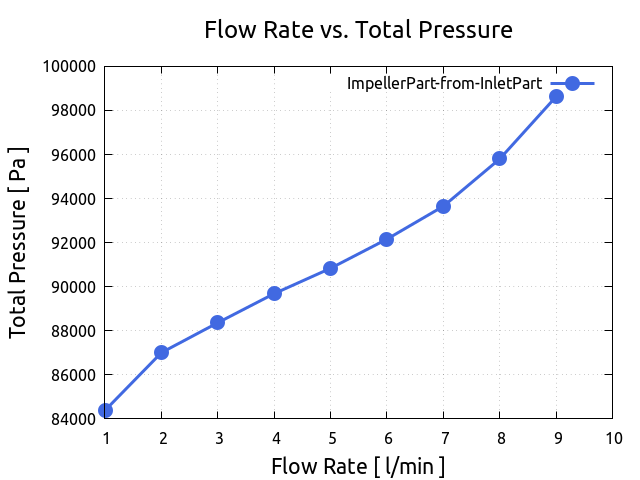

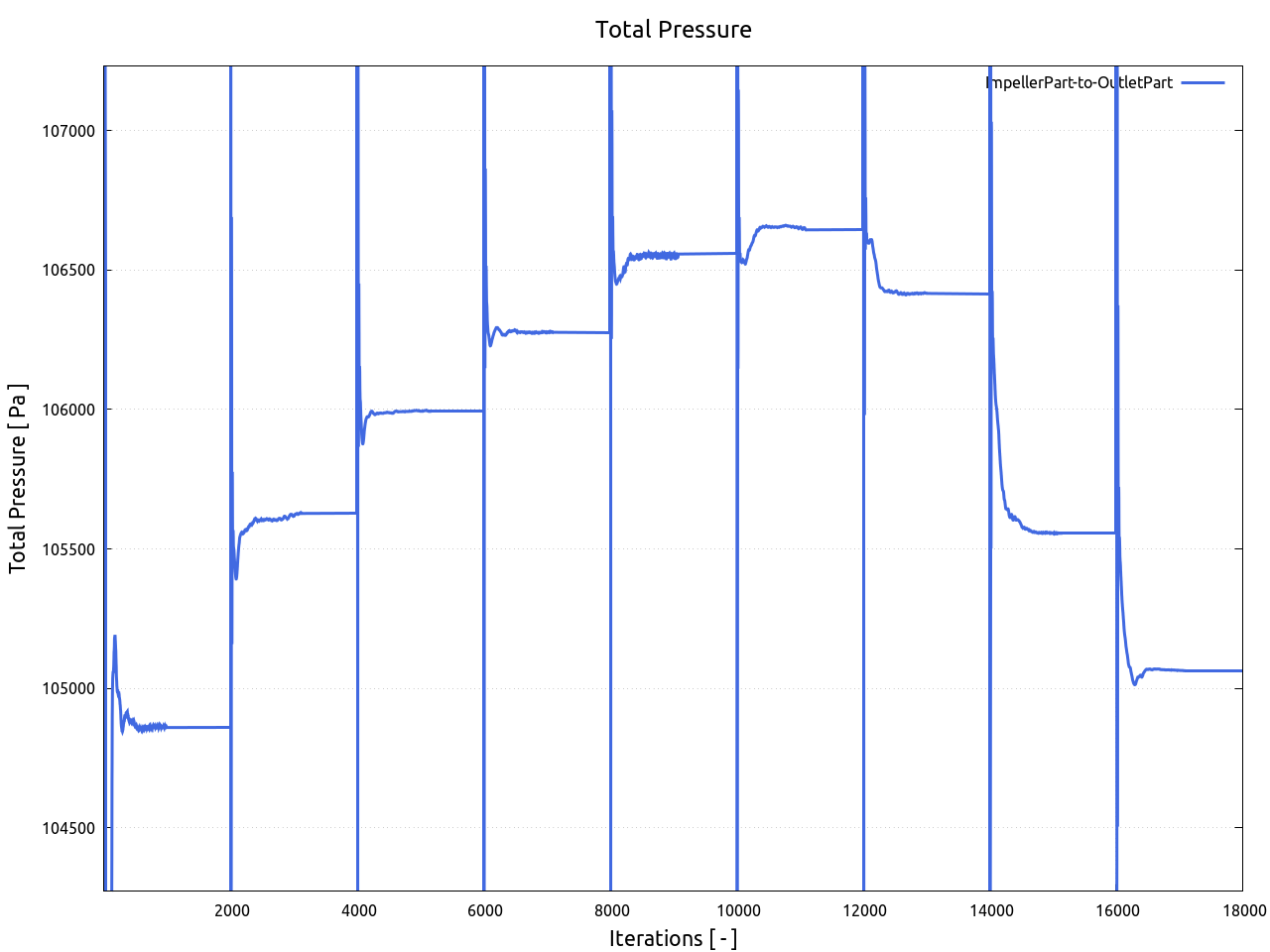

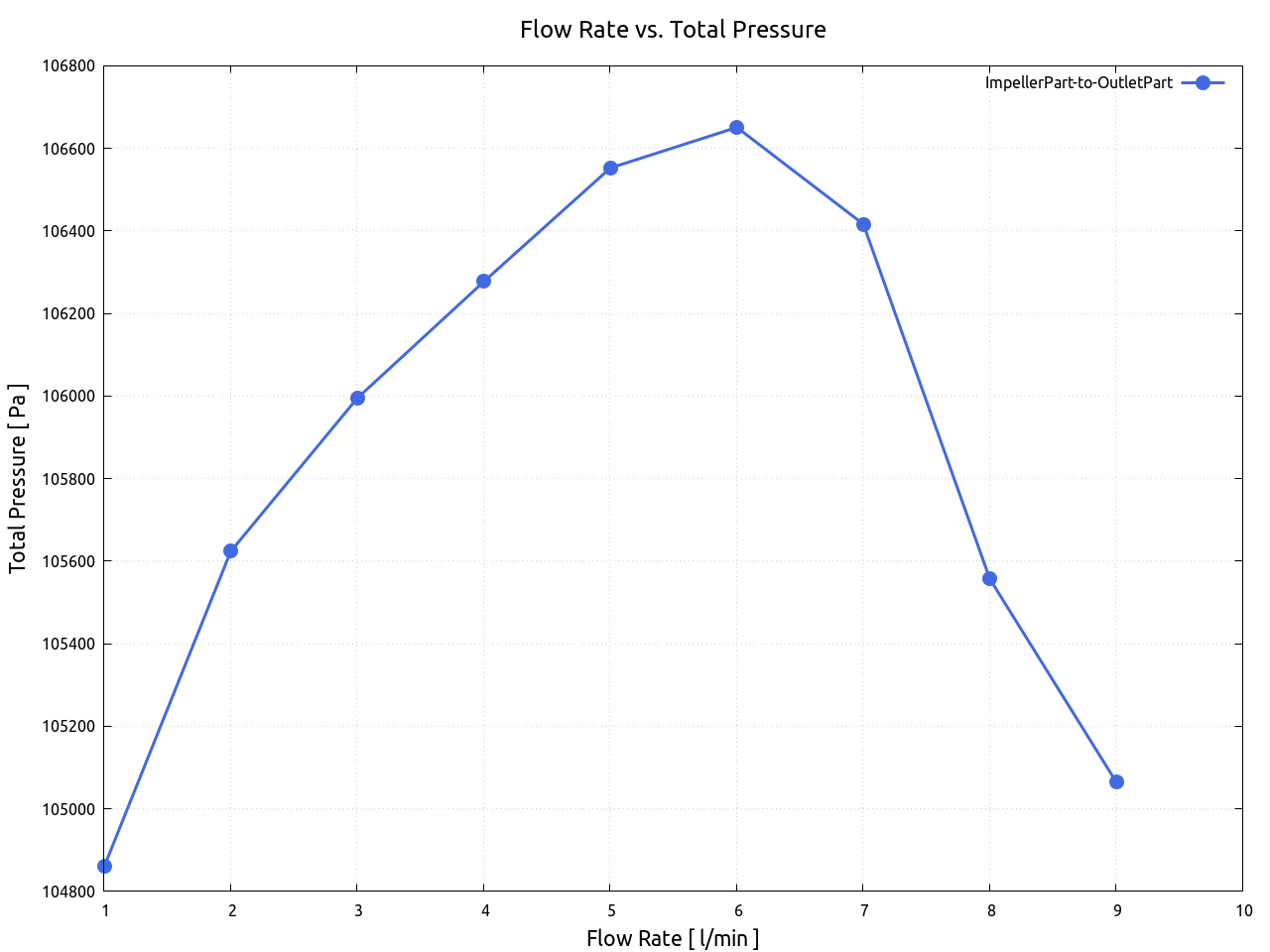

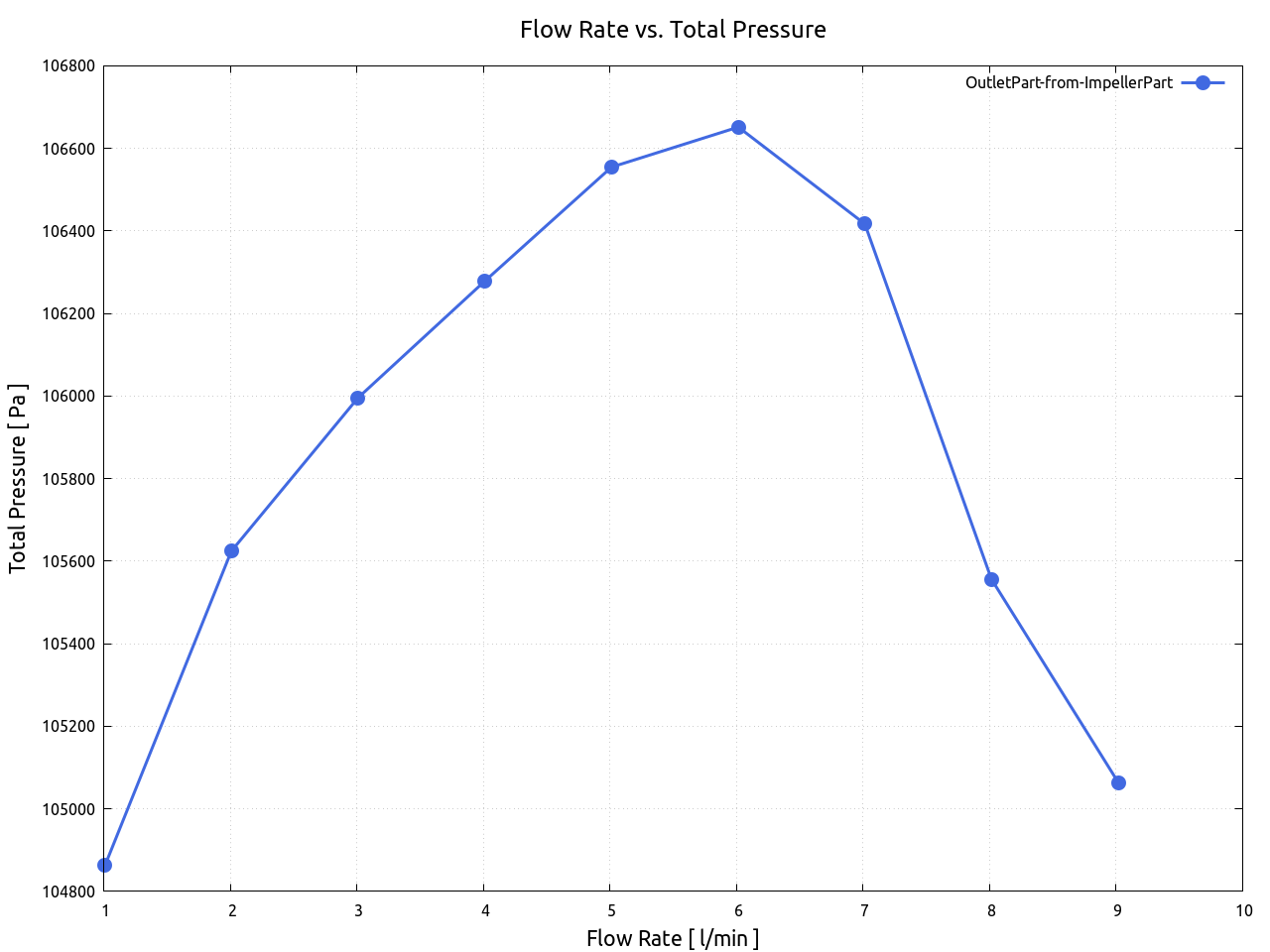

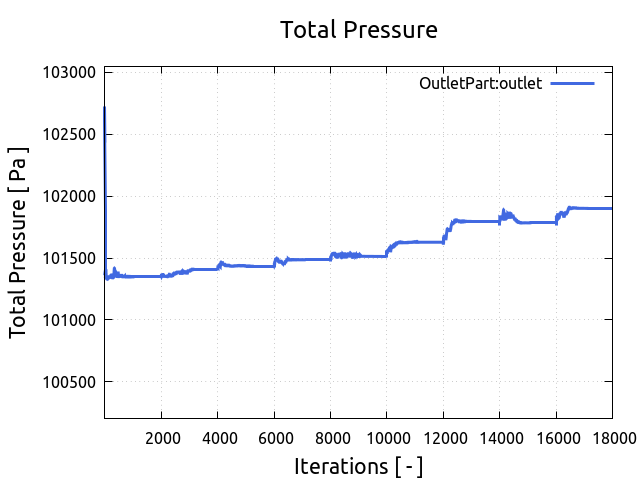

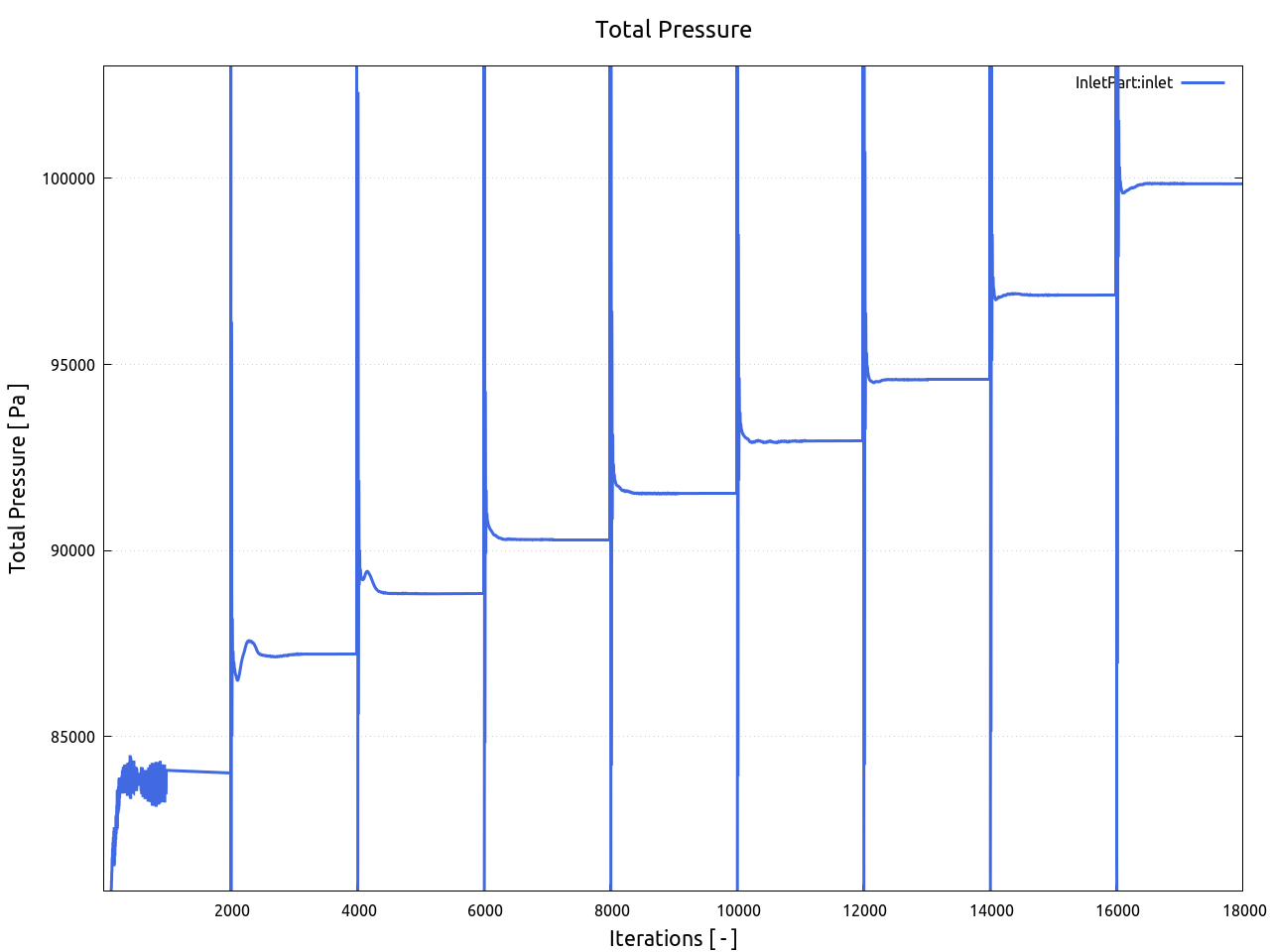

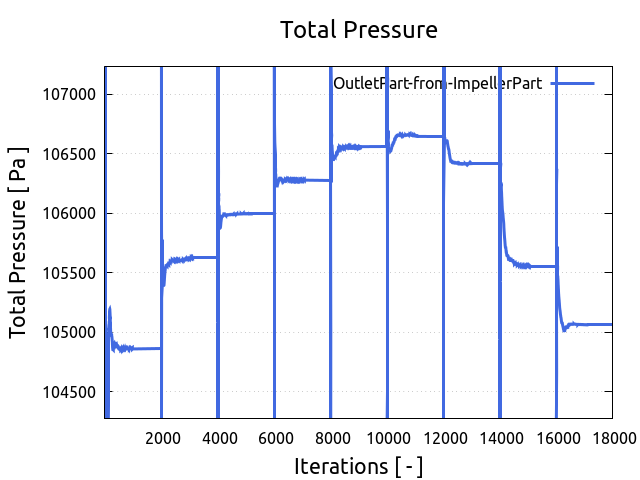

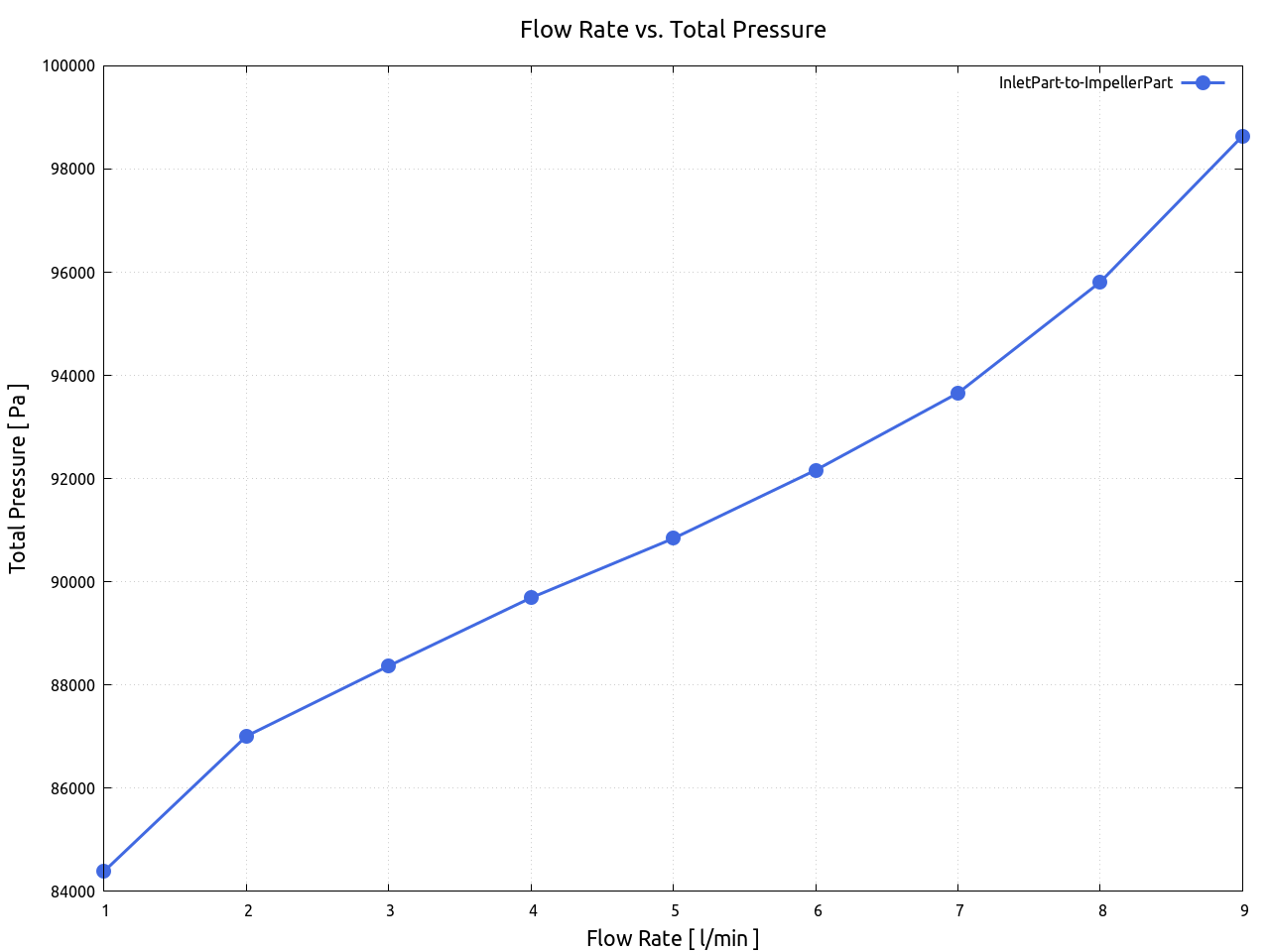

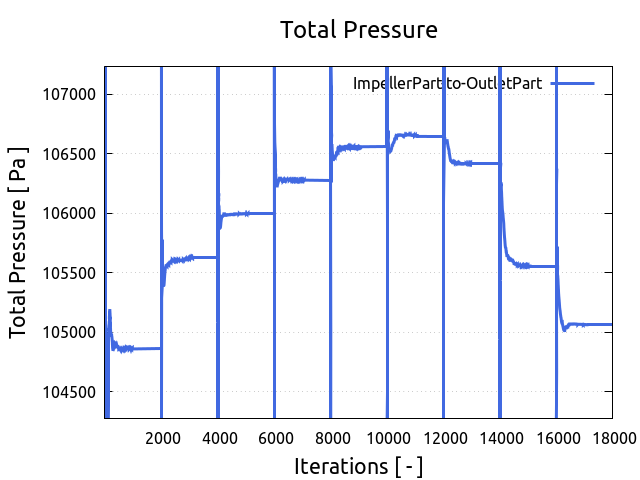

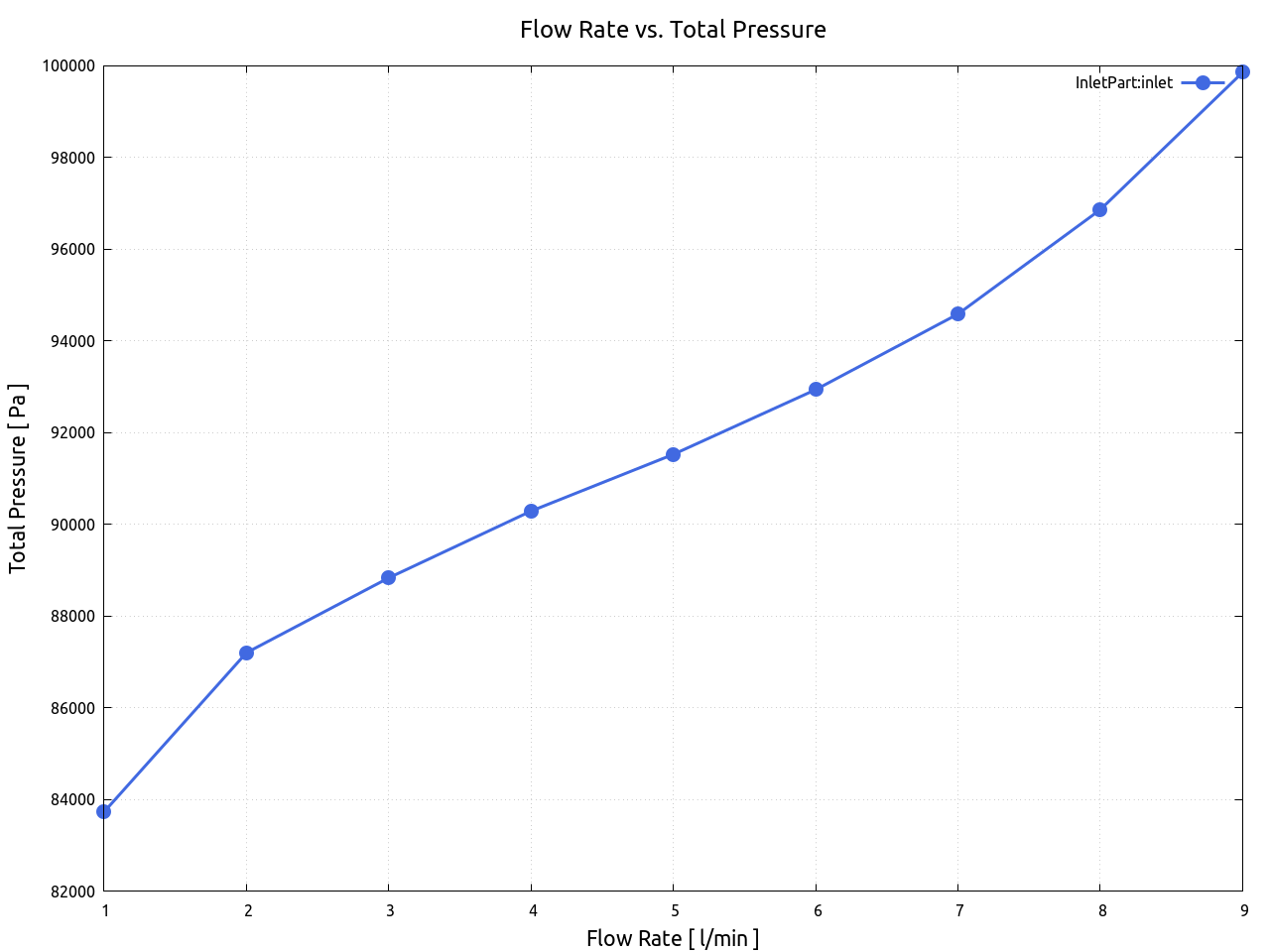

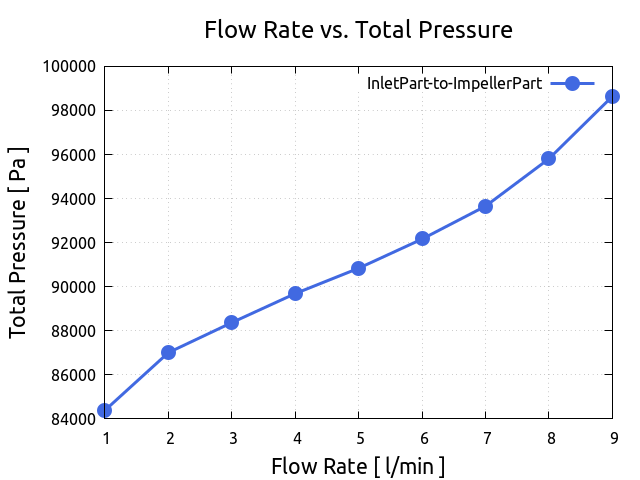

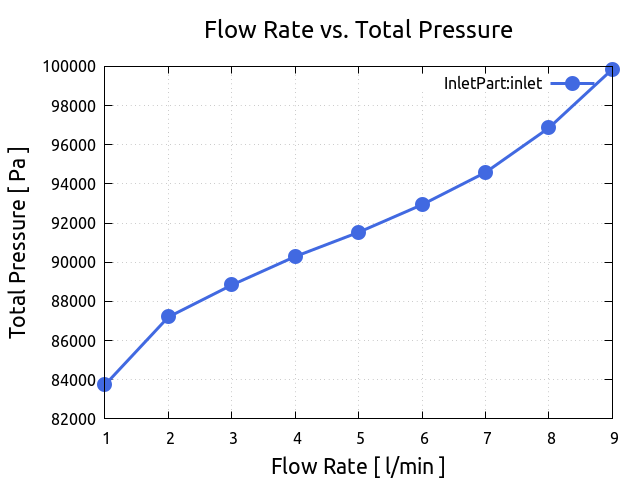

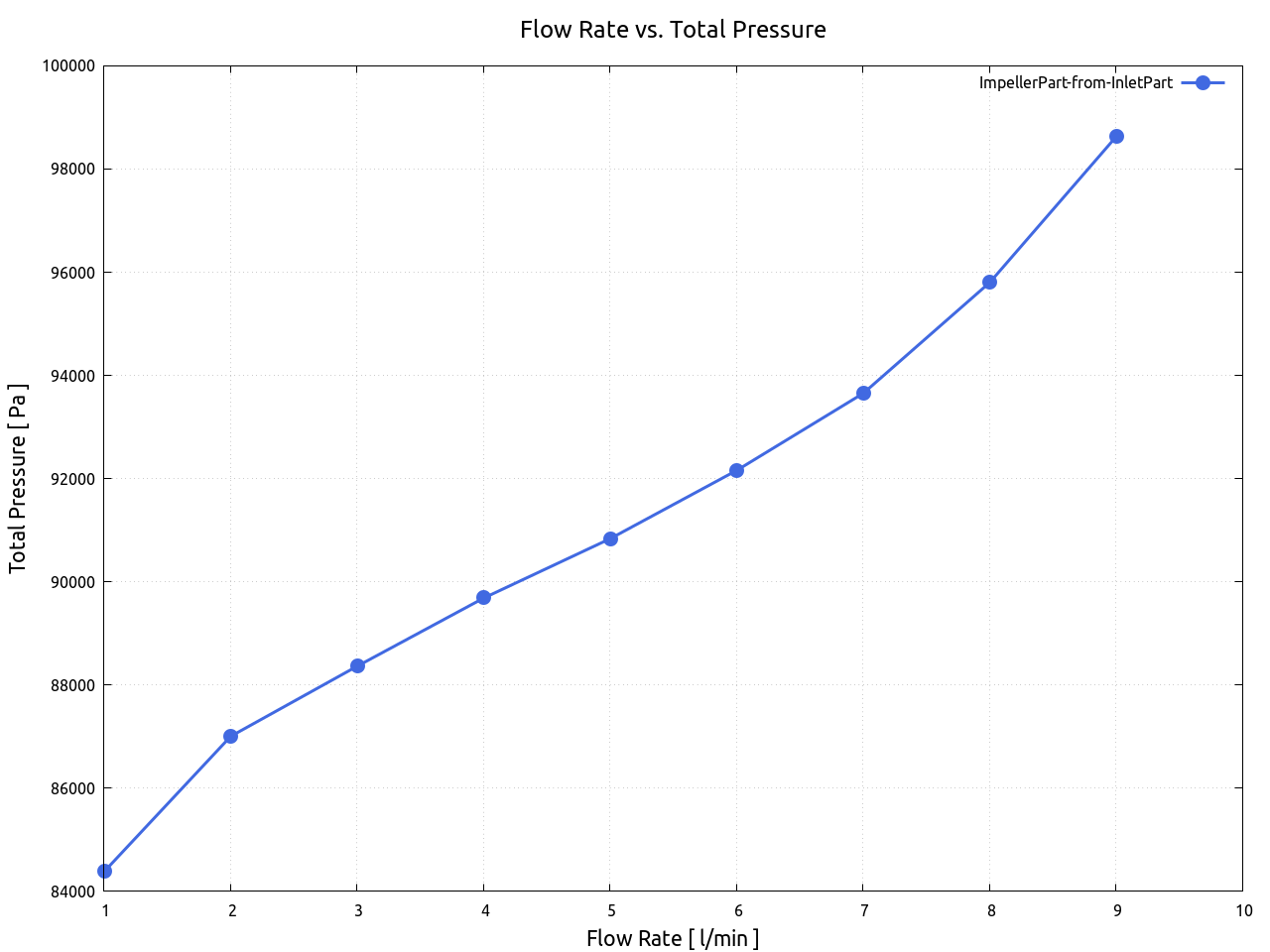

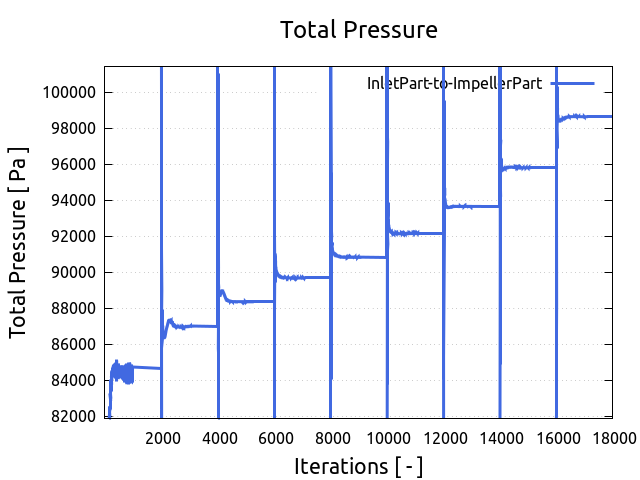

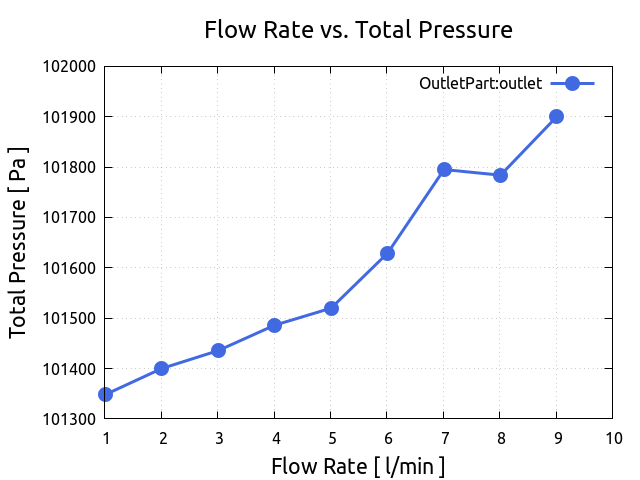

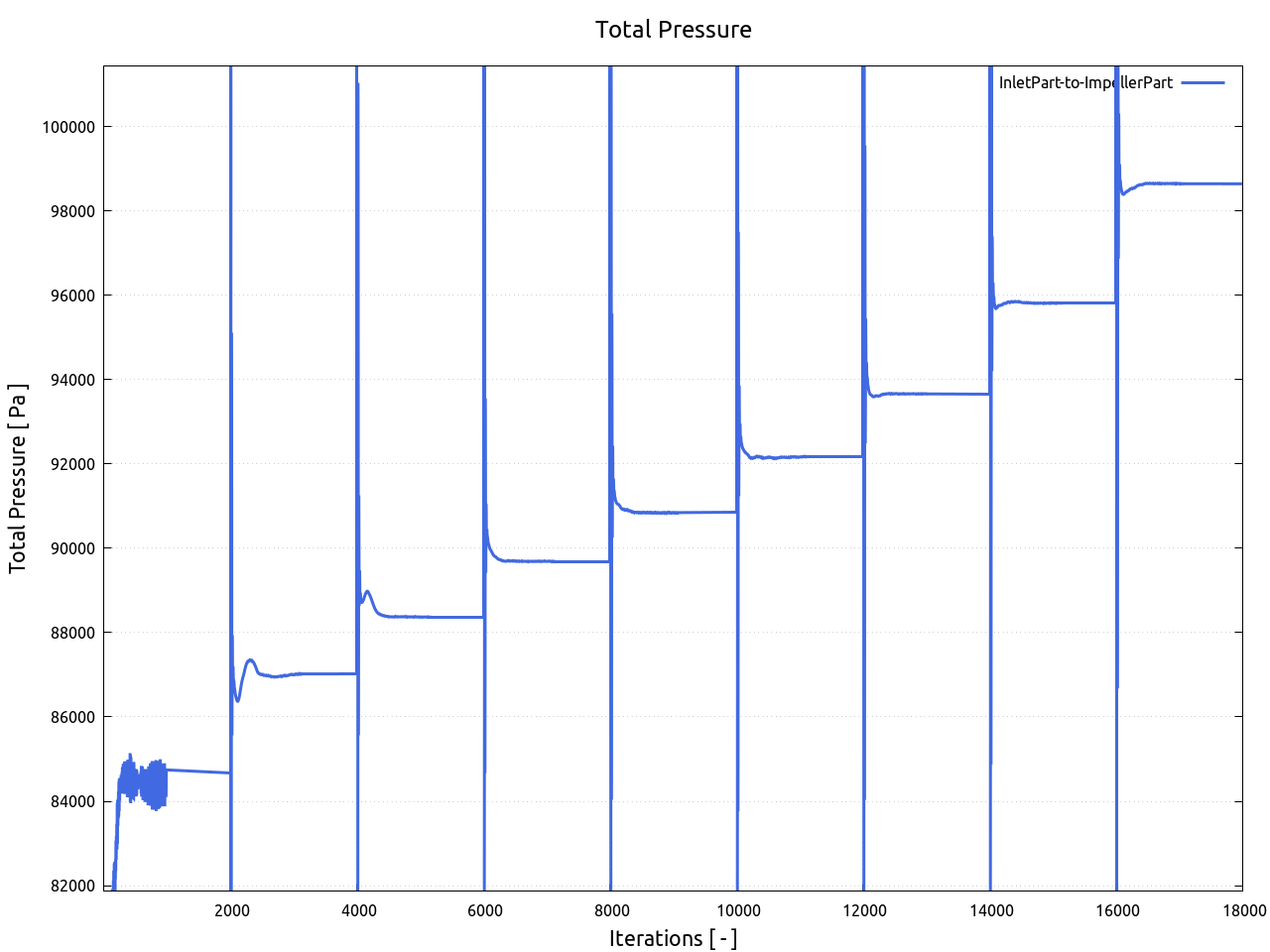

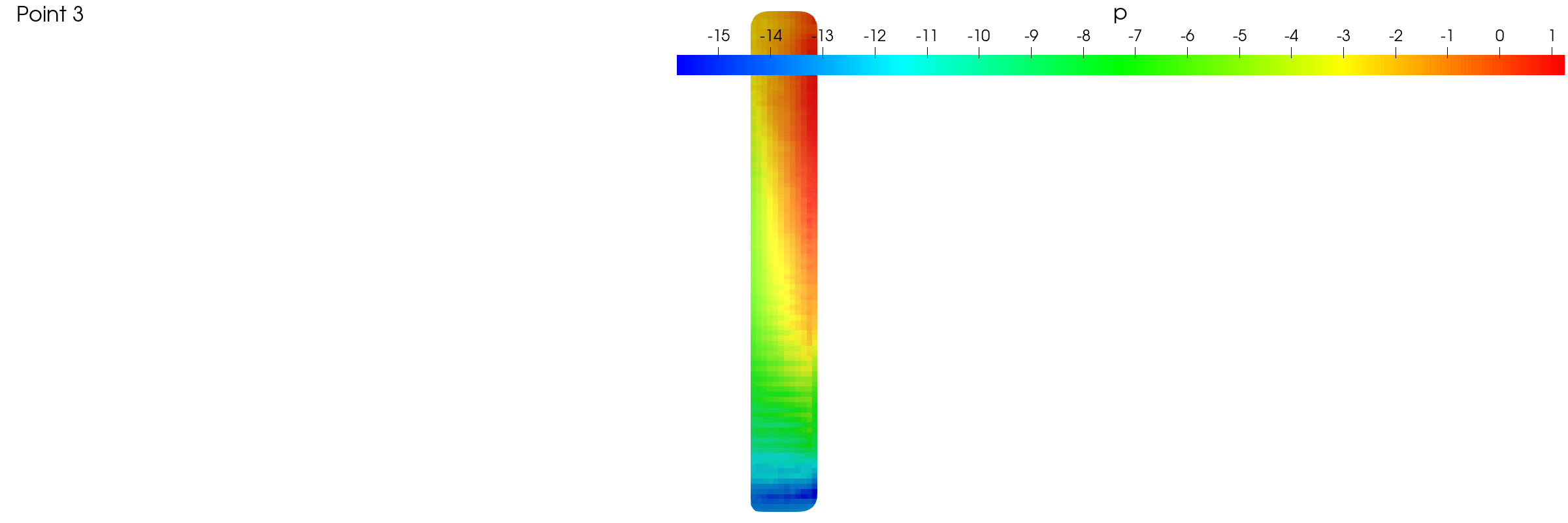

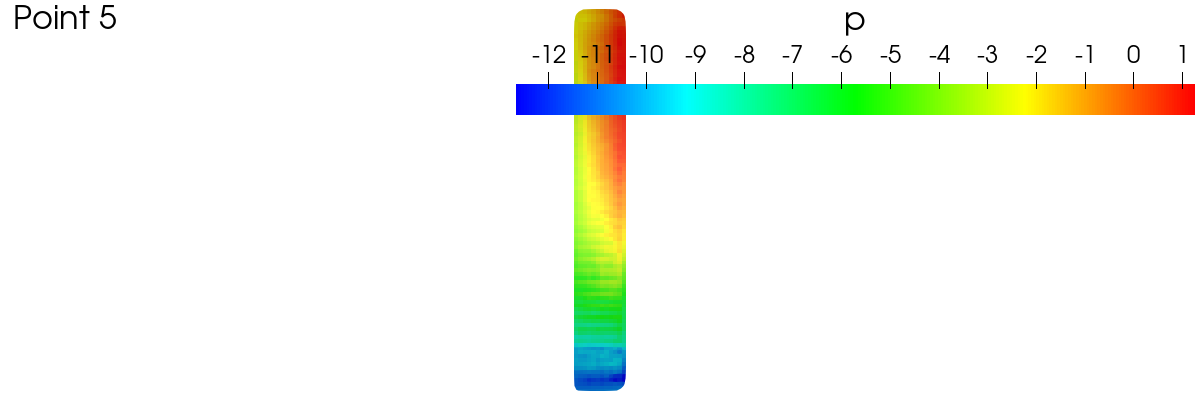

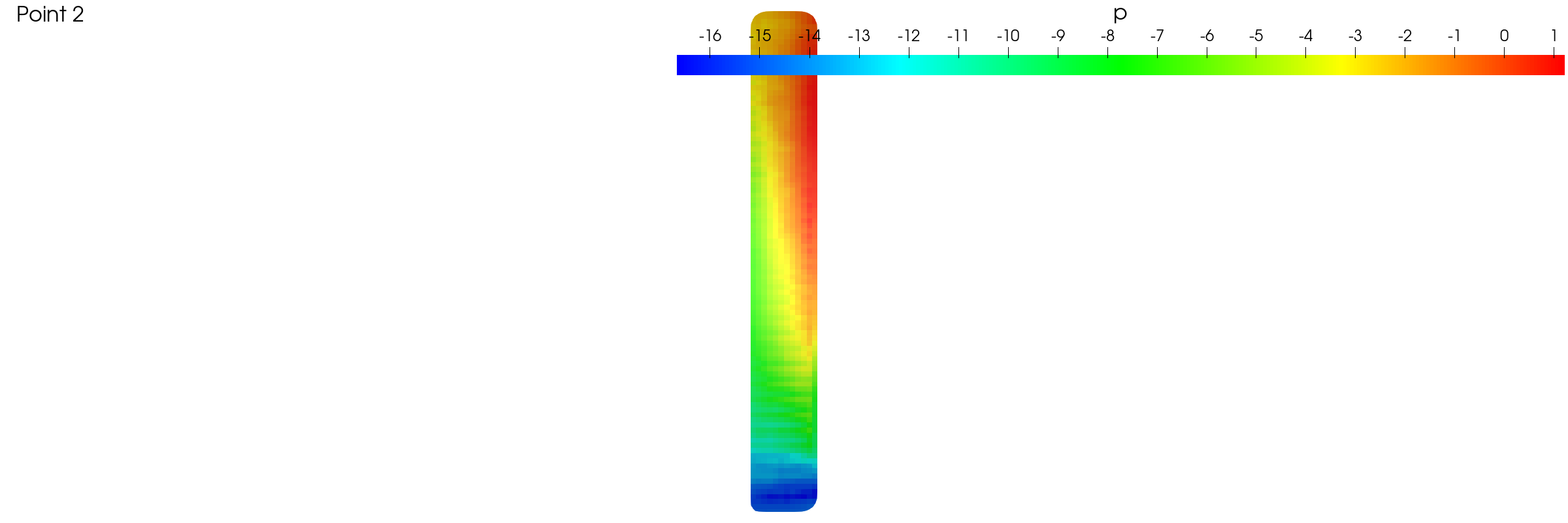

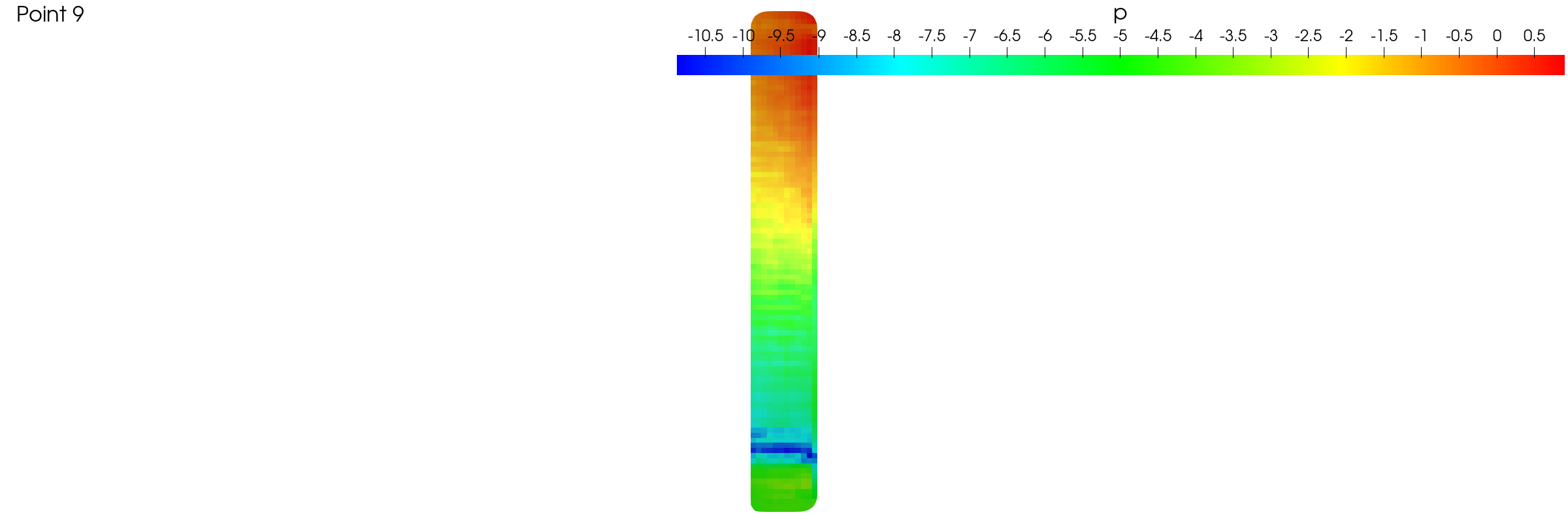

Total Pressure per Interfaces

Point Nr.	Interface Name	Flow Rate [ l/min ]	Total Pressure [ Pa ]
1	InletPart:inlet	1.00000	83735.3
1	InletPart-to-ImpellerPart	1.00000	84390.6
1	ImpellerPart-from-InletPart	1.00200	84388.6
1	ImpellerPart-to-OutletPart	1.00200	104861.
1	OutletPart-from-ImpellerPart	1.00575	104862.
1	OutletPart:outlet	1.00574	101348.
2	InletPart:inlet	1.99999	87203.9
2	InletPart-to-ImpellerPart	1.99999	87009.7
2	ImpellerPart-from-InletPart	2.00124	87007.2
2	ImpellerPart-to-OutletPart	2.00124	105624.
2	OutletPart-from-ImpellerPart	2.00608	105624.
2	OutletPart:outlet	2.00606	101400.
3	InletPart:inlet	2.99999	88836.7
3	InletPart-to-ImpellerPart	2.99999	88370.0
3	ImpellerPart-from-InletPart	3.00160	88366.9
3	ImpellerPart-to-OutletPart	3.00160	105995.
3	OutletPart-from-ImpellerPart	3.00761	105996.
3	OutletPart:outlet	3.00761	101436.
4	InletPart:inlet	3.99999	90293.2
4	InletPart-to-ImpellerPart	3.99999	89690.6
4	ImpellerPart-from-InletPart	4.00143	89687.4
4	ImpellerPart-to-OutletPart	4.00143	106277.
4	OutletPart-from-ImpellerPart	4.00853	106278.
4	OutletPart:outlet	4.00853	101486.
5	InletPart:inlet	4.99999	91529.9
5	InletPart-to-ImpellerPart	4.99999	90841.0
5	ImpellerPart-from-InletPart	5.00155	90837.9
5	ImpellerPart-to-OutletPart	5.00155	106553.
5	OutletPart-from-ImpellerPart	5.01081	106555.
5	OutletPart:outlet	5.01083	101520.
6	InletPart:inlet	5.99999	92940.4
6	InletPart-to-ImpellerPart	5.99999	92165.2
6	ImpellerPart-from-InletPart	6.00167	92161.3
6	ImpellerPart-to-OutletPart	6.00167	106651.
6	OutletPart-from-ImpellerPart	6.01307	106652.
6	OutletPart:outlet	6.01307	101629.
7	InletPart:inlet	7.00001	94589.9
7	InletPart-to-ImpellerPart	7.00001	93659.8
7	ImpellerPart-from-InletPart	7.00169	93654.5
7	ImpellerPart-to-OutletPart	7.00169	106416.
7	OutletPart-from-ImpellerPart	7.01339	106417.
7	OutletPart:outlet	7.01339	101795.
8	InletPart:inlet	7.99996	96864.4
8	InletPart-to-ImpellerPart	7.99996	95811.1
8	ImpellerPart-from-InletPart	8.00194	95804.4
8	ImpellerPart-to-OutletPart	8.00194	105557.
8	OutletPart-from-ImpellerPart	8.01430	105556.
8	OutletPart:outlet	8.01430	101784.
9	InletPart:inlet	8.99998	99858.8
9	InletPart-to-ImpellerPart	8.99998	98642.0
9	ImpellerPart-from-InletPart	9.00244	98634.1
9	ImpellerPart-to-OutletPart	9.00244	105064.
9	OutletPart-from-ImpellerPart	9.01696	105064.
9	OutletPart:outlet	9.01696	101901.

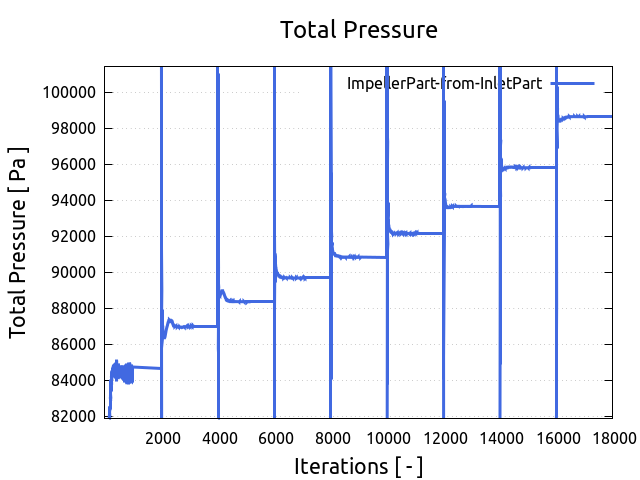

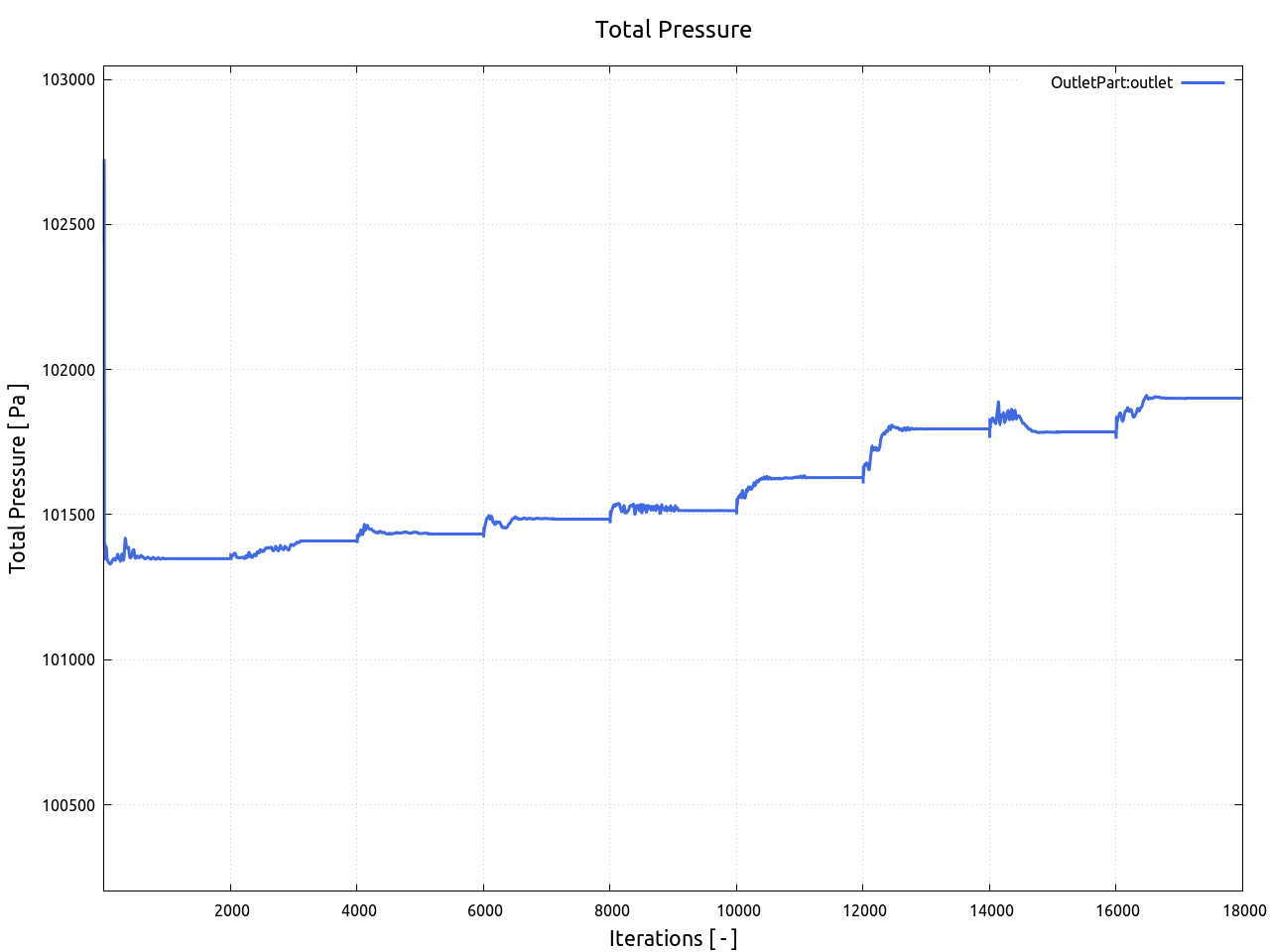

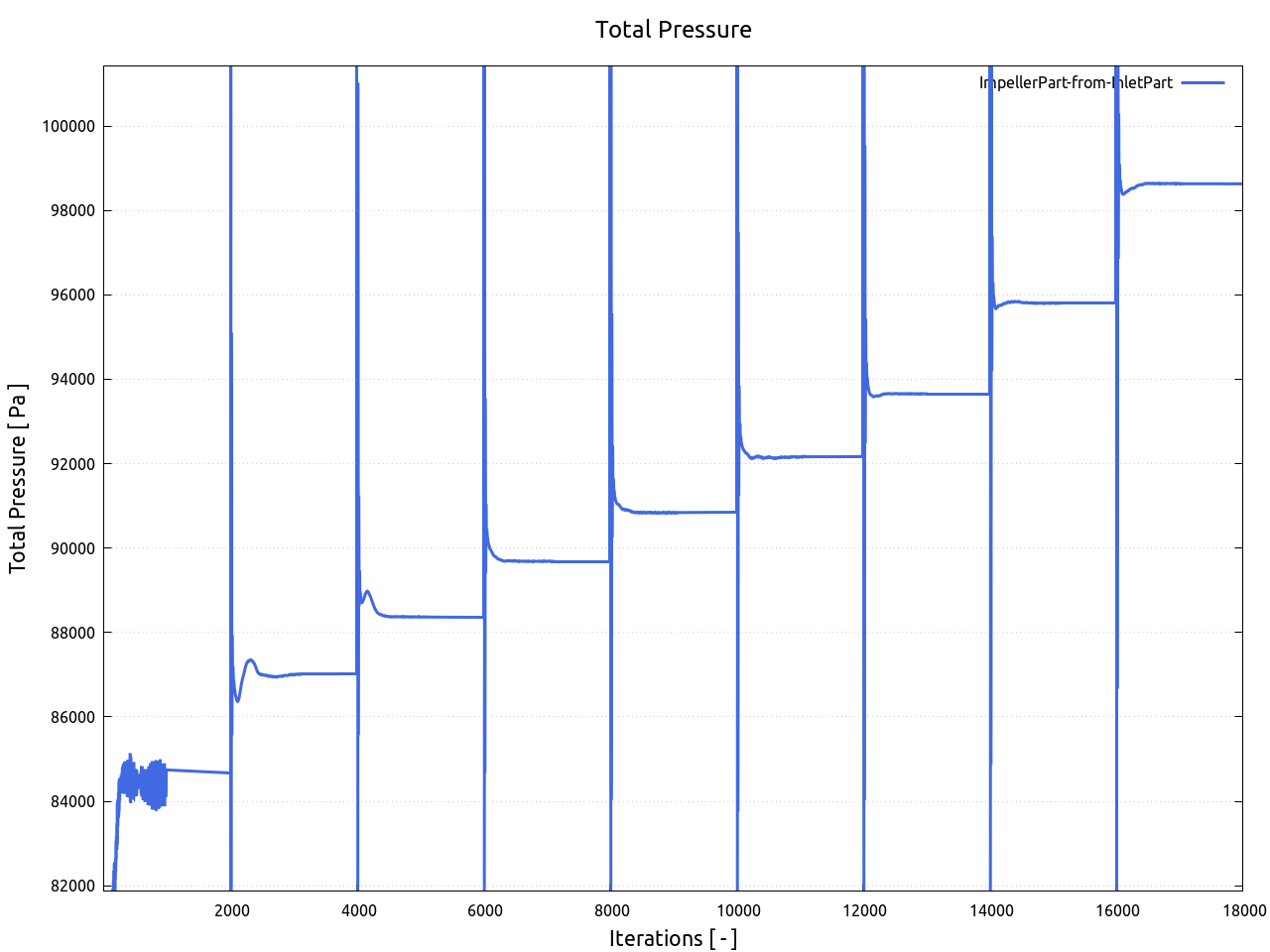

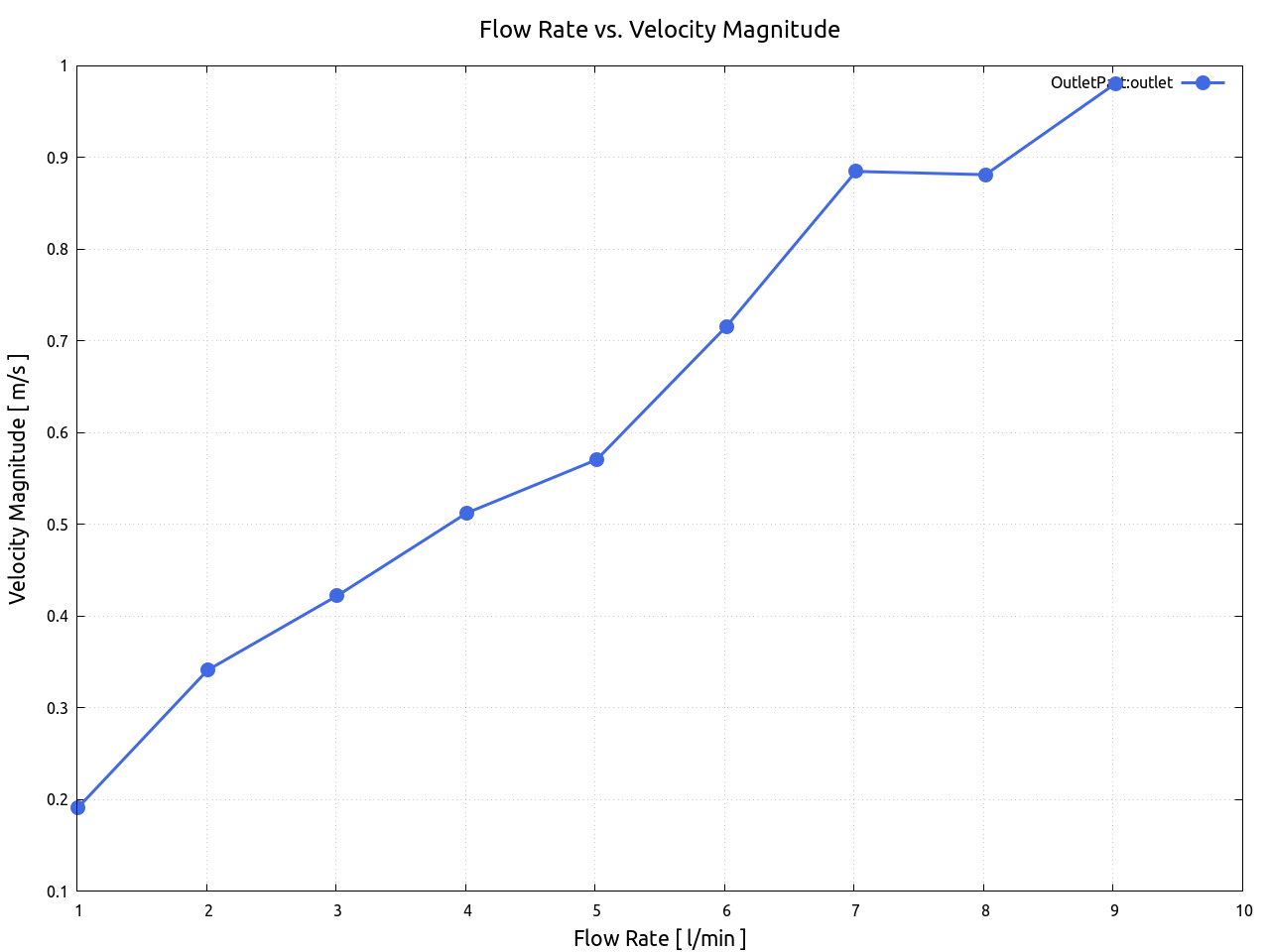

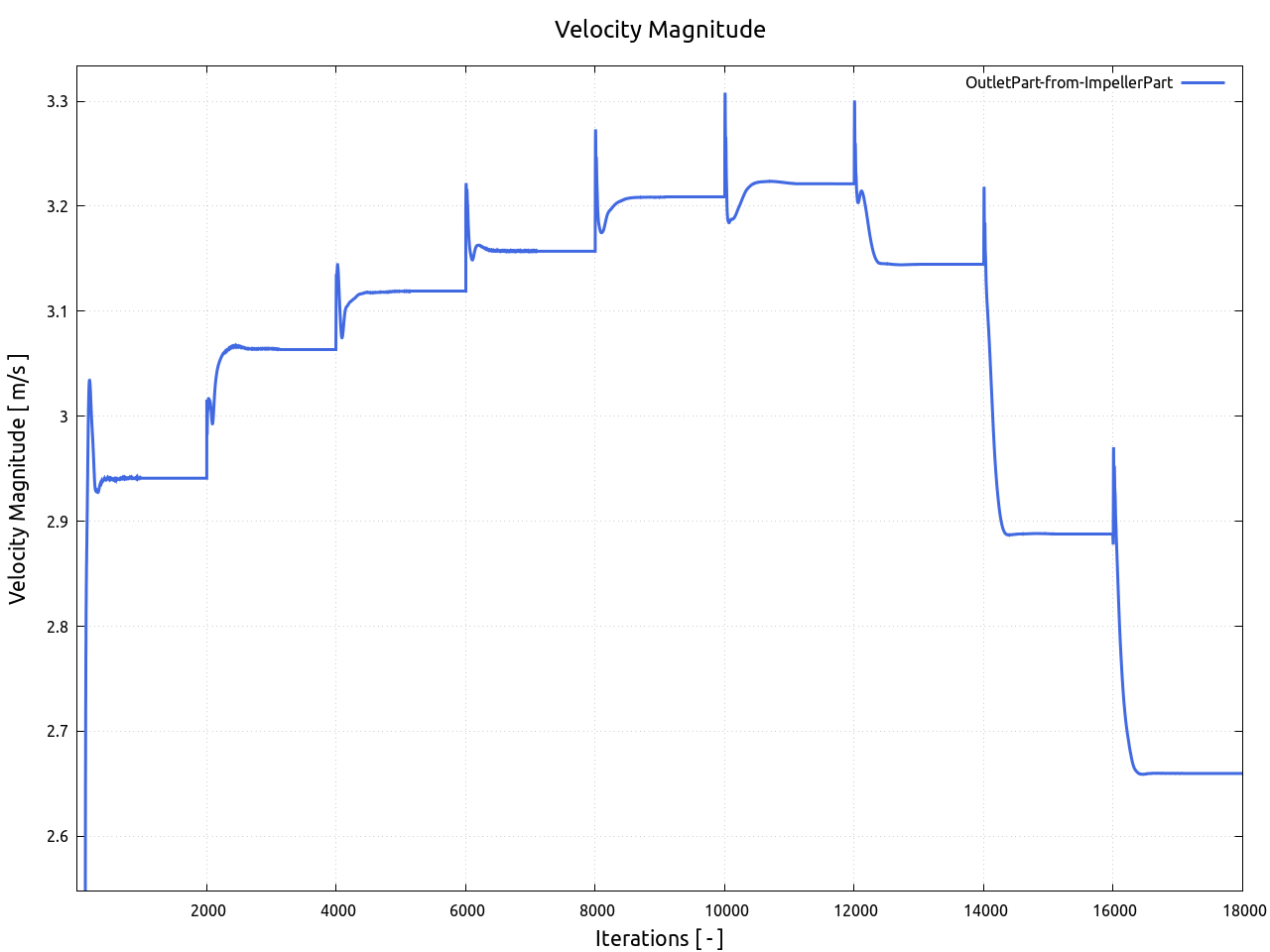

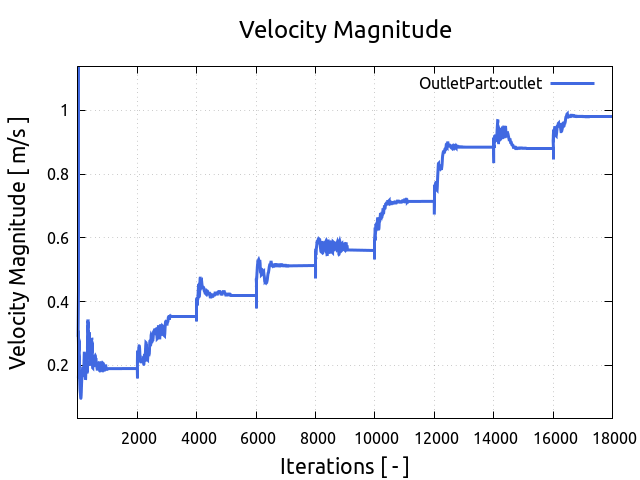

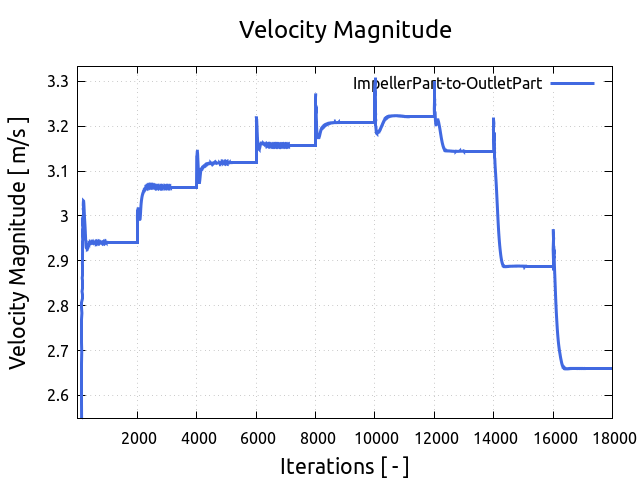

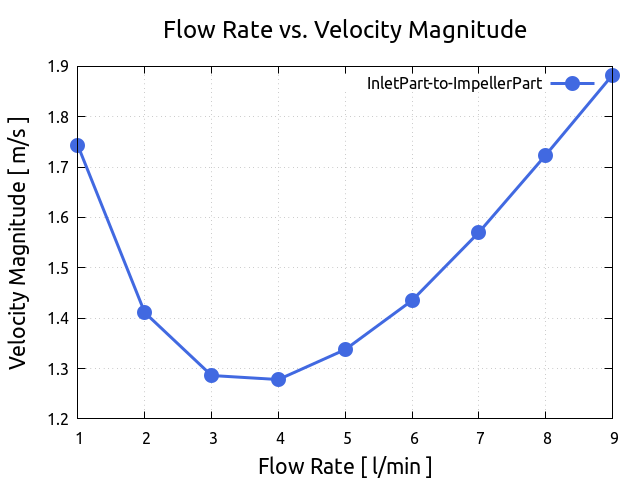

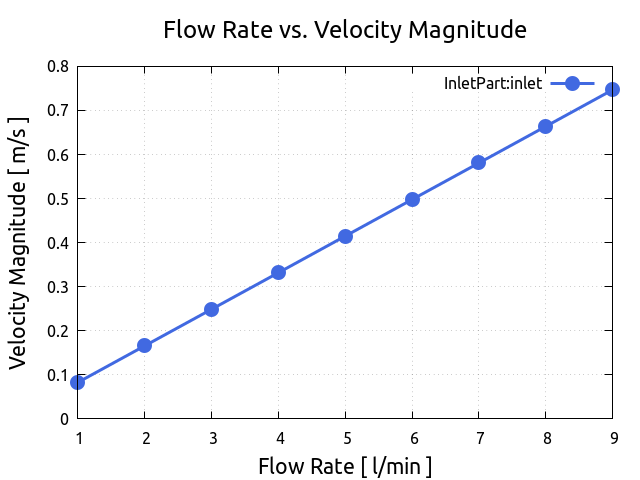

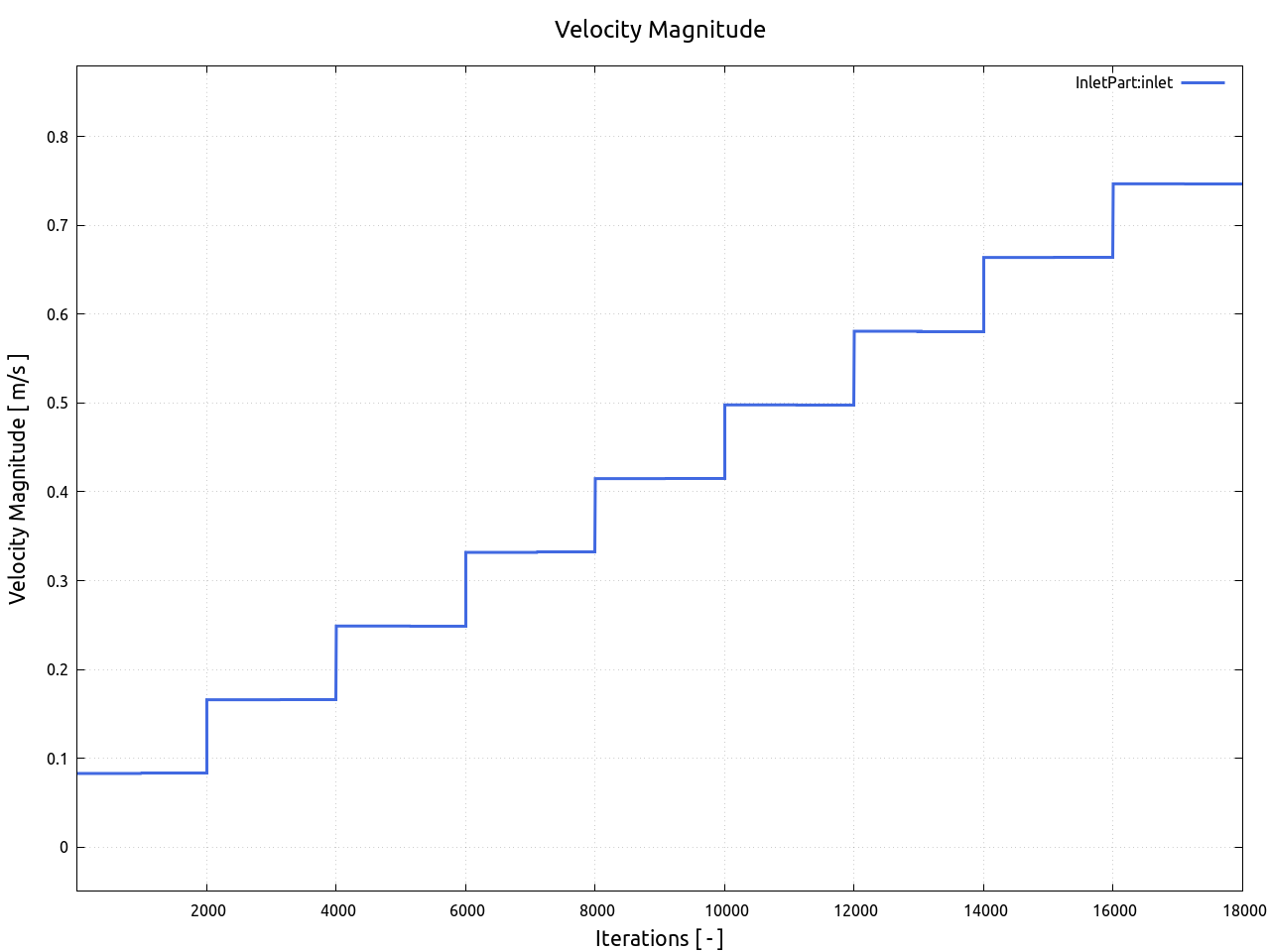

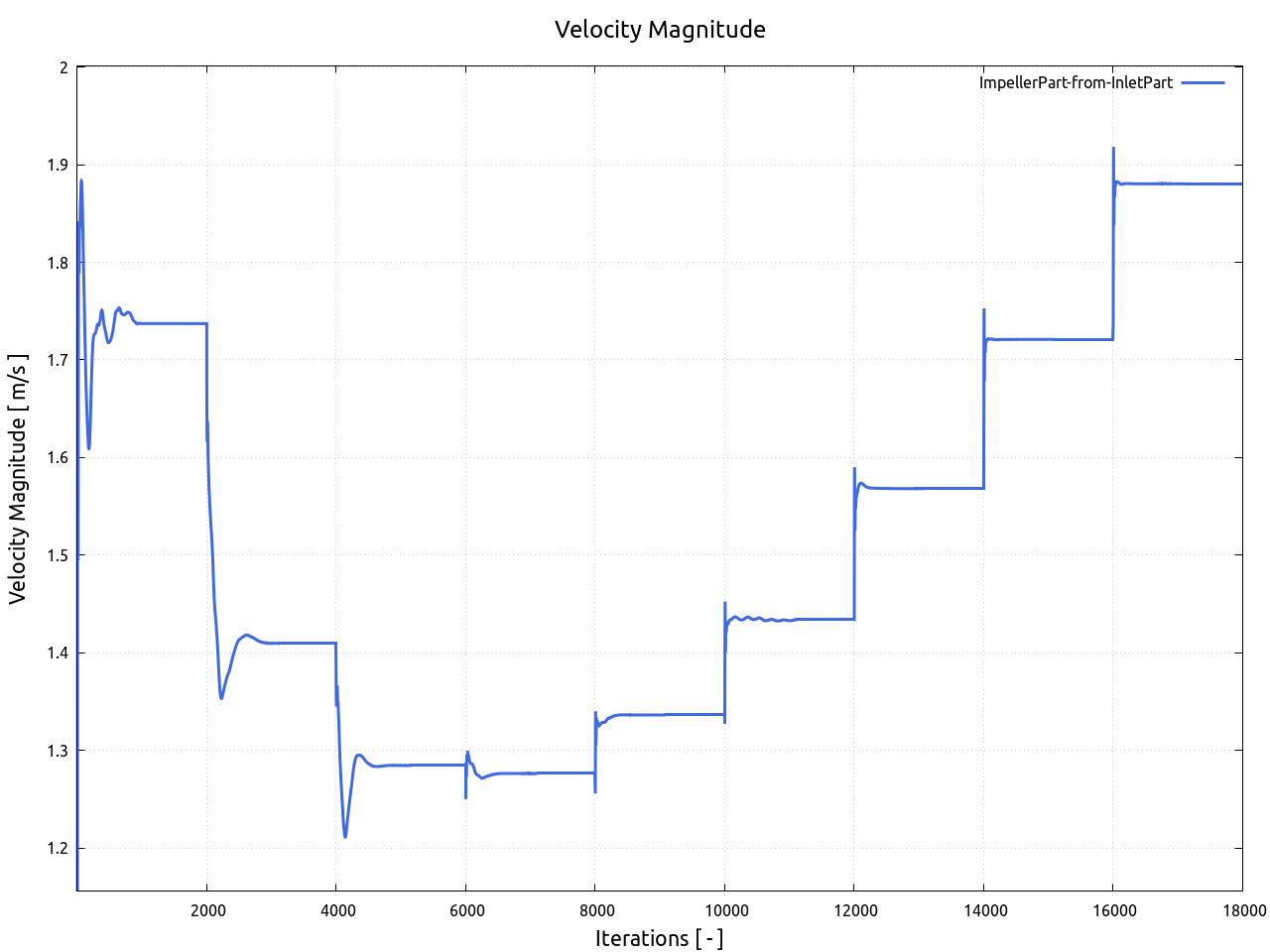

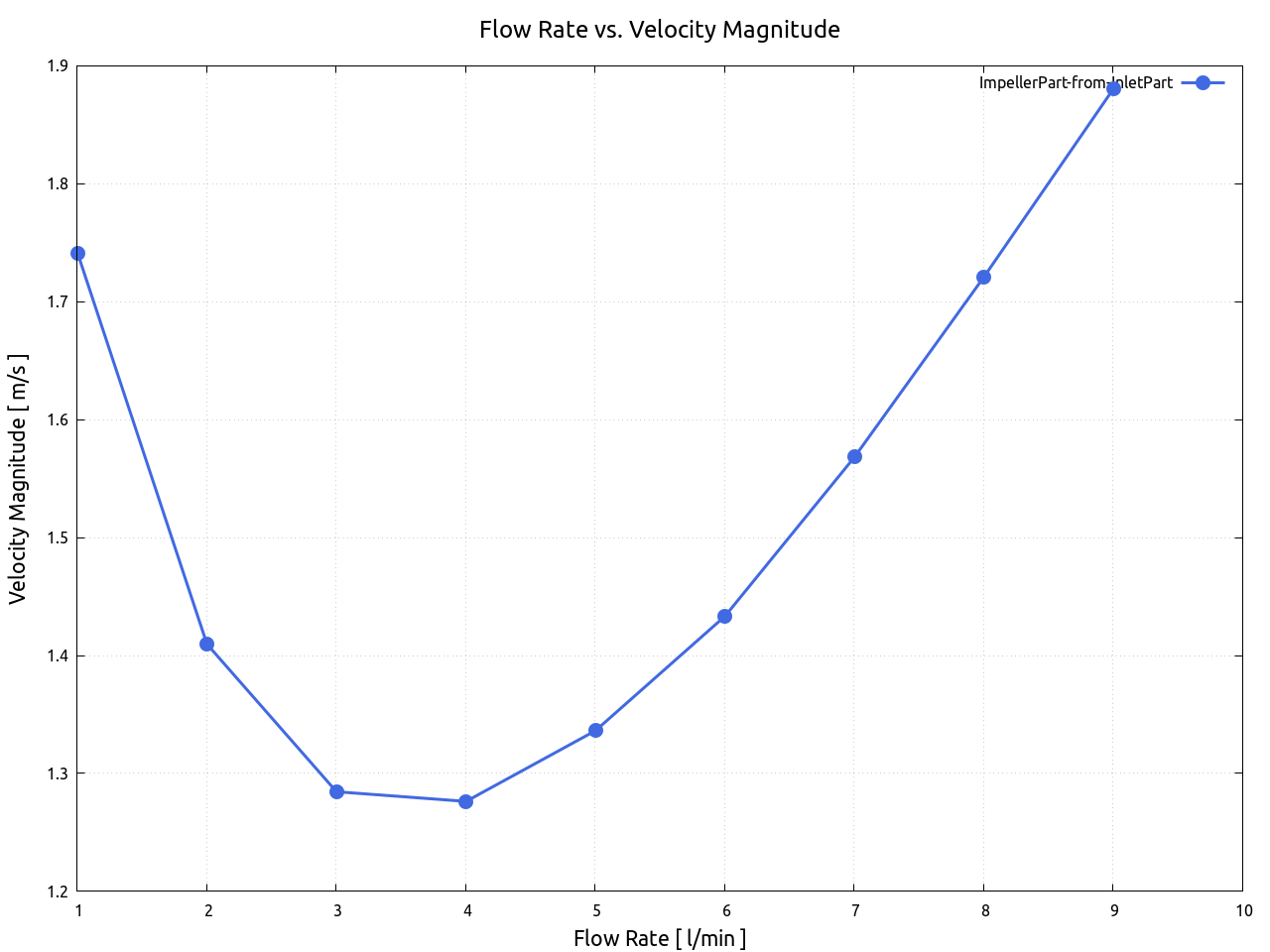

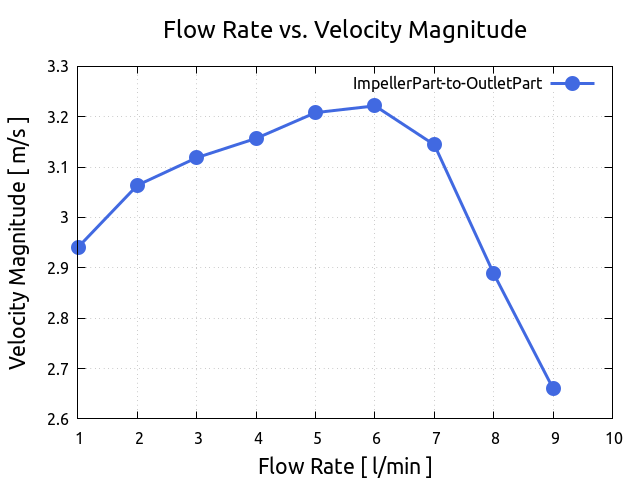

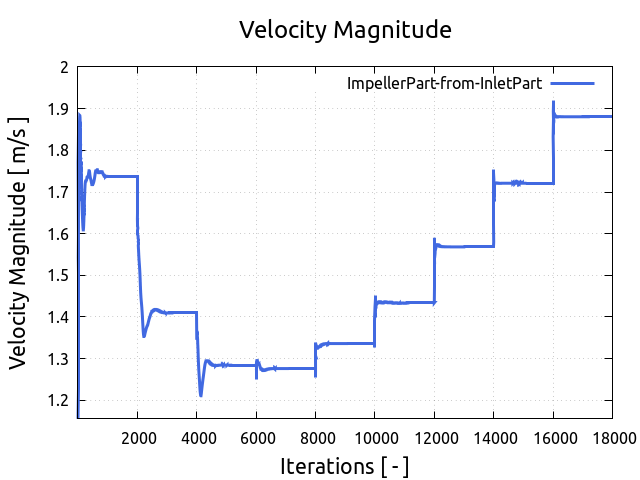

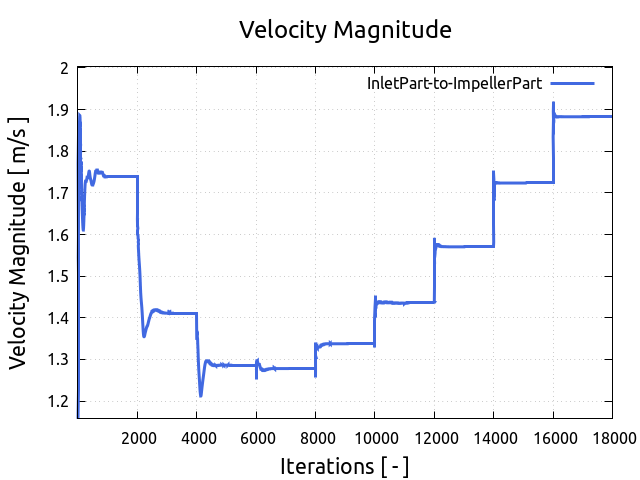

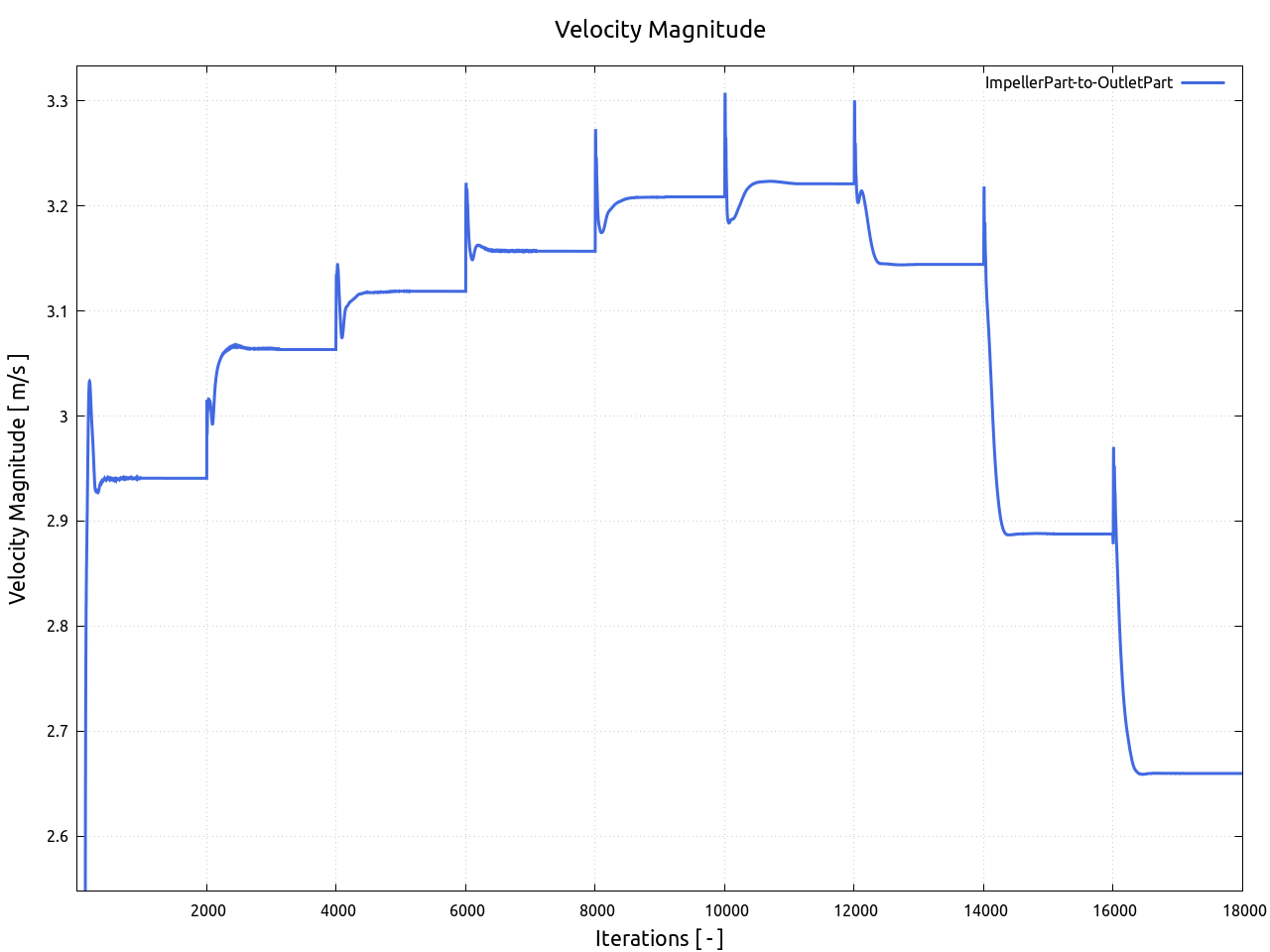

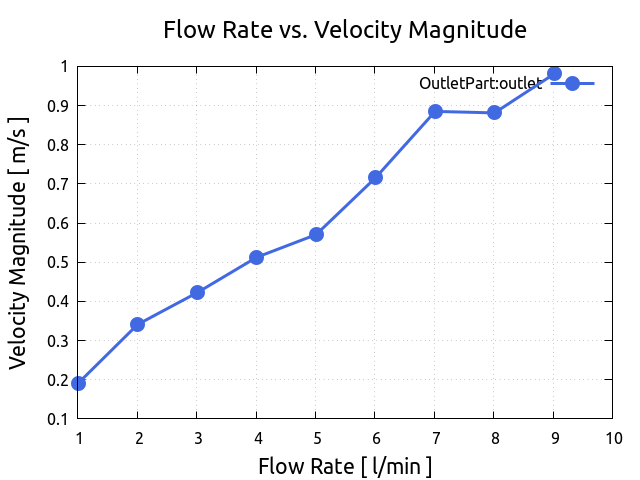

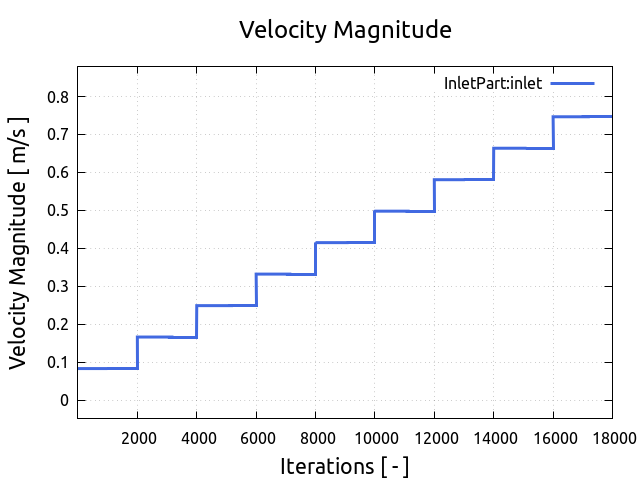

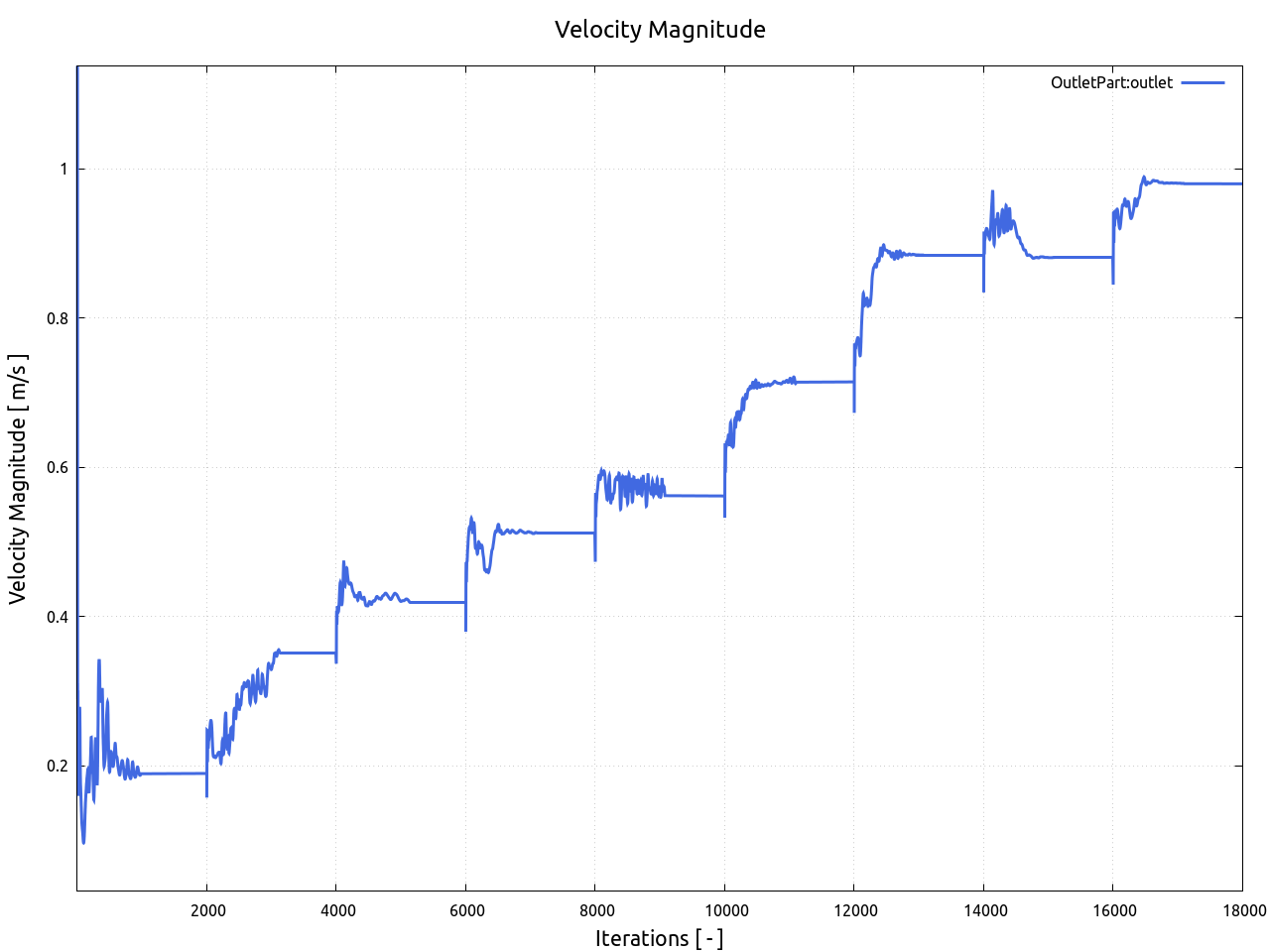

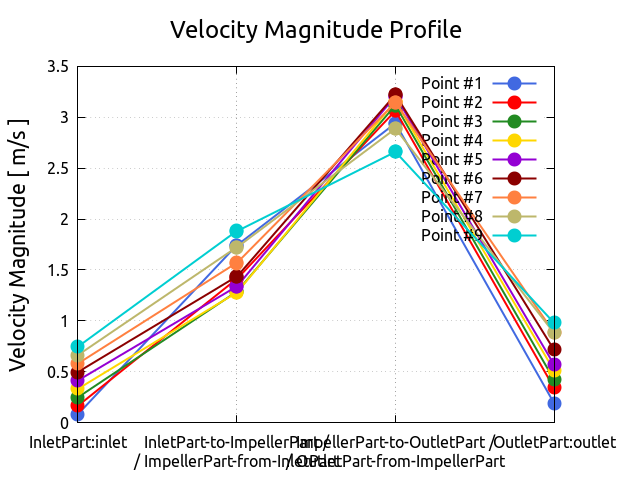

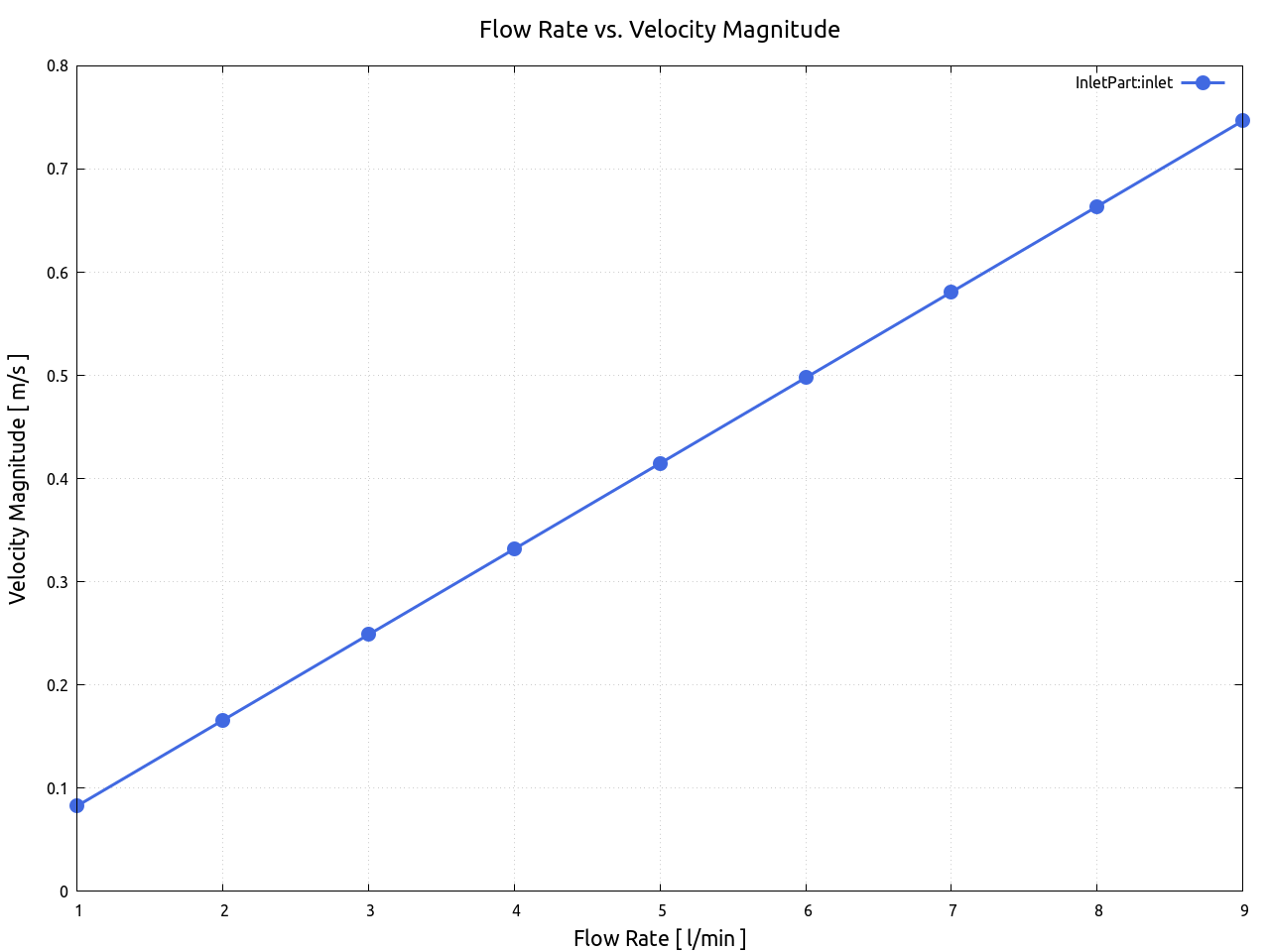

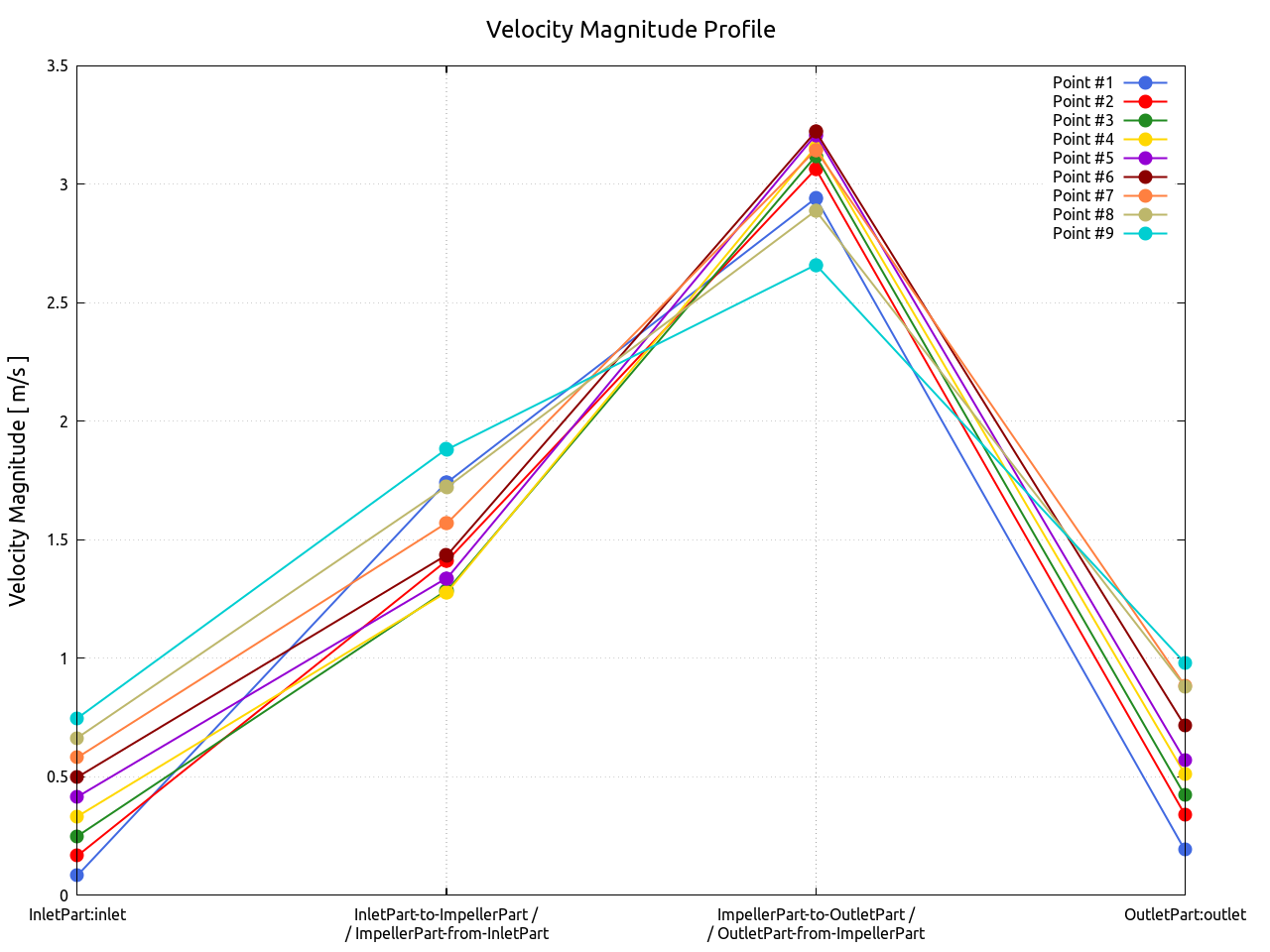

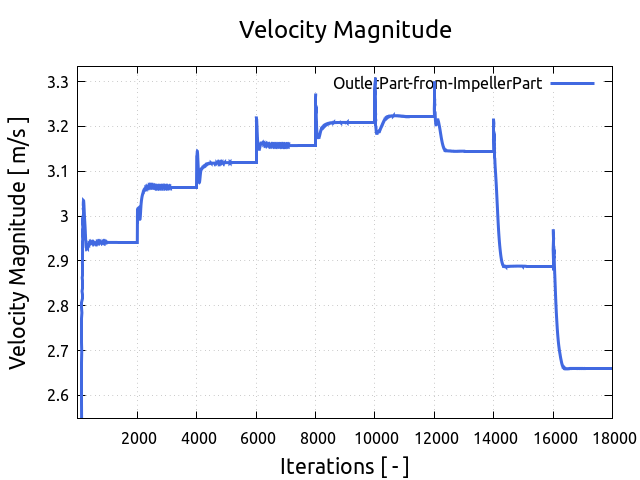

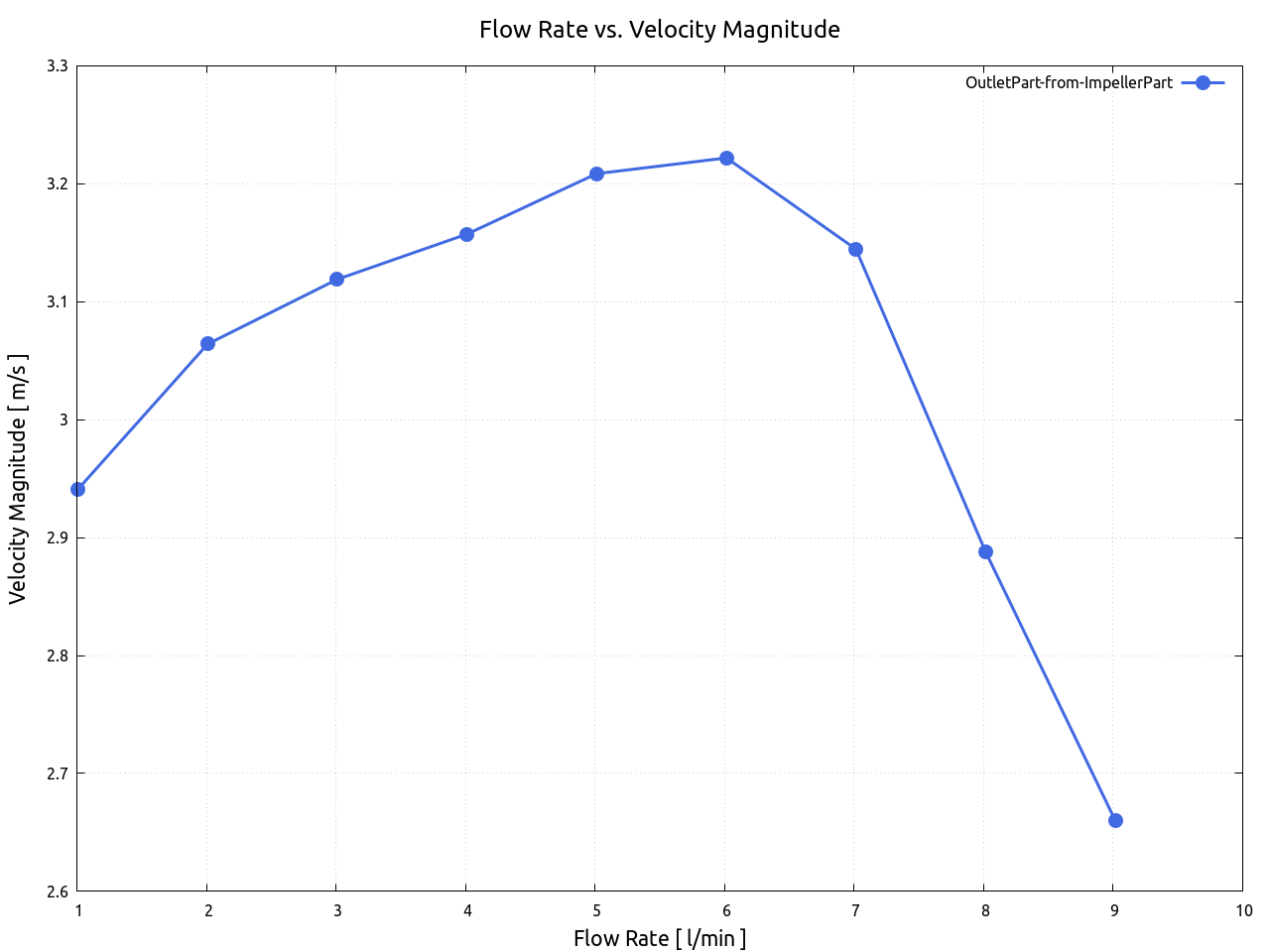

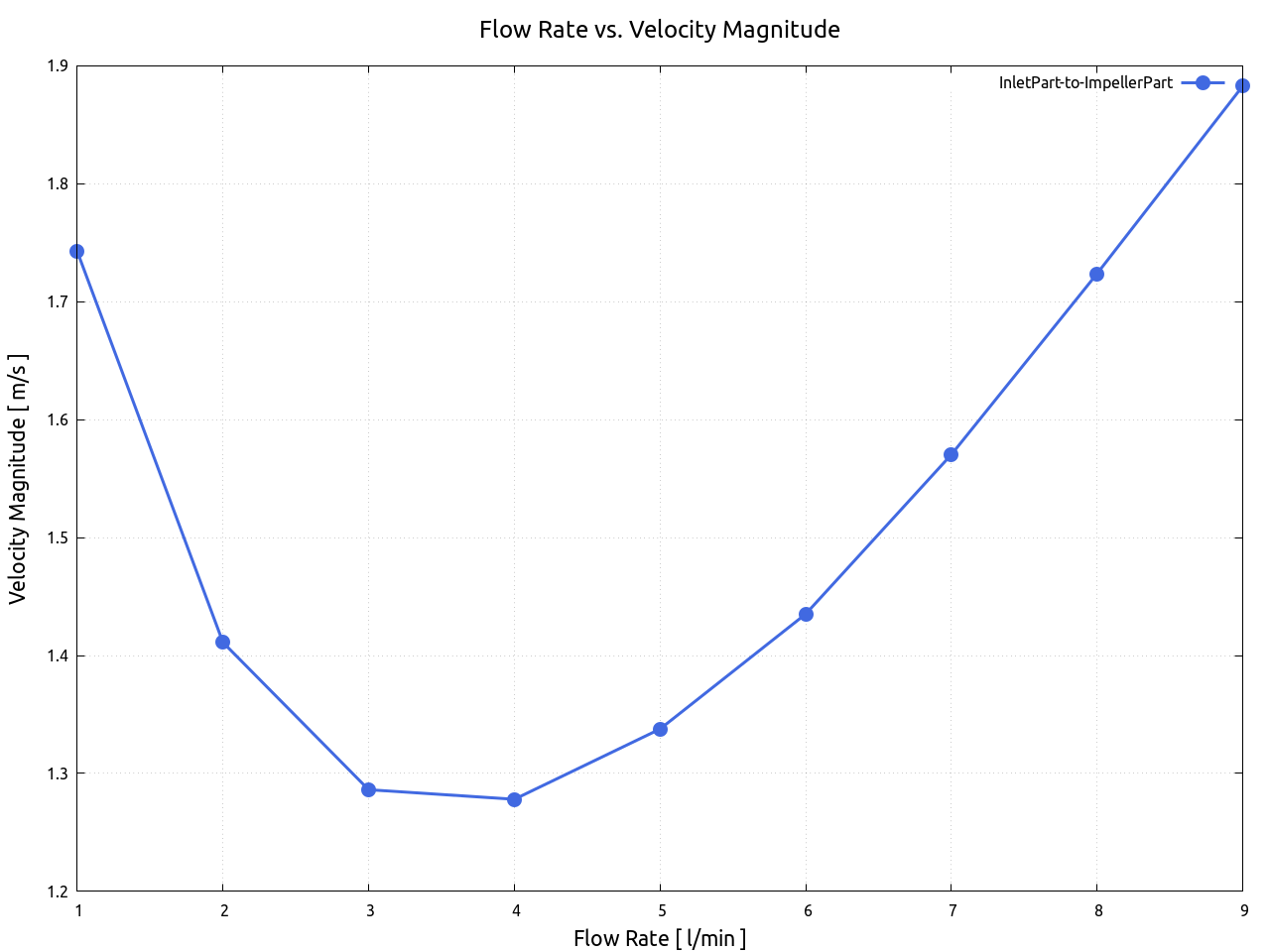

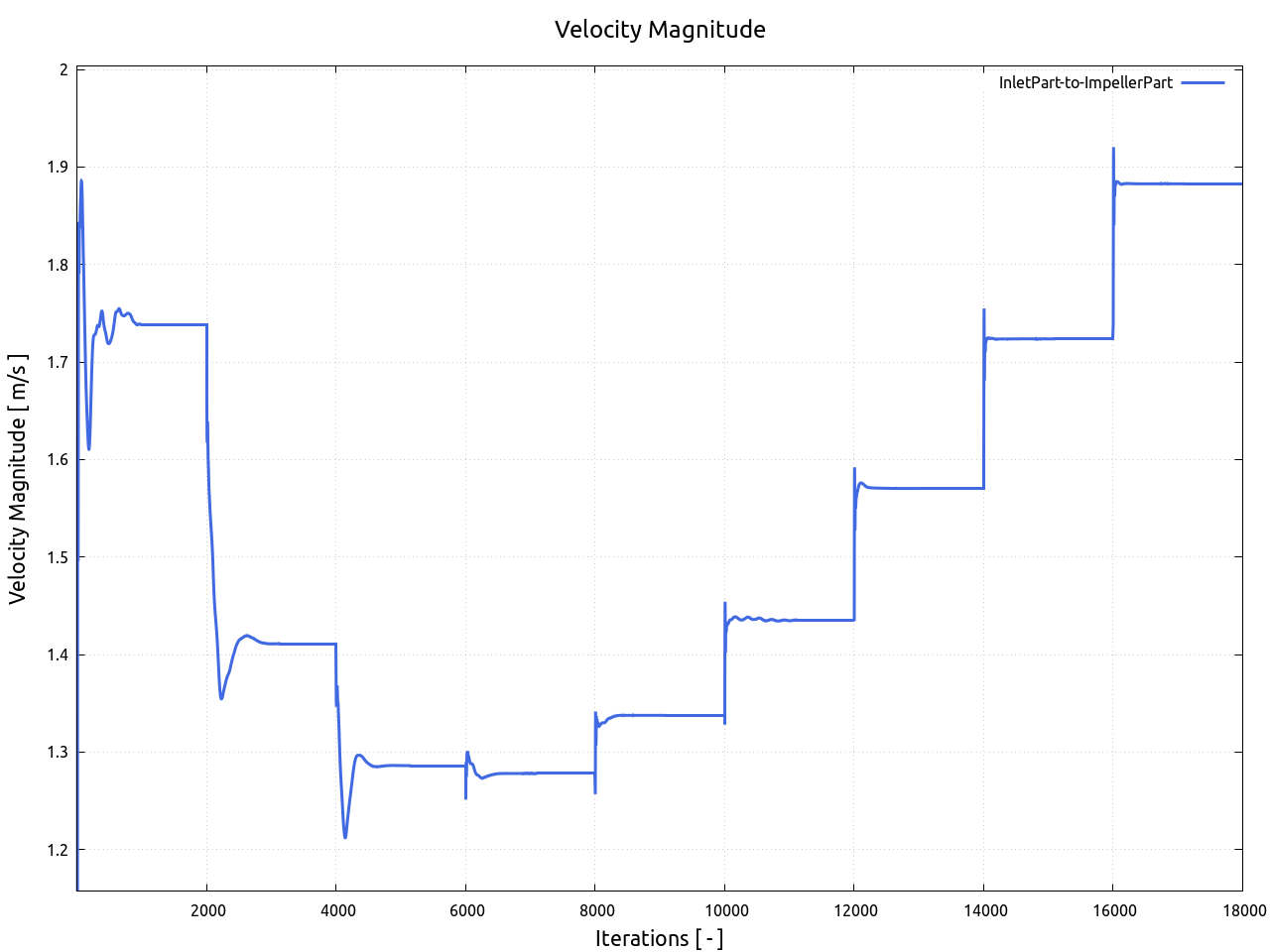

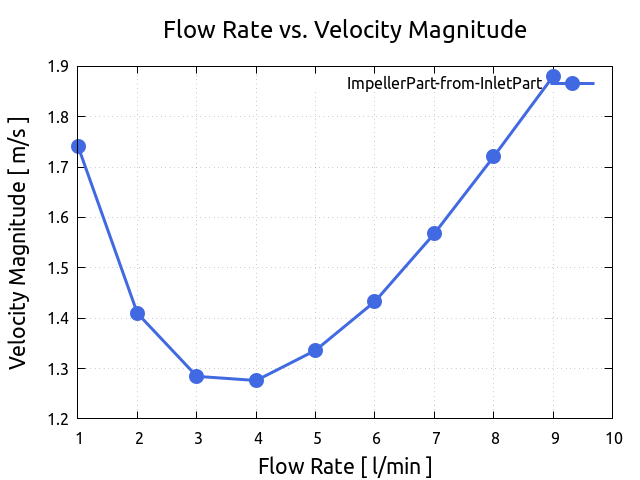

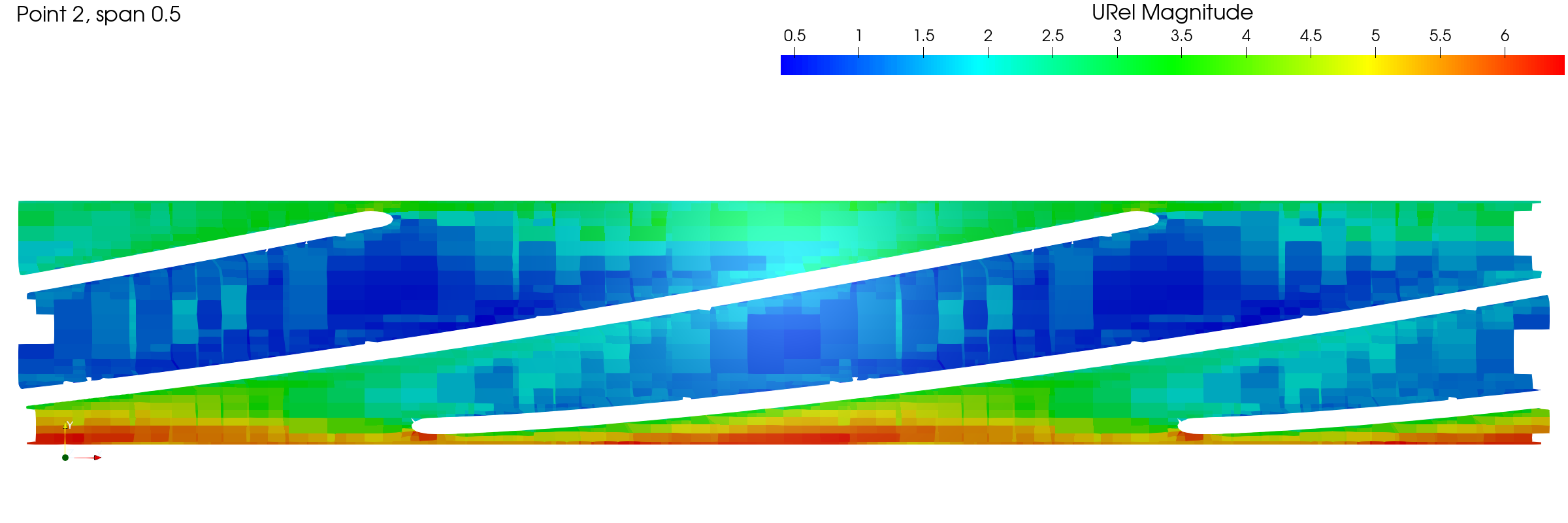

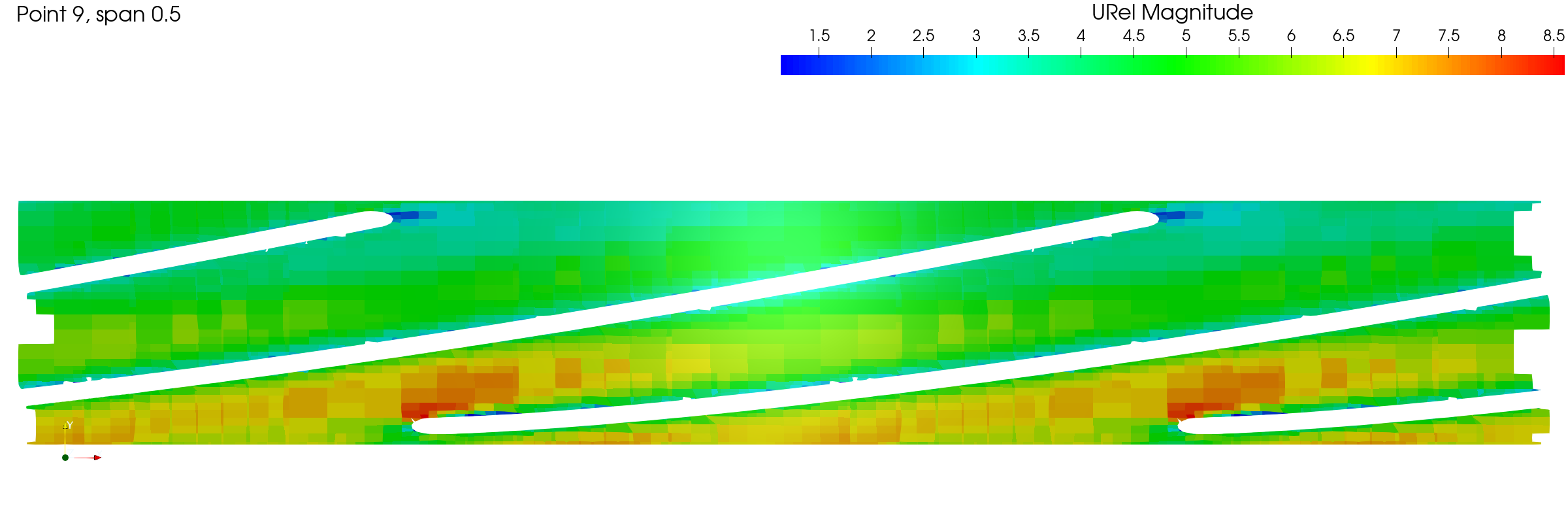

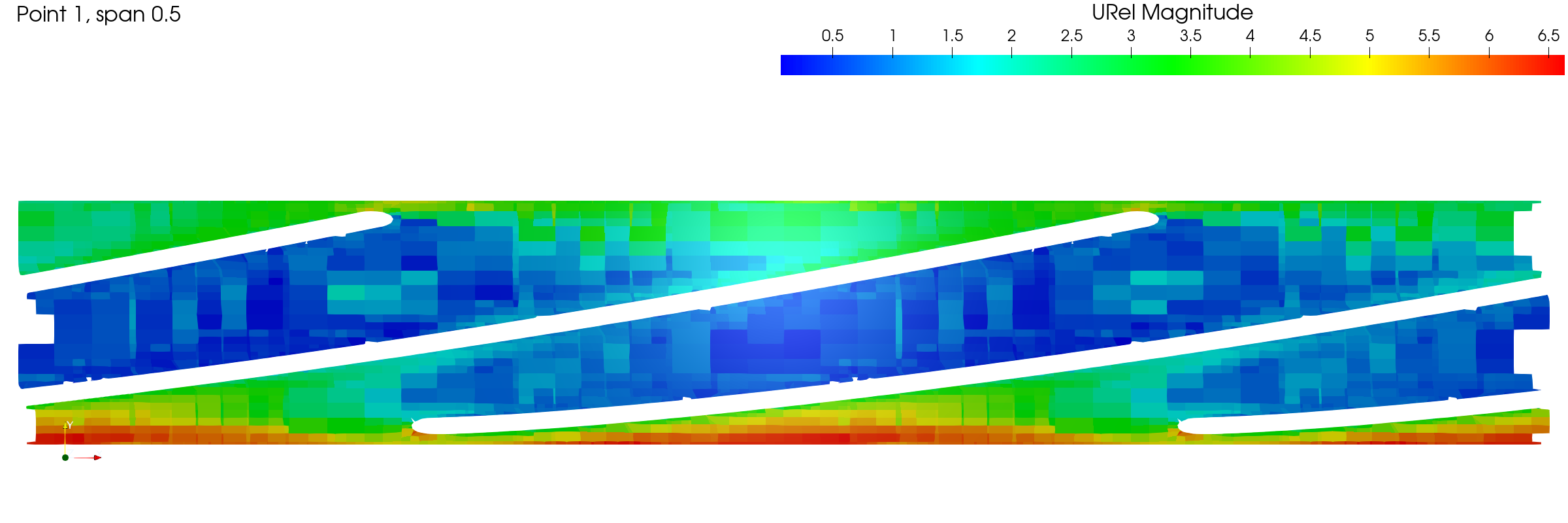

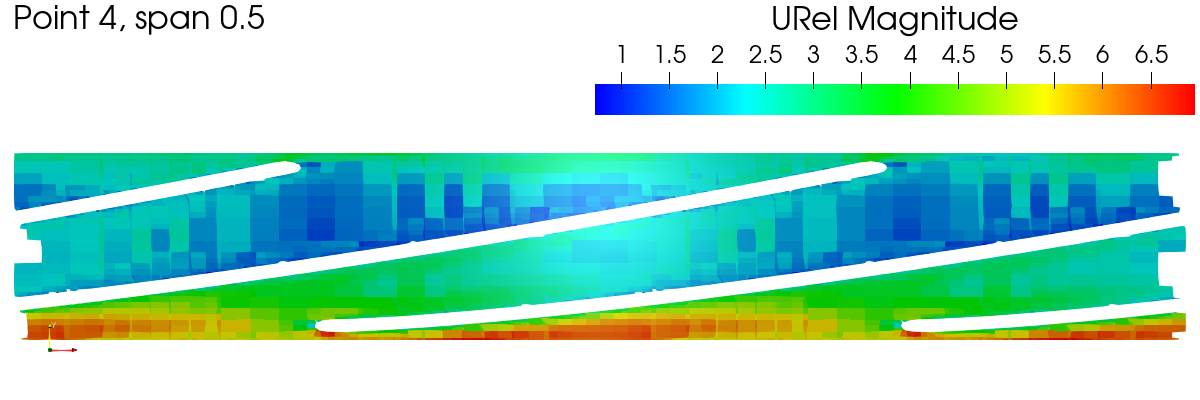

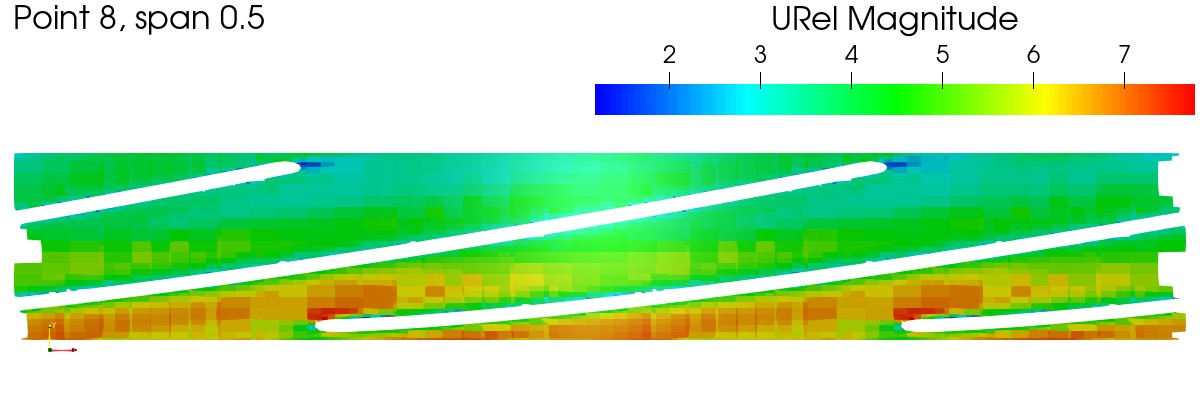

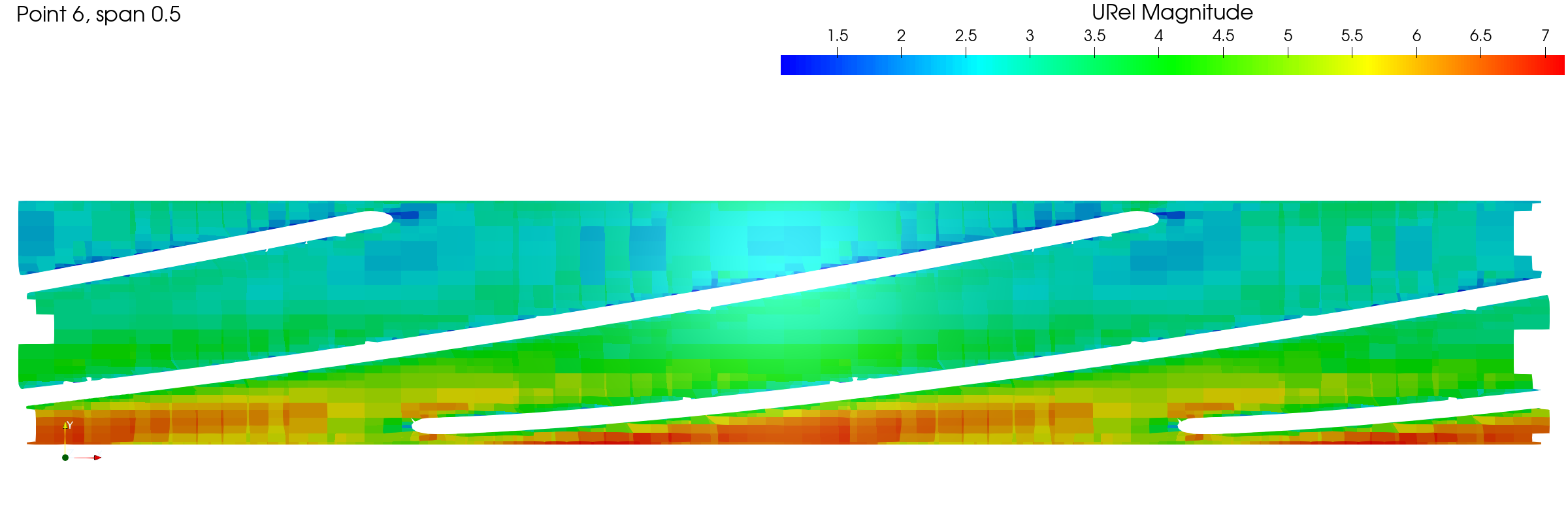

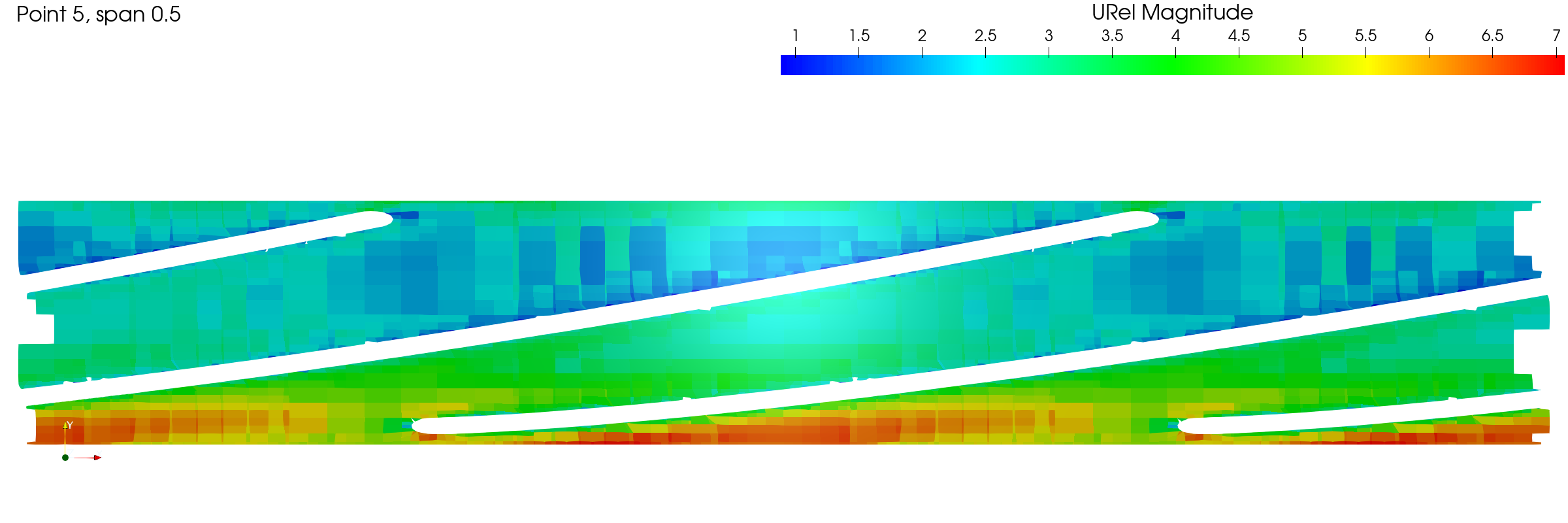

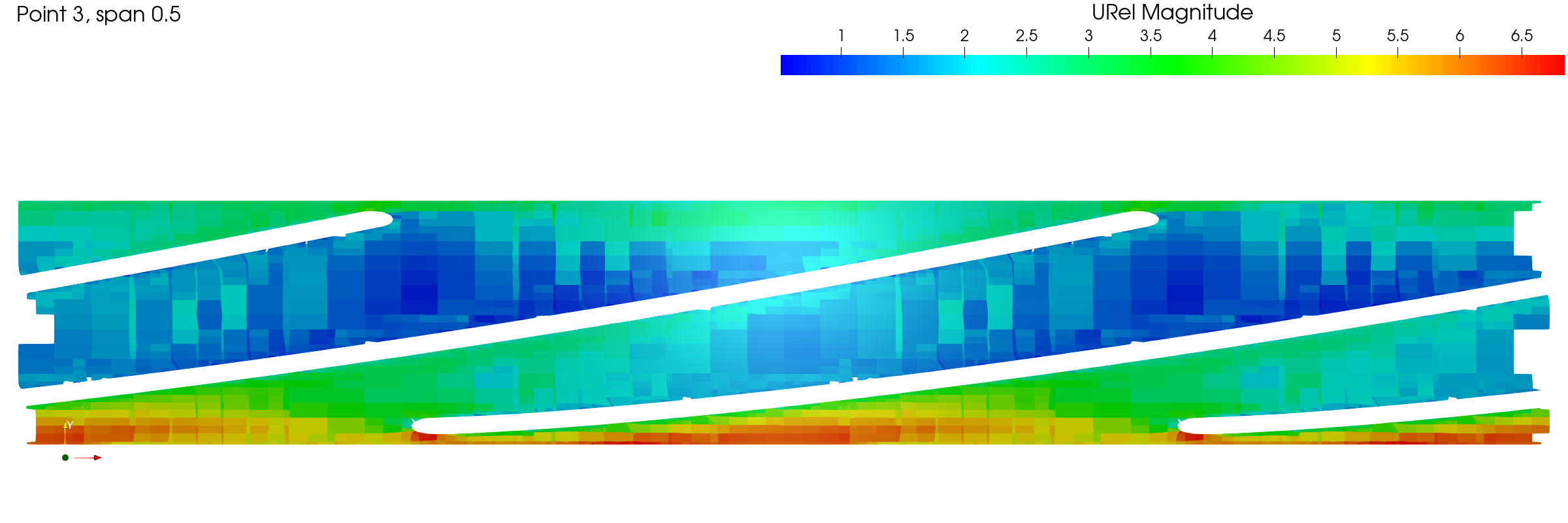

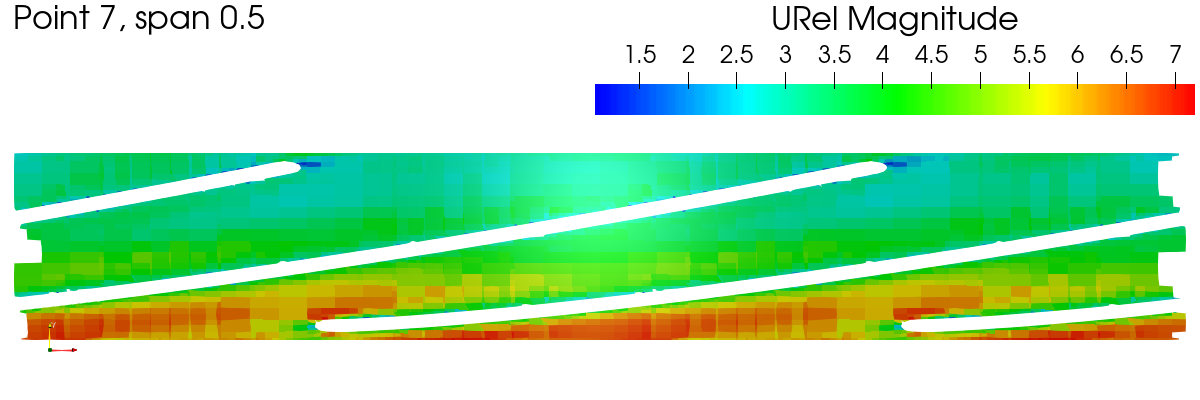

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Flow Rate [ l/min ]	Velocity Magnitude [ m/s ]
1	InletPart:inlet	1.00000	0.0829641
1	InletPart-to-ImpellerPart	1.00000	1.74244
1	ImpellerPart-from-InletPart	1.00200	1.74120
1	ImpellerPart-to-OutletPart	1.00200	2.94091
1	OutletPart-from-ImpellerPart	1.00575	2.94112
1	OutletPart:outlet	1.00574	0.191401
2	InletPart:inlet	1.99999	0.165928
2	InletPart-to-ImpellerPart	1.99999	1.41108
2	ImpellerPart-from-InletPart	2.00124	1.40968
2	ImpellerPart-to-OutletPart	2.00124	3.06399
2	OutletPart-from-ImpellerPart	2.00608	3.06410
2	OutletPart:outlet	2.00606	0.341235
3	InletPart:inlet	2.99999	0.248892
3	InletPart-to-ImpellerPart	2.99999	1.28621
3	ImpellerPart-from-InletPart	3.00160	1.28449
3	ImpellerPart-to-OutletPart	3.00160	3.11880
3	OutletPart-from-ImpellerPart	3.00761	3.11899
3	OutletPart:outlet	3.00761	0.422384
4	InletPart:inlet	3.99999	0.331856
4	InletPart-to-ImpellerPart	3.99999	1.27811
4	ImpellerPart-from-InletPart	4.00143	1.27630
4	ImpellerPart-to-OutletPart	4.00143	3.15711
4	OutletPart-from-ImpellerPart	4.00853	3.15731
4	OutletPart:outlet	4.00853	0.512584
5	InletPart:inlet	4.99999	0.414820
5	InletPart-to-ImpellerPart	4.99999	1.33770
5	ImpellerPart-from-InletPart	5.00155	1.33629
5	ImpellerPart-to-OutletPart	5.00155	3.20826
5	OutletPart-from-ImpellerPart	5.01081	3.20860
5	OutletPart:outlet	5.01083	0.570652
6	InletPart:inlet	5.99999	0.497784
6	InletPart-to-ImpellerPart	5.99999	1.43517
6	ImpellerPart-from-InletPart	6.00167	1.43332
6	ImpellerPart-to-OutletPart	6.00167	3.22167
6	OutletPart-from-ImpellerPart	6.01307	3.22194
6	OutletPart:outlet	6.01307	0.715902
7	InletPart:inlet	7.00001	0.580749
7	InletPart-to-ImpellerPart	7.00001	1.57037
7	ImpellerPart-from-InletPart	7.00169	1.56819
7	ImpellerPart-to-OutletPart	7.00169	3.14420
7	OutletPart-from-ImpellerPart	7.01339	3.14453
7	OutletPart:outlet	7.01339	0.884931
8	InletPart:inlet	7.99996	0.663710
8	InletPart-to-ImpellerPart	7.99996	1.72376
8	ImpellerPart-from-InletPart	8.00194	1.72104
8	ImpellerPart-to-OutletPart	8.00194	2.88800
8	OutletPart-from-ImpellerPart	8.01430	2.88809
8	OutletPart:outlet	8.01430	0.881326
9	InletPart:inlet	8.99998	0.746676
9	InletPart-to-ImpellerPart	8.99998	1.88281
9	ImpellerPart-from-InletPart	9.00244	1.88057
9	ImpellerPart-to-OutletPart	9.00244	2.65985
9	OutletPart-from-ImpellerPart	9.01696	2.65990
9	OutletPart:outlet	9.01696	0.980663

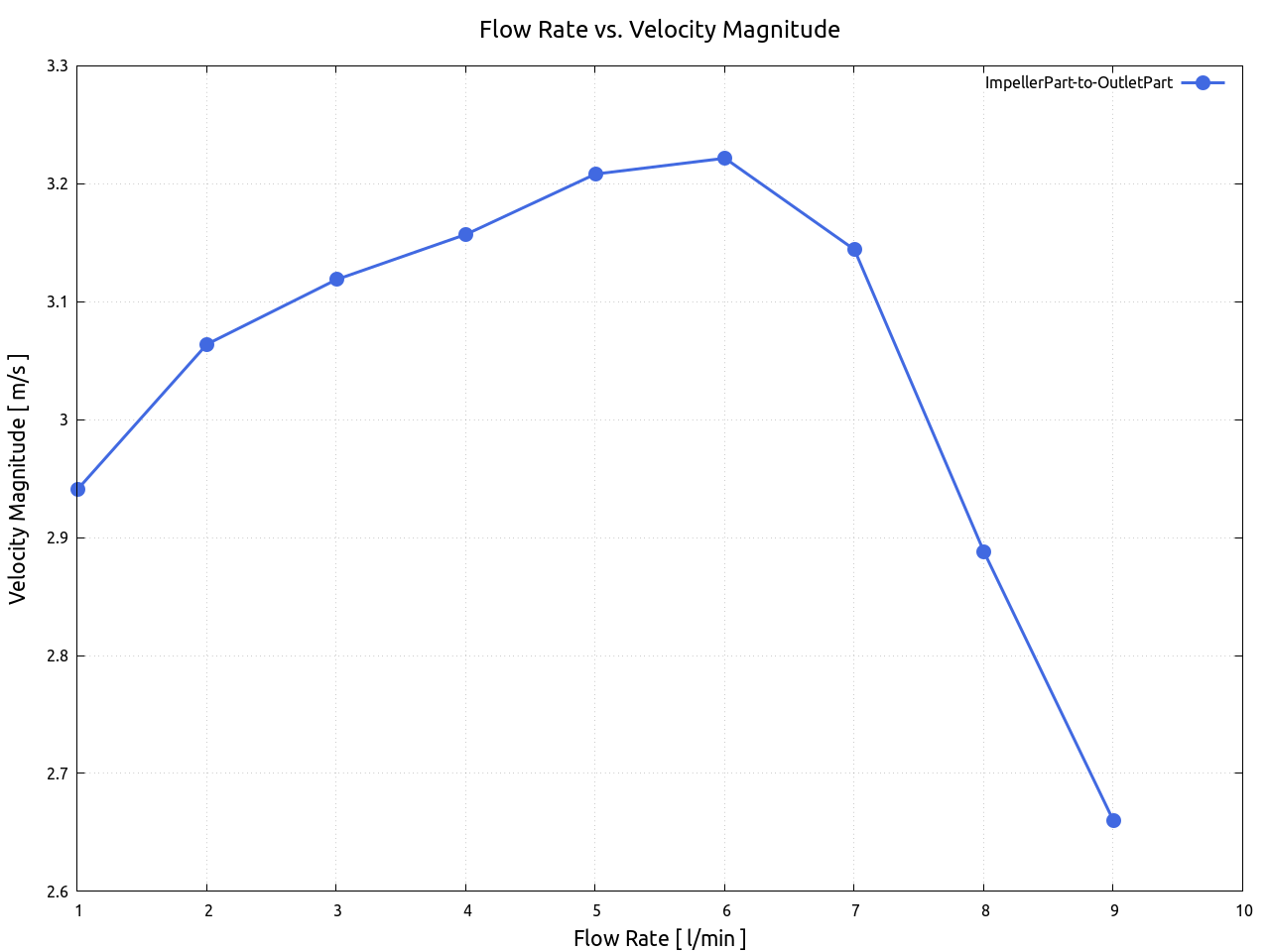

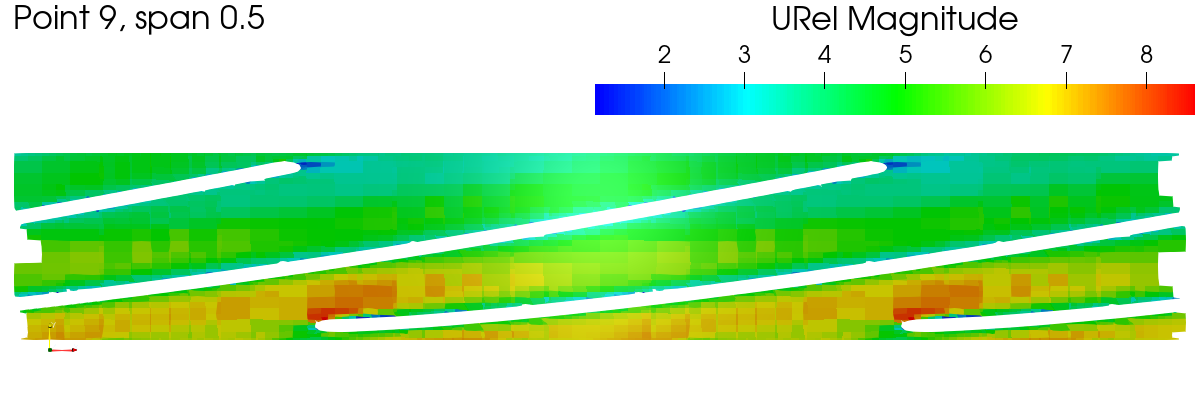

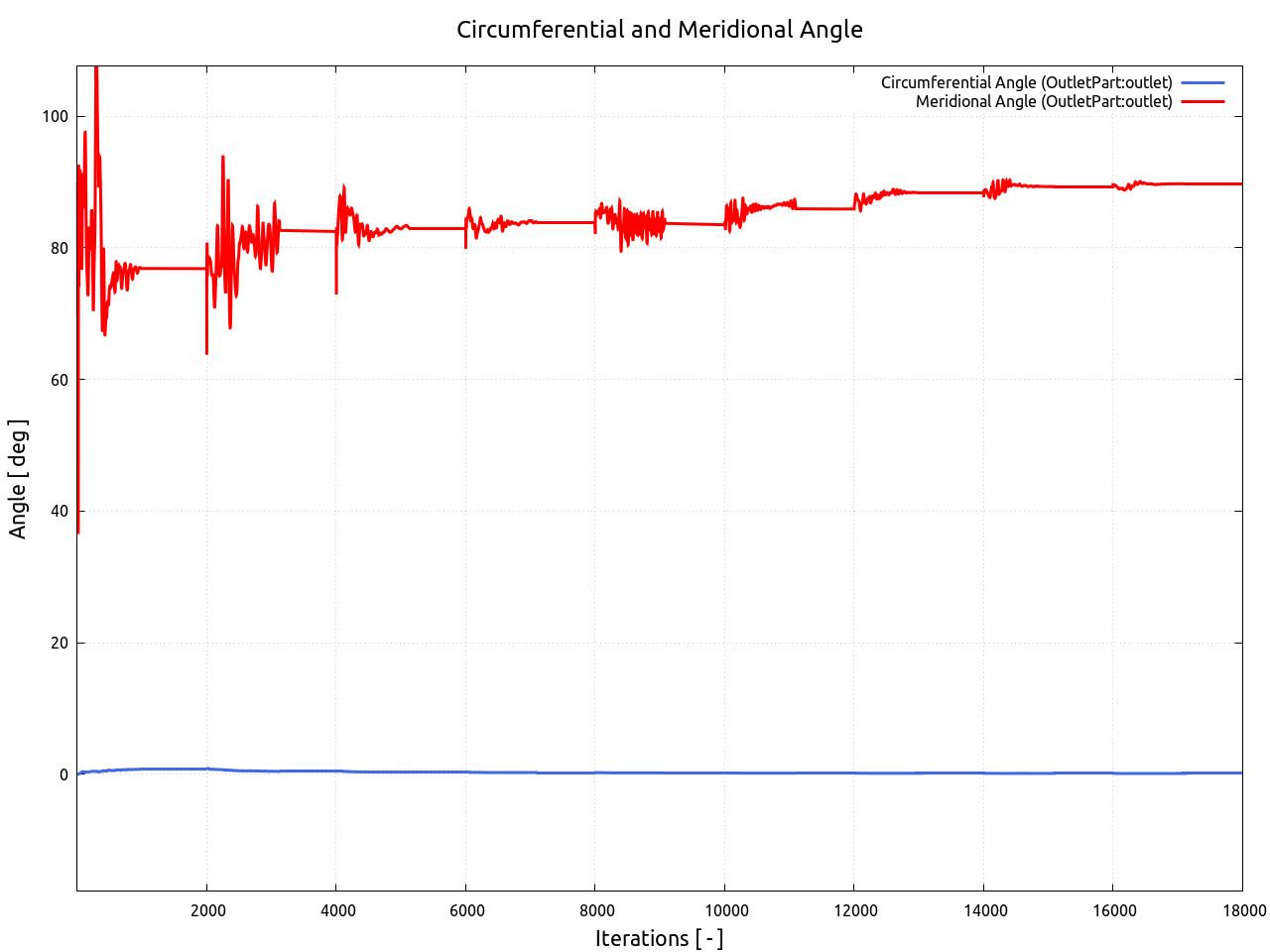

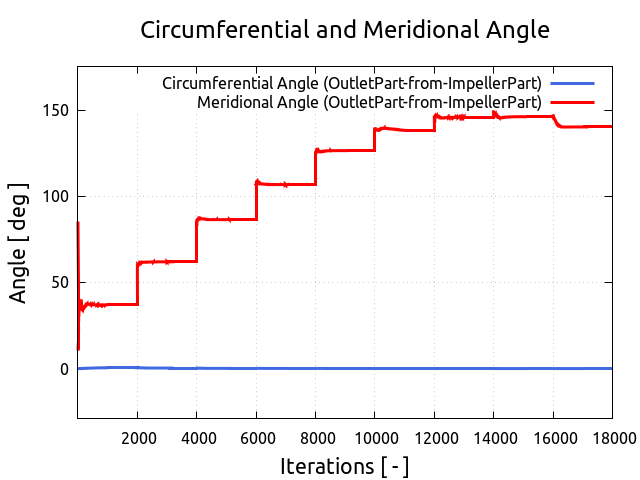

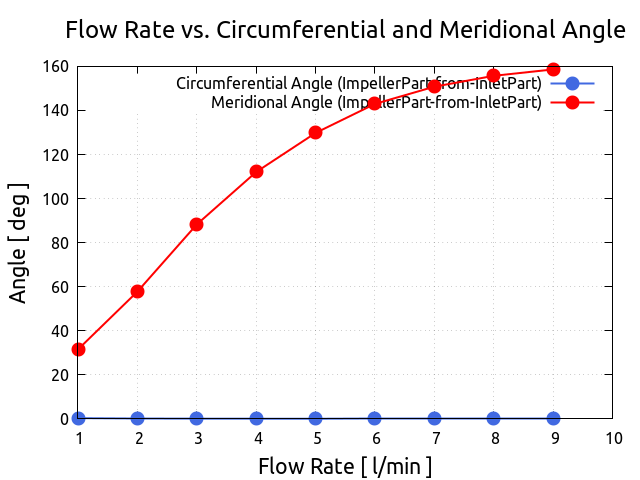

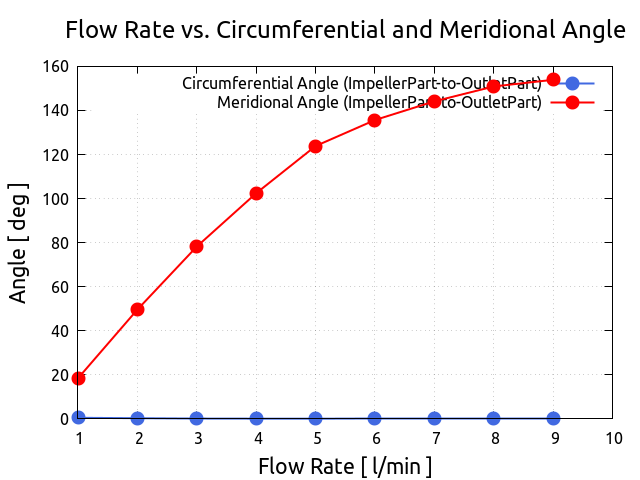

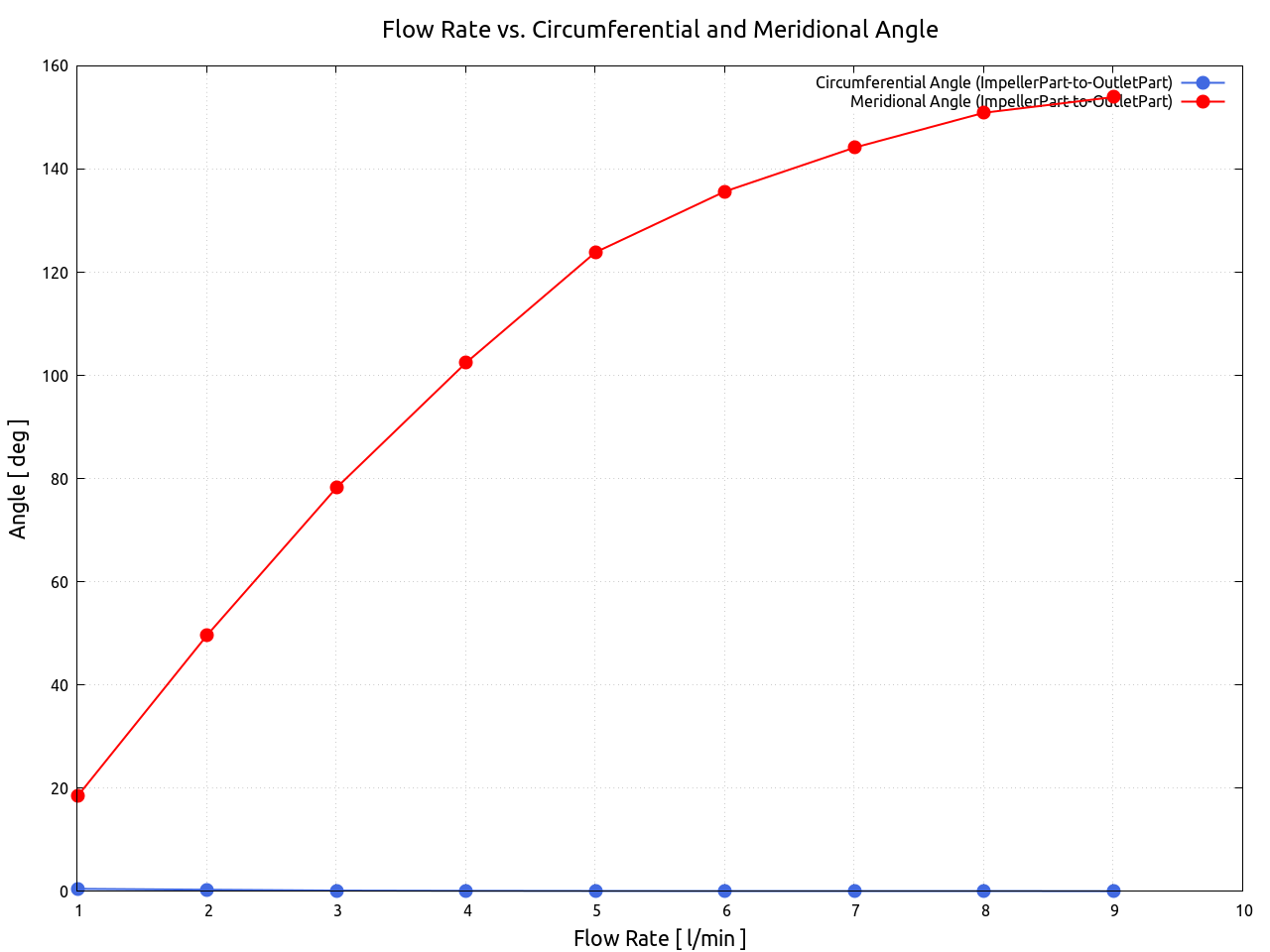

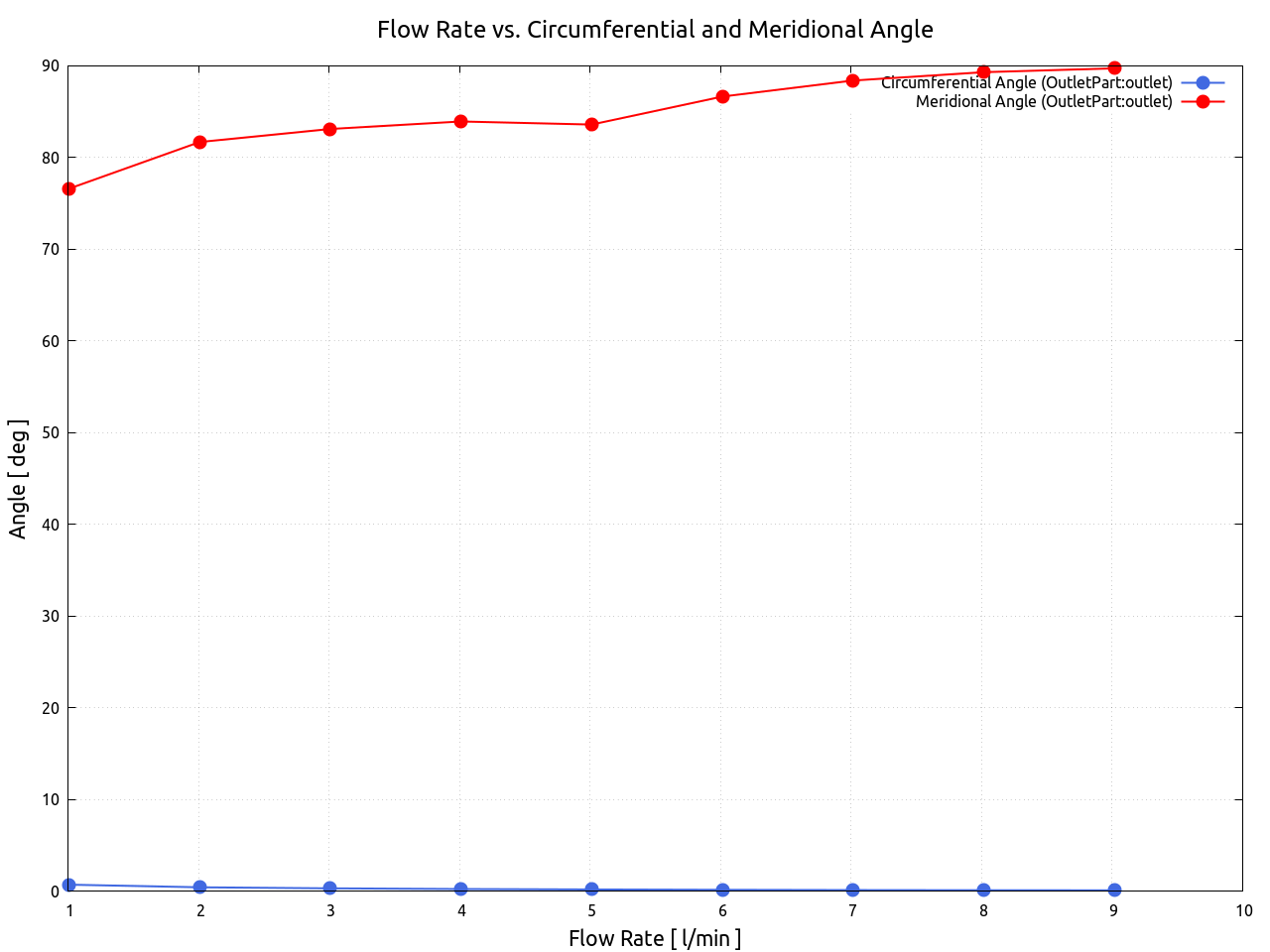

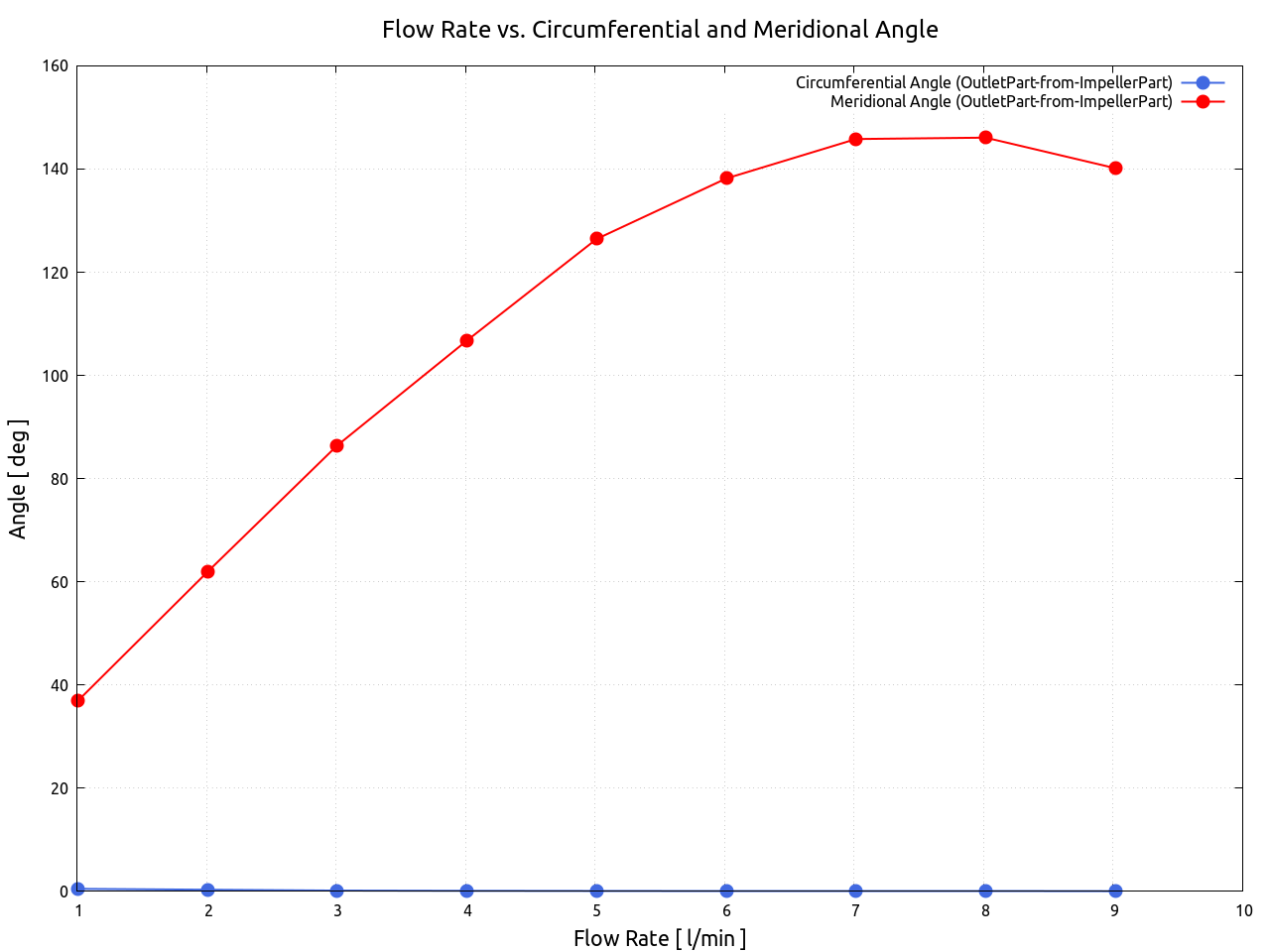

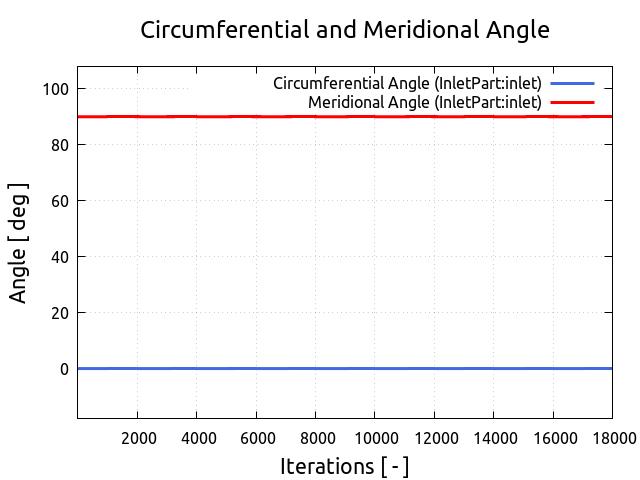

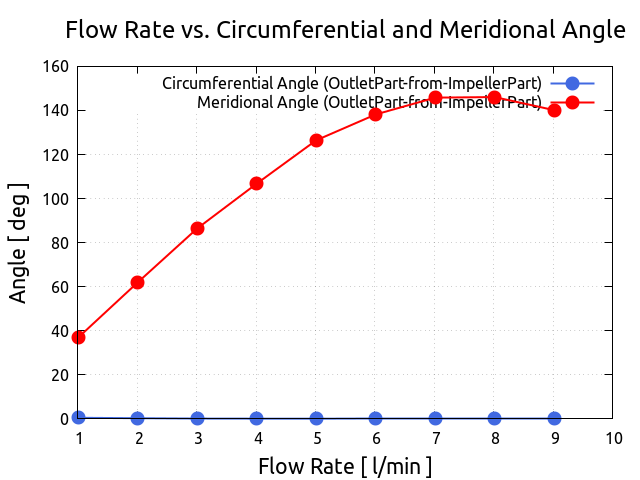

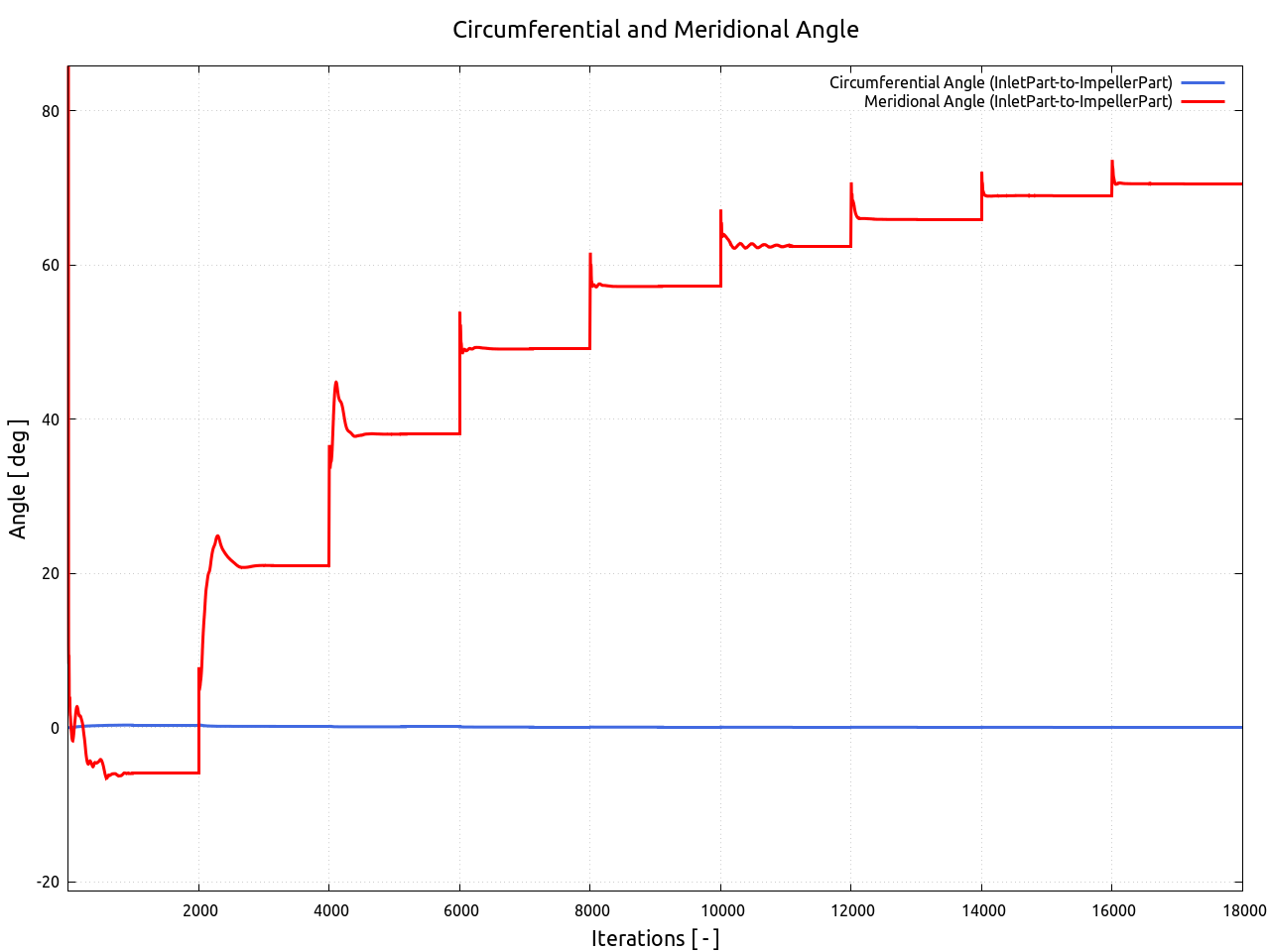

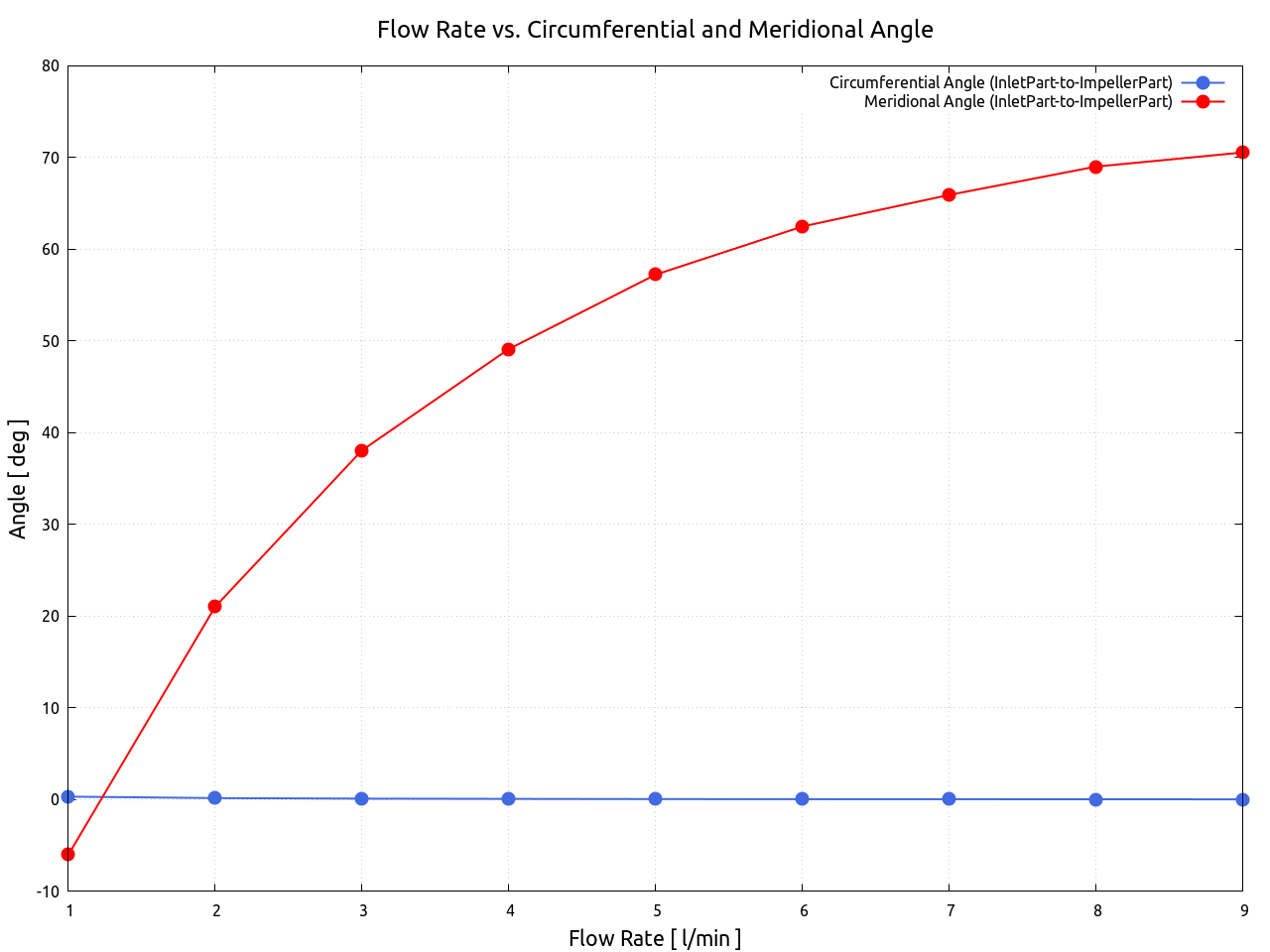

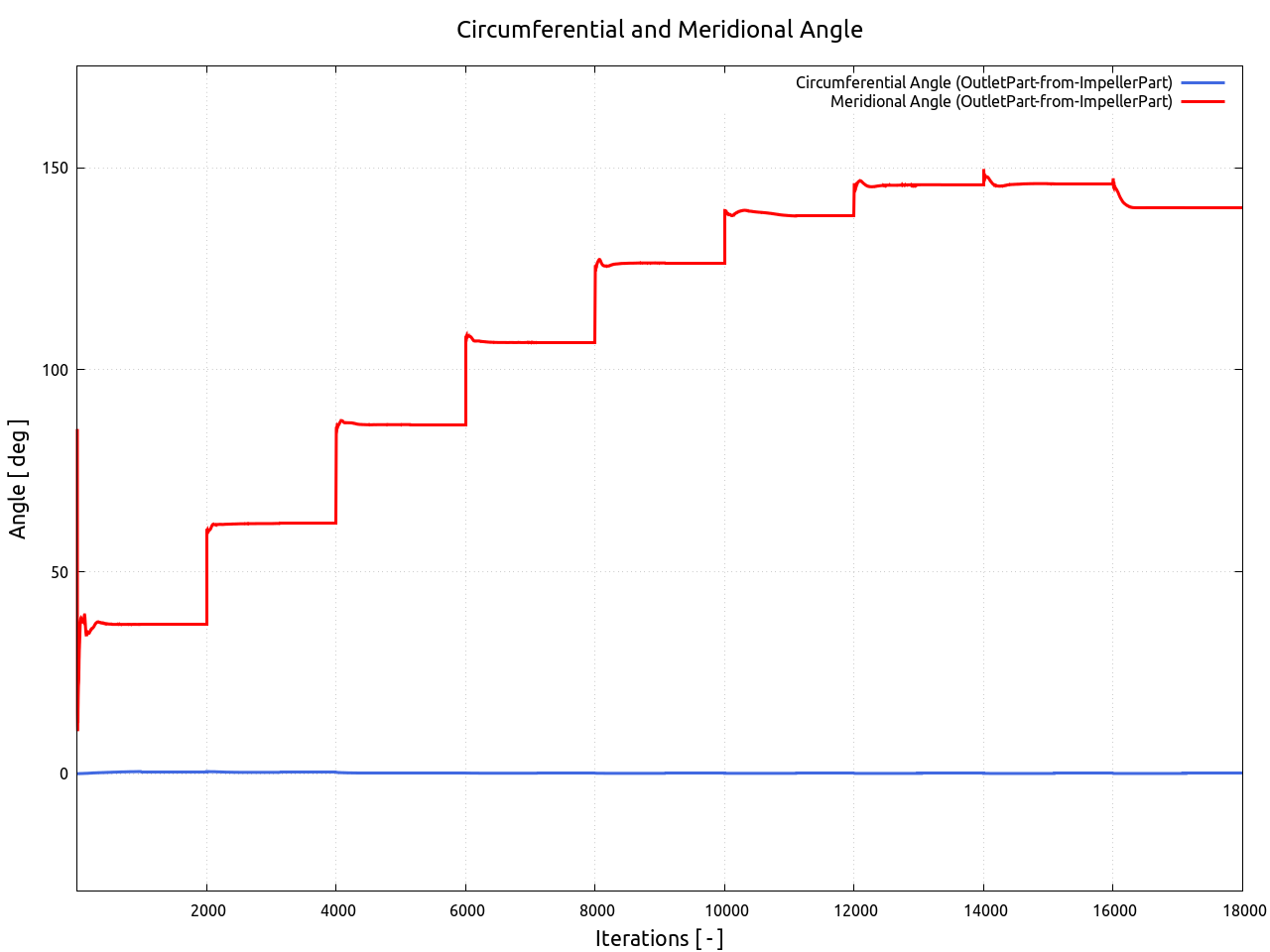

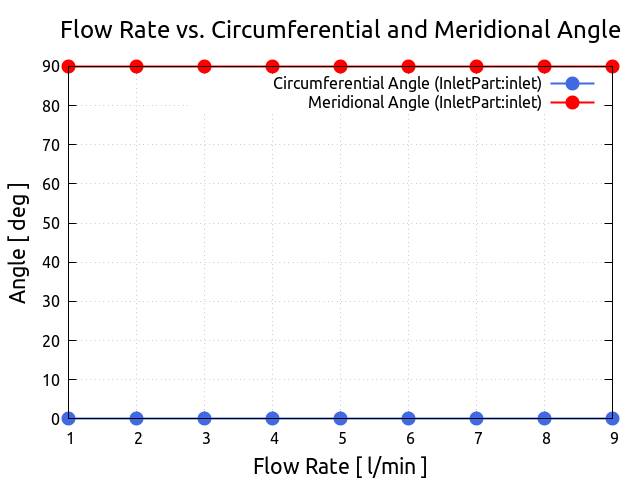

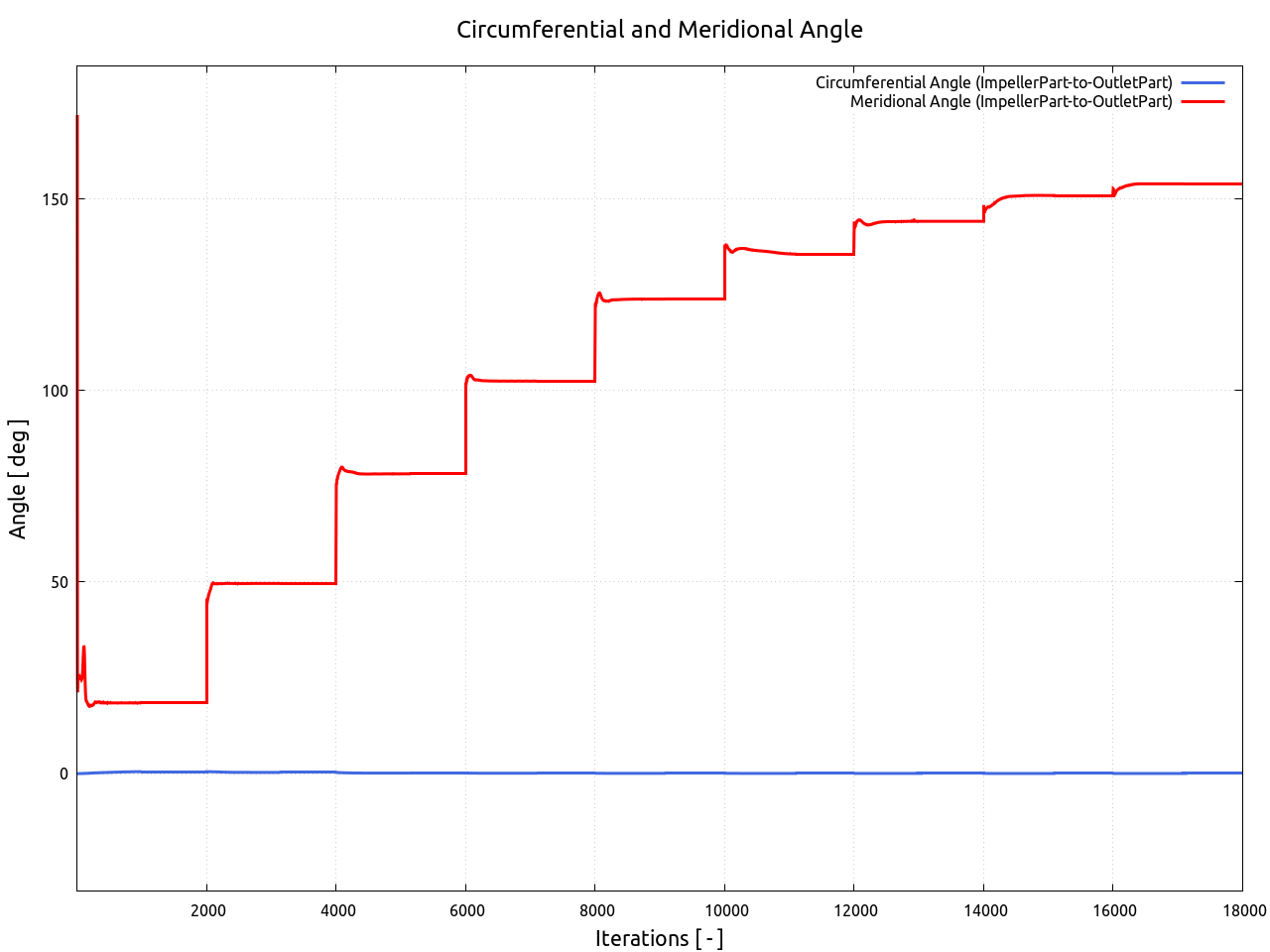

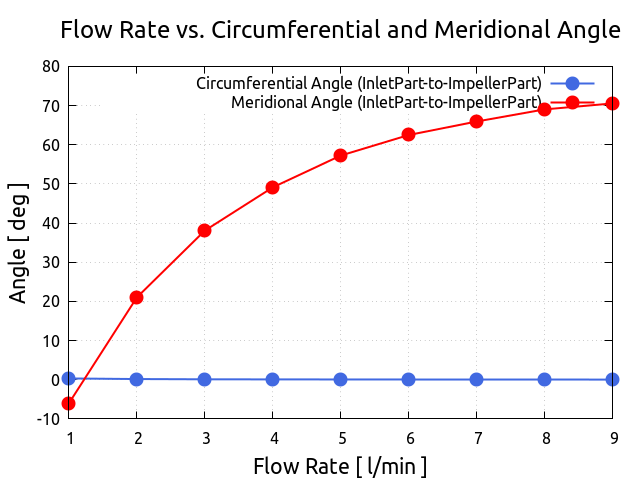

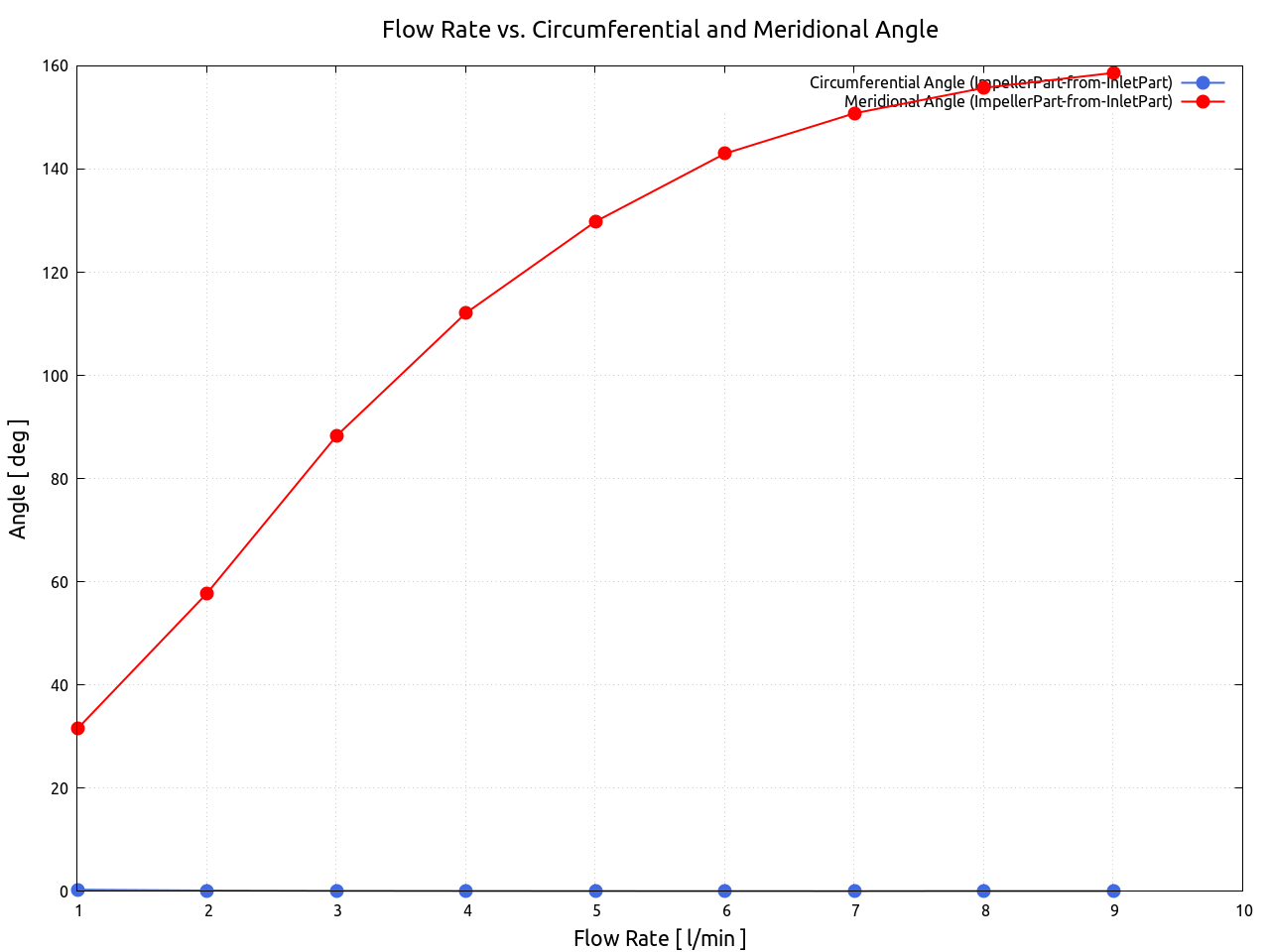

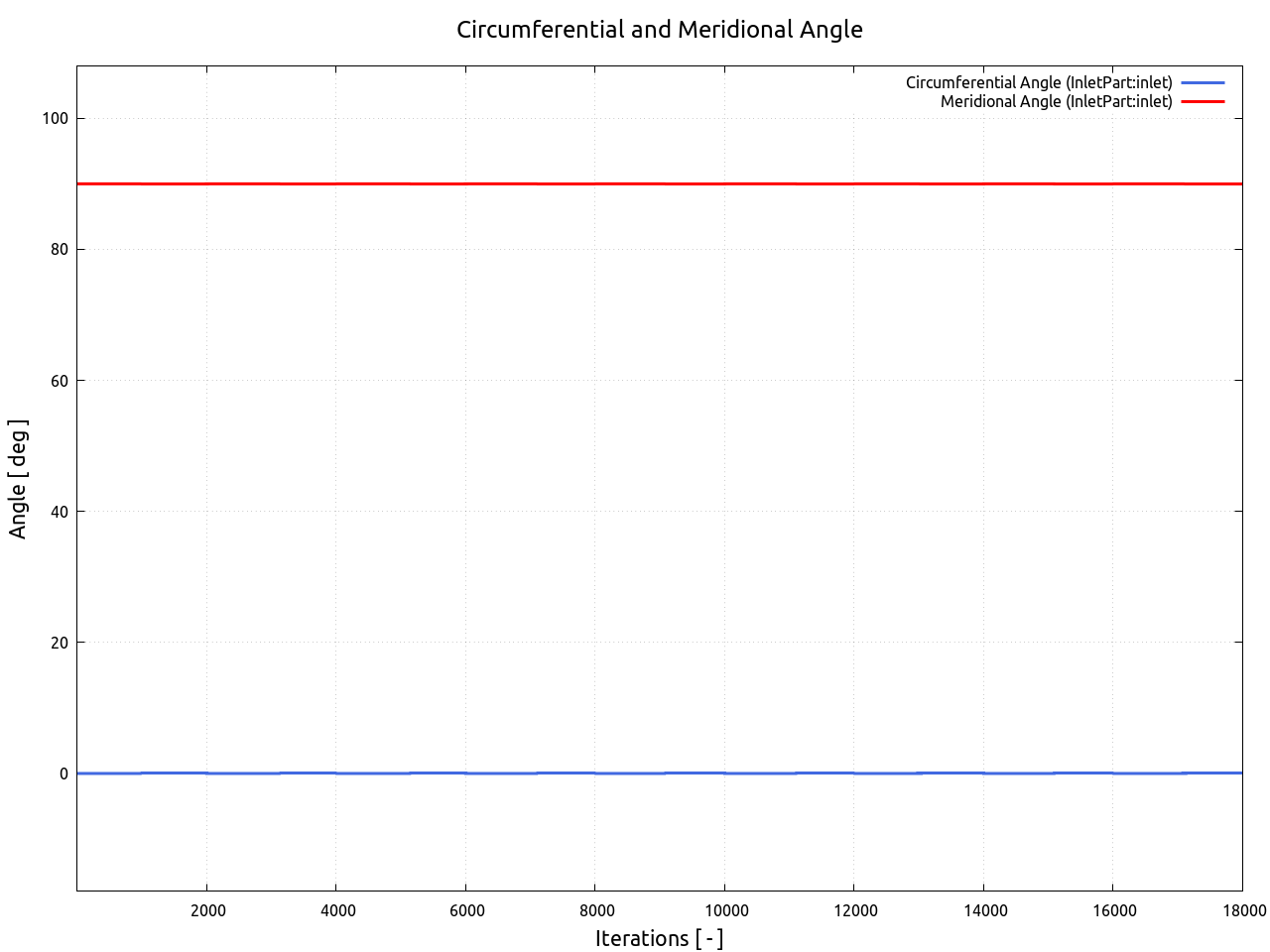

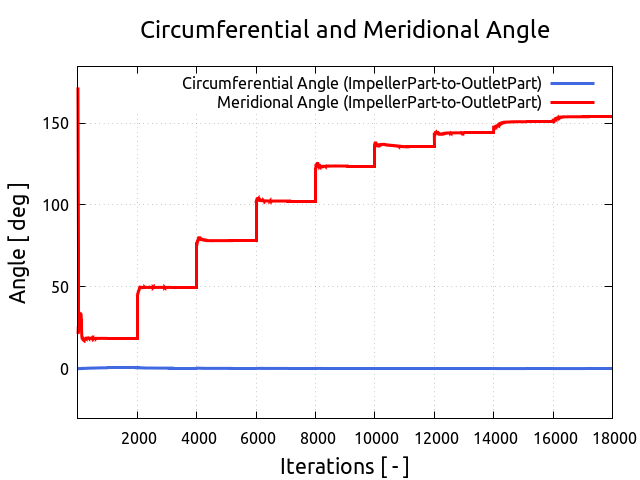

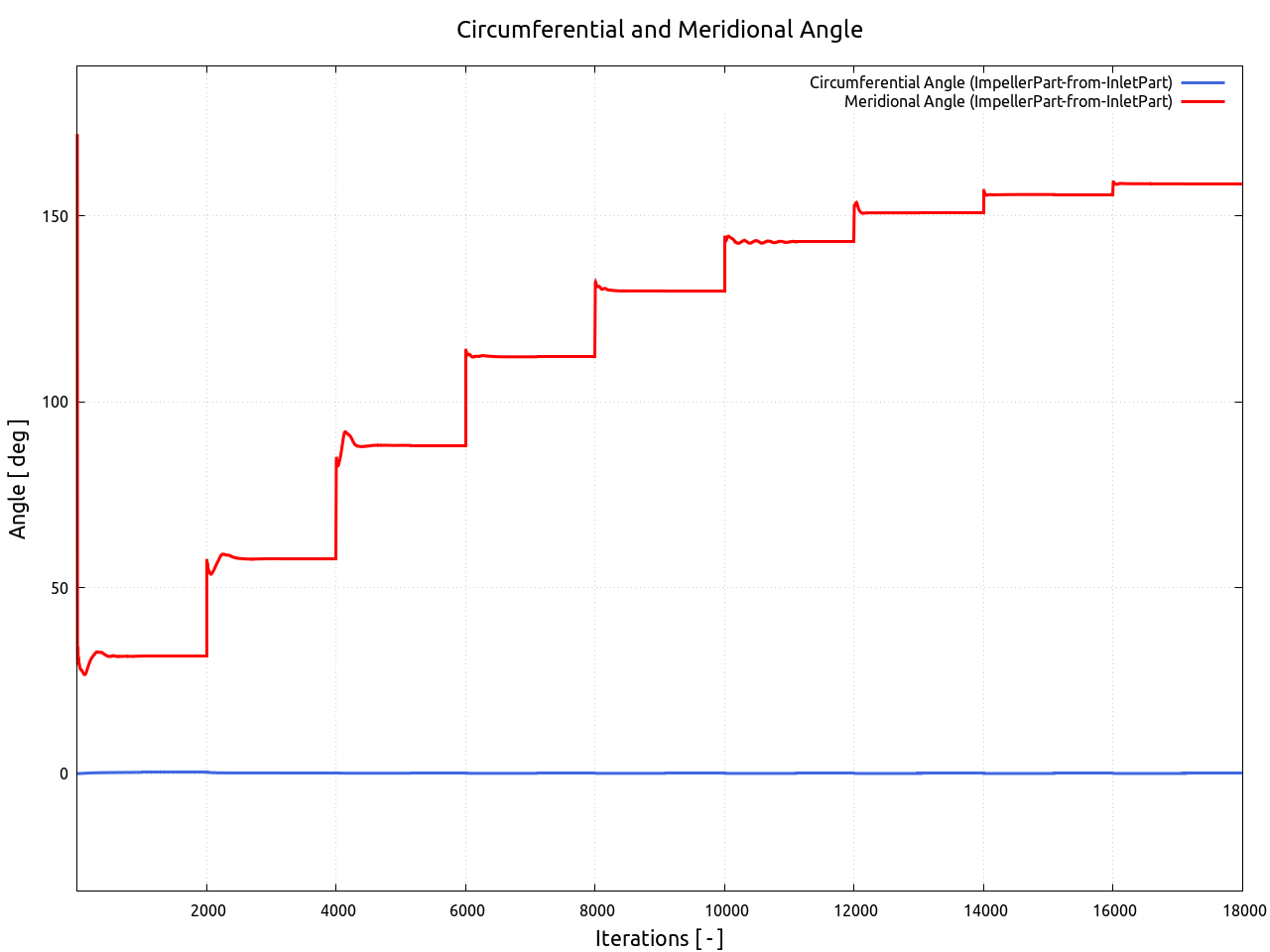

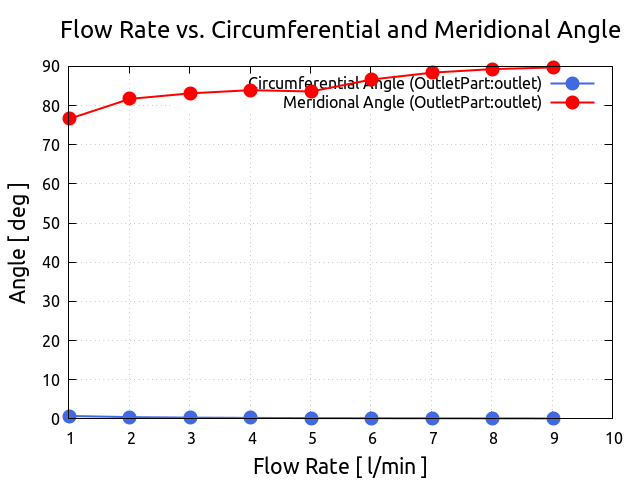

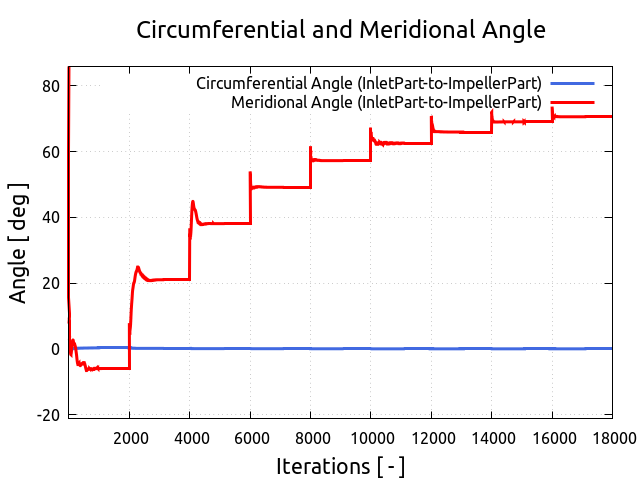

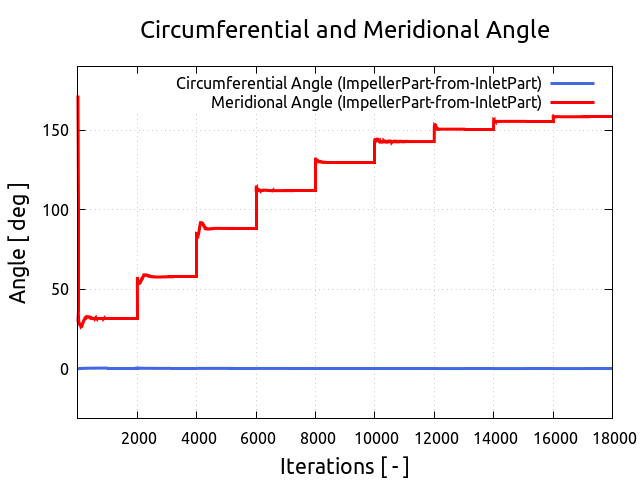

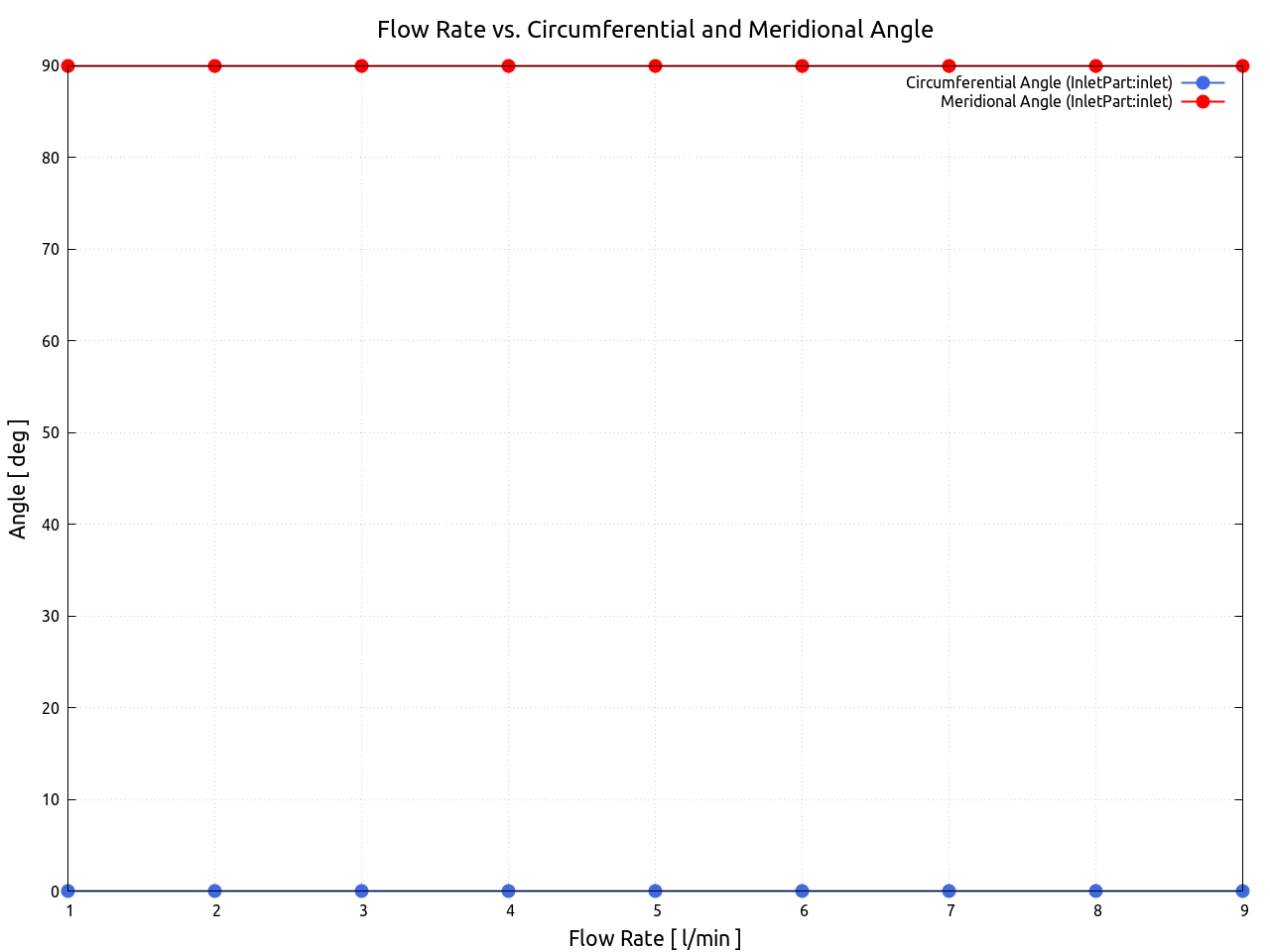

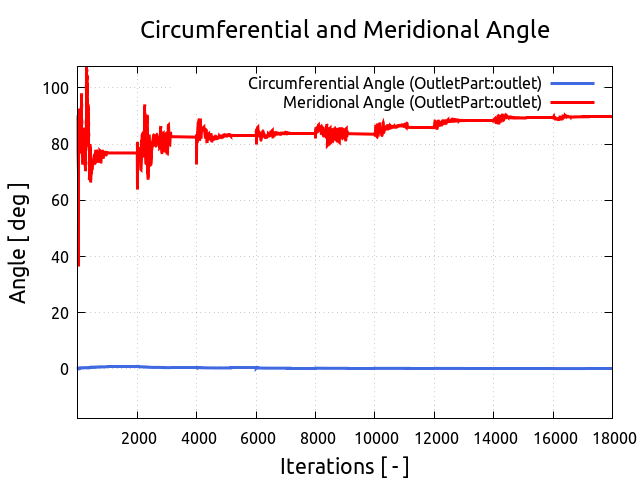

Circumferential and Meridional Angle

Point Nr.	Interface Name	Flow Rate [ l/min ]	Circumferential Angle [ deg ]	Meridional Angle [ deg ]
1	InletPart:inlet	1.00000	0	90.0000
1	InletPart-to-ImpellerPart	1.00000	0.331312	-5.99372
1	ImpellerPart-from-InletPart	1.00200	0.331314*	31.5624*
1	ImpellerPart-to-OutletPart	1.00200	0.497567*	18.4716*
1	OutletPart-from-ImpellerPart	1.00575	0.497574	36.9782
1	OutletPart:outlet	1.00574	0.734697	76.6152
2	InletPart:inlet	1.99999	0	90.0000
2	InletPart-to-ImpellerPart	1.99999	0.172176	21.0396
2	ImpellerPart-from-InletPart	2.00124	0.172177*	57.7817*
2	ImpellerPart-to-OutletPart	2.00124	0.326561*	49.6324*
2	OutletPart-from-ImpellerPart	2.00608	0.326569	61.9502
2	OutletPart:outlet	2.00606	0.448848	81.6986
3	InletPart:inlet	2.99999	0	90.0000
3	InletPart-to-ImpellerPart	2.99999	0.112399	38.0784
3	ImpellerPart-from-InletPart	3.00160	0.112403*	88.2806*
3	ImpellerPart-to-OutletPart	3.00160	0.160044*	78.2394*
3	OutletPart-from-ImpellerPart	3.00761	0.160040	86.4349
3	OutletPart:outlet	3.00761	0.334748	83.1205
4	InletPart:inlet	3.99999	0	90.0000
4	InletPart-to-ImpellerPart	3.99999	0.0838617	49.1238
4	ImpellerPart-from-InletPart	4.00143	0.0838669*	112.095*
4	ImpellerPart-to-OutletPart	4.00143	0.111612*	102.446*
4	OutletPart-from-ImpellerPart	4.00853	0.111608	106.753
4	OutletPart:outlet	4.00853	0.258080	83.9363
5	InletPart:inlet	4.99999	0	90.0000
5	InletPart-to-ImpellerPart	4.99999	0.0669805	57.2367
5	ImpellerPart-from-InletPart	5.00155	0.0669825*	129.818*
5	ImpellerPart-to-OutletPart	5.00155	0.0866002*	123.861*
5	OutletPart-from-ImpellerPart	5.01081	0.0865978	126.455
5	OutletPart:outlet	5.01083	0.209128	83.5978
6	InletPart:inlet	5.99999	0	90.0000
6	InletPart-to-ImpellerPart	5.99999	0.0555290	62.4847
6	ImpellerPart-from-InletPart	6.00167	0.0555323*	143.005*
6	ImpellerPart-to-OutletPart	6.00167	0.0714773*	135.662*
6	OutletPart-from-ImpellerPart	6.01307	0.0714762	138.185
6	OutletPart:outlet	6.01307	0.174527	86.6567
7	InletPart:inlet	7.00001	0	90.0000
7	InletPart-to-ImpellerPart	7.00001	0.0473678	65.9276
7	ImpellerPart-from-InletPart	7.00169	0.0473703*	150.808*
7	ImpellerPart-to-OutletPart	7.00169	0.0609587*	144.155*
7	OutletPart-from-ImpellerPart	7.01339	0.0609585	145.819
7	OutletPart:outlet	7.01339	0.148300	88.3998
8	InletPart:inlet	7.99996	0	90.0000
8	InletPart-to-ImpellerPart	7.99996	0.0413324	69.0173
8	ImpellerPart-from-InletPart	8.00194	0.0413352*	155.741*
8	ImpellerPart-to-OutletPart	8.00194	0.0532721*	150.906*
8	OutletPart-from-ImpellerPart	8.01430	0.0532721	146.089
8	OutletPart:outlet	8.01430	0.131411	89.3089
9	InletPart:inlet	8.99998	0	90.0000
9	InletPart-to-ImpellerPart	8.99998	0.0366852	70.5581
9	ImpellerPart-from-InletPart	9.00244	0.0366861*	158.631*
9	ImpellerPart-to-OutletPart	9.00244	0.0473136*	153.947*
9	OutletPart-from-ImpellerPart	9.01696	0.0473135	140.152
9	OutletPart:outlet	9.01696	0.117015	89.7309
