Hi, this is steady-state CFD simulation report of:

eveningTest

Created by TCFD^® 19.10 on Thu Jan 9 21:13:20 2020

DISCOVER

Simulation Stats

Test Case Name	eveningTest
Number of Points [ – ]	1
Machine Type	stator
Rotation Speed [ RPM ]	0

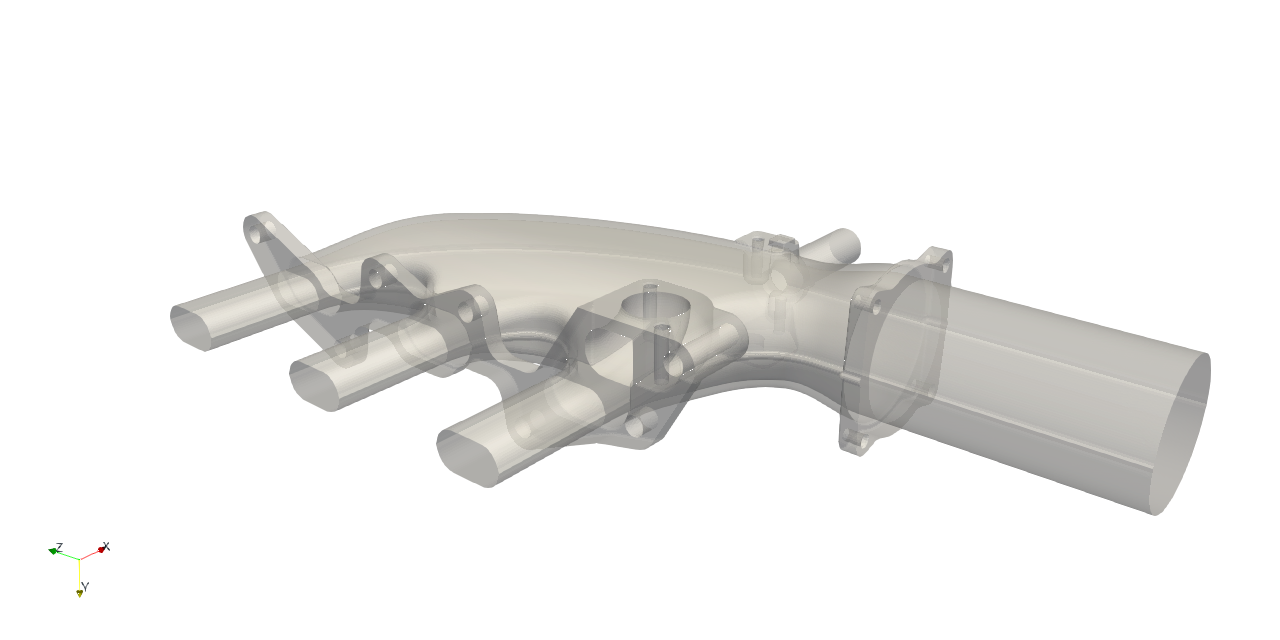

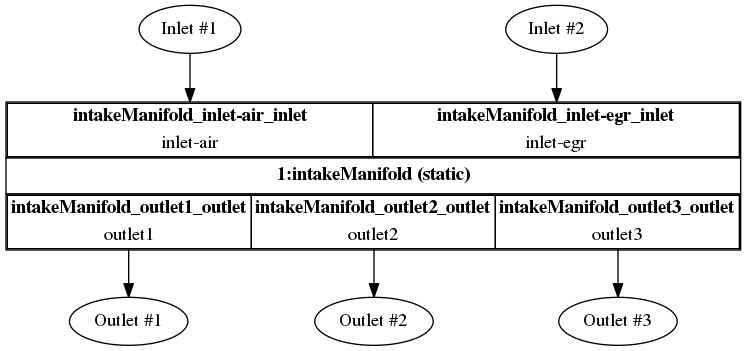

Number of Components [ – ] ( topology )	1
Mesh Size [ cells ] ( details )	intakeManifold : 268927 Total : 268927
Mesh details [ mm ]: Component Property Min Max Avg 1 cellOpenness N/A 4.09396 × 10-16 N/A 1 cellVolume 0.0904299 11.8030 N/A 1 faceArea 0.0959783 5.82793 N/A 1 aspectRatio N/A 8.87487 N/A 1 nonOrthogonality N/A 50.3193 9.74121 1 skewness N/A 1.57598 N/A 1 edgeLength N/A N/A N/A 1 concaveAngle N/A 75.7192 N/A 1 faceFlatness 0.674549 N/A 0.999338 1 cellDeterminant 0.0676716 N/A 13.5733 1 faceInterpolationWeight 0.0914099 N/A 0.468217 1 faceVolumeRatio 0.0166756 0.836772 N/A 1 Warnings: 3 faces with low quality or negative volume decomposition tets 279 faces with concave angles 1 warped faces 9979 concave cells
Average y+ at walls [ – ] ( details )
y+ details: Point Patch Min Max Avg 1 intakeManifold_manifold-sensor-plug-wall_wall 0.0325416 0.0615867 0.0456922 1 intakeManifold_inlet-egr-wall_wall 0.0247215 3.91462 0.655302 1 intakeManifold_outlet1-wall_wall 0.00895508 1.24743 0.371551 1 intakeManifold_outlet2-wall_wall 0.0152740 3.33125 0.436898 1 intakeManifold_manifold-wall_wall 3.76718 × 10-6 10.0434 0.680367 1 intakeManifold_inlet-air-wall_wall 0.00692711 1.26516 0.0790739 1 intakeManifold_outlet3-wall_wall 8.84288 × 10-8 0.00186289 3.95052 × 10-5
Wall-clock time [ hh:mm:ss ]	00:10:18
Parallel Processors [ – ]	24
Fluid Name	air
Physical Model	compressible
Equation of state	perfectGas
Numerical order	first
Turbulence model	kOmegaSST

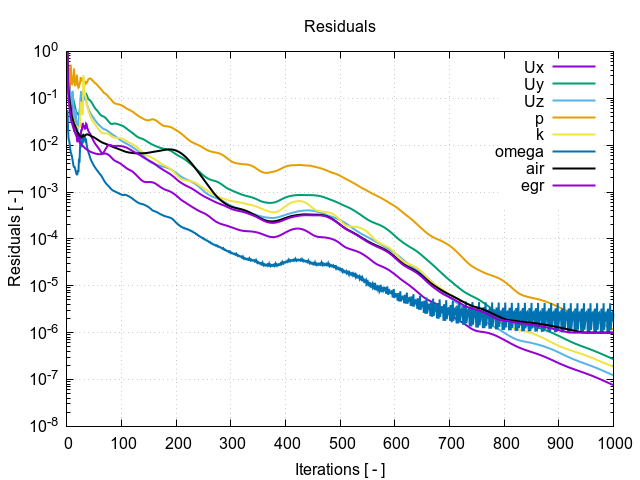

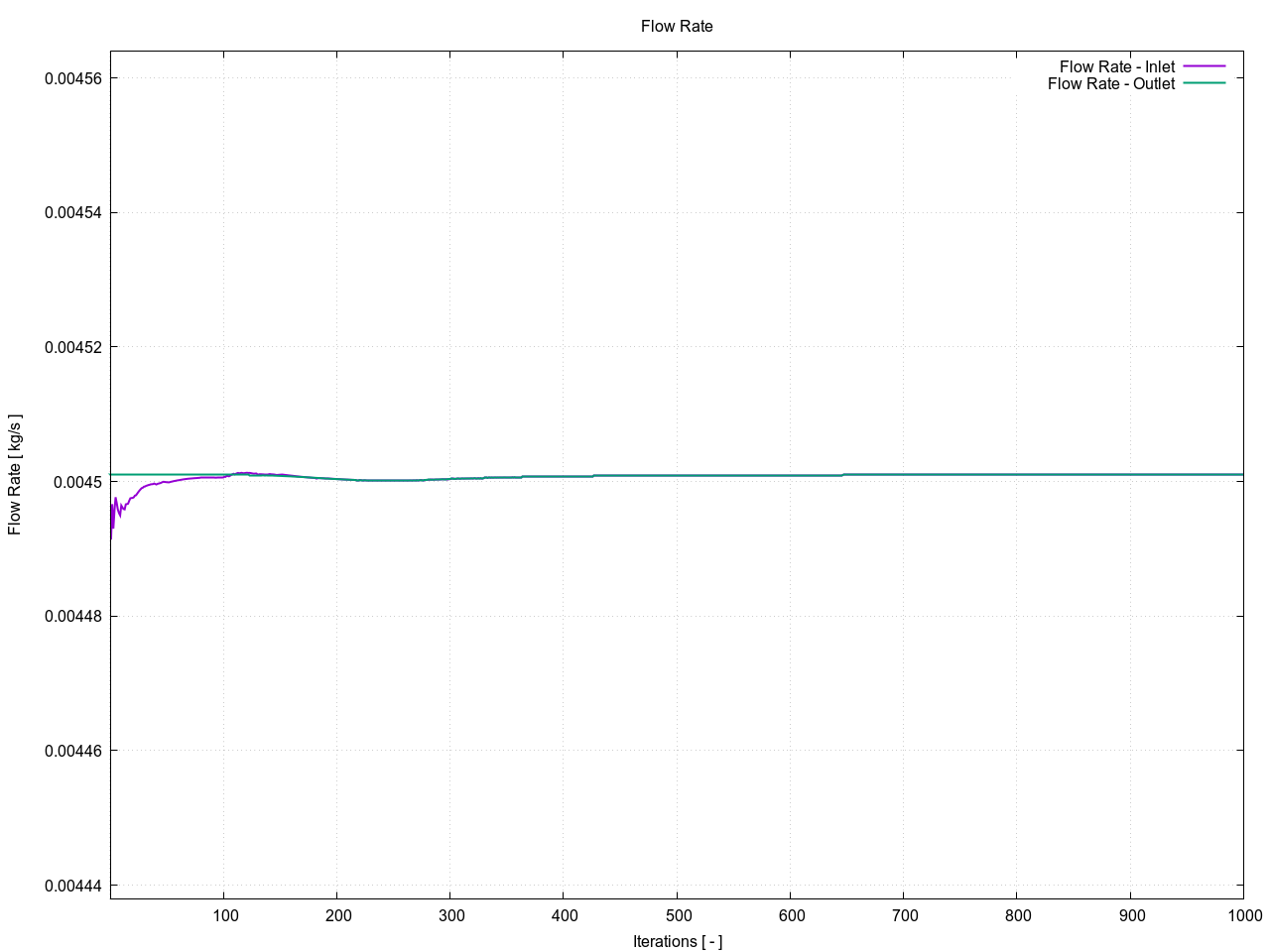

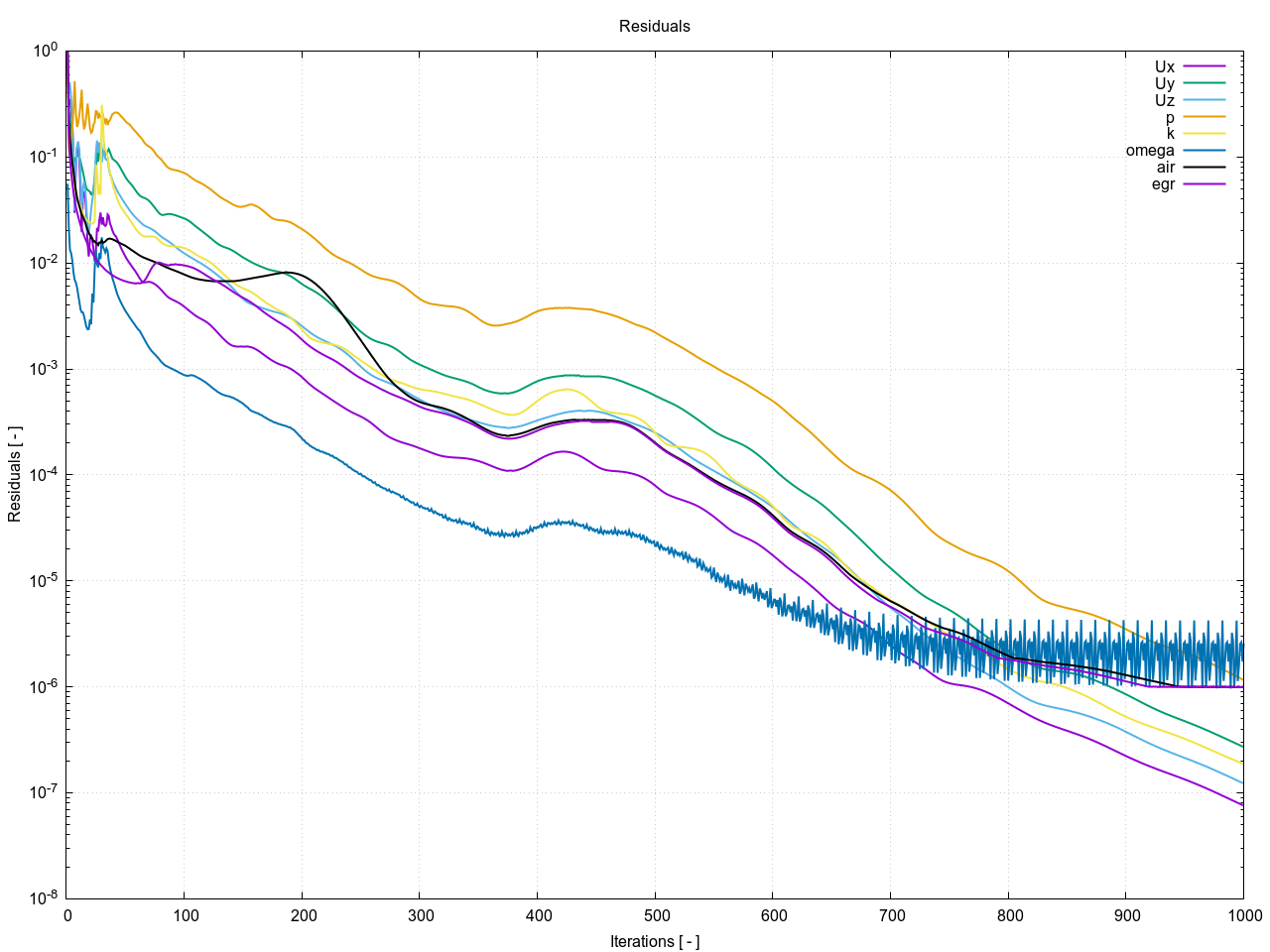

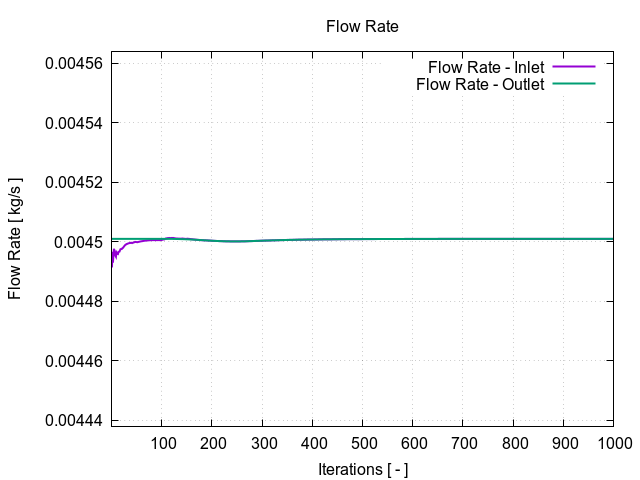

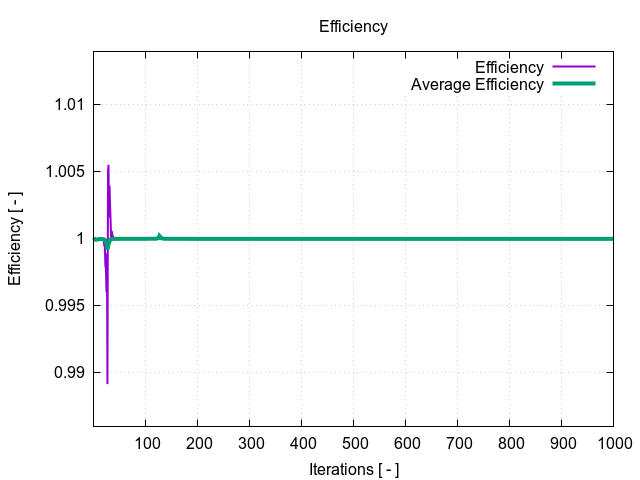

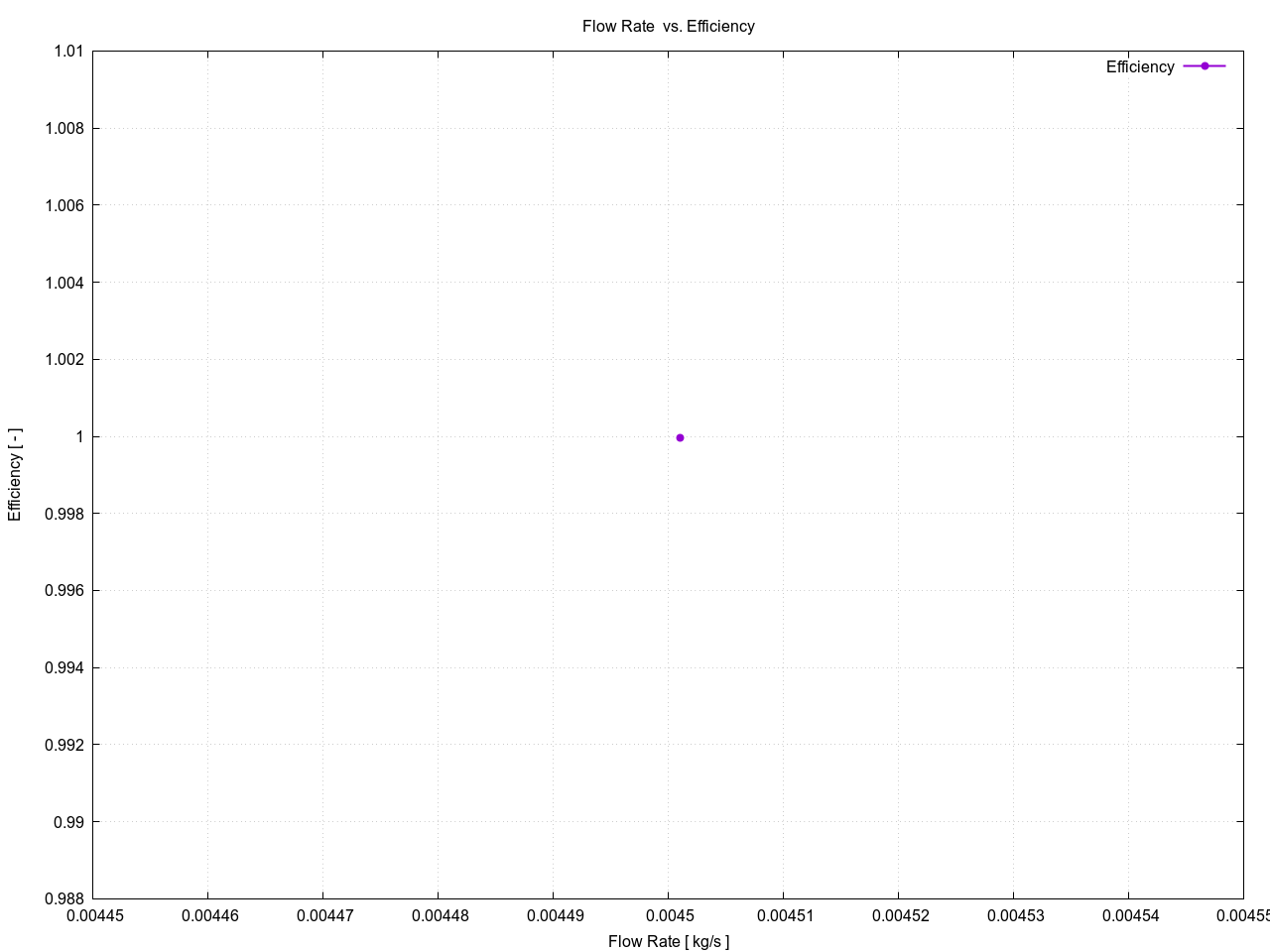

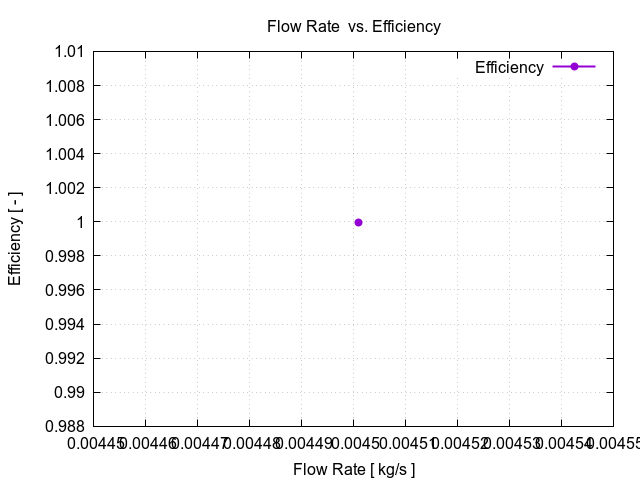

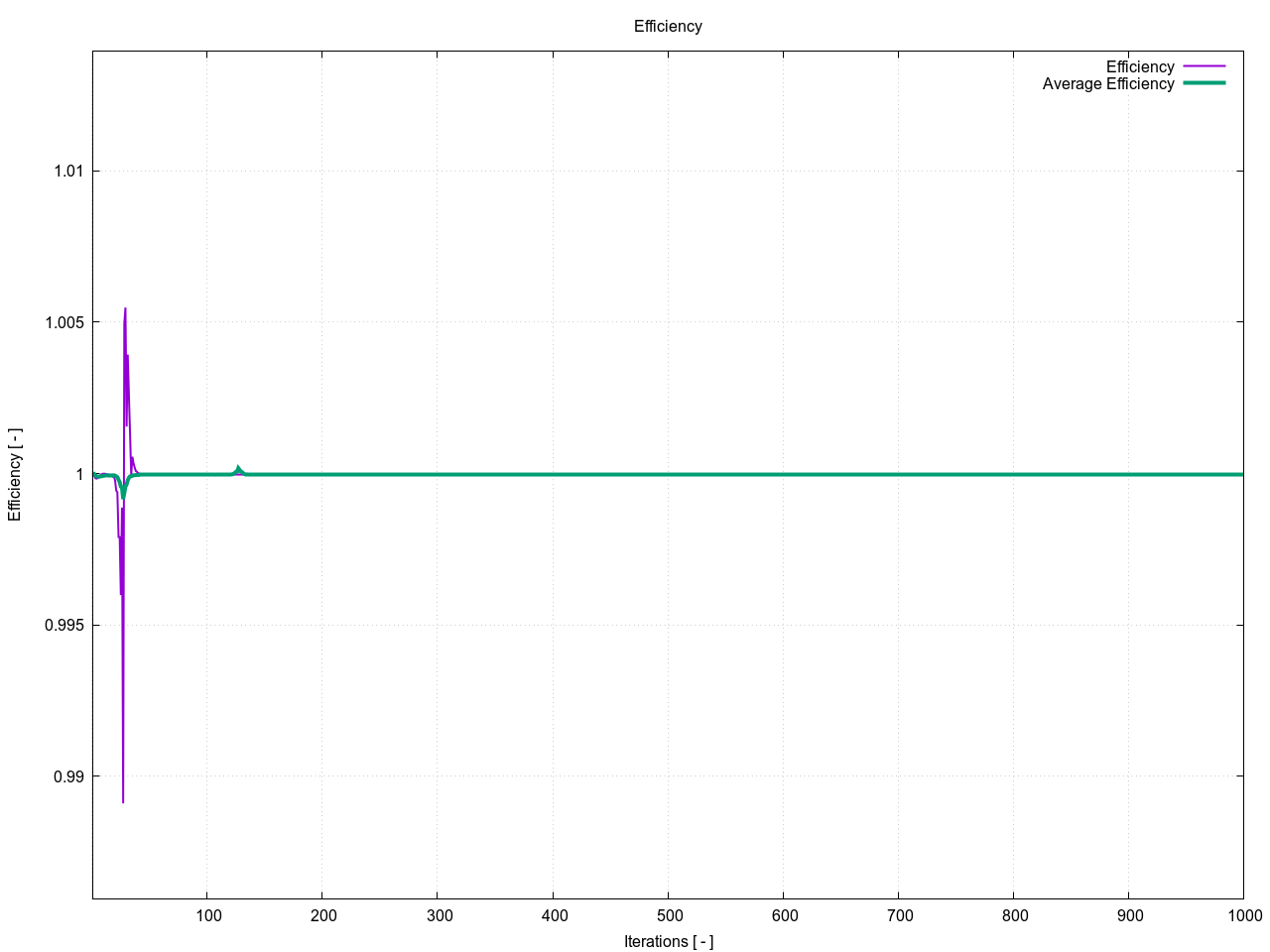

Efficiency

1:inlet-air,1:inlet-egr — 1:outlet1,1:outlet2,1:outlet3

Point Nr.	Flow Rate [ kg/s ]	Efficiency [ – ]
1	0.00450100	0.999961

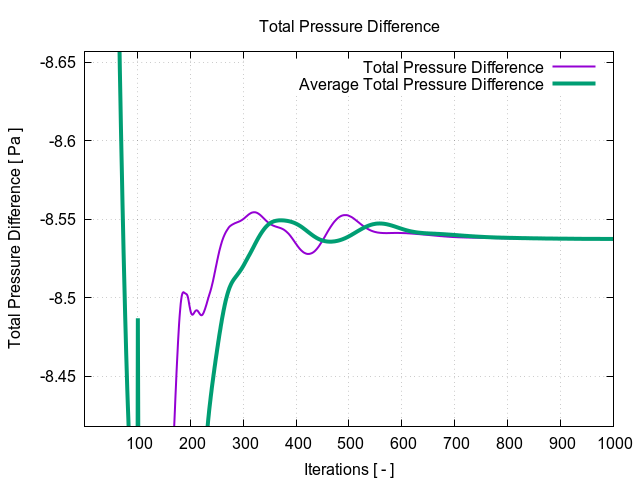

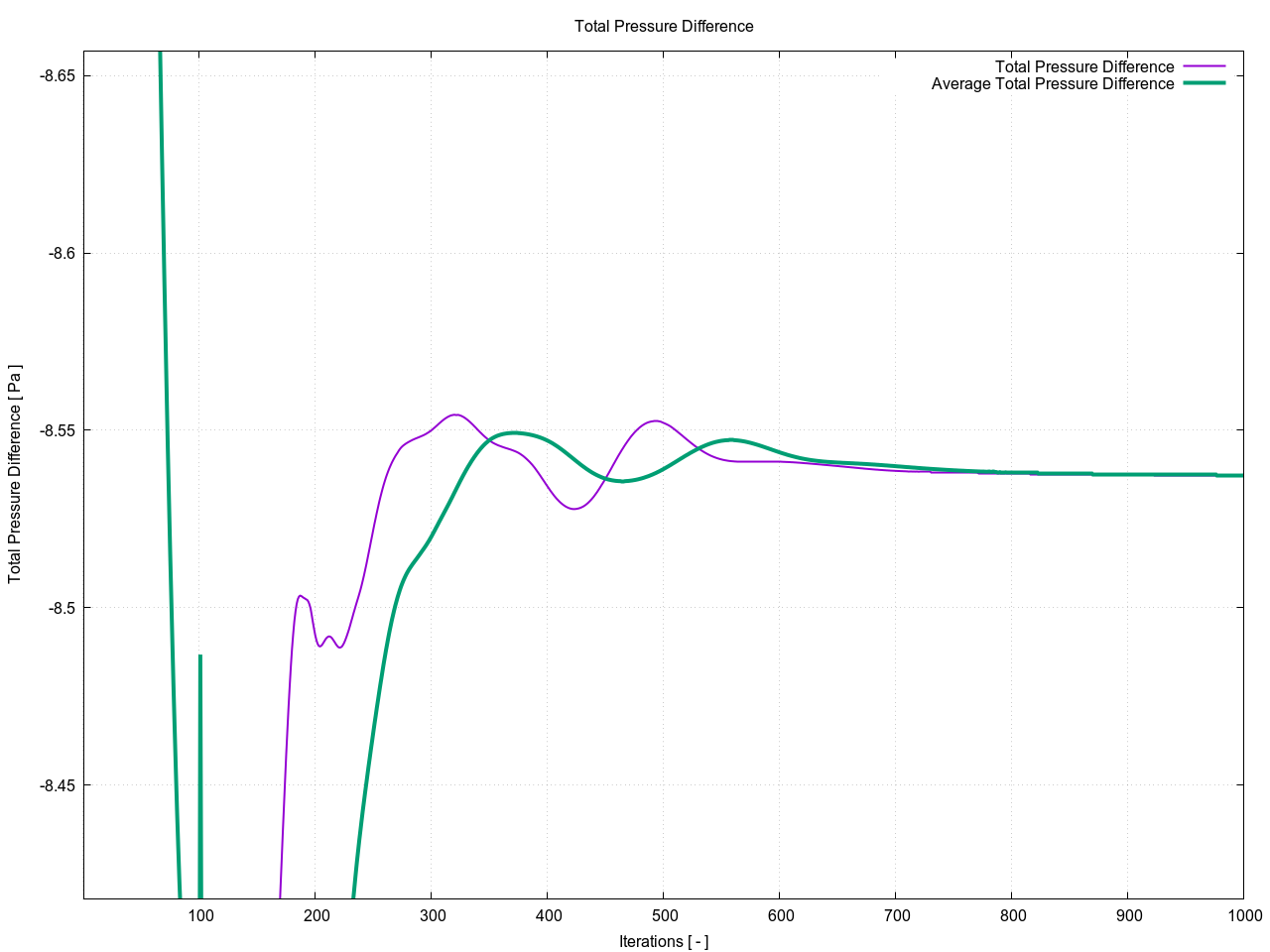

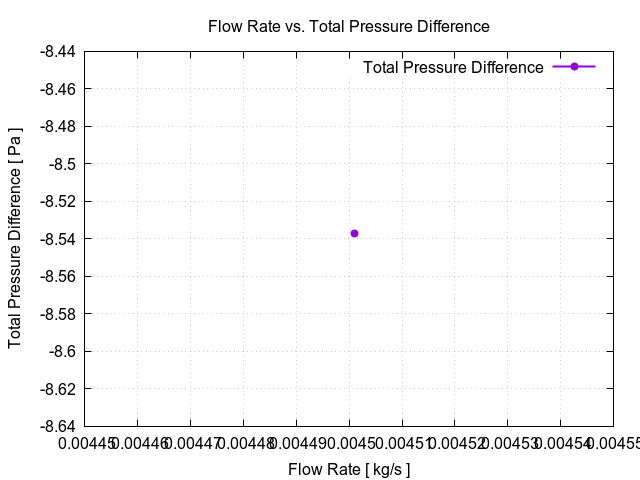

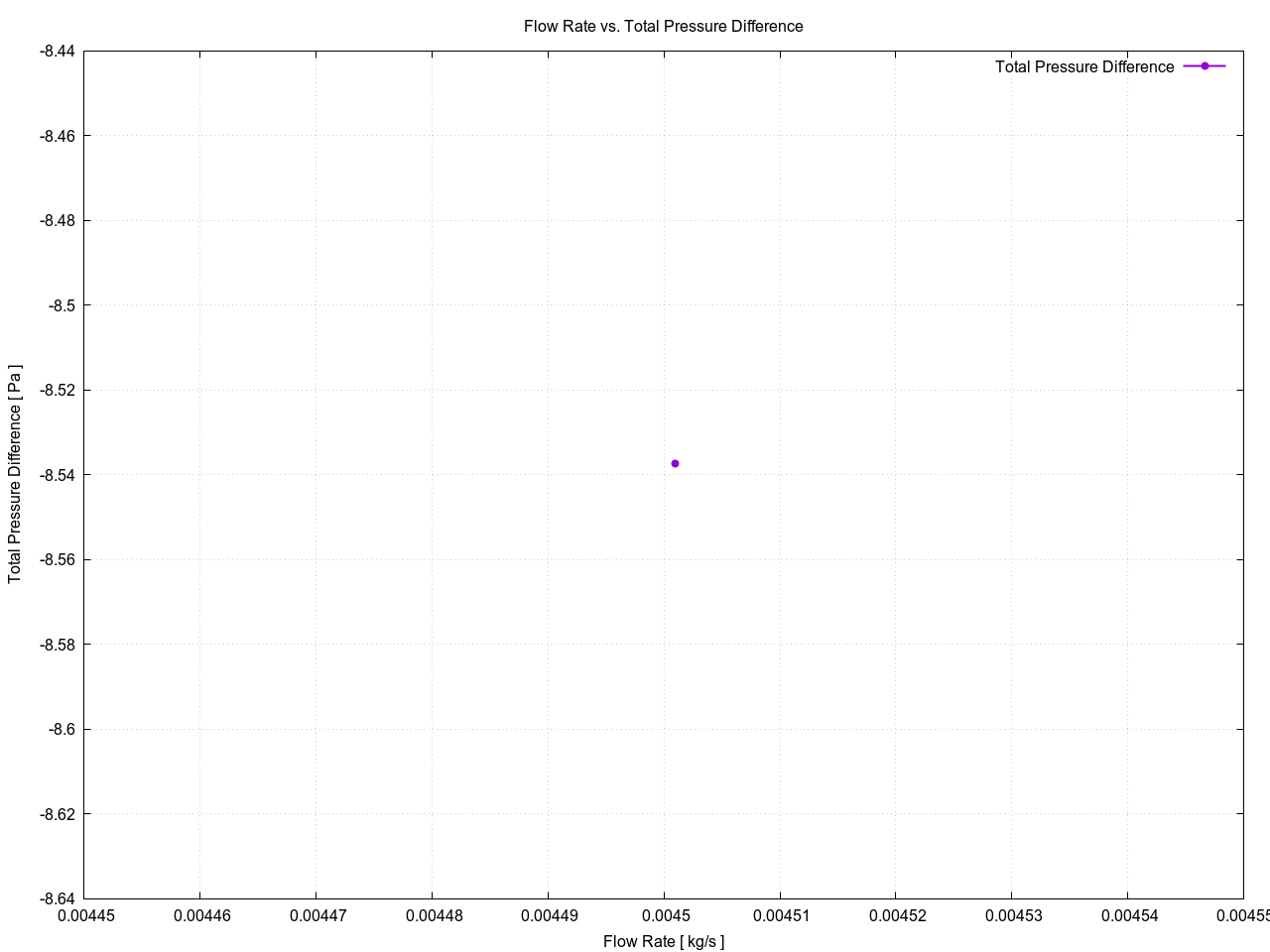

Total Pressure Difference

1:inlet-air,1:inlet-egr — 1:outlet1,1:outlet2,1:outlet3

Point Nr.	Flow Rate [ kg/s ]	Total Pressure Difference [ Pa ]
1	0.00450100	-8.53736

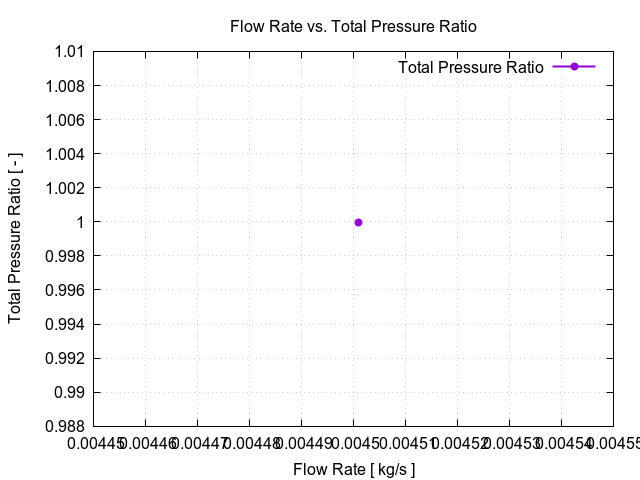

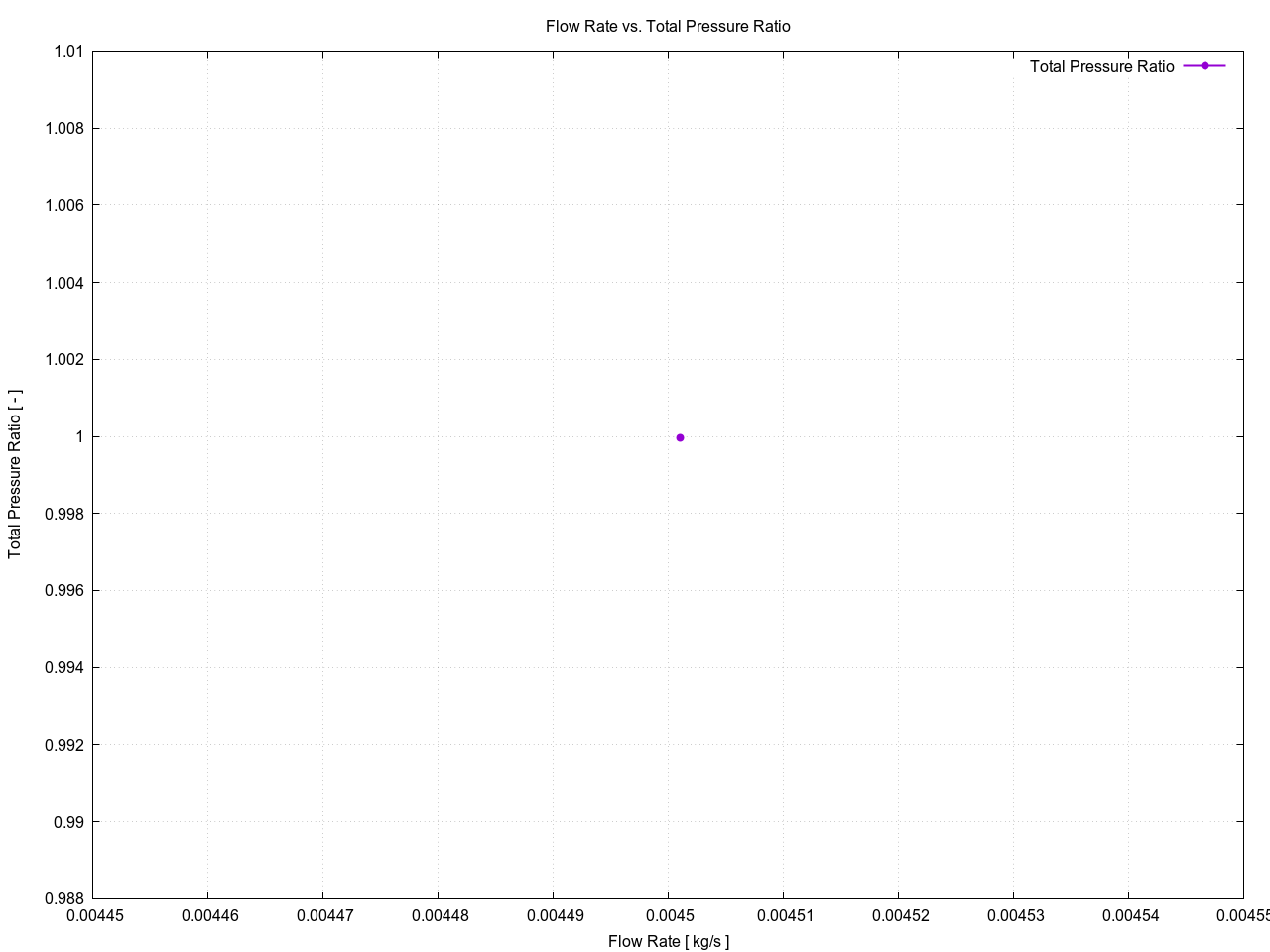

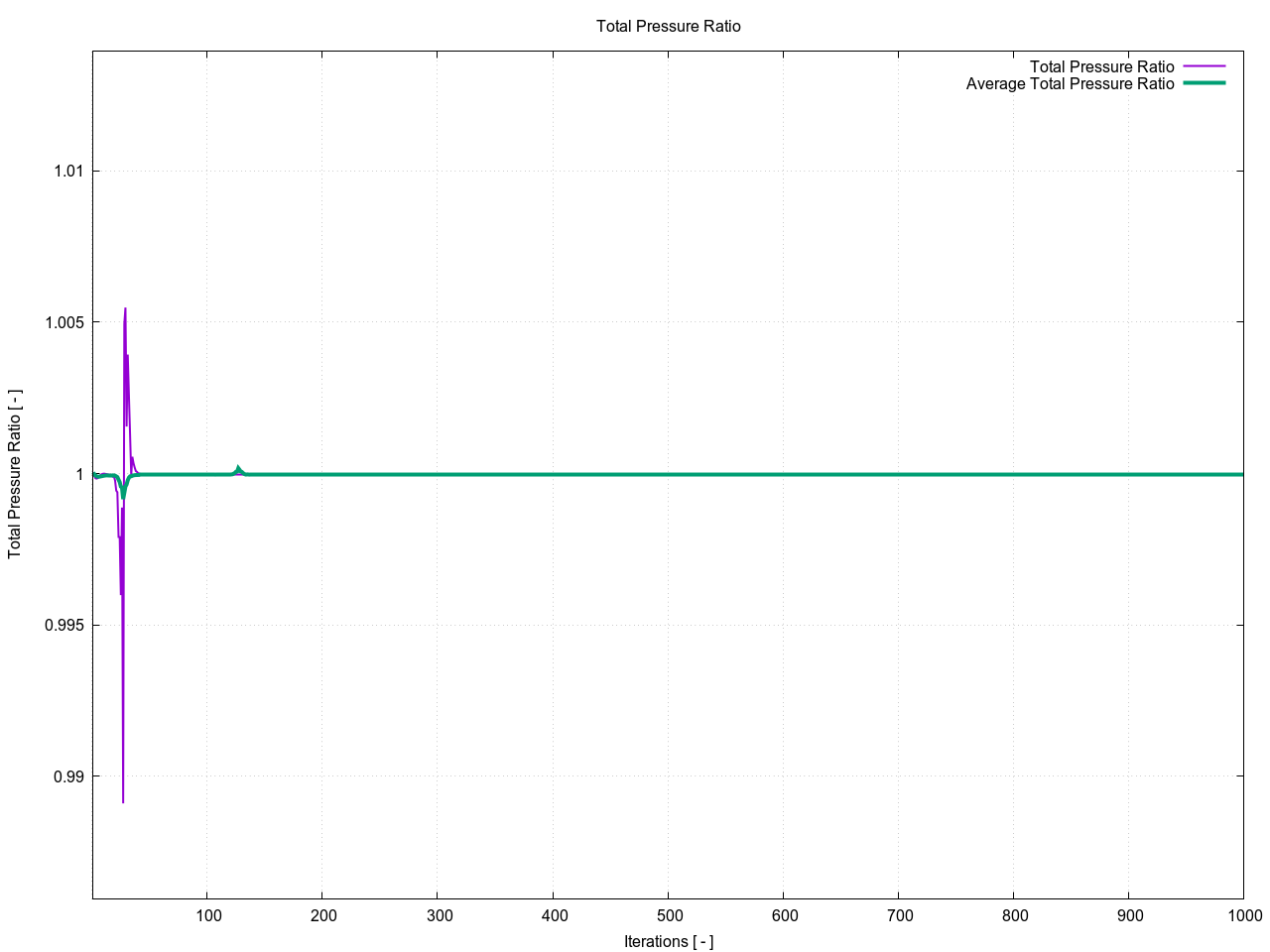

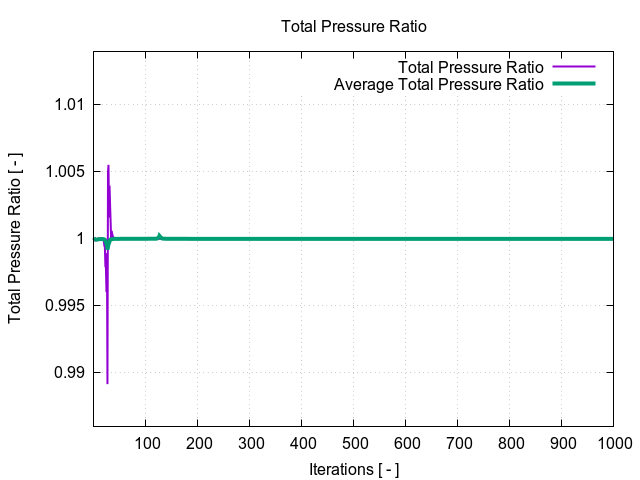

Total Pressure Ratio

1:inlet-air,1:inlet-egr — 1:outlet1,1:outlet2,1:outlet3

Point Nr.	Flow Rate [ kg/s ]	Total Pressure Ratio [ – ]
1	0.00450100	0.999961

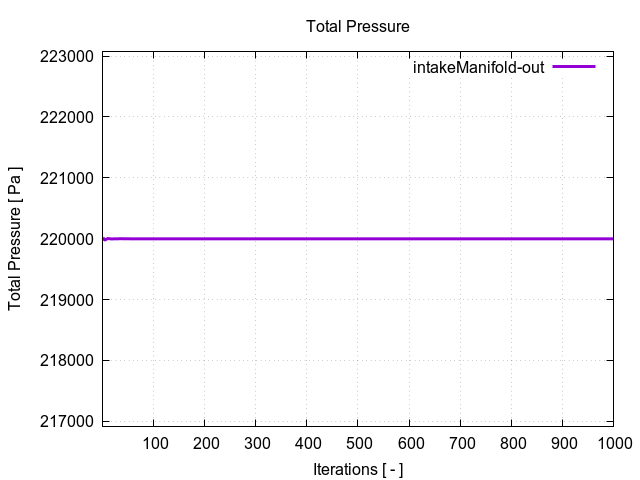

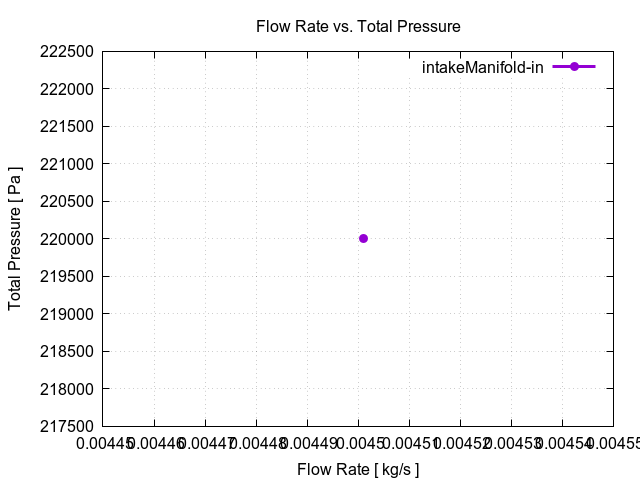

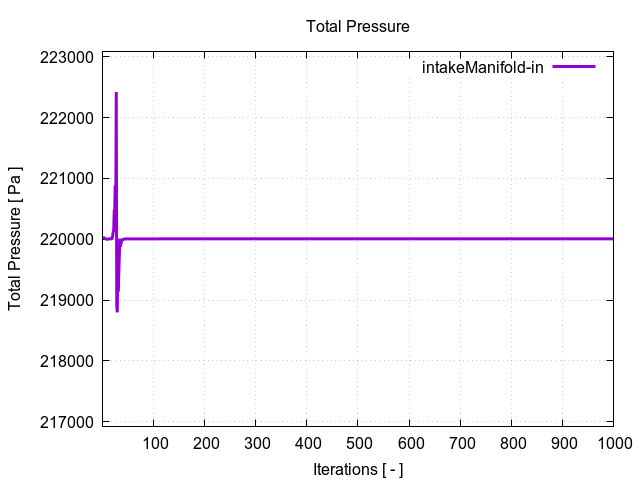

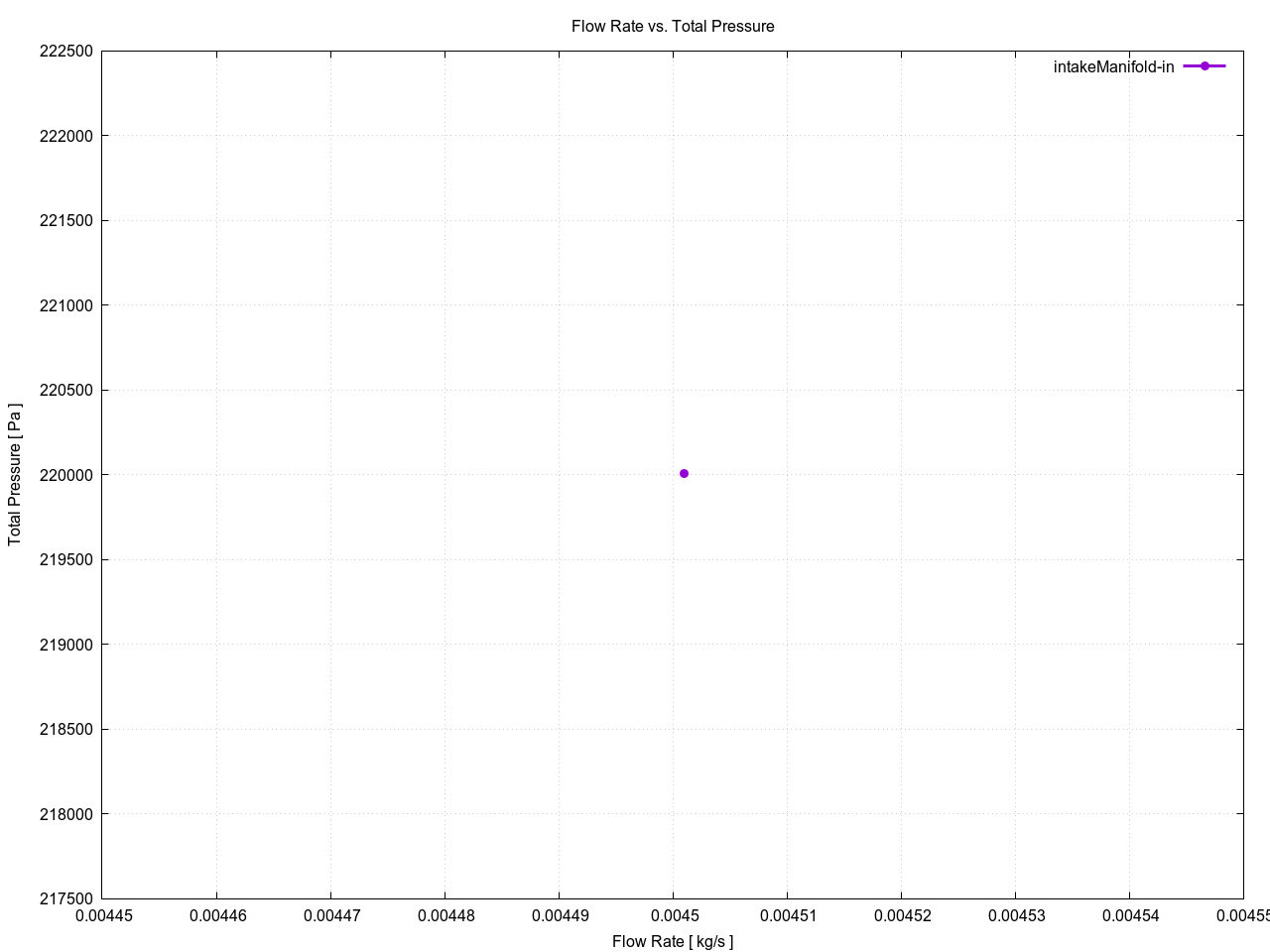

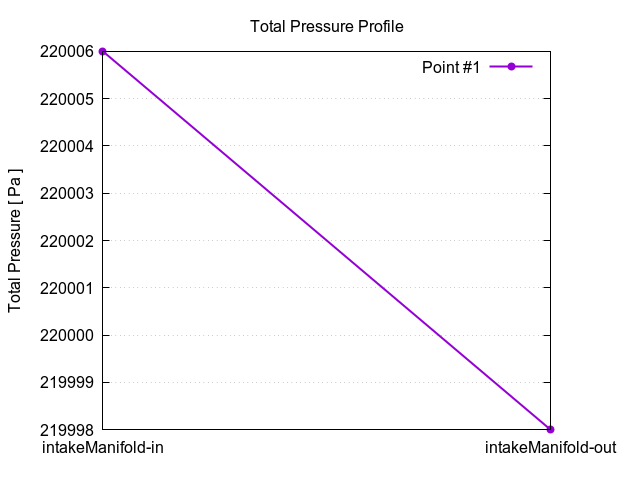

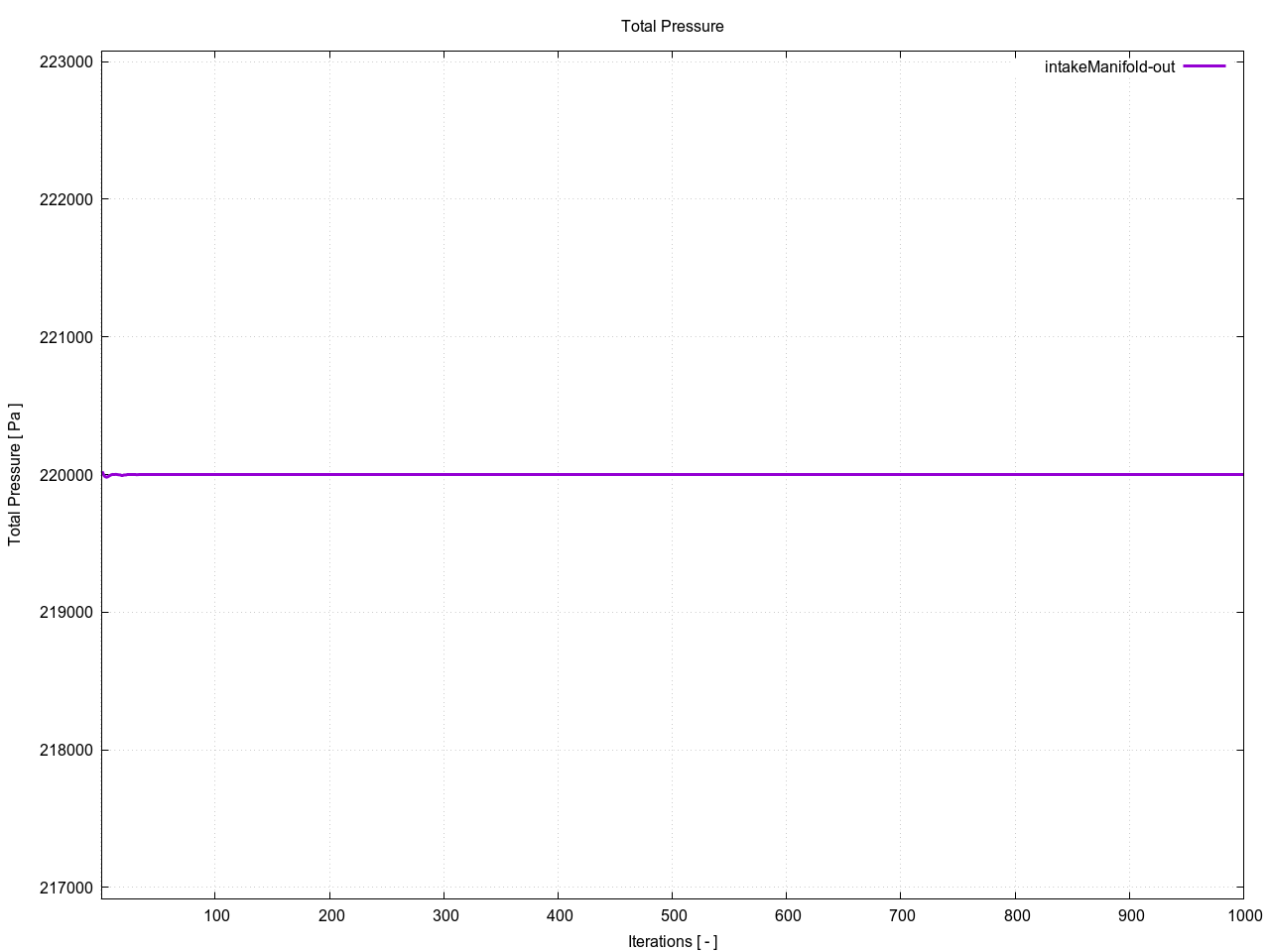

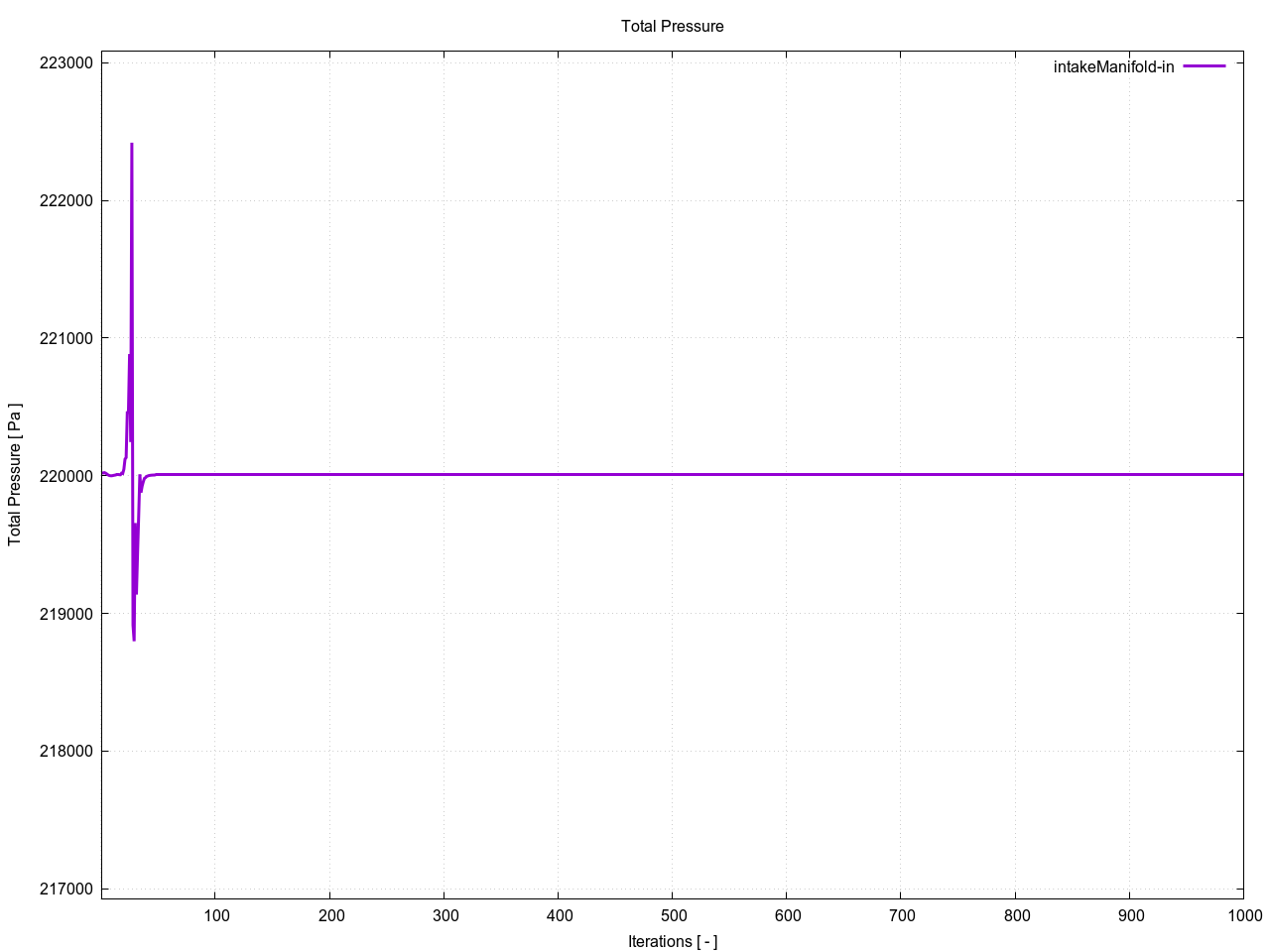

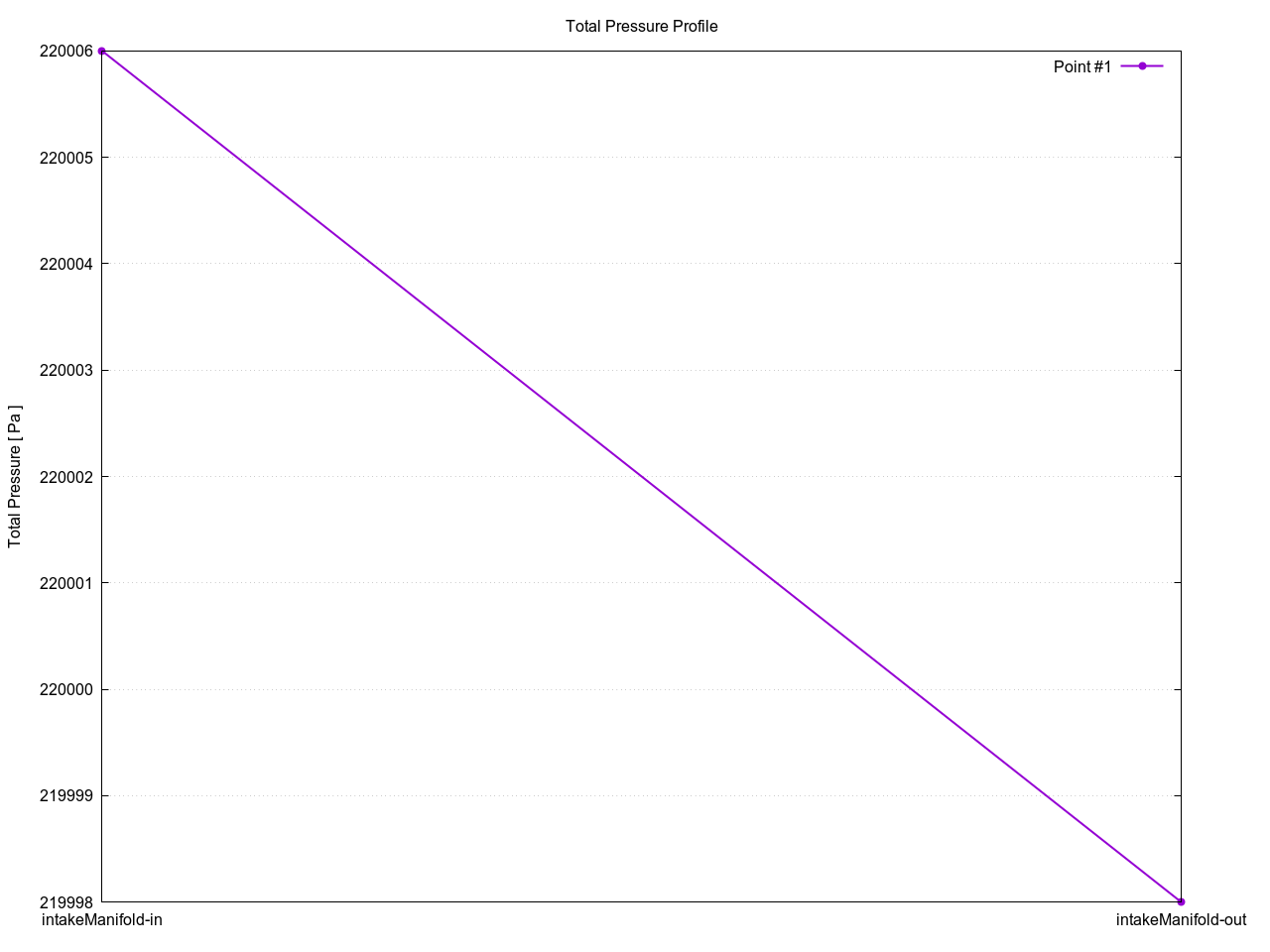

Total Pressure per Interfaces

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Total Pressure [ Pa ]
1	intakeManifold-in	0.00450100	220006.
1	intakeManifold-out	0.00450100	219998.

IntakeManifold-in

IntakeManifold-out



IntakeManifold-in

IntakeManifold-out

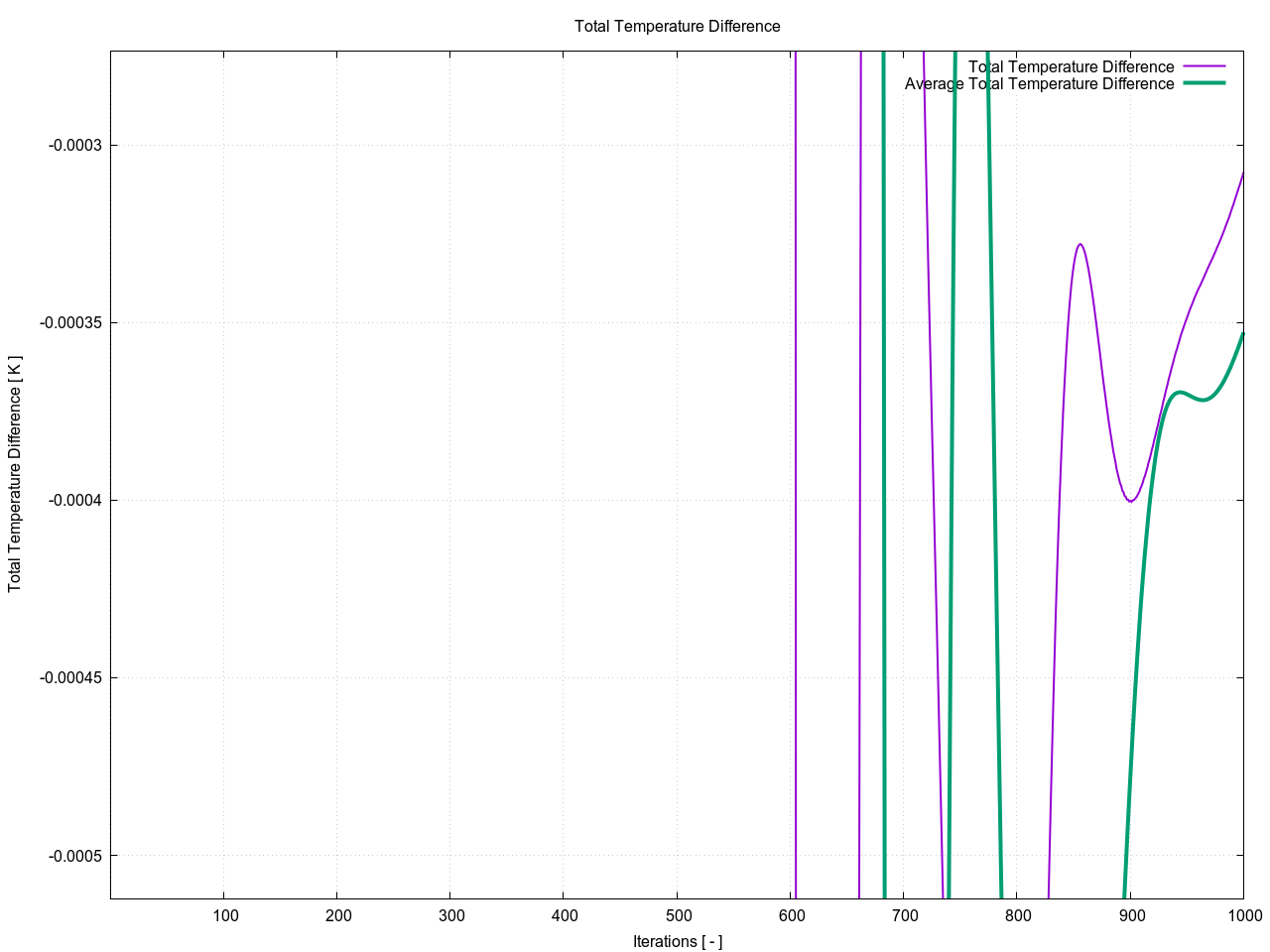

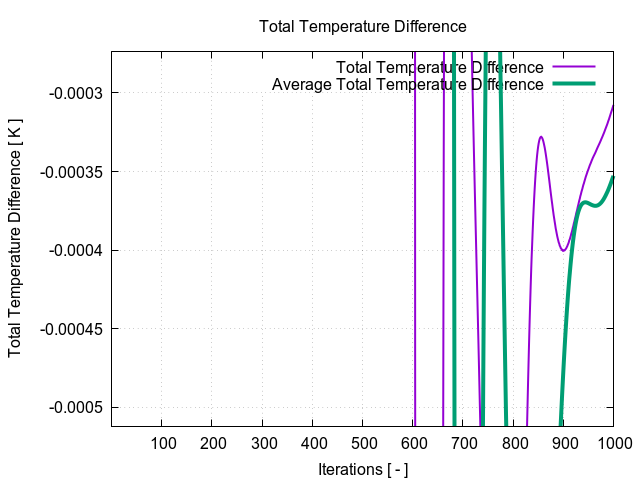

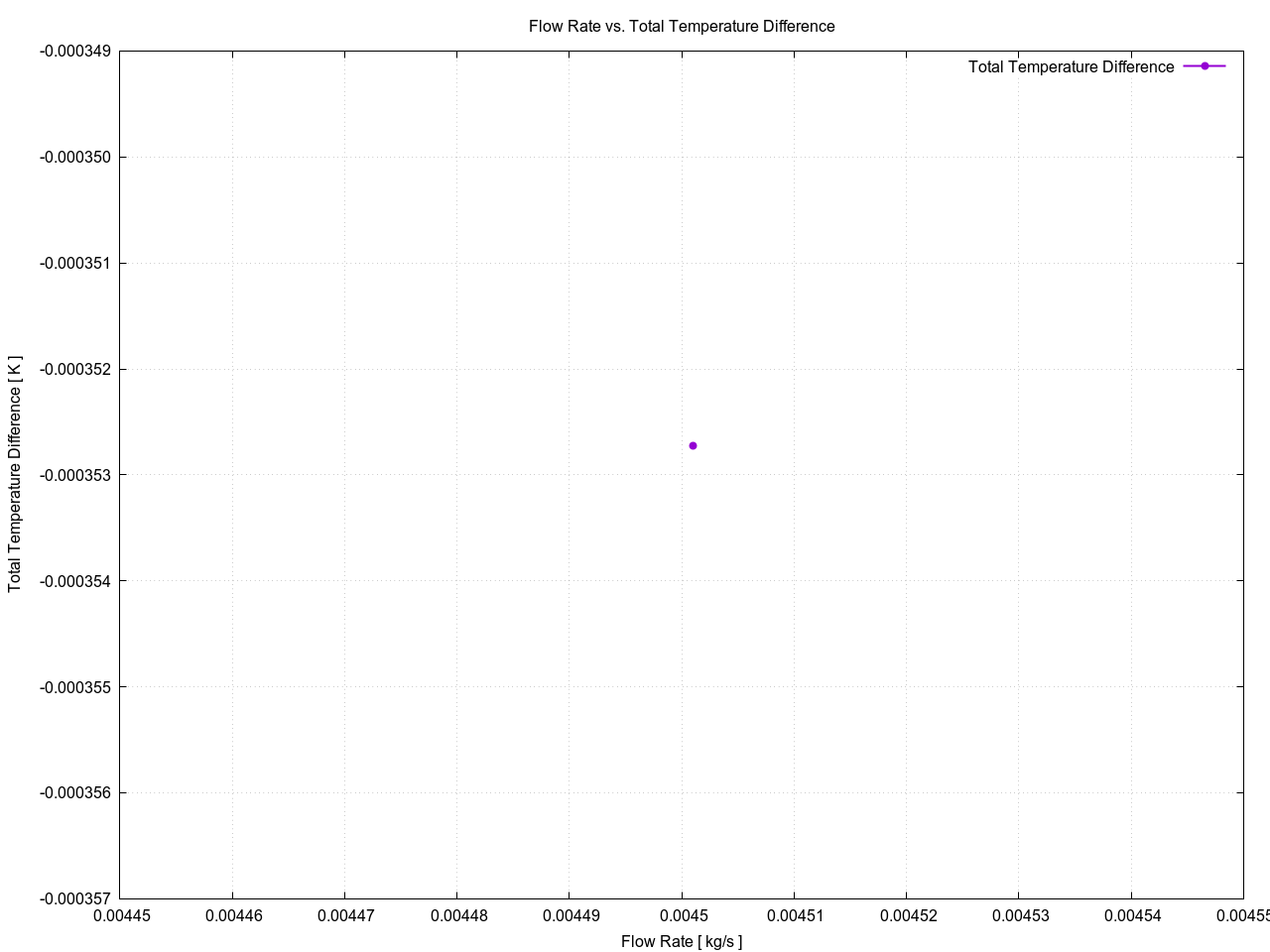

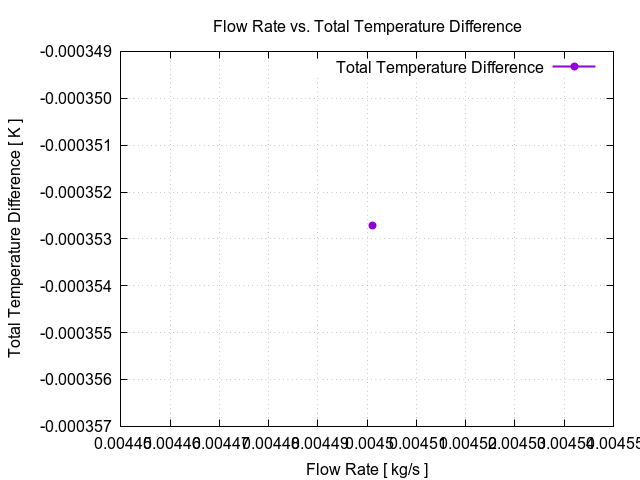

Total Temperature Difference

1:inlet-air,1:inlet-egr — 1:outlet1,1:outlet2,1:outlet3

Point Nr.	Flow Rate [ kg/s ]	Total Pressure Difference [ Pa ]
1	0.00450100	-8.53736

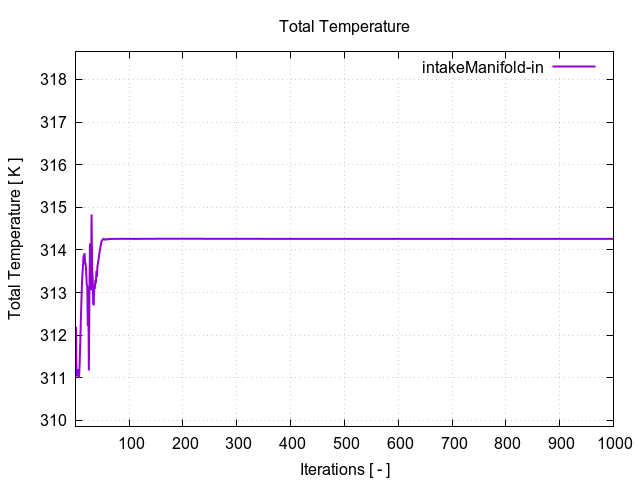

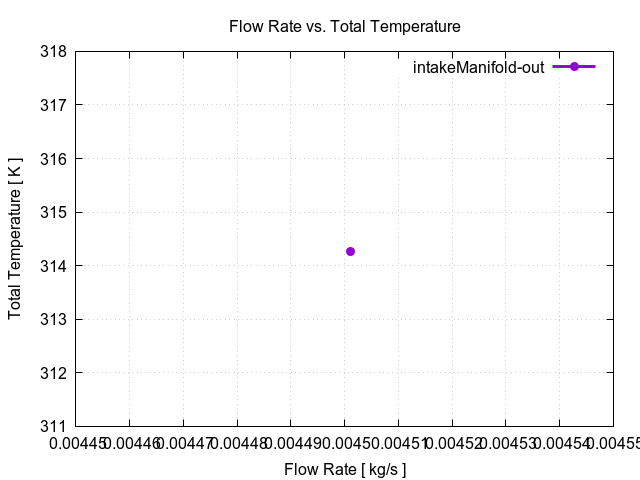

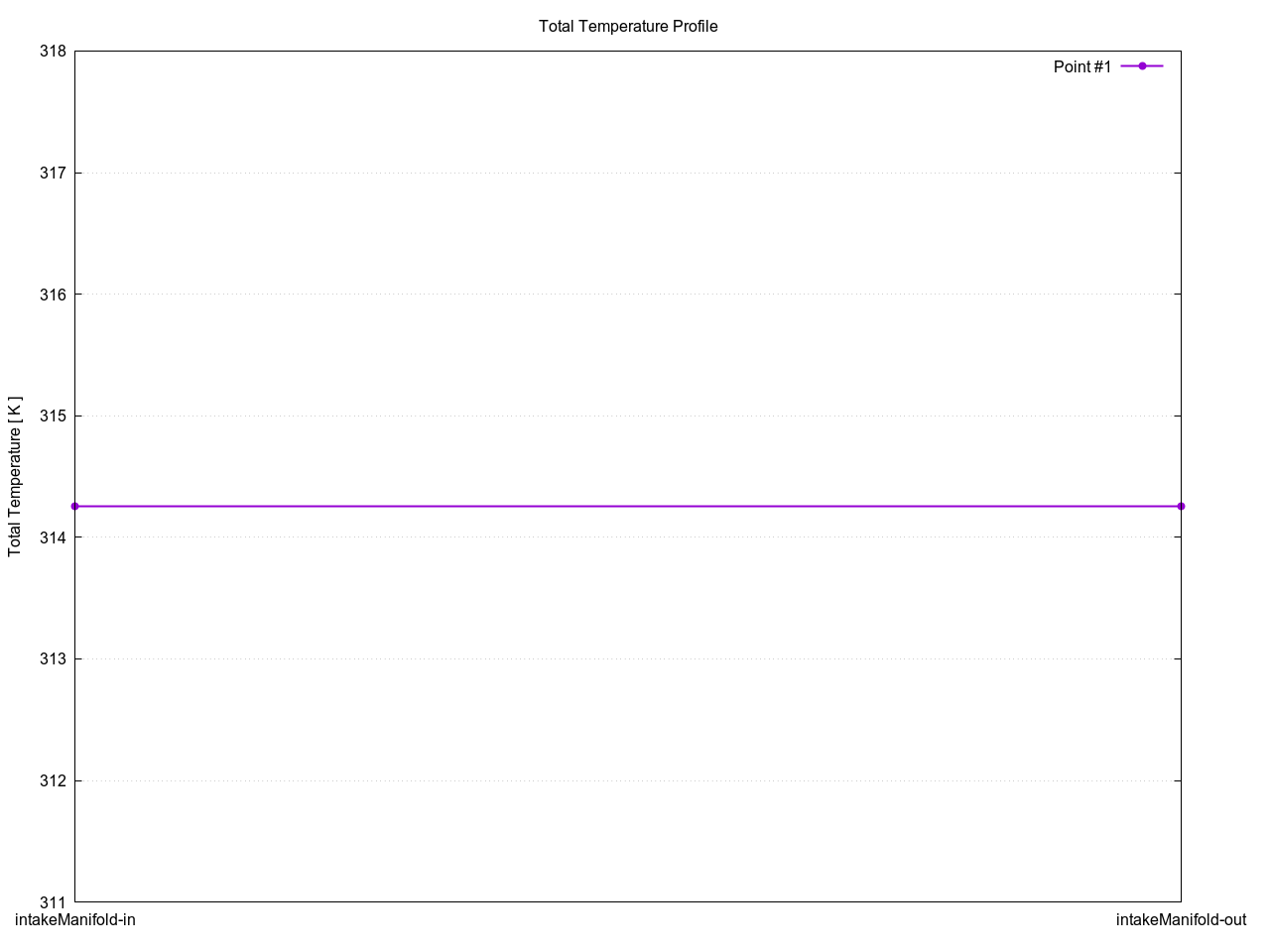

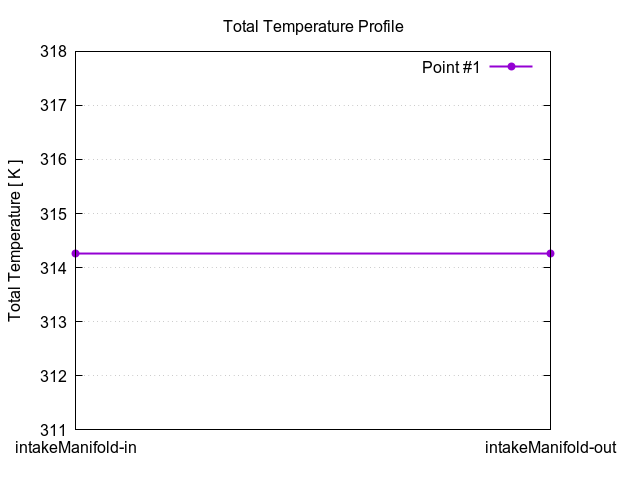

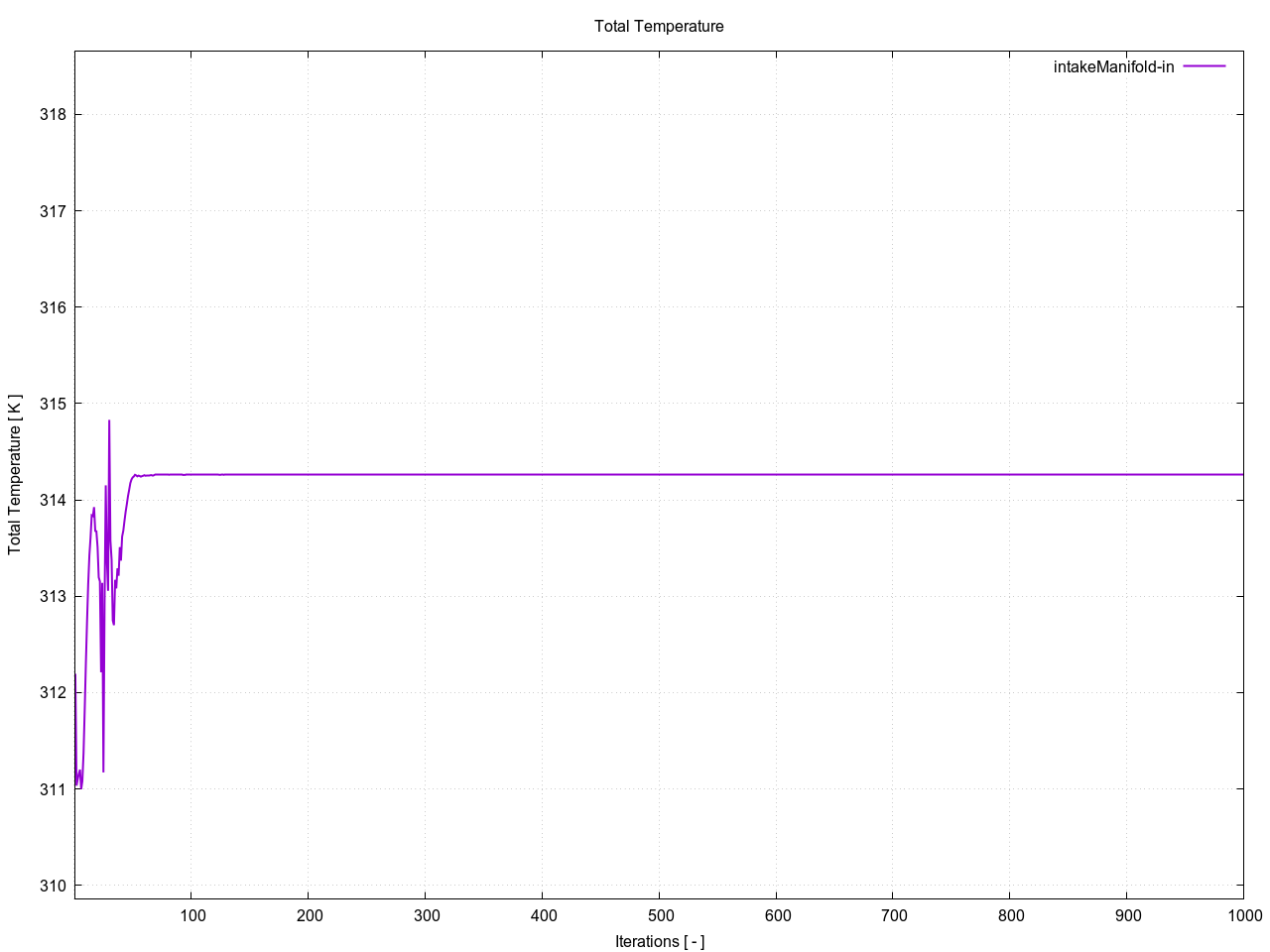

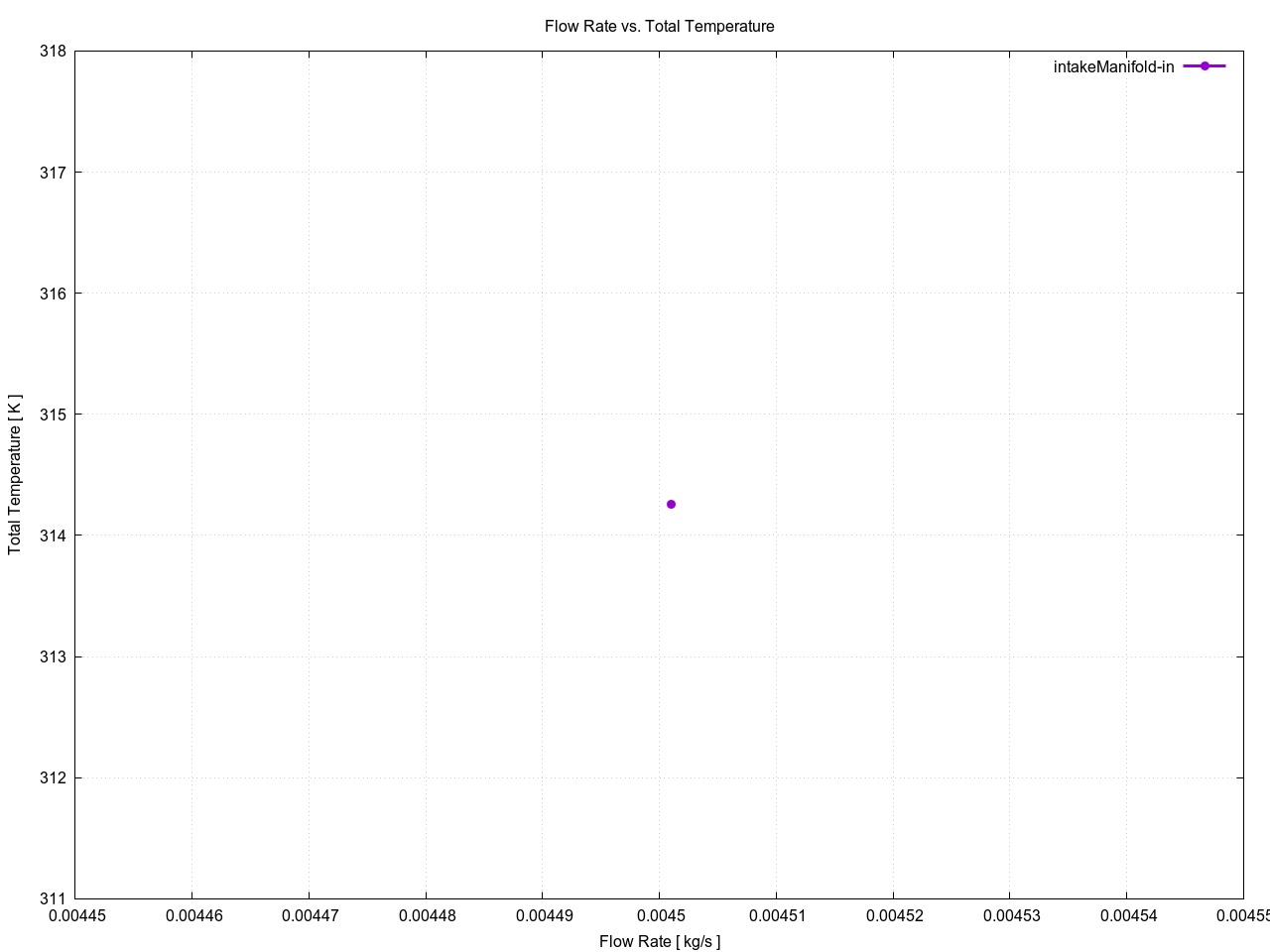

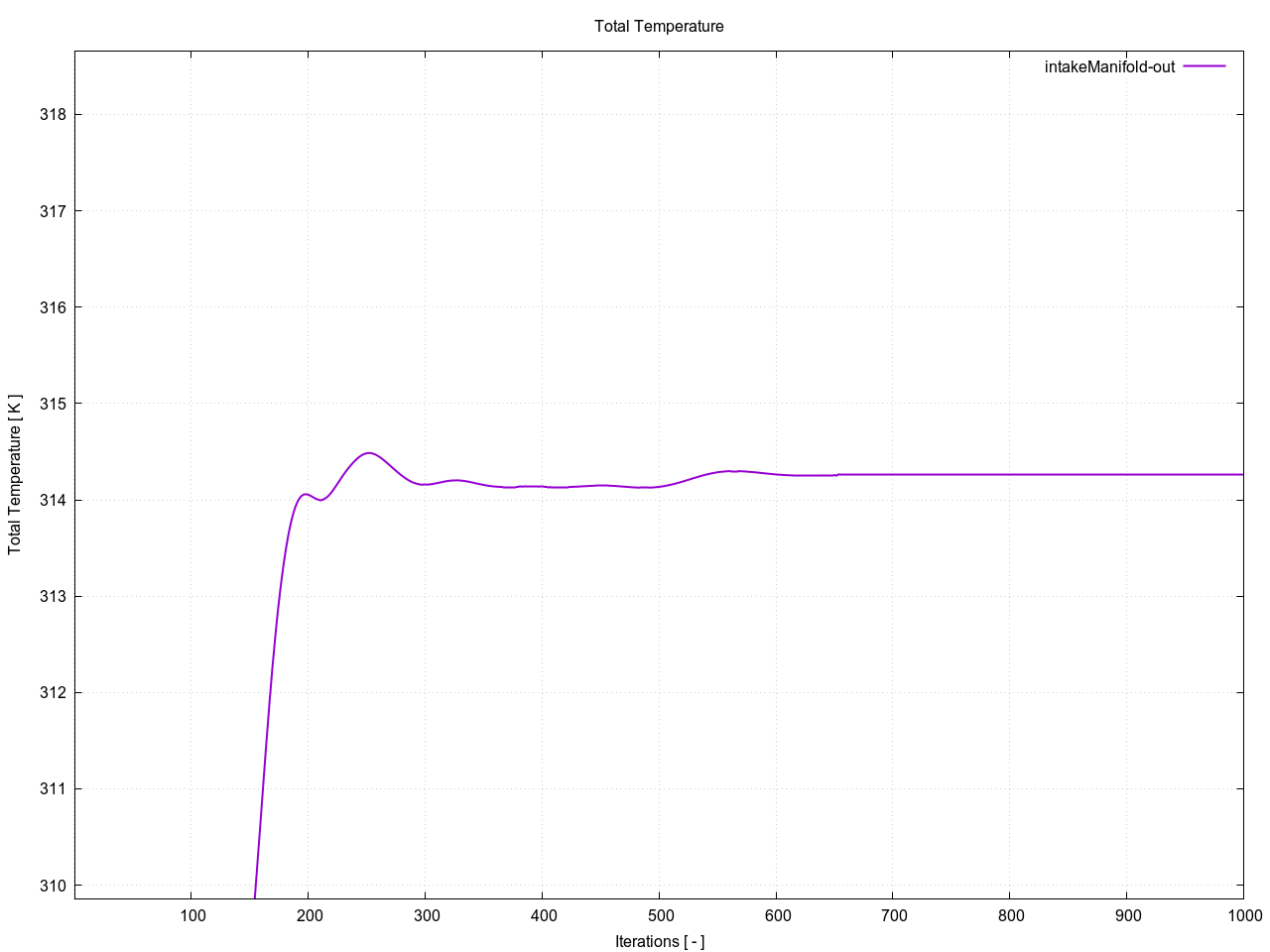

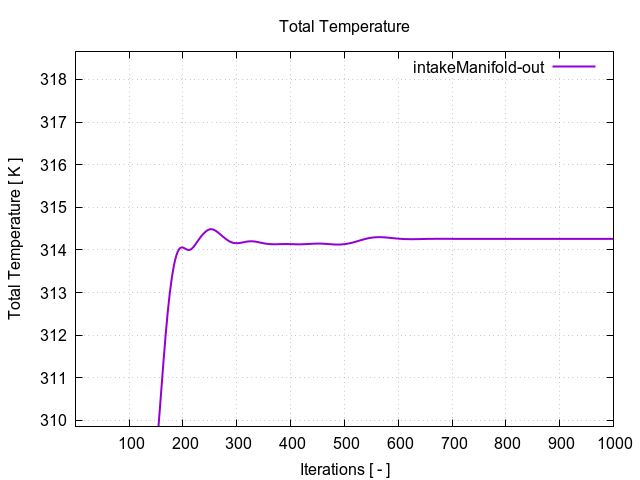

Total Temperature per Interfaces

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Total Temperature [ K ]
1	intakeManifold-in	0.00450100	314.259
1	intakeManifold-out	0.00450100	314.259

IntakeManifold-in

IntakeManifold-out



IntakeManifold-in

IntakeManifold-out

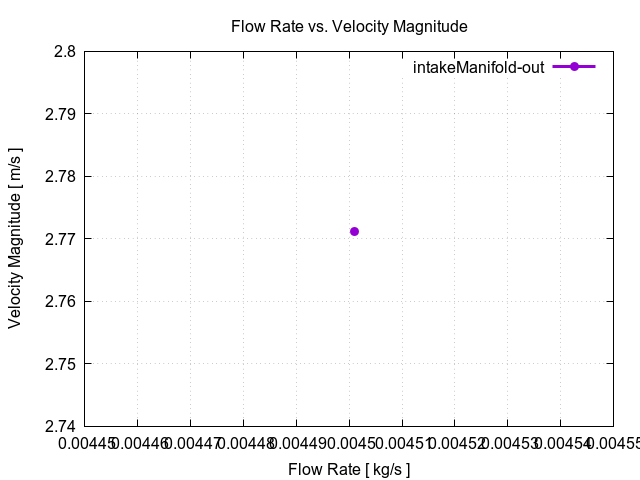

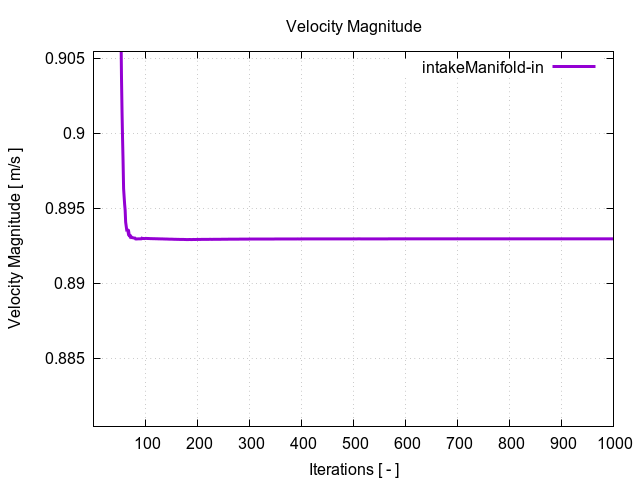

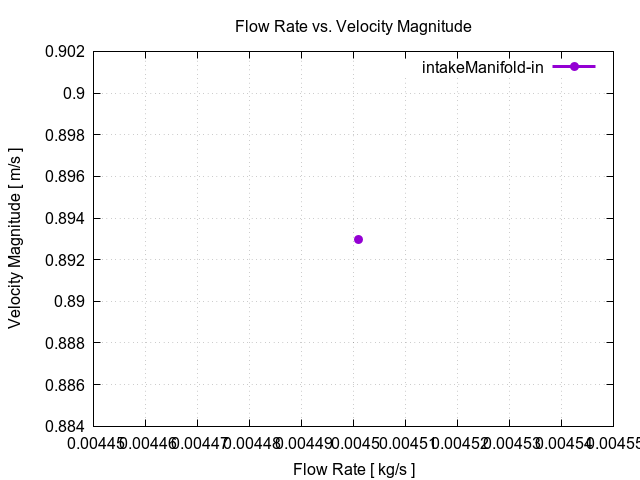

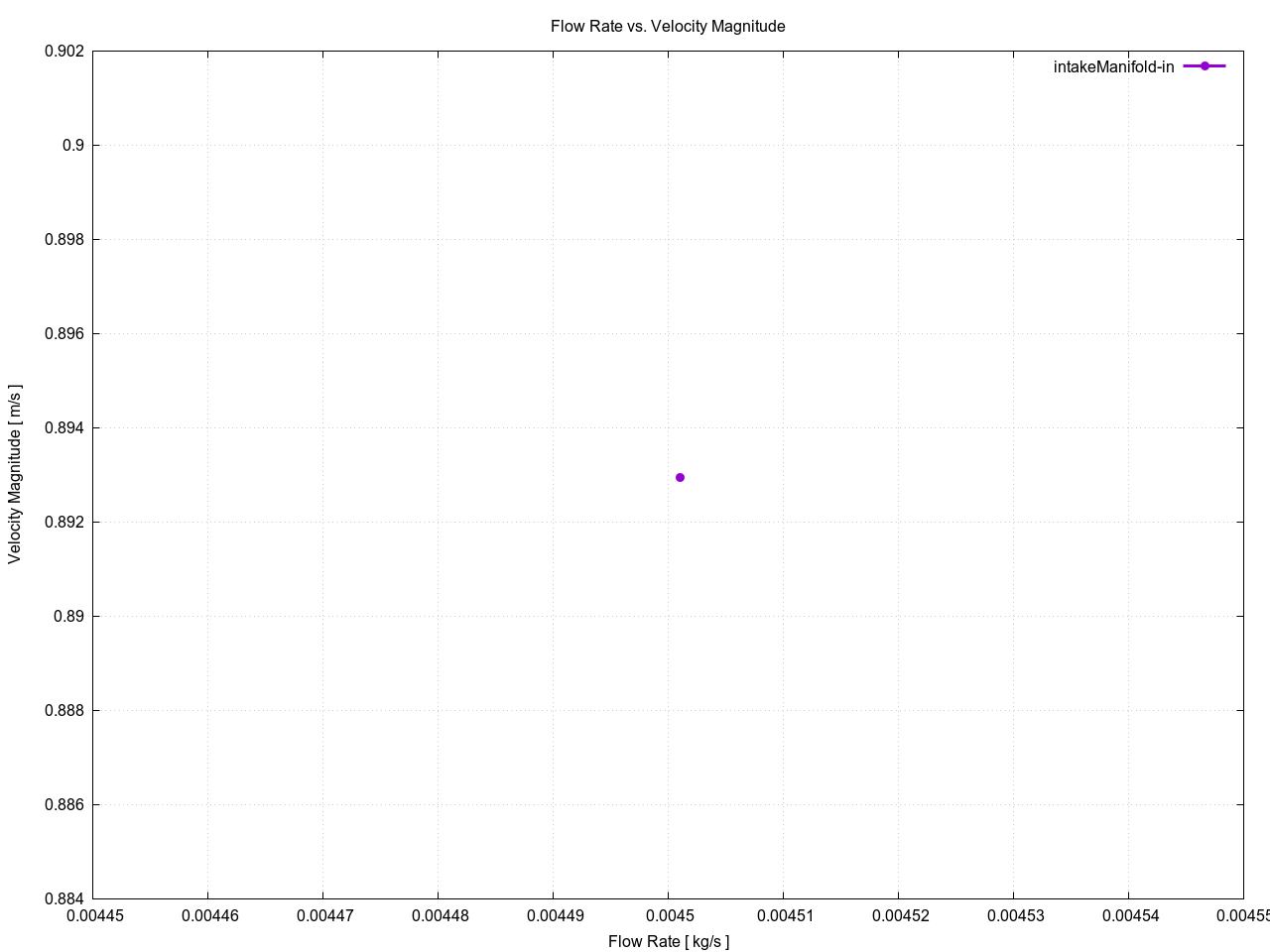

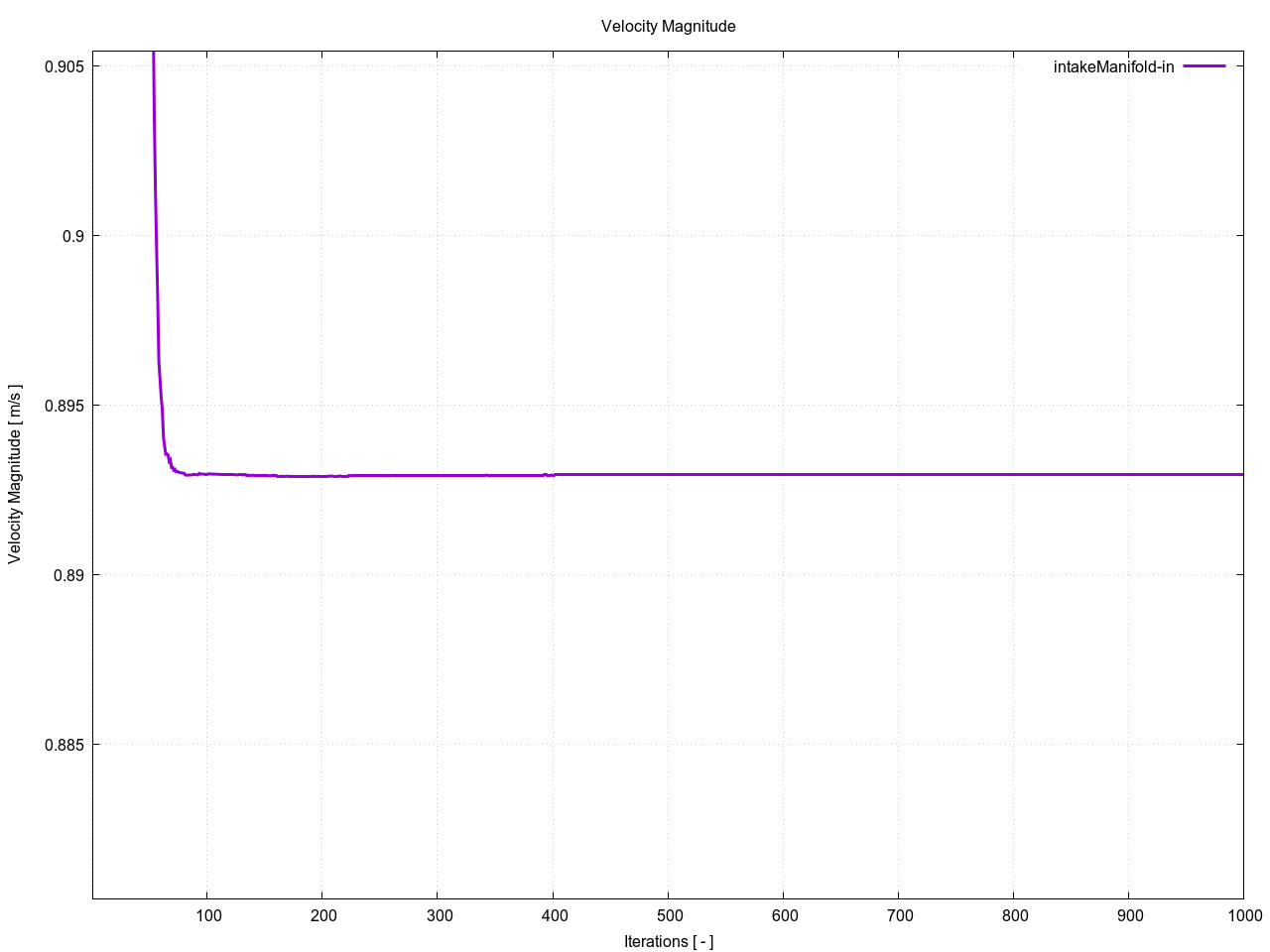

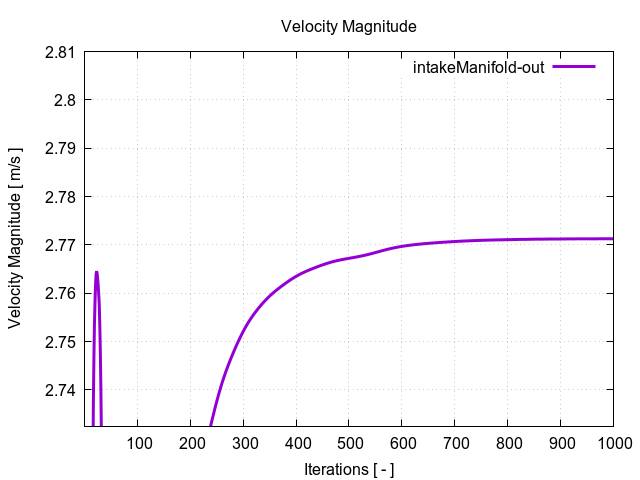

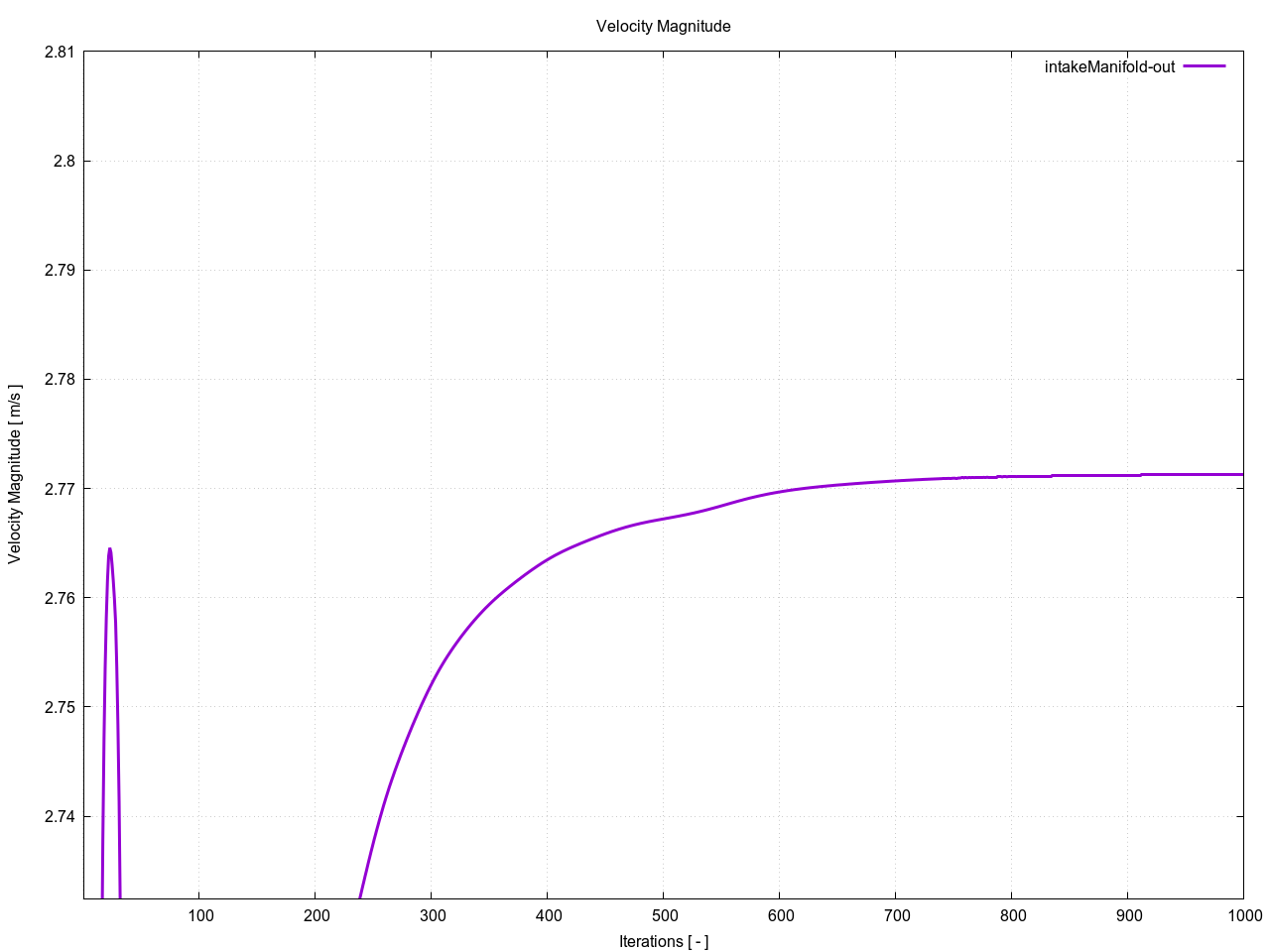

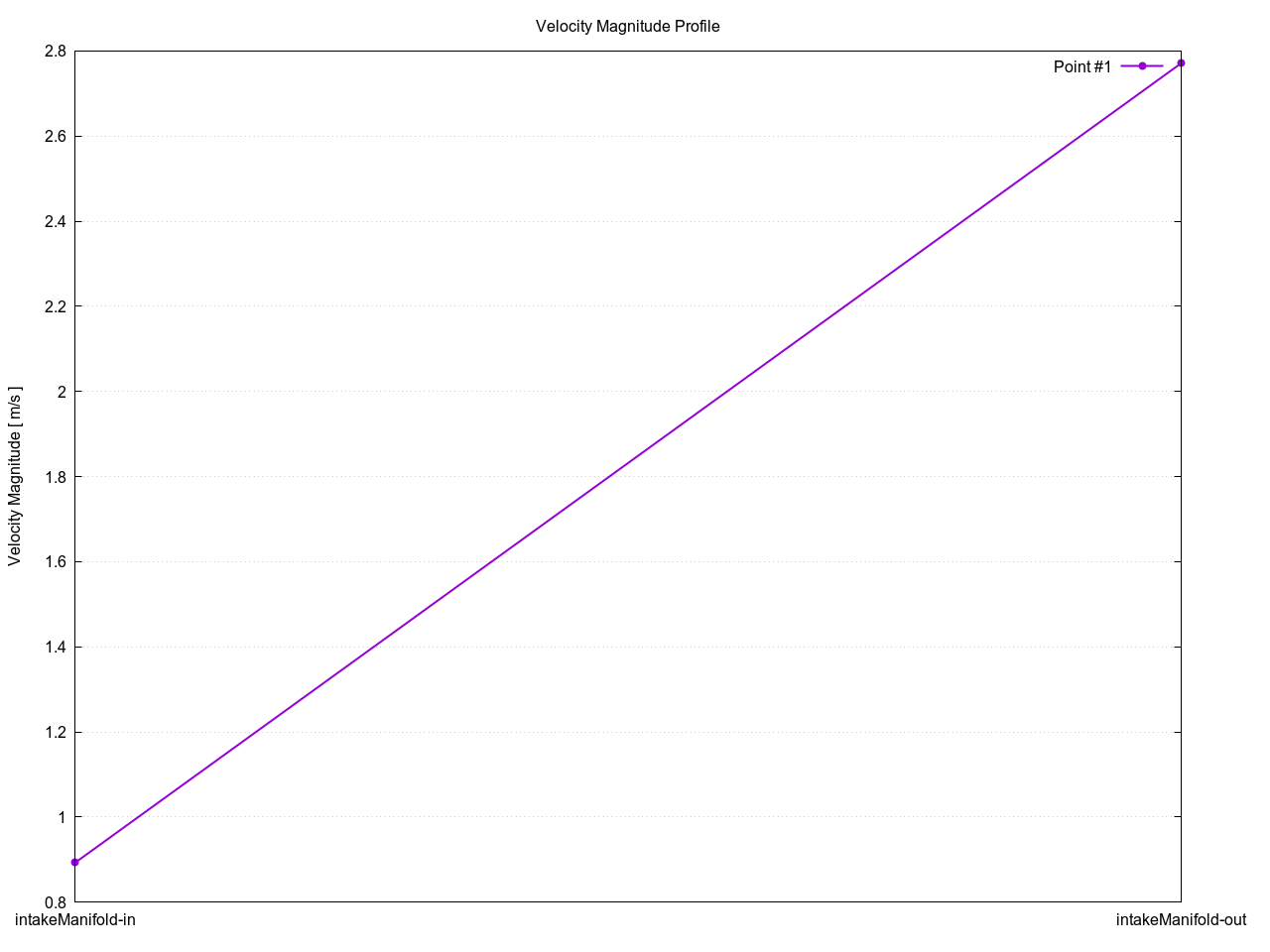

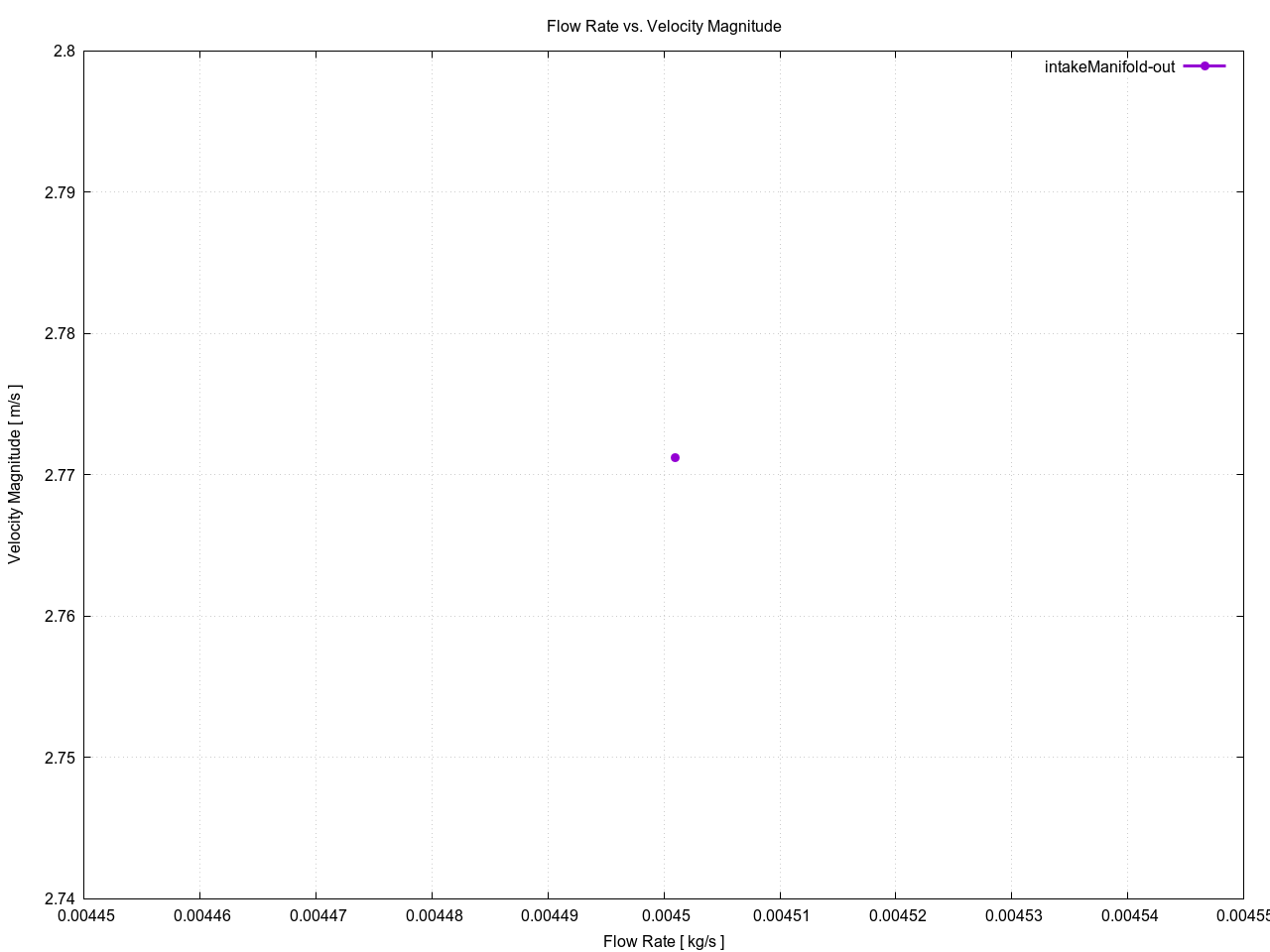

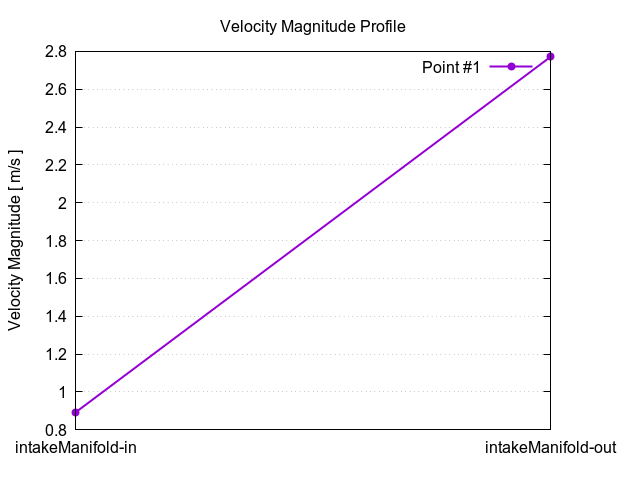

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Velocity Magnitude [ m/s ]
1	intakeManifold-in	0.00450100	0.892954
1	intakeManifold-out	0.00450100	2.77125

IntakeManifold-in

IntakeManifold-out



IntakeManifold-in

IntakeManifold-out



Circumferential and Meridional Angle

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Circumferential Angle [ deg ]	Meridional Angle [ deg ]
1	intakeManifold-in	0.00450100	N/A	N/A
1	intakeManifold-out	0.00450100	N/A	N/A

IntakeManifold-in

IntakeManifold-out



IntakeManifold-in

IntakeManifold-out
