Hi, this is steady-state CFD simulation report of:

tcfdcase0

Created by TCFD^® 19.04 on Tue Sep 3 12:44:29 2019

DISCOVER

Simulation Stats

Test Case Name	tcfdcase0
Number of Points [ – ]	1
Machine Type	virtualTunnel
Rotation Speed [ RPM ]	0
Number of Components [ – ] ( topology )	1
Mesh Size [ cells ] ( details )	bounding-box : 4433554 Total : 4433554
Mesh details [ mm ]: Component Property Min Max Avg 1 cellOpenness N/A 1.05792 × 10-15 N/A 1 cellVolume 80126.1 9.62926 × 1012 N/A 1 faceArea 147.156 4.68406 × 108 N/A 1 aspectRatio N/A 50.6583 N/A 1 nonOrthogonality N/A 72.6752 10.2956 1 skewness N/A 7.99072 N/A 1 edgeLength N/A N/A N/A 1 concaveAngle N/A 79.9942 N/A 1 faceFlatness 0.183587 N/A 0.999042 1 cellDeterminant 0 N/A 12.0539 1 faceInterpolationWeight 0.0195358 N/A 0.455344 1 faceVolumeRatio 0.0100015 0.808908 N/A 1 Warnings: 18 conflicting points 6 non-orthogonal faces 25 skew faces 9475 faces with low quality or negative volume decomposition tets 46430 faces with concave angles 996 warped faces 241 under-determined cells 299191 concave cells 2324 faces with low interpolation weights
Average y+ at walls [ – ] ( details )
y+ details: Point Patch Min Max Avg 1 bounding-box_Burj_Al_Arab_wall 1.74169 × 10-6 60140.0 1789.33 1 bounding-box_z_min_wall 399.509 146826. 28351.0 1 bounding-box_y_max_wall 46866.7 341110. 76627.7 1 bounding-box_y_min_wall 44999.7 335242. 79299.6 1 bounding-box_z_max_wall 45907.2 104107. 67017.3
Wall-clock time [ hh:mm:ss ]	21:30:04
Parallel Processors [ – ]	6
Fluid Name	air
Compressibility	incompressible
Numerical order	second
Turbulence model	kOmegaSST

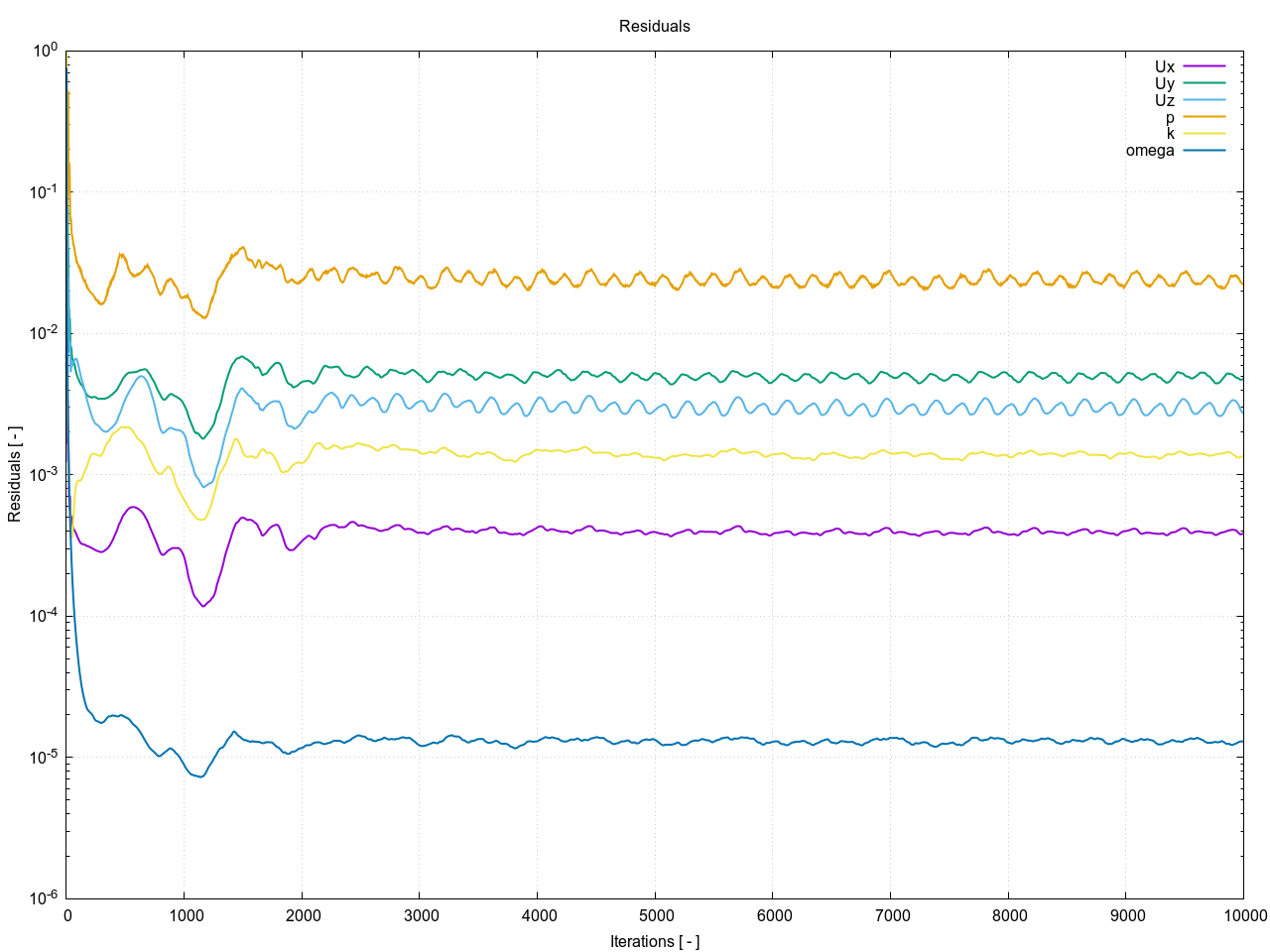

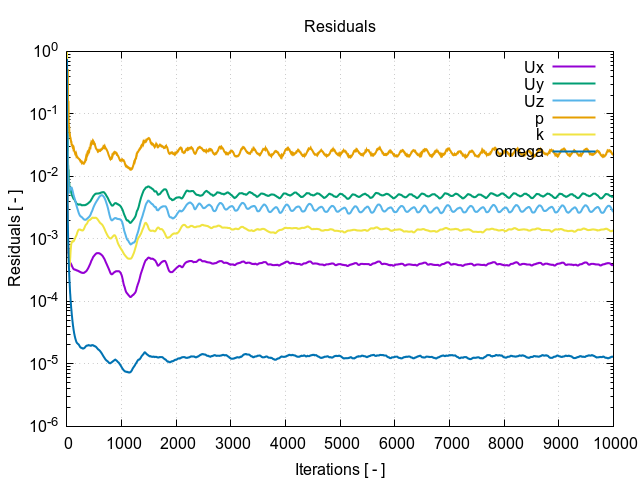

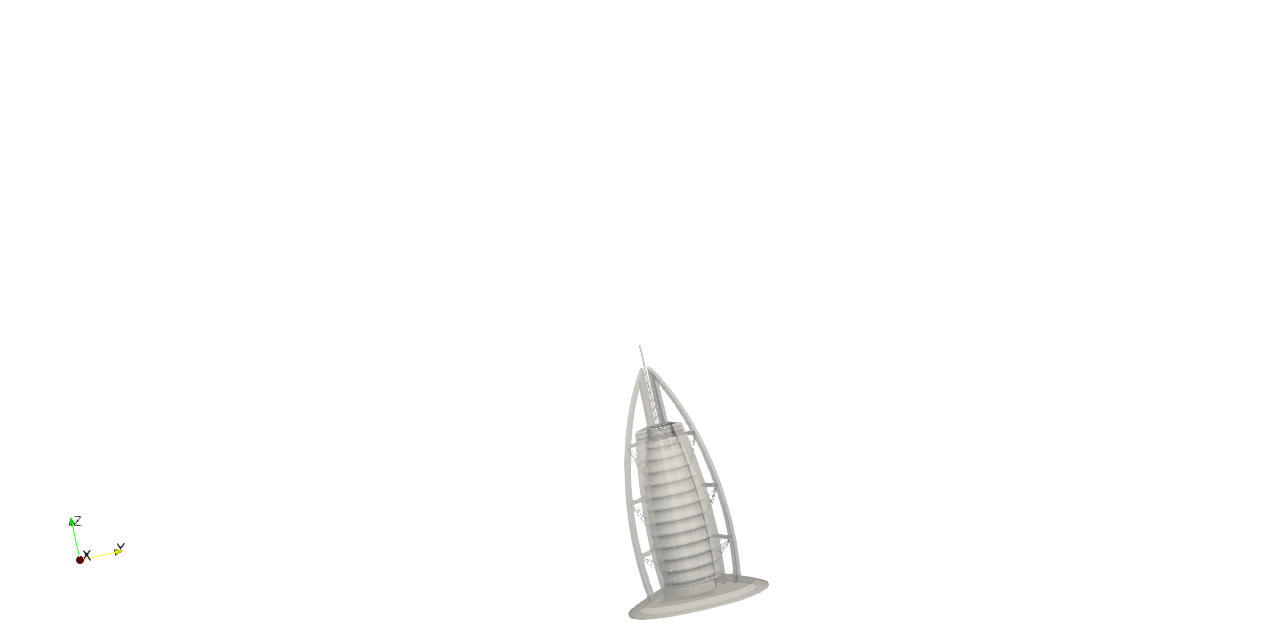

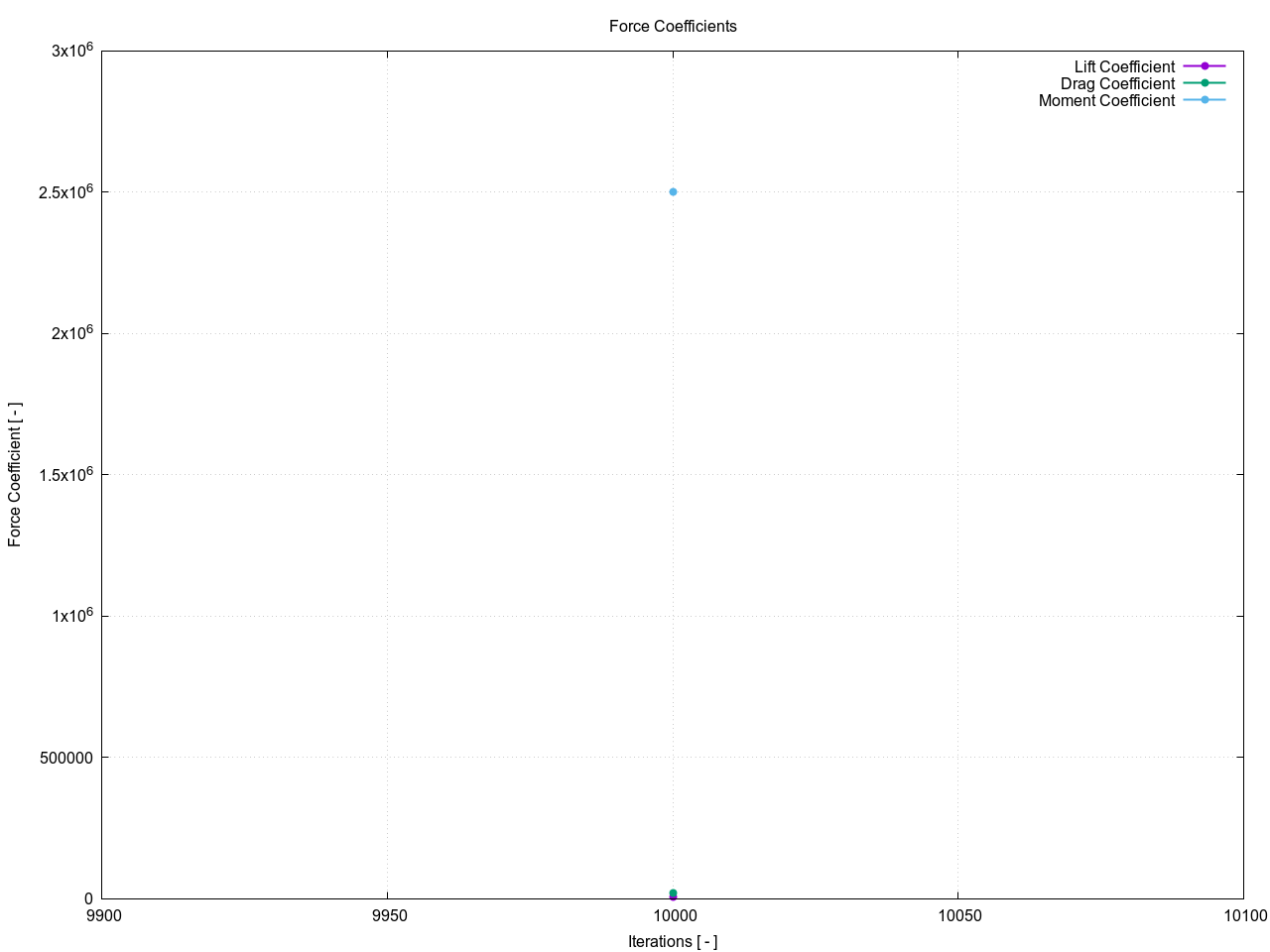

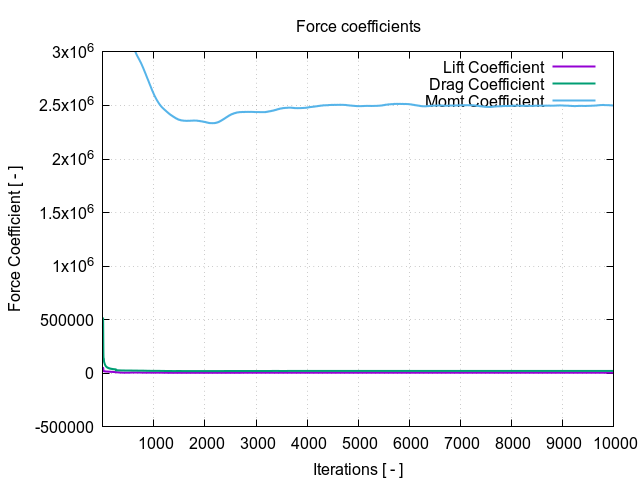

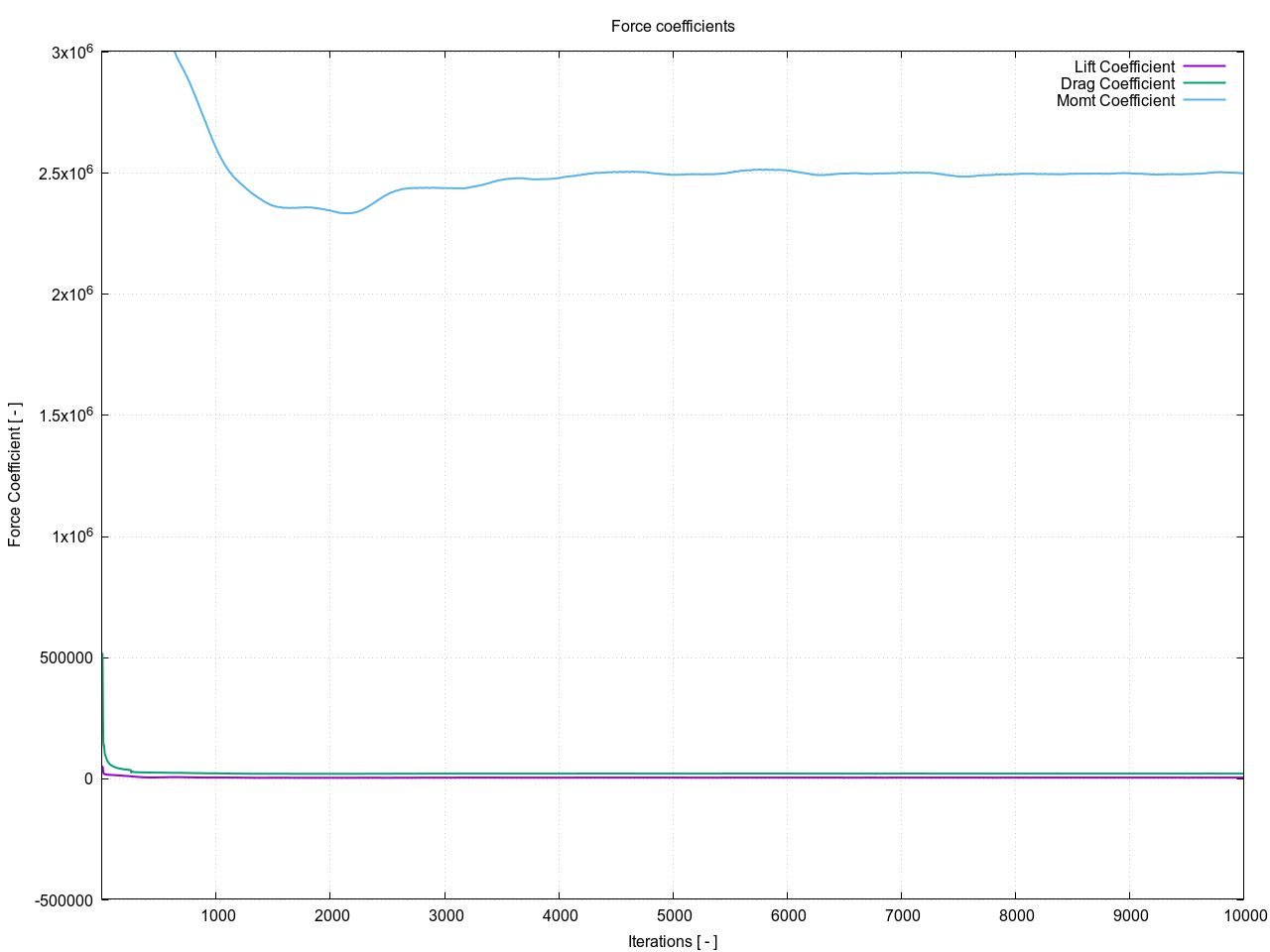

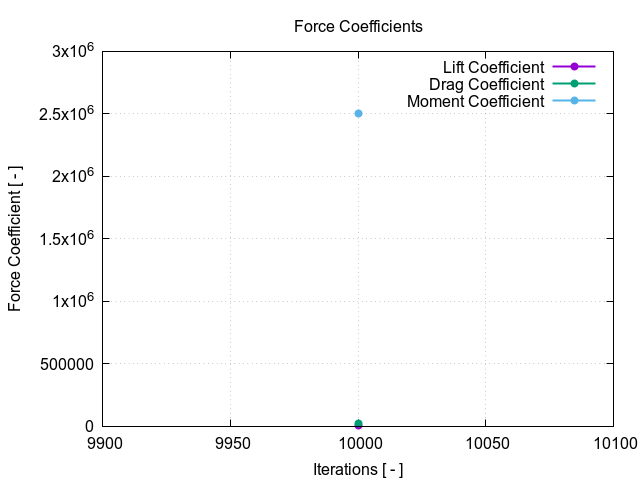

Force Coefficients

#1: 1:Burj_Al_Arab

Setup Nr.	Point Nr.	Lift Coeff [ – ]	Drag Coeff [ – ]	Moment Coeff [ – ]
1	1	4966.46	21700.2	2.50004 × 106

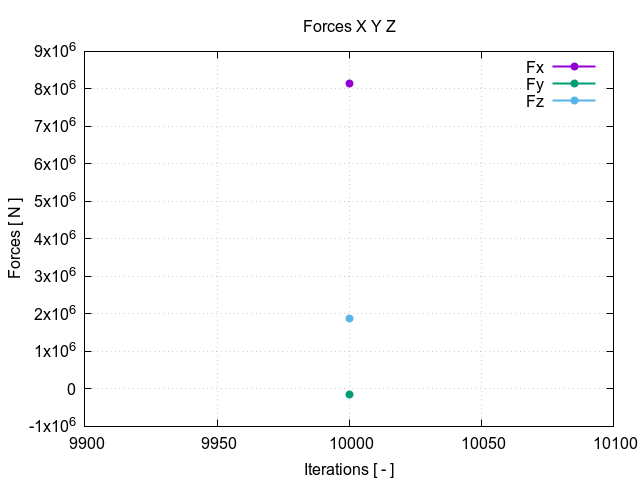

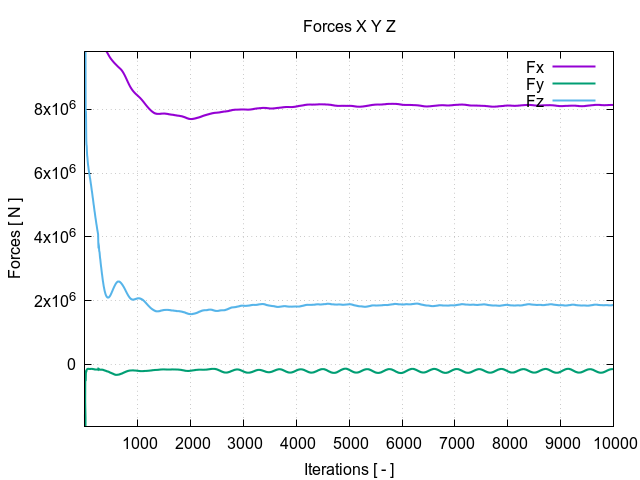

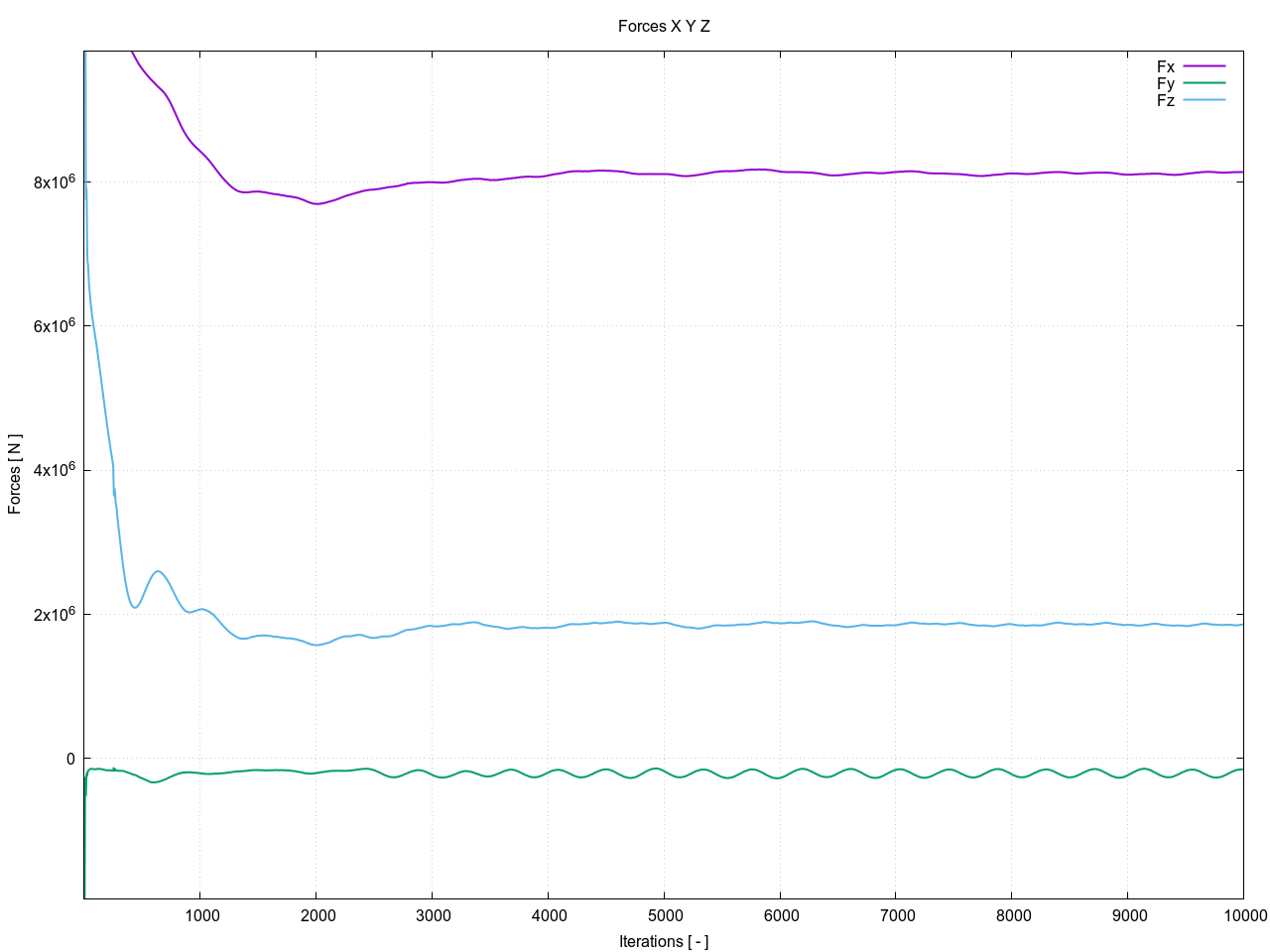

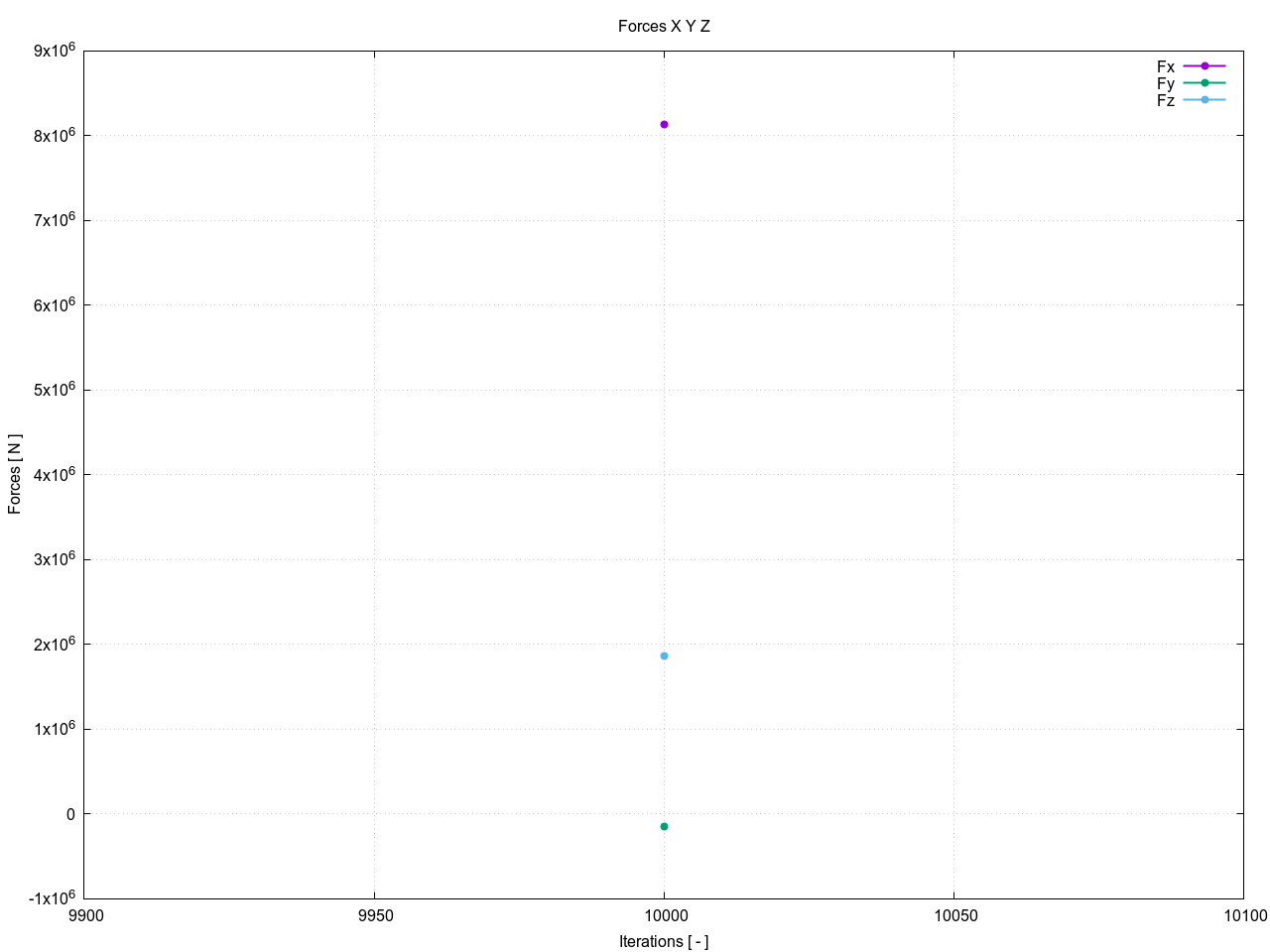

Forces X Y Z

#1: 1:Burj_Al_Arab

Setup Nr.	Point Nr.	Fx [ N ]	Fy [ N ]	Fz [ N ]
1	1	8.13756 × 106	-152483.	1.86242 × 106

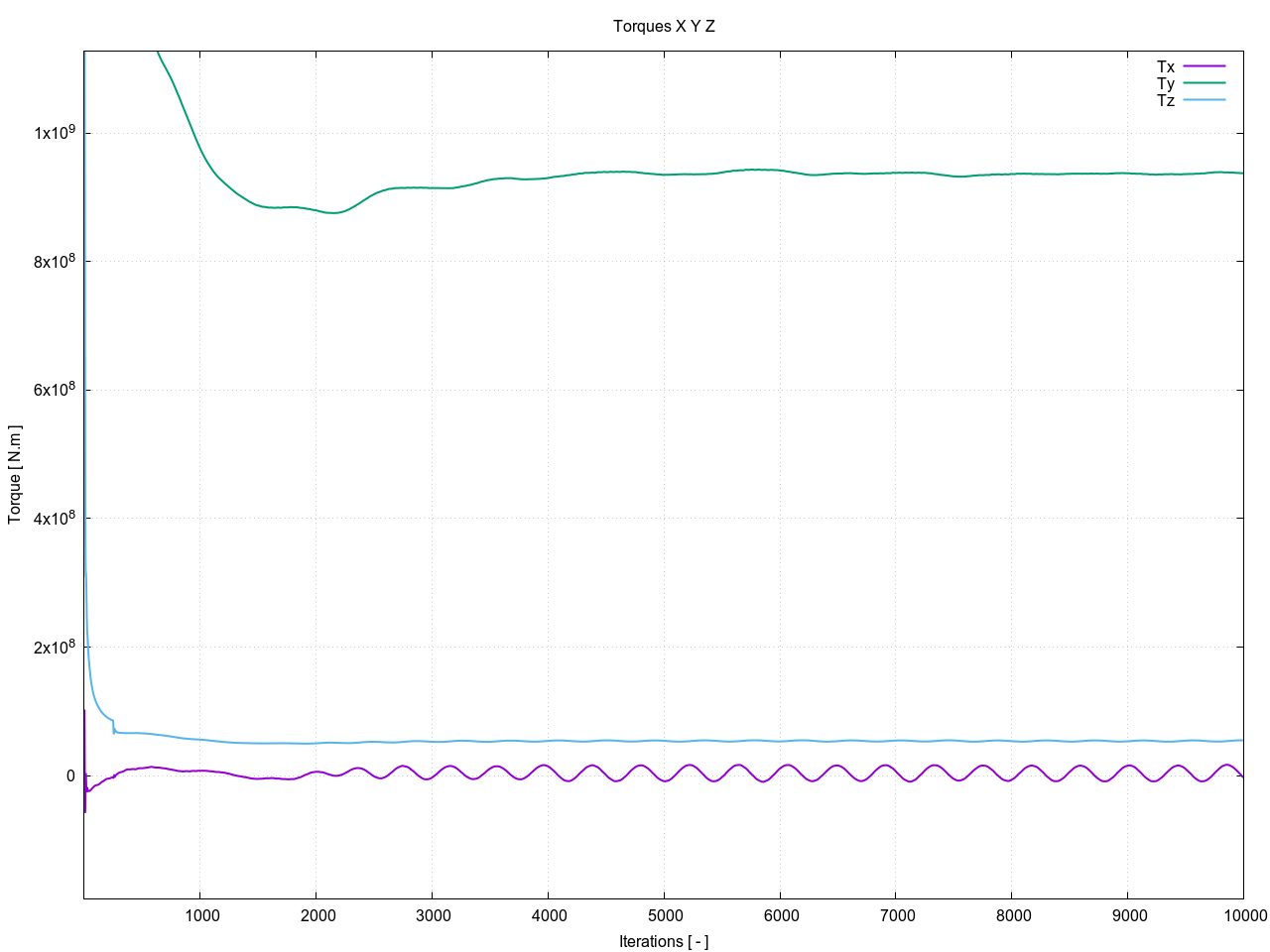

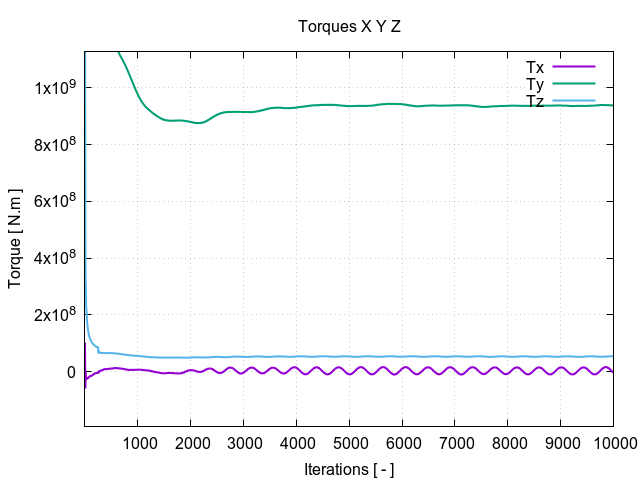

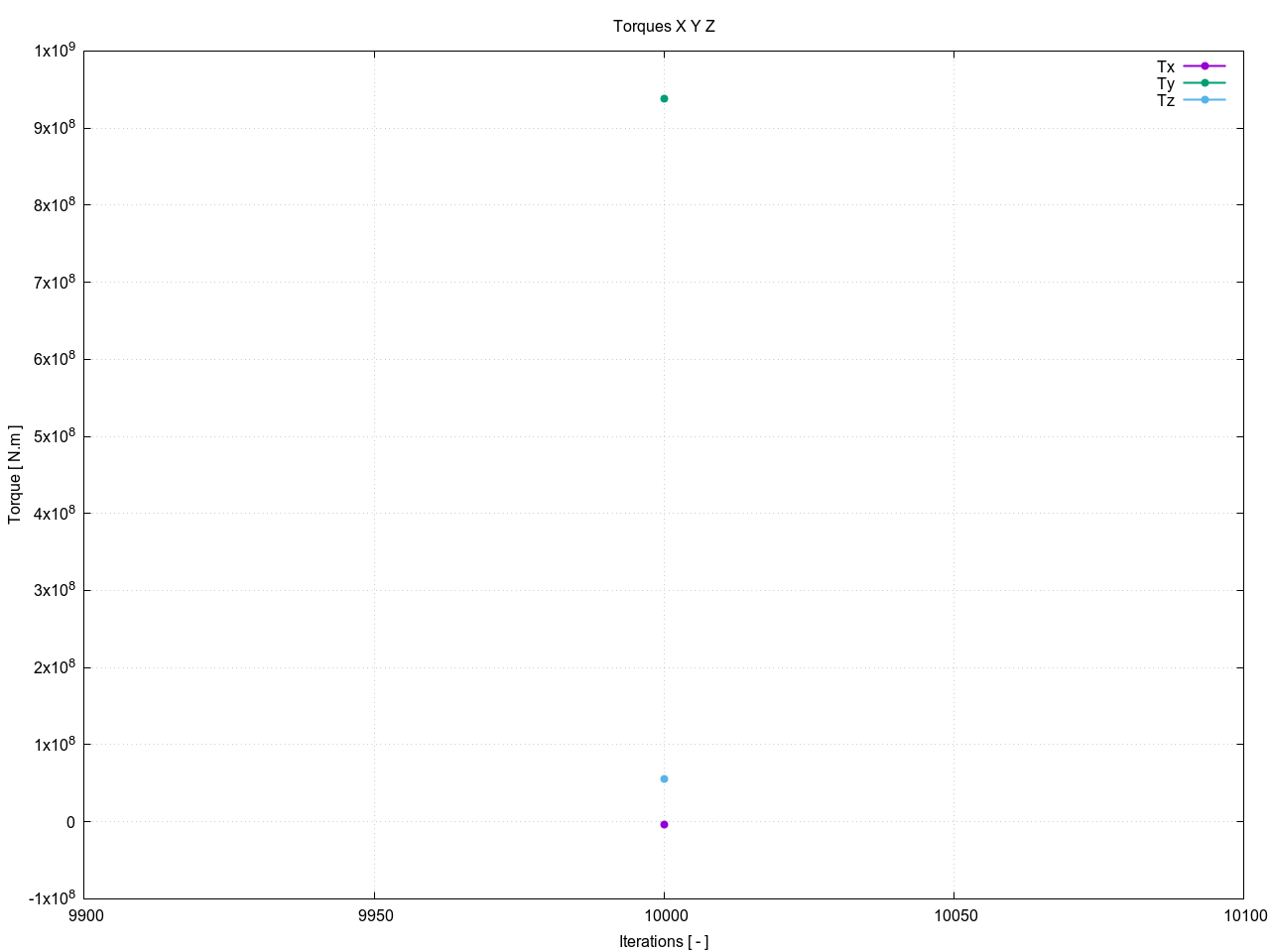

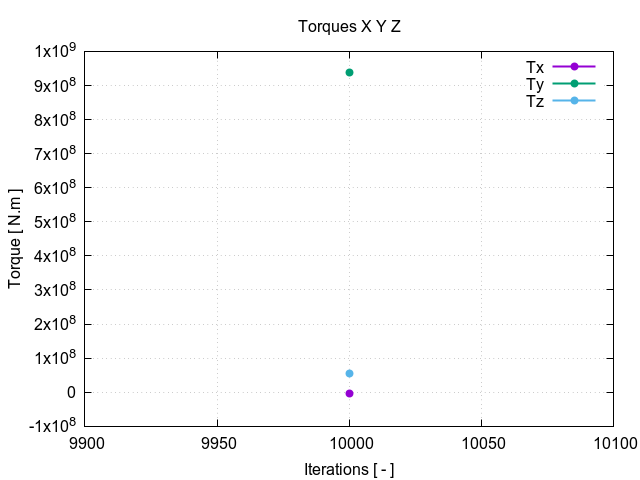

Torques X Y Z

#1: 1:Burj_Al_Arab

Setup Nr.	Point Nr.	Tx [ N.m ]	Ty [ N.m ]	Tz [ N.m ]
1	1	-3.24399 × 106	9.37517 × 108	5.48635 × 107

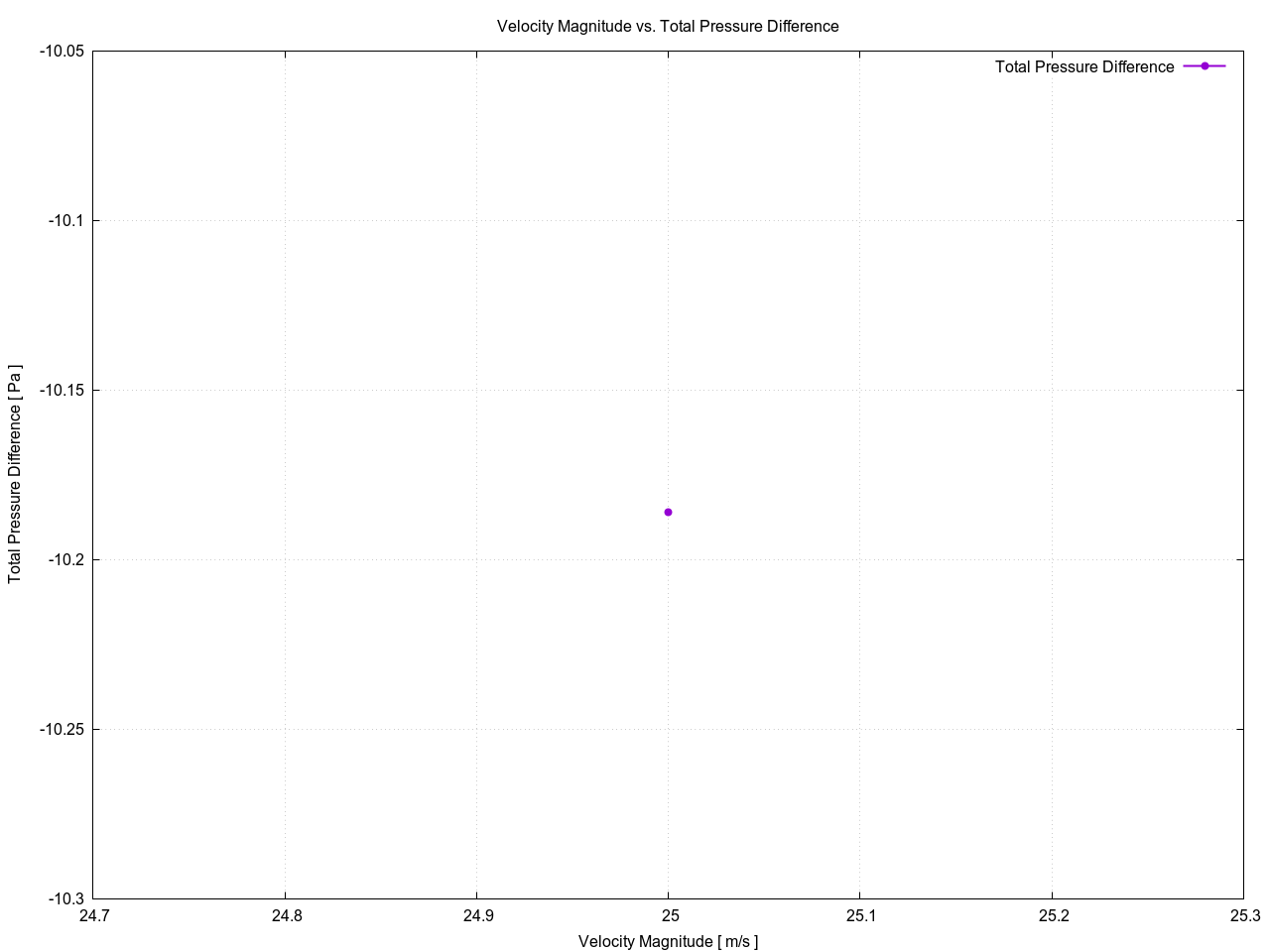

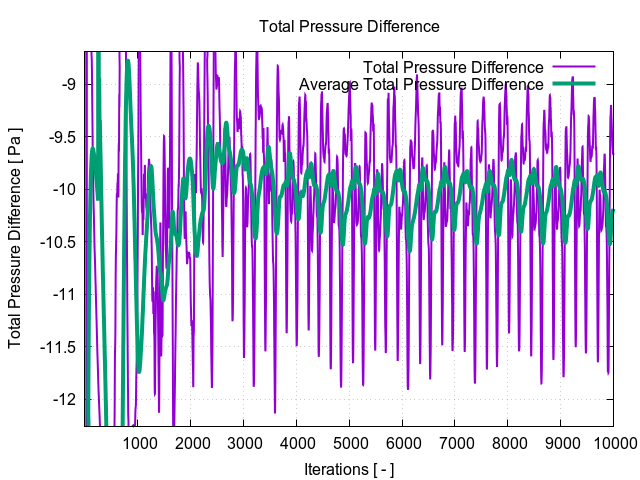

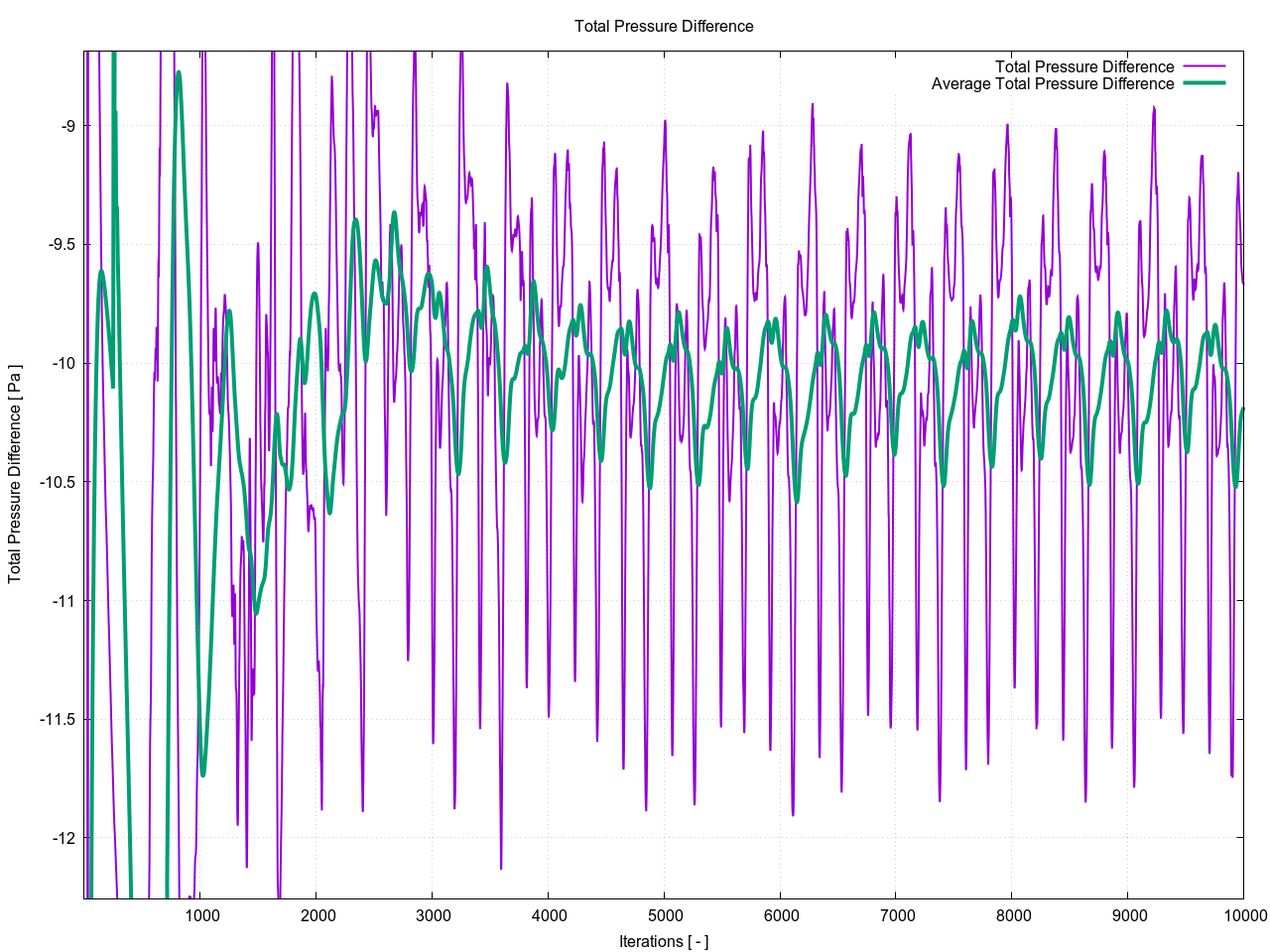

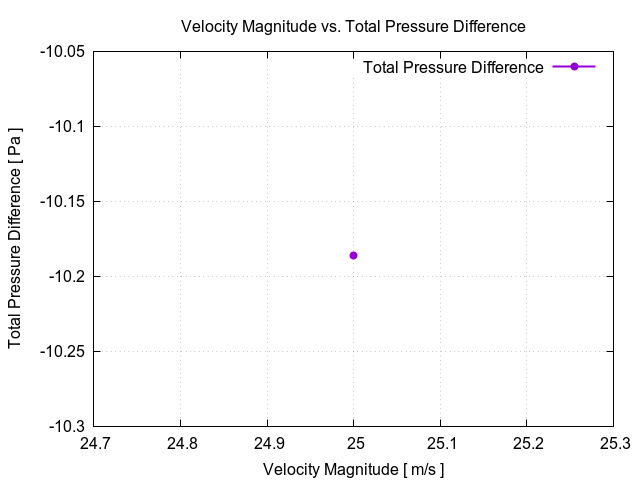

Total Pressure Difference

1:bb_inlet — 1:bb_outlet

Point Nr.	Velocity Magnitude [ m/s ]	Total Pressure Difference [ Pa ]
1	25.0000	-10.1860

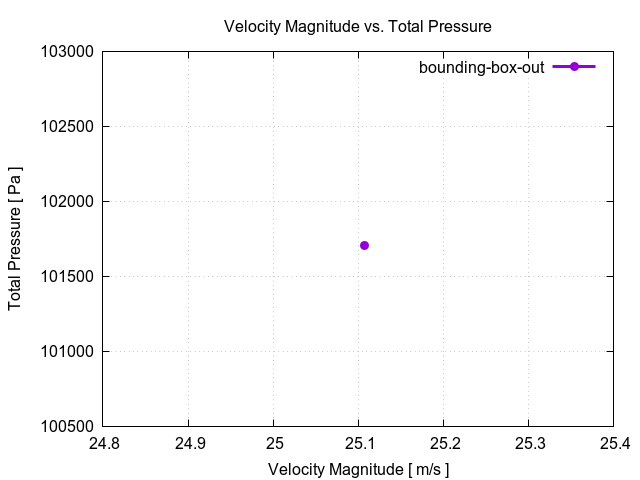

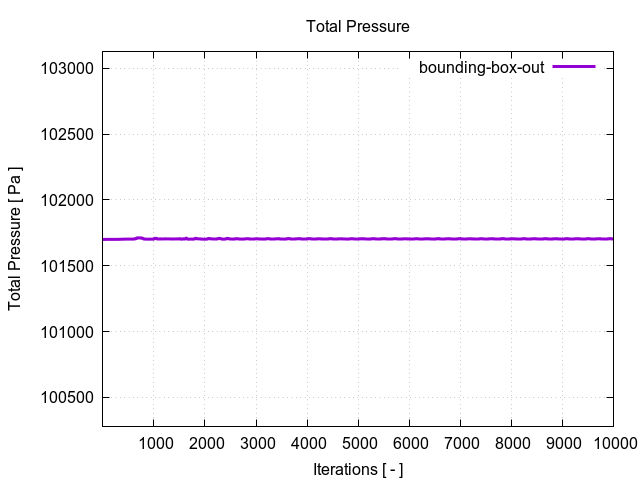

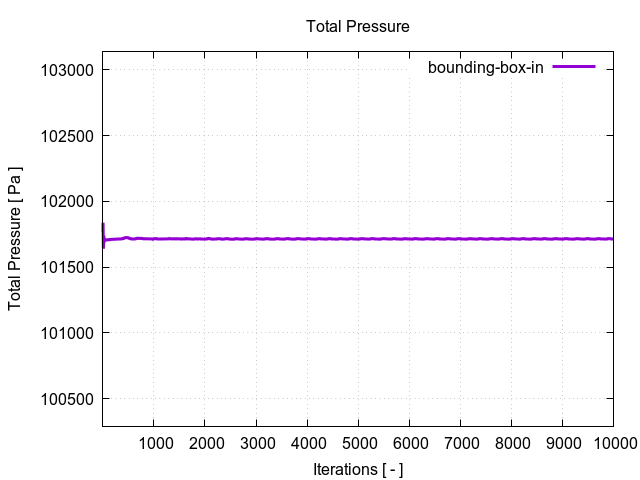

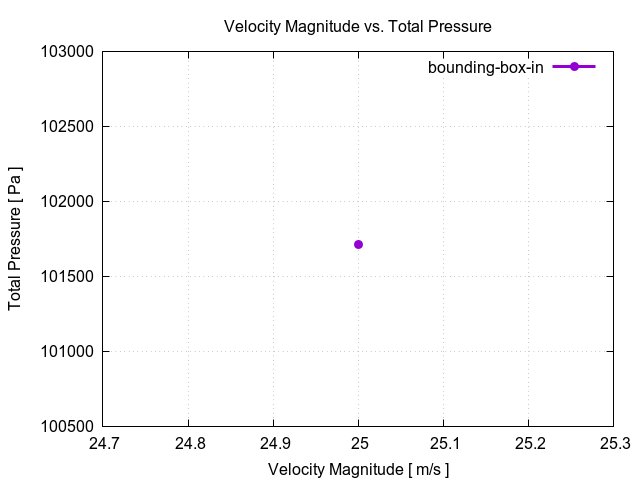

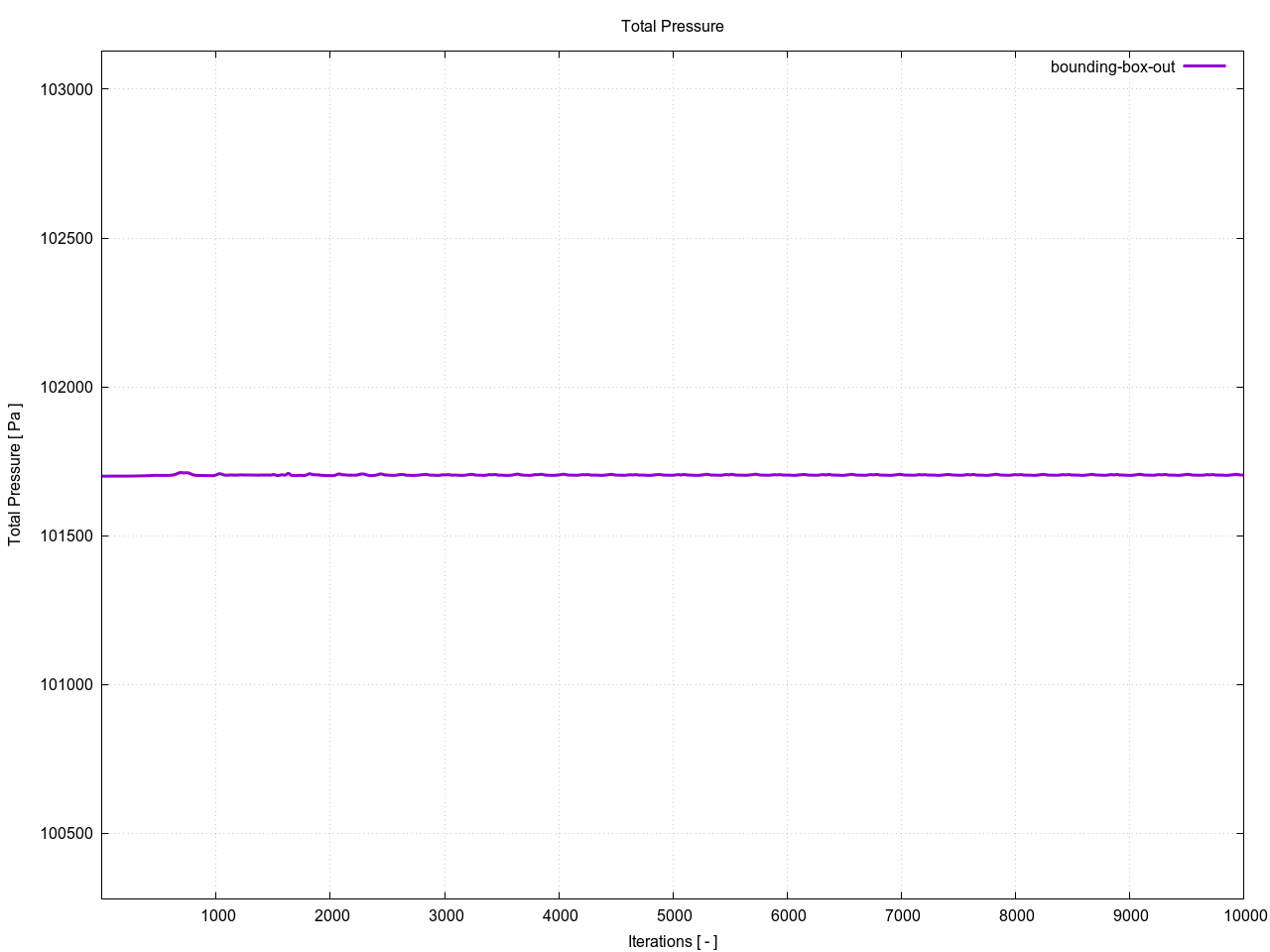

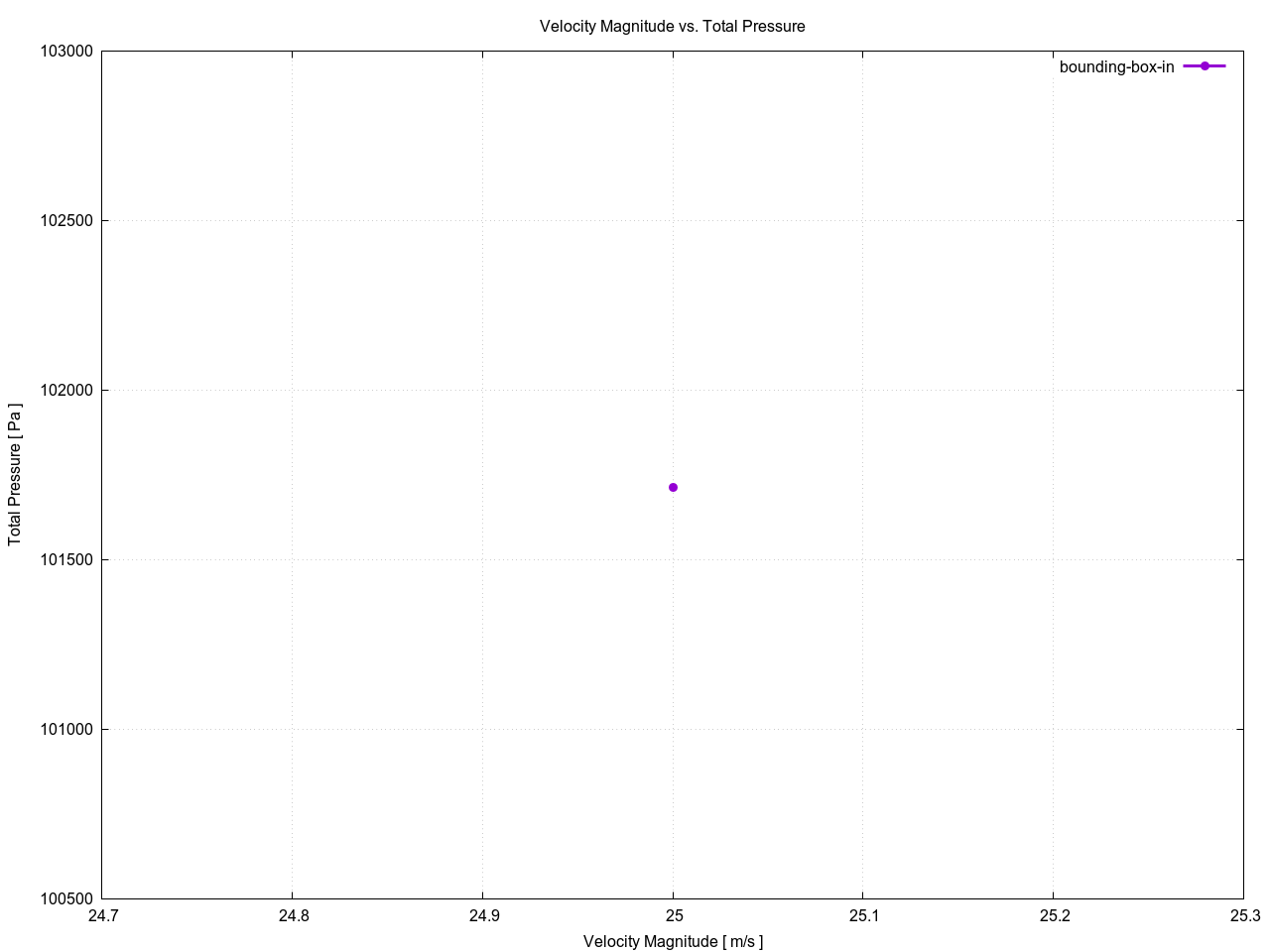

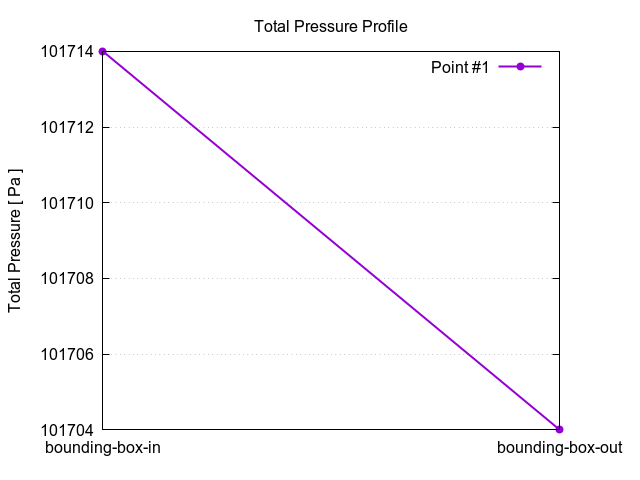

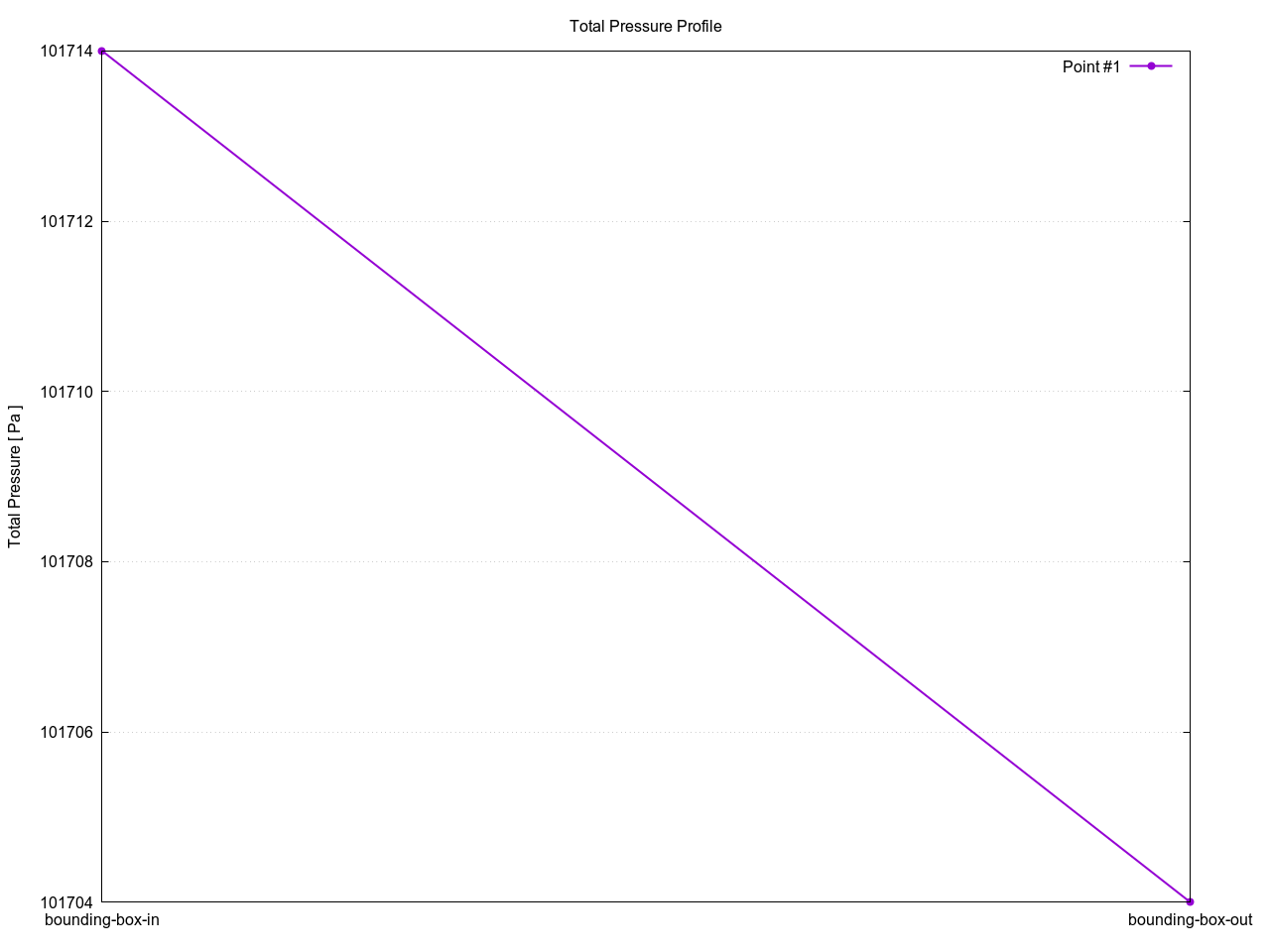

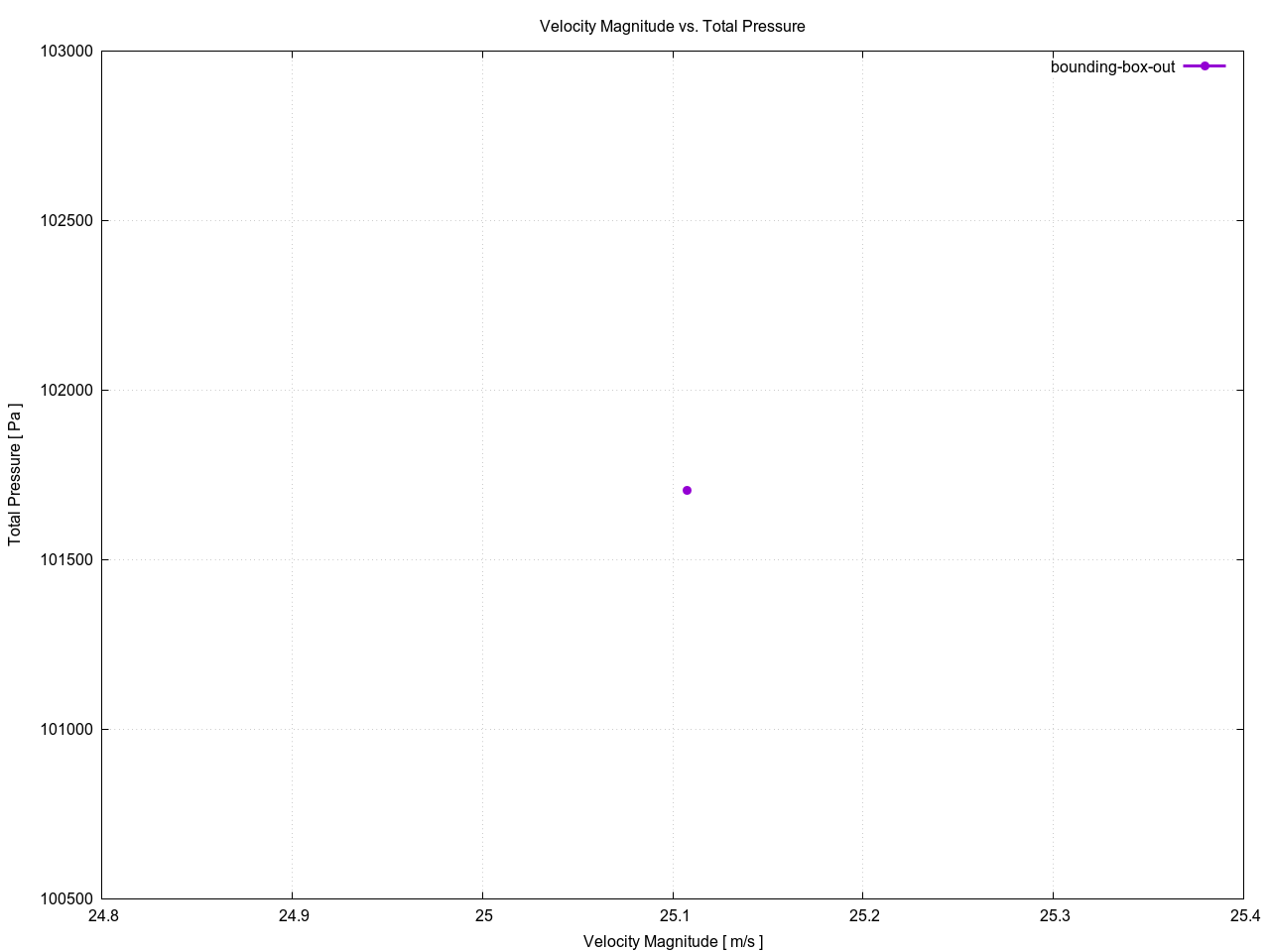

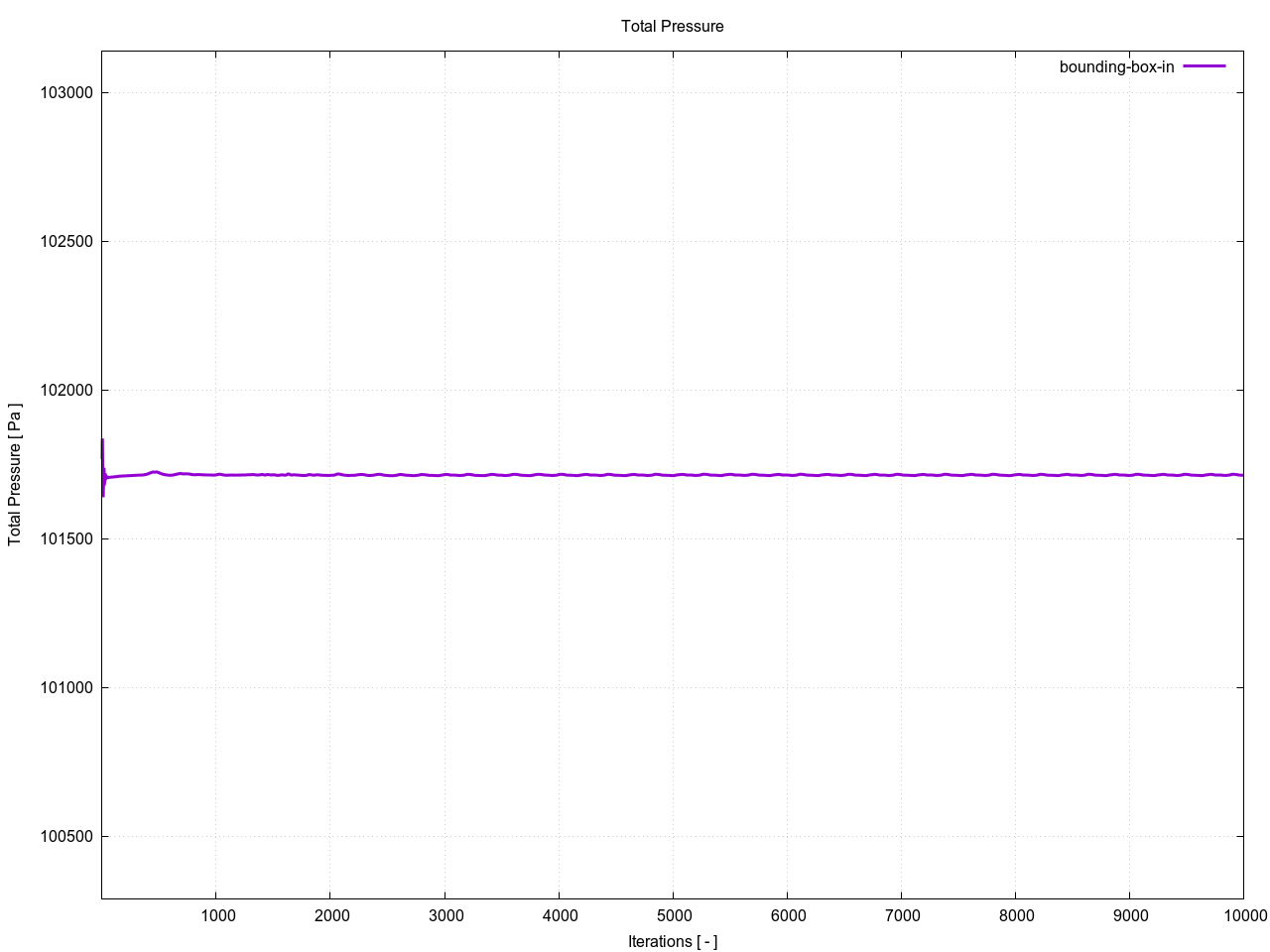

Total Pressure per Interfaces

Point Nr.	Interface Name	Velocity Magnitude [ m/s ]	Total Pressure [ Pa ]
1	bounding-box-in	25.0000	101714.
1	bounding-box-out	25.1075	101704.

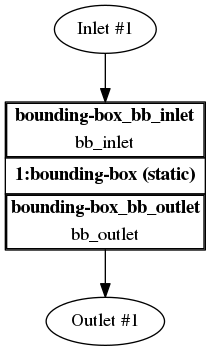

Bounding-box-in

Bounding-box-out



Bounding-box-in

Bounding-box-out

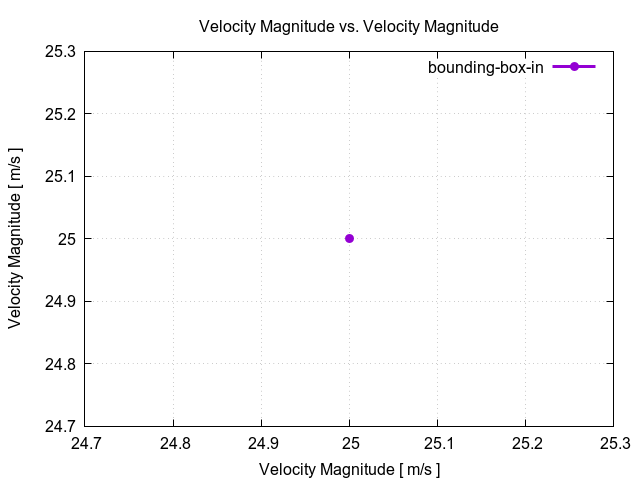

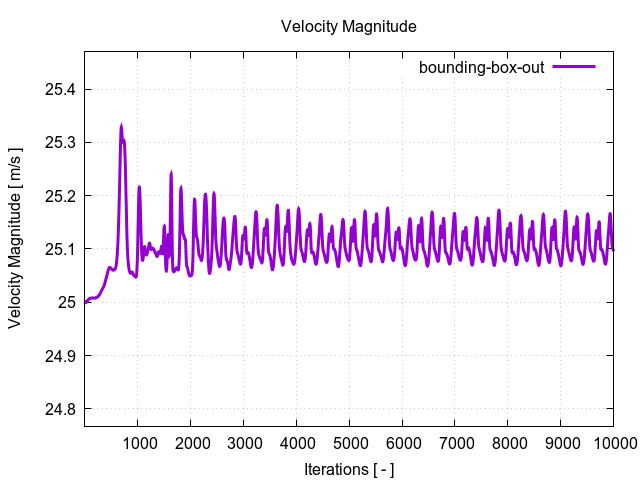

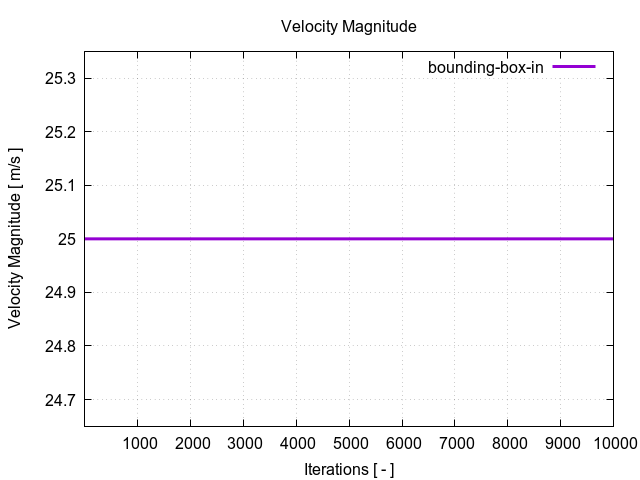

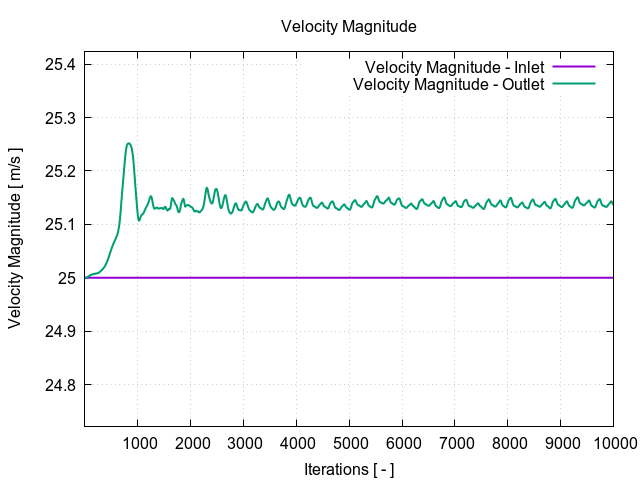

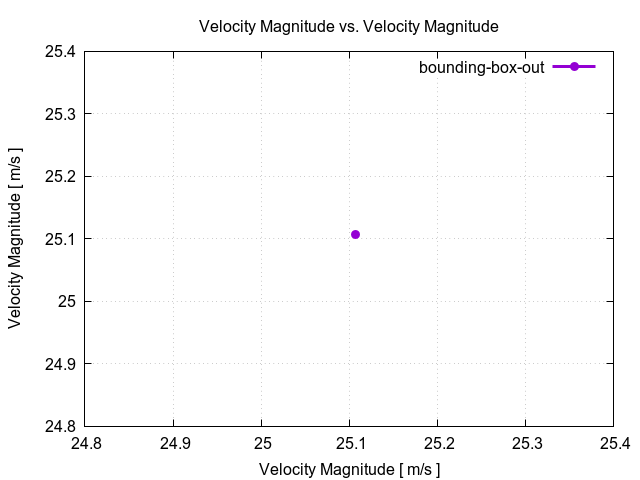

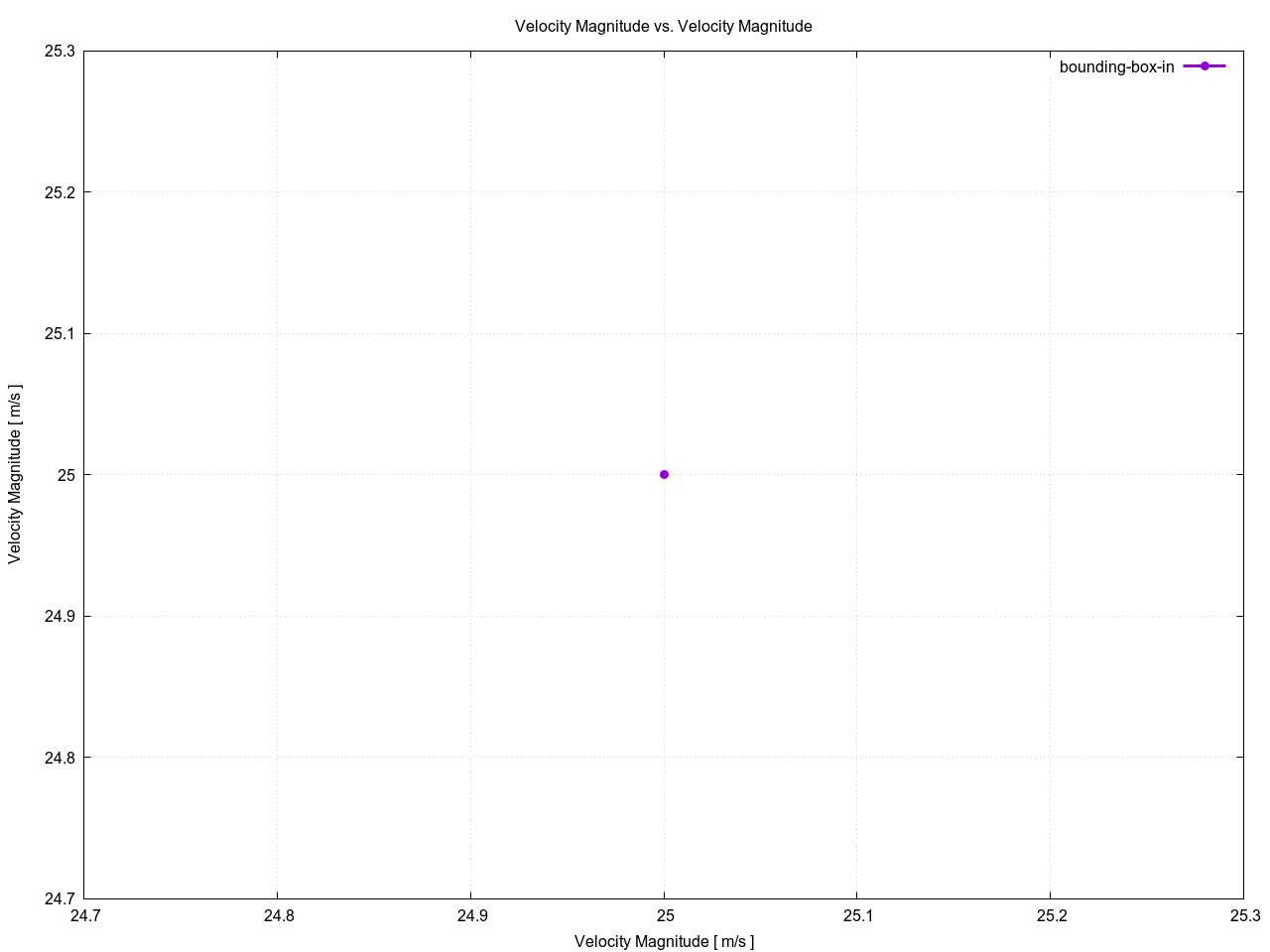

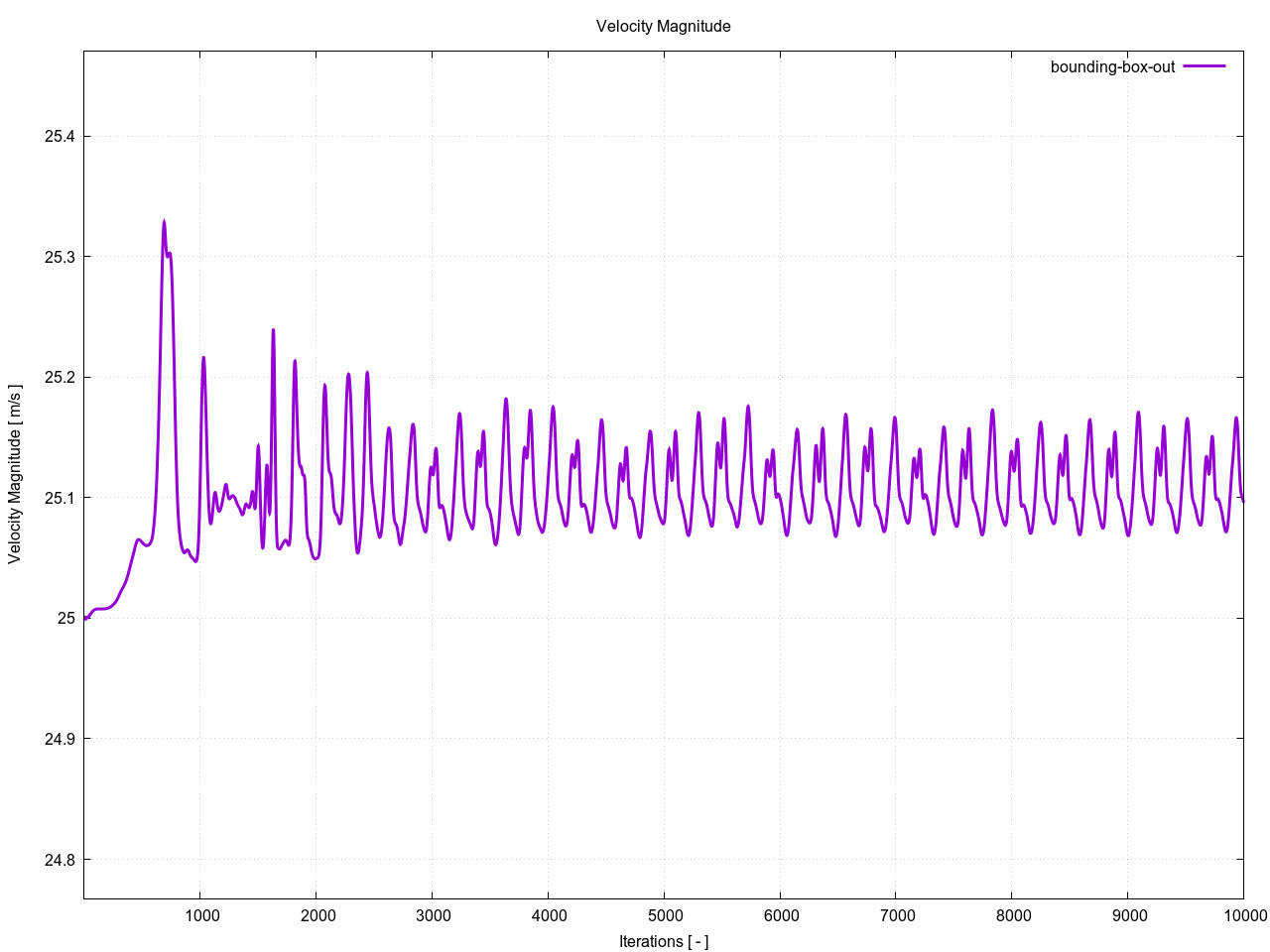

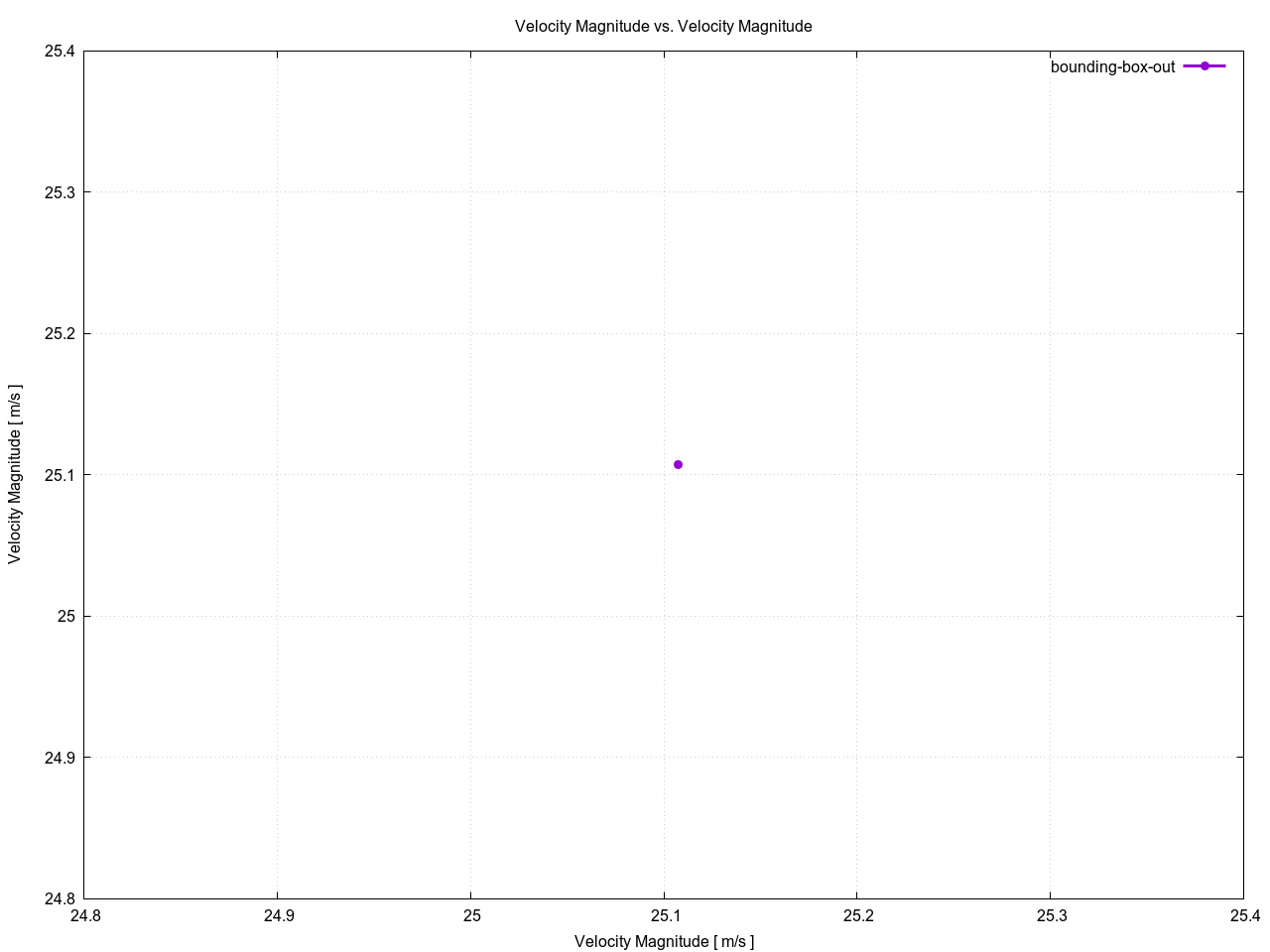

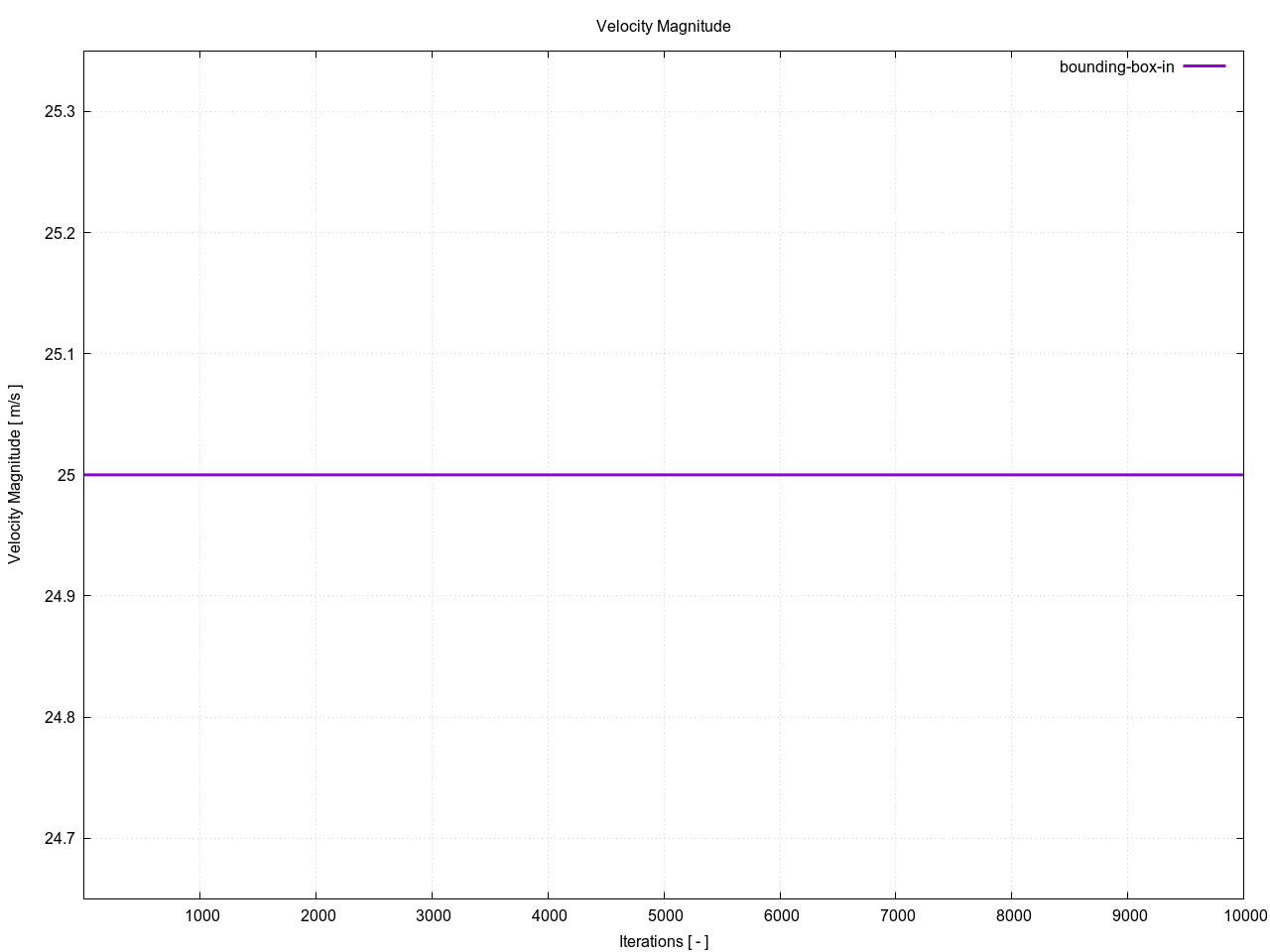

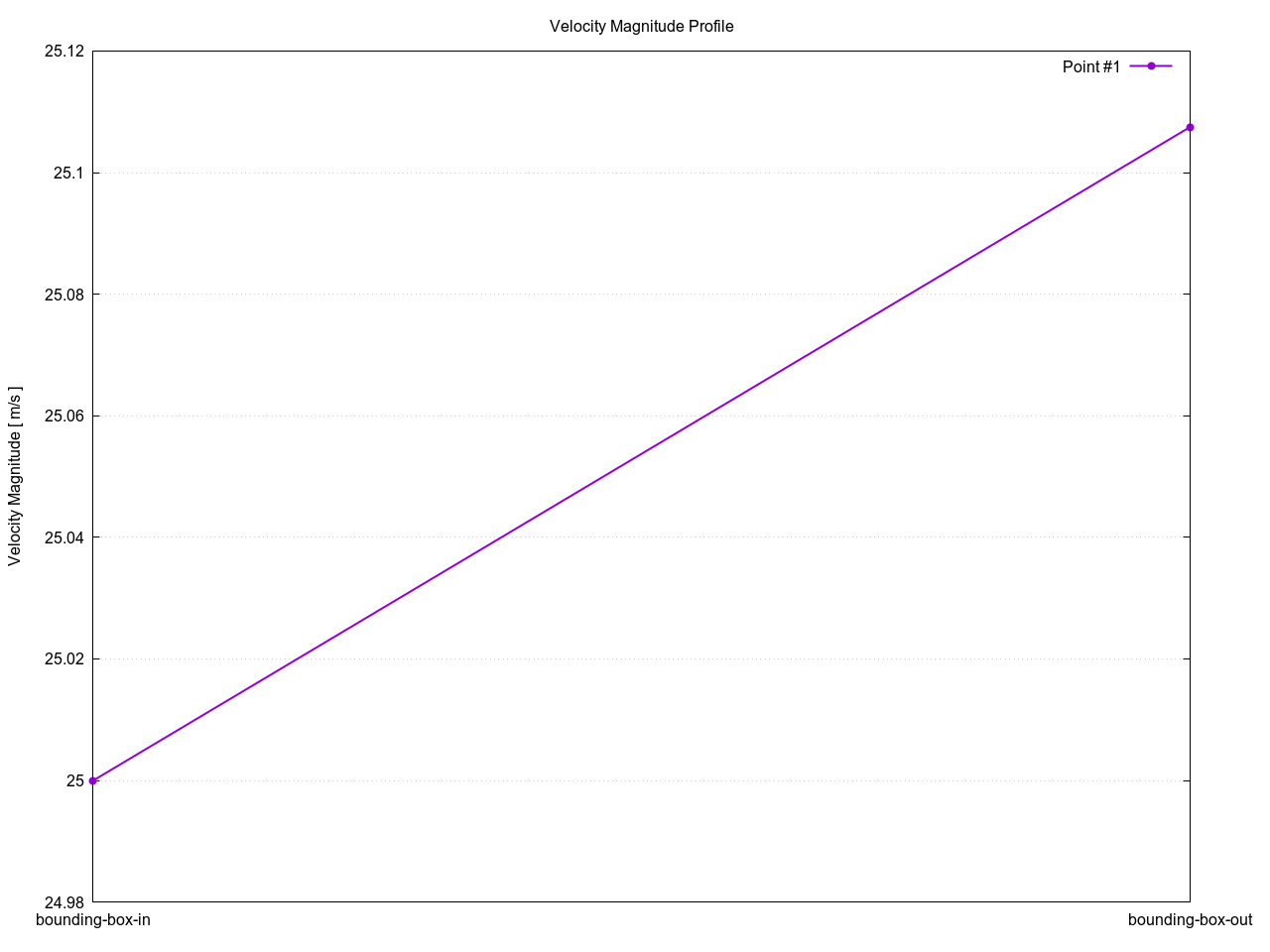

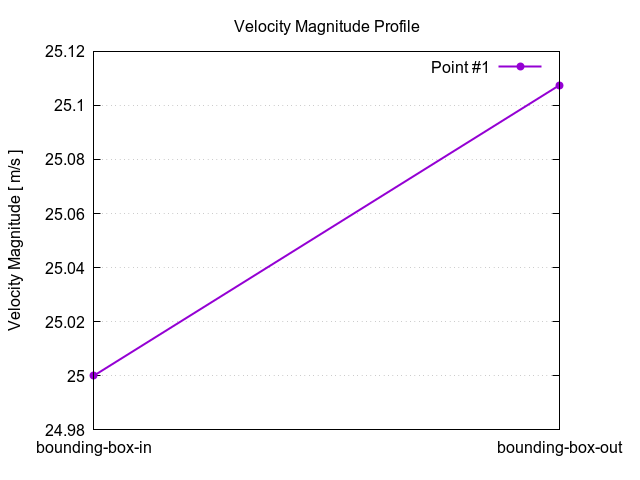

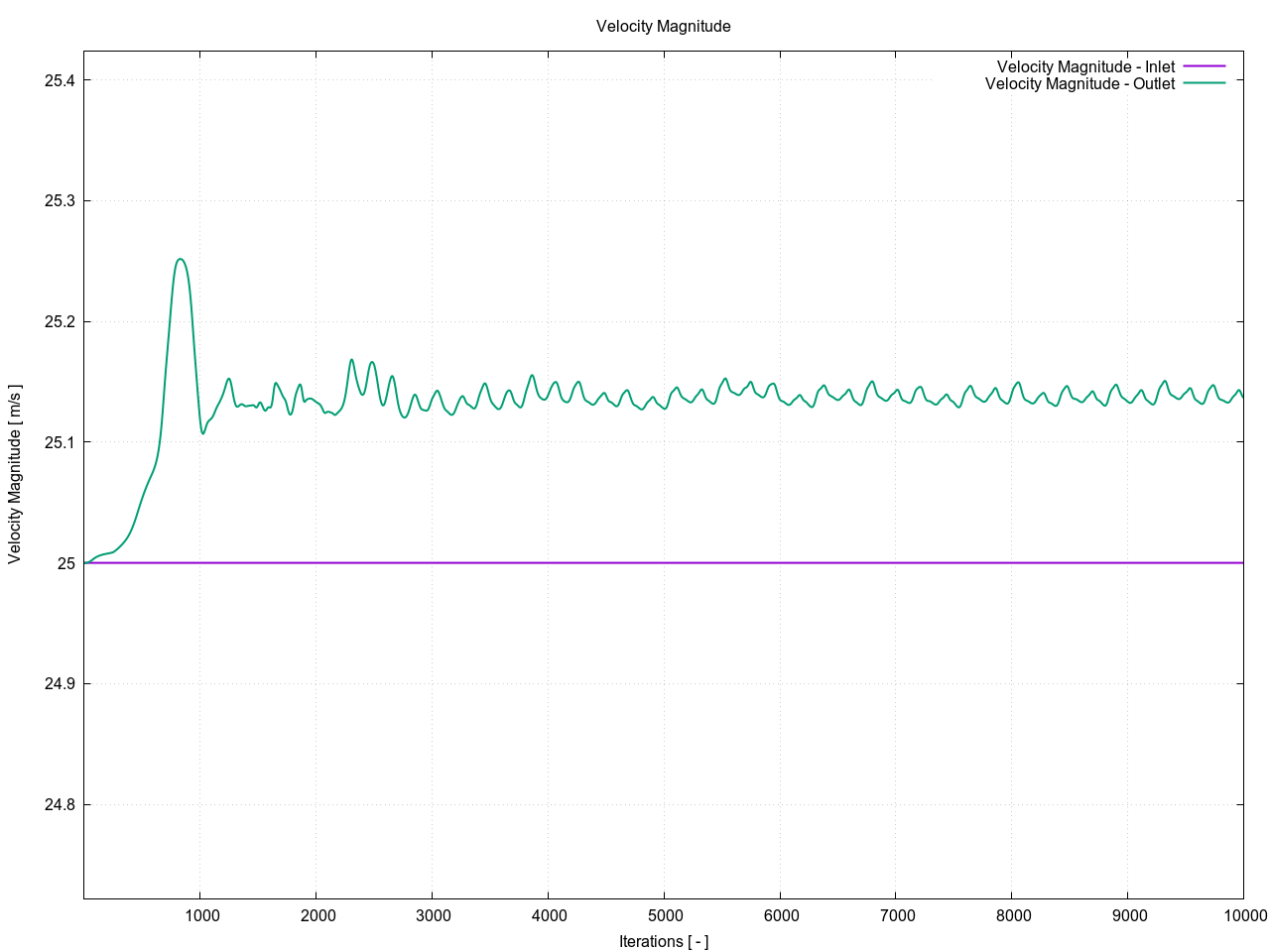

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Velocity Magnitude [ m/s ]	Velocity Magnitude [ m/s ]
1	bounding-box-in	25.0000	25.0000
1	bounding-box-out	25.1075	25.1075

Bounding-box-in

Bounding-box-out



Bounding-box-in

Bounding-box-out
