Hi, this is steady-state CFD simulation report of:

Beam-Ball-FSI-Benchmark

Created by TCFD® 20.09 on Wed Oct 7 13:00:47 2020

DISCOVER

Simulation Stats

Test Case Name
Beam-Ball-FSI-Benchmark
Number of Points [ – ]
1
Machine Type
virtualTunnel
Rotation Speed [ RPM ]
0
Number of Components [ – ]

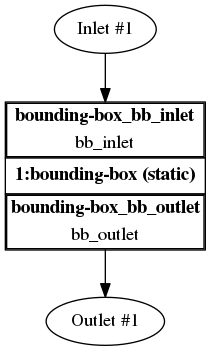

( Topolofy )
1
Mesh Size [ cells ]
( detail )
bounding-box : 489620
Total : 489620
Average y+ at walls [ – ]
detail
Wall-clock time [ hh:mm:ss ]
00:00:48 (meshing)
00:24:46 (calculation)
Parallel Processors [ – ]
6
Fluid Name
air
Physical Model
incompressible
Numerical order
second
Turbulence model
kOmegaSST

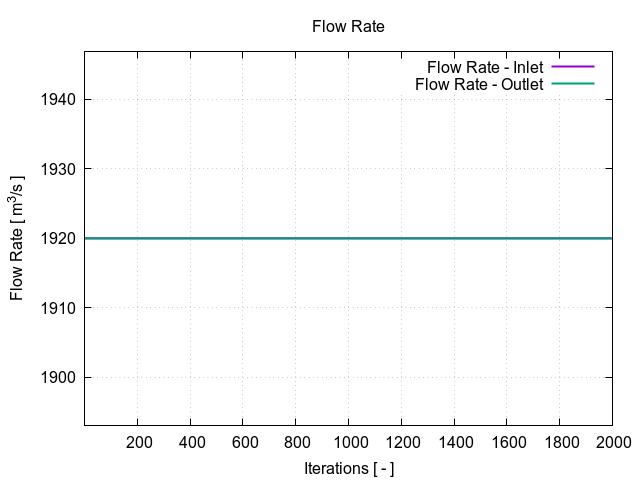

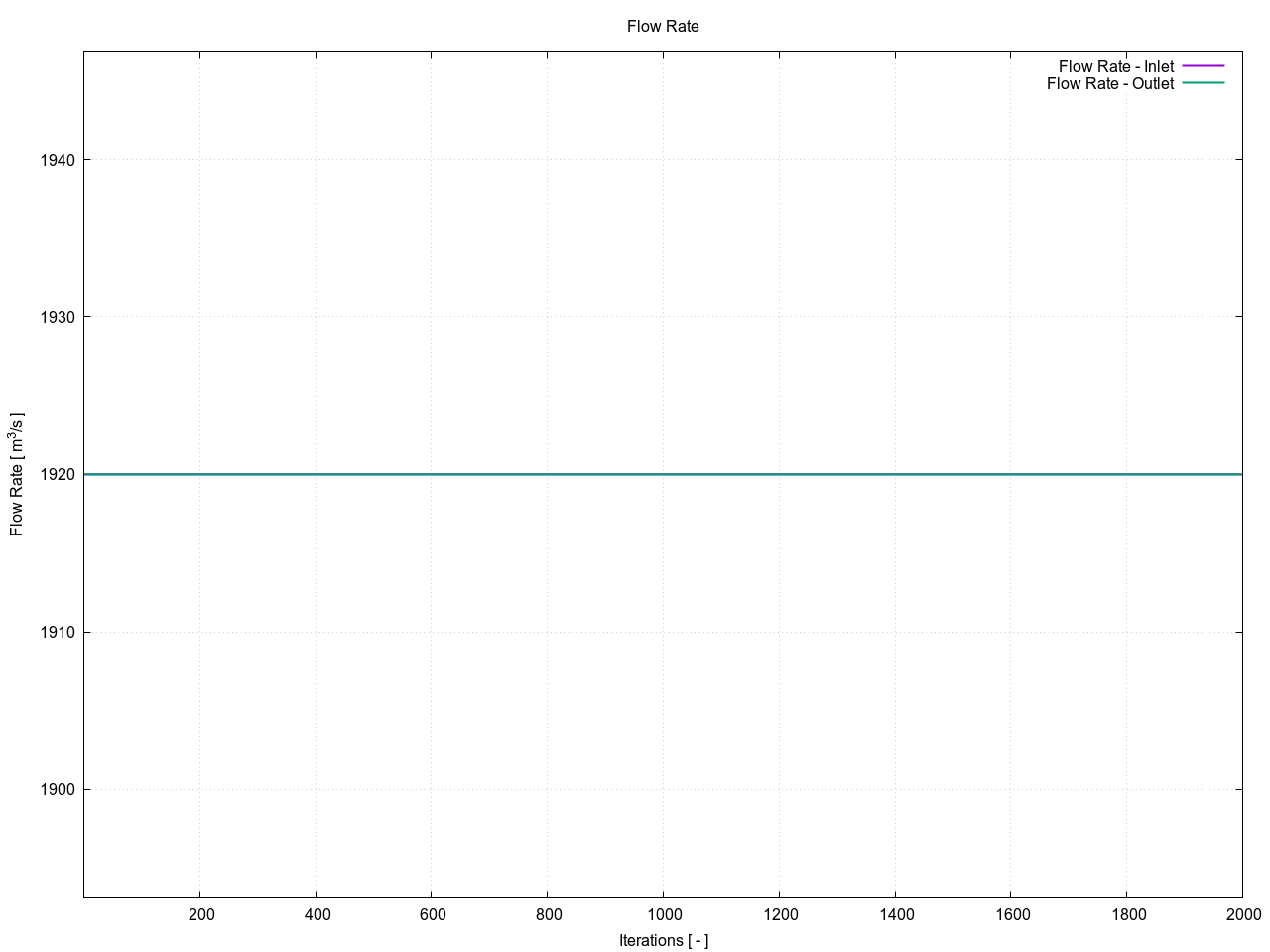

plotFlowRate 1

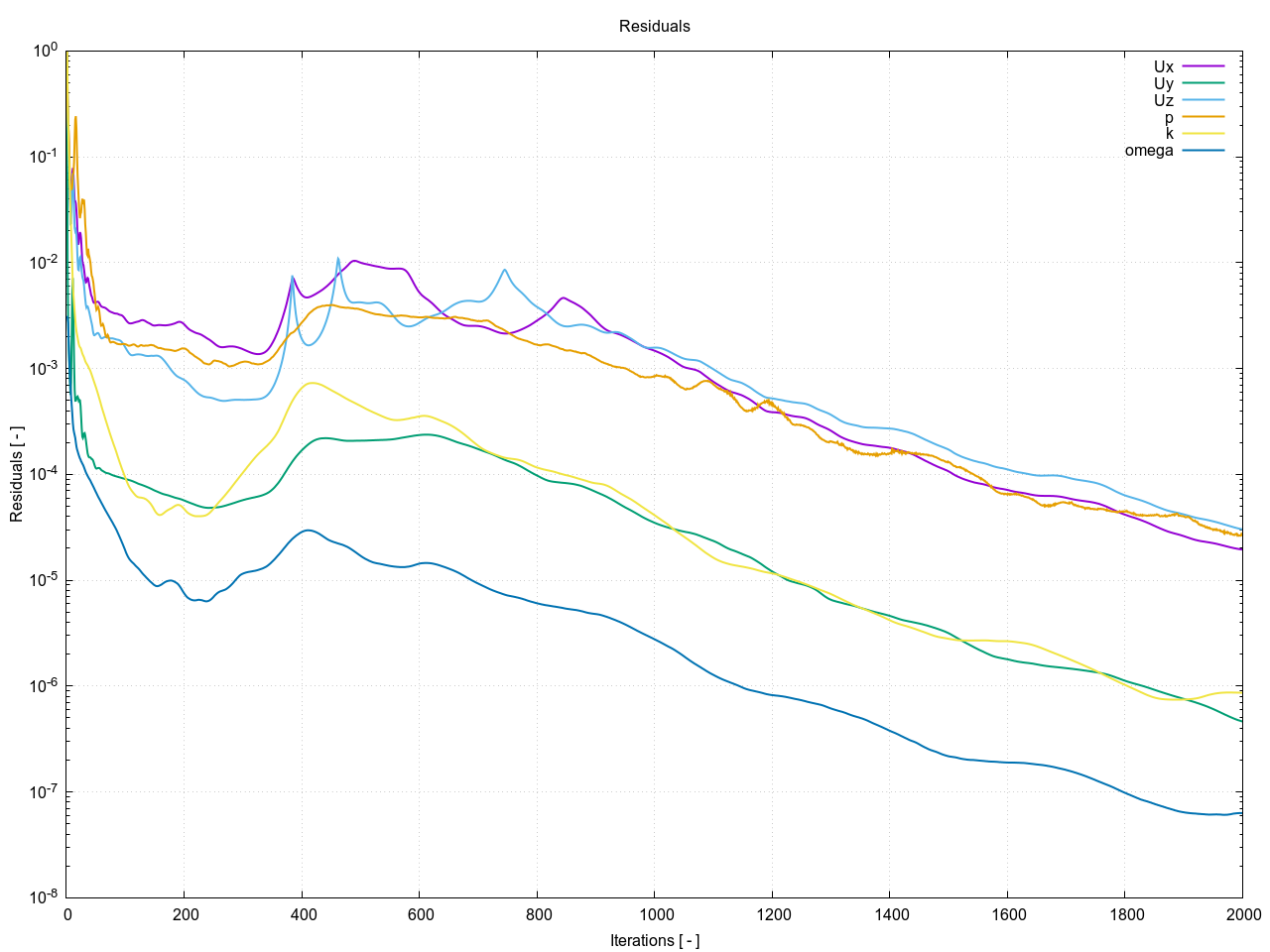

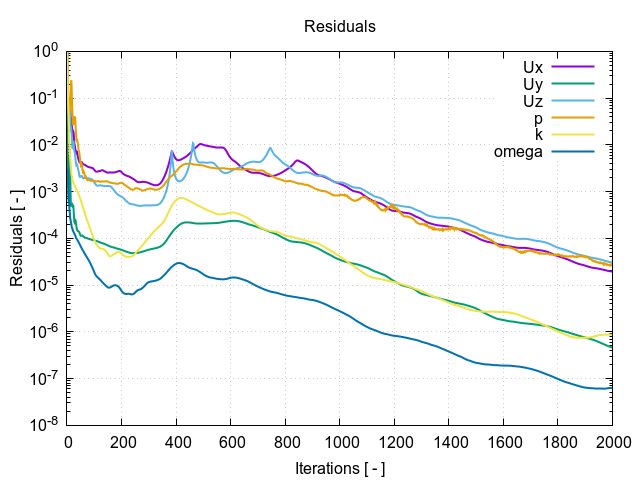

residuum 1

Fan Characteristic

1:impeller-inlet — 2:spiral-outlet
Point Nr.
Flow number [ – ]
Compression number [ – ]
1
0.0519725
1.17816
2
0.0483471
1.23228
3
0.0451234
1.27034
4
0.0399658
1.31765
5
0.0360078
1.34035
6
0.0329233
1.35211
7
0.0303791
1.35542
8
0.0282892
1.35545

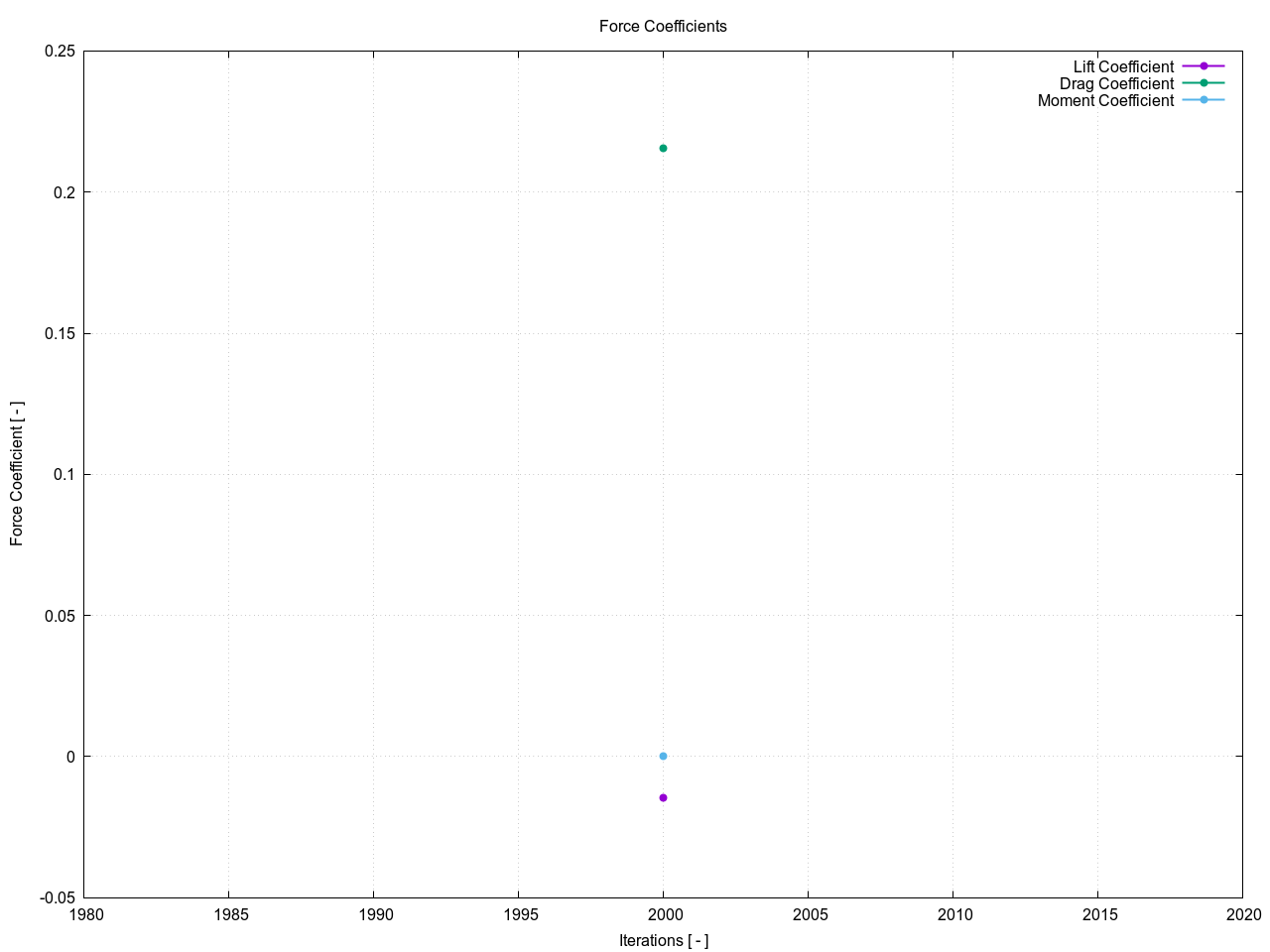

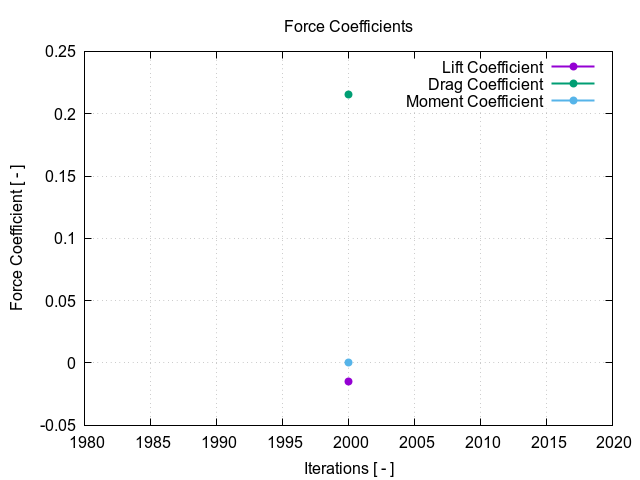

flowRateVsForceCoeffs 1

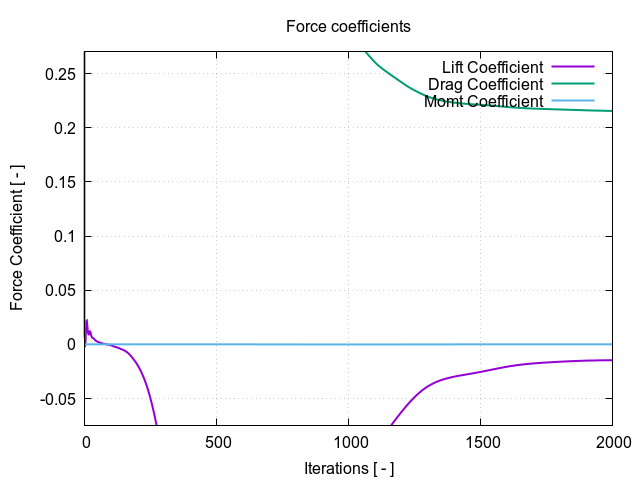

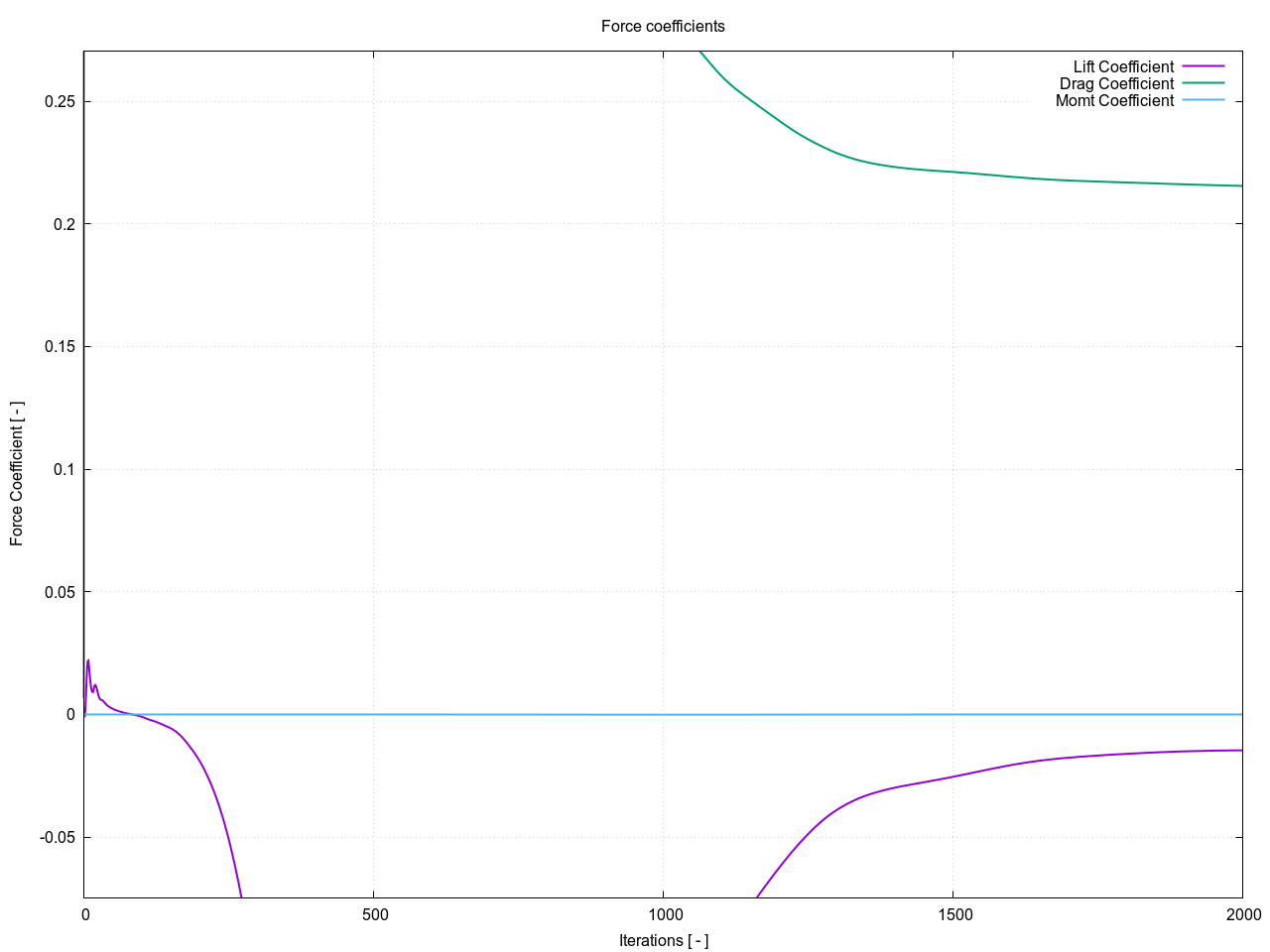

forceCoeffs 1

Forces X Y Z

#1: 1:ball
Setup Nr.
Point Nr.
Fx [ N ]
Fy [ N ]
Fz [ N ]
1
1
-1.89160
8.22462
-0.558430

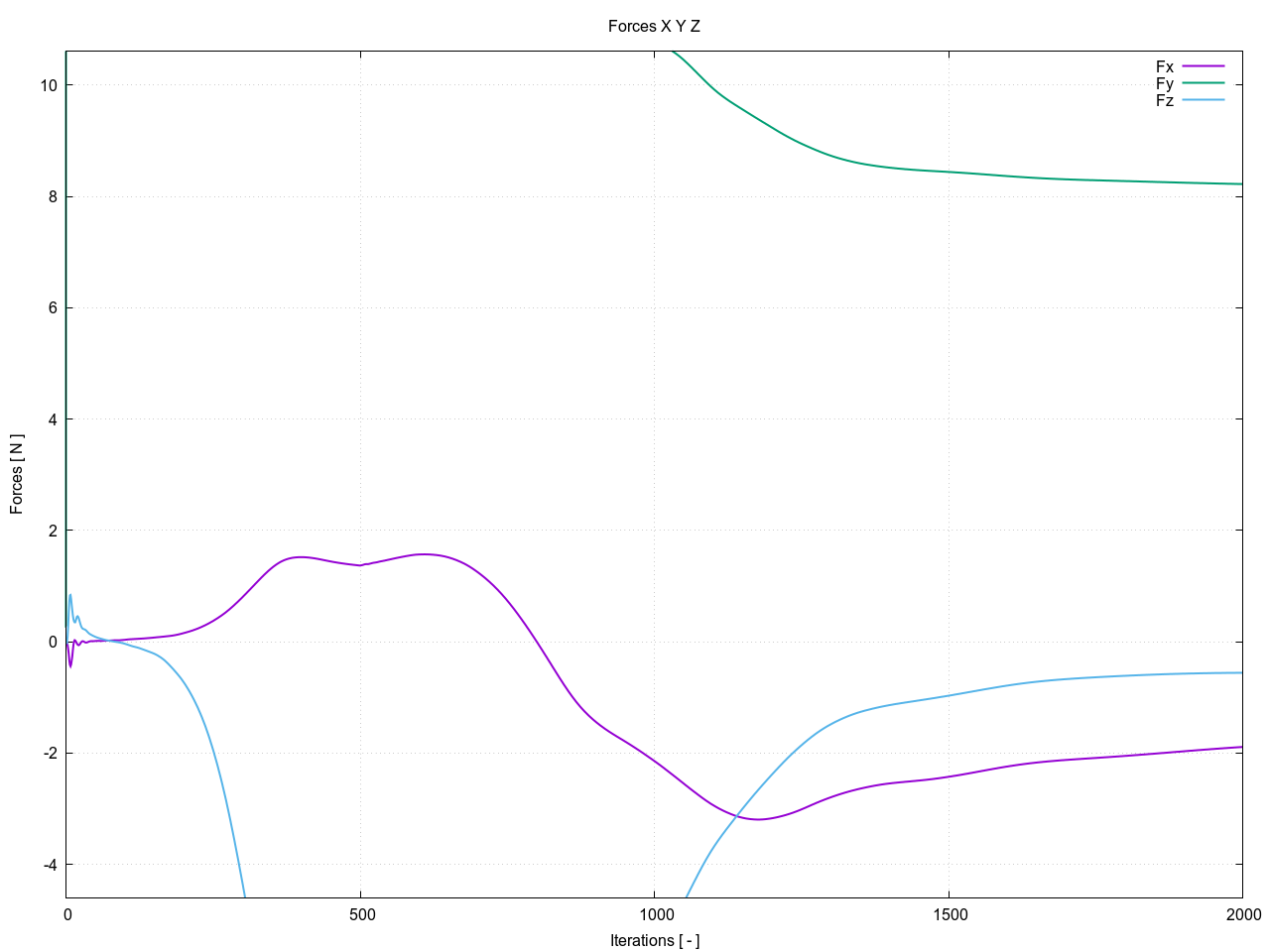

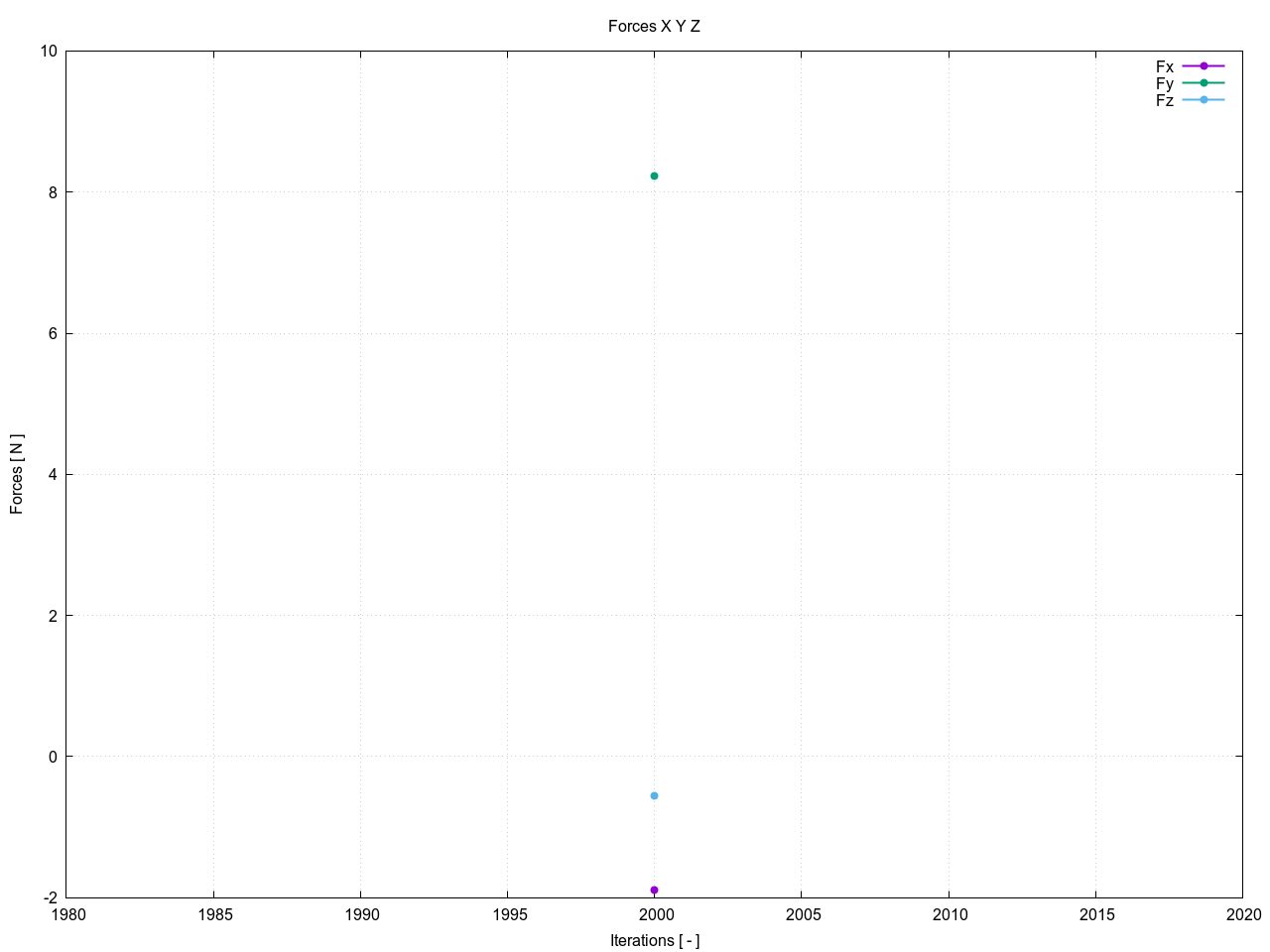

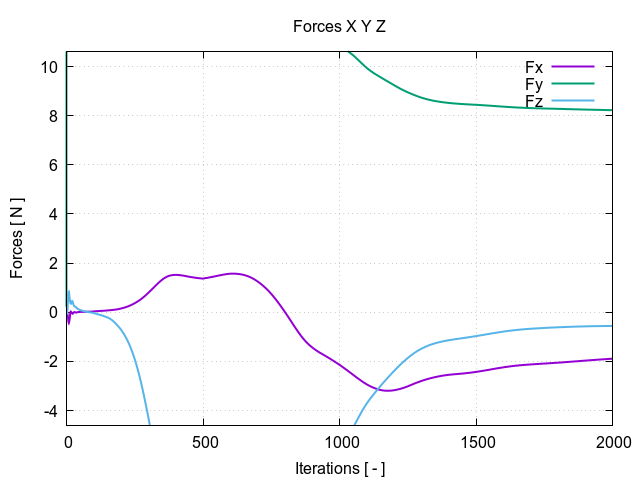

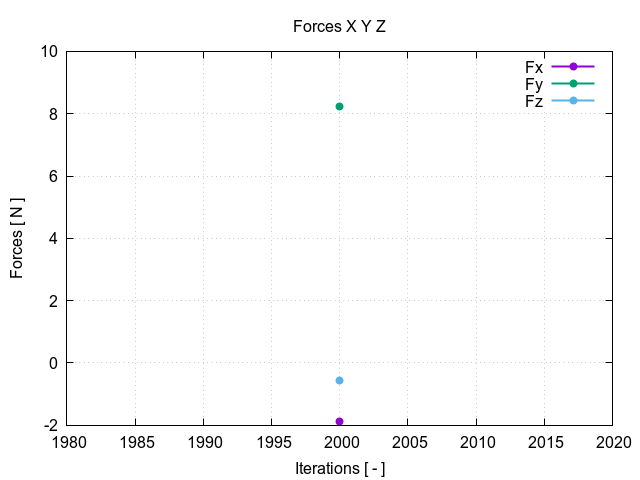

flowRateVsForces 1
forces 1

Torques X Y Z

#1: 1:ball
Setup Nr.
Point Nr.
Tx [ N.m ]
Ty [ N.m ]
Tz [ N.m ]
1
1
3.73014 × 10-4
-6.60230 × 10-6
-0.00118455

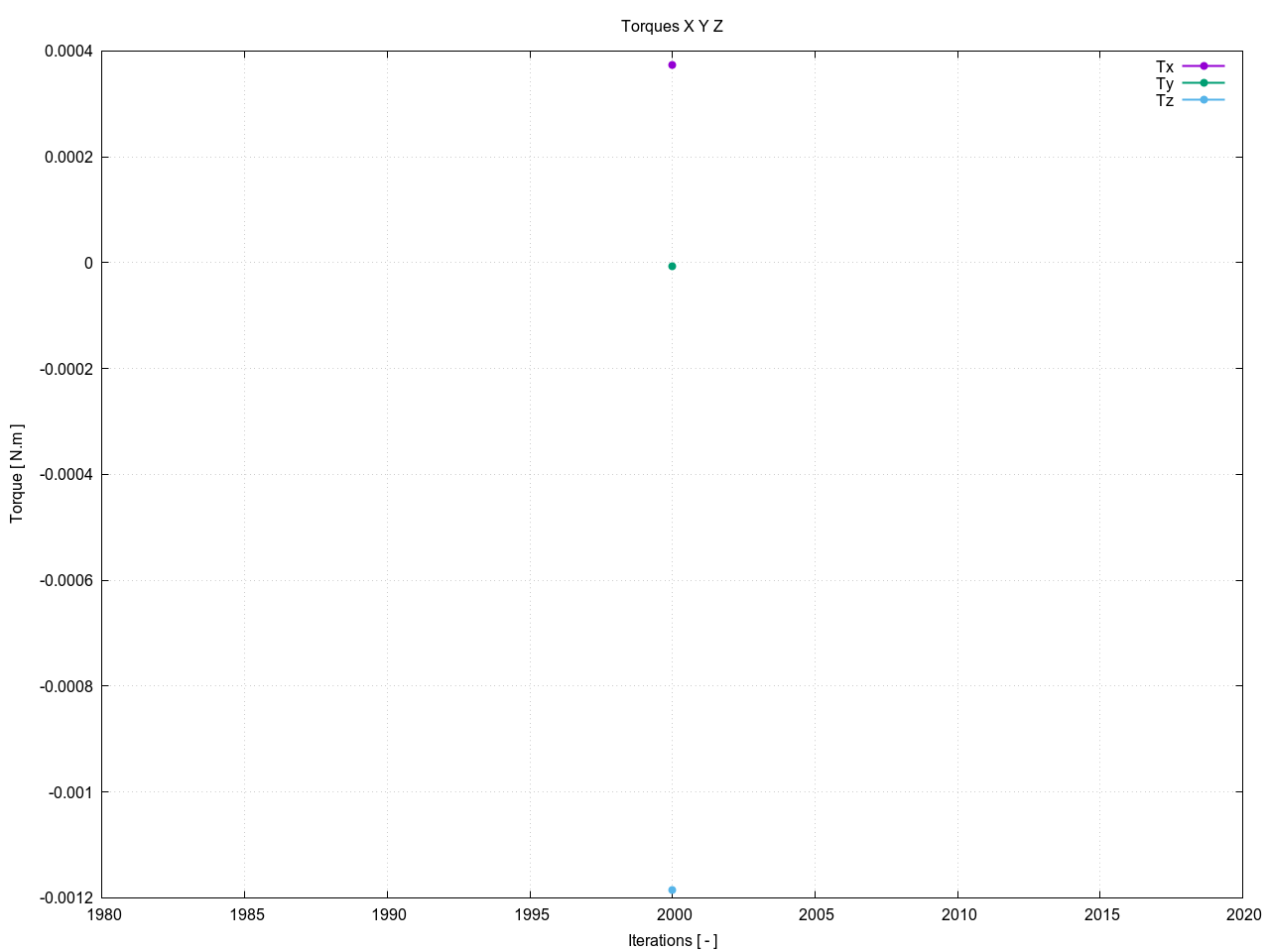

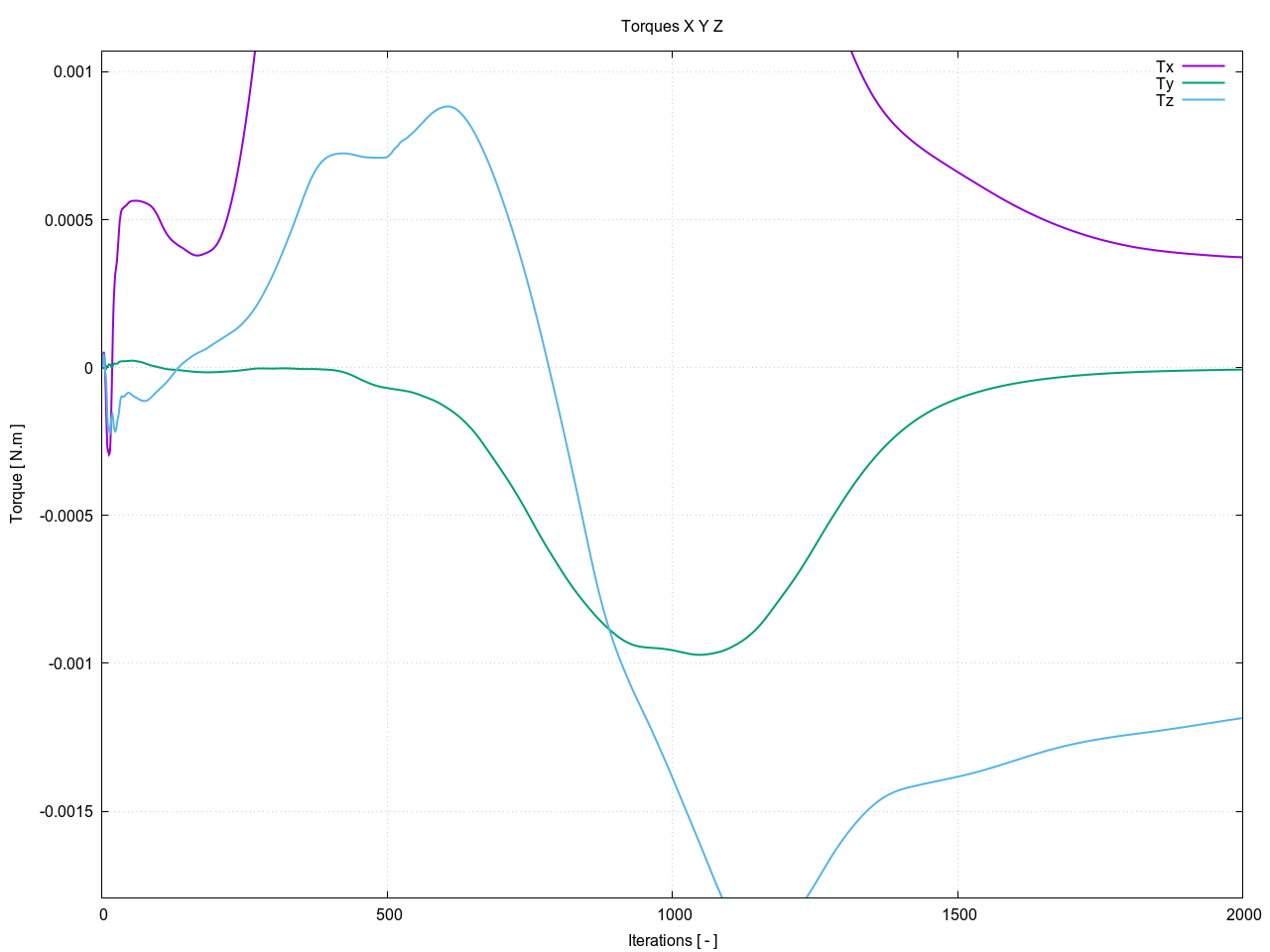

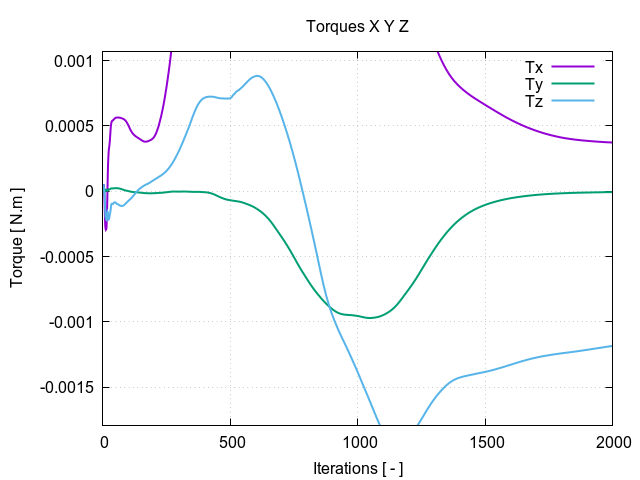

flowRateVsMoments 1
moments 1

Total Pressure Difference

1:bb_inlet — 1:bb_outlet
Point Nr.
Flow Rate [ m3/s ]
Total Pressure Difference [ Pa ]
1
1920.00
-0.125249

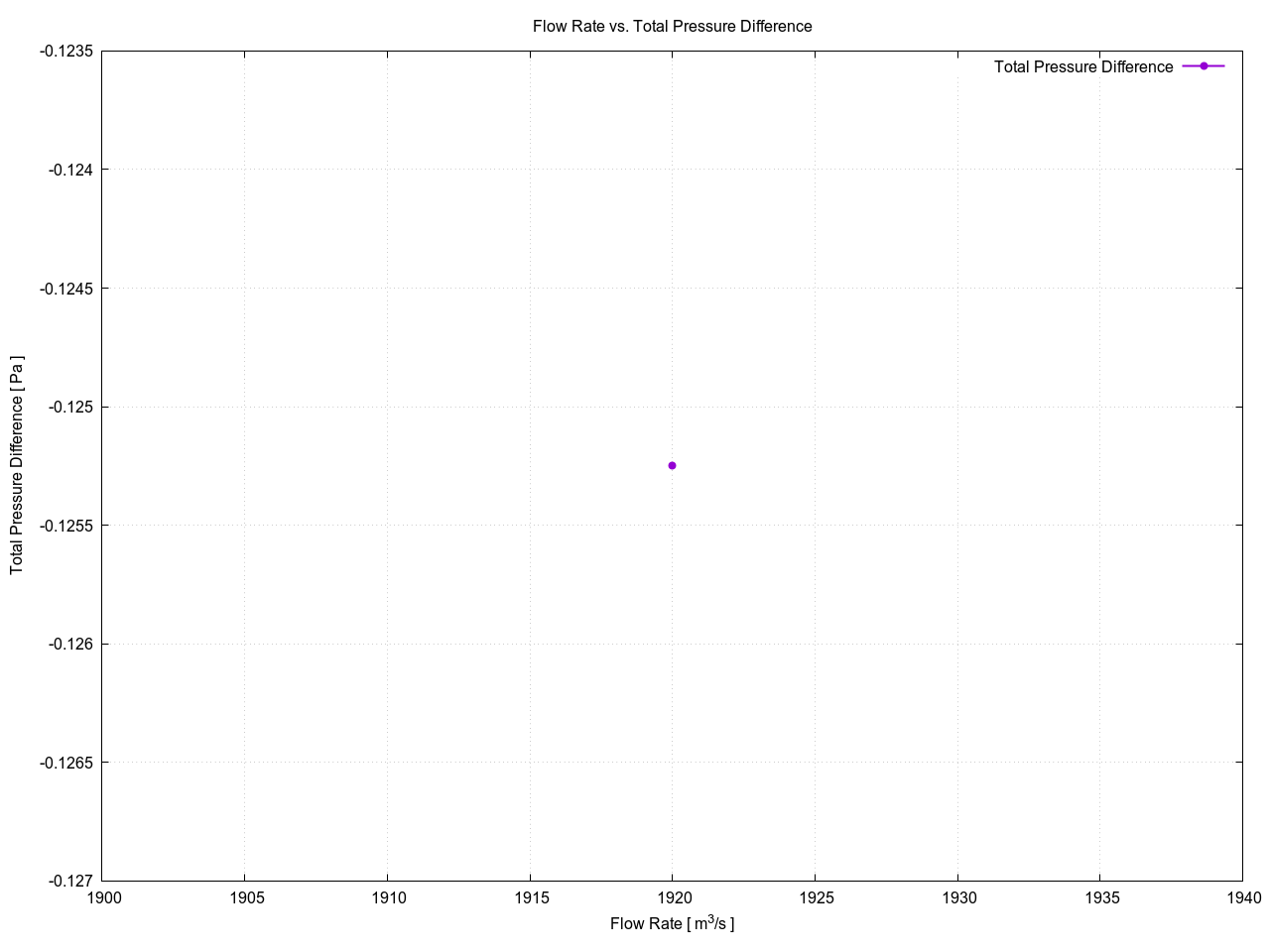

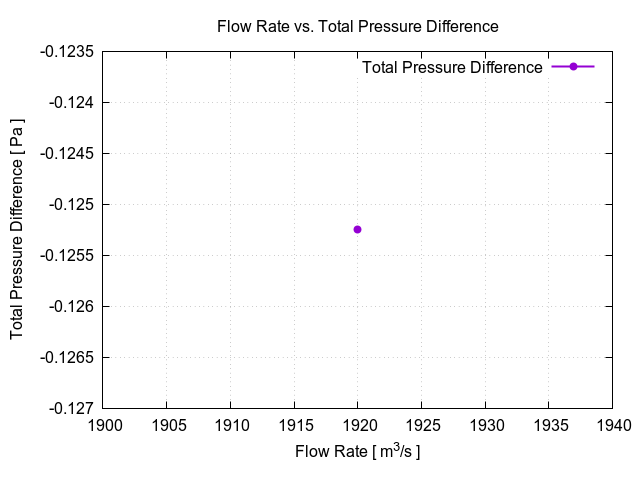

flowRateVsTotalPressureDifference 1
totalPressureDifference 1

Total Pressure per Interfaces

Point Nr.
Interface Name
Flow Rate [ m3/s ]
Total Pressure [ Pa ]
1
bounding-box-in
1920.00
101865.
1
bounding-box-out
1920.00
101865.

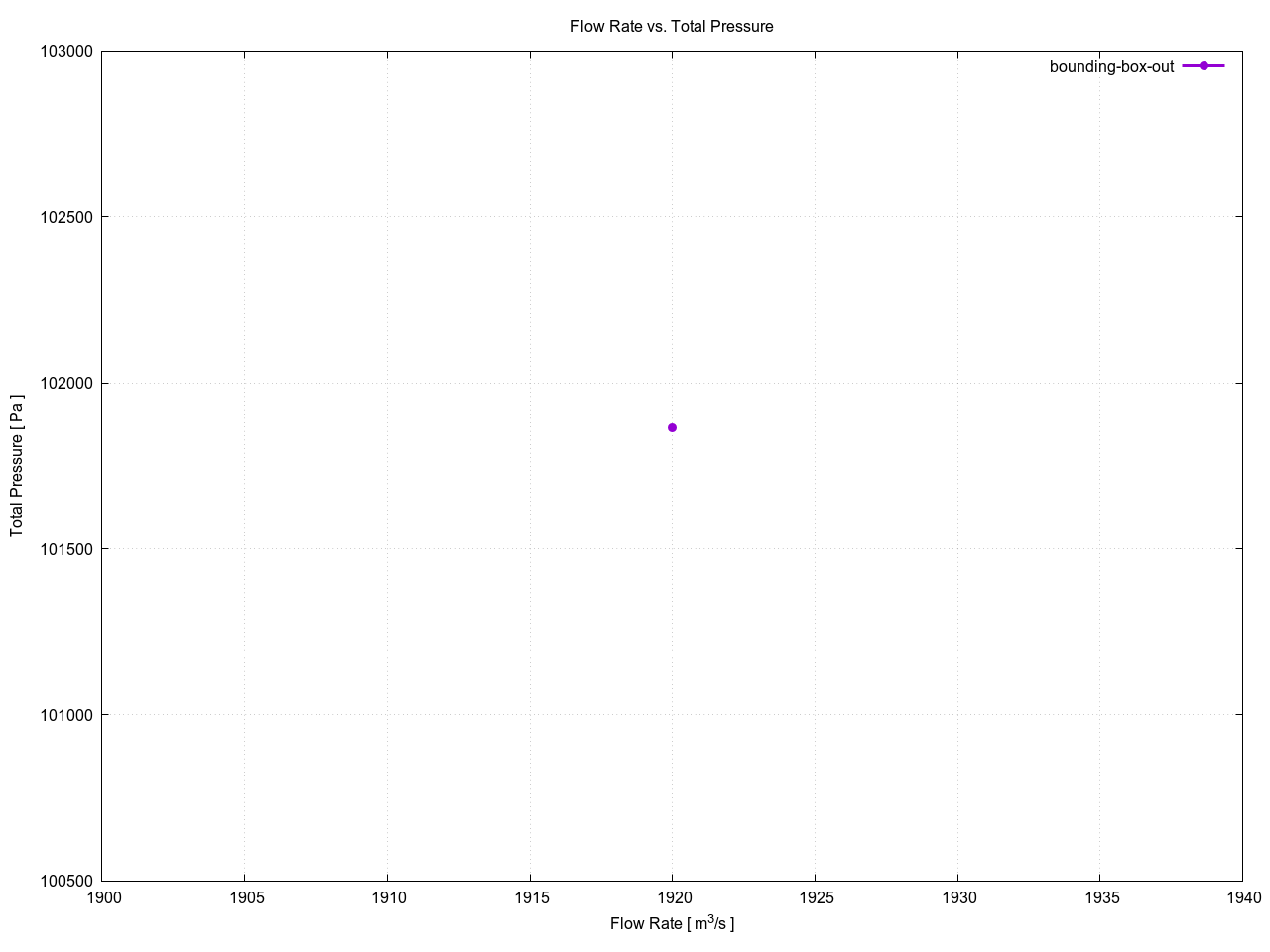

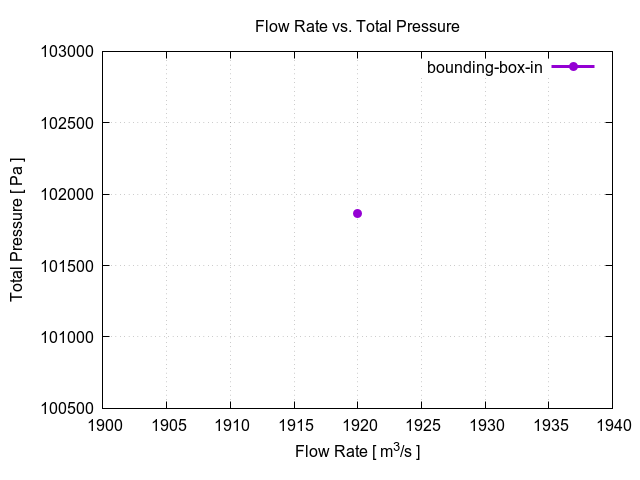

flowRateVsTotalPressurePerInterfaces bounding box in 1

flowRateVsTotalPressurePerInterfaces bounding box out 1

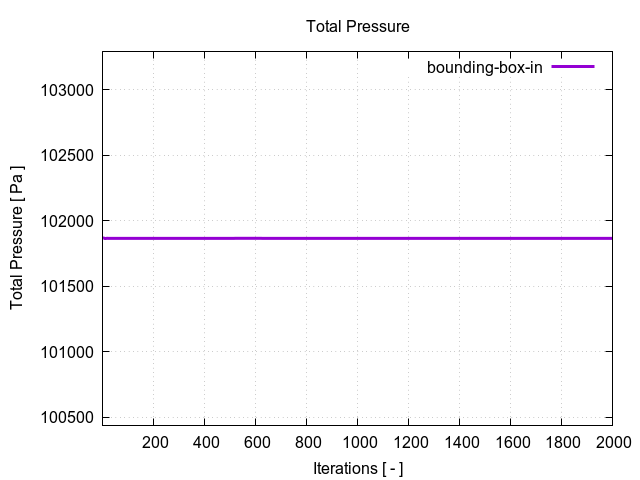

totalPressurePerInterfaces bounding box in 1

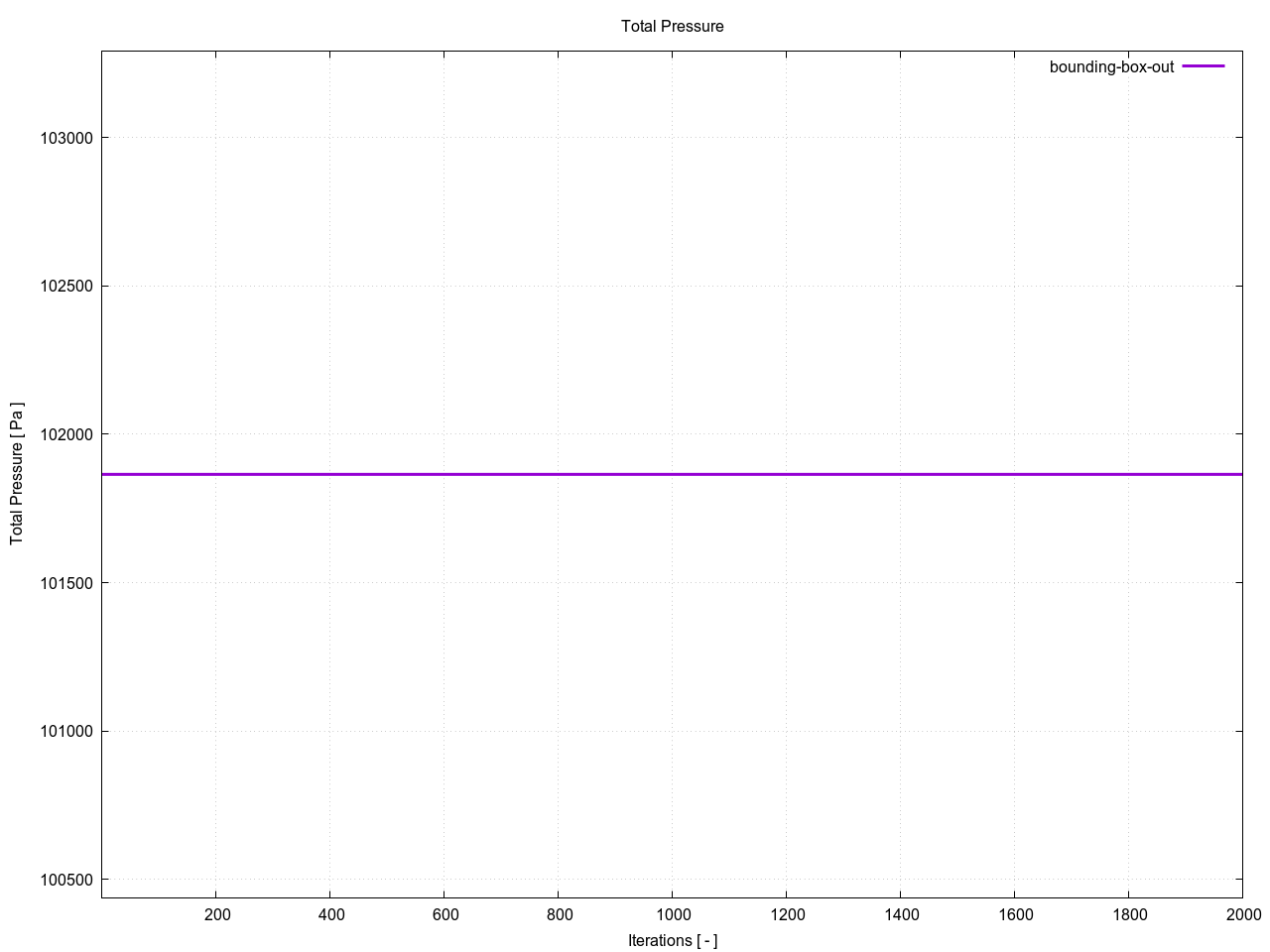

totalPressurePerInterfaces bounding box out 1

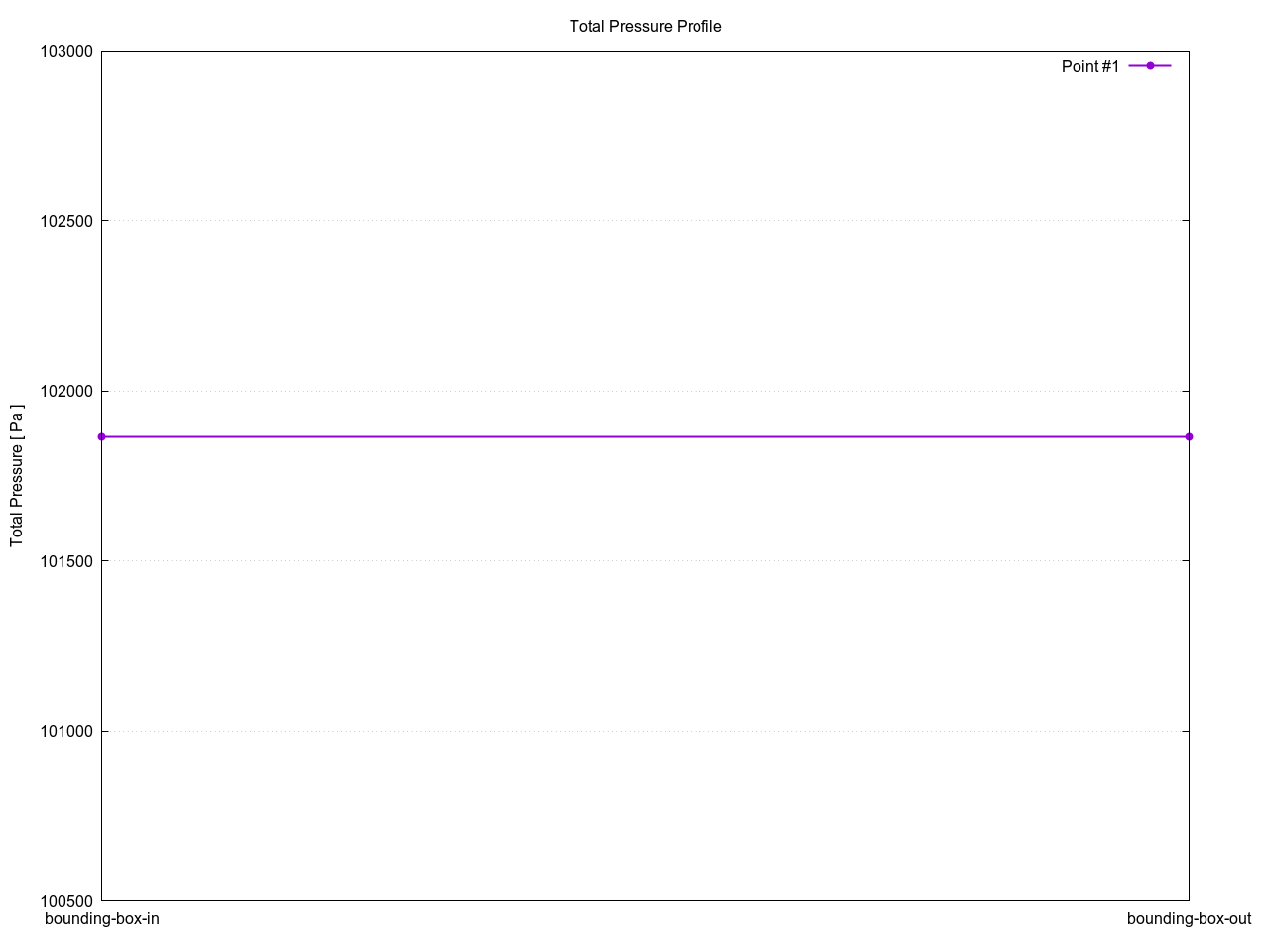

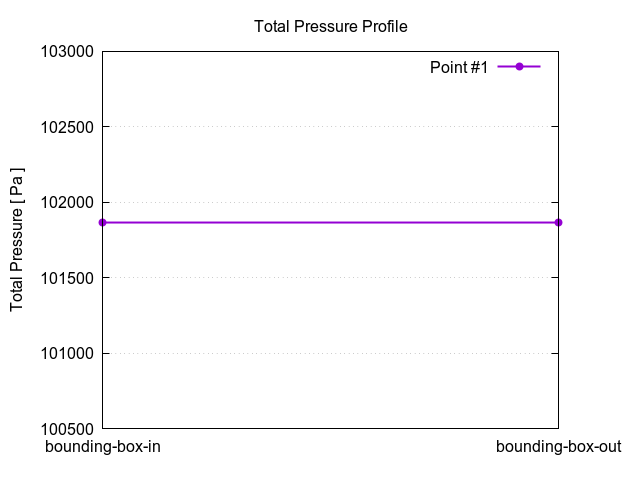

totalPressureProfile 1

Velocity Magnitude per Interfaces

Point Nr.
Interface Name
Flow Rate [ m3/s ]
Velocity Magnitude [ m/s ]
1
bounding-box-in
1920.00
30.0000
1
bounding-box-out
1920.00
30.0001

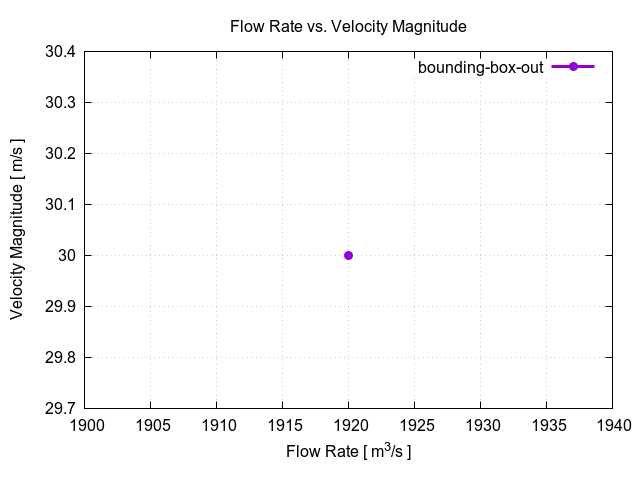

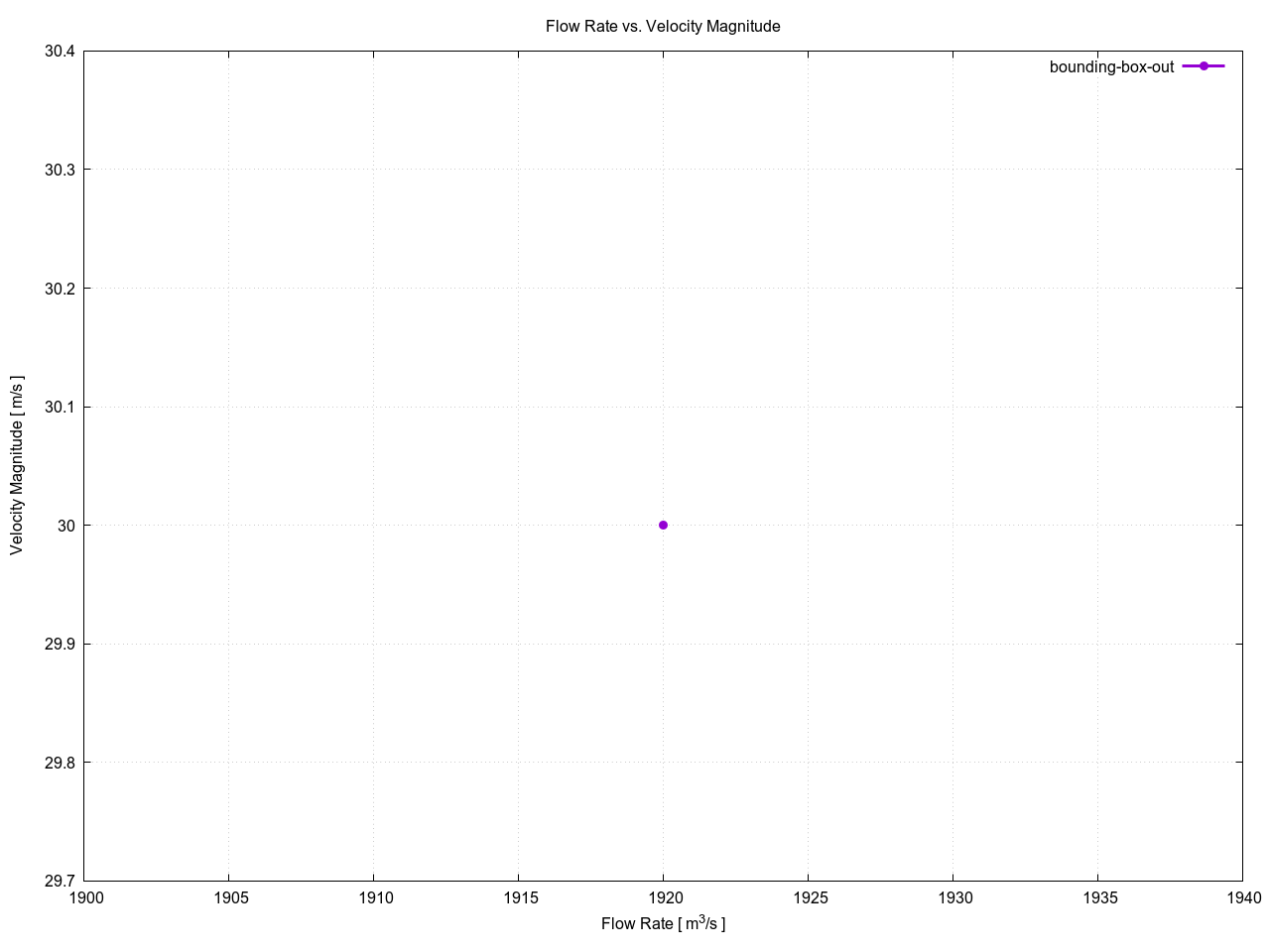

flowRateVsVelocityMagnitudePerInterfaces bounding box in 1

flowRateVsVelocityMagnitudePerInterfaces bounding box out 1

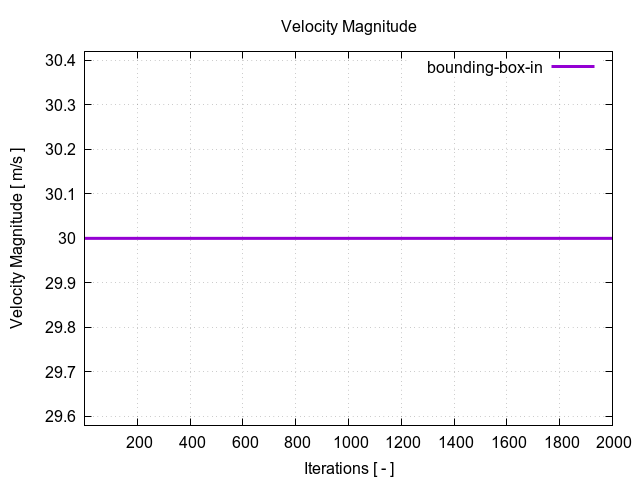

velocityMagnitudePerInterfaces bounding box in 1

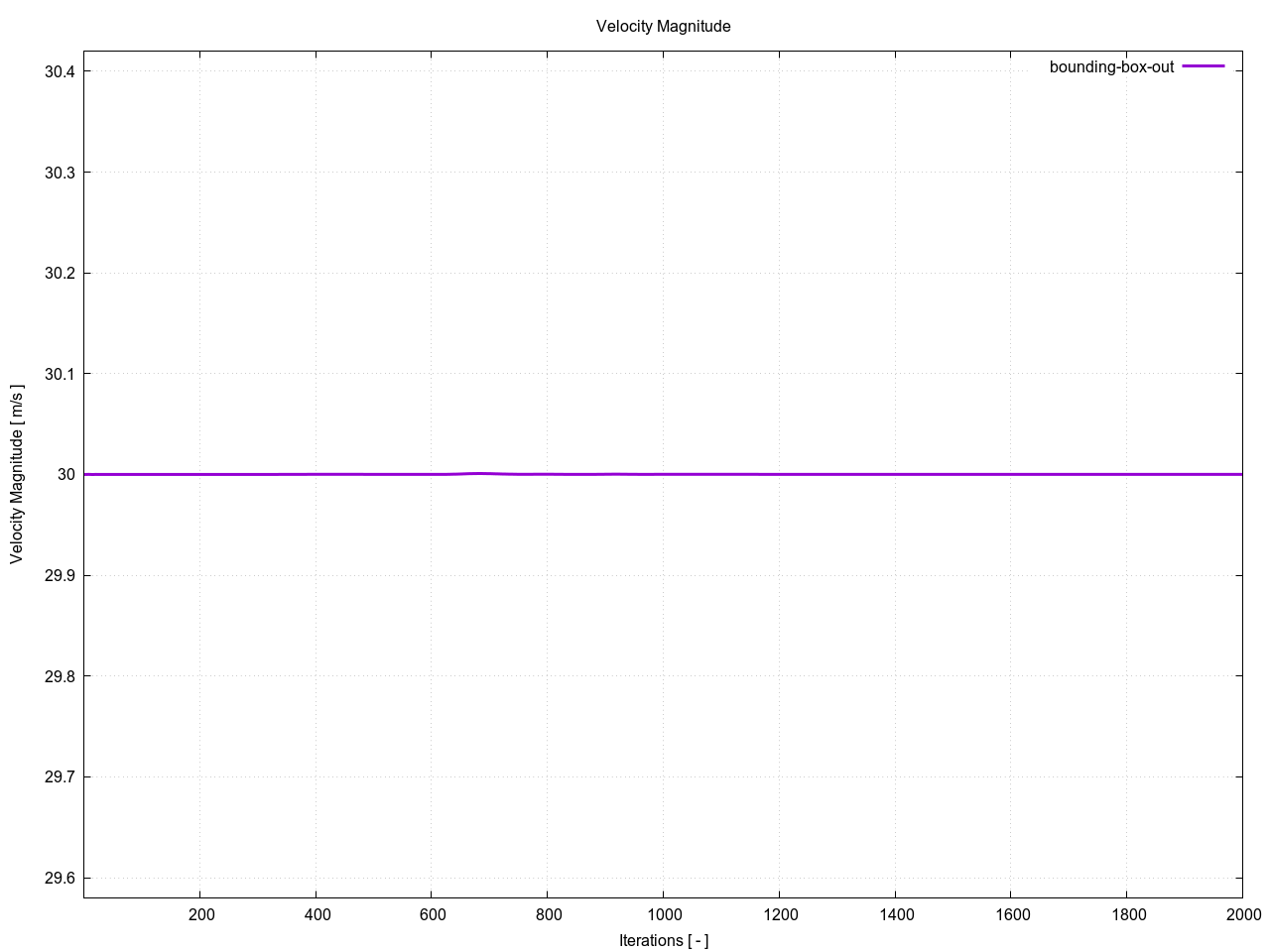

velocityMagnitudePerInterfaces bounding box out 1

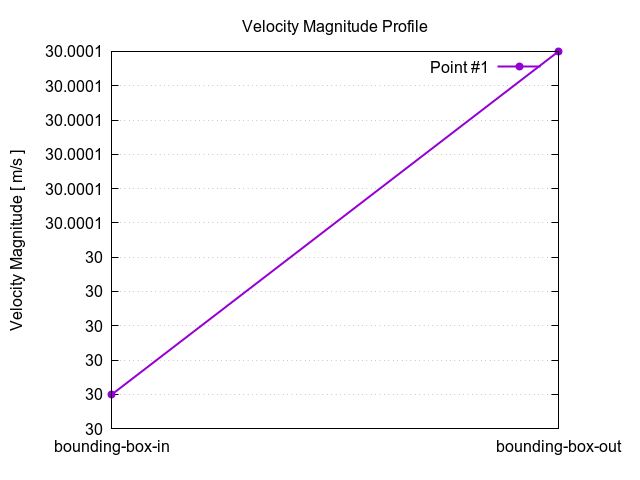

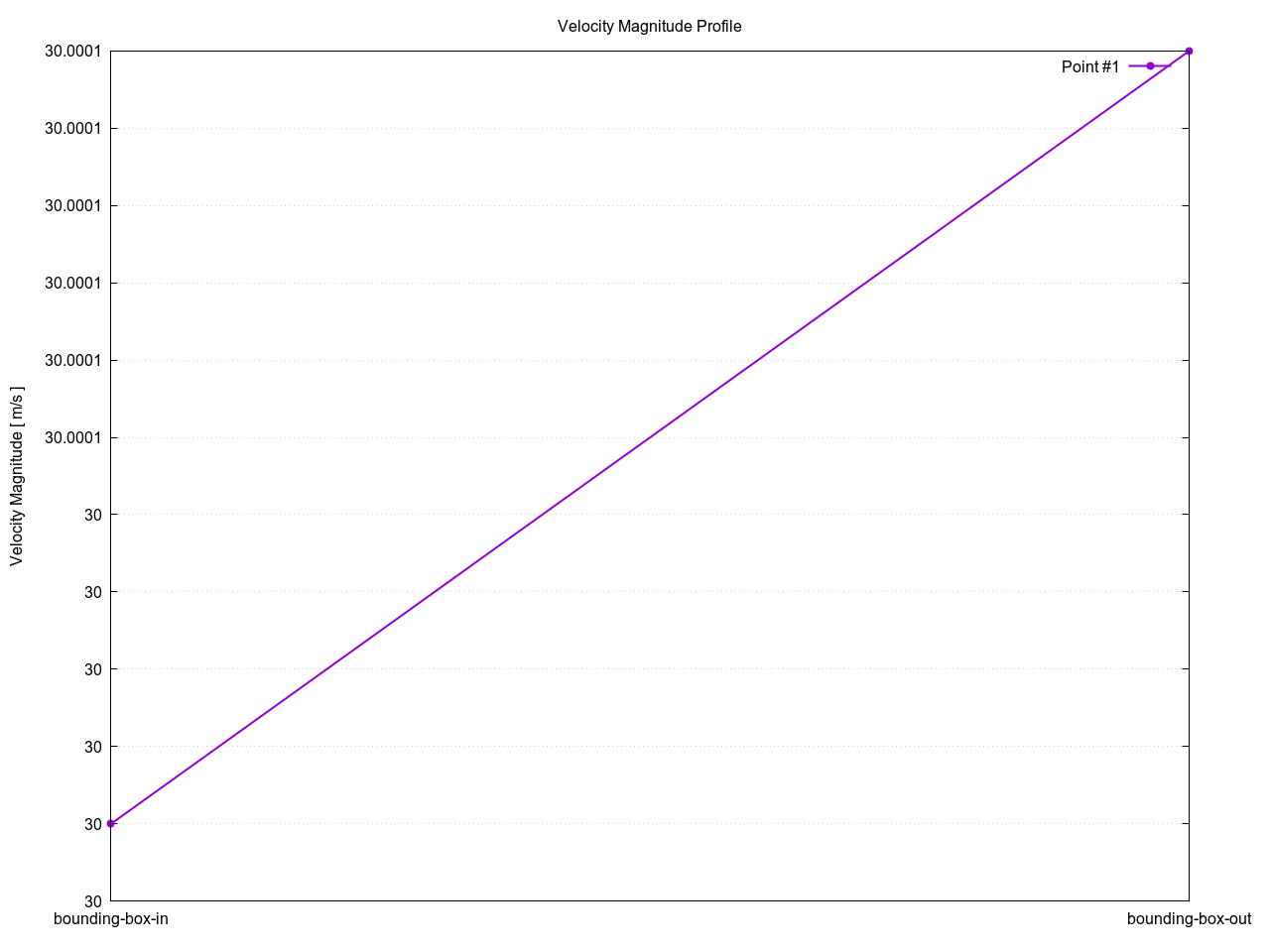

velocityMagnitudeProfile 1
