Hi, this is steady-state CFD simulation report of:

Ahmed-NewArea-ObeNozky

Created by TCFD® 19.10 on Sat Jan 18 18:27:11 2020

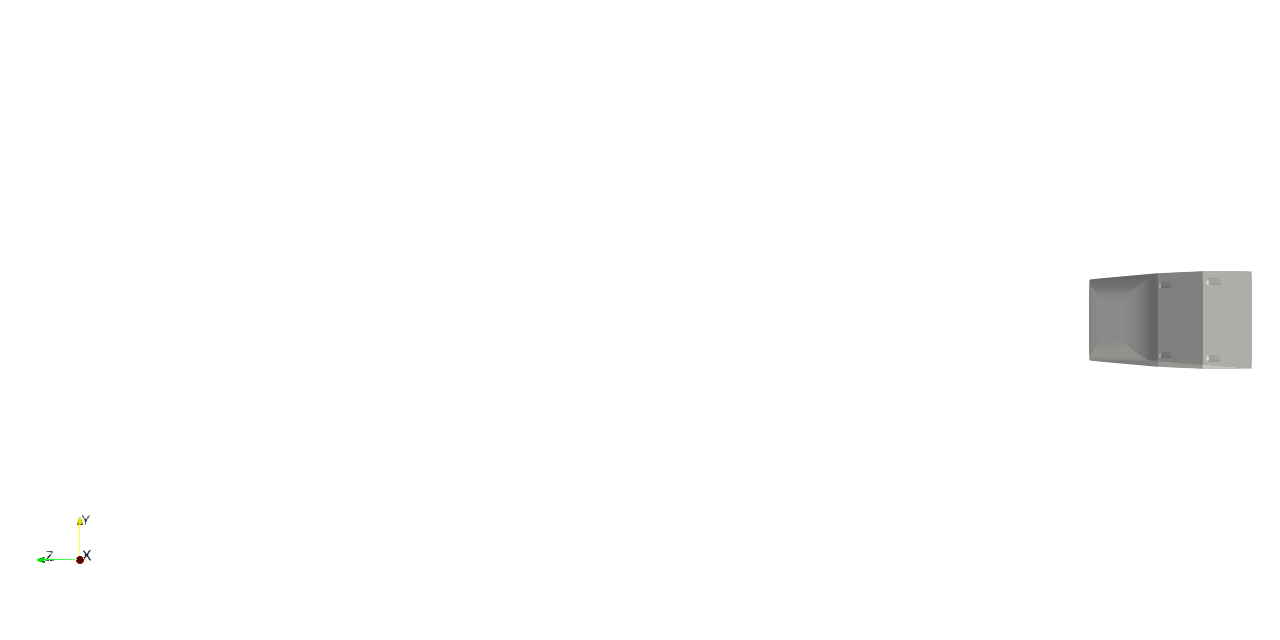

screenshot 4
DISCOVER

Simulation Stats
Test Case Name
Ahmed-NewArea-ObeNozky
Number of Points [ – ]
1
Machine Type
virtualTunnel
Rotation Speed [ RPM ]
0
Number of Components [ – ]

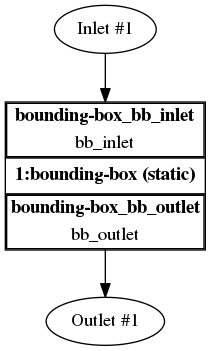

( Topology )
1
Mesh Size [ cells ]
( detail )
bounding-box : 20302536
Total : 20302536
Average y+ at walls [ – ]
( detail )
Wall-clock time [ hh:mm:ss ]
122:26:43
Parallel Processors [ – ]
6
Fluid Name
air
Physical Model
incompressible
Equation of state
Numerical order
second
Turbulence model
kOmegaSST

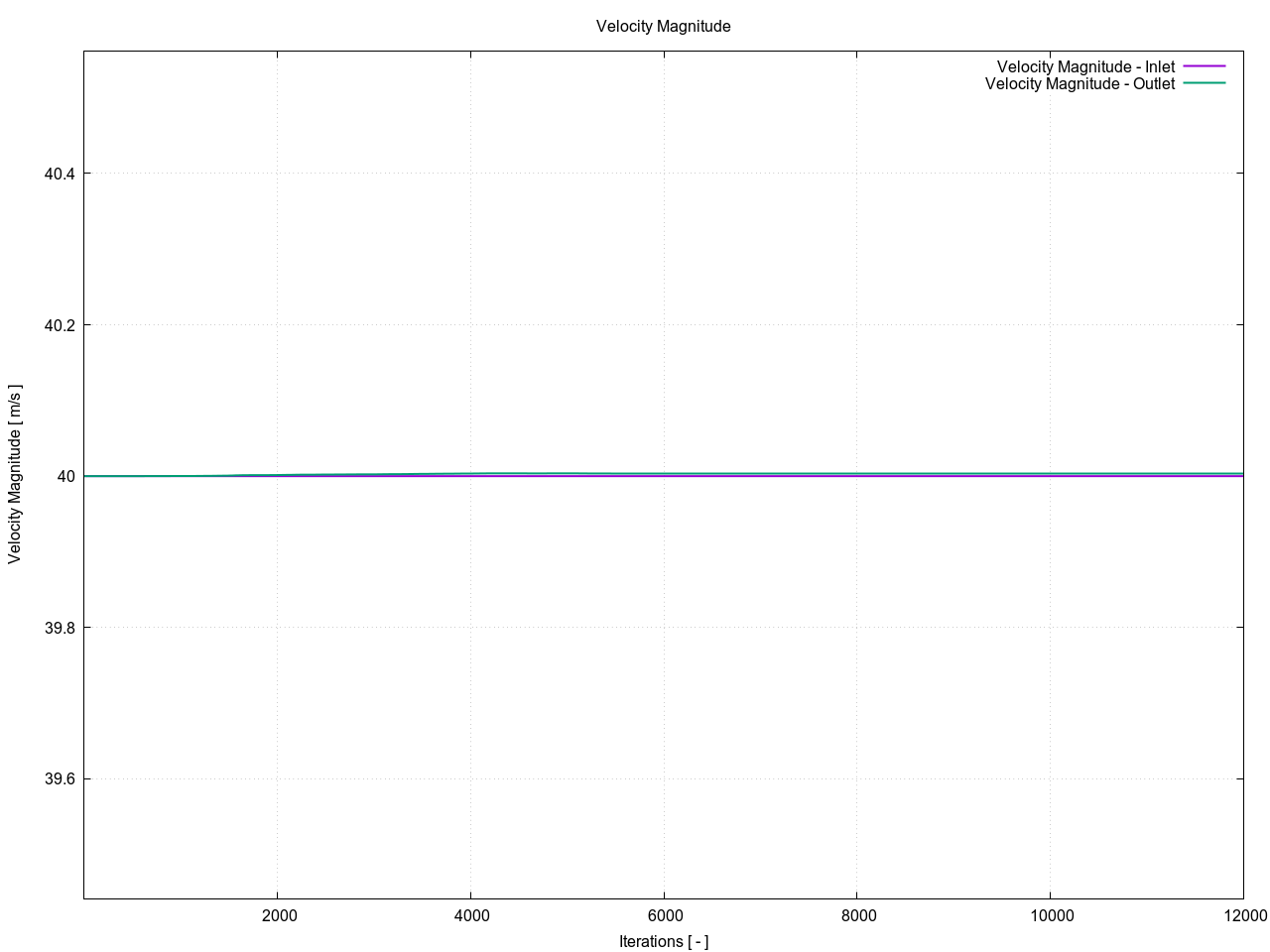

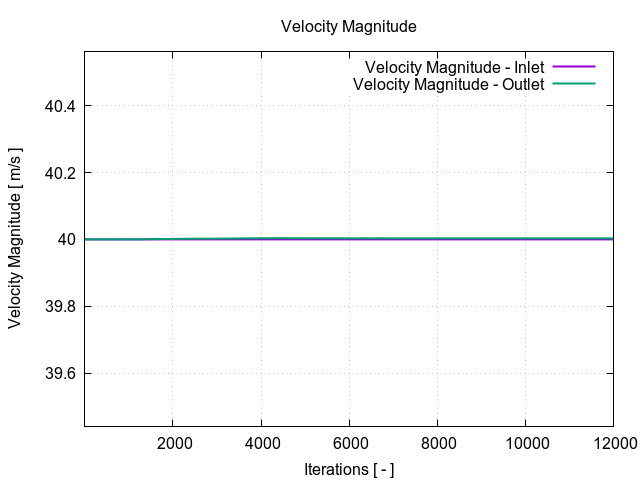

plotFlowRate 1 3

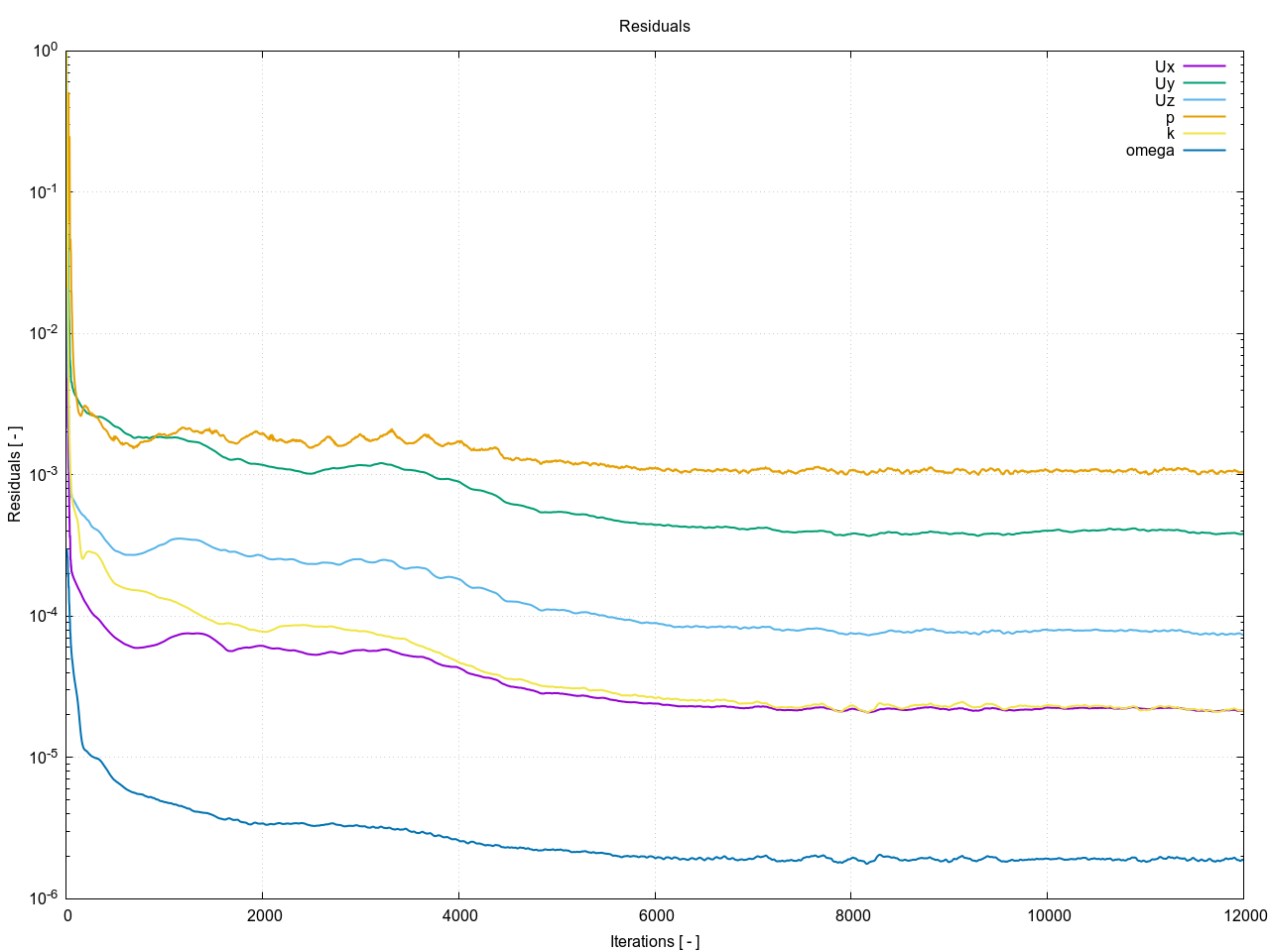

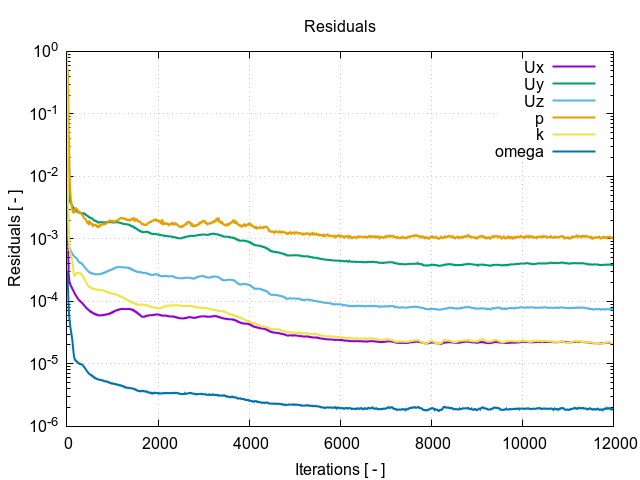

residuum 1 4

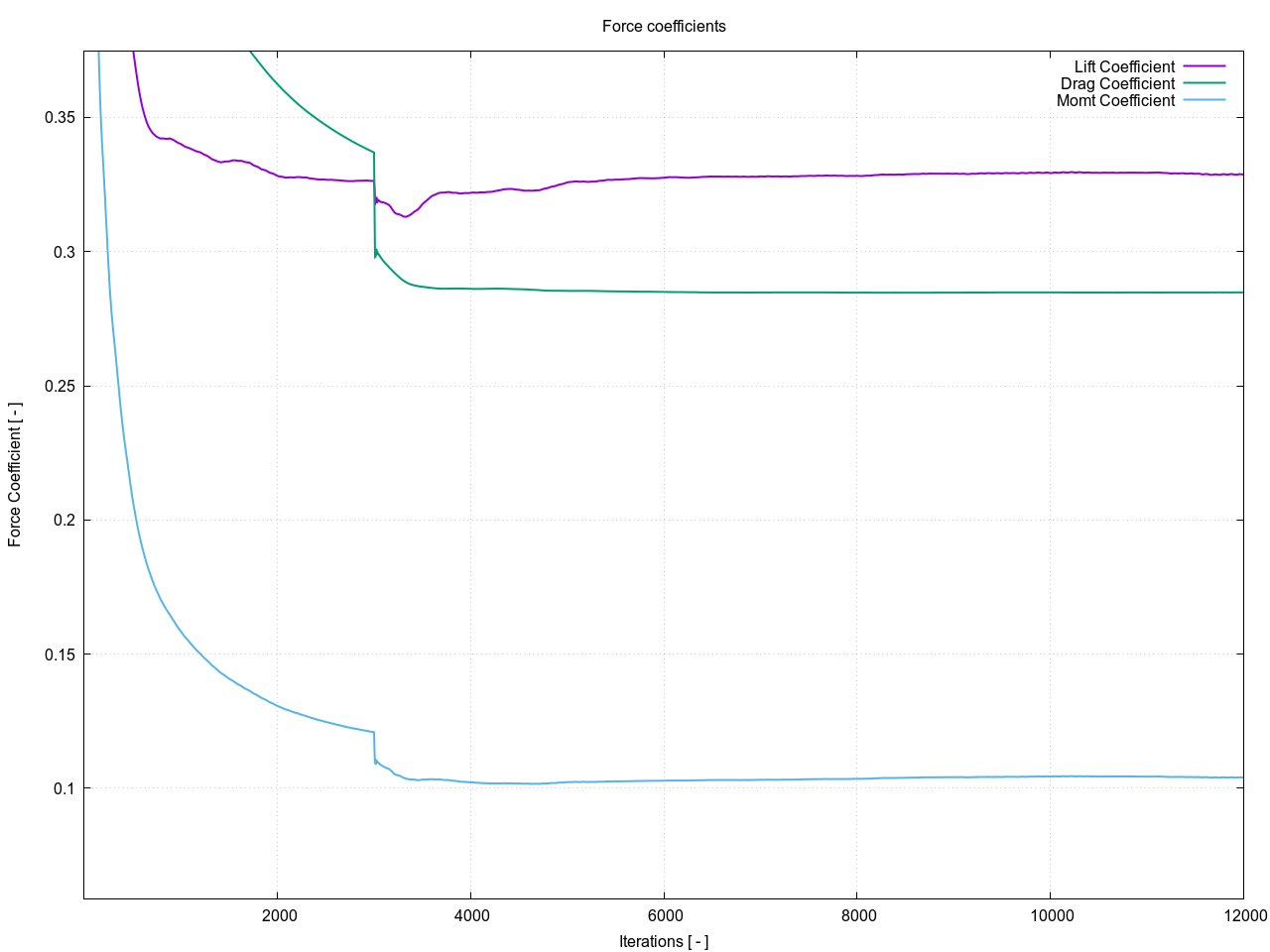

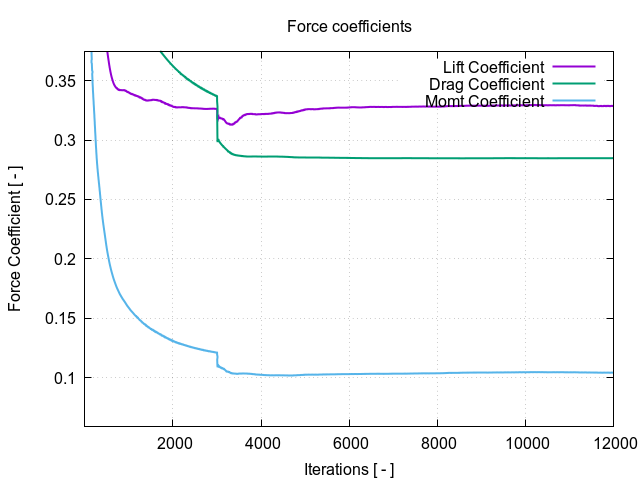

Force Coefficients

#1: 1:Ahmed-body-25
Setup Nr.
Point Nr.
Lift Coeff [ – ]
Drag Coeff [ – ]
Moment Coeff [ – ]
1
1
0.328695
0.284808
0.104016

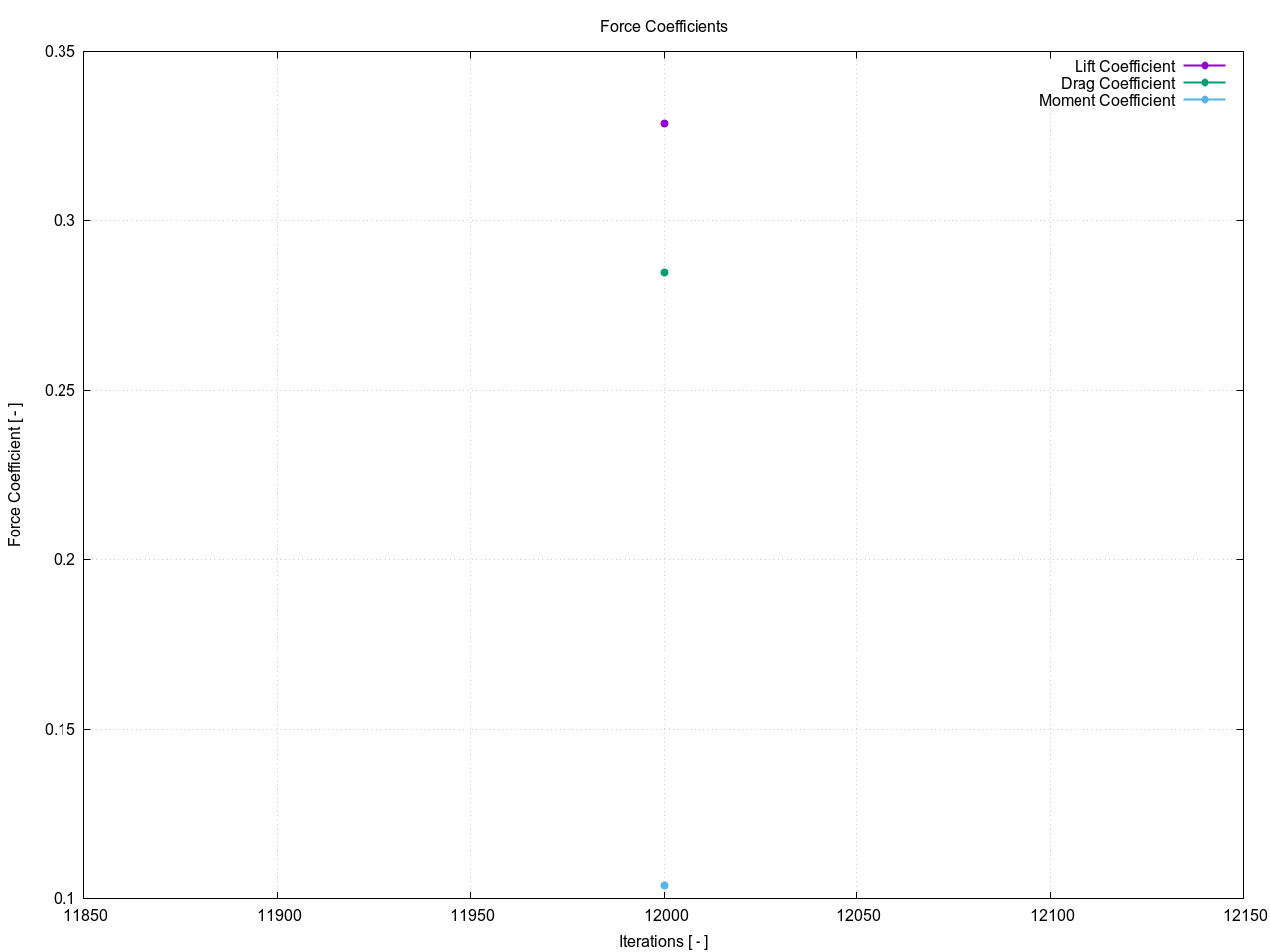

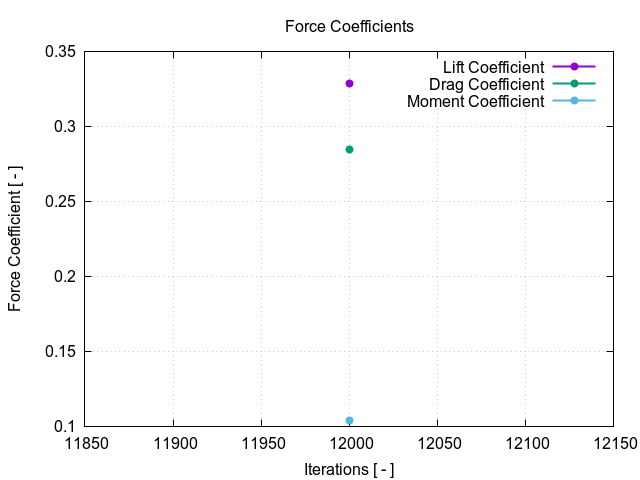

flowRateVsForceCoeffs 1 1
forceCoeffs 1 1

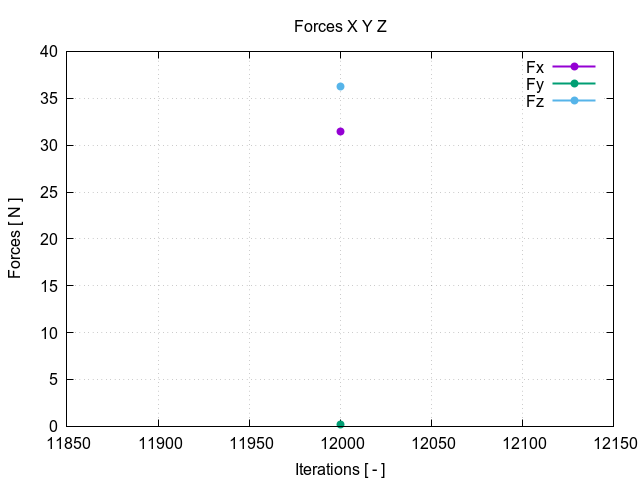

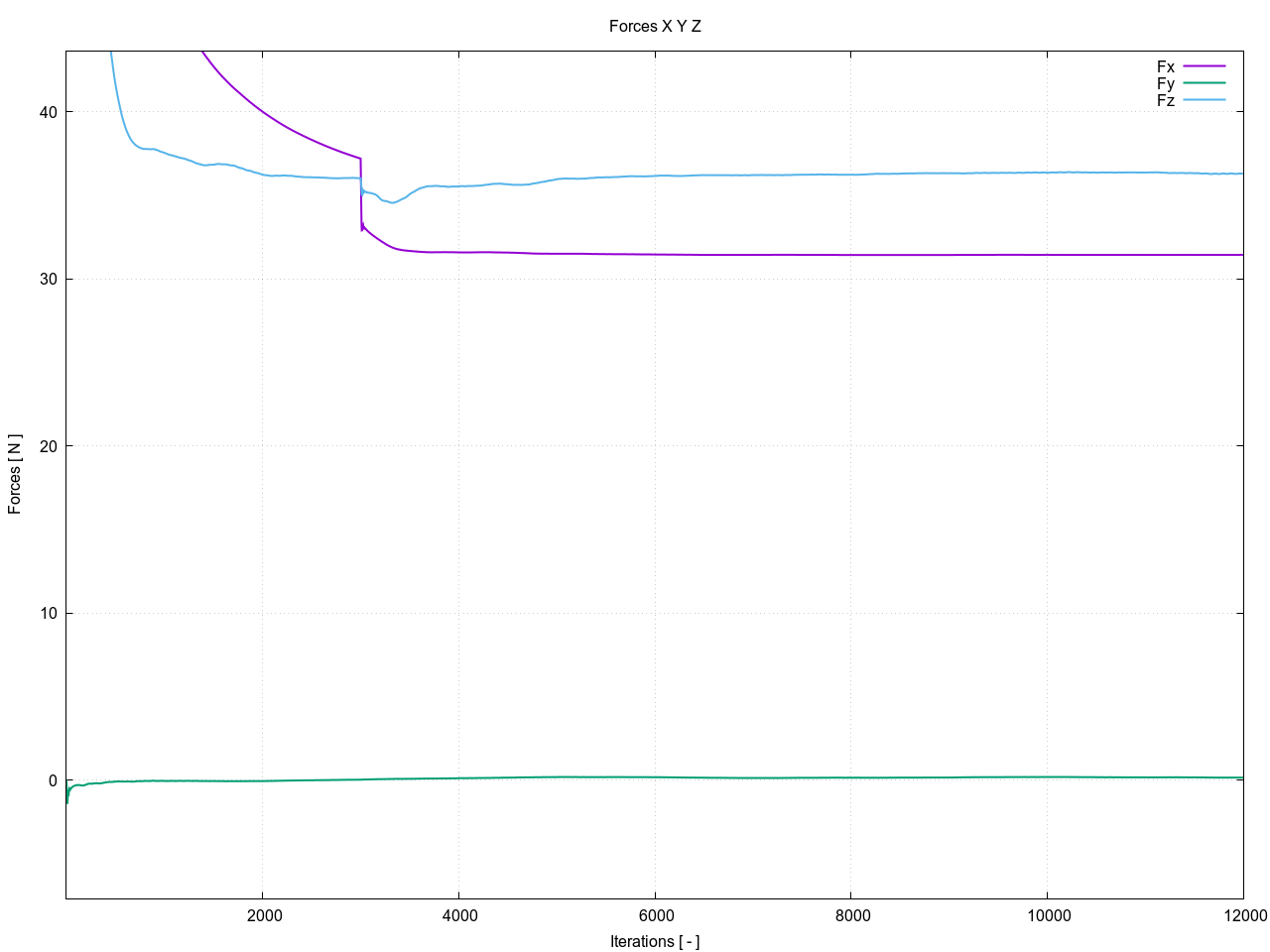

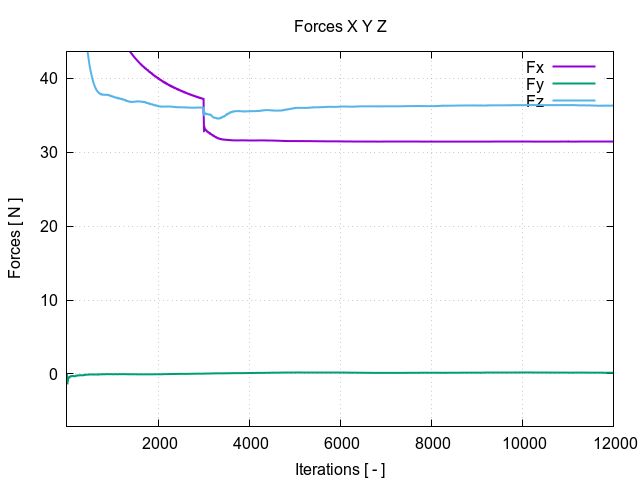

Forces X Y Z

#1: 1:Ahmed-body-25
Setup Nr.
Point Nr.
Fx [ N ]
Fy [ N ]
Fz [ N ]
1
1
31.4515
0.160773
36.2980
flowRateVsForces 1 1
forces 1 1

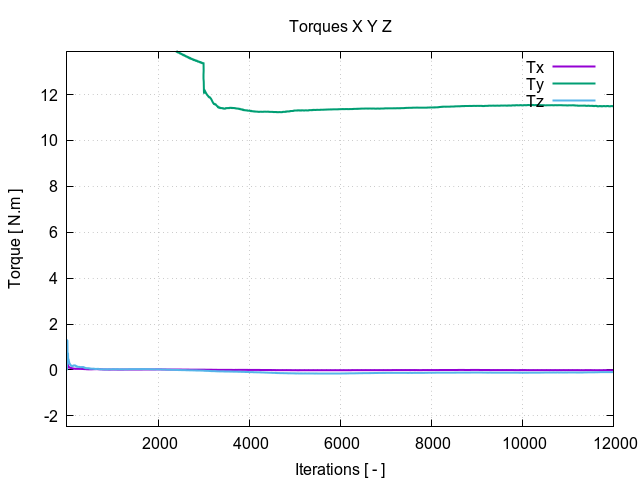

Torques X Y Z

#1: 1:Ahmed-body-25
Setup Nr.
Point Nr.
Tx [ N.m ]
Ty [ N.m ]
Tz [ N.m ]
1
1
-0.0120107
11.4866
-0.0948542

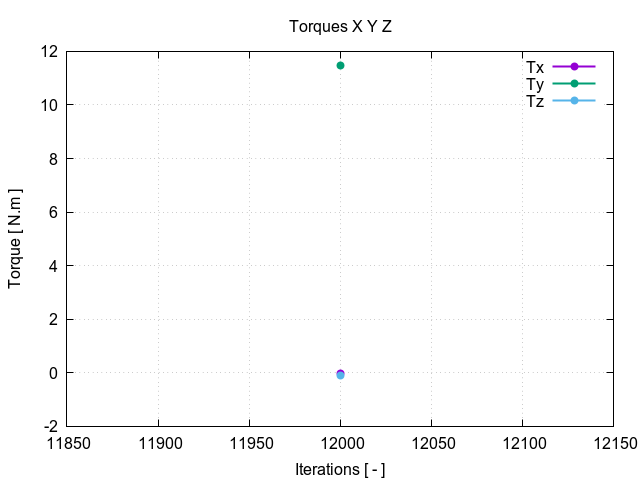

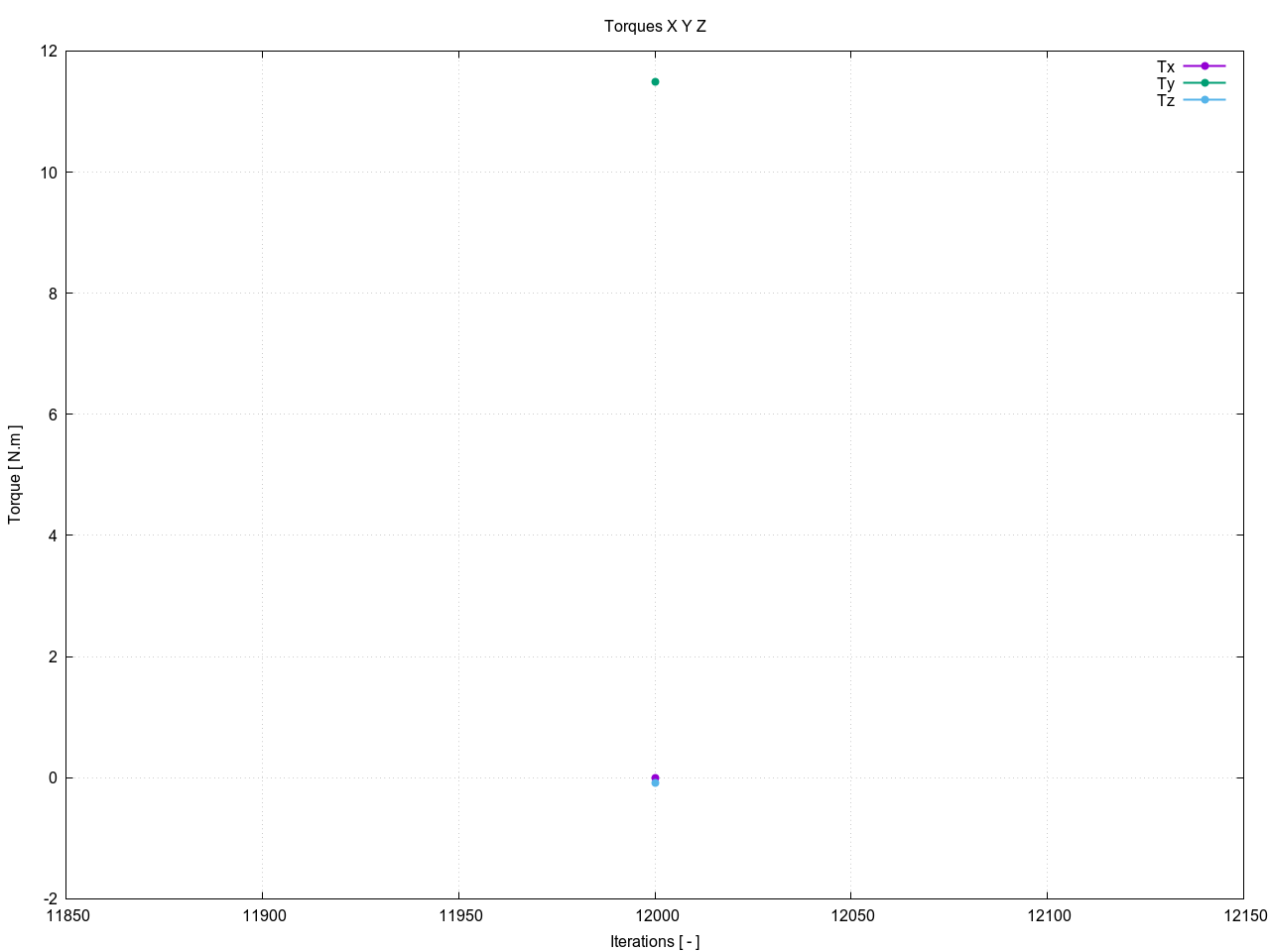

flowRateVsMoments 1 1

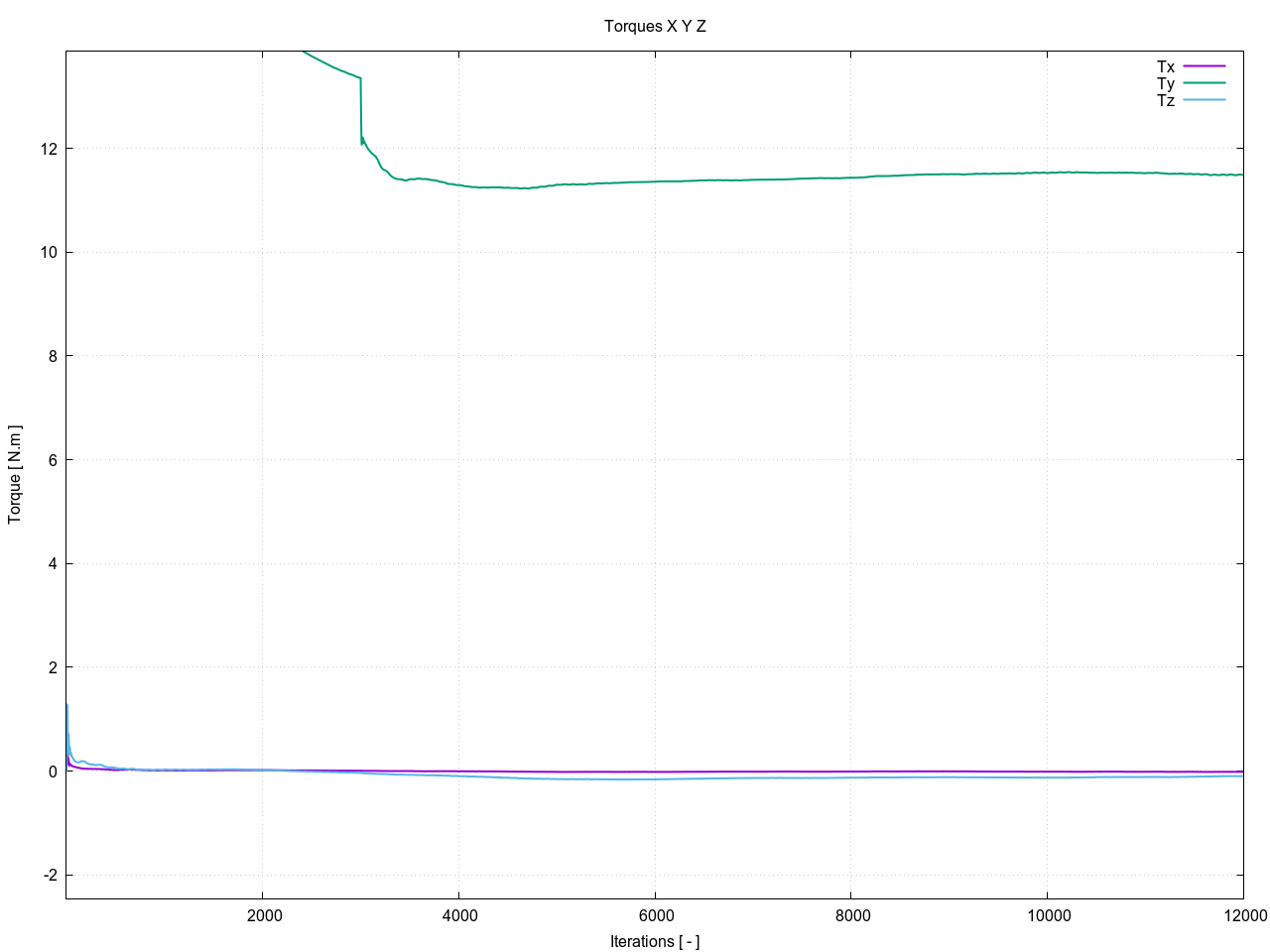

moments 1 2

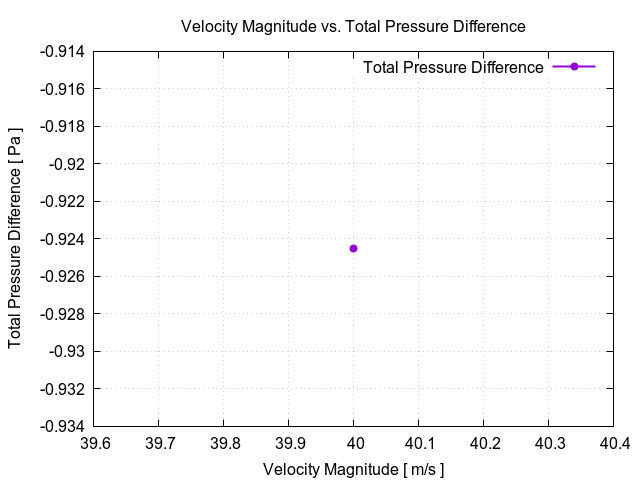

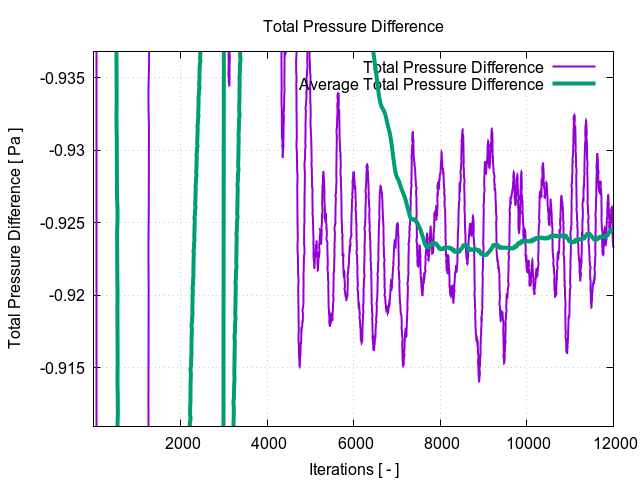

Total Pressure Difference

1:bb_inlet — 1:bb_outlet
Point Nr.
Velocity Magnitude [ m/s ]
Total Pressure Difference [ Pa ]
1
40.0000
-0.924534

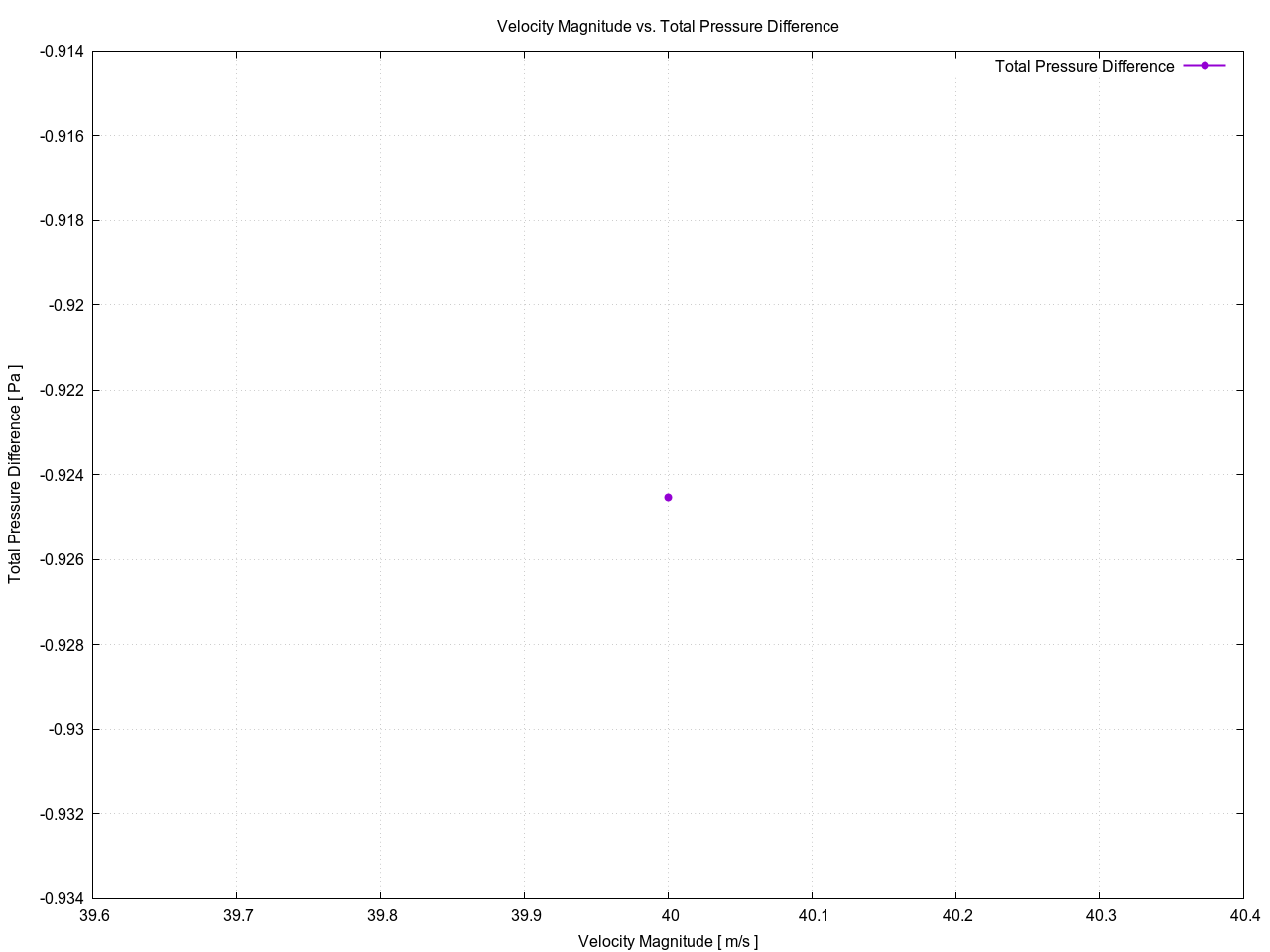

flowRateVsTotalPressureDifference 1 2

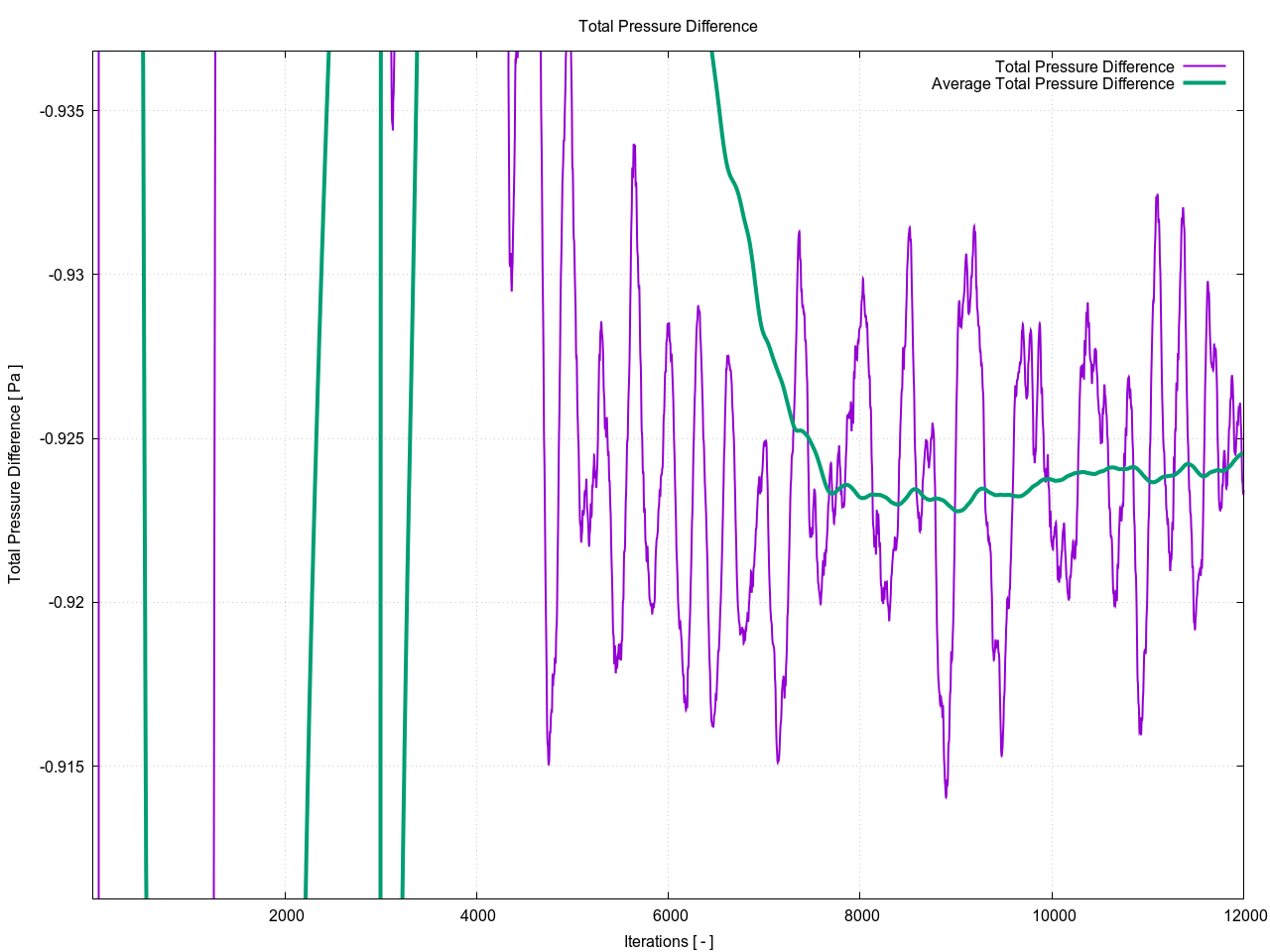

totalPressureDifference 1 2

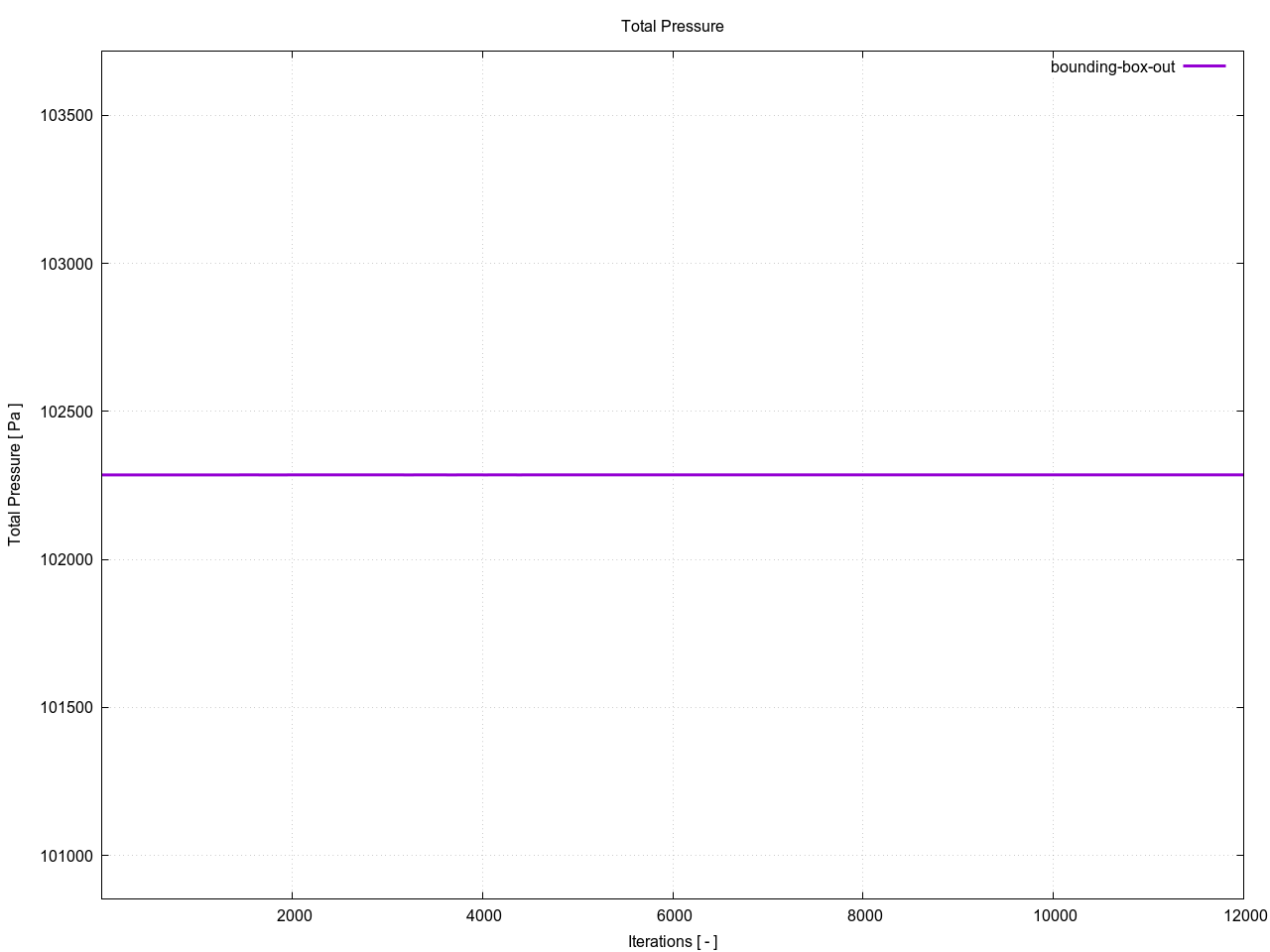

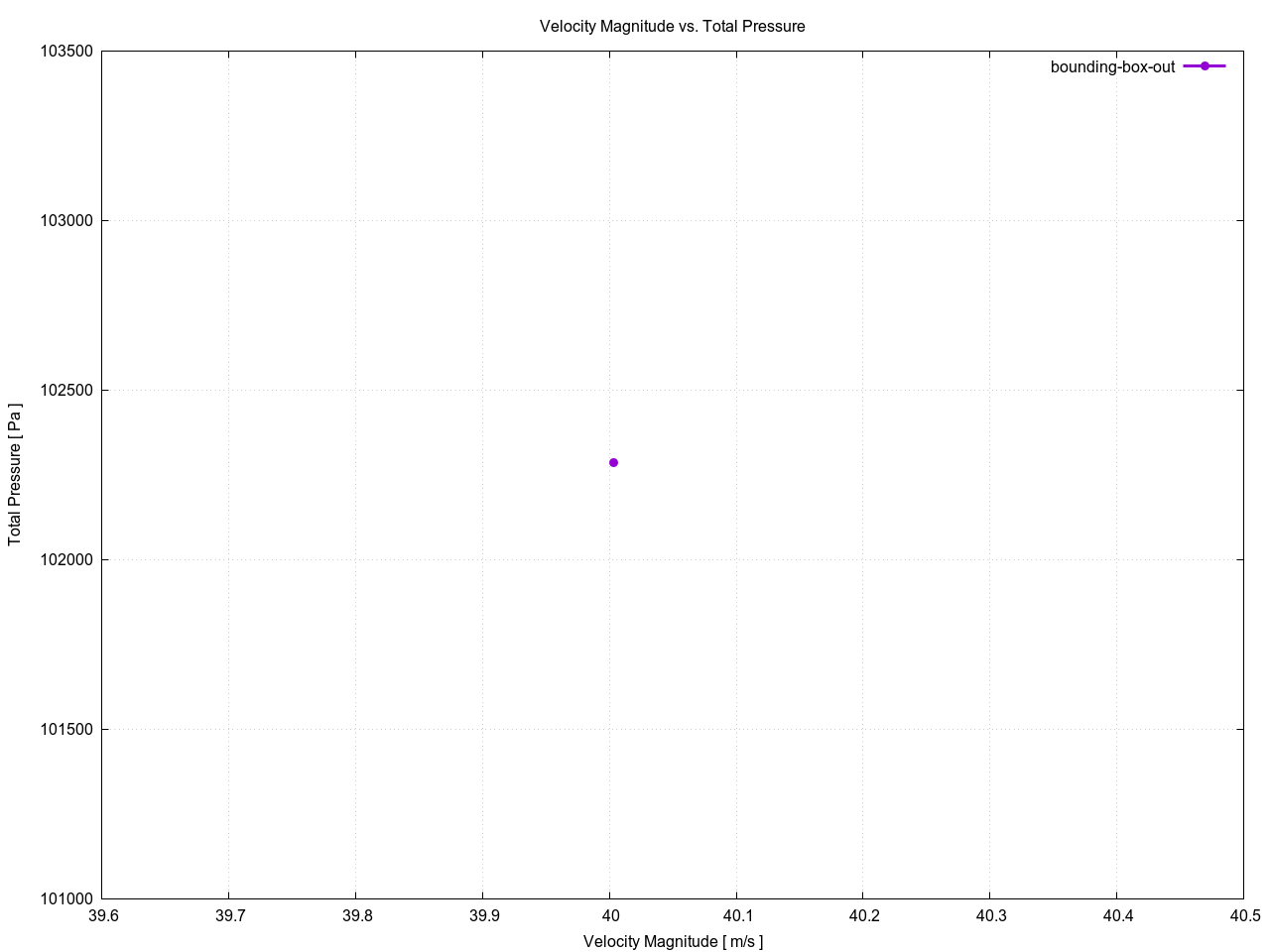

Total Pressure per Interfaces

Point Nr.
Interface Name
Velocity Magnitude [ m/s ]
Total Pressure [ Pa ]
1
bounding-box-in
40.0000
102286.
1
bounding-box-out
40.0029
102285.

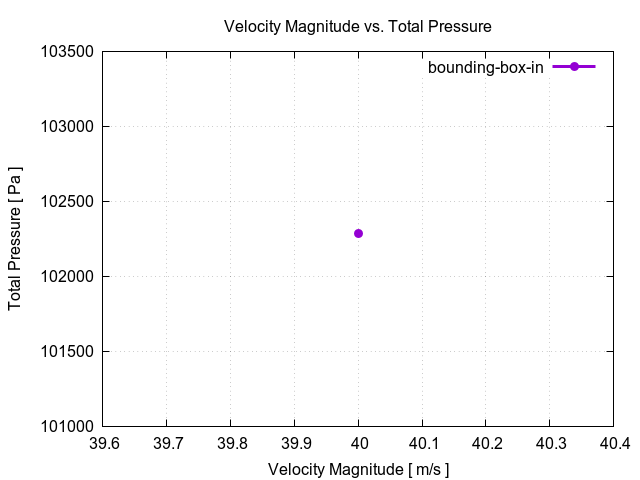

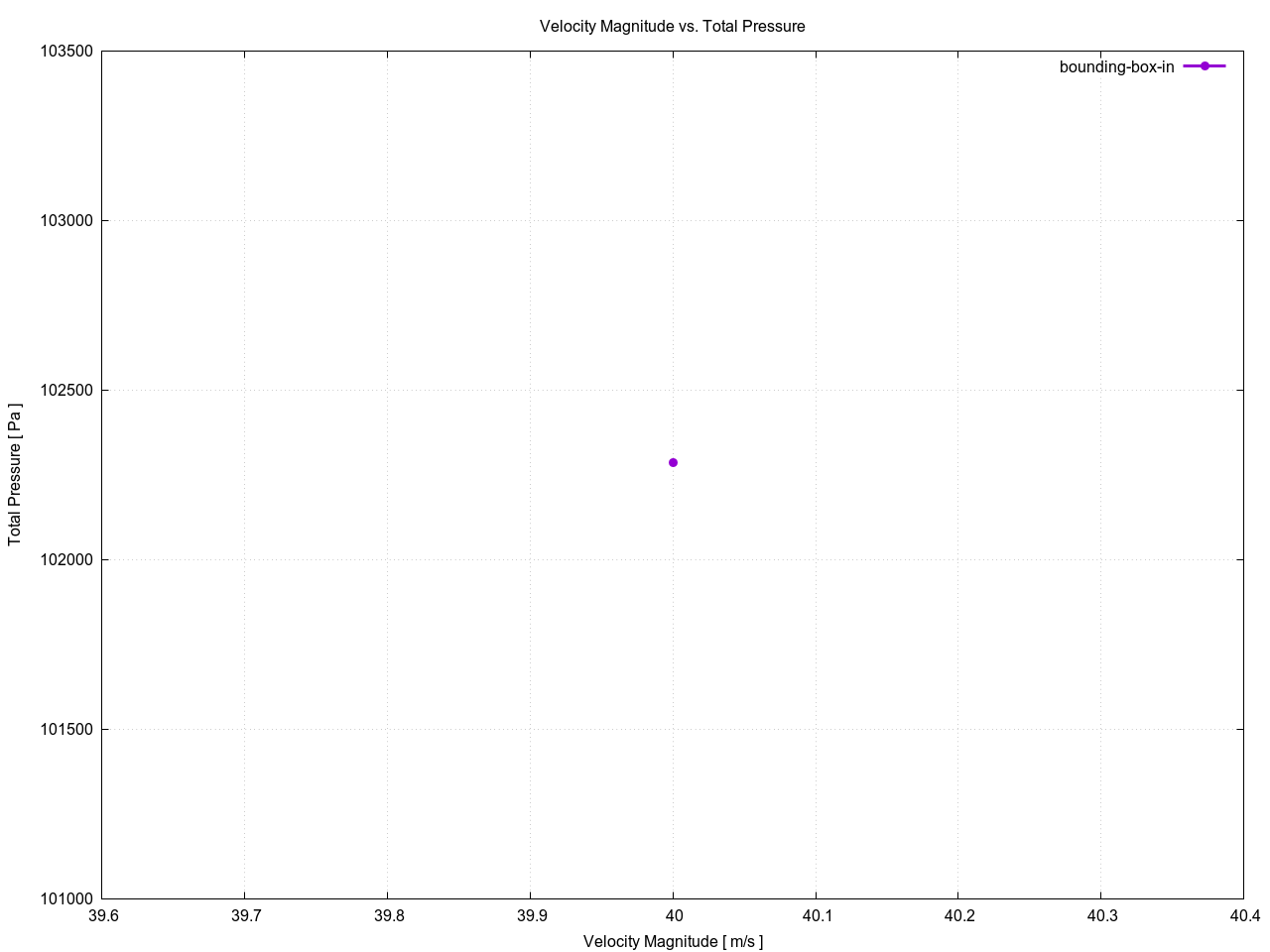

flowRateVsTotalPressurePerInterfaces bounding box in 1 1

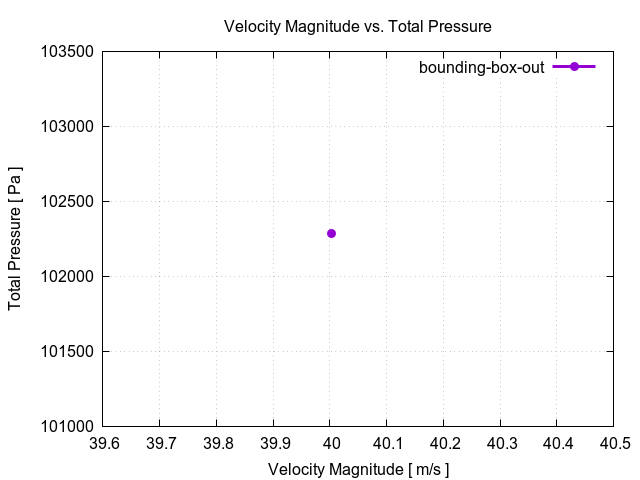

flowRateVsTotalPressurePerInterfaces bounding box out 1 1

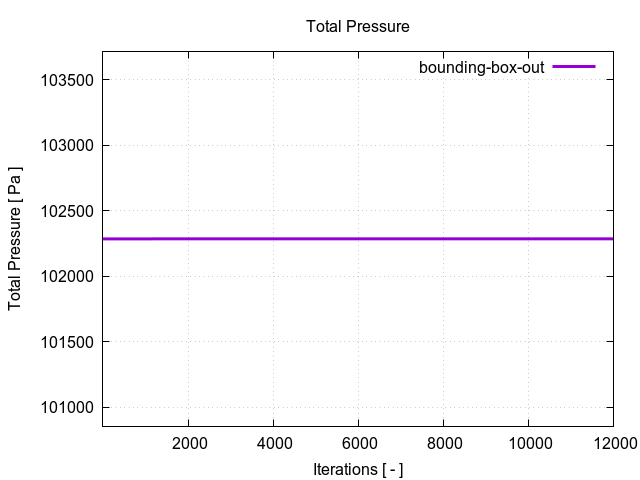

totalPressurePerInterfaces bounding box out 1 1

totalPressurePerInterfaces bounding box out 1 1

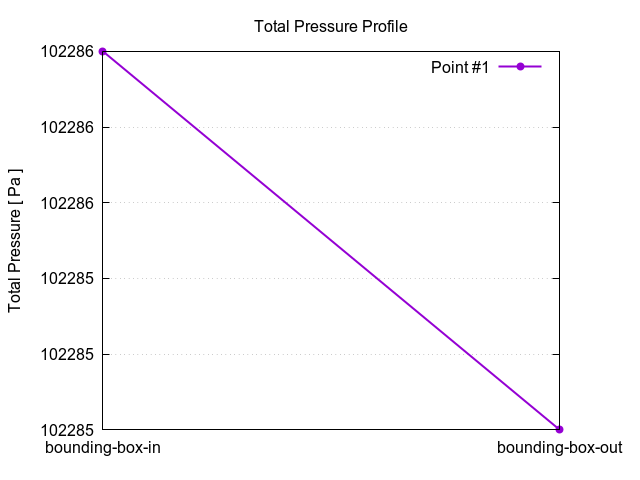

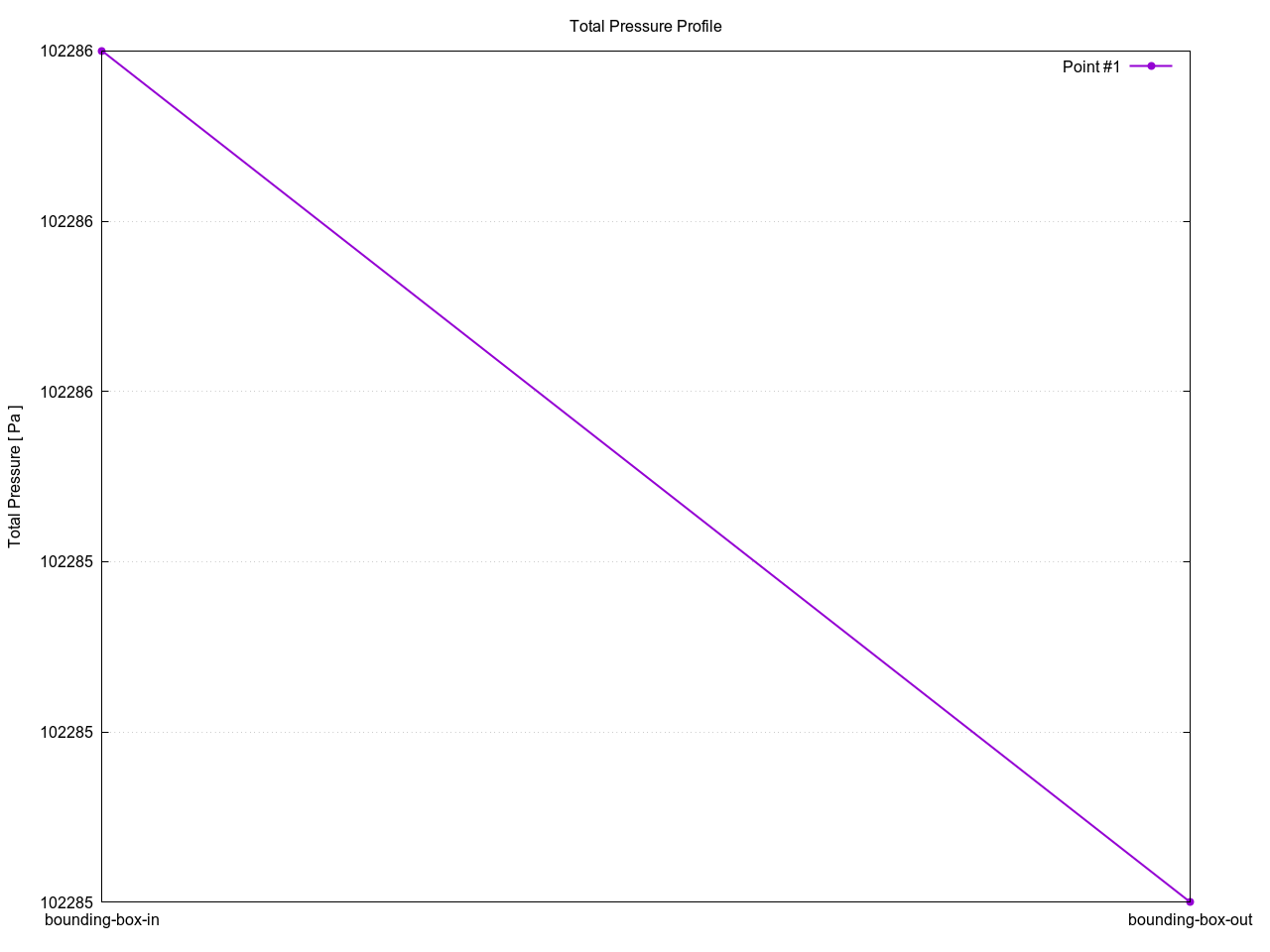

totalPressureProfile 1 3

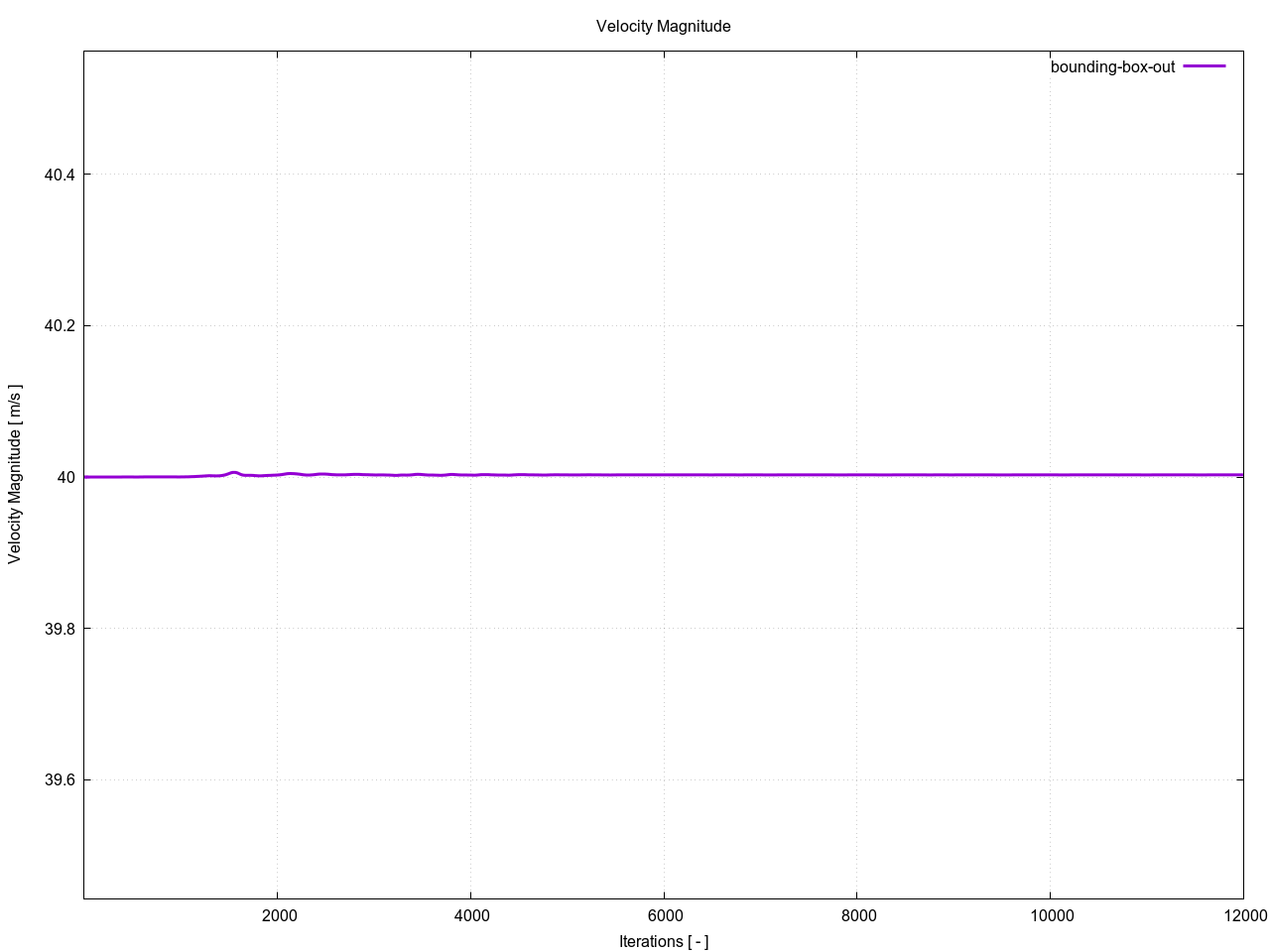

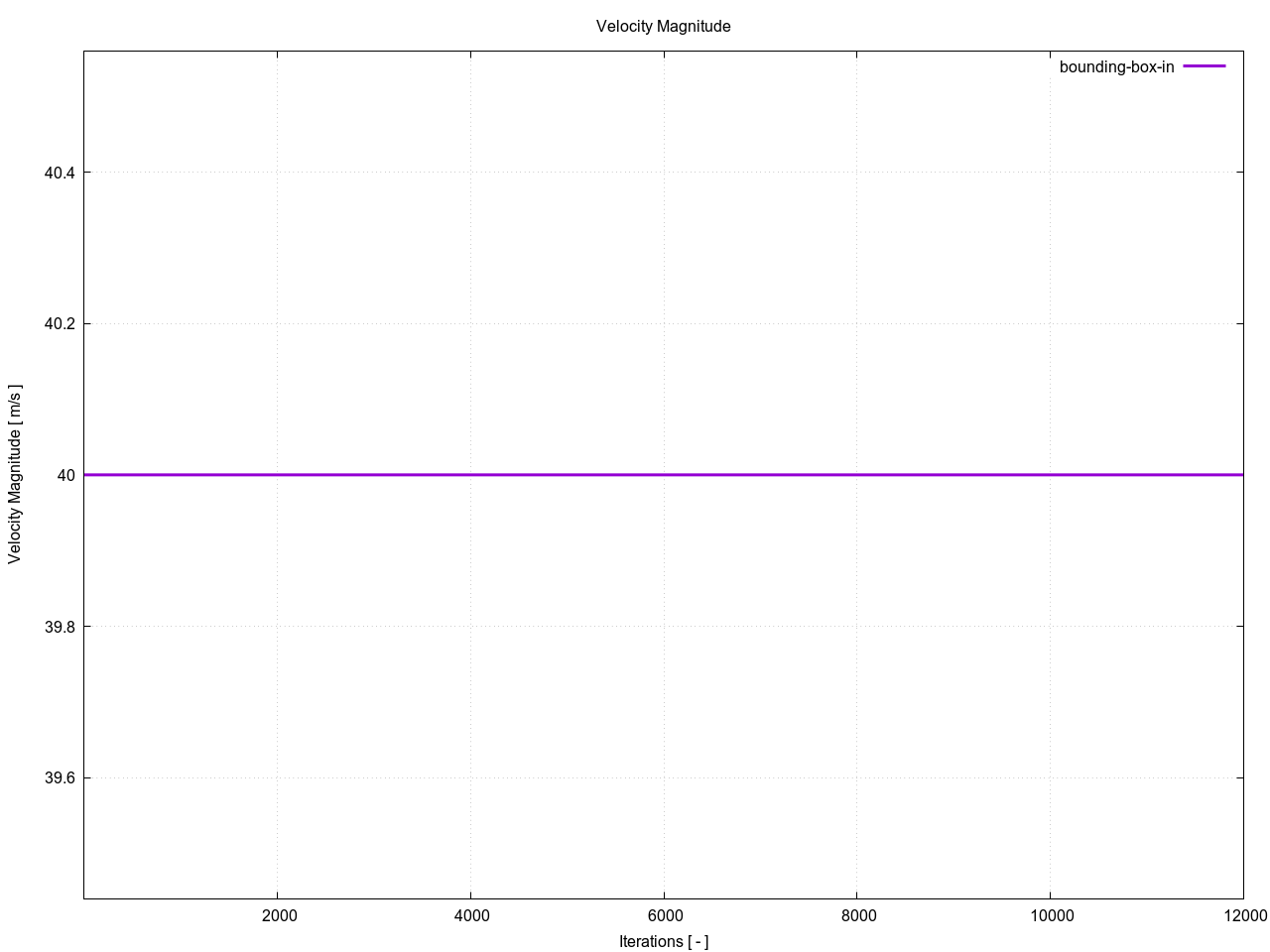

Velocity Magnitude per Interfaces

Point Nr.
Interface Name
Velocity Magnitude [ m/s ]
Velocity Magnitude [ m/s ]
1
bounding-box-in
40.0000
40.0000
1
bounding-box-out
40.0029
40.0029

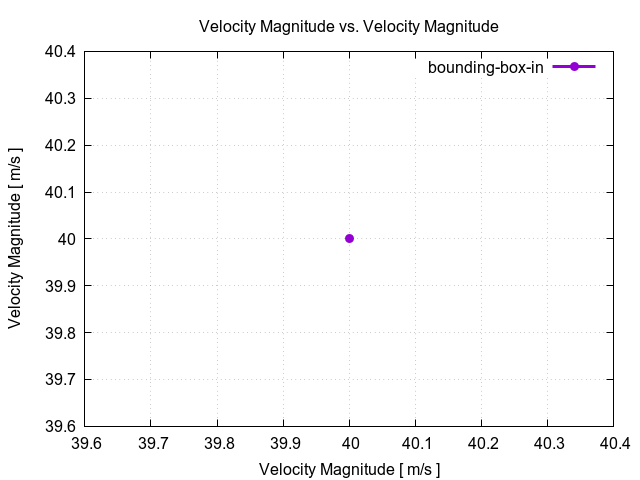

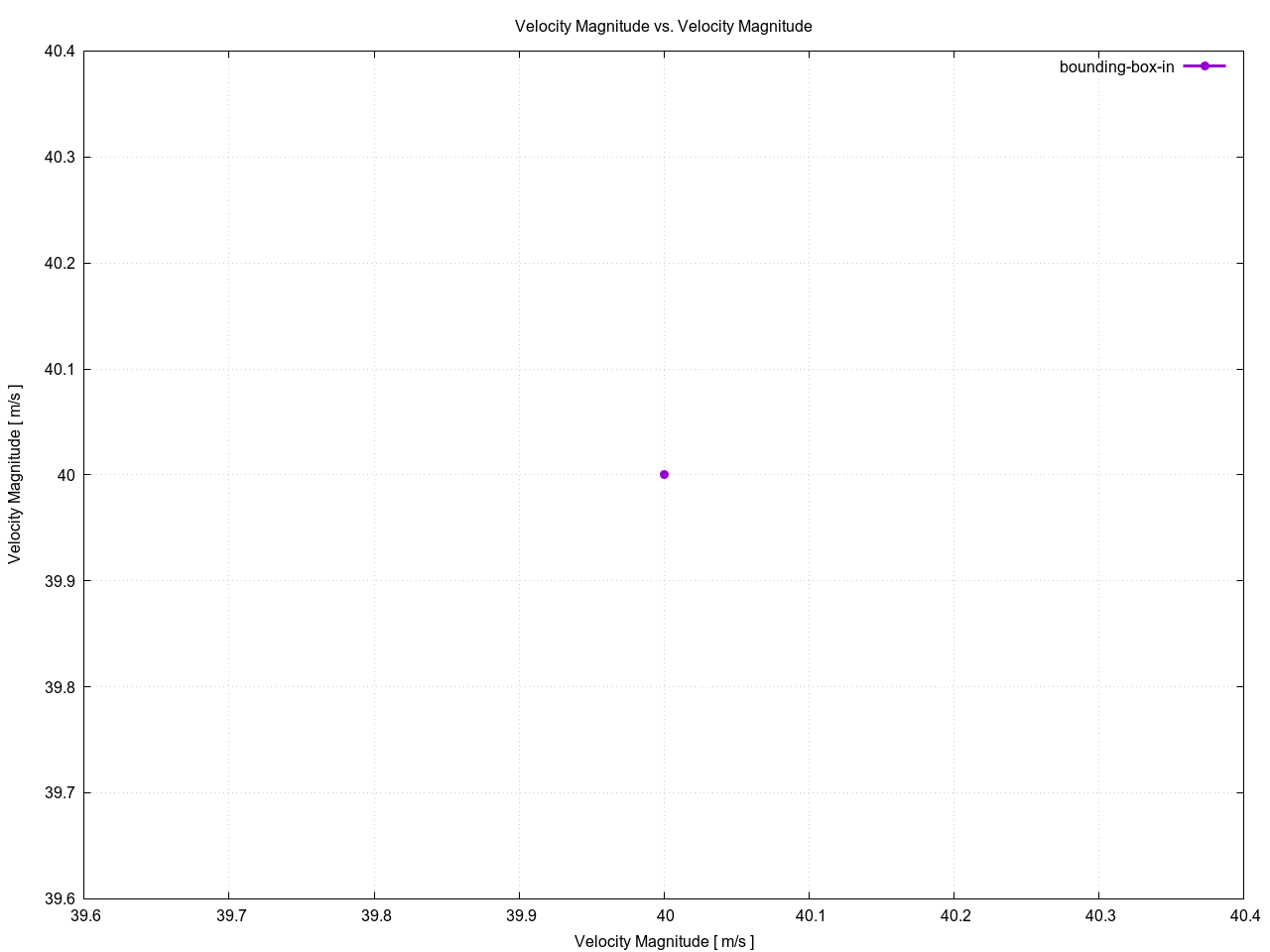

flowRateVsVelocityMagnitudePerInterfaces bounding box in 1 1

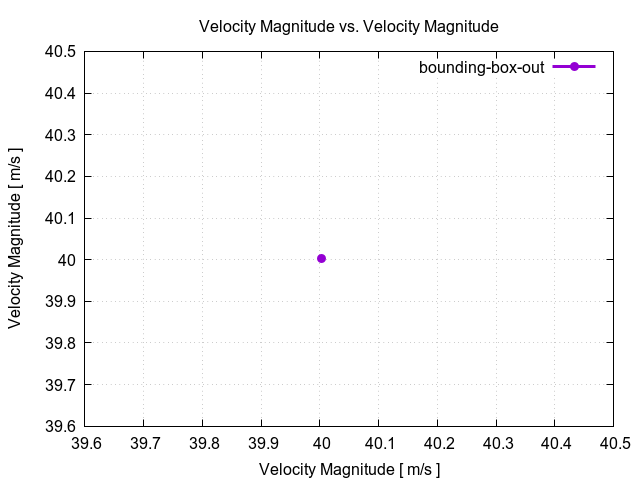

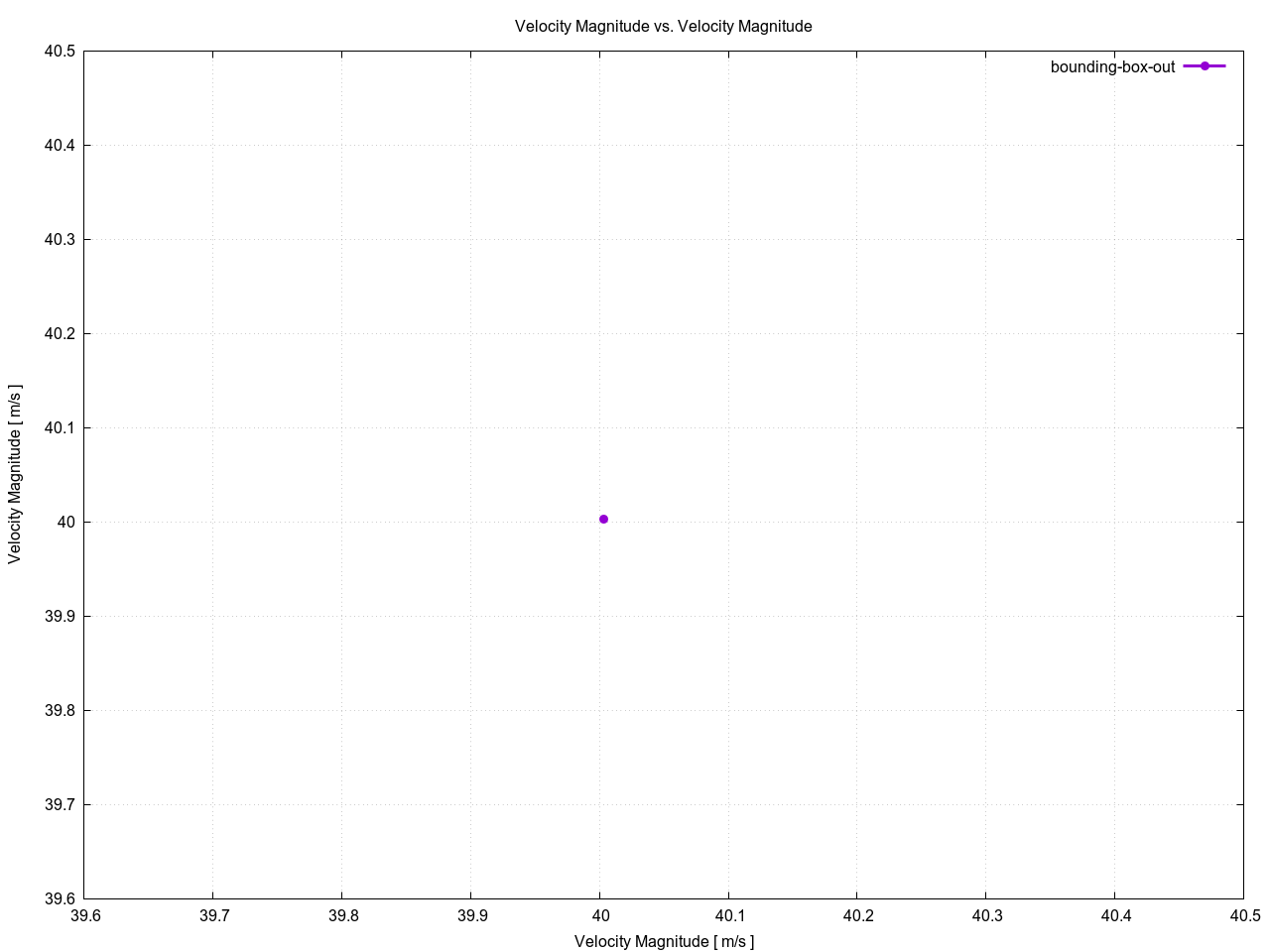

flowRateVsVelocityMagnitudePerInterfaces bounding box out 1 1

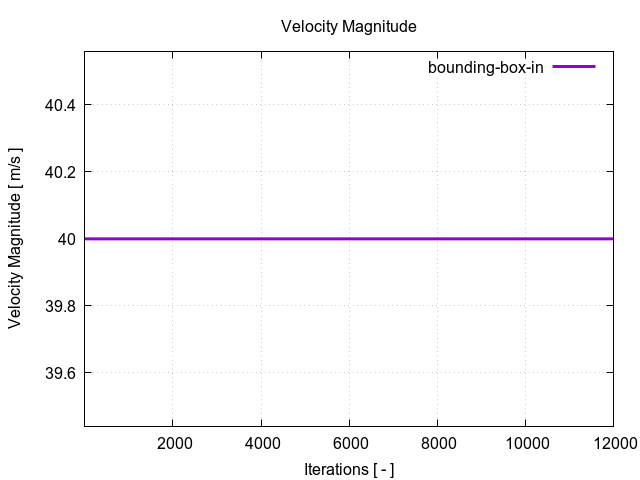

velocityMagnitudePerInterfaces bounding box in 1 1

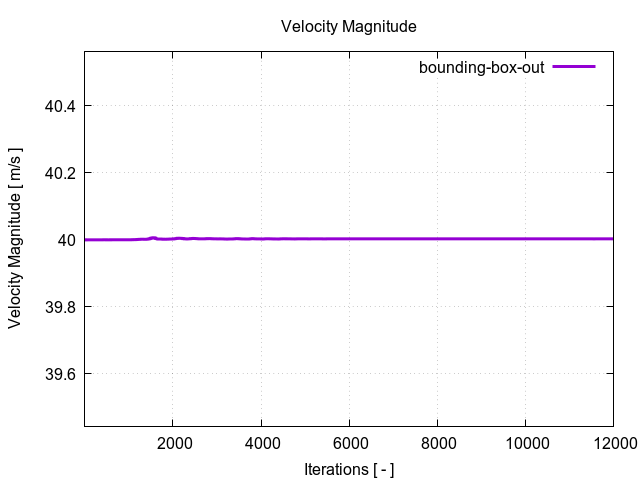

velocityMagnitudePerInterfaces bounding box out 1 1

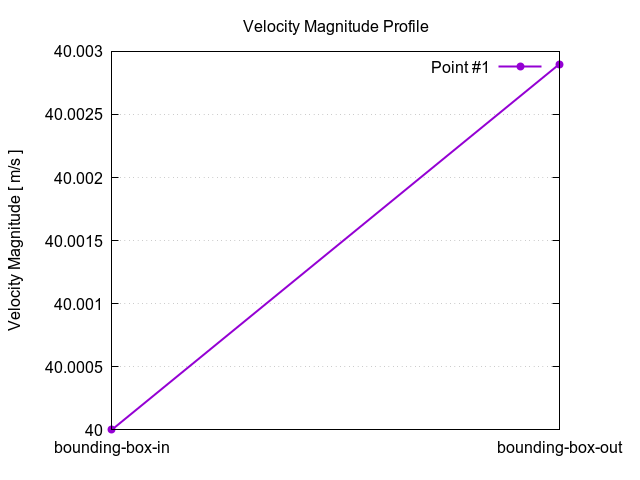

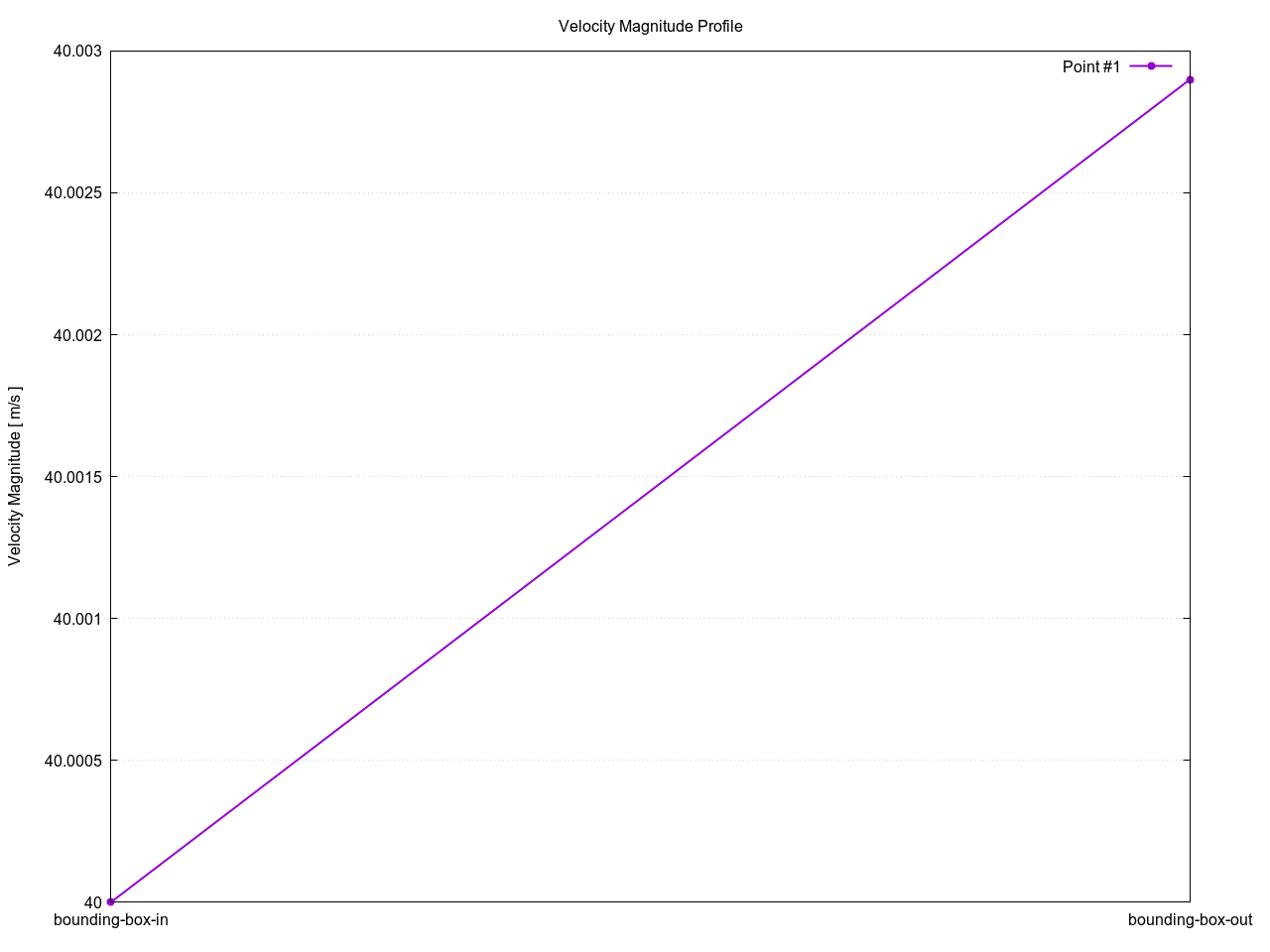

velocityMagnitudeProfile 1 2
