simulation-speed085-pTotpStat-5points-8bL-lowRe CFD Simulation Resuls

Simulation Stats

Test Case Name

simulation-speed085-pTotpStat-5points-8bL-lowRe

Number of Points [ – ]

5

Machine Type

compressor

Rotation Speed [ RPM ]

18521.0

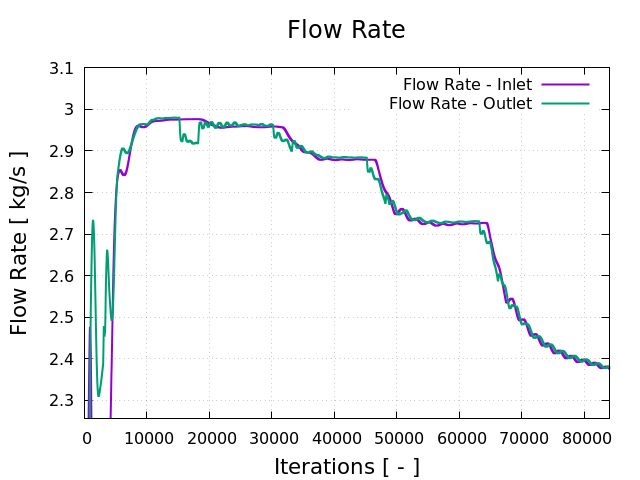

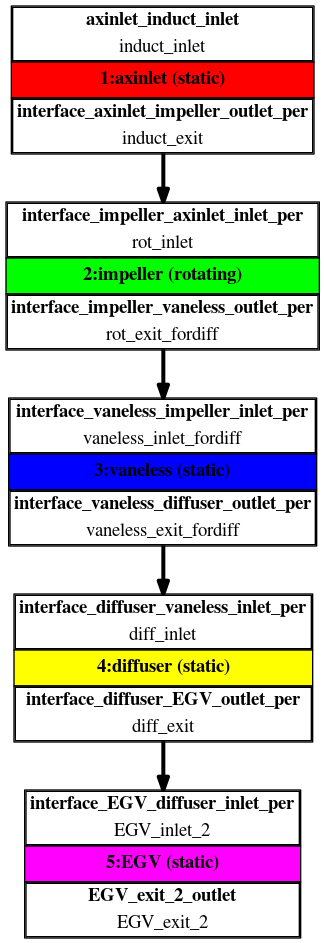

Number of Components [ – ]

(topology)

5

Mesh Size [ cells ]

(details)

axinlet : 207519

impeller : 4198119

vaneless : 331987

diffuser : 607603

EGV : 476257

Total : 5821485

Mesh details [ mm ]:

Component	Property	Min	Max	Avg
1	cellOpenness	N/A	8.13835 × 10^-16	N/A
1	cellVolume	0.0149533	2.22534	N/A
1	faceArea	0.0235478	1.74125	N/A
1	aspectRatio	N/A	13.5614	N/A
1	nonOrthogonality	N/A	60.6253	7.15783
1	skewness	N/A	0.903039	N/A
1	edgeLength	N/A	N/A	N/A
1	concaveAngle	N/A	N/A	N/A
1	faceFlatness	0.903788	N/A	0.999990
1	cellDeterminant	0.00848187	N/A	8.95715
1	faceInterpolationWeight	0.121851	N/A	0.470054
1	faceVolumeRatio	0.0921702	0.870438	N/A
1	Warnings:	3780 concave cells
2	cellOpenness	N/A	1.09147 × 10^-15	N/A
2	cellVolume	9.40356 × 10^-7	2.45195	N/A
2	faceArea	3.10569 × 10^-7	2.30653	N/A
2	aspectRatio	N/A	39.8718	N/A
2	nonOrthogonality	N/A	85.6616	12.1024
2	skewness	N/A	16.2069	N/A
2	edgeLength	0	1.98467	N/A
2	concaveAngle	N/A	79.9581	N/A
2	faceFlatness	0.118135	N/A	0.998372
2	cellDeterminant	0	N/A	7.24049
2	faceInterpolationWeight	0.0200898	N/A	0.440833
2	faceVolumeRatio	0.00629329	0.739635	N/A
2	Warnings:	4 conflicting points 6 non-orthogonal faces 2 faces with incorrect orientation 261 skew faces 11938 faces with low quality or negative volume decomposition tets 134 points on short edges 31794 faces with concave angles 677 warped faces 10 under-determined cells 153310 concave cells 19 faces with low interpolation weights 1 faces with low volume ratio cells
3	cellOpenness	N/A	3.46958 × 10^-16	N/A
3	cellVolume	7.13470 × 10^-4	0.0974290	N/A
3	faceArea	0.00275328	0.896862	N/A
3	aspectRatio	N/A	19.7287	N/A
3	nonOrthogonality	N/A	63.6002	5.91340
3	skewness	N/A	4.04335	N/A
3	edgeLength	N/A	N/A	N/A
3	concaveAngle	N/A	75.5941	N/A
3	faceFlatness	0.569885	N/A	0.999644
3	cellDeterminant	1.73472 × 10^-18	N/A	6.85044
3	faceInterpolationWeight	0.0969246	N/A	0.485923
3	faceVolumeRatio	0.0548056	0.930790	N/A
3	Warnings:	3 skew faces 235 faces with low quality or negative volume decomposition tets 18 faces with concave angles 2 warped faces 1 under-determined cells 7793 concave cells
4	cellOpenness	N/A	4.36319 × 10^-16	N/A
4	cellVolume	3.18679 × 10^-4	2.29601	N/A
4	faceArea	3.48902 × 10^-6	2.21911	N/A
4	aspectRatio	N/A	59.1636	N/A
4	nonOrthogonality	N/A	64.8575	10.2160
4	skewness	N/A	16.4678	N/A
4	edgeLength	0	1.76443	N/A
4	concaveAngle	N/A	79.1725	N/A
4	faceFlatness	0.259027	N/A	0.999448
4	cellDeterminant	0	N/A	7.43790
4	faceInterpolationWeight	0.0208930	N/A	0.457627
4	faceVolumeRatio	0.0133600	0.809239	N/A
4	Warnings:	505 skew faces 844 faces with low quality or negative volume decomposition tets 12 points on short edges 1910 faces with concave angles 46 warped faces 14 under-determined cells 38003 concave cells 5 faces with low interpolation weights
5	cellOpenness	N/A	9.04708 × 10^-16	N/A
5	cellVolume	0.00235596	2.28069	N/A
5	faceArea	0.00118705	2.02275	N/A
5	aspectRatio	N/A	13.4499	N/A
5	nonOrthogonality	N/A	64.9776	11.1479
5	skewness	N/A	14.4131	N/A
5	edgeLength	0	1.84917	N/A
5	concaveAngle	N/A	79.1772	N/A
5	faceFlatness	0.432331	N/A	0.999248
5	cellDeterminant	1.14492 × 10^-16	N/A	7.92163
5	faceInterpolationWeight	0.0544344	N/A	0.449144
5	faceVolumeRatio	0.0154122	0.784687	N/A
5	Warnings:	138 skew faces 738 faces with low quality or negative volume decomposition tets 2 points on short edges 1449 faces with concave angles 33 warped faces 1 under-determined cells 35463 concave cells

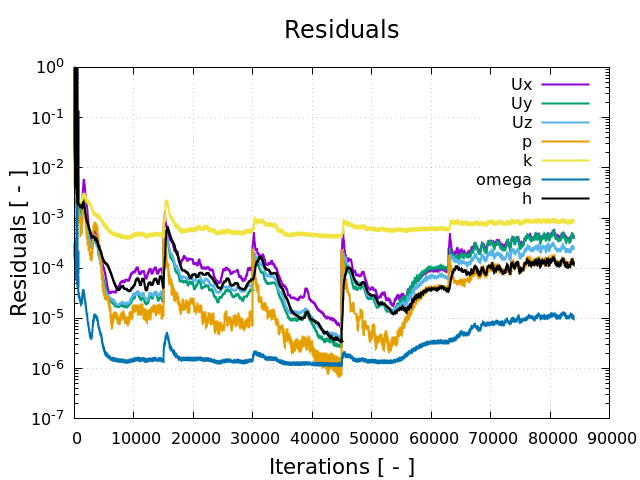

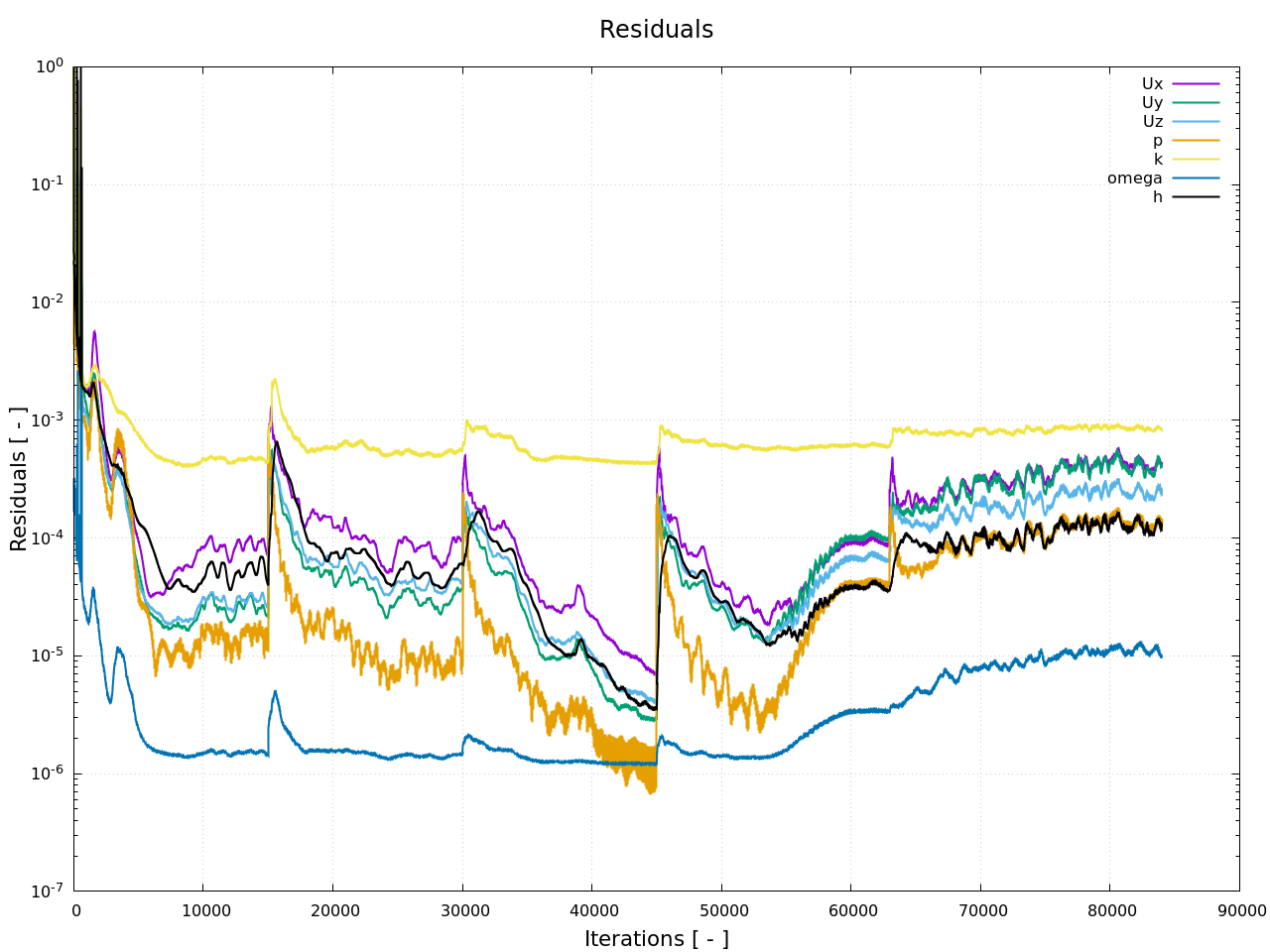

Simulation score [ – ]

details

Average y+ at walls [ – ]

details

y+ details:

Point	Patch	Min	Max	Avg
1	axinlet_induct_shroud_wall	6.51249	32.2109	8.71332
1	axinlet_induct_hub_wall	5.38964	26.9775	8.32944
1	impeller_rot_hub_static_wall	3.16973	32.7336	9.58482
1	impeller_rot_splitter_blade_wall	0.917995	100.018	8.36466
1	impeller_rot_splitter_bladecap_wall	2.21706	59.6405	10.0910
1	impeller_rot_main_blade_wall	1.00273	127.508	8.28802
1	impeller_rot_shroud_010_fordiff_wall	0.0460067	71.2572	2.98889
1	impeller_rot_hub_rotating_fordiff_wall	3.06998	66.9194	15.8685
1	impeller_rot_main_bladecap_wall	2.33212	62.5148	10.5312
1	vaneless_hub_fordiff_wall	10.6859	51.2204	24.5146
1	vaneless_shroud_fordiff_wall	9.05651	44.7151	19.6470
1	diffuser_diff_vane_main_wall	1.98230	93.9821	24.2727
1	diffuser_diff_vane_splitter_wall	3.63535	102.499	26.3194
1	diffuser_diff_shroud_wall	5.05997	87.2353	20.8103
1	diffuser_diff_hub_wall	3.01165	89.5444	23.3616
1	EGV_vanes_2_wall	1.17374	314.707	20.8613
1	EGV_hub_2_wall	0.301209	73.9392	15.7160
1	EGV_shroud_2_wall	0.492046	62.8876	16.3046
2	axinlet_induct_shroud_wall	6.34365	32.1020	8.67524
2	axinlet_induct_hub_wall	5.36119	26.8854	8.27467
2	impeller_rot_hub_static_wall	3.16315	32.6175	9.54129
2	impeller_rot_splitter_blade_wall	0.912533	99.8954	8.33192
2	impeller_rot_splitter_bladecap_wall	2.16890	59.5342	10.0708
2	impeller_rot_main_blade_wall	0.998520	127.470	8.25918
2	impeller_rot_shroud_010_fordiff_wall	0.0453236	71.3711	2.99374
2	impeller_rot_hub_rotating_fordiff_wall	3.04782	66.7983	15.8164
2	impeller_rot_main_bladecap_wall	2.32240	62.3460	10.5159
2	vaneless_hub_fordiff_wall	10.6992	51.2654	24.5328
2	vaneless_shroud_fordiff_wall	9.09237	44.8560	19.7160
2	diffuser_diff_vane_main_wall	0.449185	93.8362	22.1177
2	diffuser_diff_vane_splitter_wall	4.57778	103.193	29.5222
2	diffuser_diff_shroud_wall	5.58626	87.9761	21.3857
2	diffuser_diff_hub_wall	2.01832	87.8920	22.5841
2	EGV_vanes_2_wall	0.647281	365.902	21.4177
2	EGV_hub_2_wall	1.16948	87.8013	15.6364
2	EGV_shroud_2_wall	1.69188	67.6664	16.6329
3	axinlet_induct_shroud_wall	5.56898	31.6538	8.36101
3	axinlet_induct_hub_wall	5.23440	26.5070	8.04085
3	impeller_rot_hub_static_wall	3.14547	32.1194	9.36293
3	impeller_rot_splitter_blade_wall	0.821951	99.2562	8.19860
3	impeller_rot_splitter_bladecap_wall	1.97347	59.0058	9.96778
3	impeller_rot_main_blade_wall	0.981715	127.137	8.14138
3	impeller_rot_shroud_010_fordiff_wall	0.0426817	71.5140	3.00328
3	impeller_rot_hub_rotating_fordiff_wall	2.98554	66.2684	15.6259
3	impeller_rot_main_bladecap_wall	2.27212	62.4341	10.4245
3	vaneless_hub_fordiff_wall	10.7077	51.3096	24.5352
3	vaneless_shroud_fordiff_wall	9.10414	44.9743	19.7073
3	diffuser_diff_vane_main_wall	1.15092	93.5933	22.8606
3	diffuser_diff_vane_splitter_wall	1.14566	99.9550	27.9672
3	diffuser_diff_shroud_wall	6.12488	90.2527	21.2009
3	diffuser_diff_hub_wall	1.76384	89.6700	21.7954
3	EGV_vanes_2_wall	1.05095	289.434	19.6084
3	EGV_hub_2_wall	0.522482	67.8148	14.7321
3	EGV_shroud_2_wall	0.608876	67.1766	16.2489
4	axinlet_induct_shroud_wall	5.33780	30.7767	7.88345
4	axinlet_induct_hub_wall	4.97992	25.7675	7.61433
4	impeller_rot_hub_static_wall	3.12002	31.1546	9.02562
4	impeller_rot_splitter_blade_wall	0.259084	97.9519	7.94408
4	impeller_rot_splitter_bladecap_wall	1.87253	58.3846	9.75792
4	impeller_rot_main_blade_wall	0.557825	126.245	7.98901
4	impeller_rot_shroud_010_fordiff_wall	0.0311335	72.0553	3.03072
4	impeller_rot_hub_rotating_fordiff_wall	2.75676	65.2839	15.2806
4	impeller_rot_main_bladecap_wall	1.77541	62.6552	10.1622
4	vaneless_hub_fordiff_wall	10.8135	51.4778	24.6042
4	vaneless_shroud_fordiff_wall	9.01753	45.2347	19.7597
4	diffuser_diff_vane_main_wall	0.811895	93.8651	22.5843
4	diffuser_diff_vane_splitter_wall	1.20545	93.4631	23.7984
4	diffuser_diff_shroud_wall	4.36552	93.9425	20.4429
4	diffuser_diff_hub_wall	1.89423	94.2001	19.1922
4	EGV_vanes_2_wall	1.17598	250.821	19.6883
4	EGV_hub_2_wall	1.03227	60.4013	13.3131
4	EGV_shroud_2_wall	2.31129	68.7734	16.0632
5	axinlet_induct_shroud_wall	4.65836	28.4919	6.86395
5	axinlet_induct_hub_wall	4.32979	23.8487	6.62960
5	impeller_rot_hub_static_wall	3.10408	28.7589	8.23094
5	impeller_rot_splitter_blade_wall	0.354332	85.9547	7.68072
5	impeller_rot_splitter_bladecap_wall	1.08828	51.7983	9.24021
5	impeller_rot_main_blade_wall	0.705832	122.760	7.62520
5	impeller_rot_shroud_010_fordiff_wall	0.0549994	72.0001	3.09625
5	impeller_rot_hub_rotating_fordiff_wall	2.71349	63.4171	14.6899
5	impeller_rot_main_bladecap_wall	0.707389	62.8081	9.22618
5	vaneless_hub_fordiff_wall	10.6858	51.2612	24.6609
5	vaneless_shroud_fordiff_wall	5.68703	45.5512	19.2013
5	diffuser_diff_vane_main_wall	1.19559	100.596	23.2685
5	diffuser_diff_vane_splitter_wall	0.684431	86.4826	20.8928
5	diffuser_diff_shroud_wall	4.92026	97.7994	19.1127
5	diffuser_diff_hub_wall	1.09197	90.1113	17.3145
5	EGV_vanes_2_wall	1.36602	253.655	18.1776
5	EGV_hub_2_wall	1.15161	53.8738	11.5255
5	EGV_shroud_2_wall	0.509421	68.4578	14.9309

Wall-clock time [ hh:mm:ss ]

00:09:08 (meshing)

39:41:21 (calculation)

Parallel Processors [ – ]

96

Fluid Name

air

Physical Model

compressible

Numerical order

first

Turbulence model

kOmegaSST

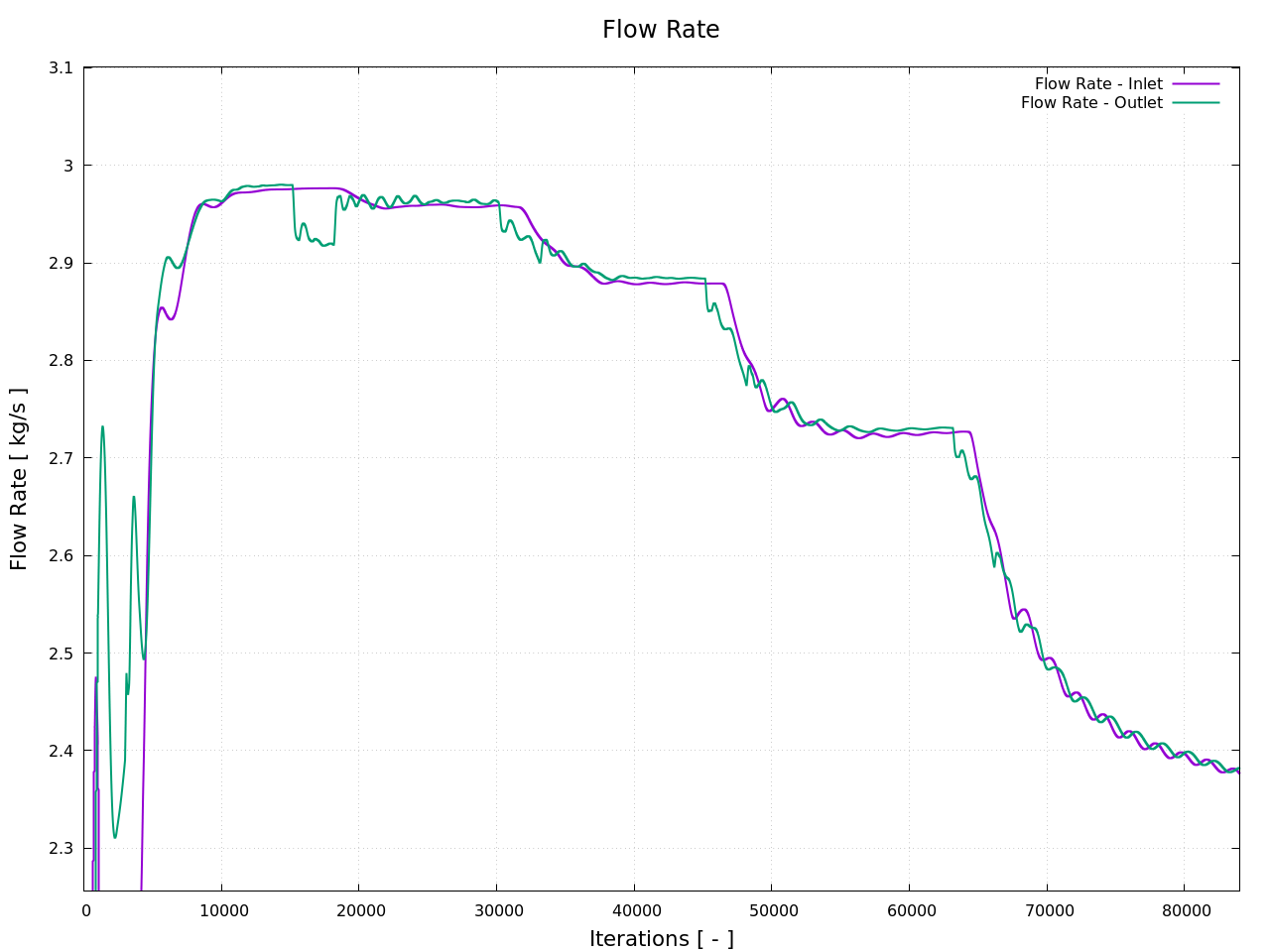

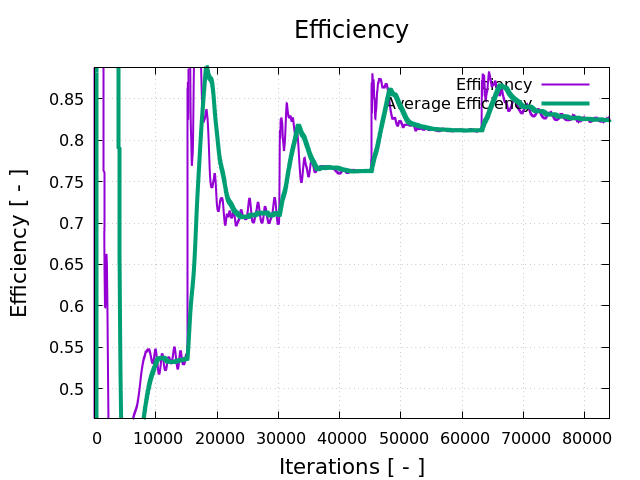

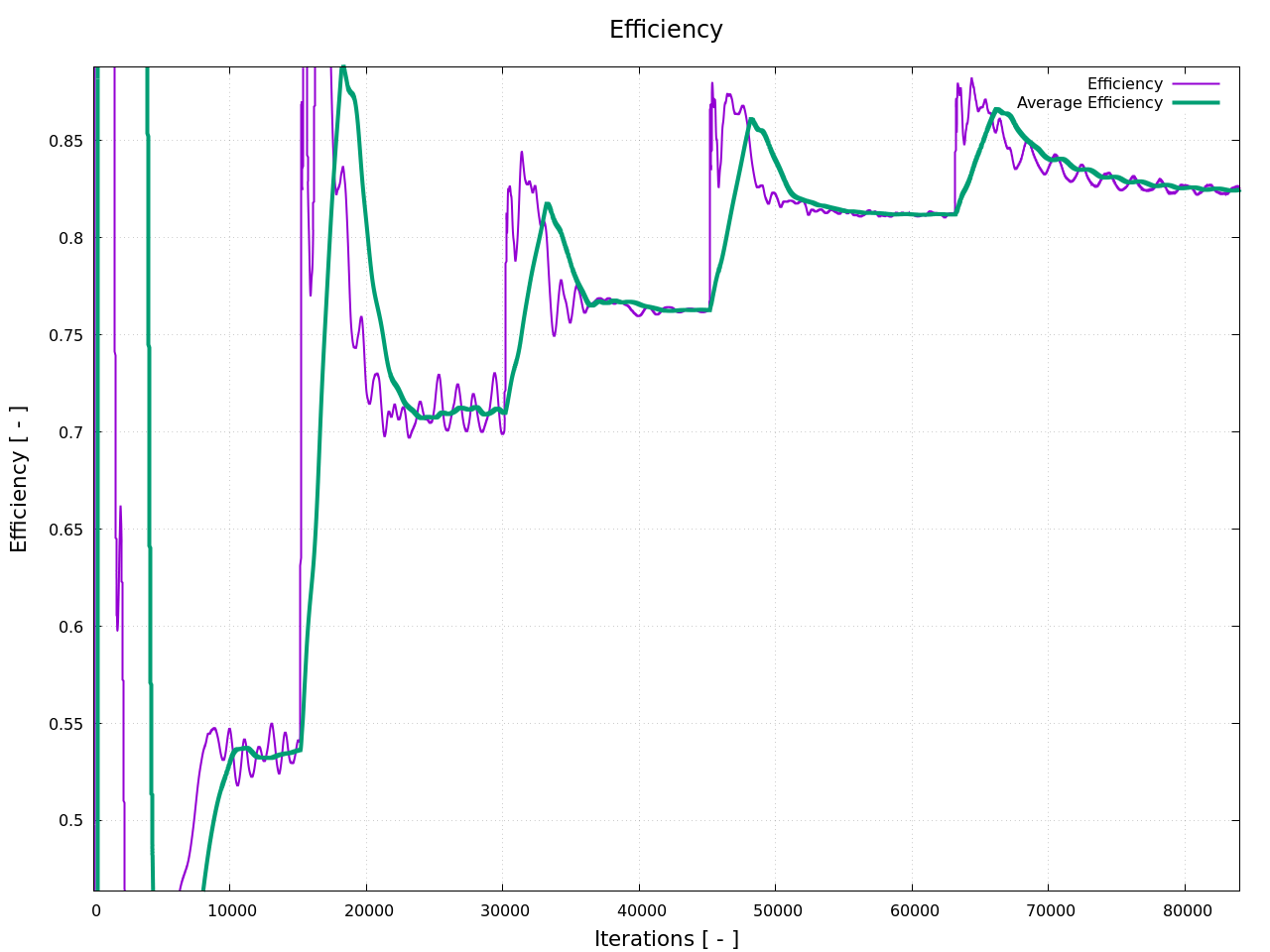

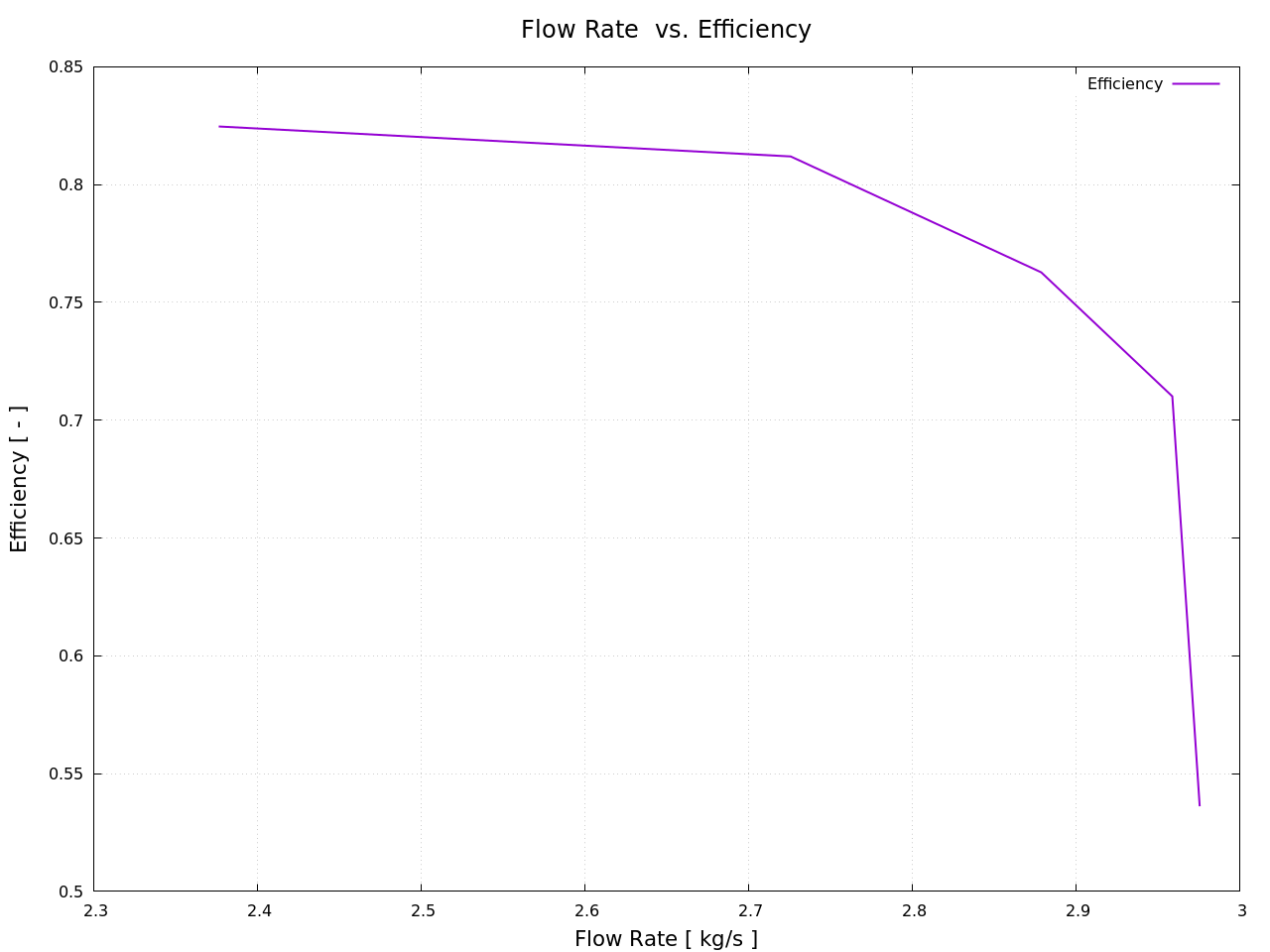

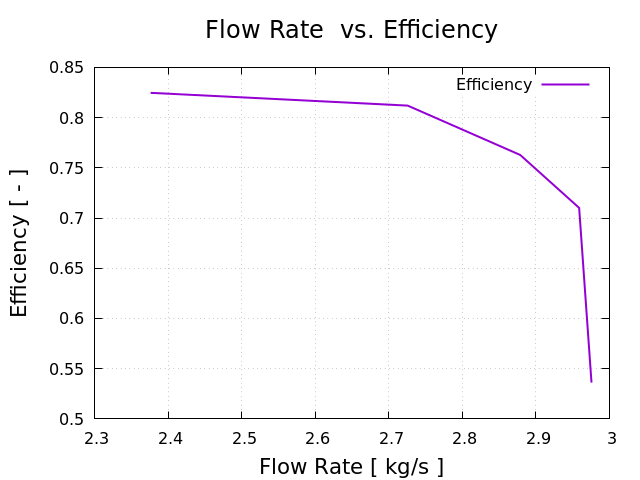

Efficiency

1:induct_inlet — 4:diff_exit

Point Nr.	Flow Rate [ kg/s ]	Efficiency [ – ]
1	2.97558	0.536143
2	2.95885	0.710120
3	2.87879	0.762765
4	2.72572	0.811968
5	2.37635	0.824678

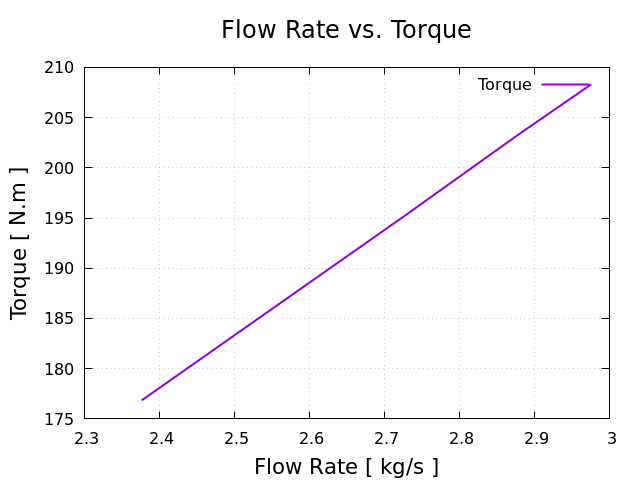

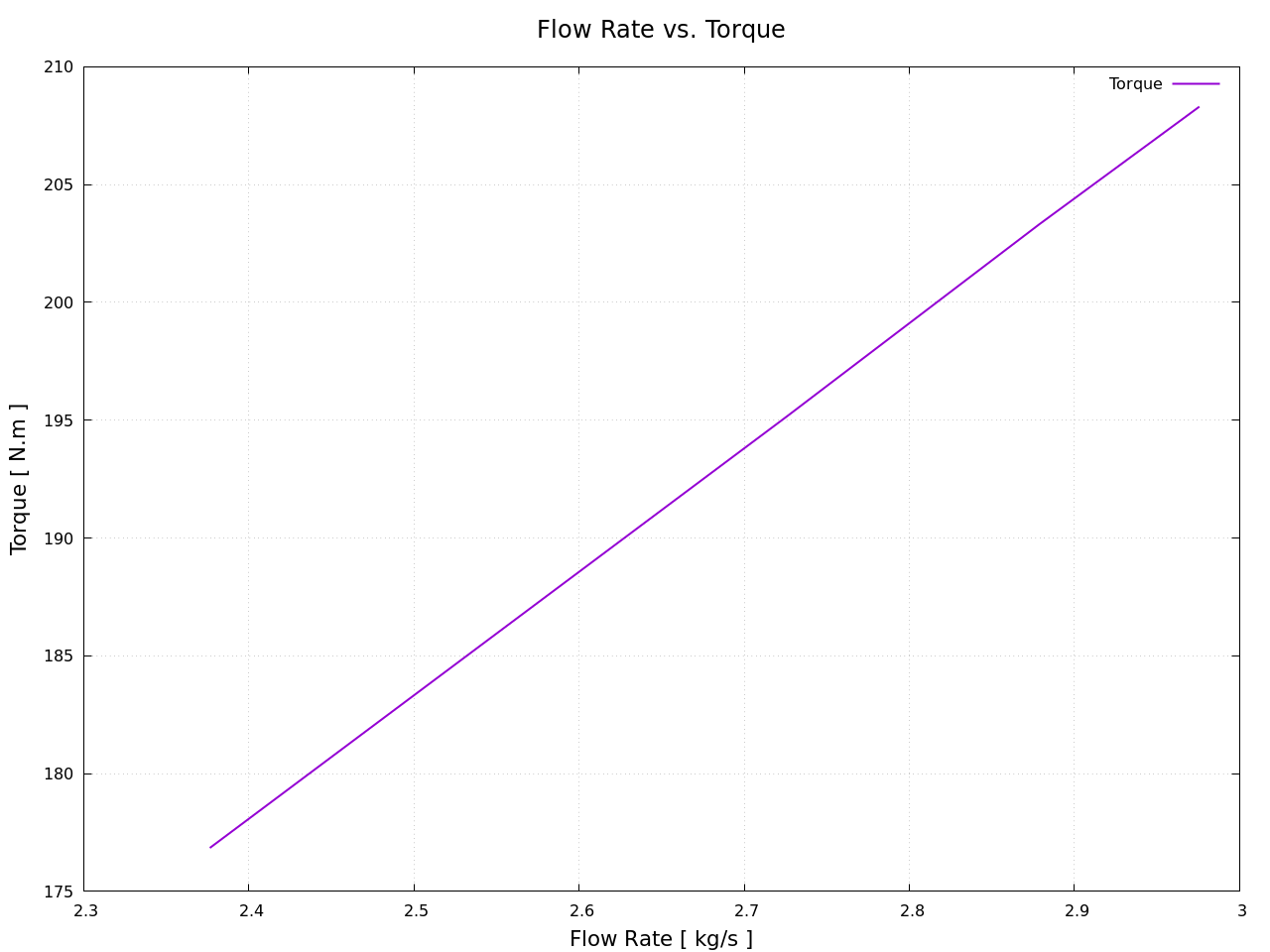

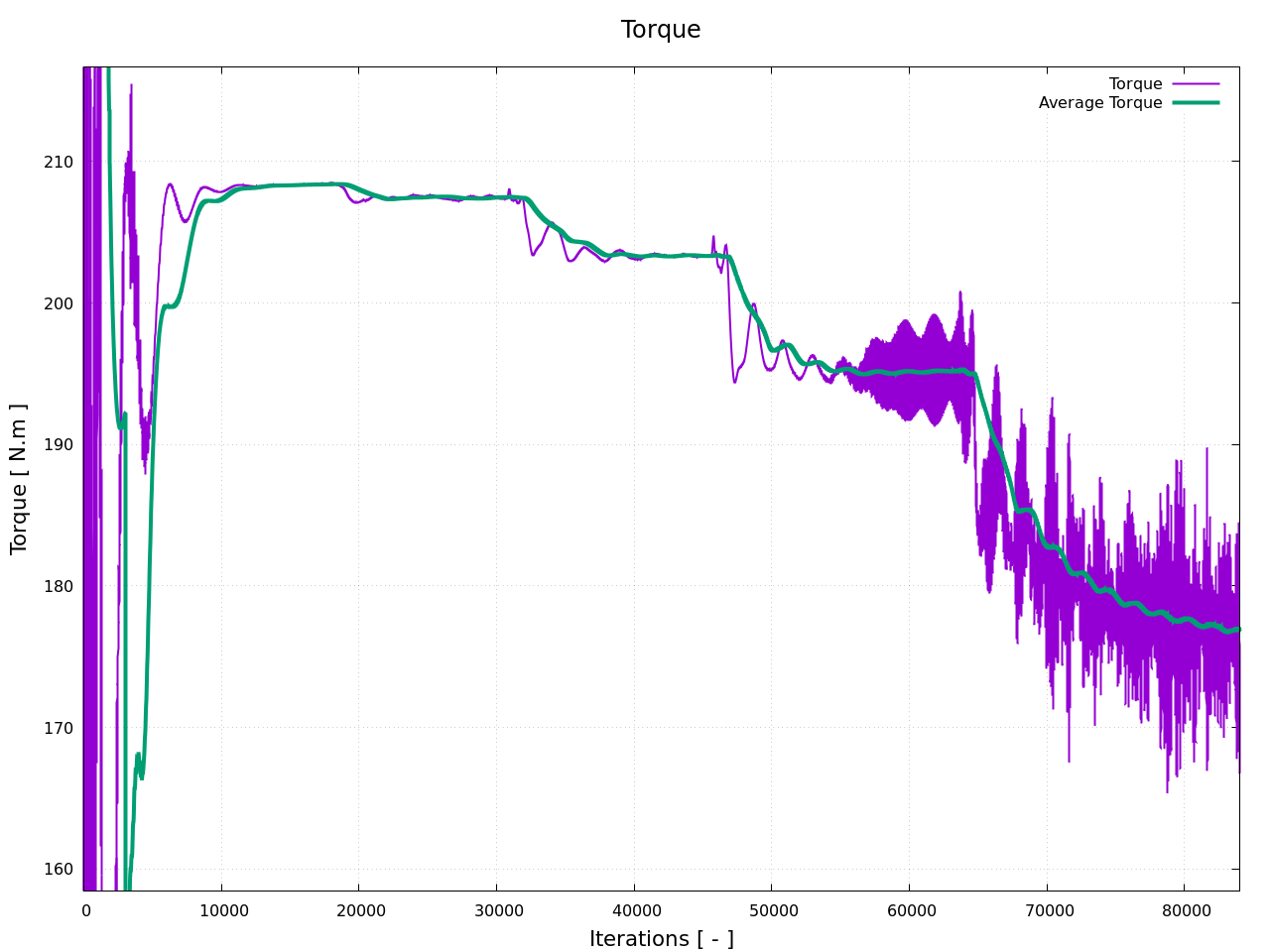

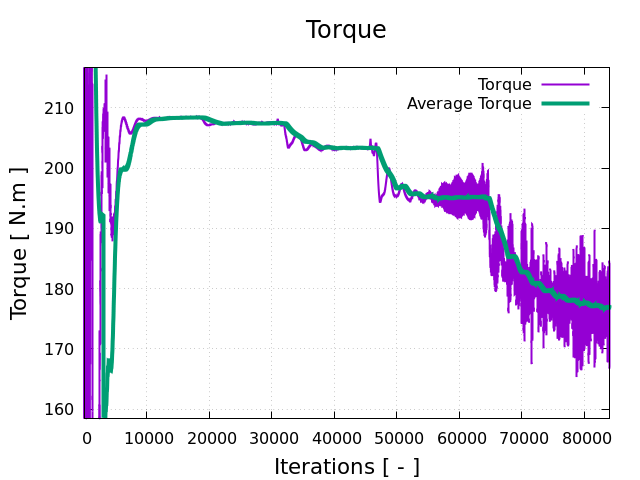

Torque

Point Nr.	Torque [ N.m ]
1	208.310
2	207.448
3	203.324
4	195.159
5	176.847

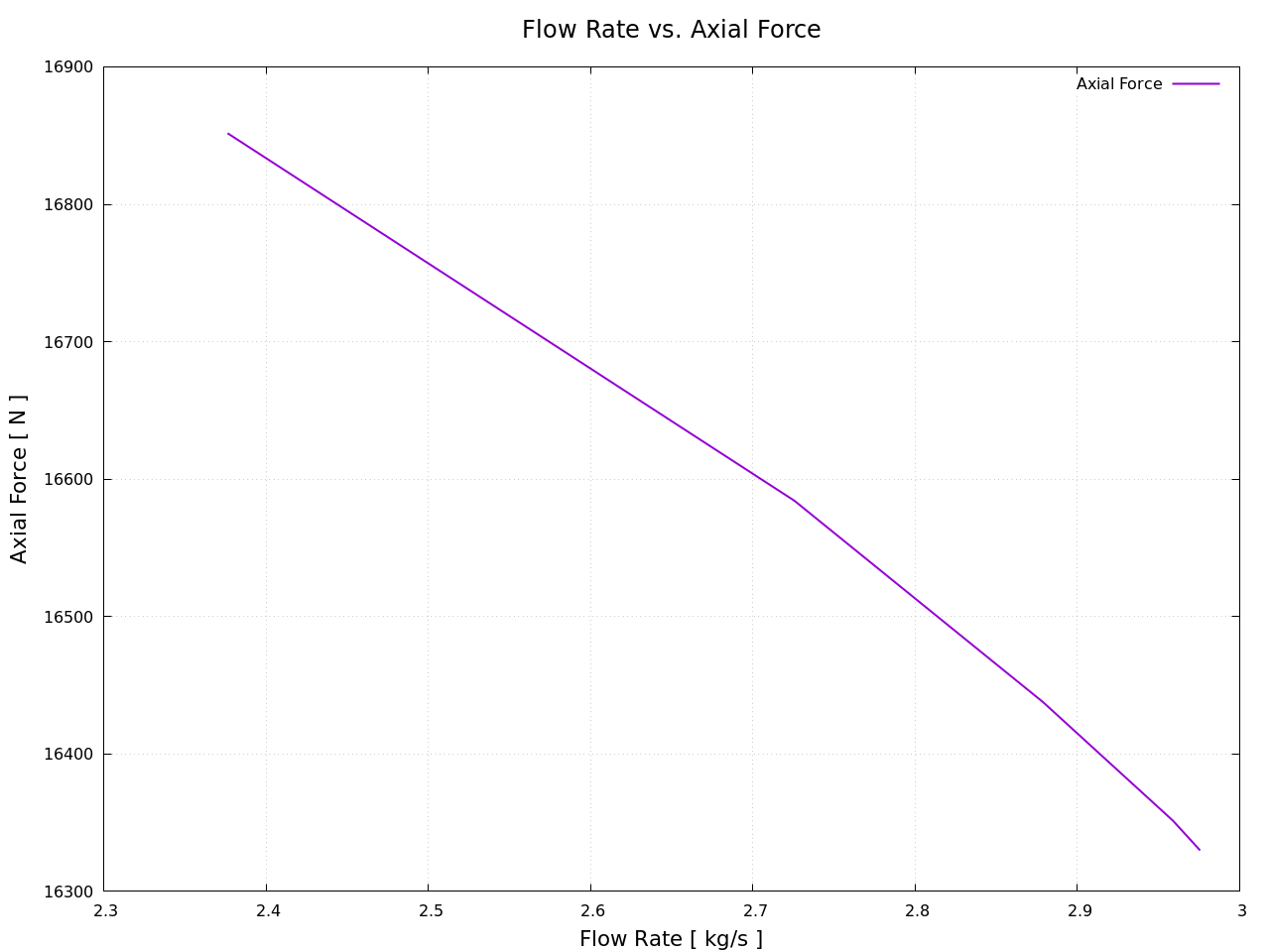

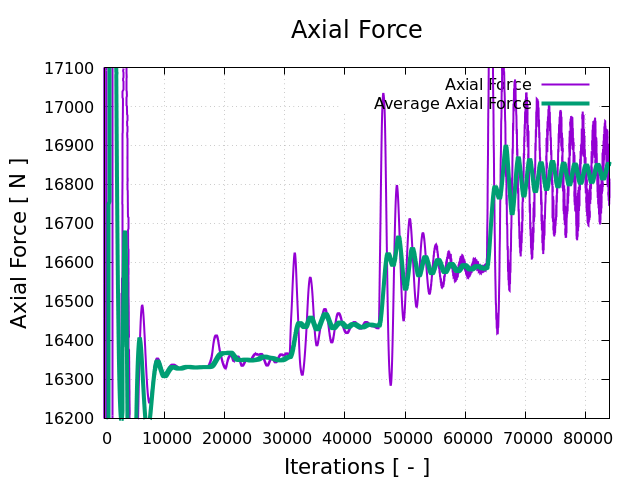

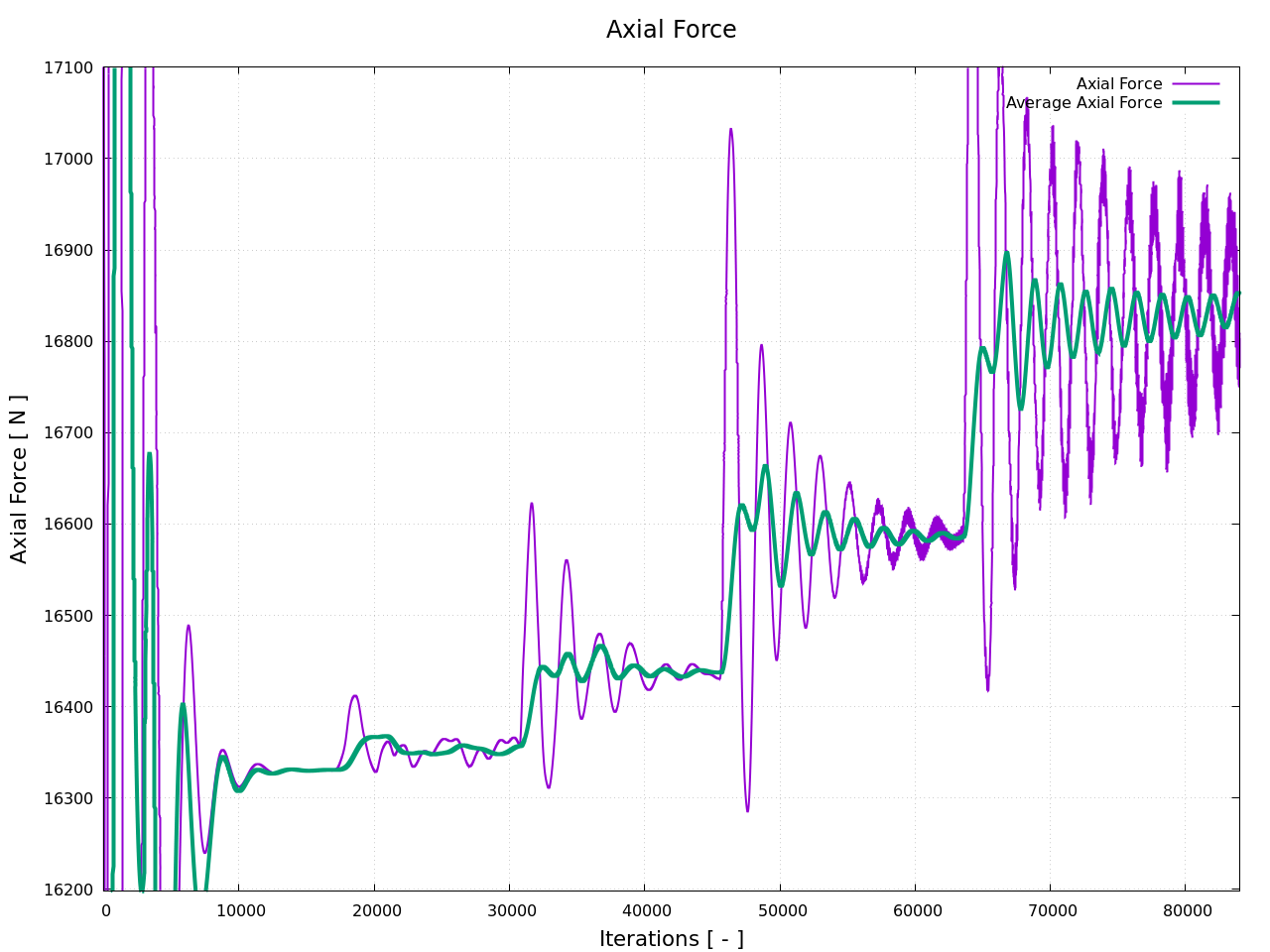

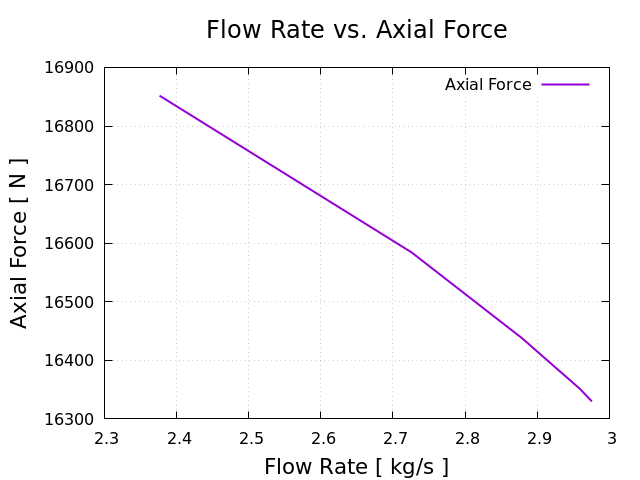

Axial Force

Point Nr.	Axial Force [ N ]
1	16329.9
2	16351.5
3	16437.7
4	16584.2
5	16851.7

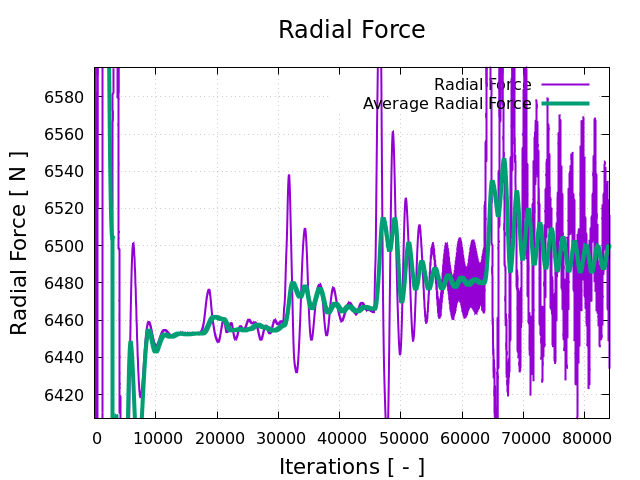

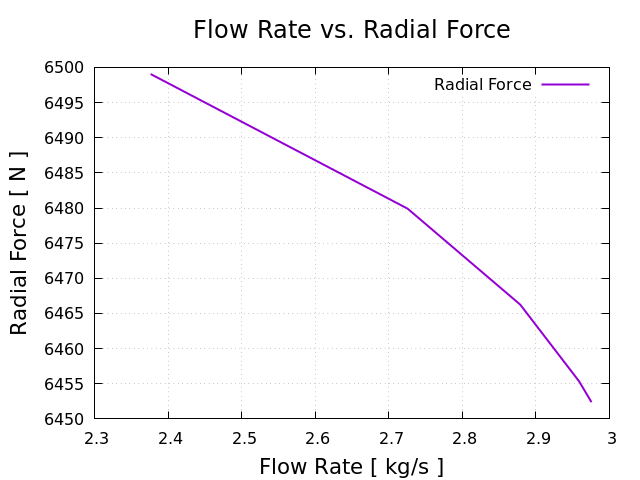

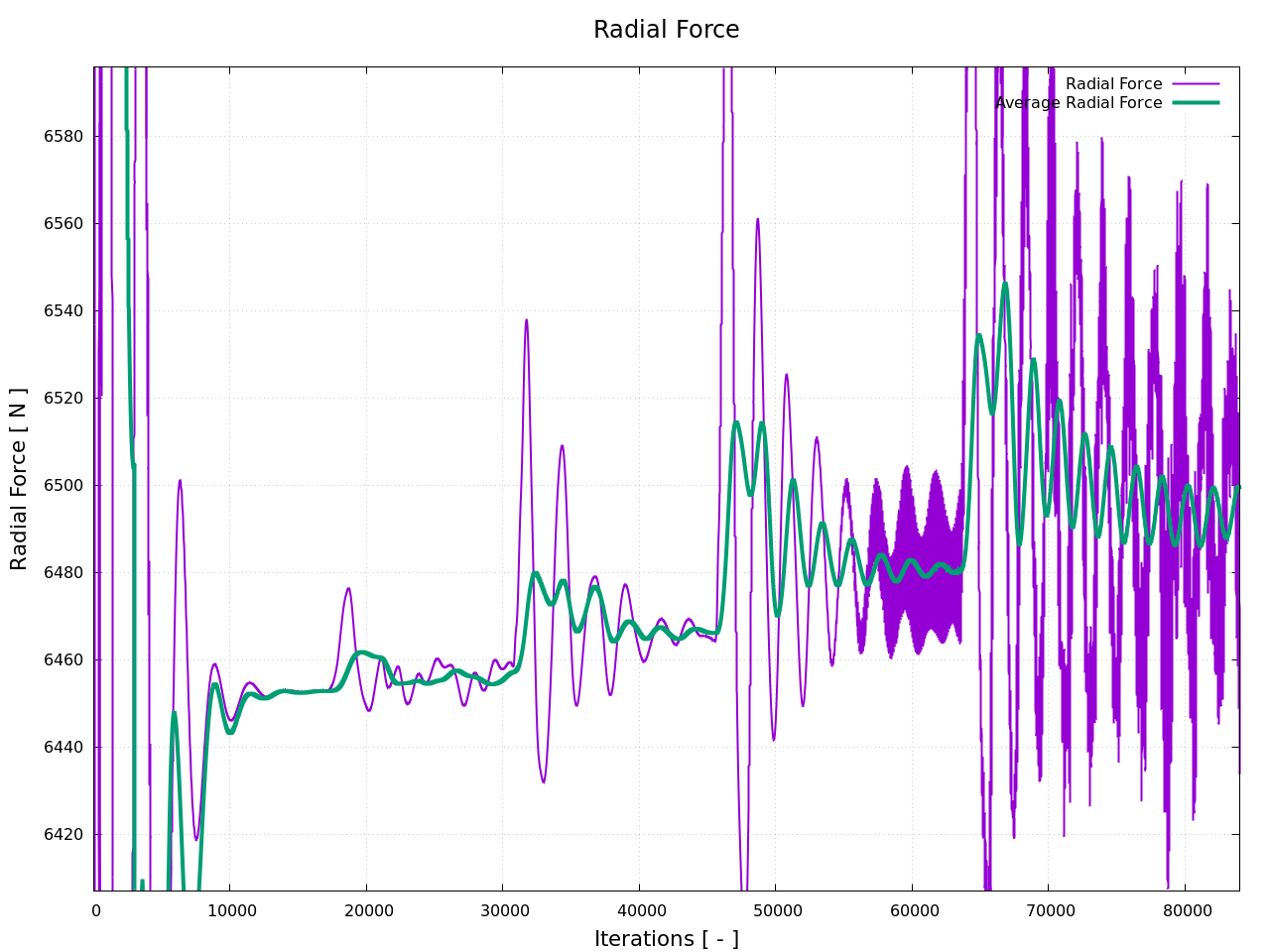

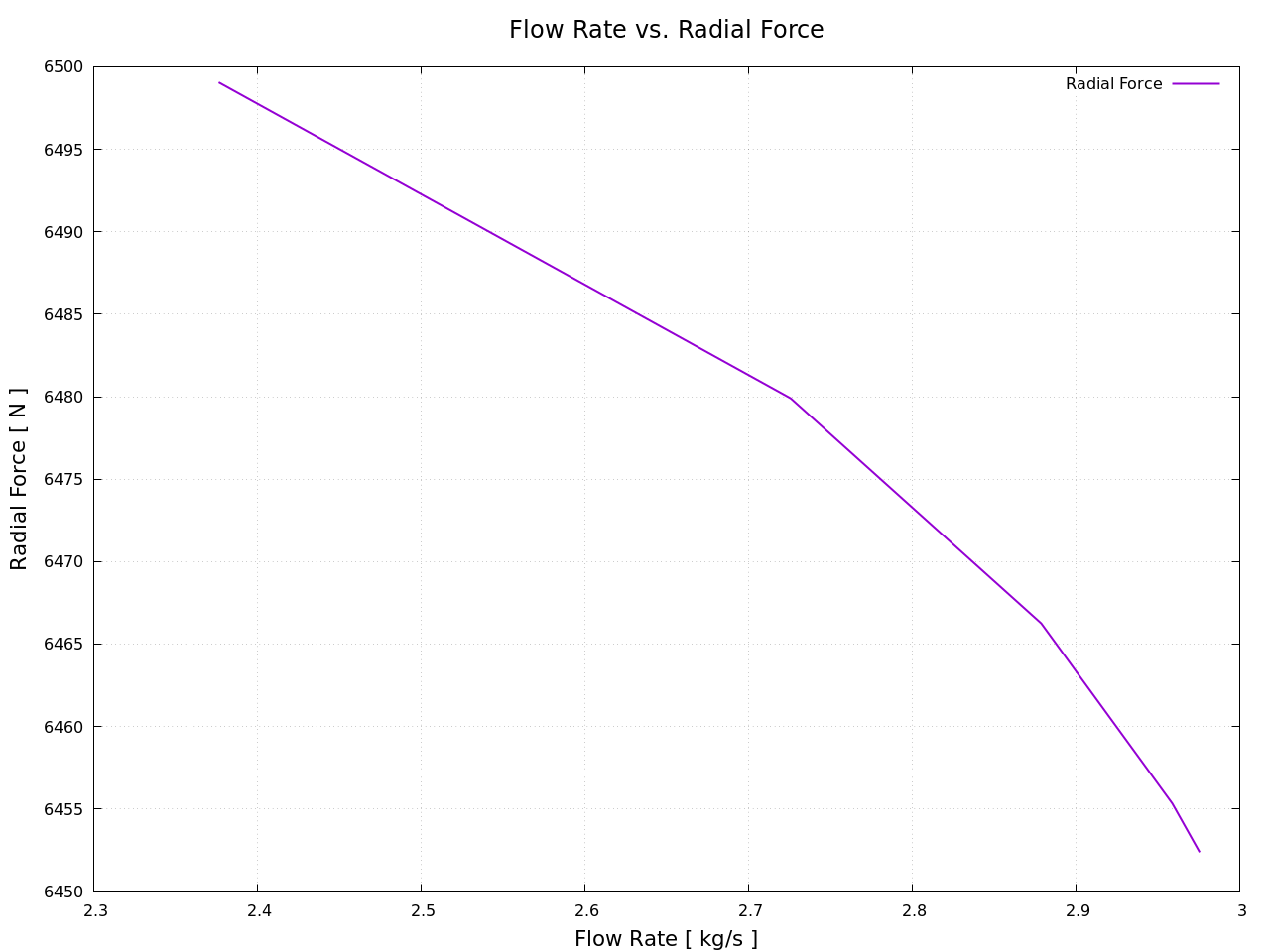

Radial Force

Point Nr.	Radial Force [ N ]
1	6452.38
2	6455.33
3	6466.25
4	6479.90
5	6499.06

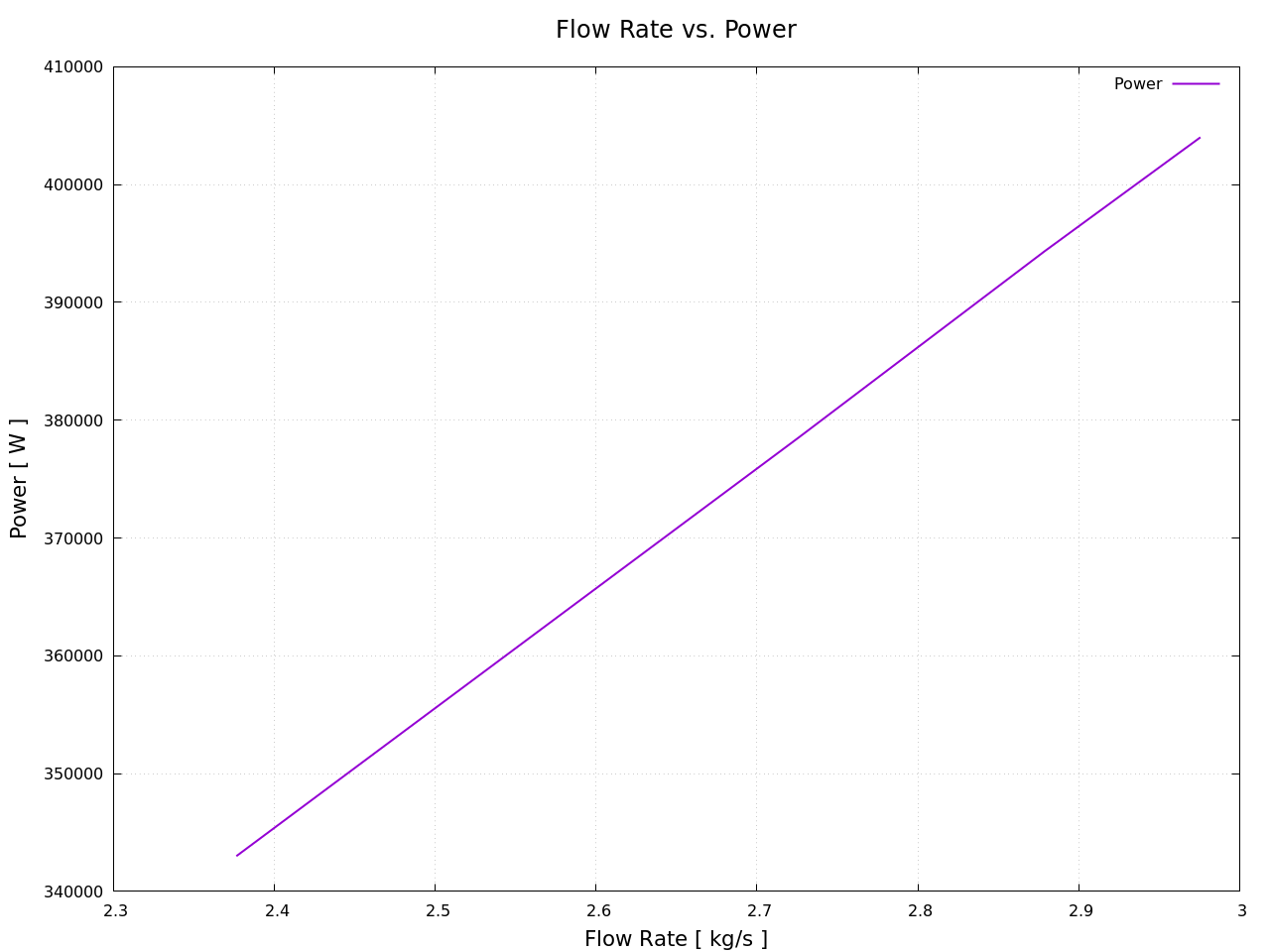

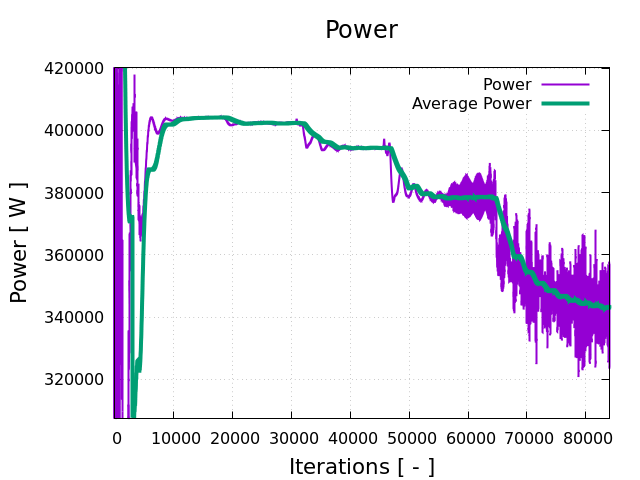

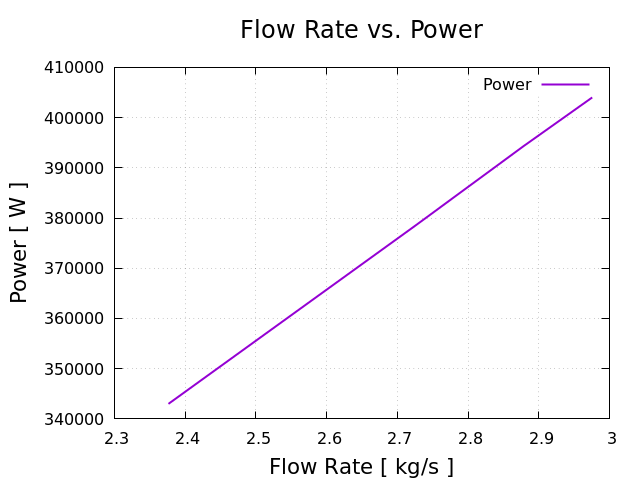

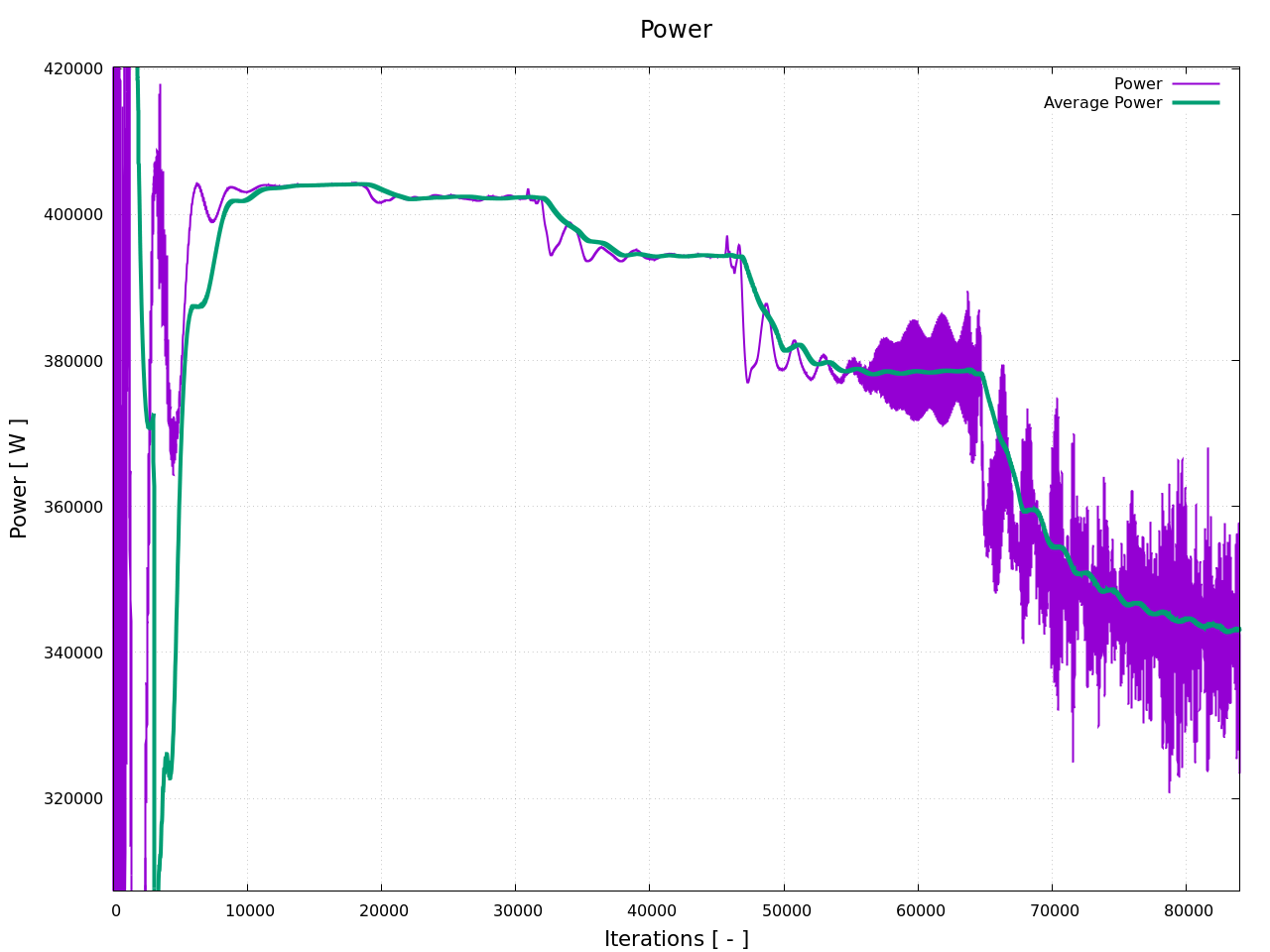

Power

Point Nr.	Power [ W ]
1	404019.
2	402347.
3	394349.
4	378513.
5	342996.

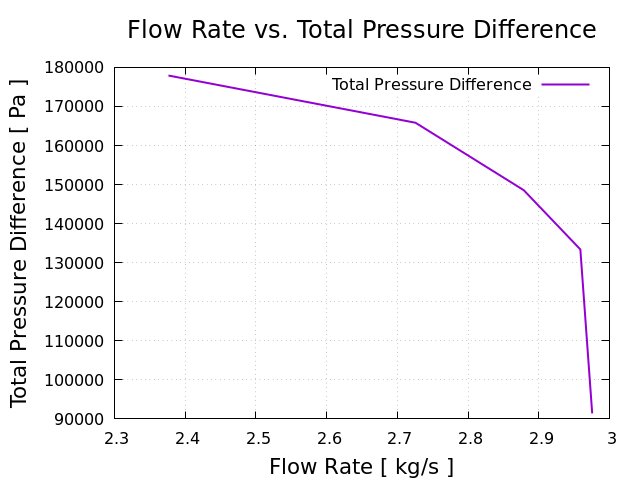

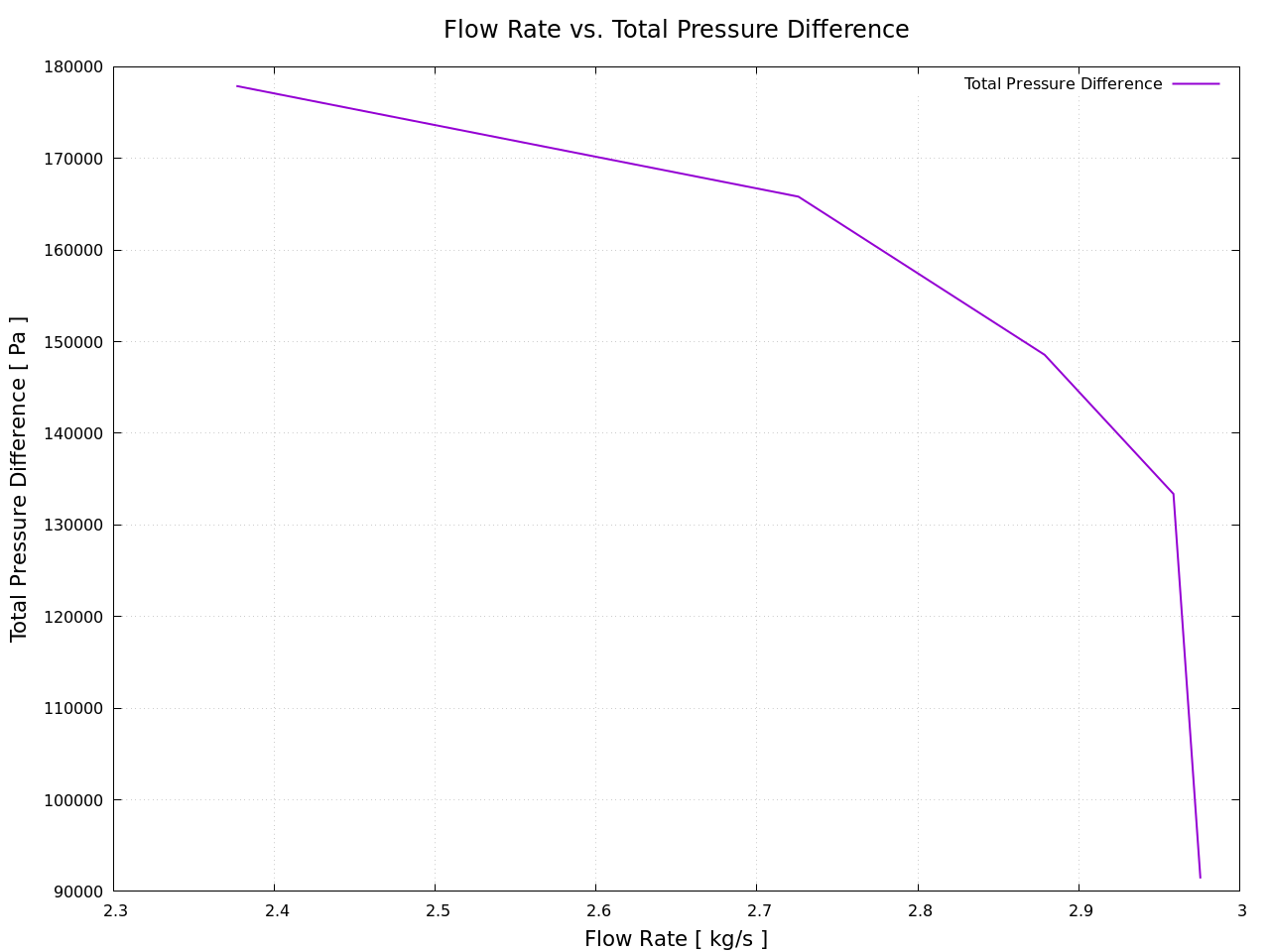

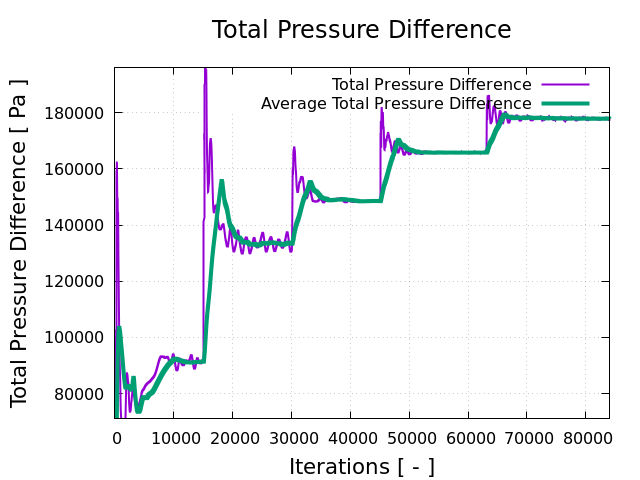

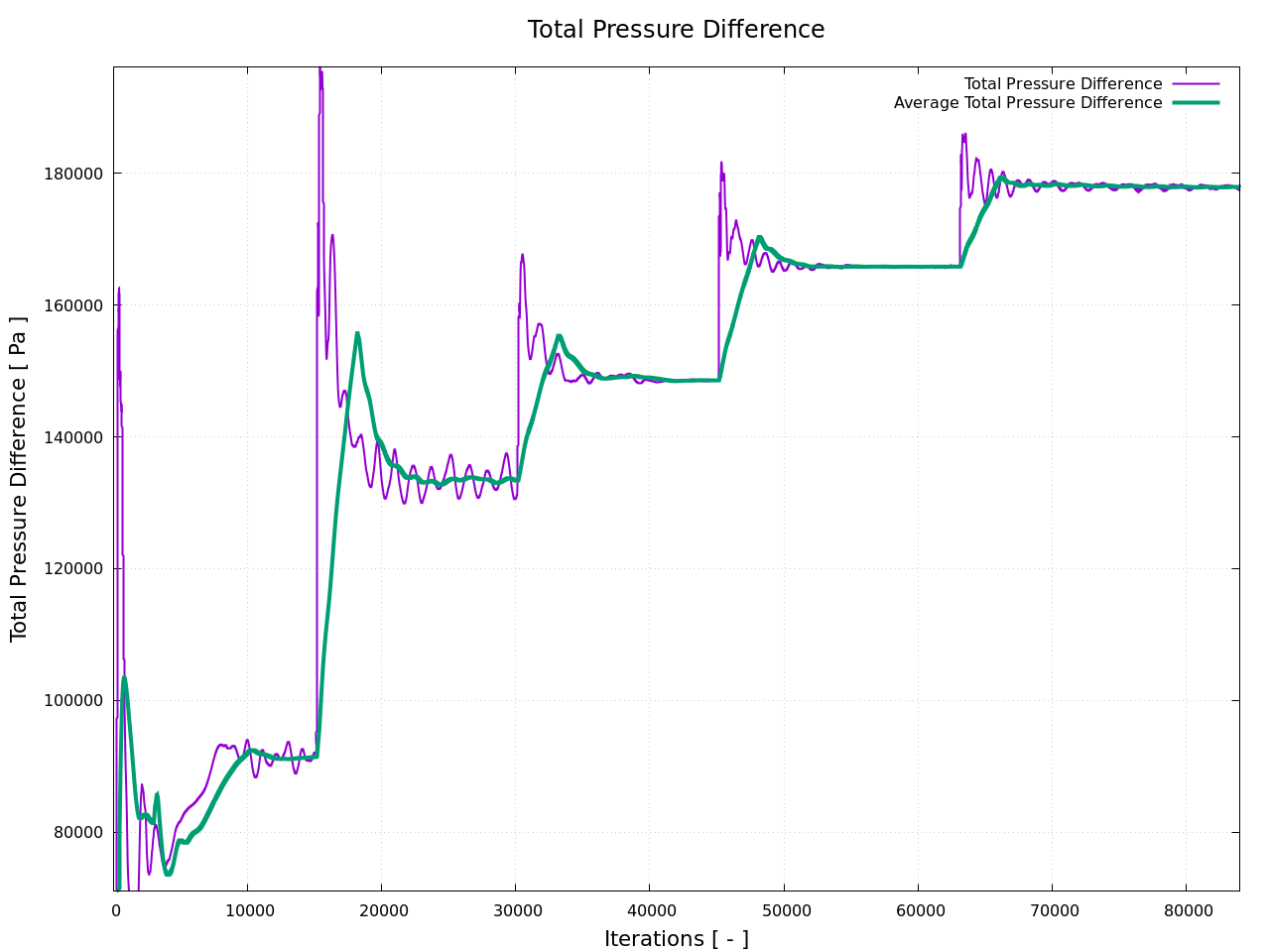

Total Pressure Difference

1:induct_inlet — 4:diff_exit

Point Nr.	Flow Rate [ kg/s ]	Total Pressure Difference [ Pa ]
1	2.97558	91410.8
2	2.95885	133385.
3	2.87879	148564.
4	2.72572	165833.
5	2.37635	177914.

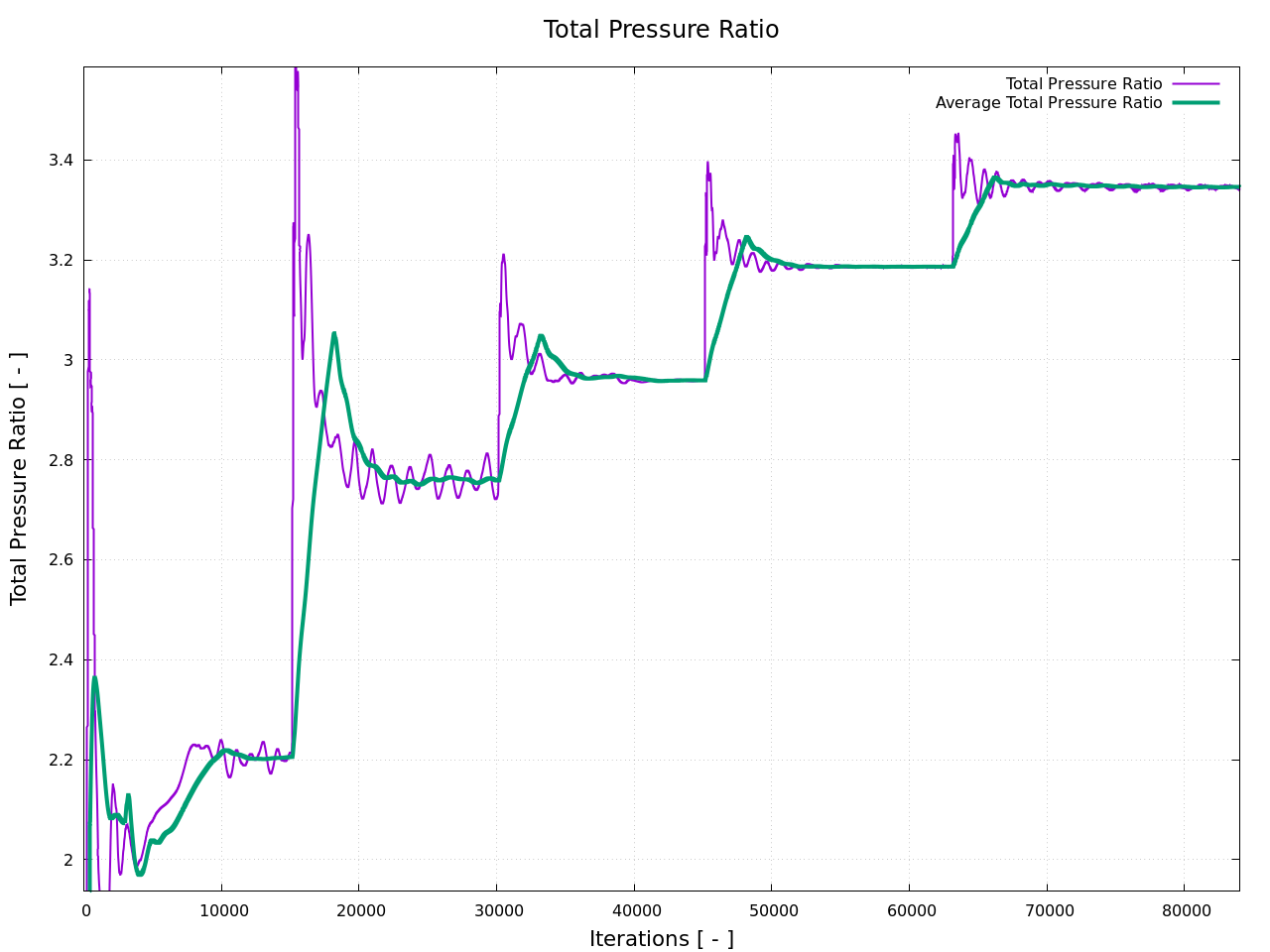

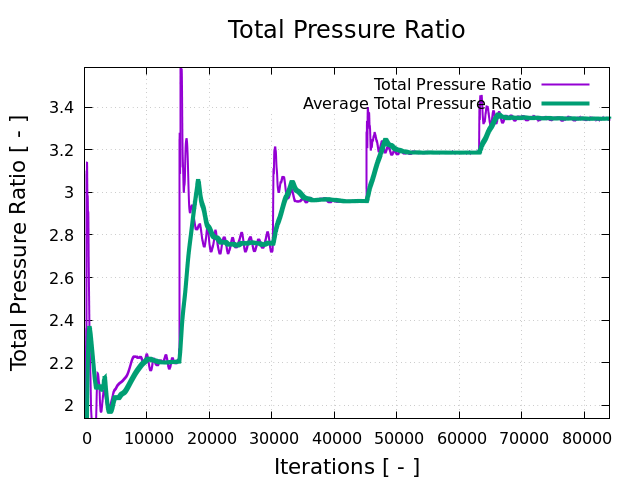

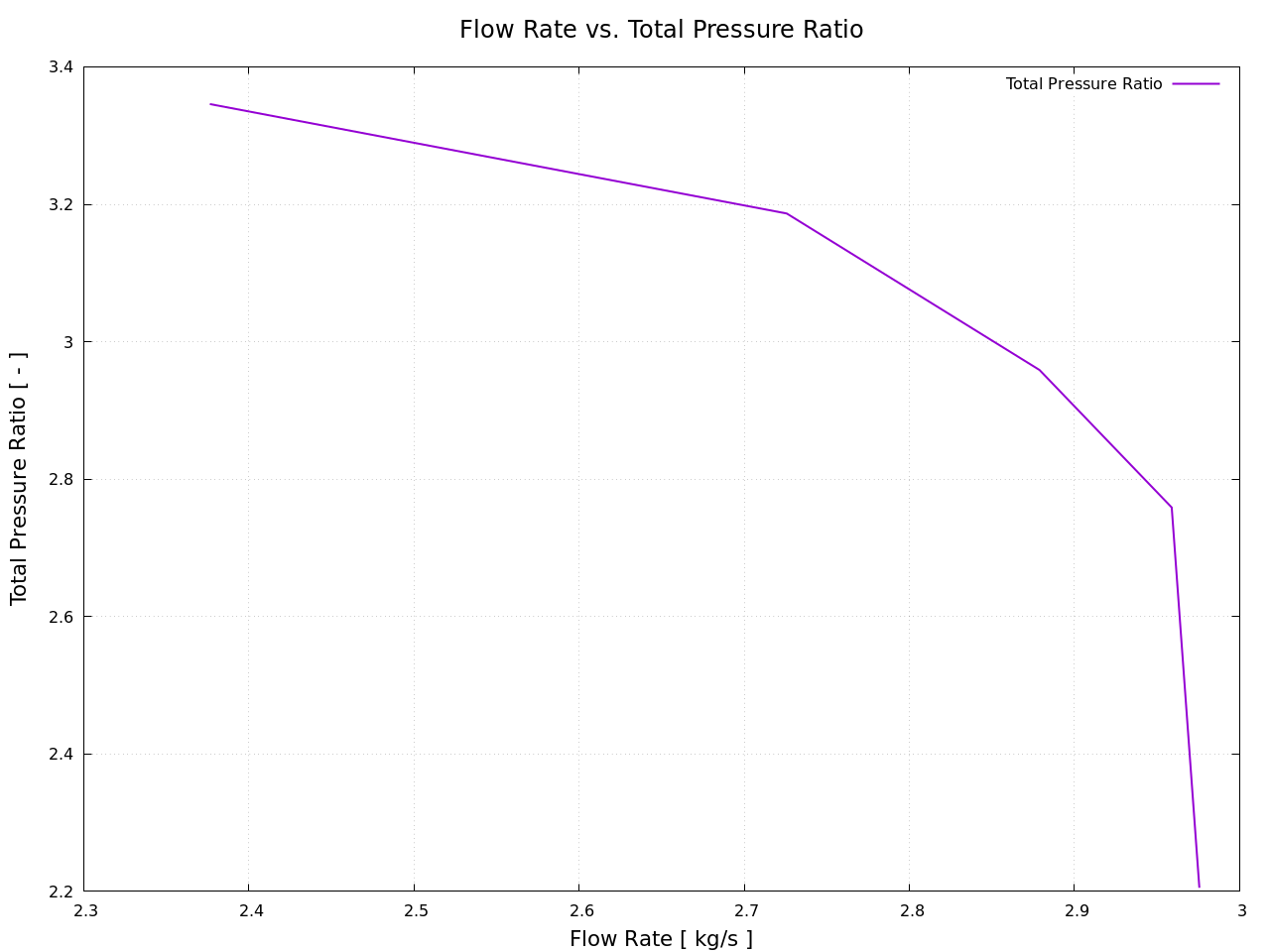

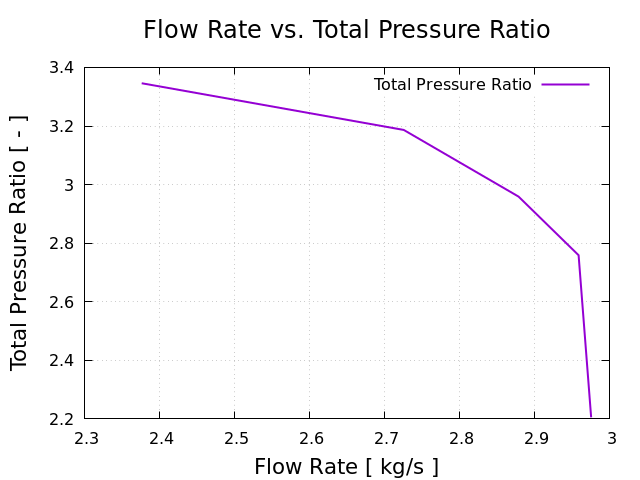

Total Pressure Ratio

1:induct_inlet — 4:diff_exit

Point Nr.	Flow Rate [ kg/s ]	Total Pressure Ratio [ – ]
1	2.97558	2.20527
2	2.95885	2.75870
3	2.87879	2.95883
4	2.72572	3.18653
5	2.37635	3.34582

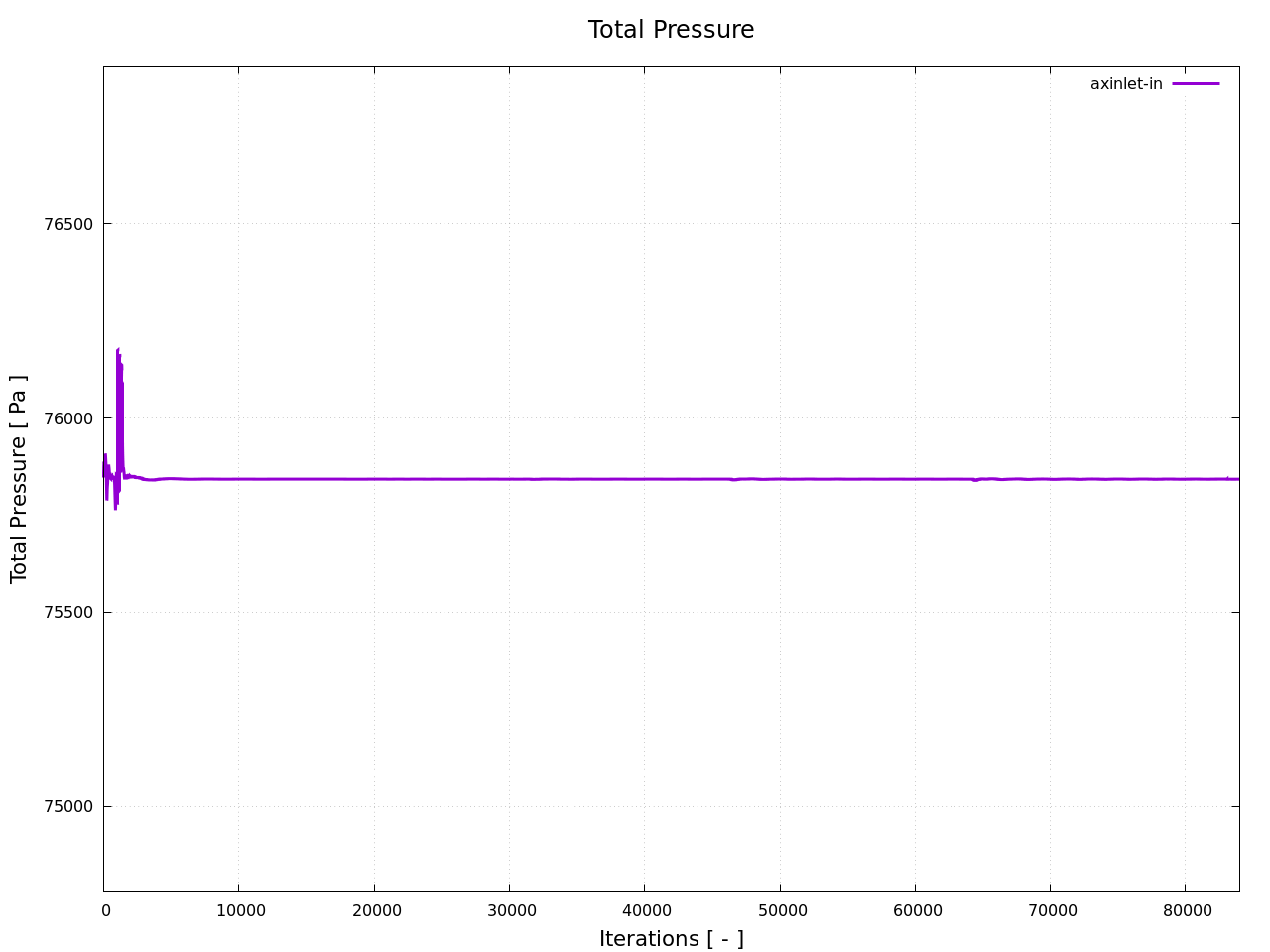

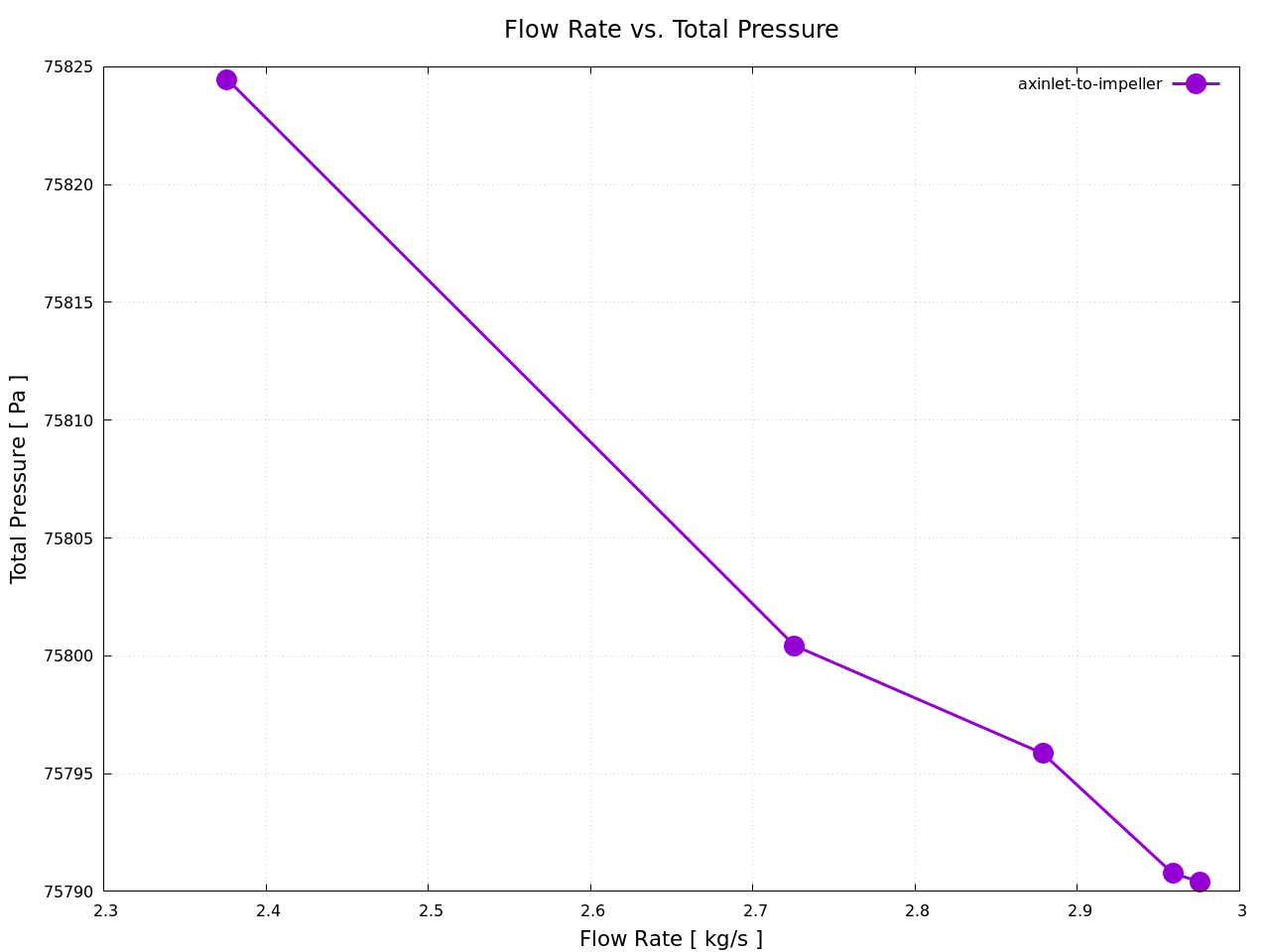

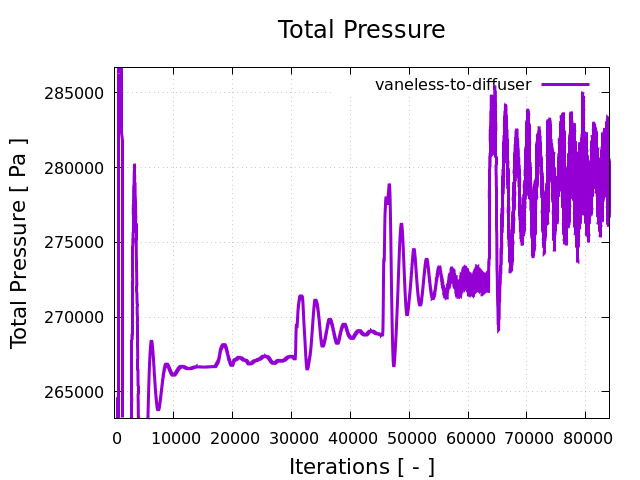

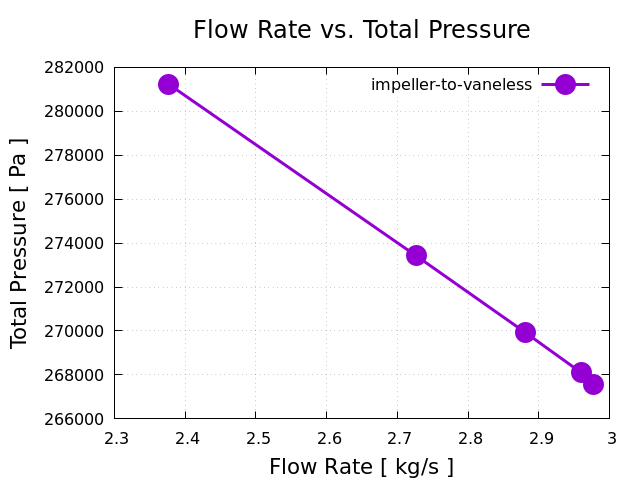

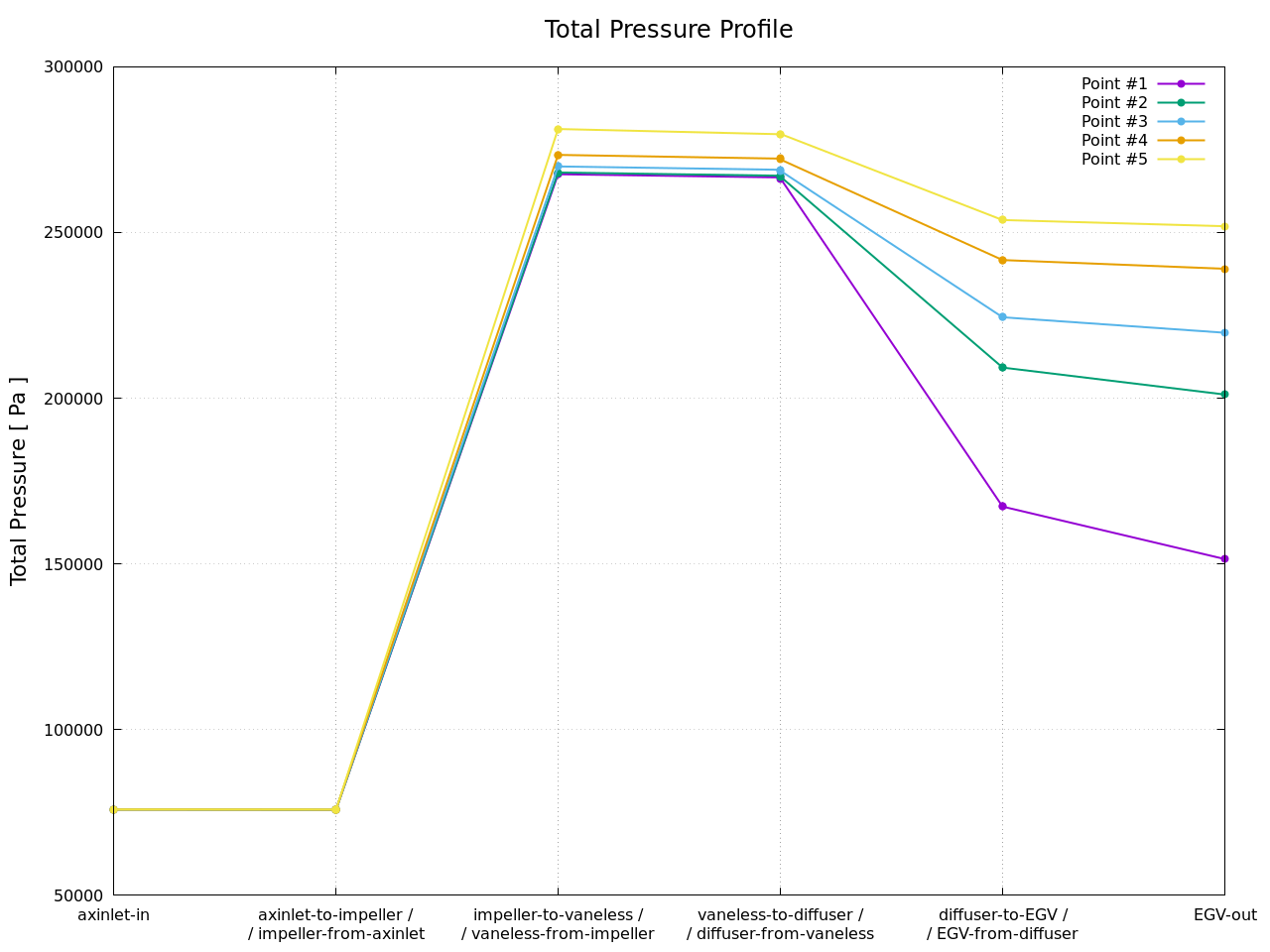

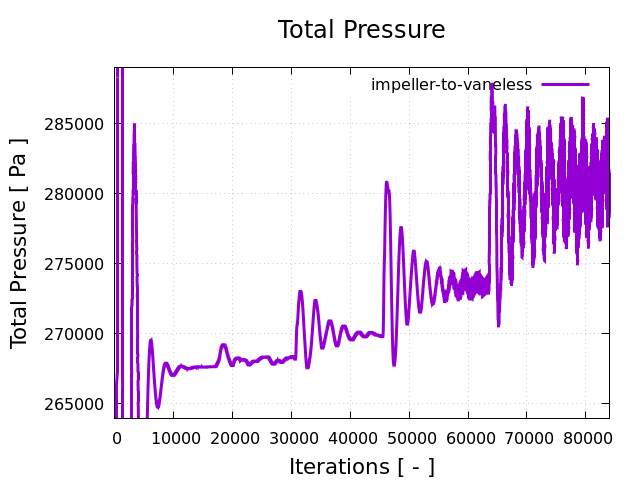

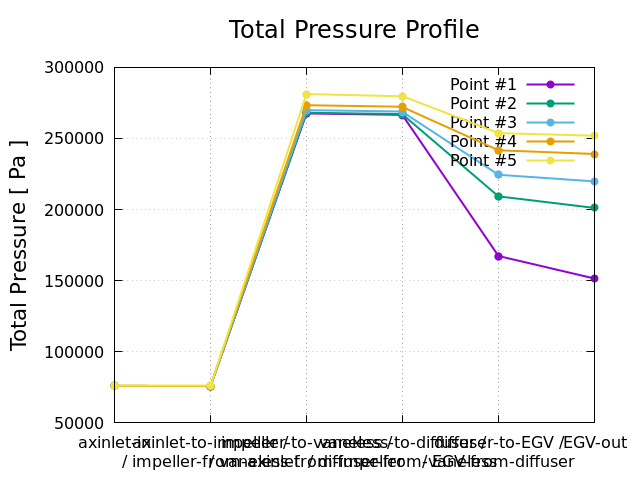

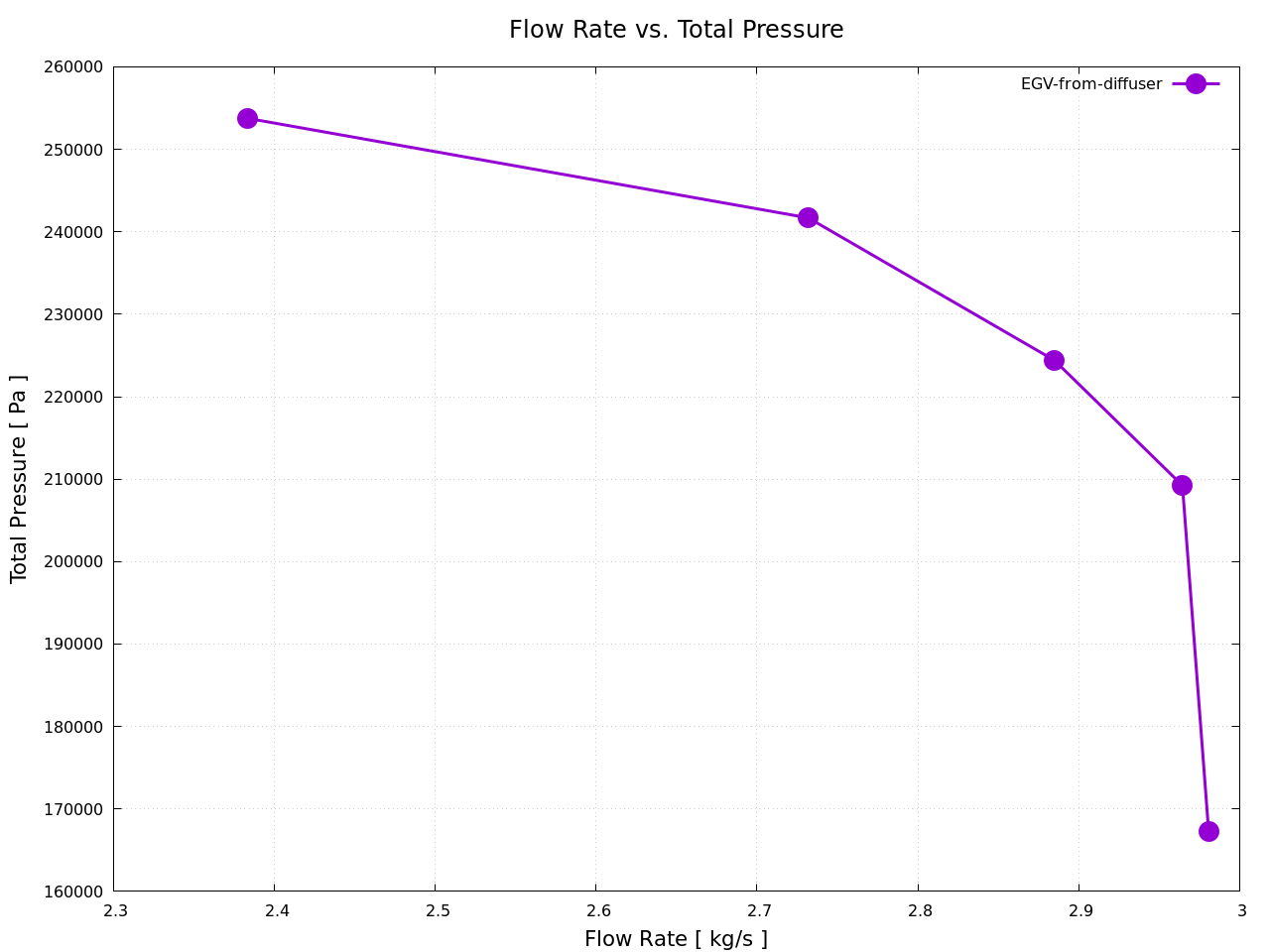

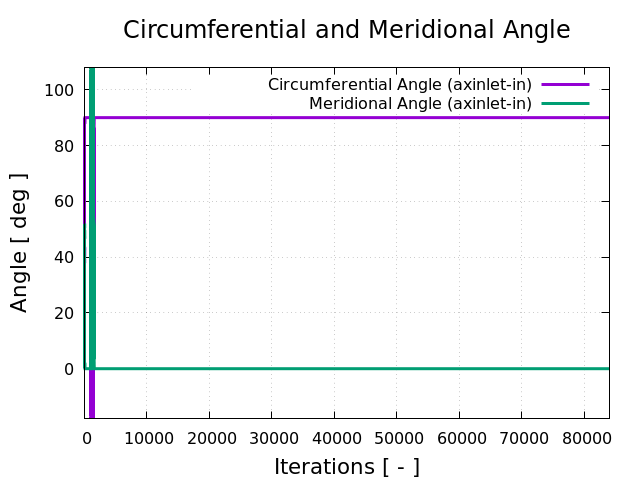

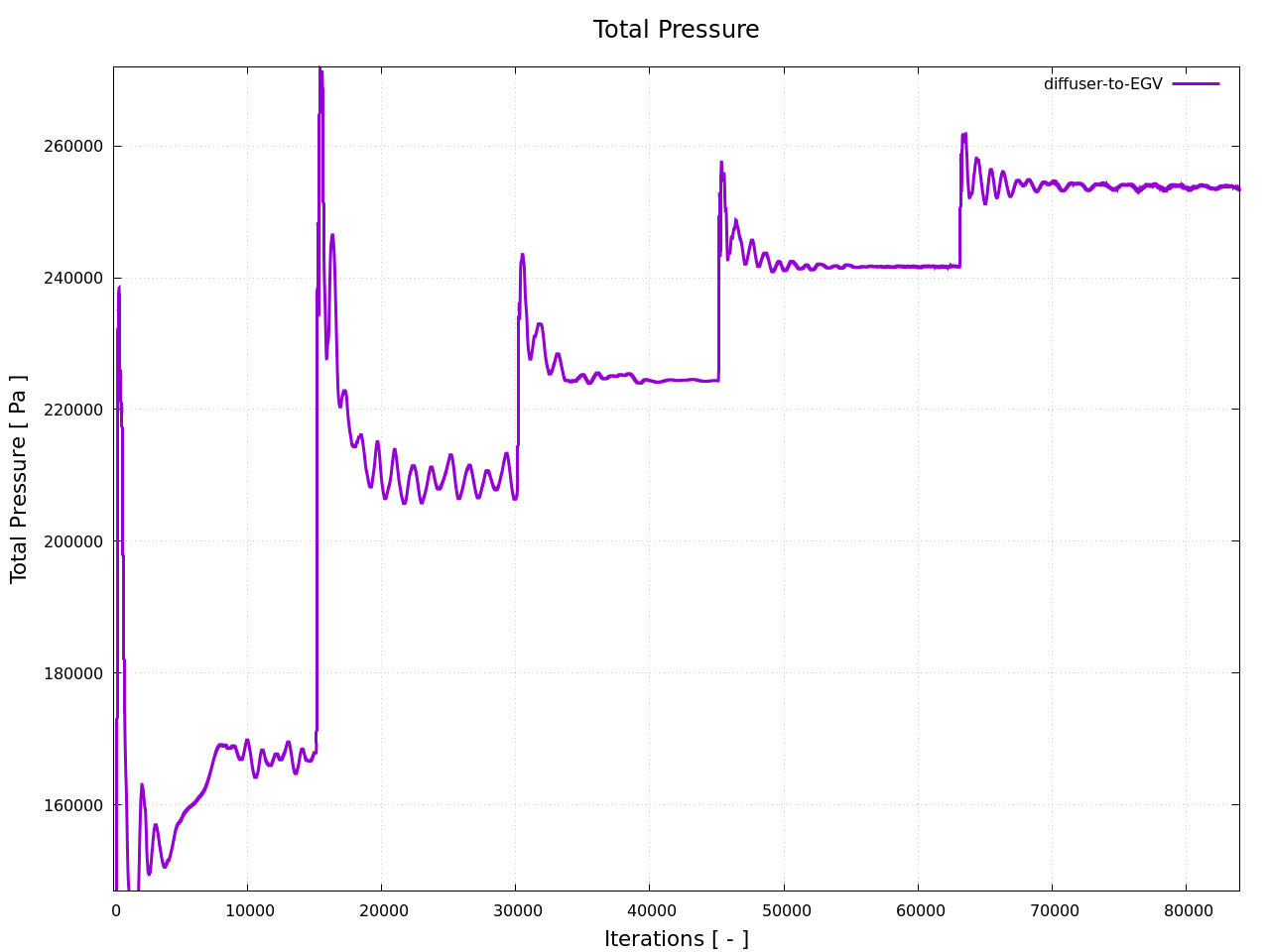

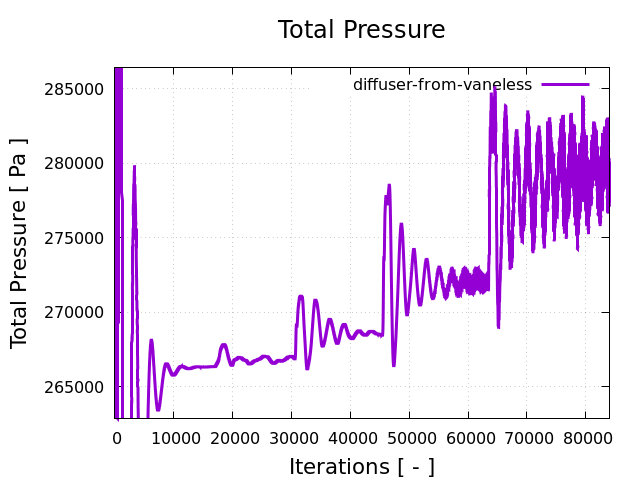

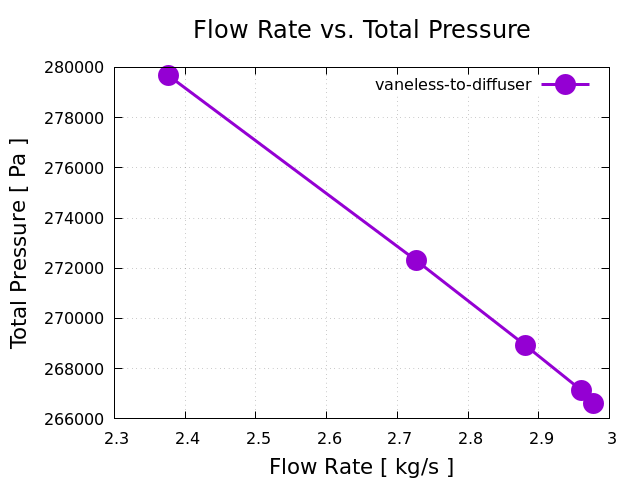

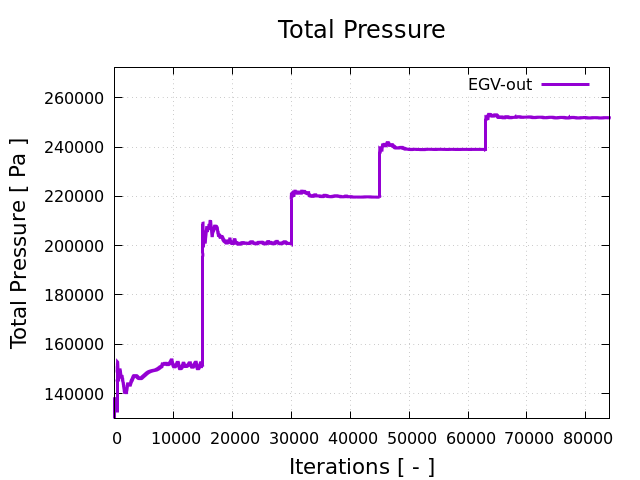

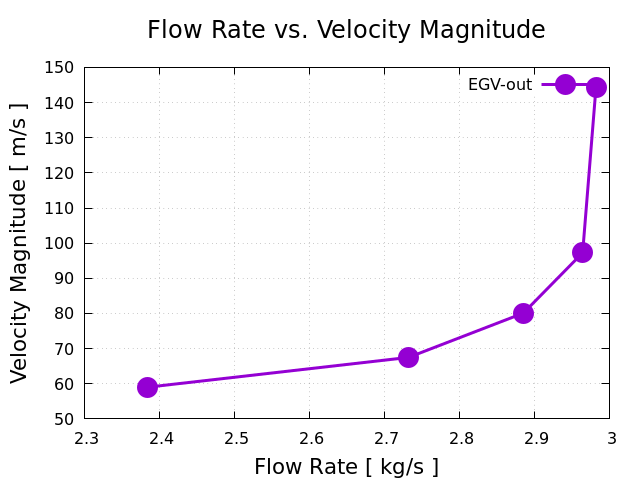

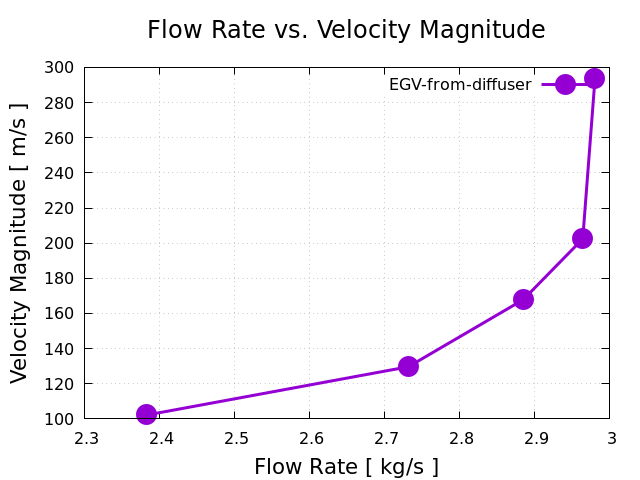

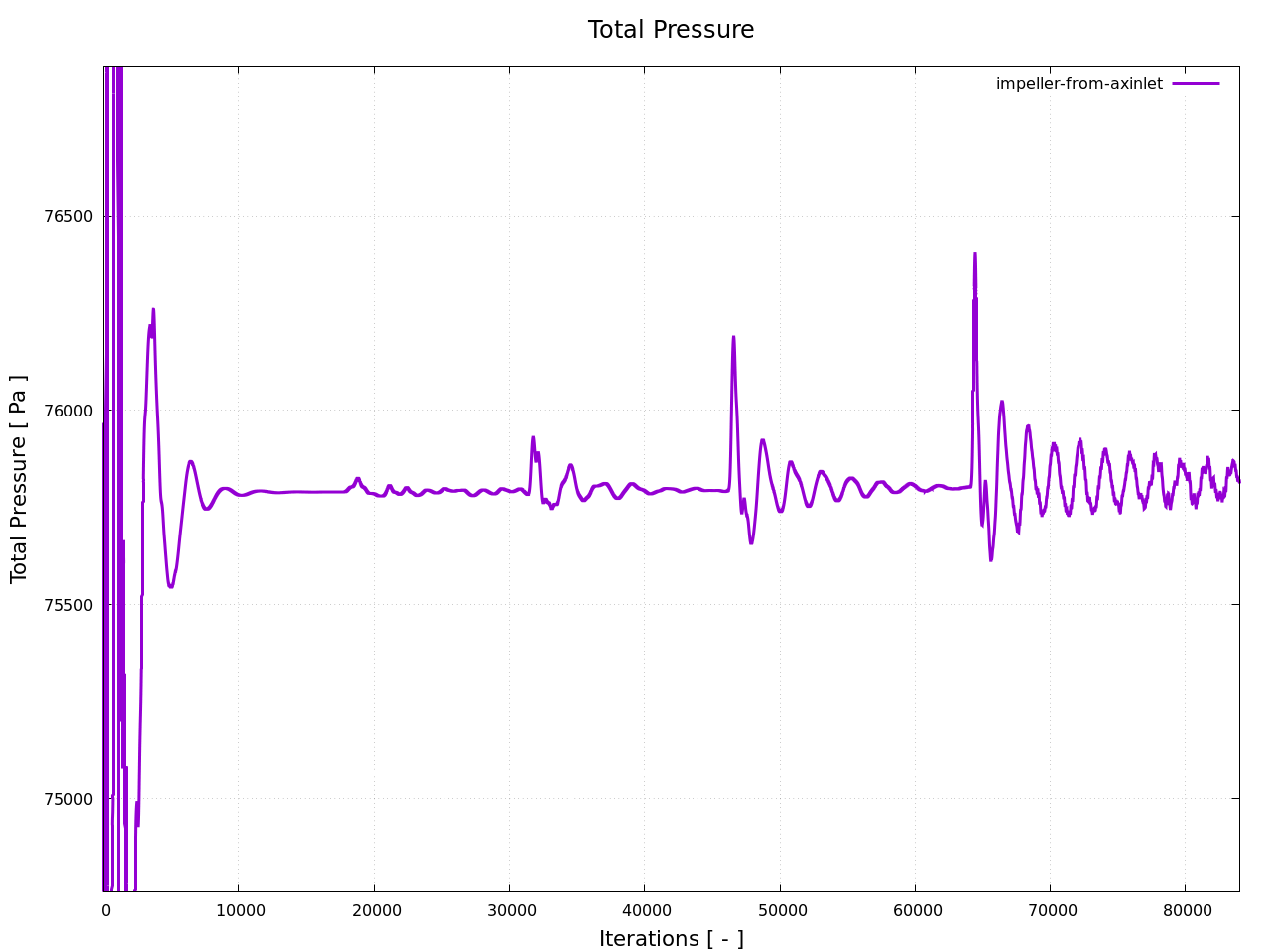

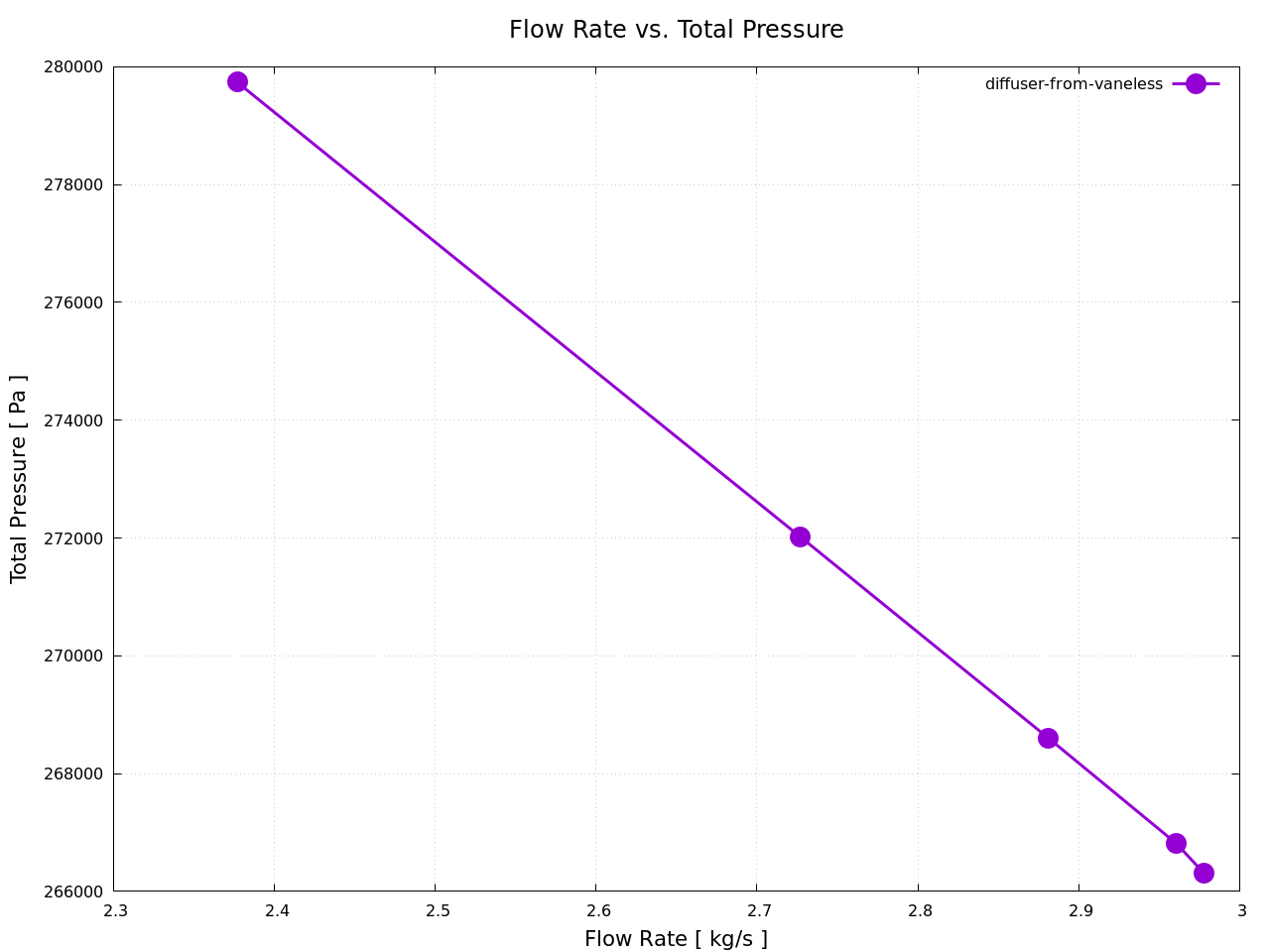

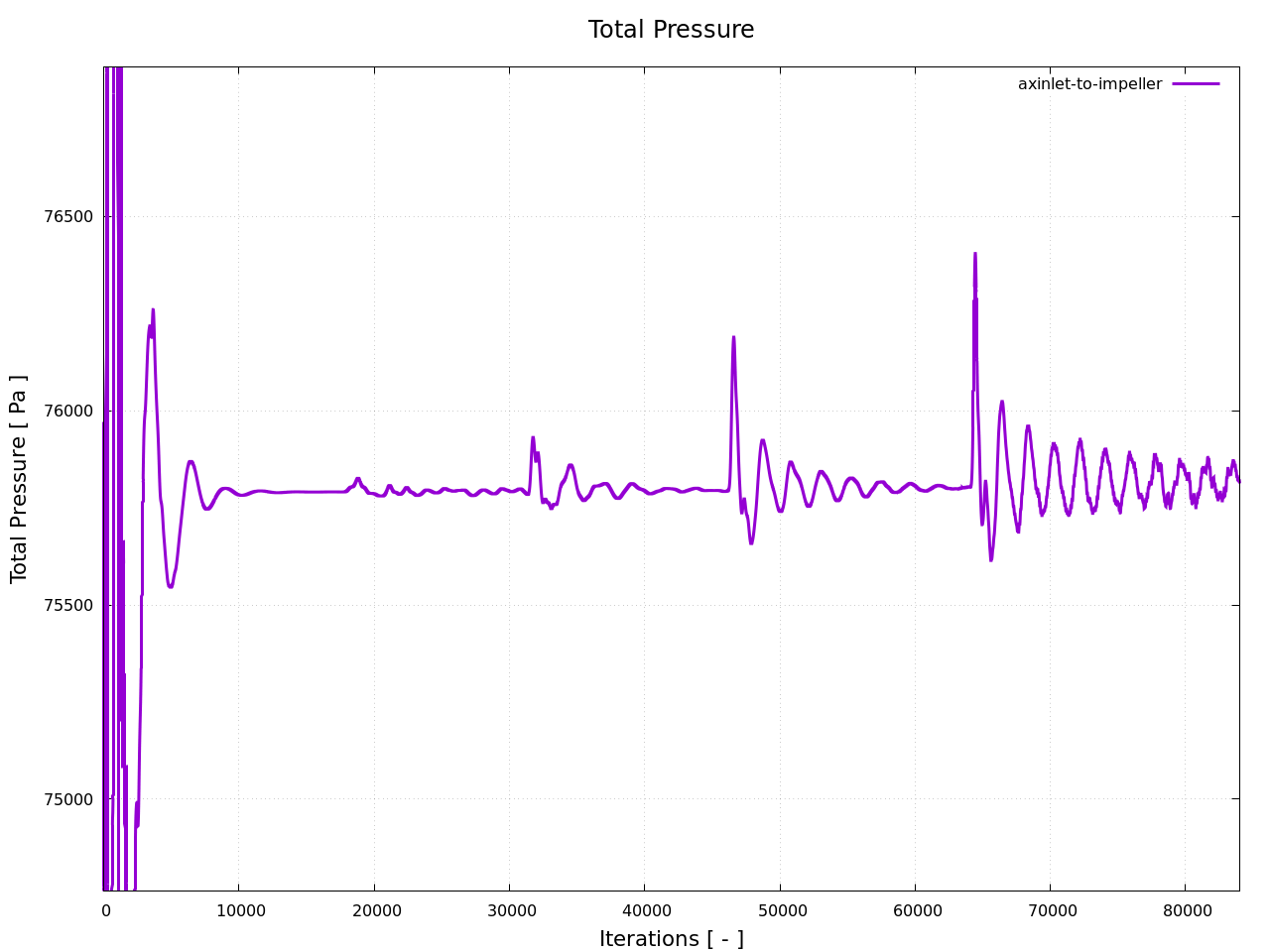

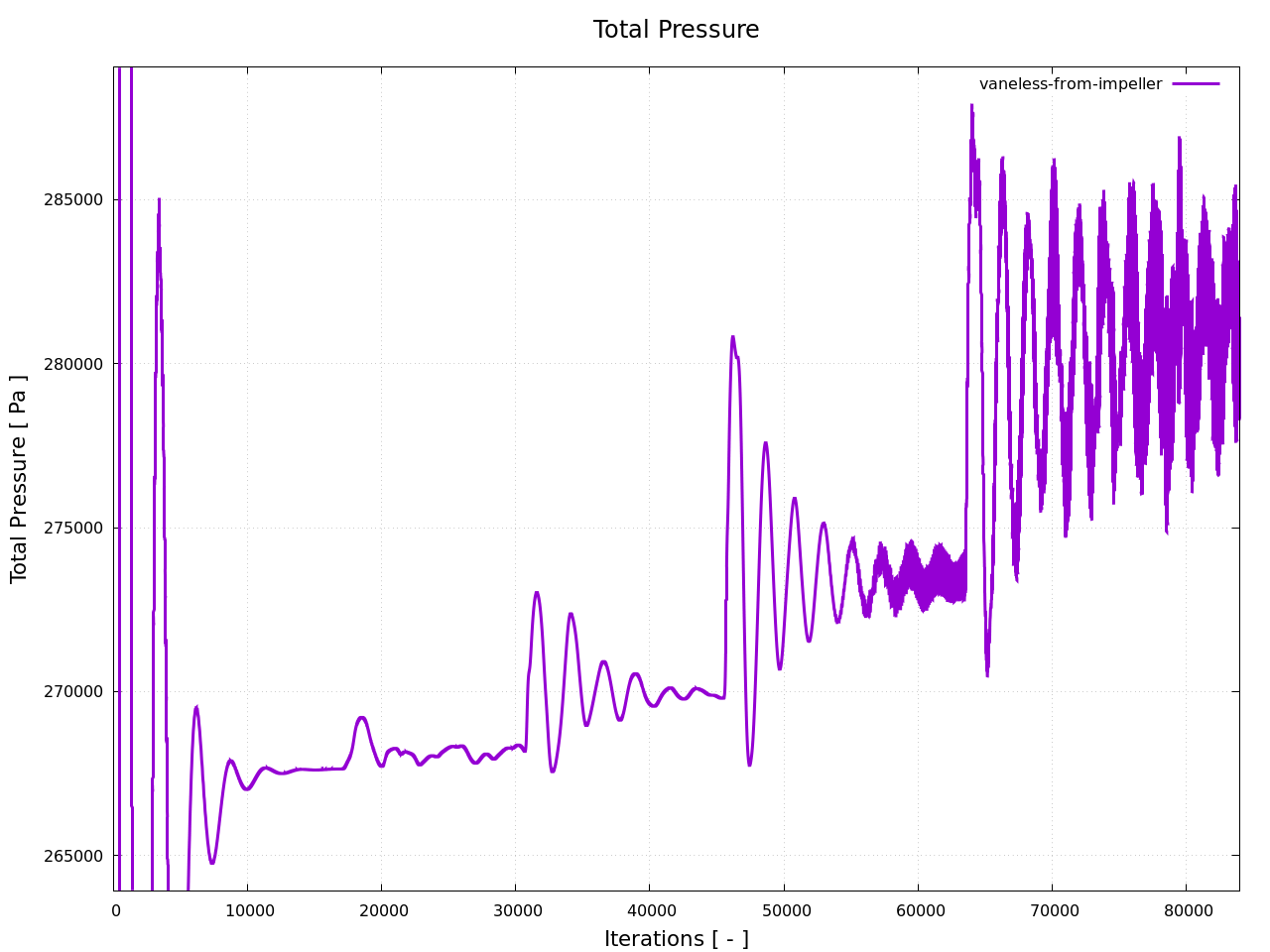

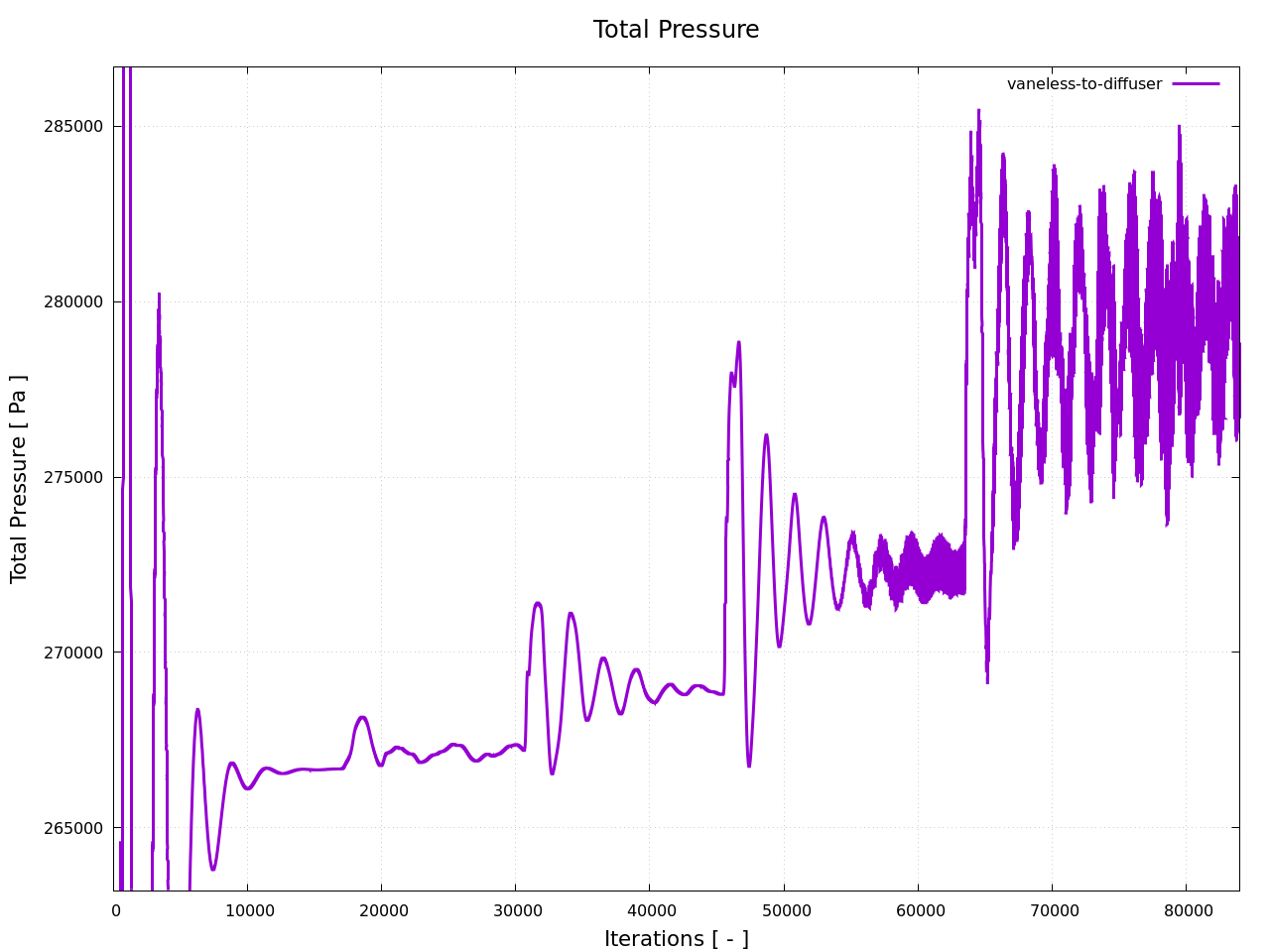

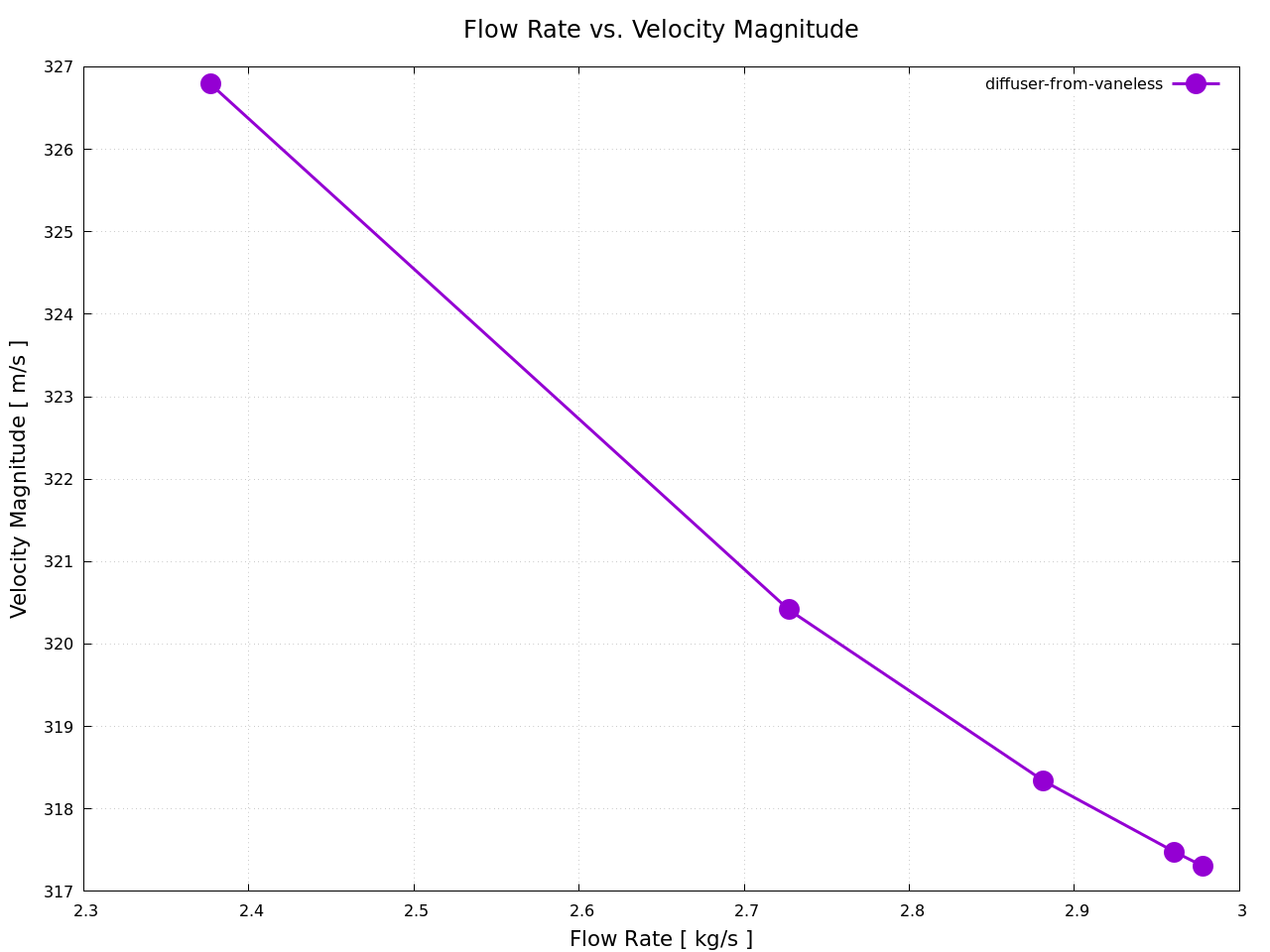

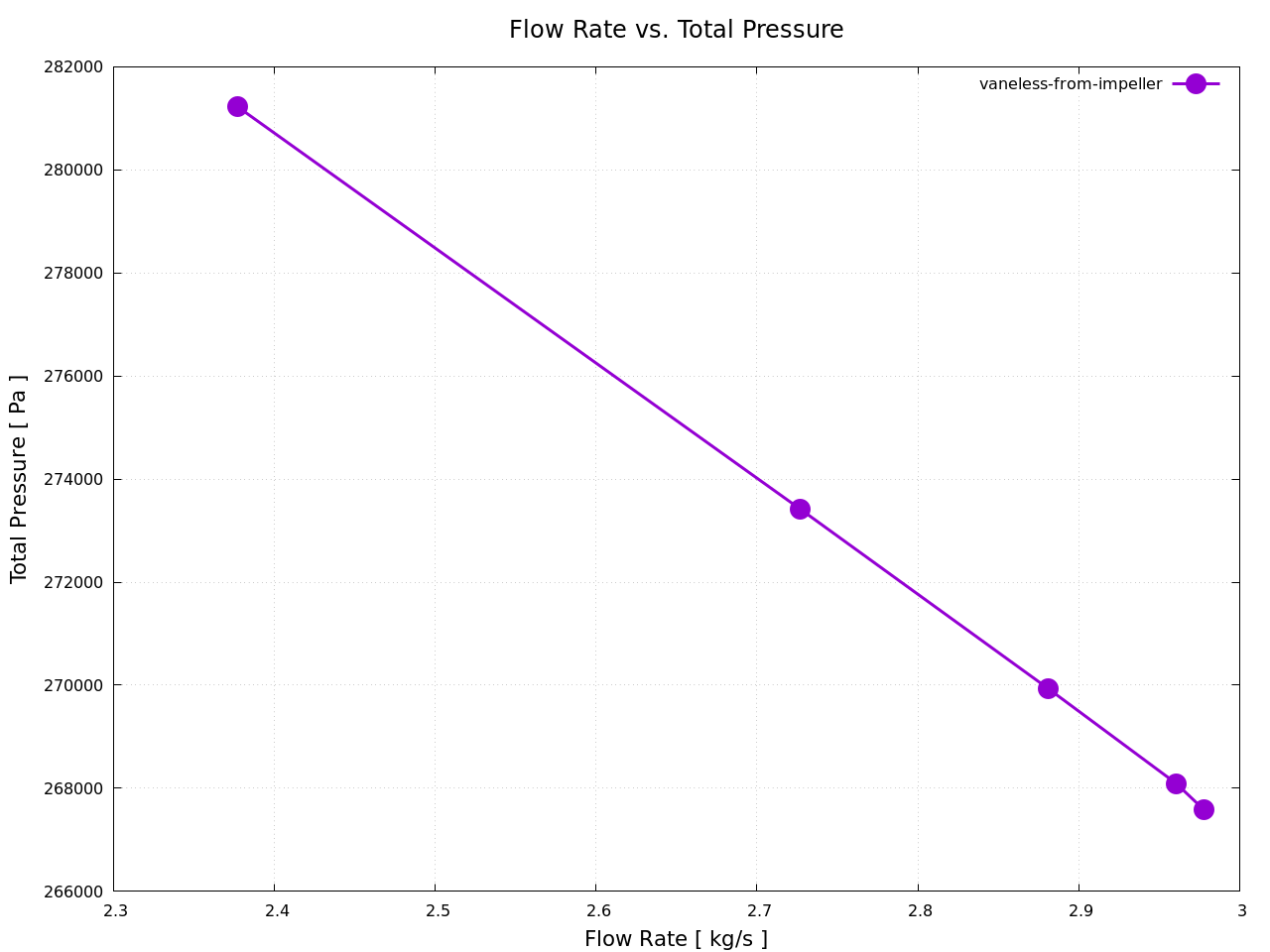

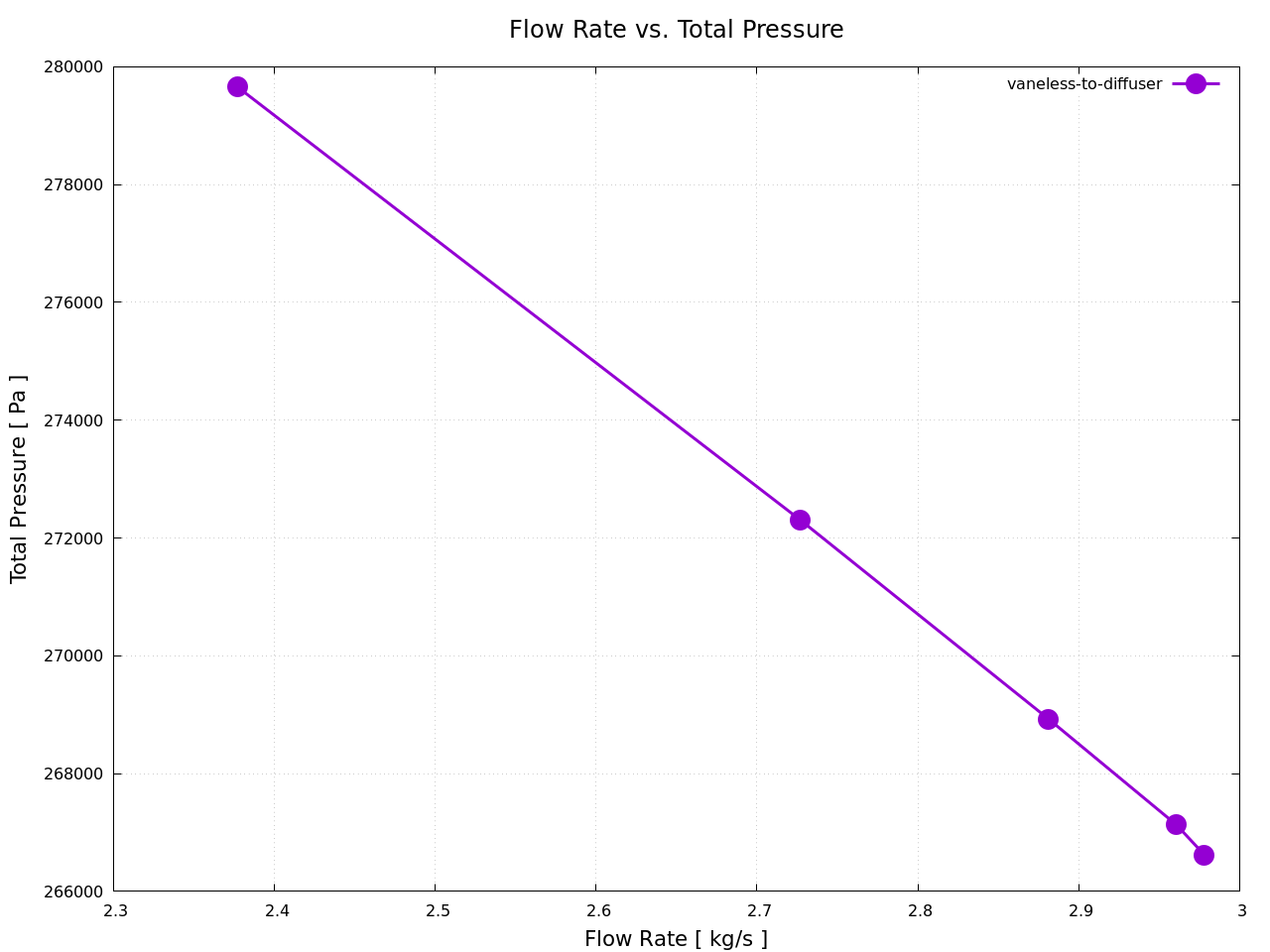

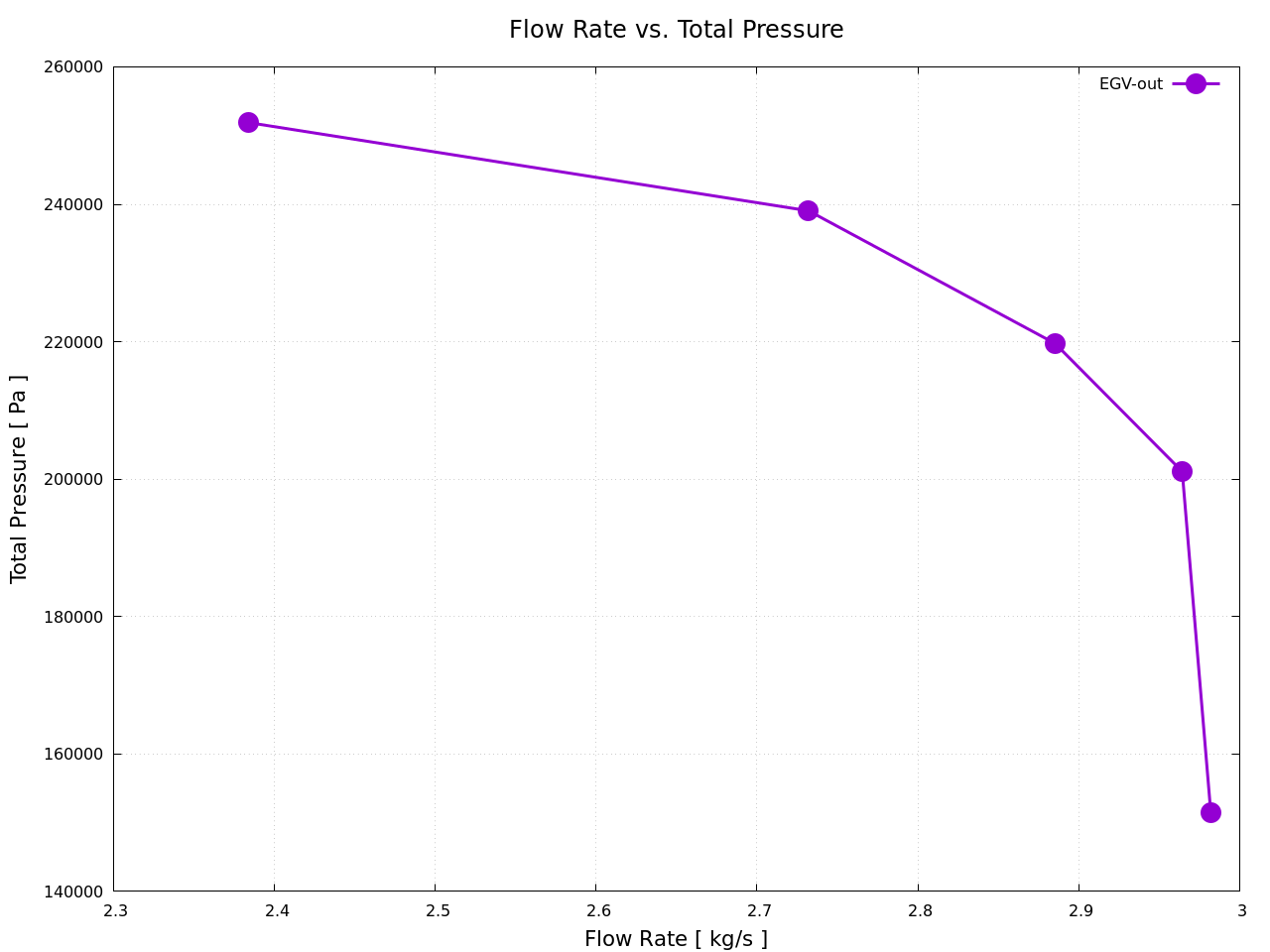

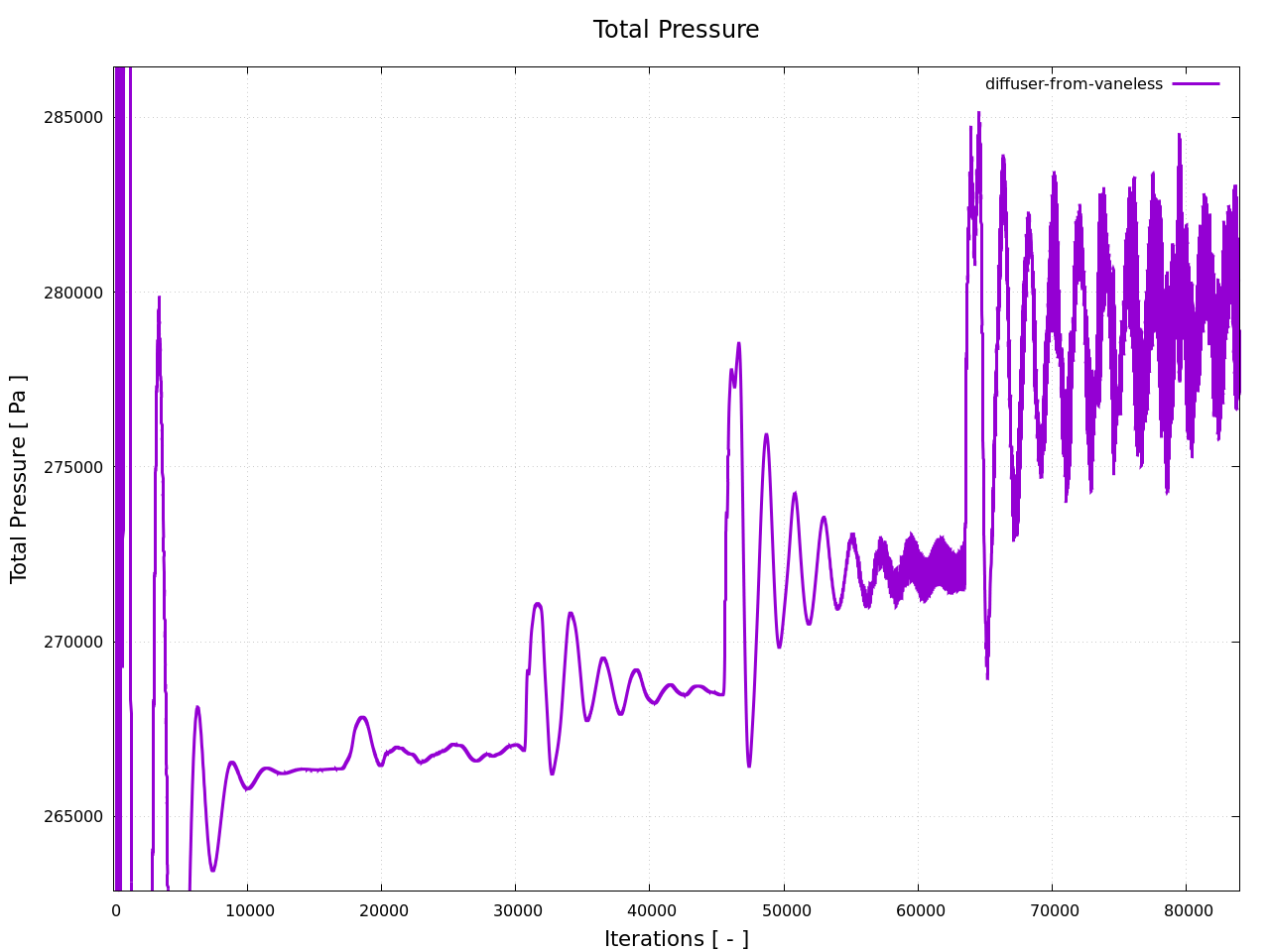

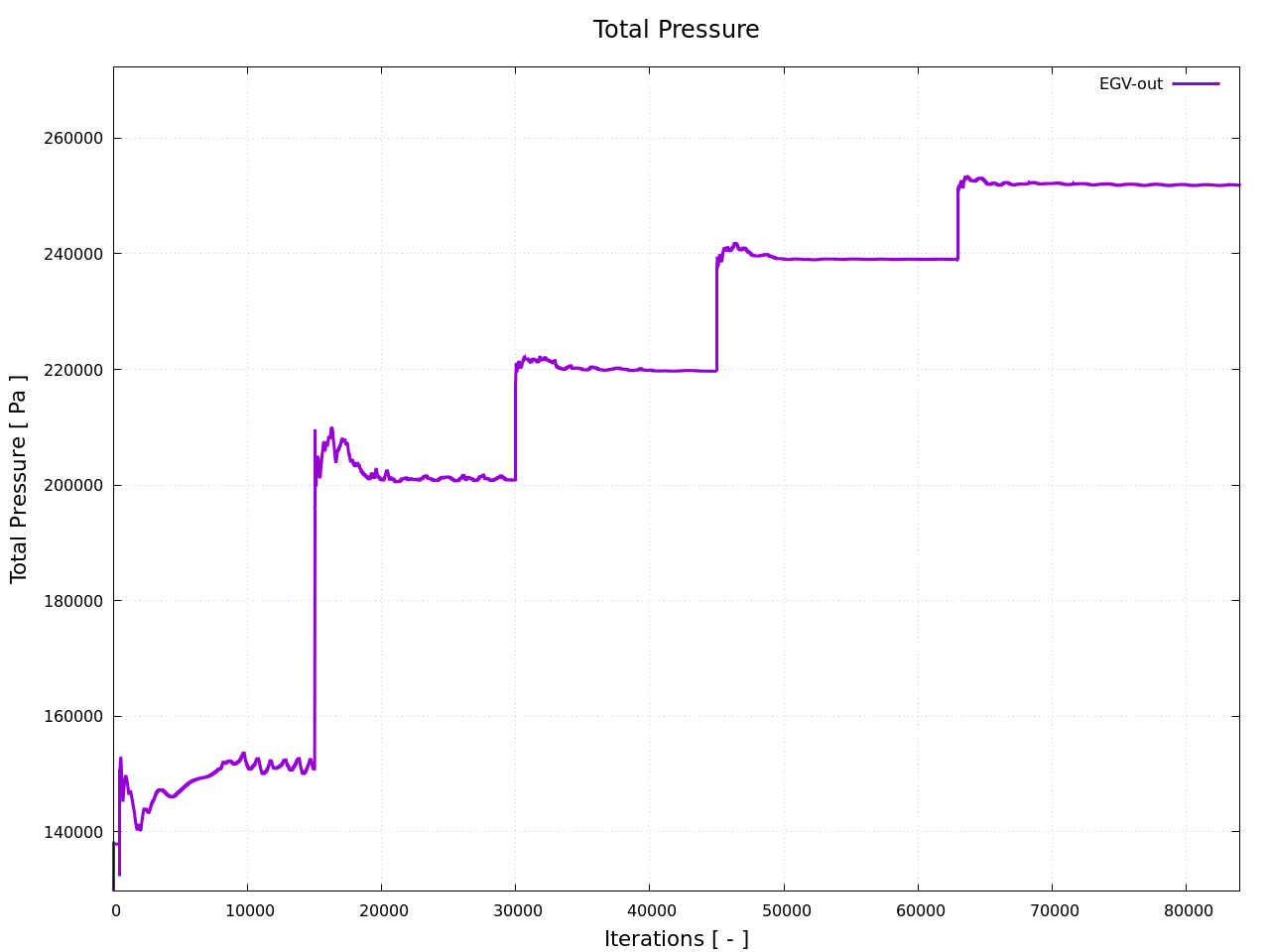

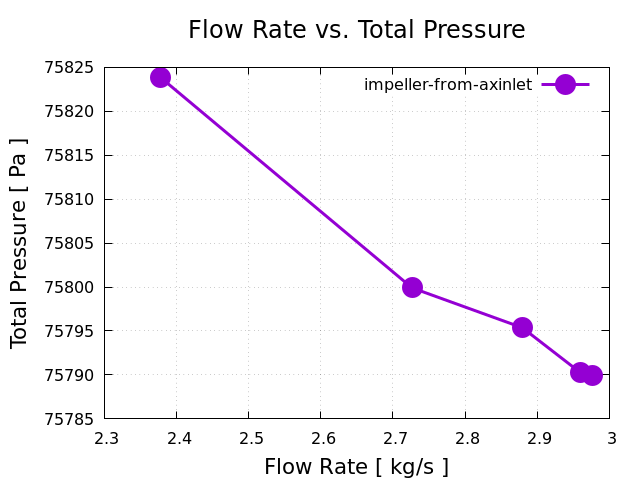

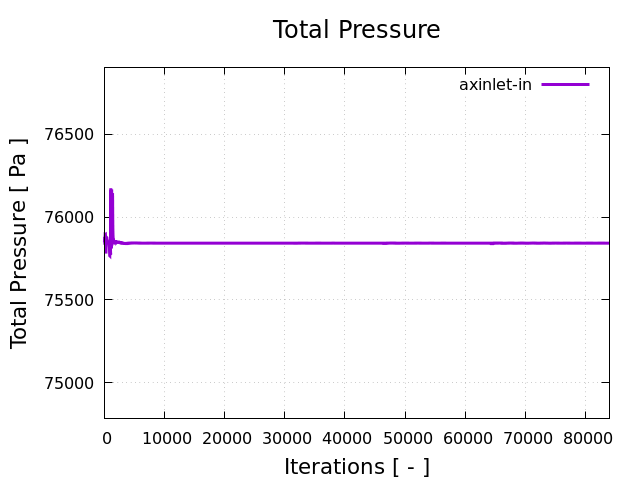

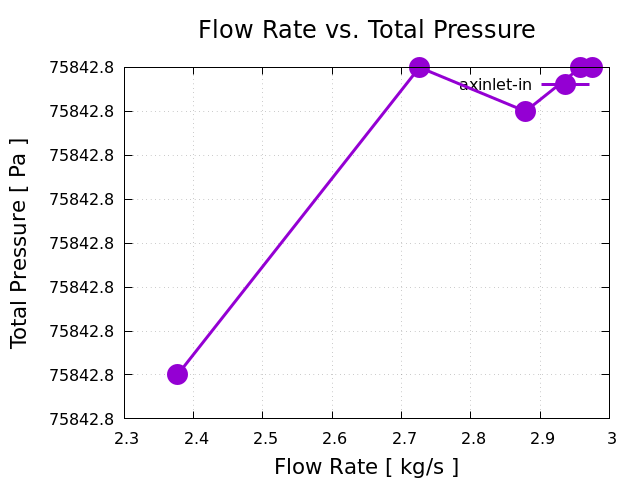

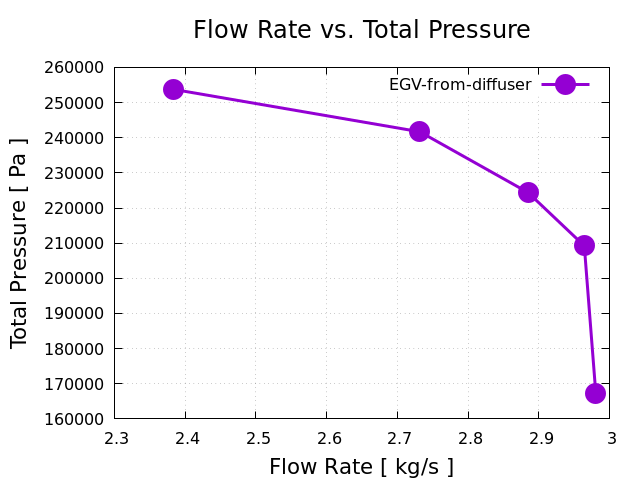

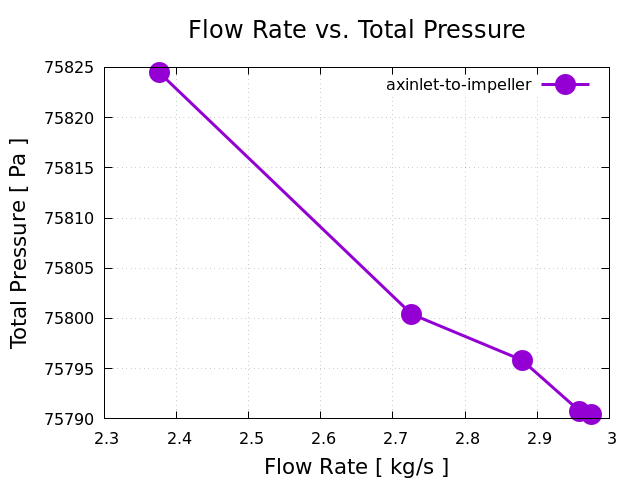

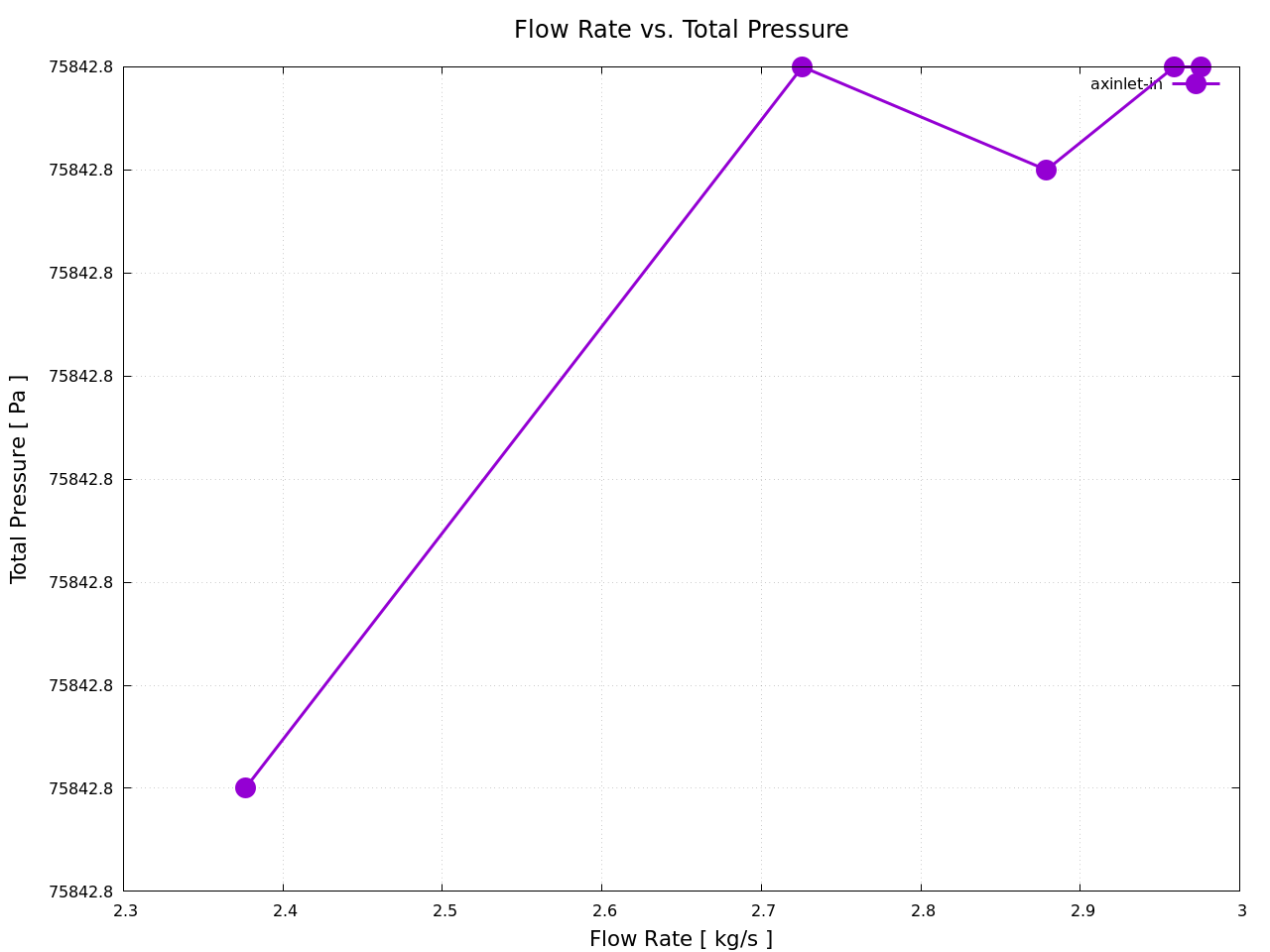

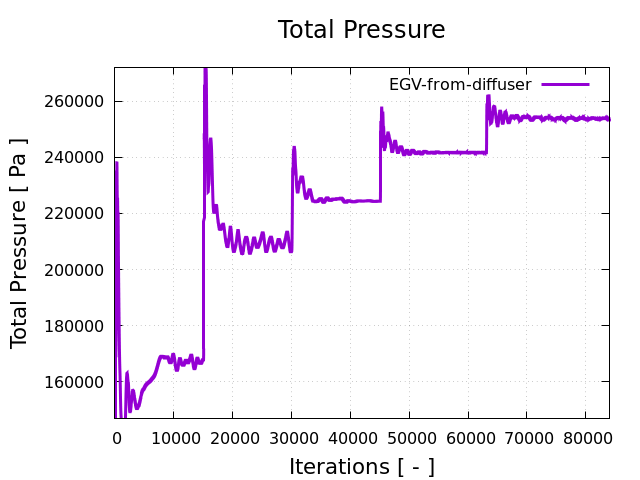

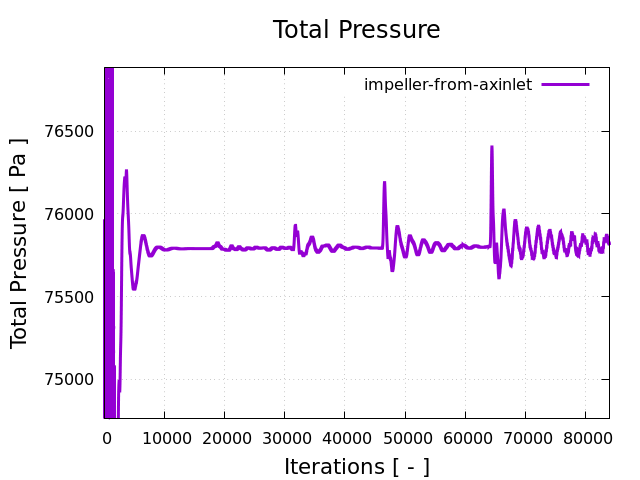

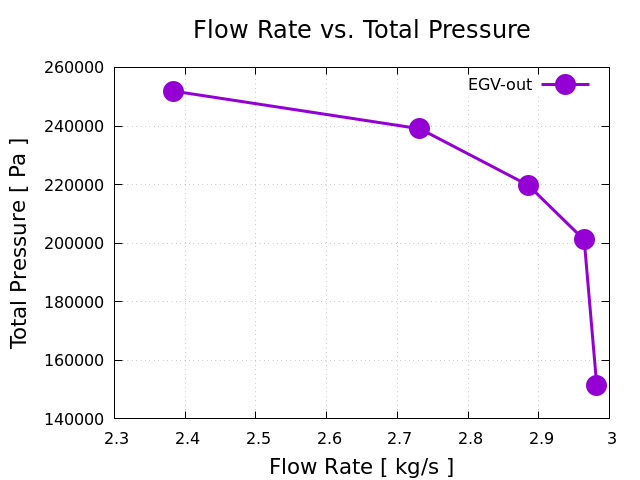

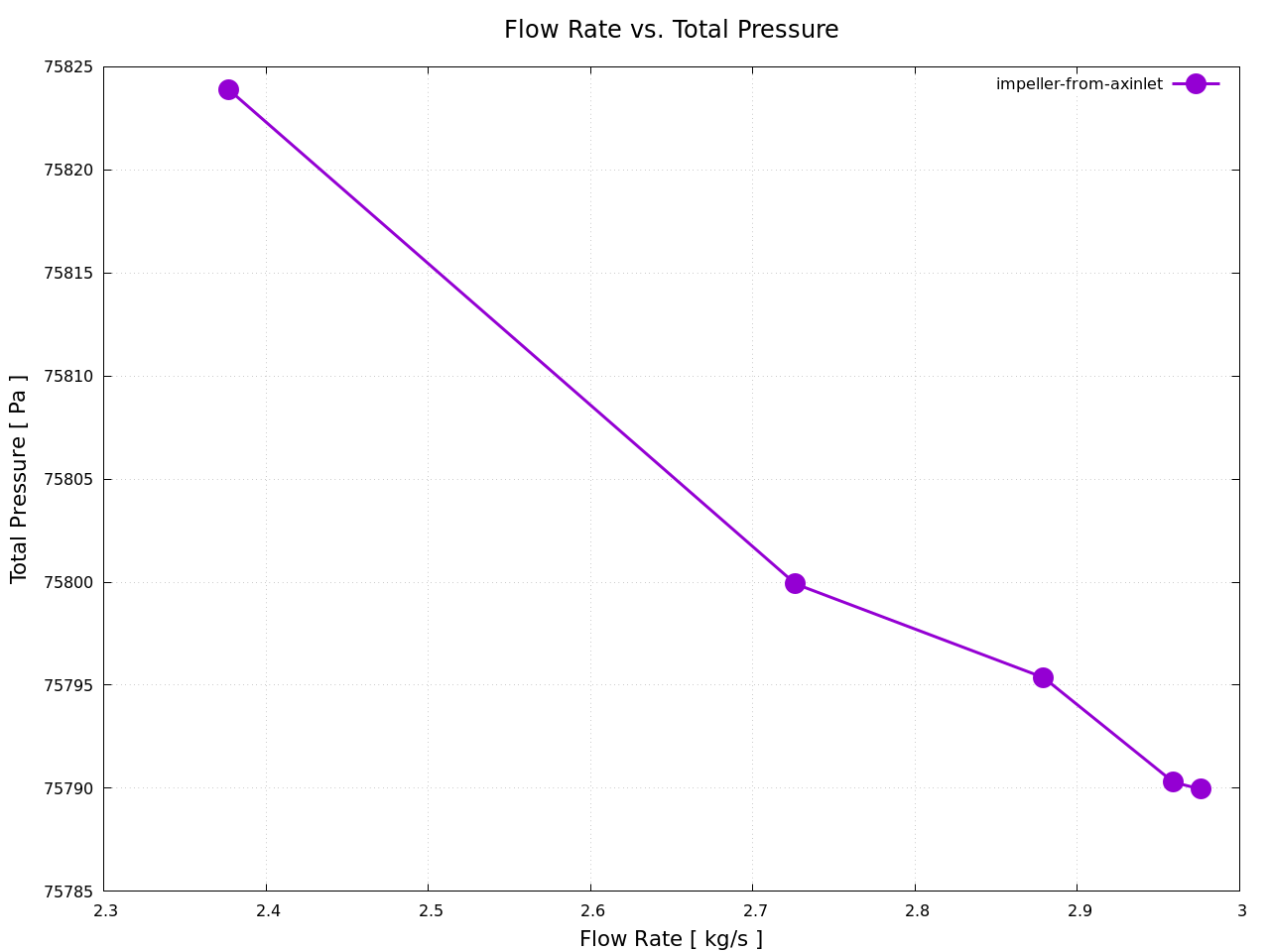

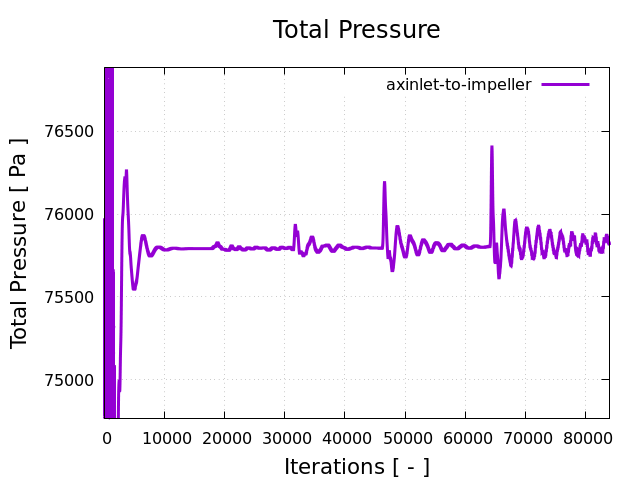

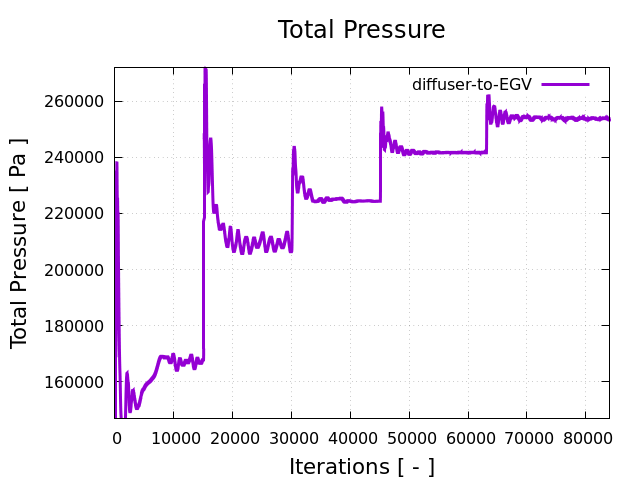

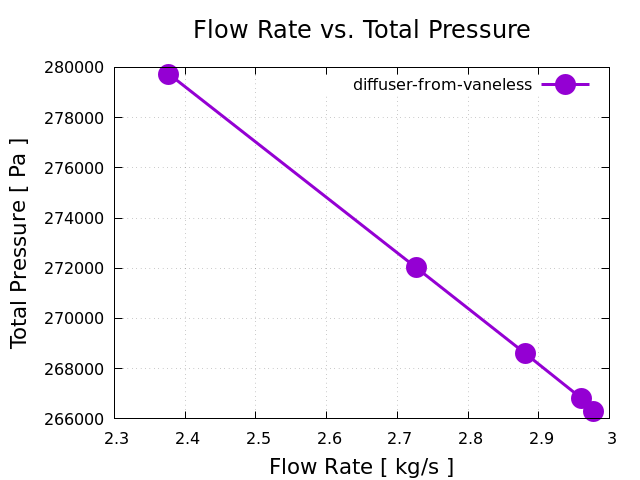

Total Pressure per Interfaces

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Total Pressure [ Pa ]
1	axinlet-in	2.97558	75842.8
1	axinlet-to-impeller	2.97557	75790.4
1	impeller-from-axinlet	2.97588	75790.0
1	impeller-to-vaneless	2.97795	267576.
1	vaneless-from-impeller	2.97794	267579.
1	vaneless-to-diffuser	2.97807	266620.
1	diffuser-from-vaneless	2.97805	266303.
1	diffuser-to-EGV	2.97974	167254.
1	EGV-from-diffuser	2.98072	167250.
1	EGV-out	2.98205	151419.
2	axinlet-in	2.95885	75842.8
2	axinlet-to-impeller	2.95884	75790.8
2	impeller-from-axinlet	2.95917	75790.3
2	impeller-to-vaneless	2.96053	268091.
2	vaneless-from-impeller	2.96052	268094.
2	vaneless-to-diffuser	2.96062	267131.
2	diffuser-from-vaneless	2.96060	266814.
2	diffuser-to-EGV	2.96350	209228.
2	EGV-from-diffuser	2.96443	209225.
2	EGV-out	2.96428	201094.
3	axinlet-in	2.87879	75842.8
3	axinlet-to-impeller	2.87877	75795.9
3	impeller-from-axinlet	2.87923	75795.4
3	impeller-to-vaneless	2.88114	269929.
3	vaneless-from-impeller	2.88115	269931.
3	vaneless-to-diffuser	2.88129	268924.
3	diffuser-from-vaneless	2.88127	268599.
3	diffuser-to-EGV	2.88396	224406.
3	EGV-from-diffuser	2.88484	224403.
3	EGV-out	2.88521	219741.
4	axinlet-in	2.72572	75842.8
4	axinlet-to-impeller	2.72572	75800.4
4	impeller-from-axinlet	2.72641	75799.9
4	impeller-to-vaneless	2.72690	273416.
4	vaneless-from-impeller	2.72695	273416.
4	vaneless-to-diffuser	2.72703	272303.
4	diffuser-from-vaneless	2.72701	272018.
4	diffuser-to-EGV	2.73083	241676.
4	EGV-from-diffuser	2.73188	241677.
4	EGV-out	2.73204	239044.
5	axinlet-in	2.37635	75842.8
5	axinlet-to-impeller	2.37613	75824.5
5	impeller-from-axinlet	2.37734	75823.9
5	impeller-to-vaneless	2.37677	281231.
5	vaneless-from-impeller	2.37690	281229.
5	vaneless-to-diffuser	2.37690	279661.
5	diffuser-from-vaneless	2.37688	279737.
5	diffuser-to-EGV	2.38221	253756.
5	EGV-from-diffuser	2.38314	253756.
5	EGV-out	2.38374	251887.

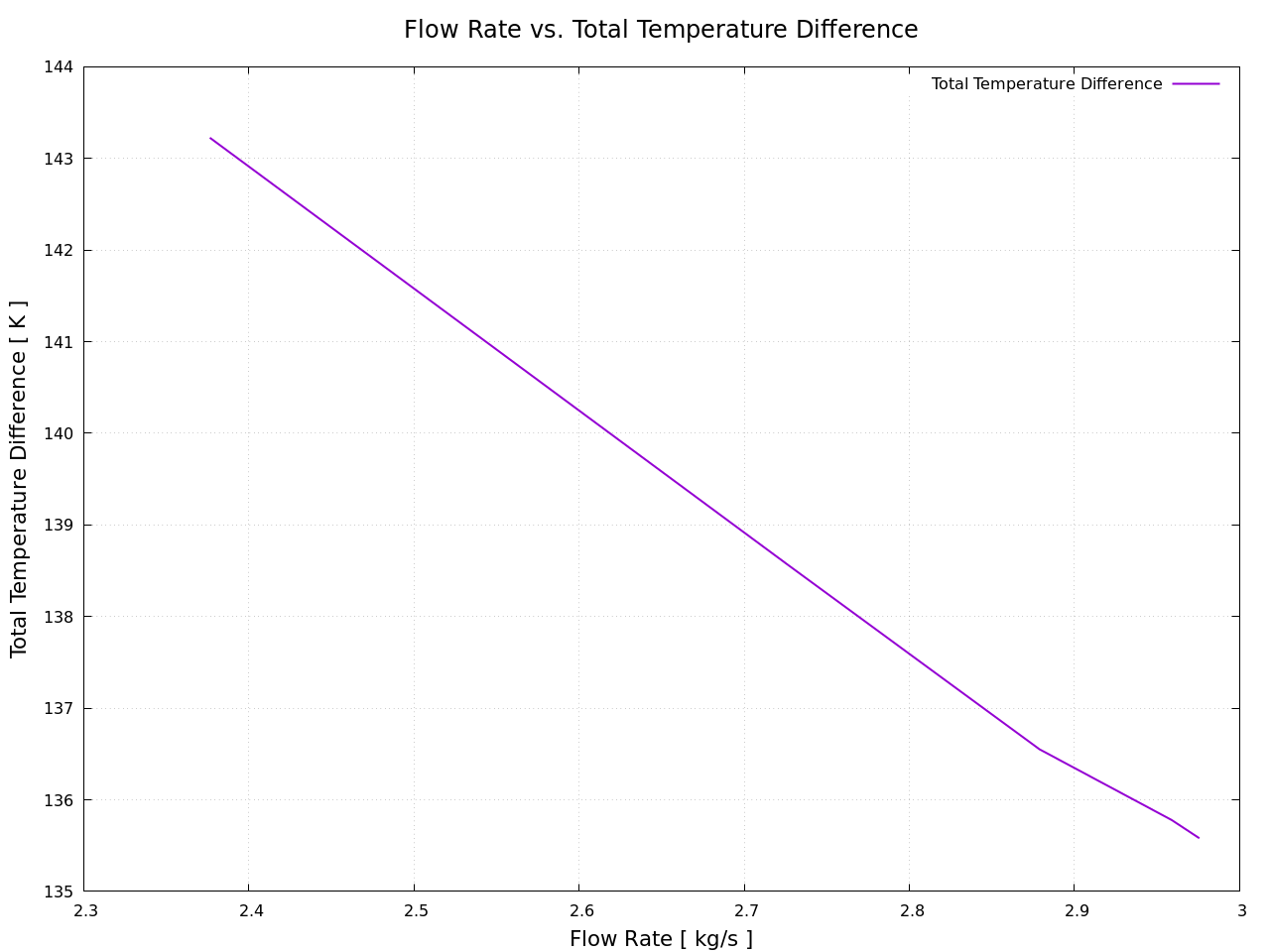

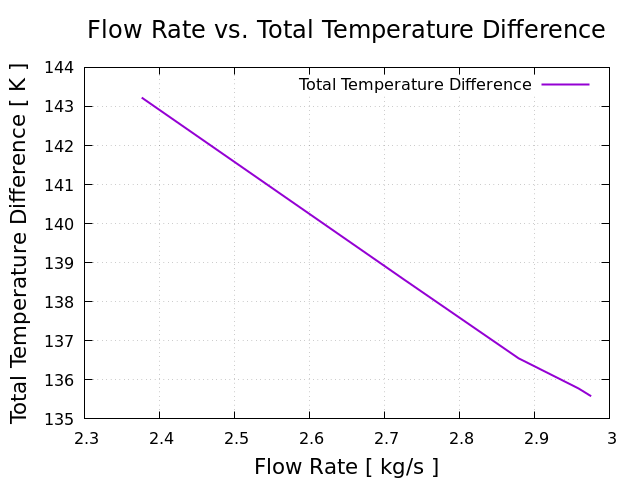

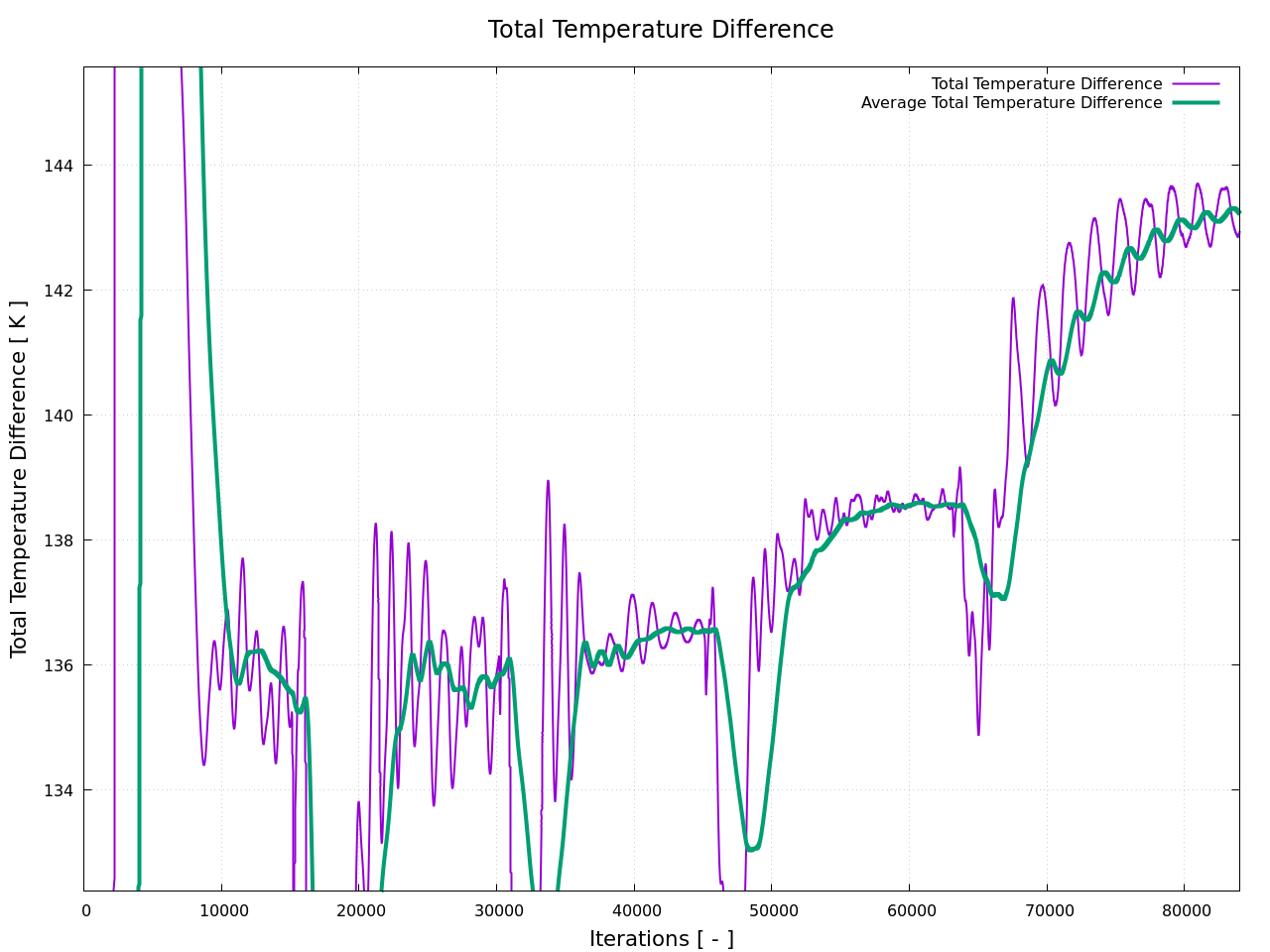

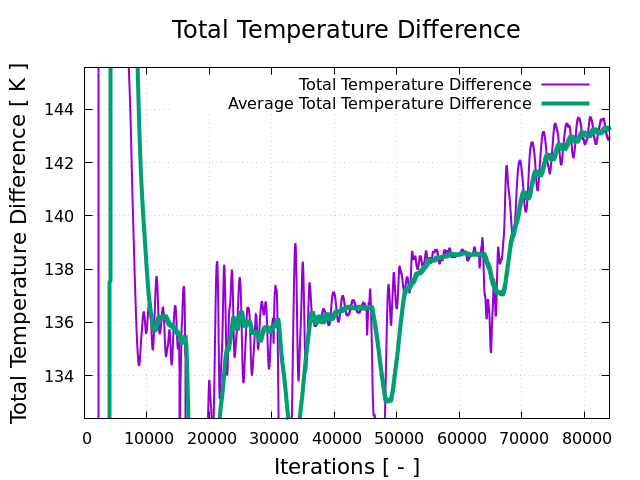

Total Temperature Difference

1:induct_inlet — 4:diff_exit

Point Nr.	Flow Rate [ kg/s ]	Total Temperature Difference [ K ]
1	2.97558	135.580
2	2.95885	135.779
3	2.87879	136.551
4	2.72572	138.573
5	2.37635	143.226

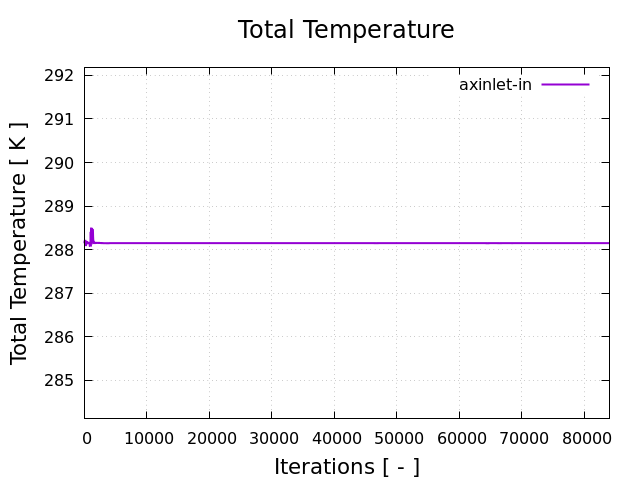

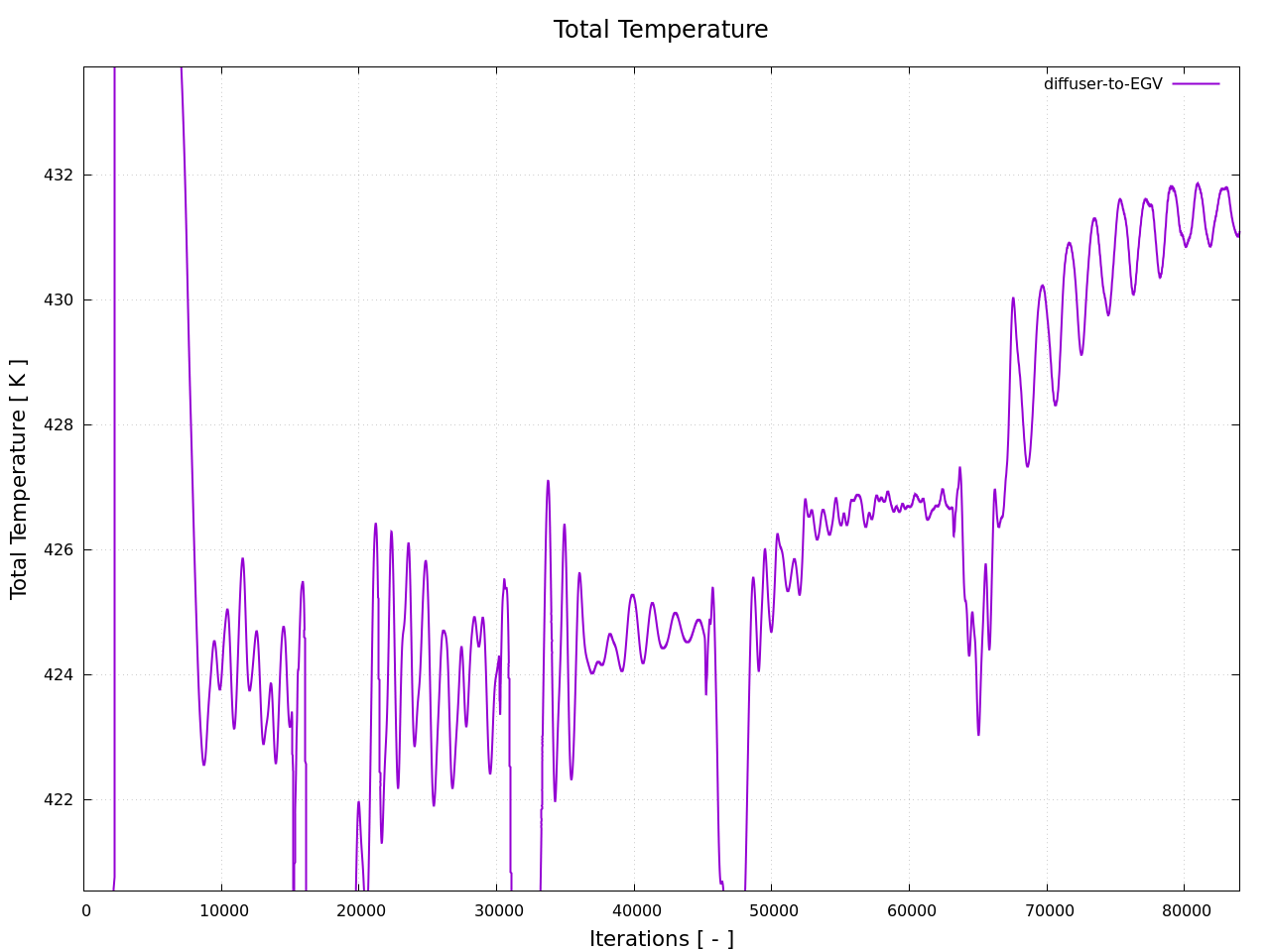

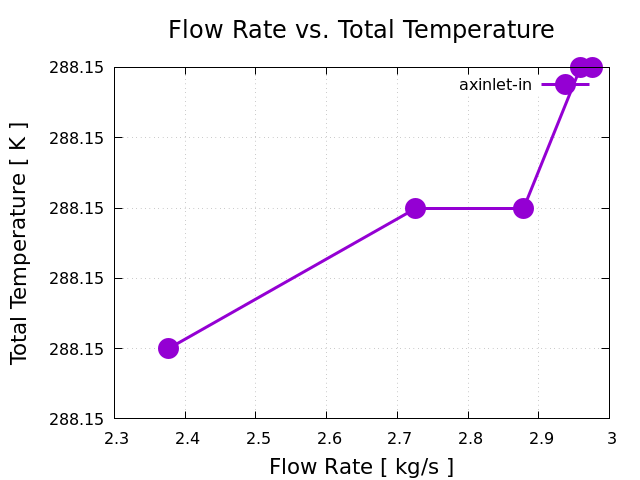

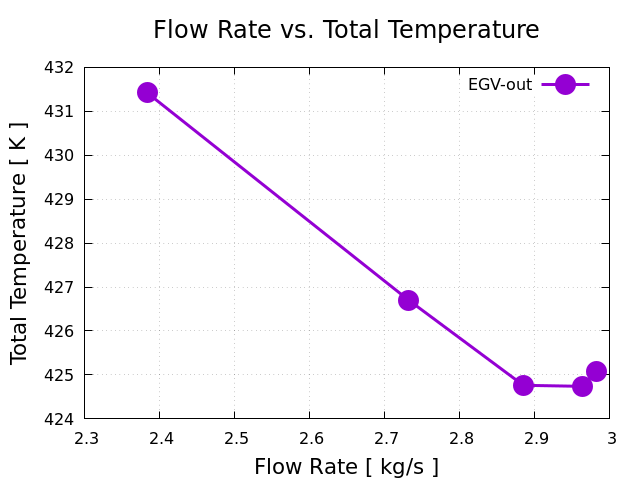

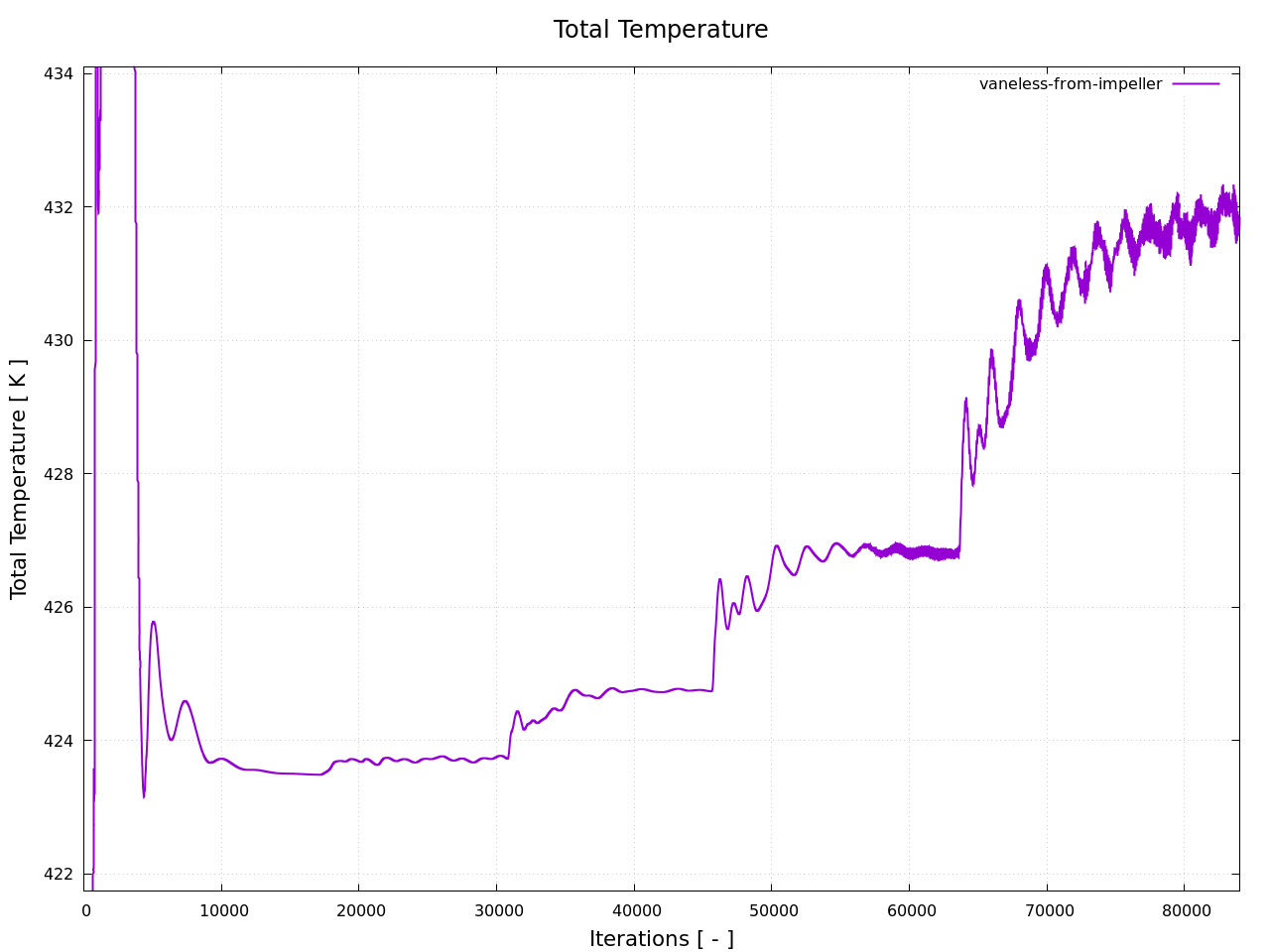

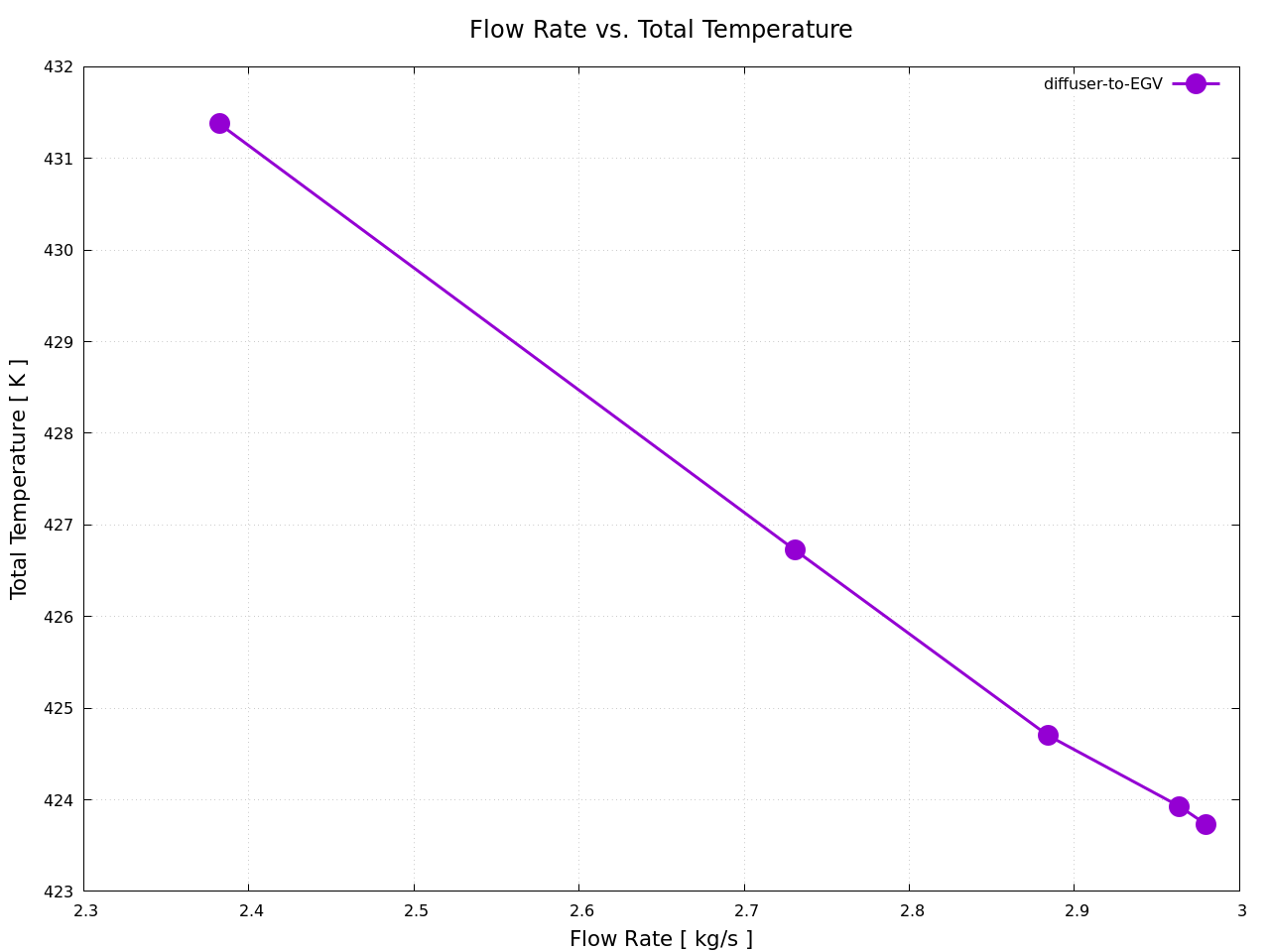

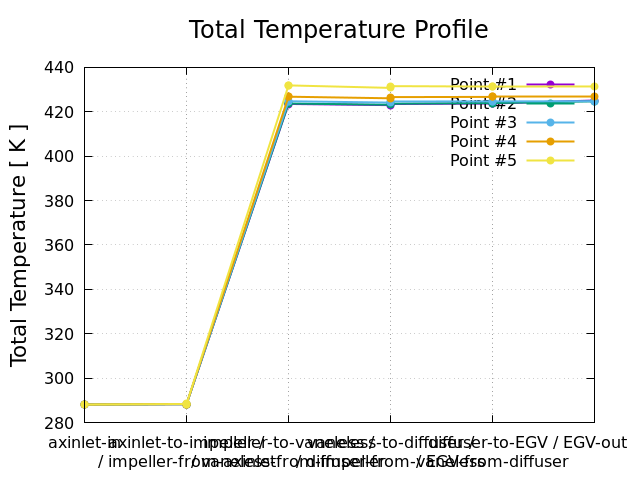

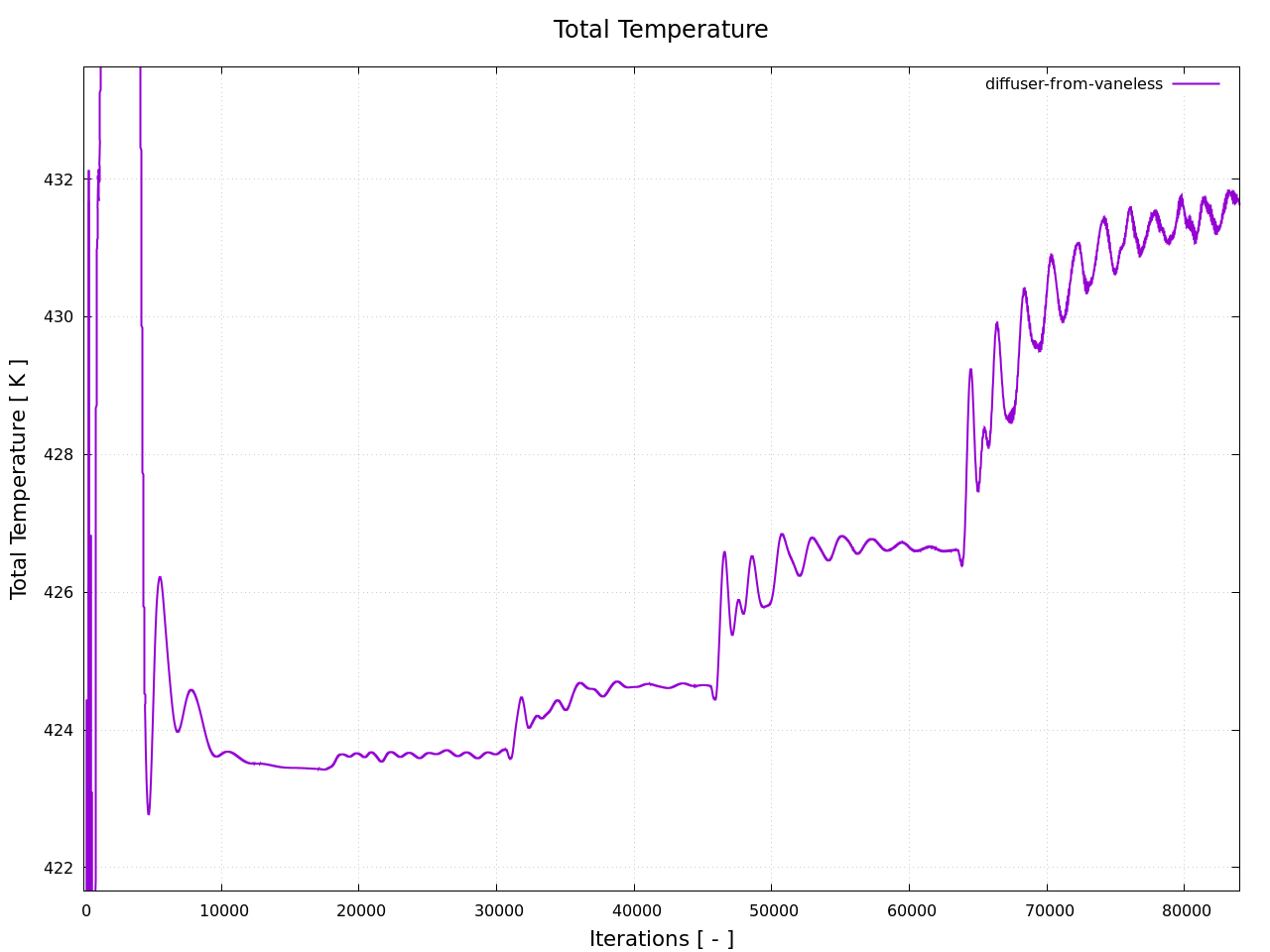

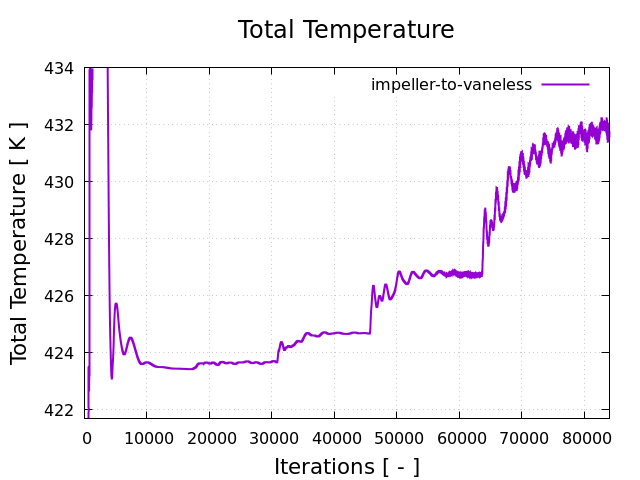

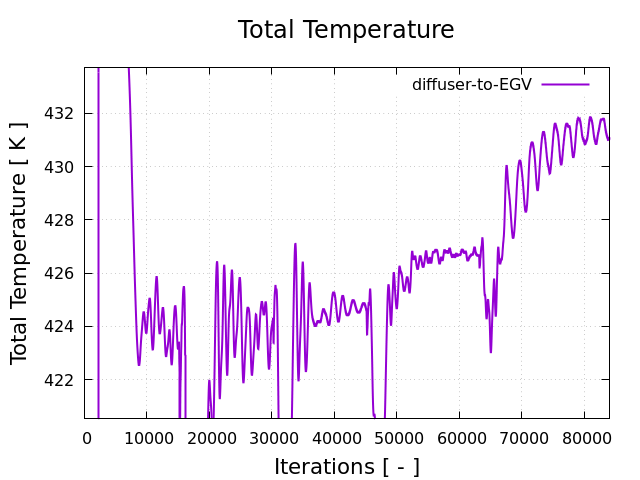

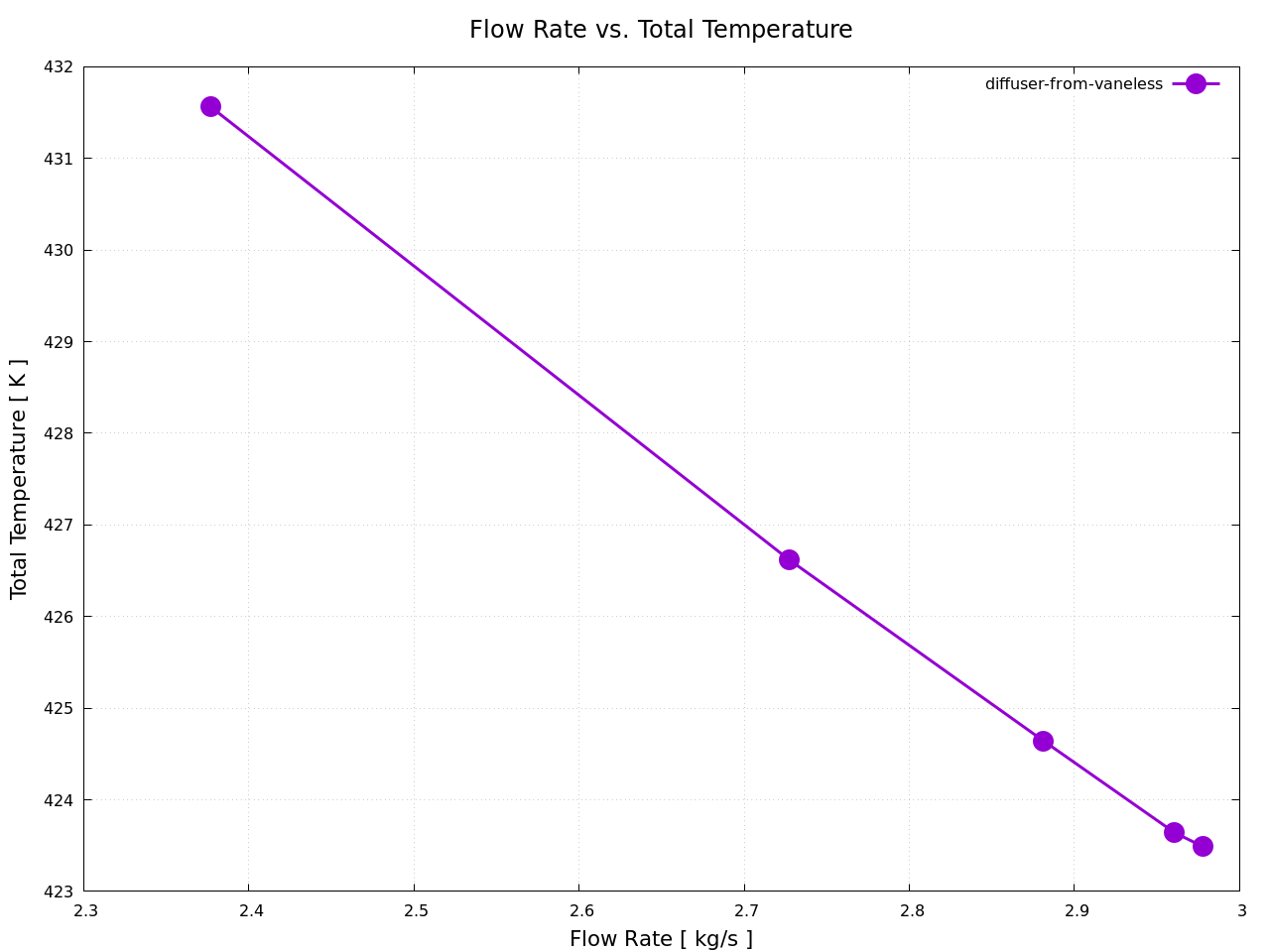

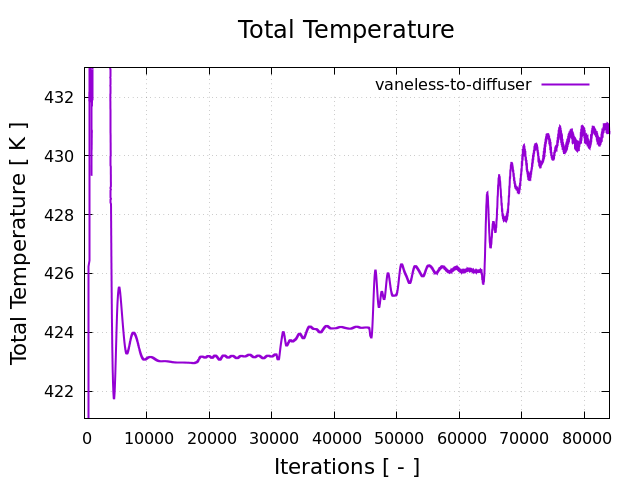

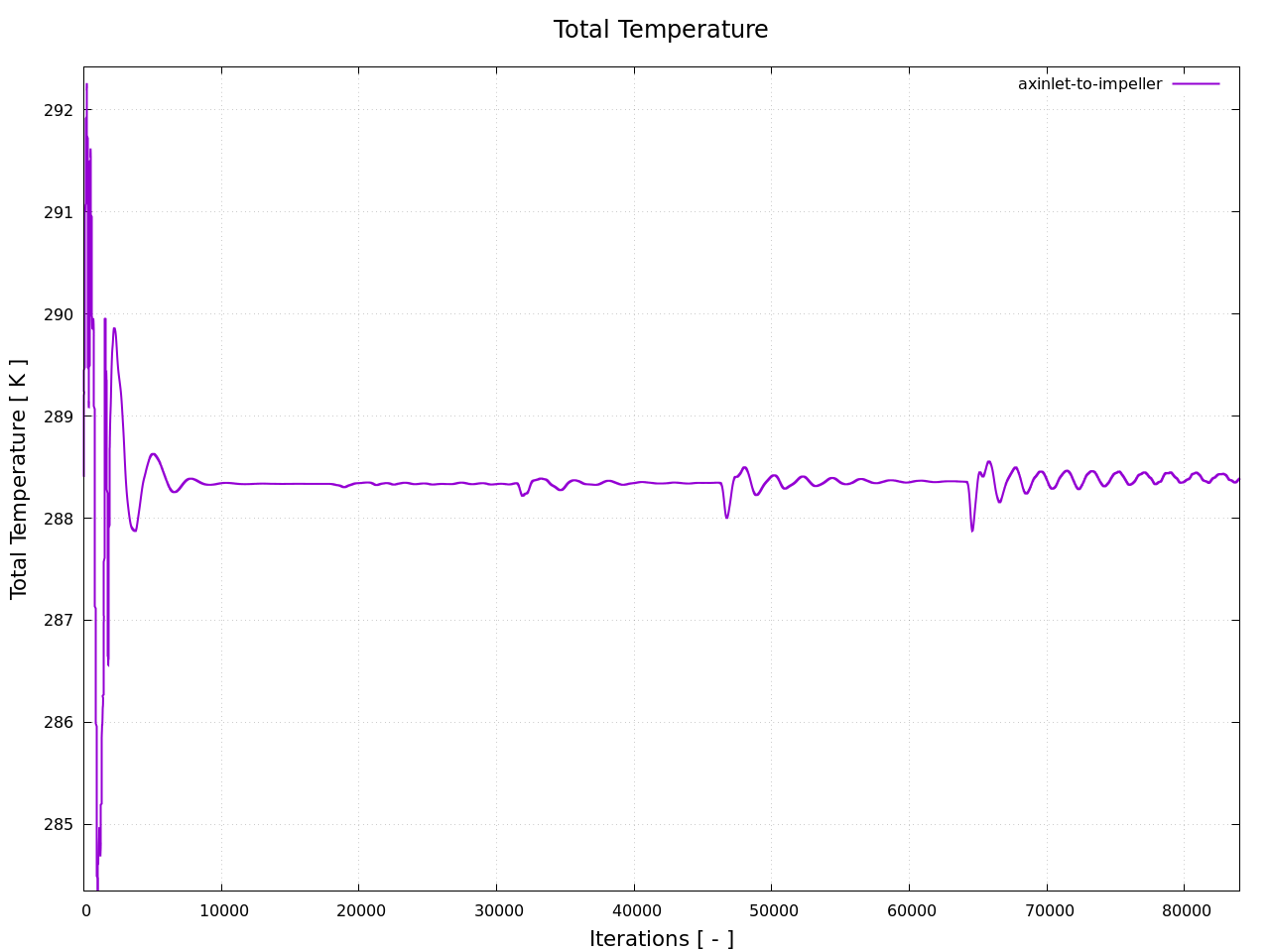

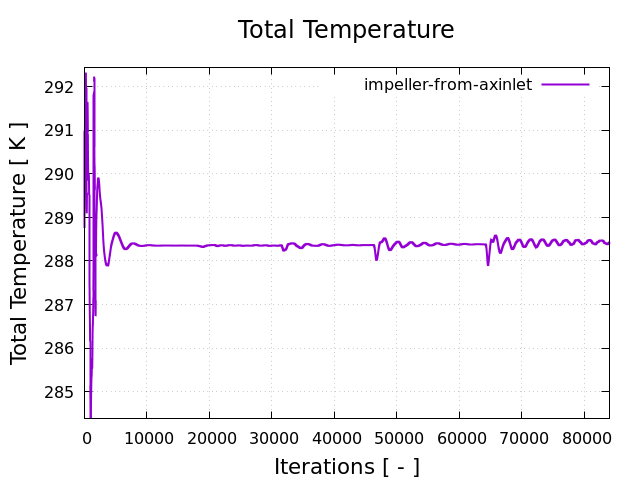

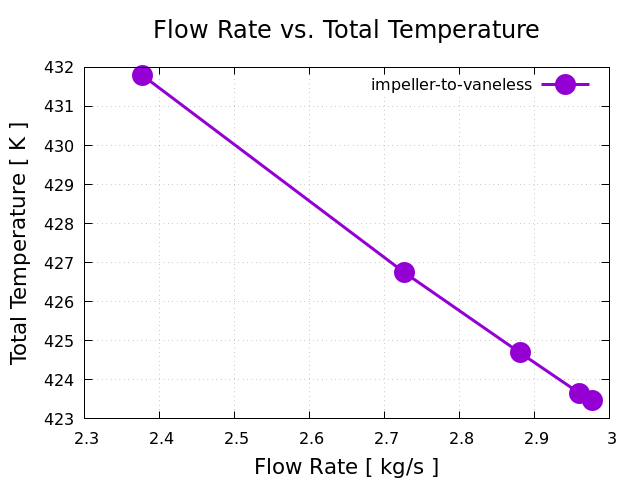

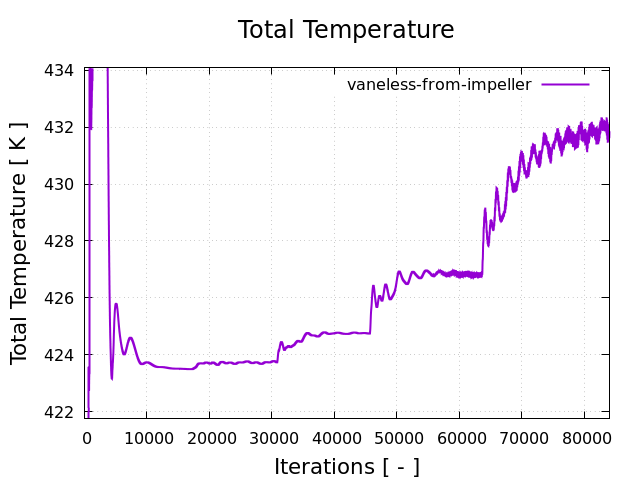

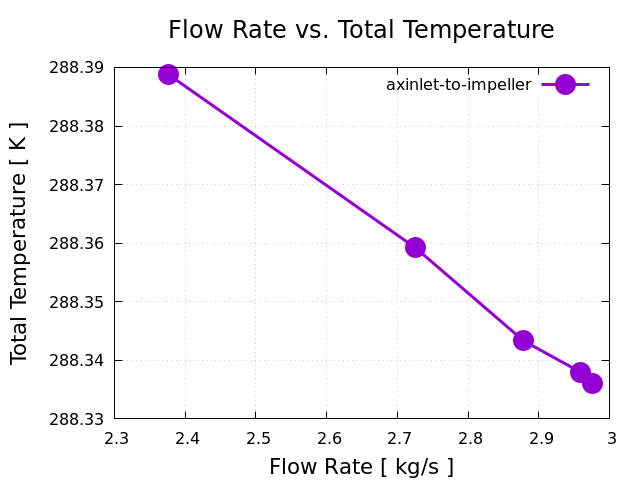

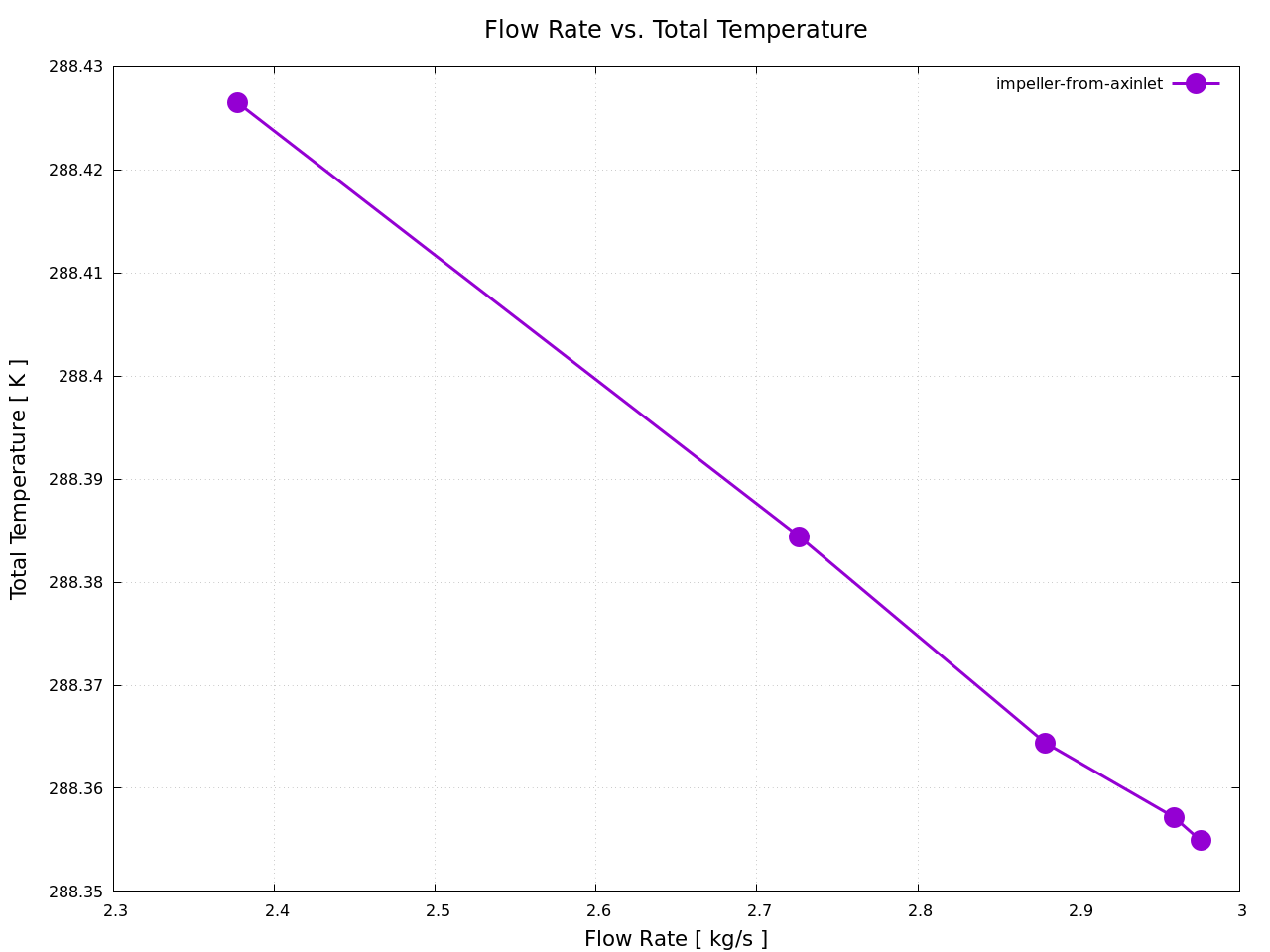

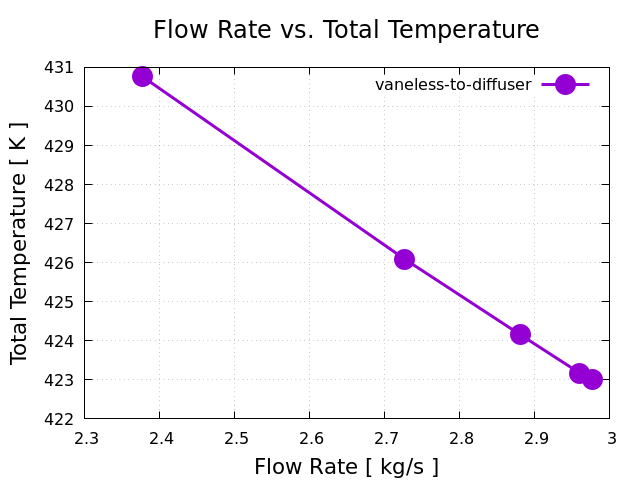

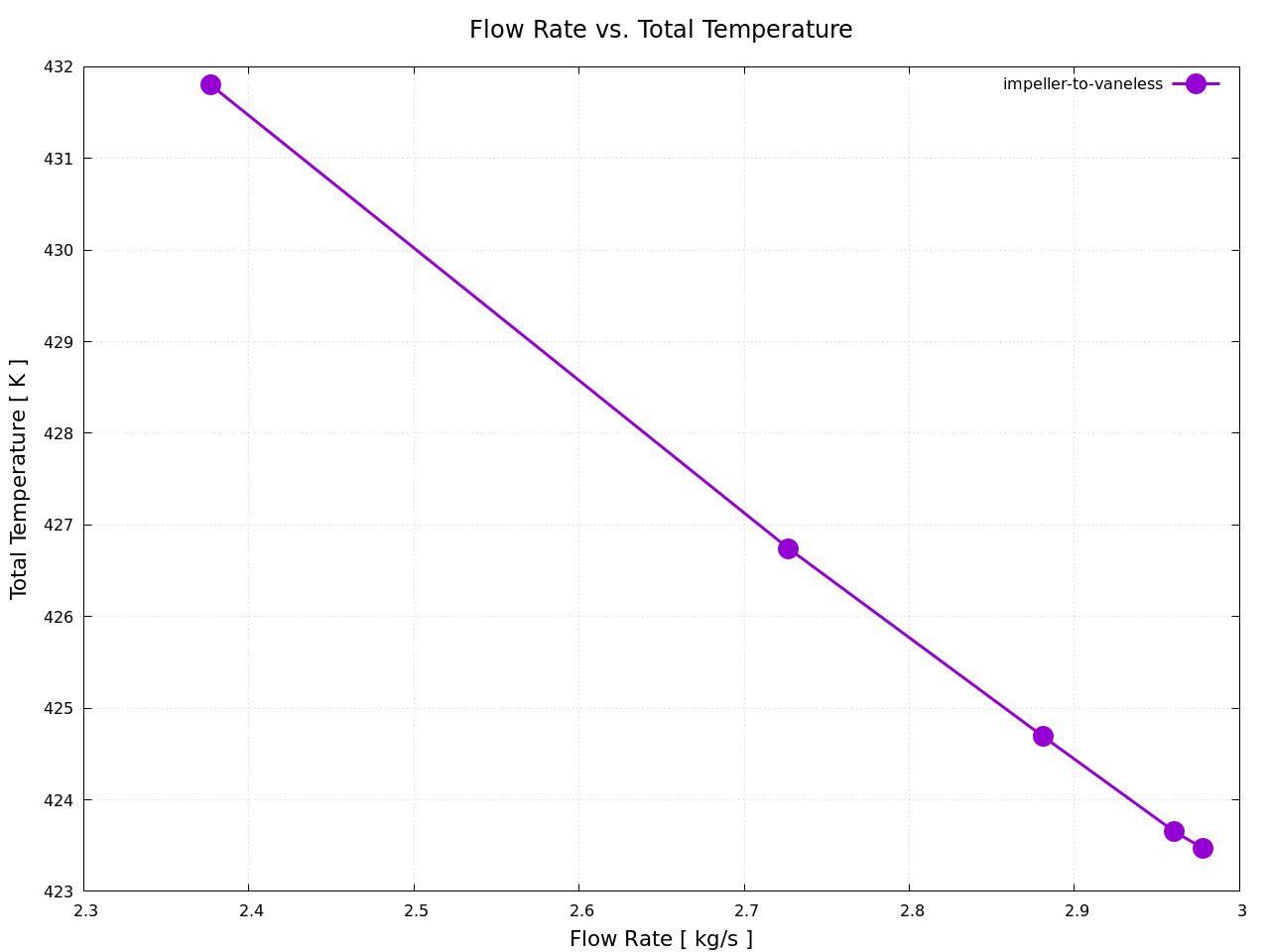

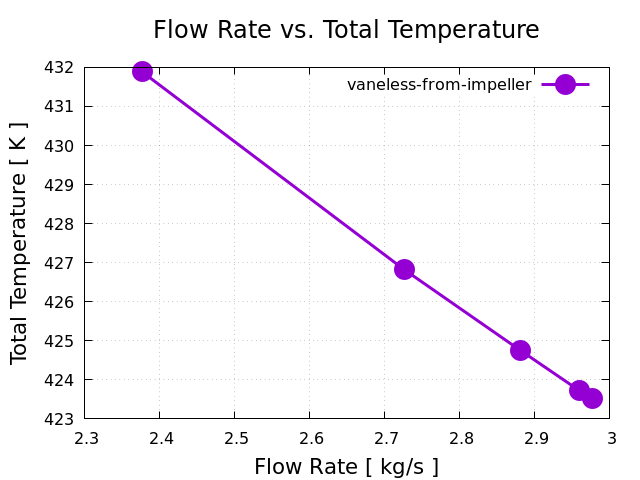

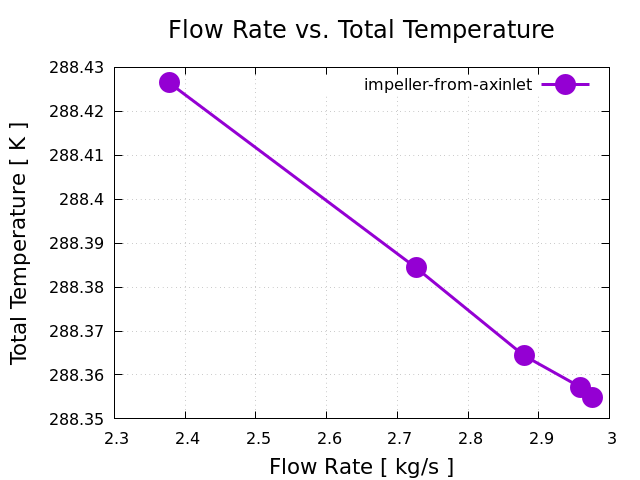

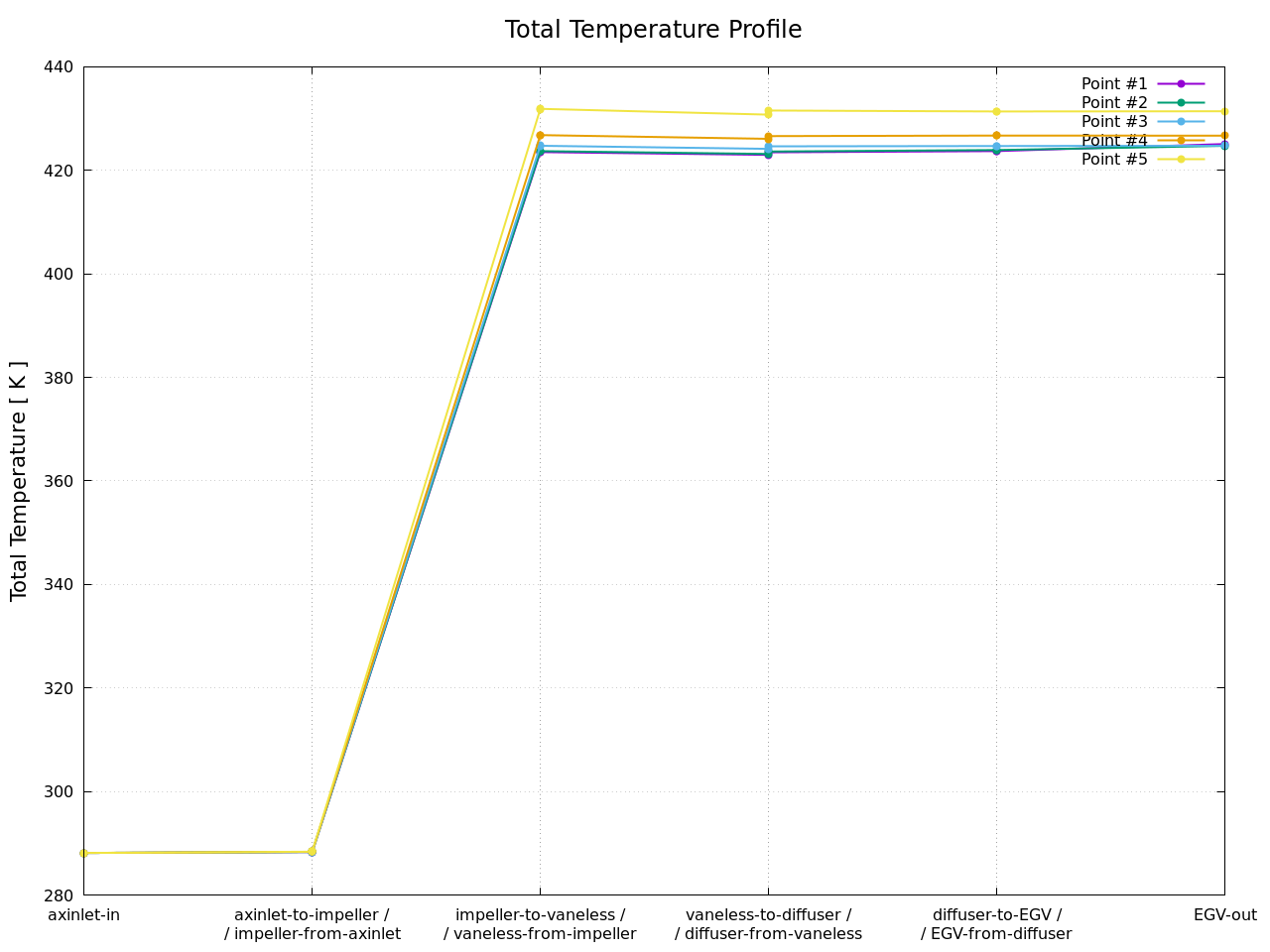

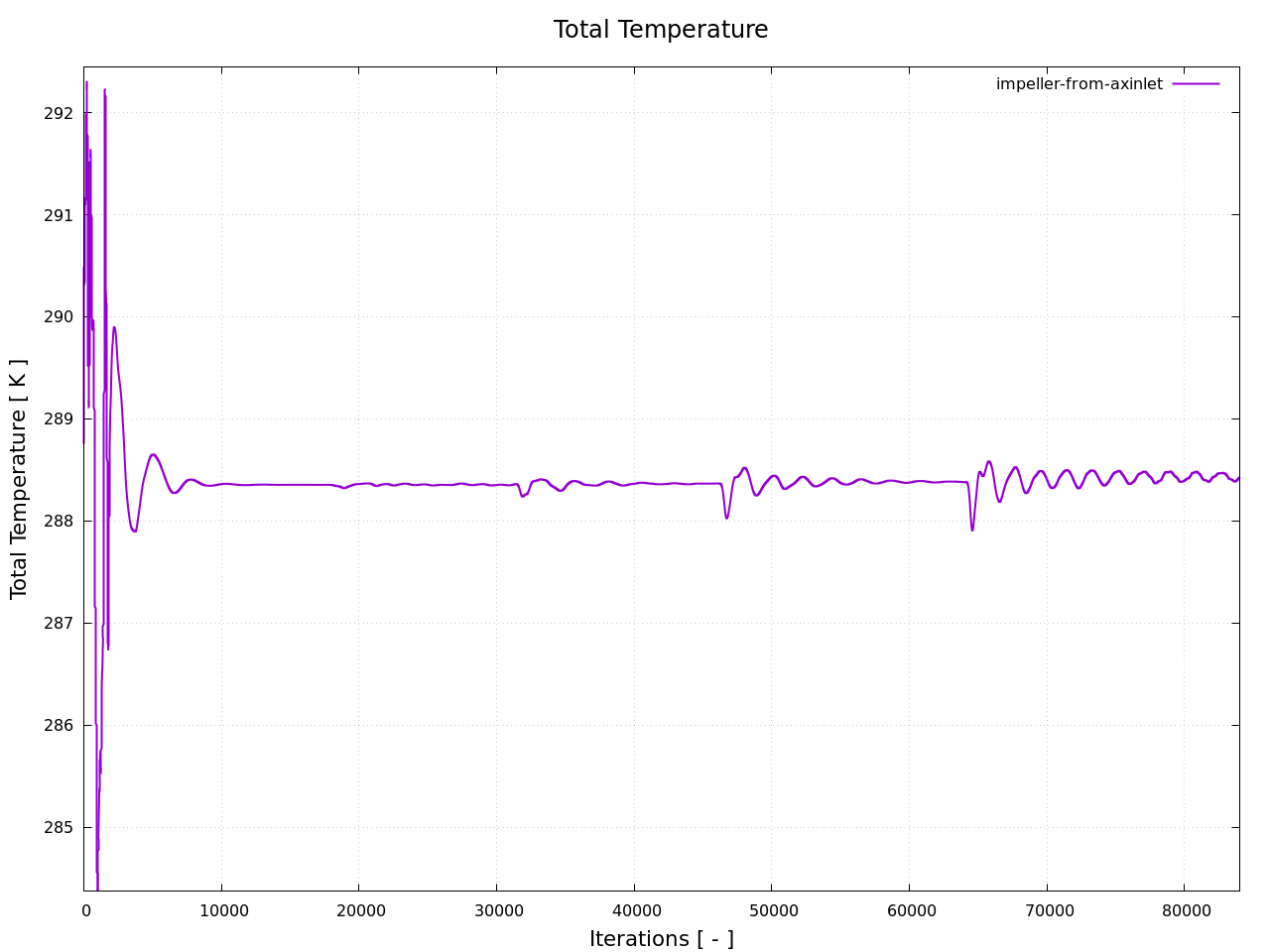

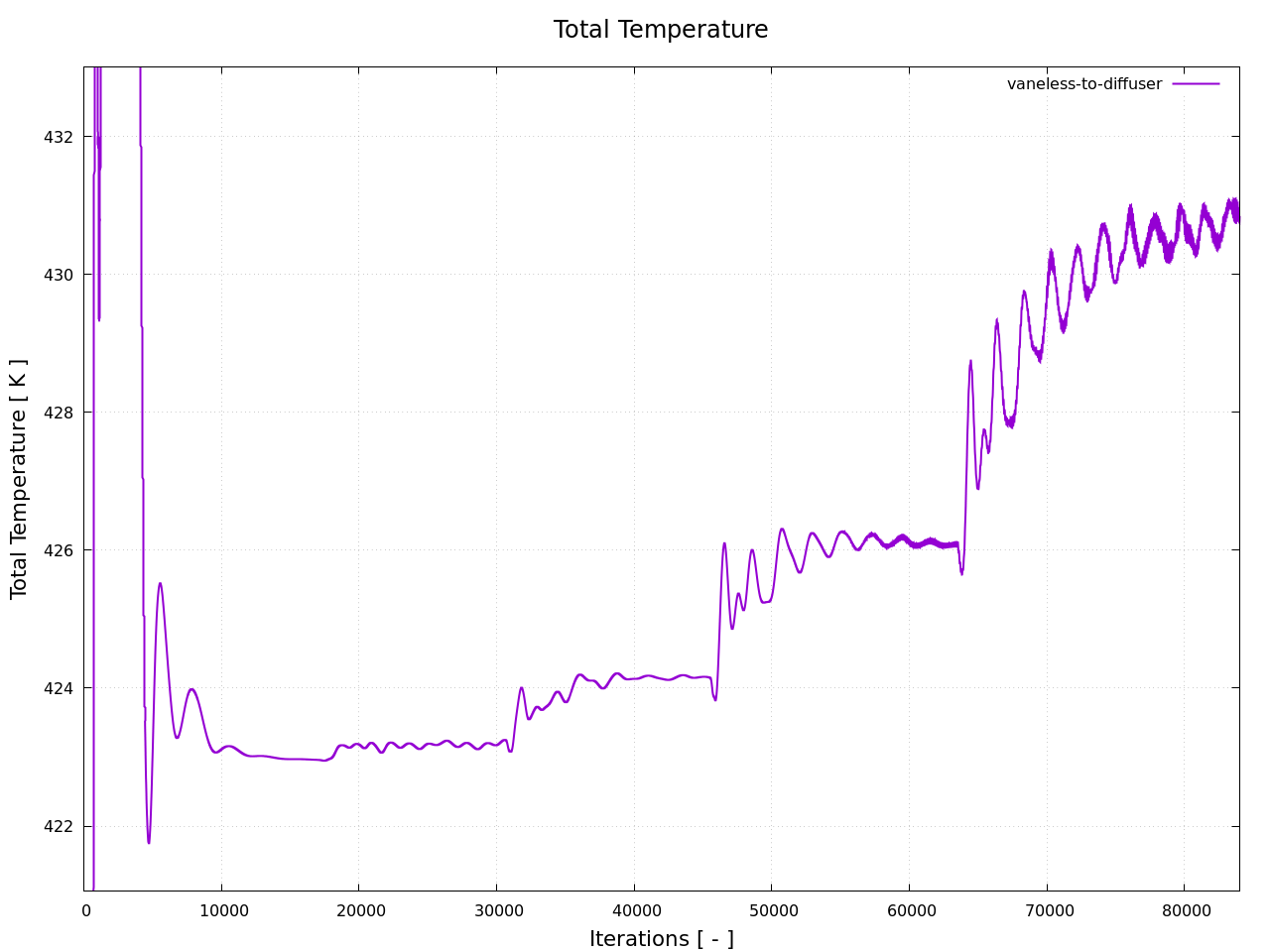

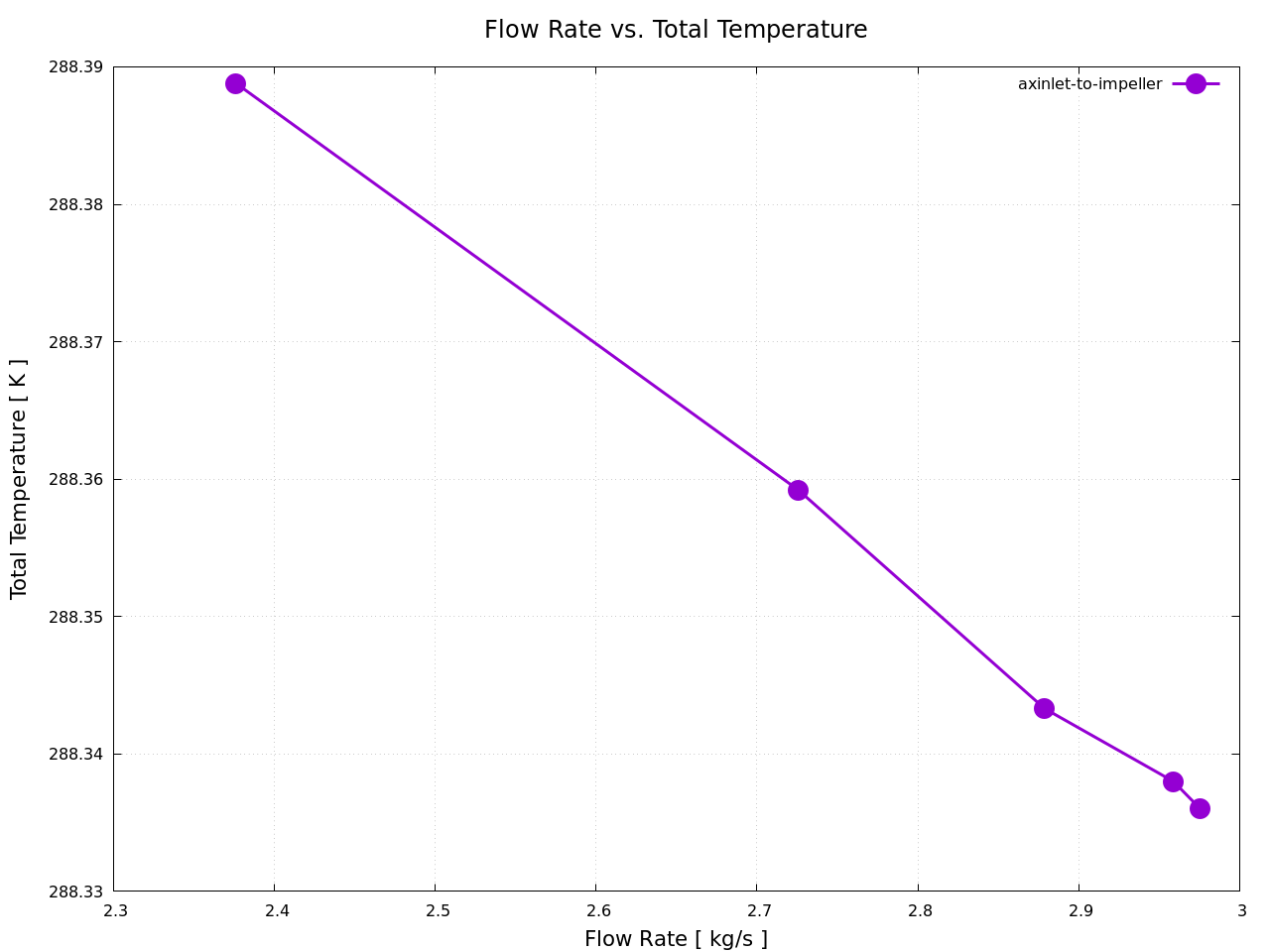

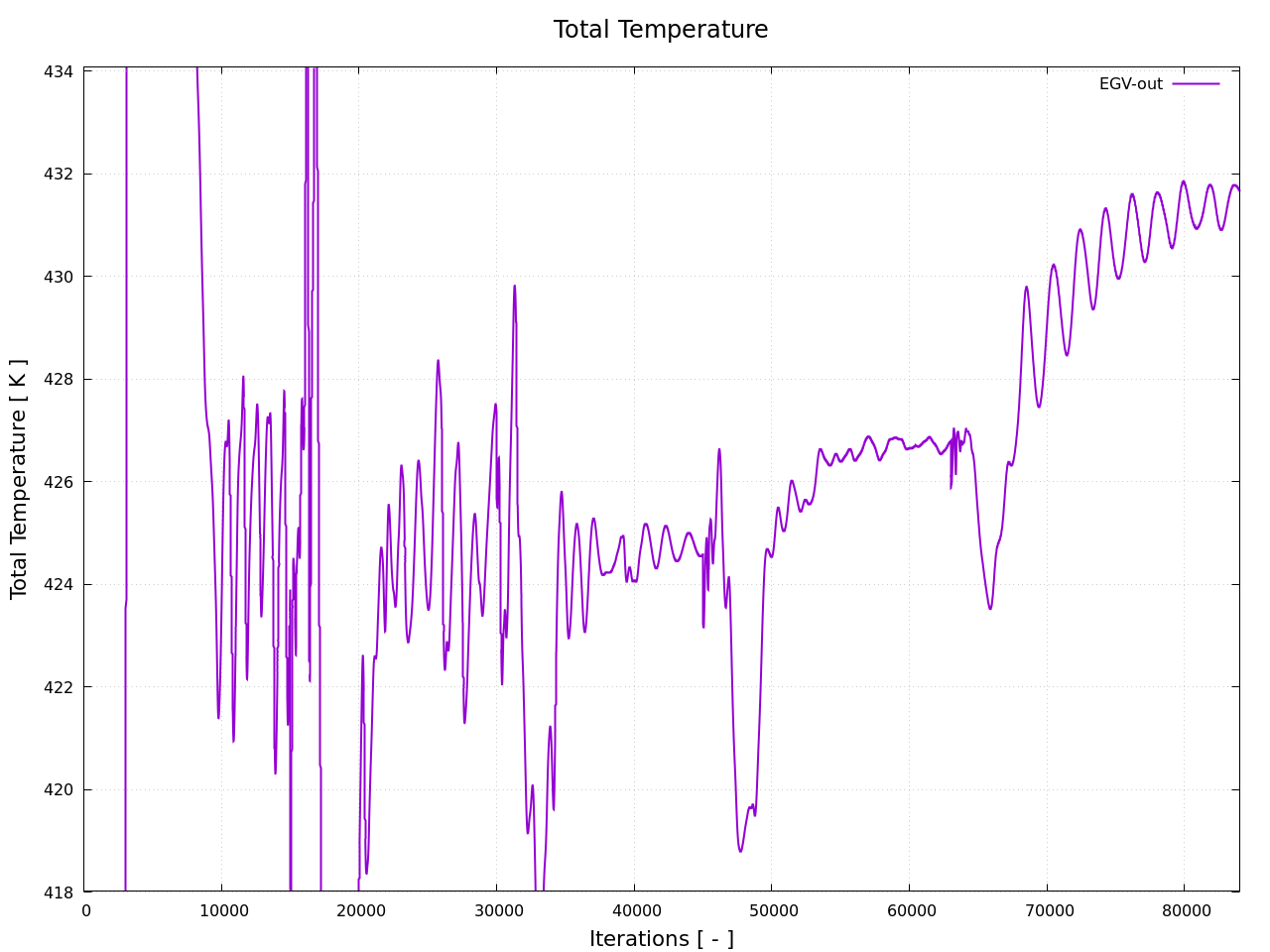

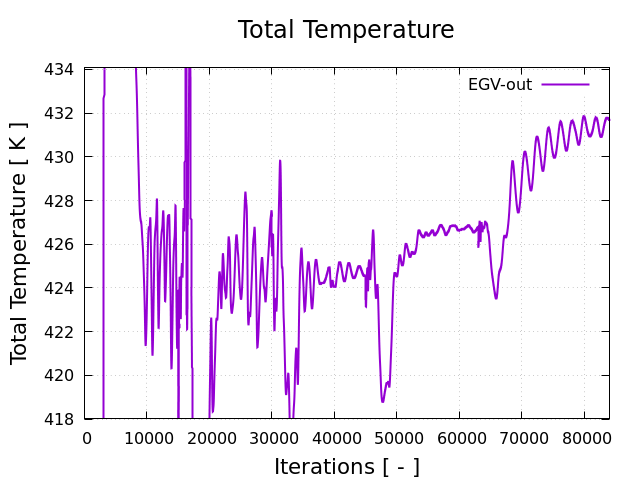

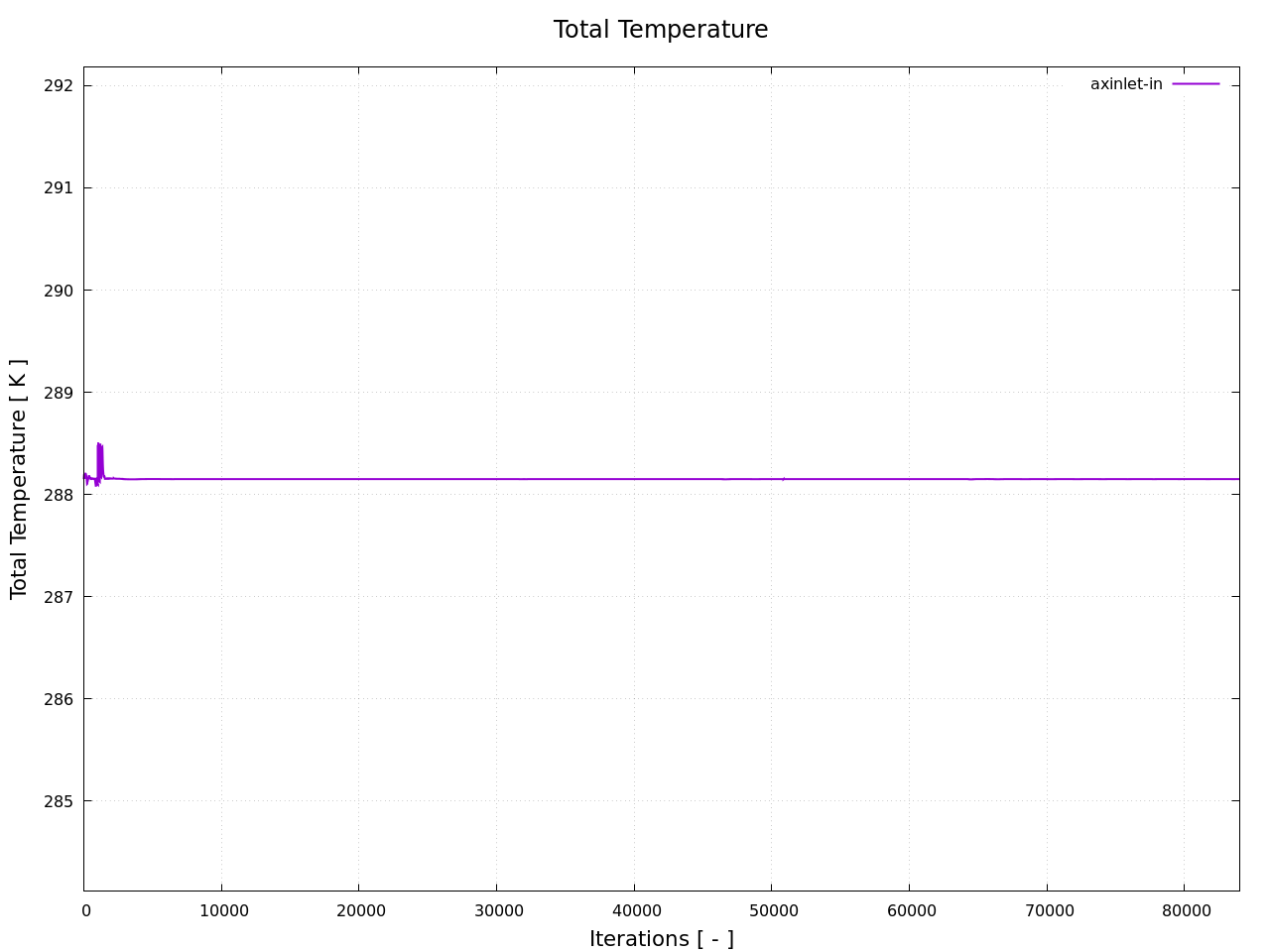

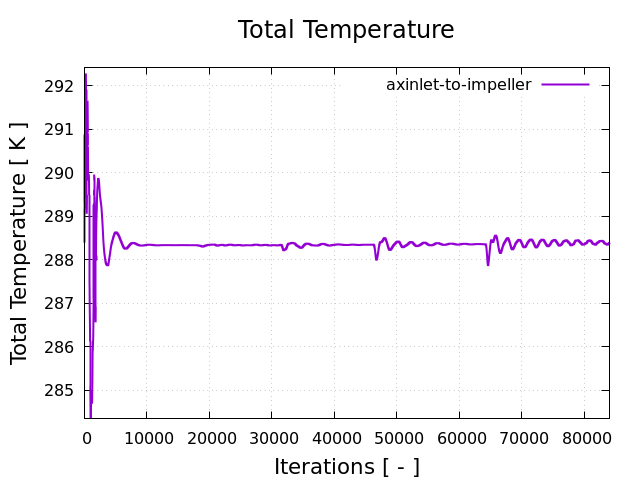

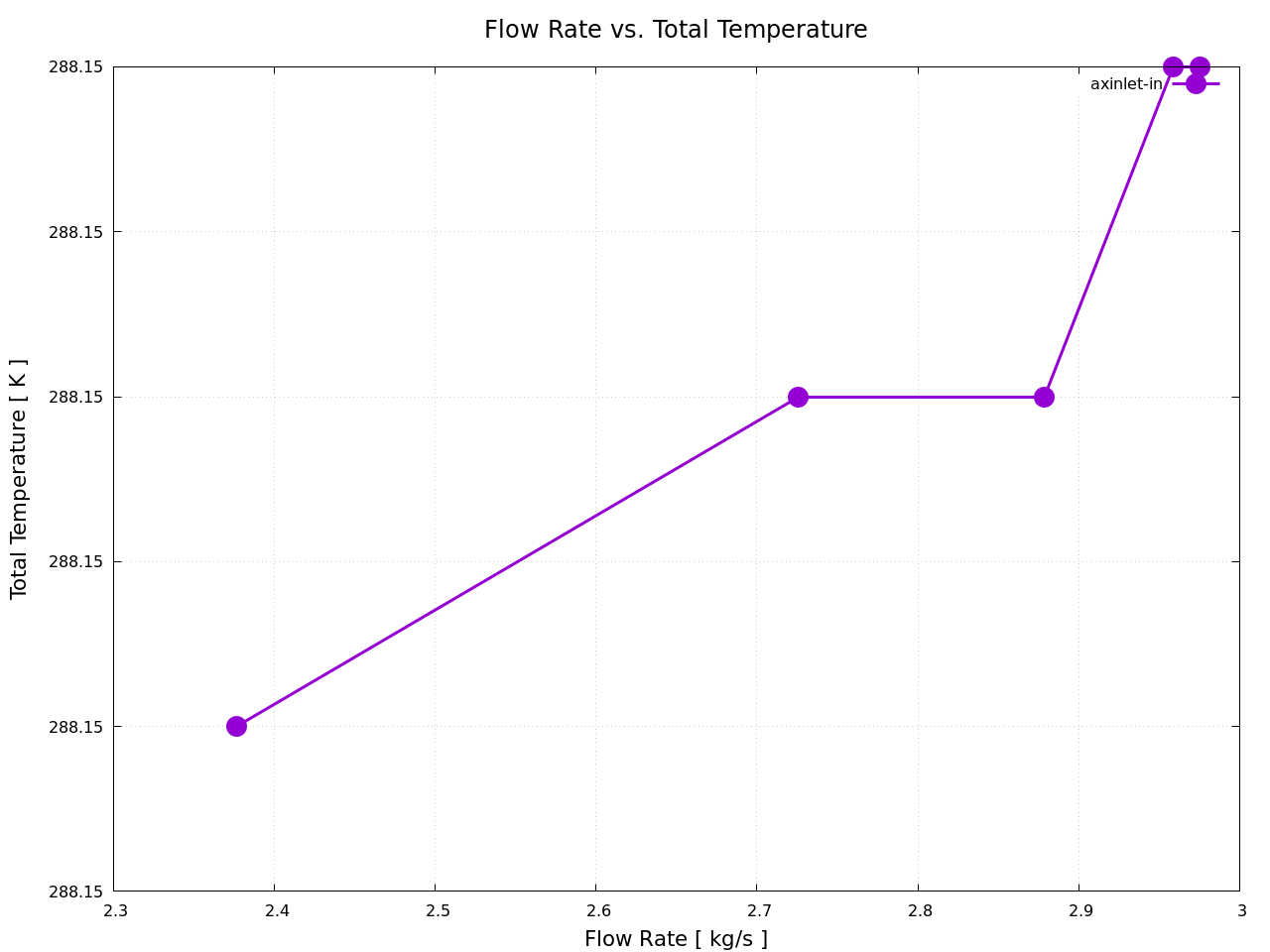

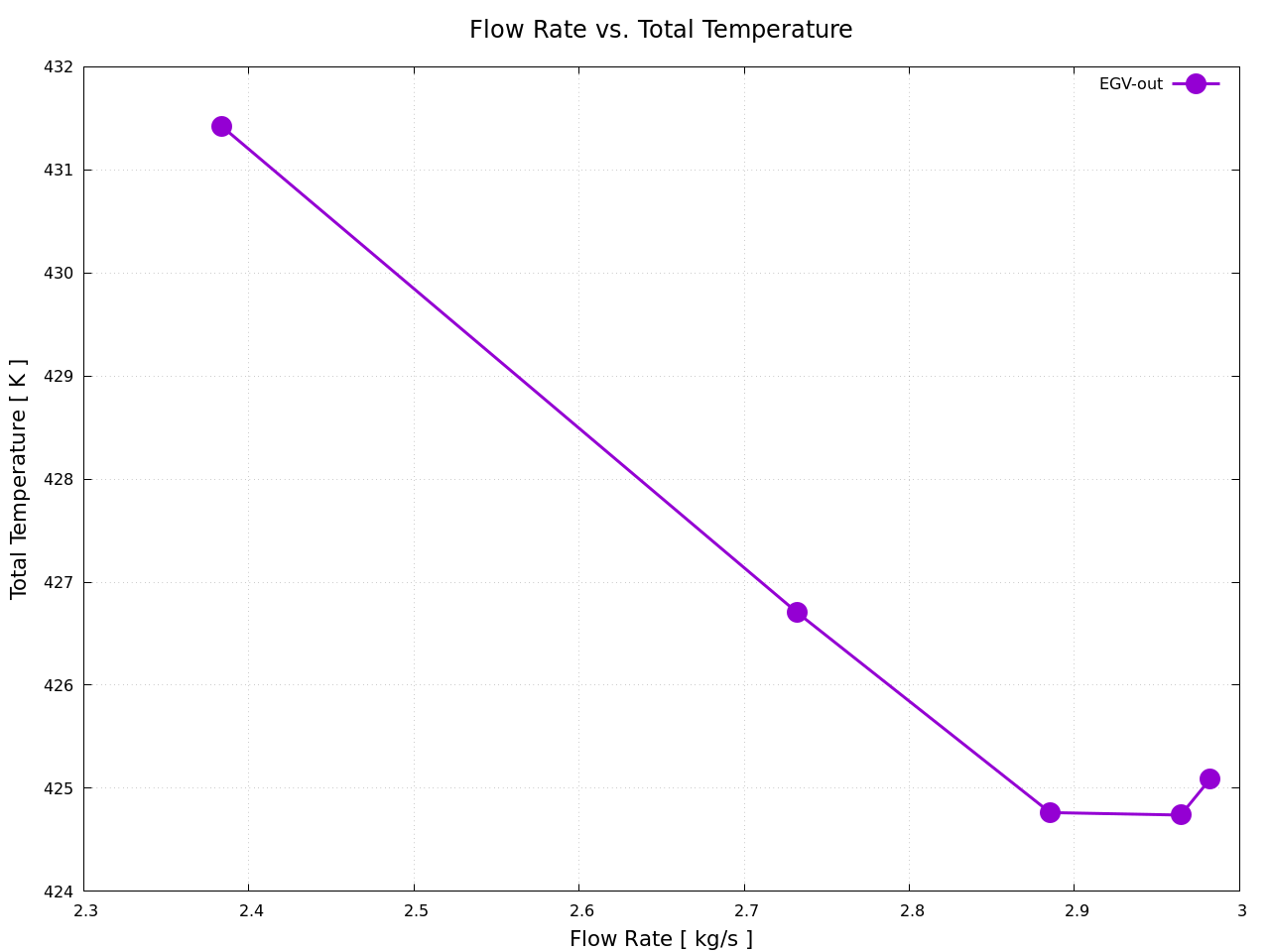

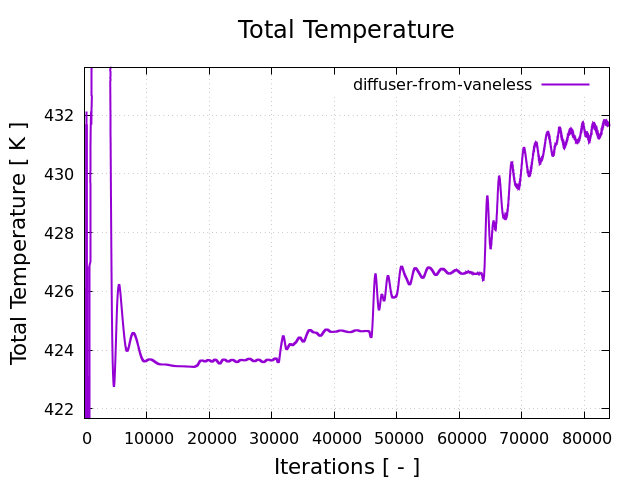

Total Temperature per Interfaces

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Total Temperature [ K ]
1	axinlet-in	2.97558	288.150
1	axinlet-to-impeller	2.97557	288.336
1	impeller-from-axinlet	2.97588	288.355
1	impeller-to-vaneless	2.97795	423.468
1	vaneless-from-impeller	2.97794	423.532
1	vaneless-to-diffuser	2.97807	422.998
1	diffuser-from-vaneless	2.97805	423.486
1	diffuser-to-EGV	2.97974	423.730
1	EGV-from-diffuser	2.98072	423.730
1	EGV-out	2.98205	425.089
2	axinlet-in	2.95885	288.150
2	axinlet-to-impeller	2.95884	288.338
2	impeller-from-axinlet	2.95917	288.357
2	impeller-to-vaneless	2.96053	423.652
2	vaneless-from-impeller	2.96052	423.716
2	vaneless-to-diffuser	2.96062	423.170
2	diffuser-from-vaneless	2.96060	423.641
2	diffuser-to-EGV	2.96350	423.929
2	EGV-from-diffuser	2.96443	423.930
2	EGV-out	2.96428	424.741
3	axinlet-in	2.87879	288.150
3	axinlet-to-impeller	2.87877	288.343
3	impeller-from-axinlet	2.87923	288.364
3	impeller-to-vaneless	2.88114	424.689
3	vaneless-from-impeller	2.88115	424.755
3	vaneless-to-diffuser	2.88129	424.154
3	diffuser-from-vaneless	2.88127	424.642
3	diffuser-to-EGV	2.88396	424.701
3	EGV-from-diffuser	2.88484	424.702
3	EGV-out	2.88521	424.765
4	axinlet-in	2.72572	288.150
4	axinlet-to-impeller	2.72572	288.359
4	impeller-from-axinlet	2.72641	288.384
4	impeller-to-vaneless	2.72690	426.741
4	vaneless-from-impeller	2.72695	426.813
4	vaneless-to-diffuser	2.72703	426.090
4	diffuser-from-vaneless	2.72701	426.622
4	diffuser-to-EGV	2.73083	426.724
4	EGV-from-diffuser	2.73188	426.723
4	EGV-out	2.73204	426.705
5	axinlet-in	2.37635	288.150
5	axinlet-to-impeller	2.37613	288.389
5	impeller-from-axinlet	2.37734	288.426
5	impeller-to-vaneless	2.37677	431.804
5	vaneless-from-impeller	2.37690	431.885
5	vaneless-to-diffuser	2.37690	430.770
5	diffuser-from-vaneless	2.37688	431.563
5	diffuser-to-EGV	2.38221	431.376
5	EGV-from-diffuser	2.38314	431.377
5	EGV-out	2.38374	431.420

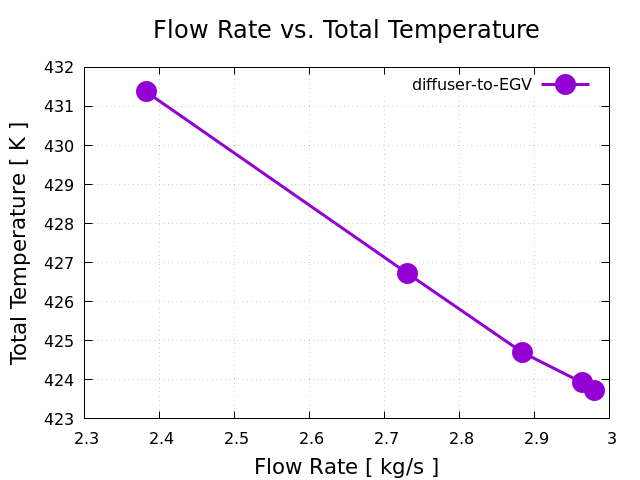

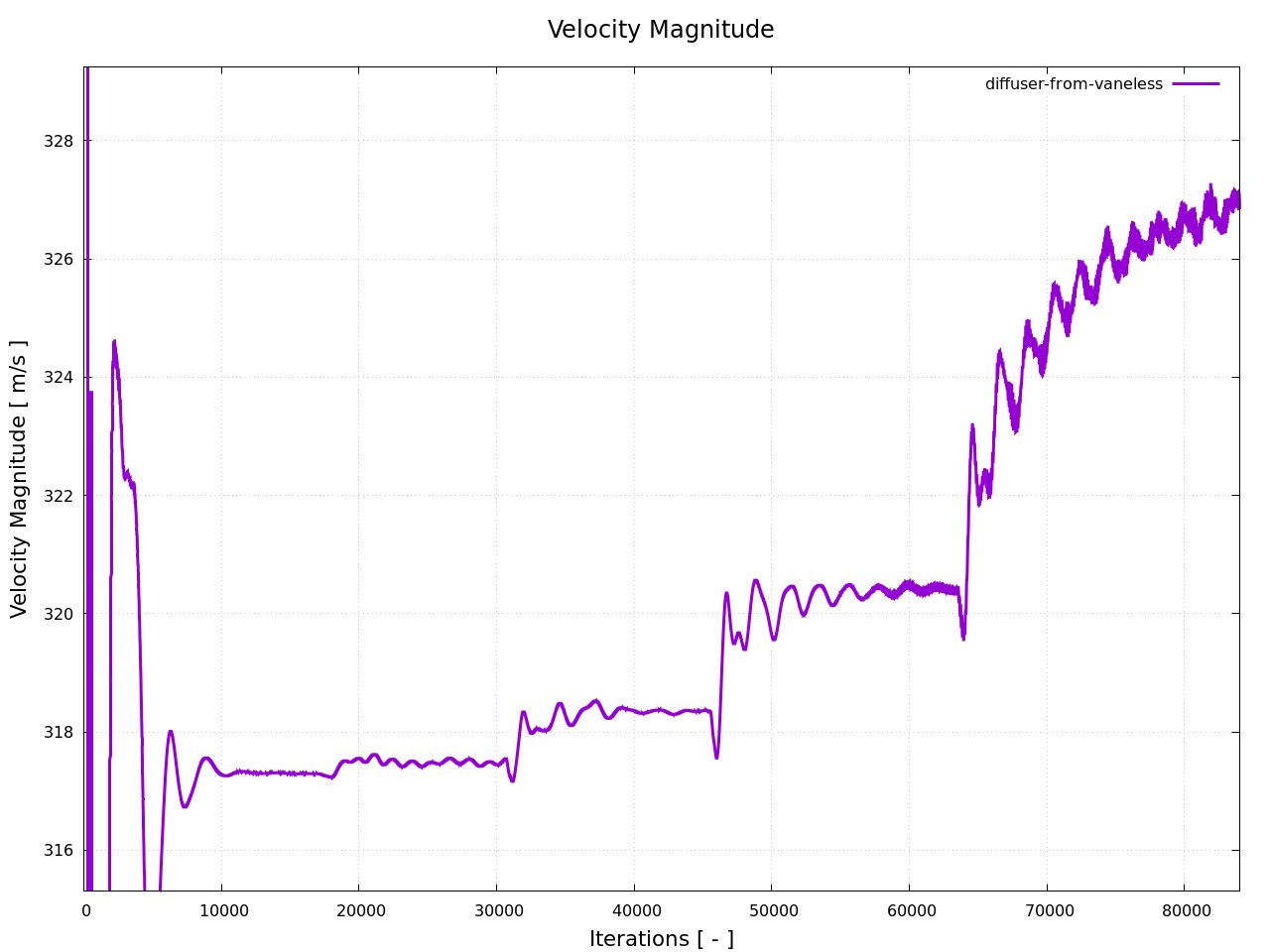

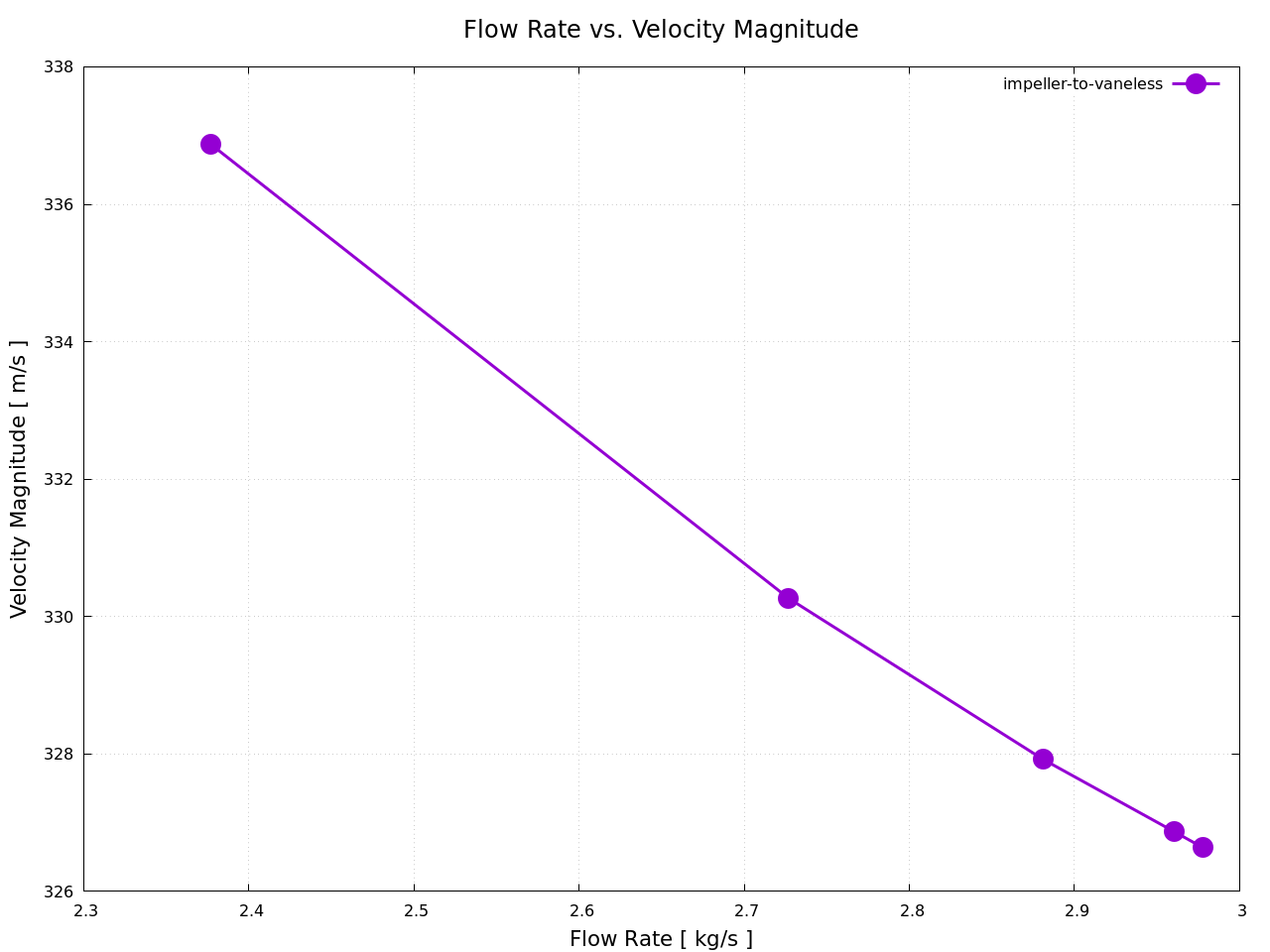

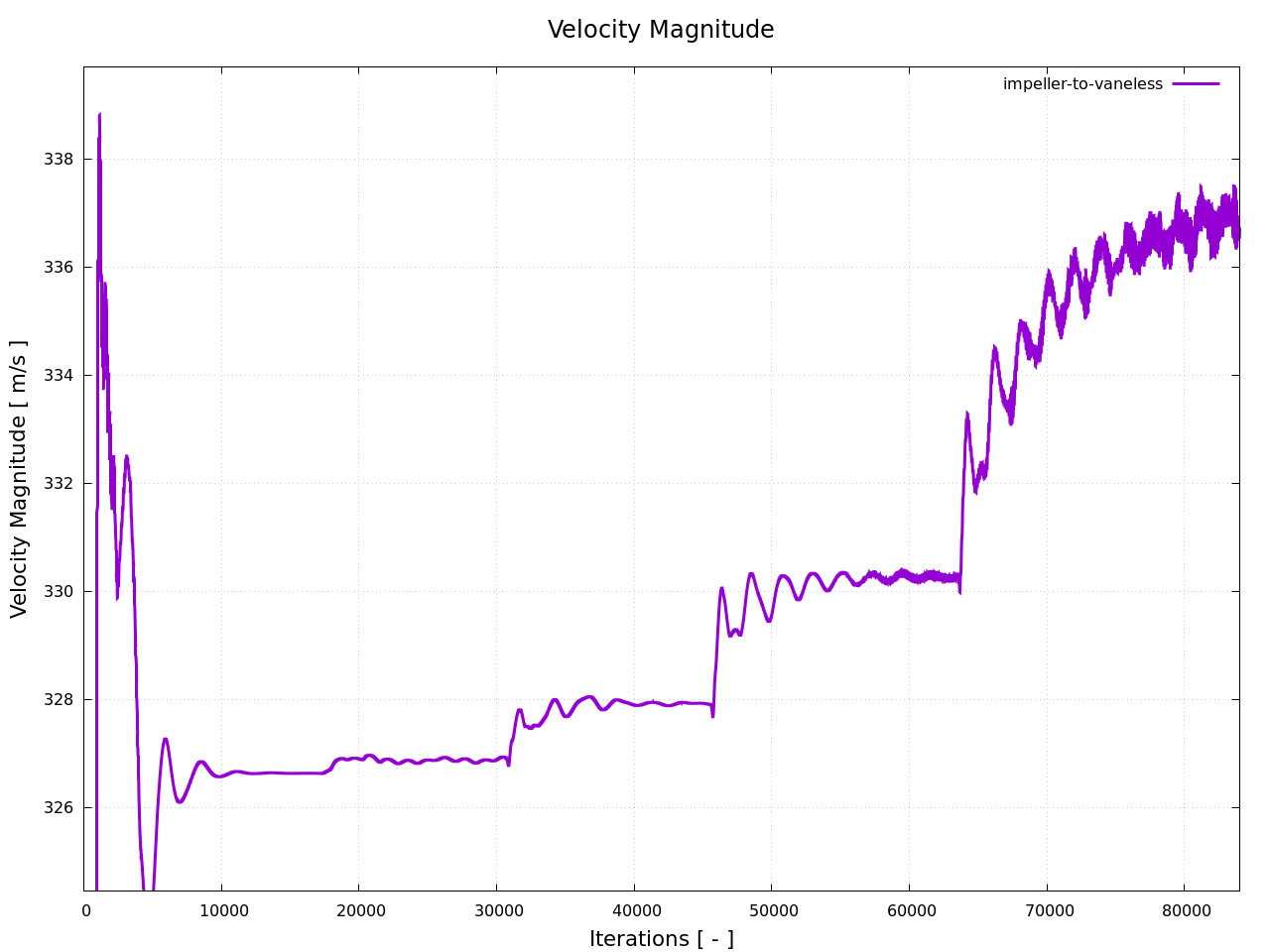

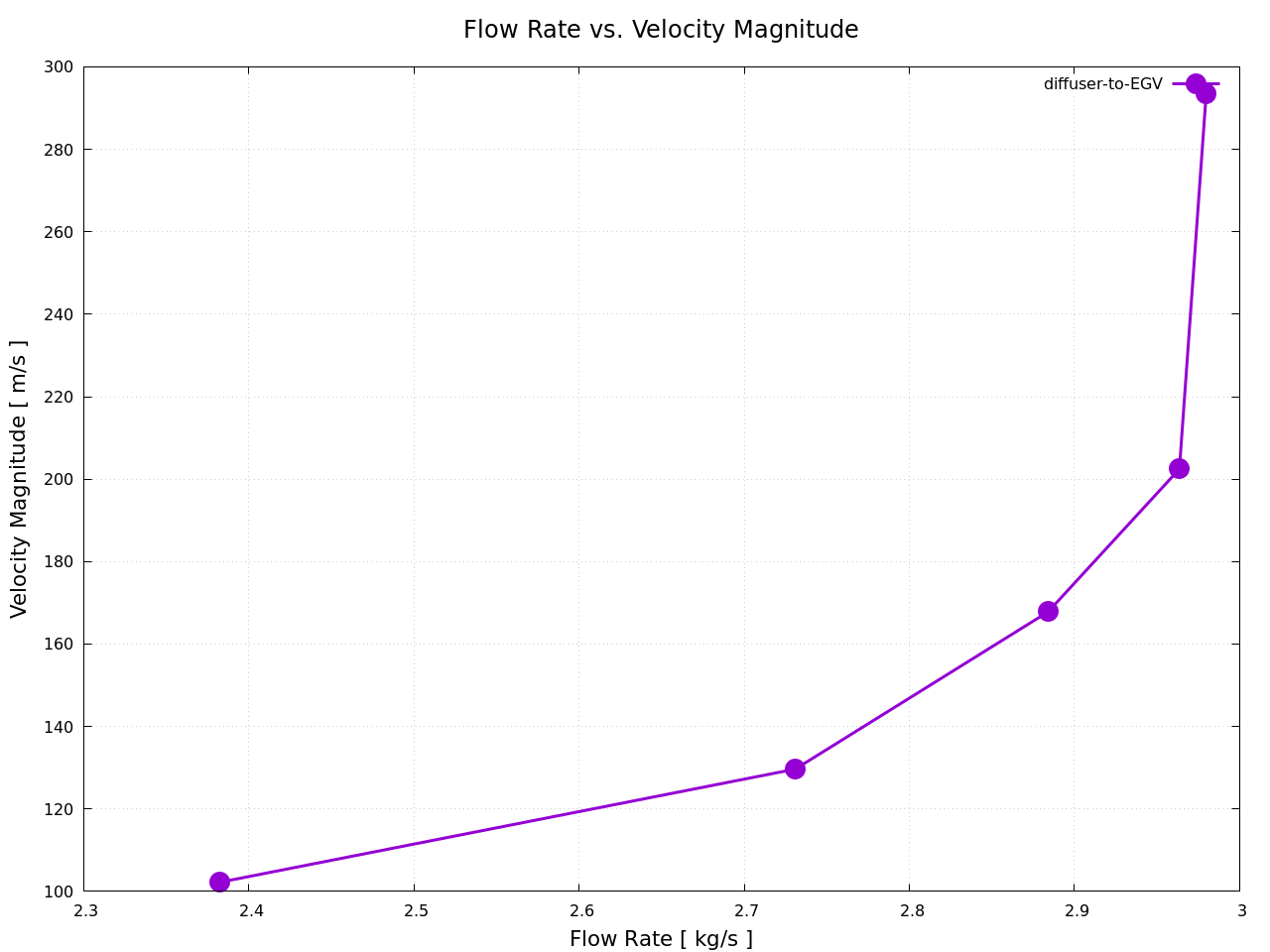

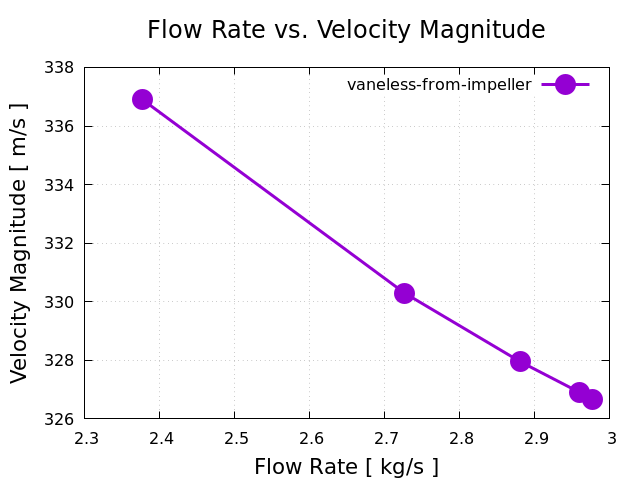

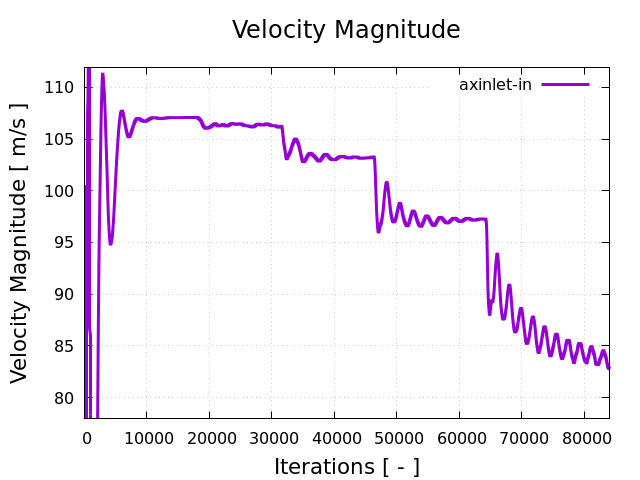

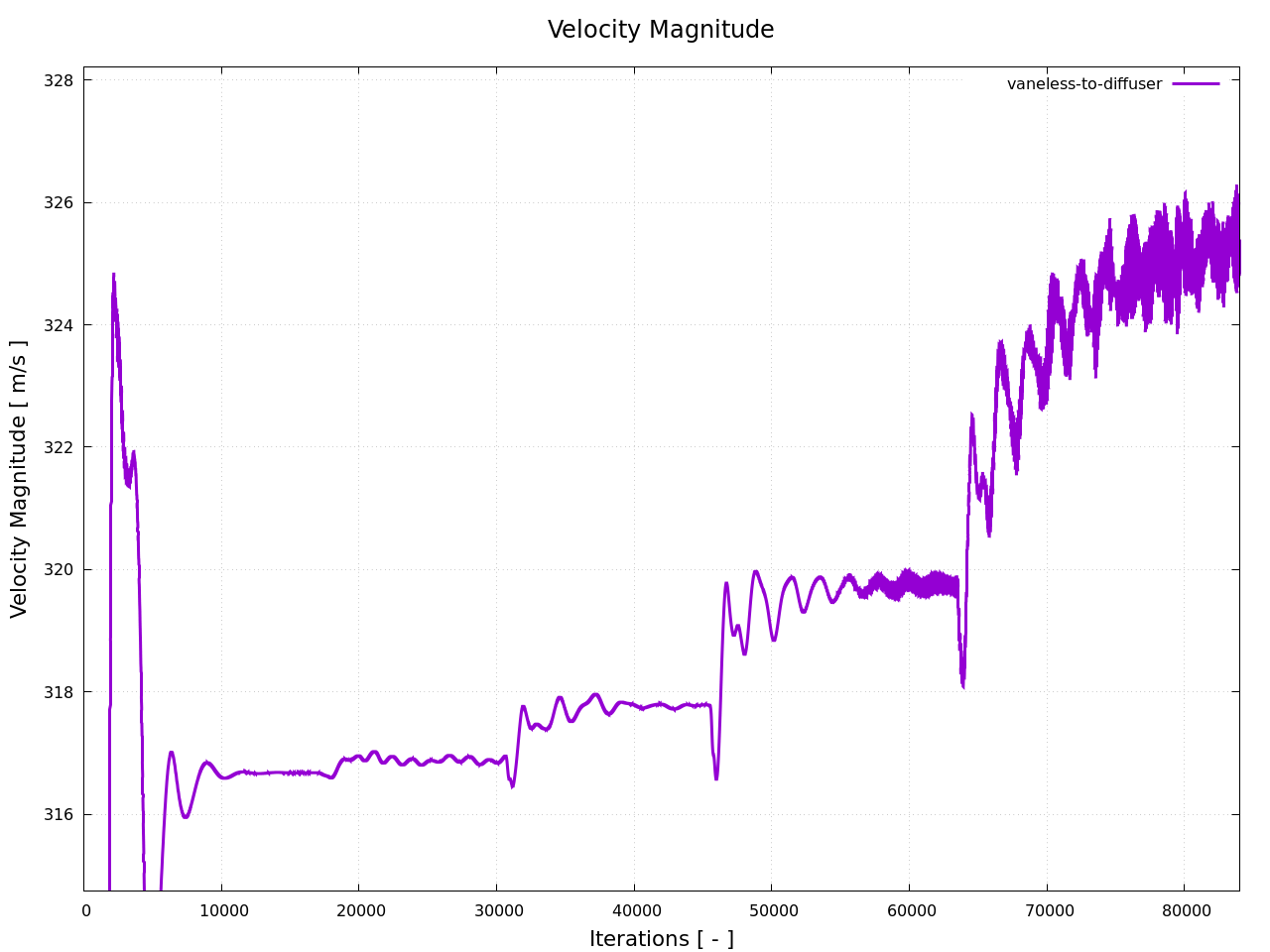

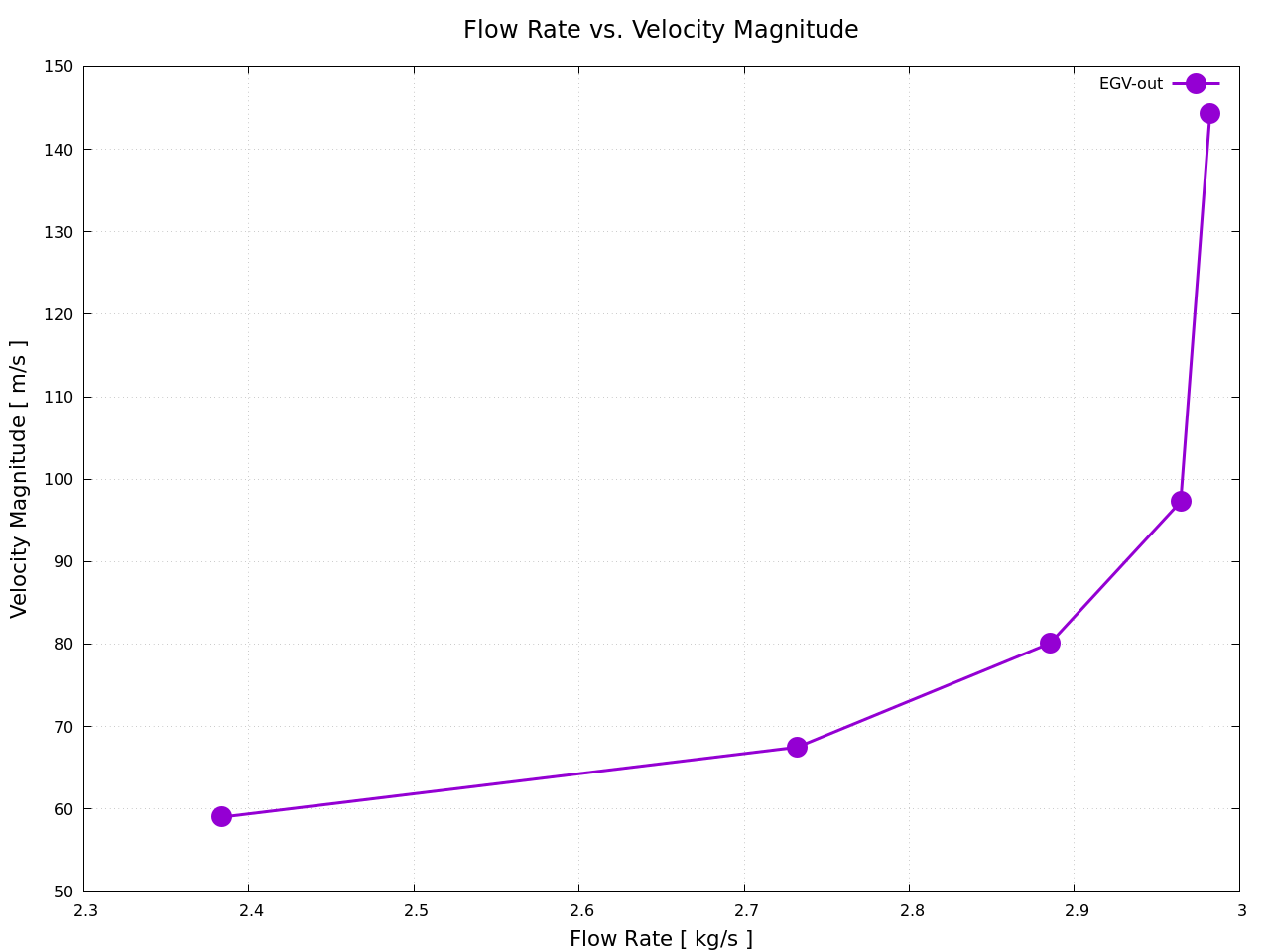

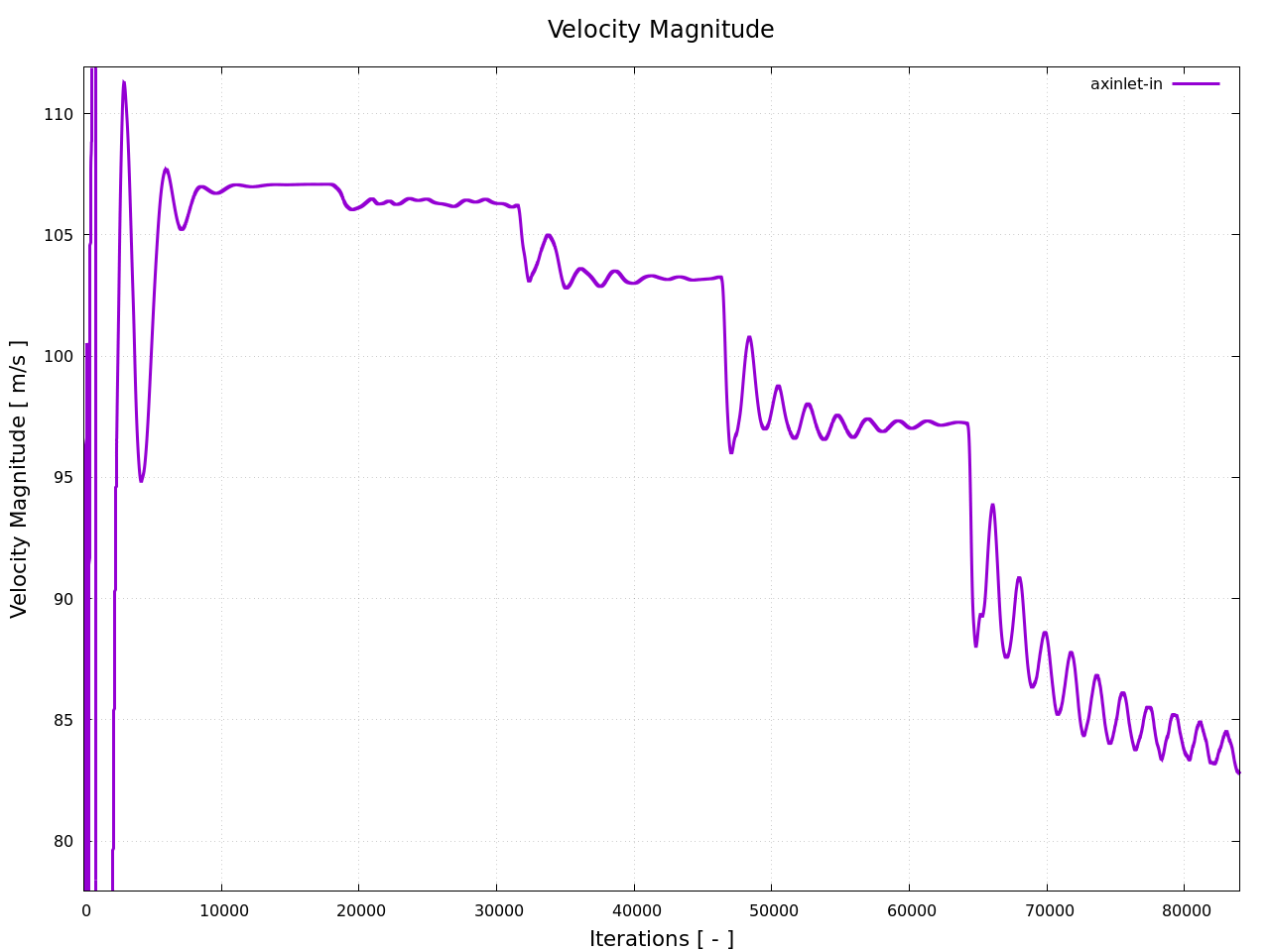

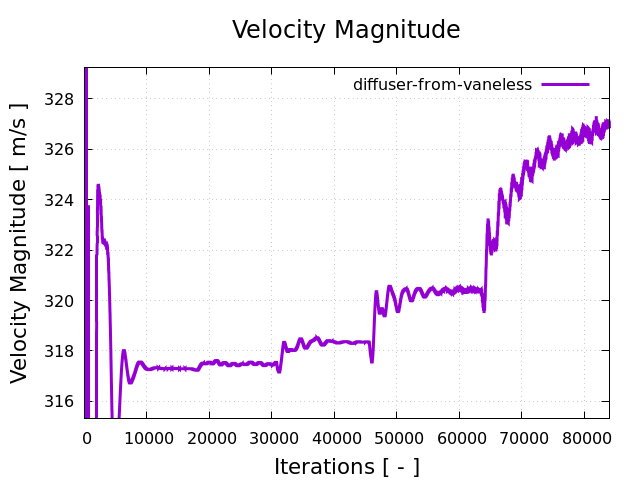

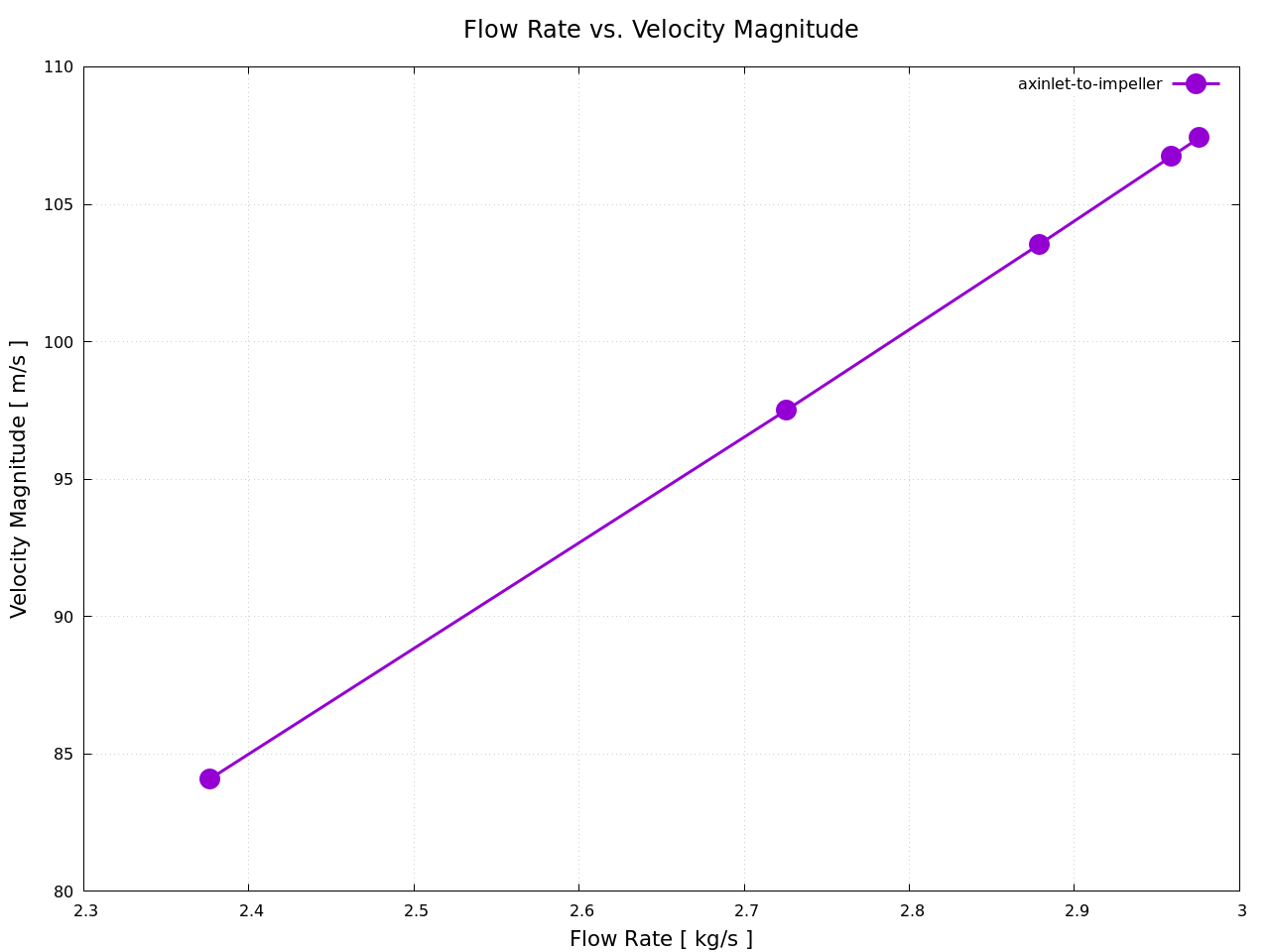

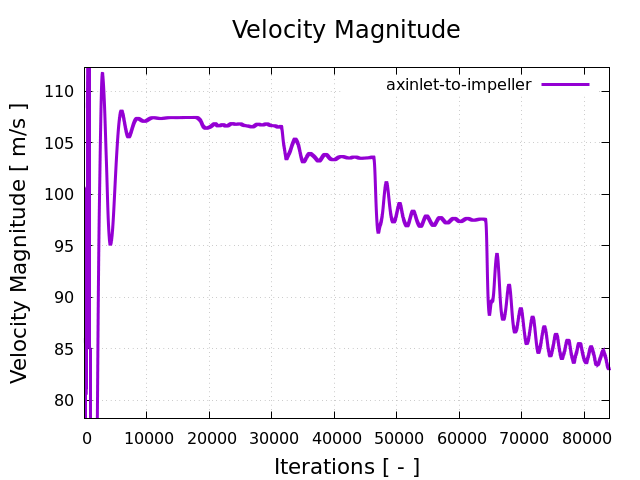

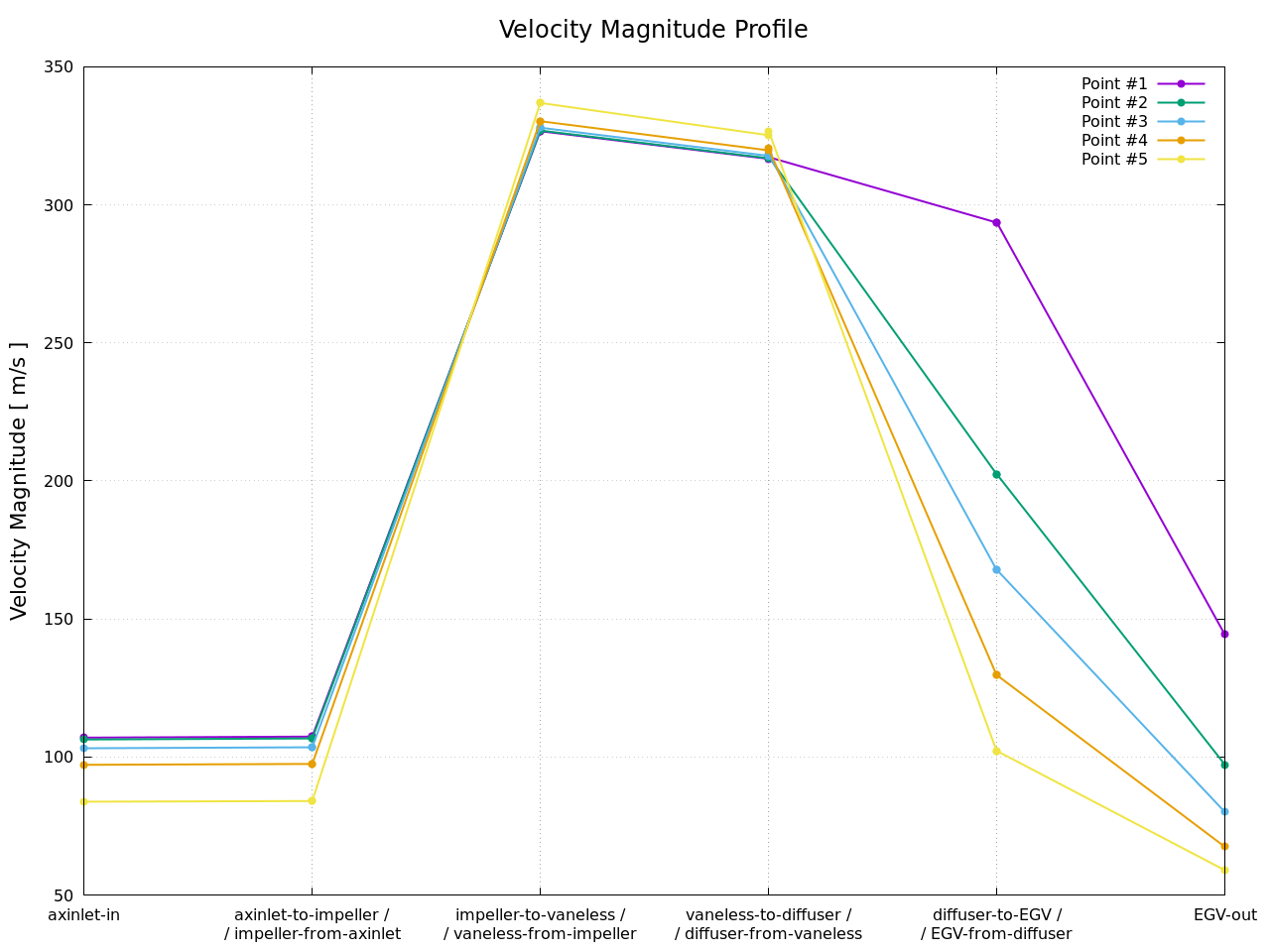

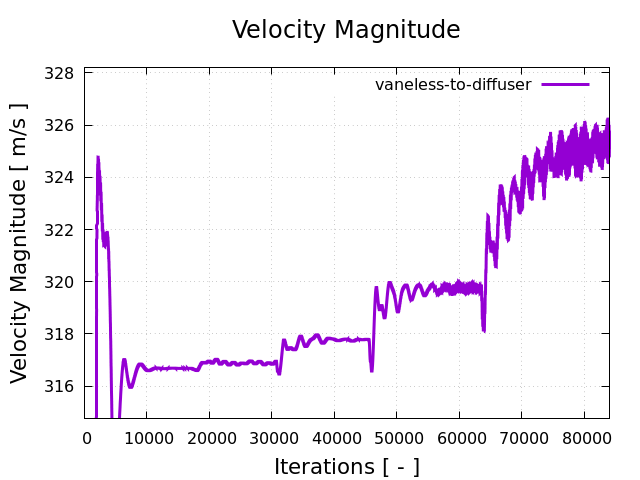

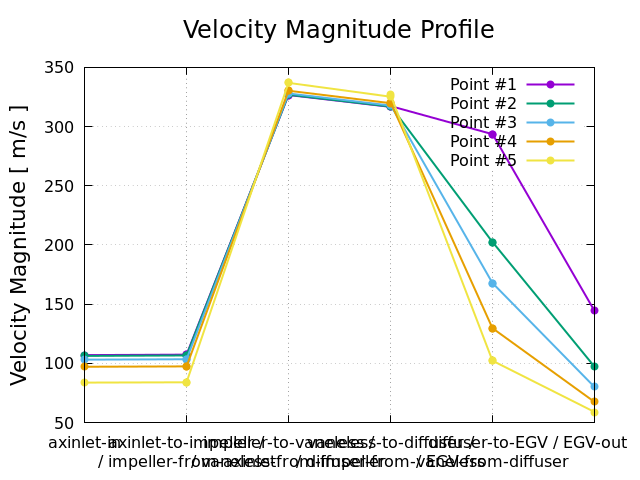

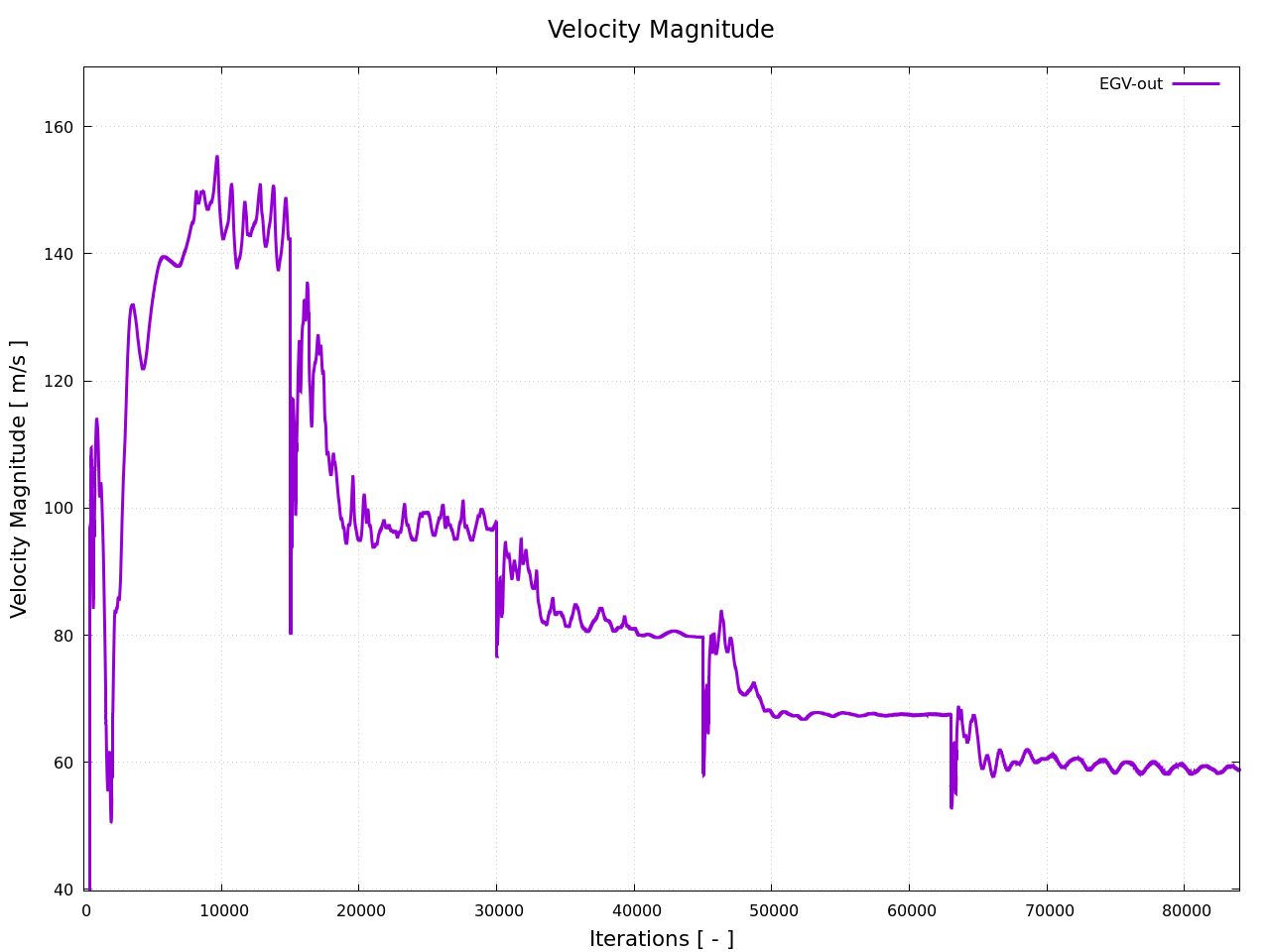

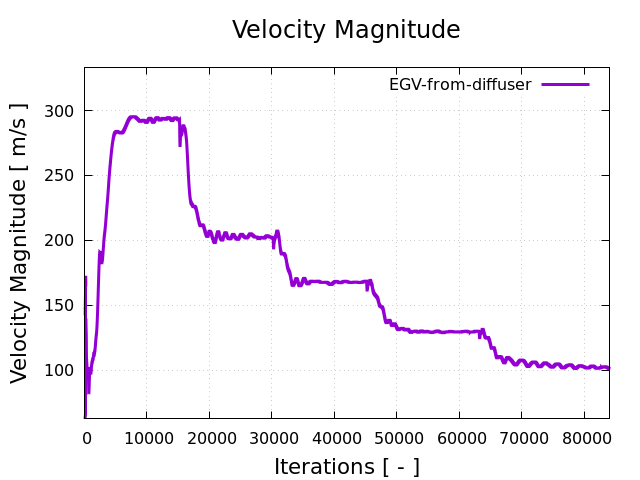

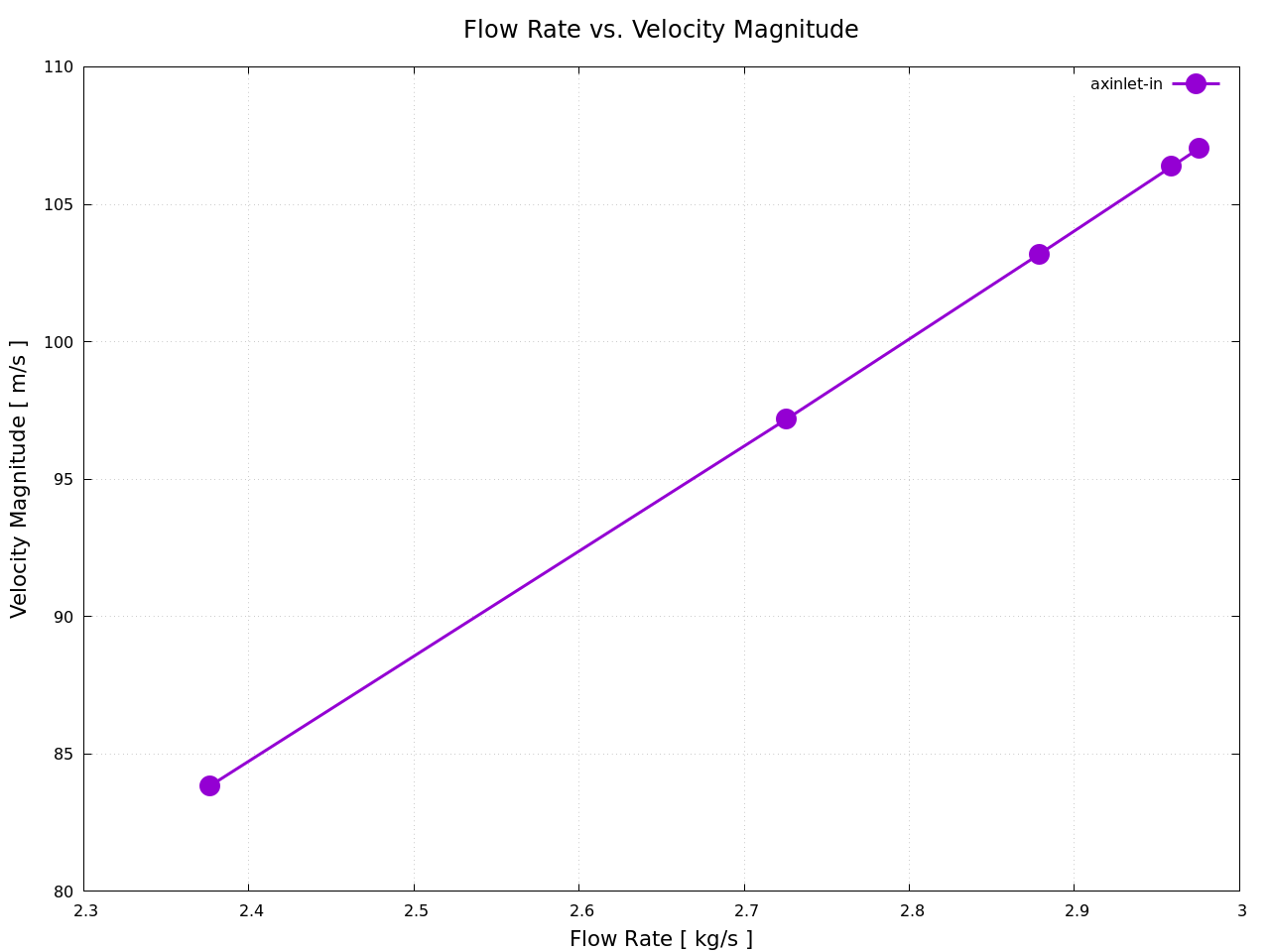

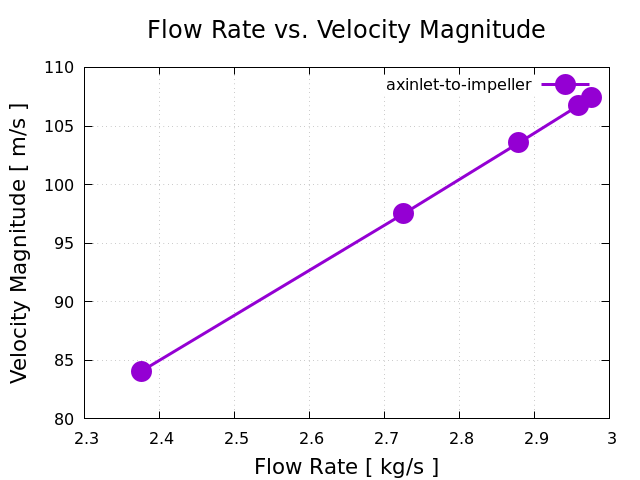

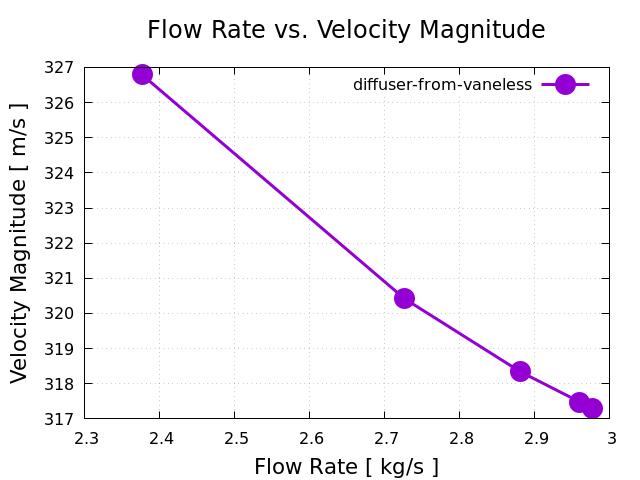

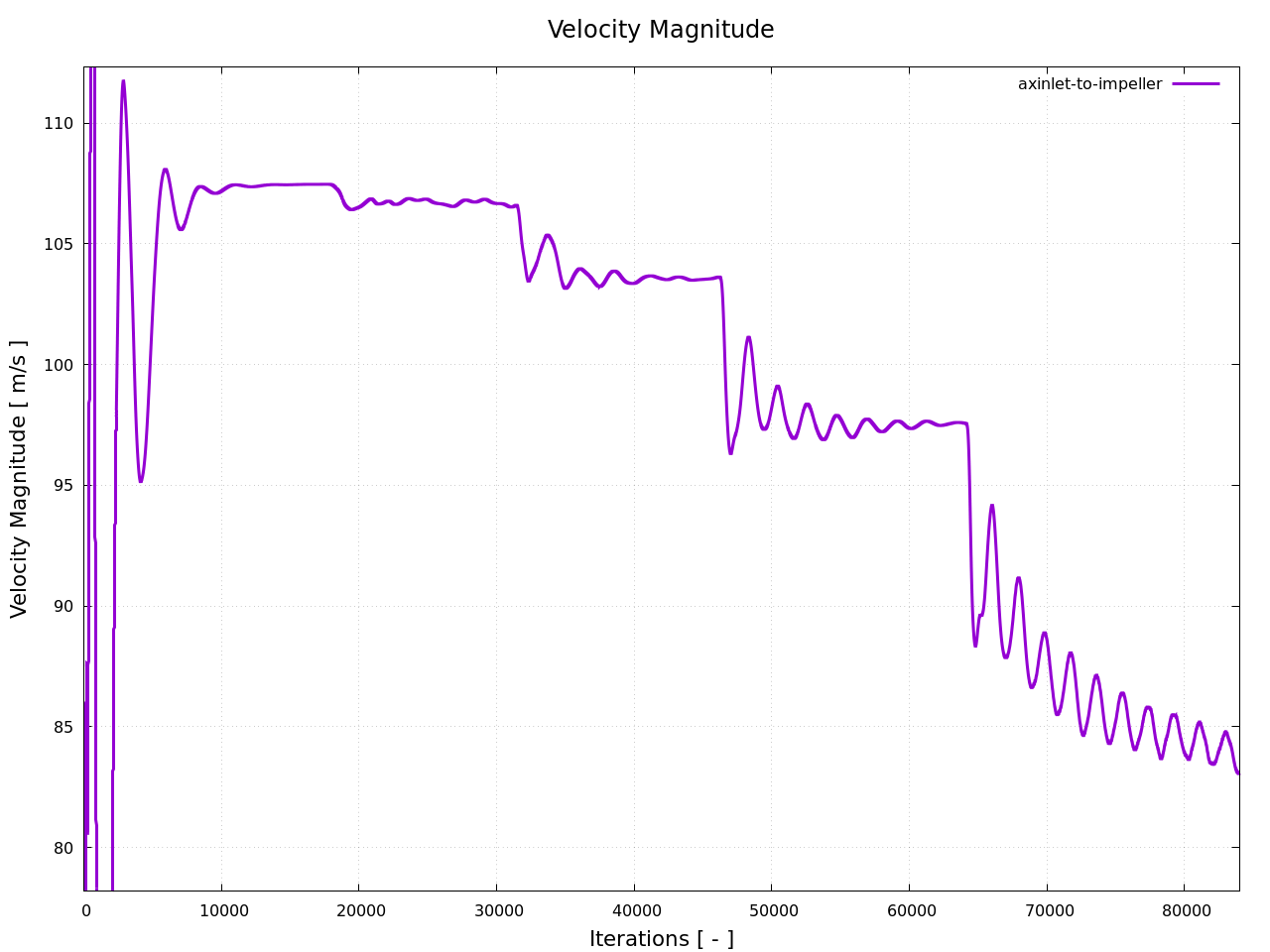

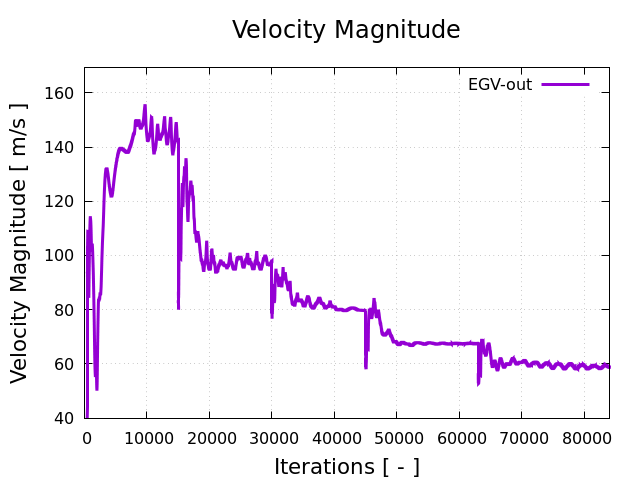

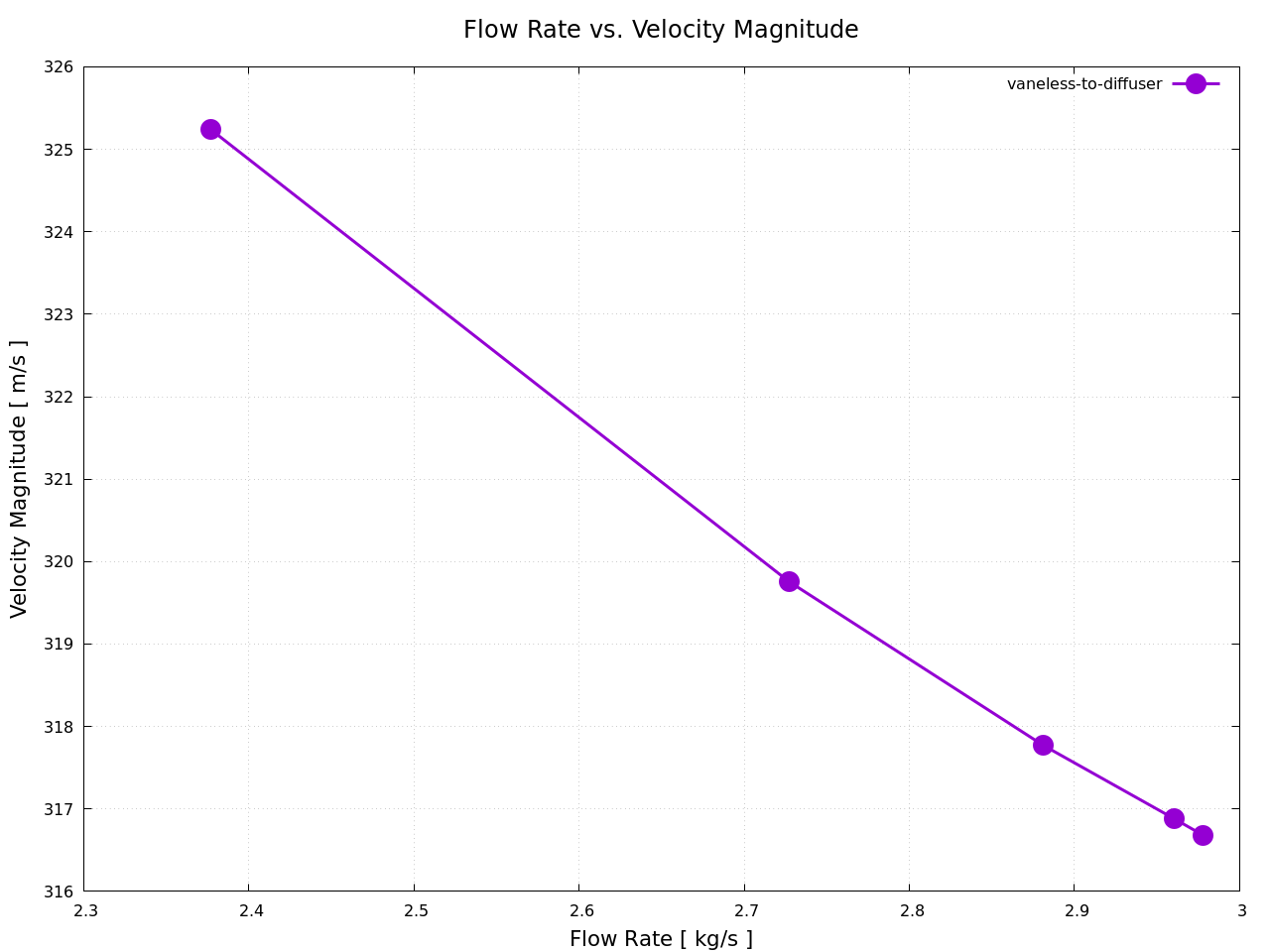

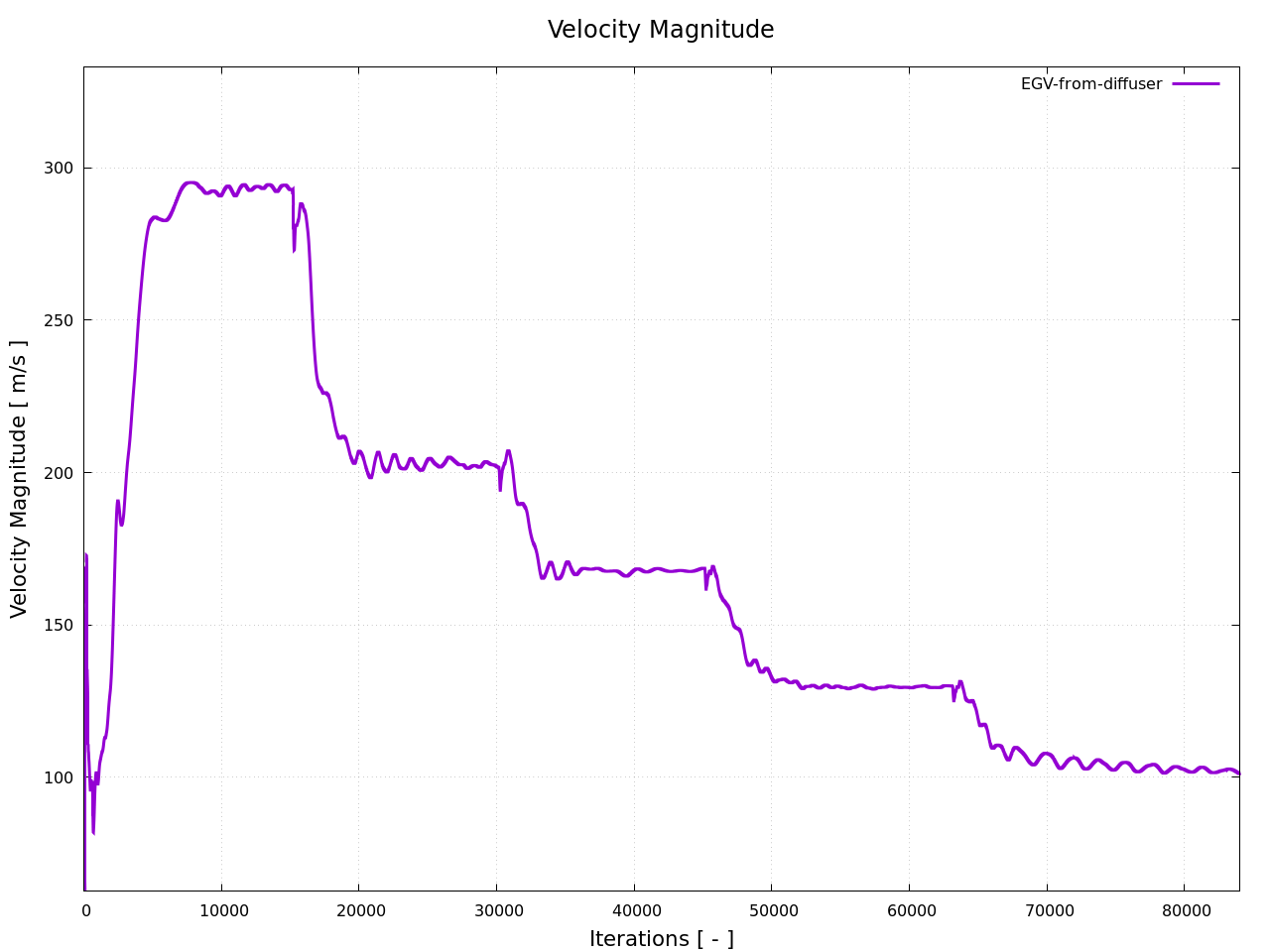

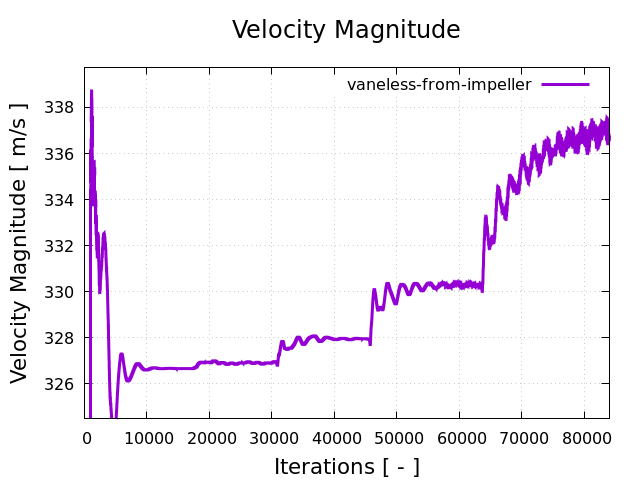

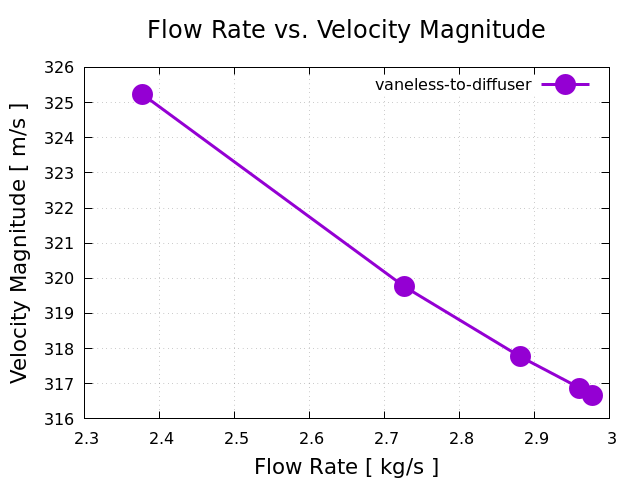

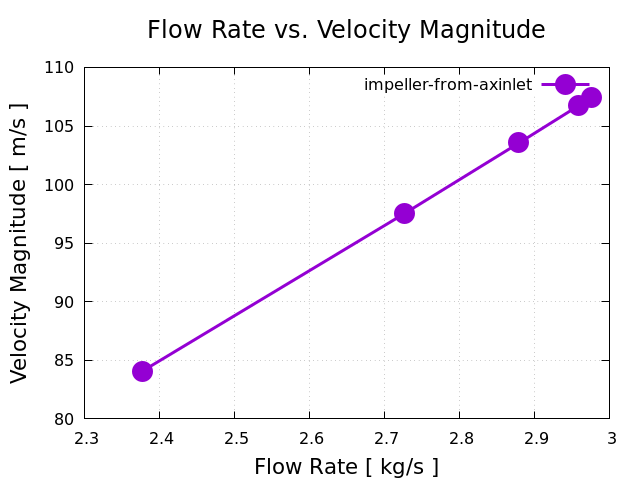

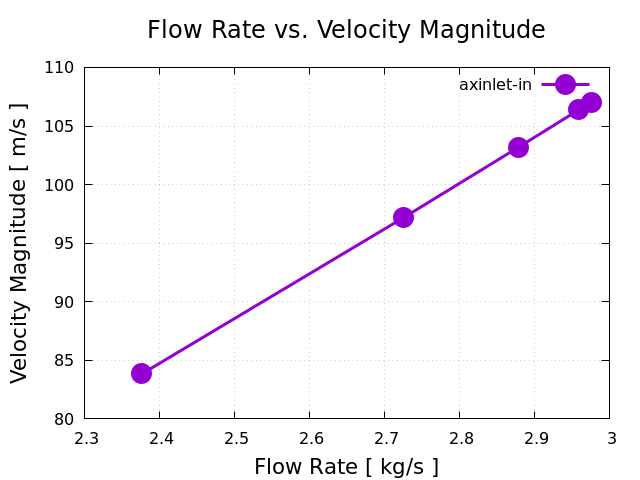

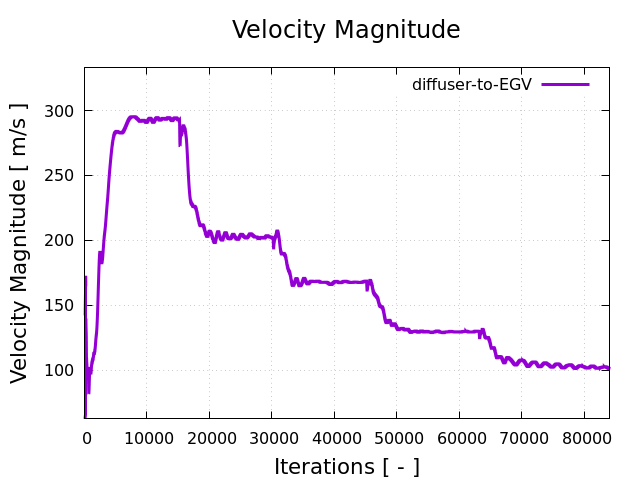

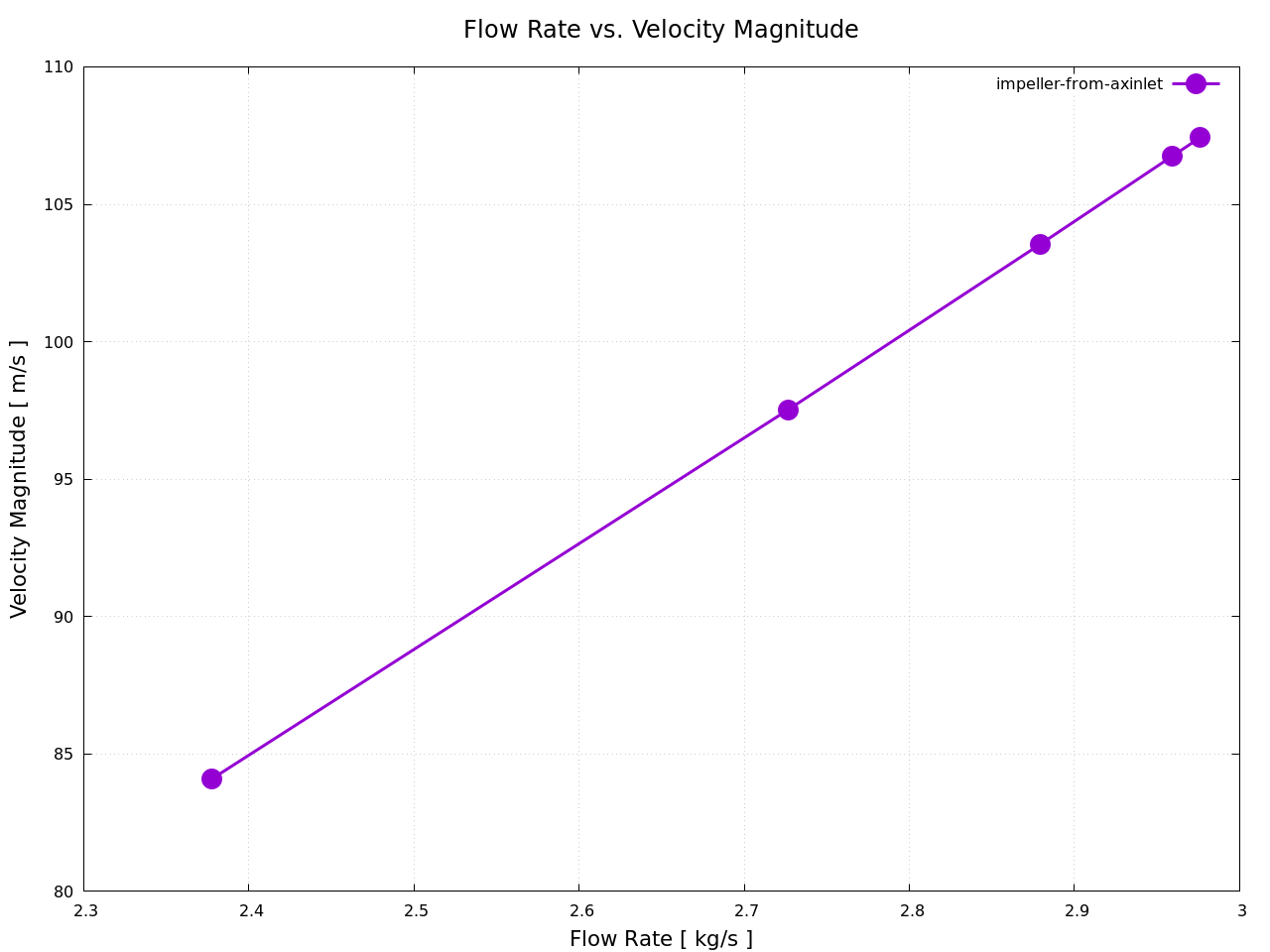

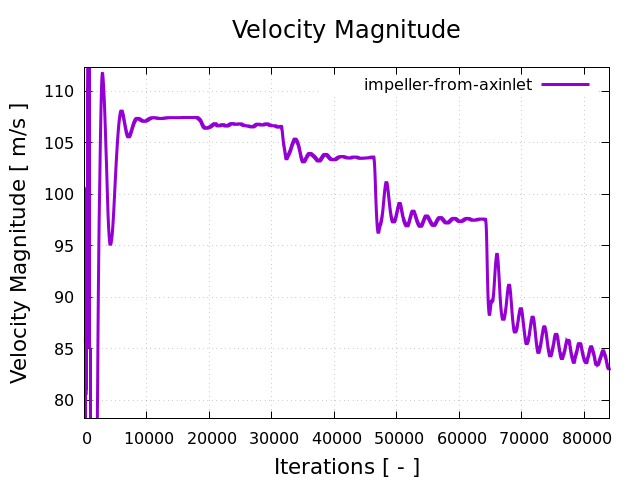

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Velocity Magnitude [ m/s ]
1	axinlet-in	2.97558	107.041
1	axinlet-to-impeller	2.97557	107.420
1	impeller-from-axinlet	2.97588	107.421
1	impeller-to-vaneless	2.97795	326.634
1	vaneless-from-impeller	2.97794	326.667
1	vaneless-to-diffuser	2.97807	316.679
1	diffuser-from-vaneless	2.97805	317.304
1	diffuser-to-EGV	2.97974	293.595
1	EGV-from-diffuser	2.98072	293.605
1	EGV-out	2.98205	144.350
2	axinlet-in	2.95885	106.373
2	axinlet-to-impeller	2.95884	106.749
2	impeller-from-axinlet	2.95917	106.750
2	impeller-to-vaneless	2.96053	326.867
2	vaneless-from-impeller	2.96052	326.899
2	vaneless-to-diffuser	2.96062	316.878
2	diffuser-from-vaneless	2.96060	317.479
2	diffuser-to-EGV	2.96350	202.448
2	EGV-from-diffuser	2.96443	202.446
2	EGV-out	2.96428	97.2656
3	axinlet-in	2.87879	103.191
3	axinlet-to-impeller	2.87877	103.546
3	impeller-from-axinlet	2.87923	103.547
3	impeller-to-vaneless	2.88114	327.919
3	vaneless-from-impeller	2.88115	327.951
3	vaneless-to-diffuser	2.88129	317.768
3	diffuser-from-vaneless	2.88127	318.340
3	diffuser-to-EGV	2.88396	167.806
3	EGV-from-diffuser	2.88484	167.802
3	EGV-out	2.88521	80.0993
4	axinlet-in	2.72572	97.1880
4	axinlet-to-impeller	2.72572	97.5184
4	impeller-from-axinlet	2.72641	97.5196
4	impeller-to-vaneless	2.72690	330.264
4	vaneless-from-impeller	2.72695	330.294
4	vaneless-to-diffuser	2.72703	319.757
4	diffuser-from-vaneless	2.72701	320.415
4	diffuser-to-EGV	2.73083	129.673
4	EGV-from-diffuser	2.73188	129.682
4	EGV-out	2.73204	67.4910
5	axinlet-in	2.37635	83.8378
5	axinlet-to-impeller	2.37613	84.0845
5	impeller-from-axinlet	2.37734	84.0858
5	impeller-to-vaneless	2.37677	336.876
5	vaneless-from-impeller	2.37690	336.908
5	vaneless-to-diffuser	2.37690	325.239
5	diffuser-from-vaneless	2.37688	326.789
5	diffuser-to-EGV	2.38221	102.214
5	EGV-from-diffuser	2.38314	102.221
5	EGV-out	2.38374	59.0134

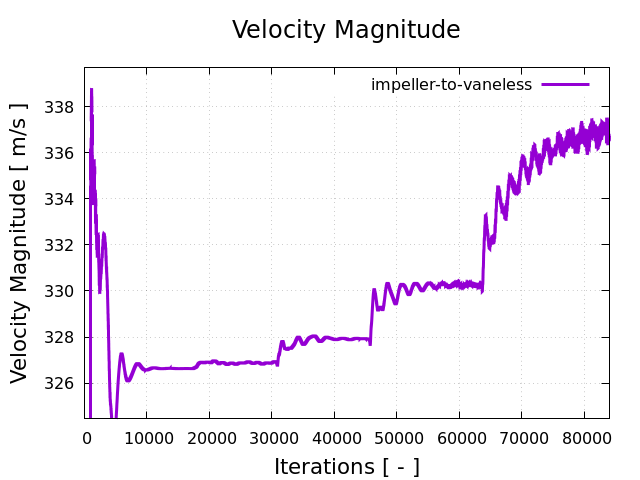

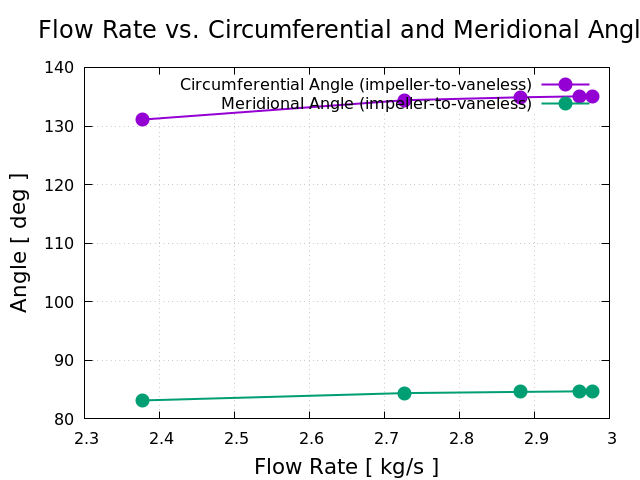

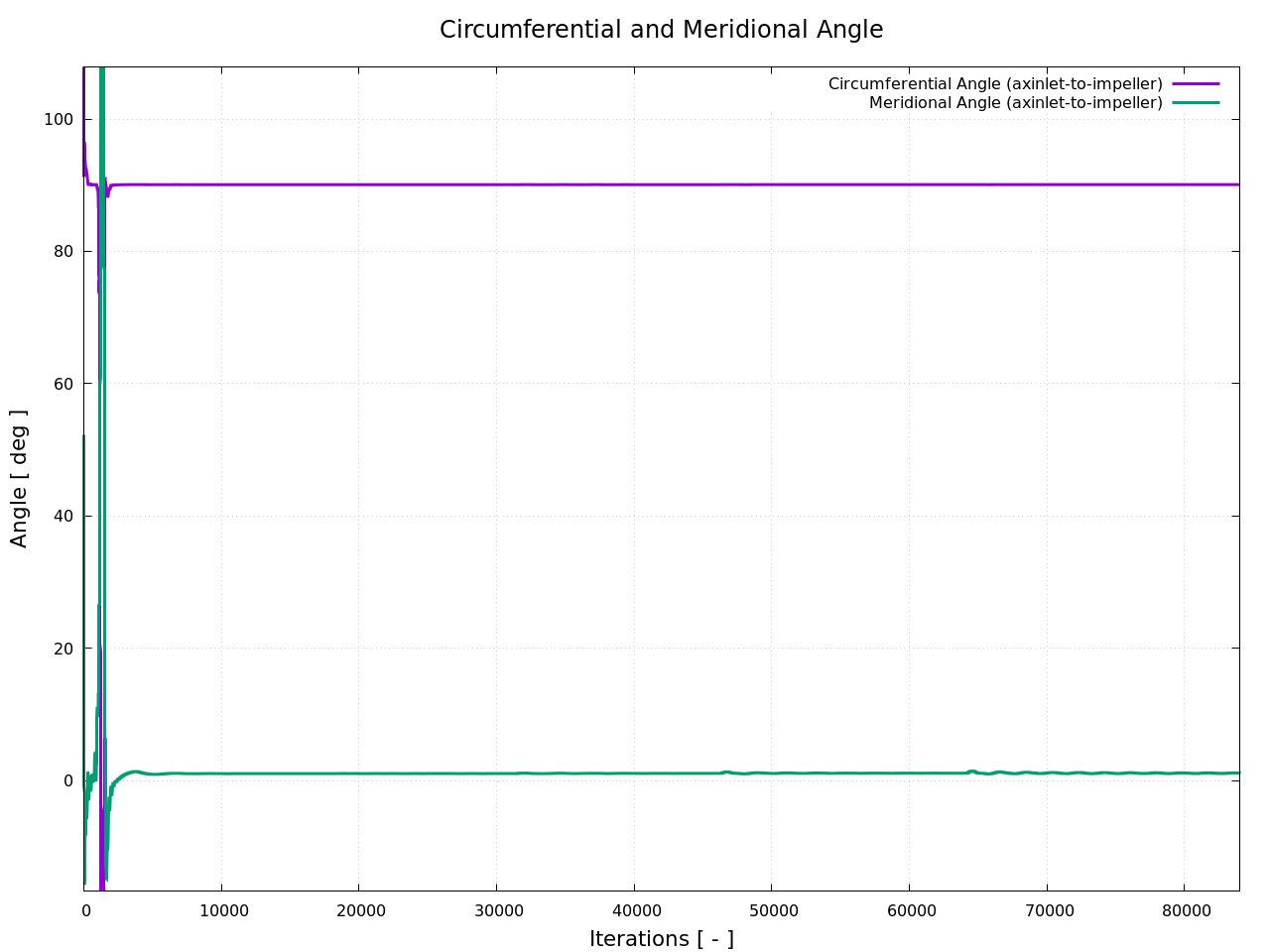

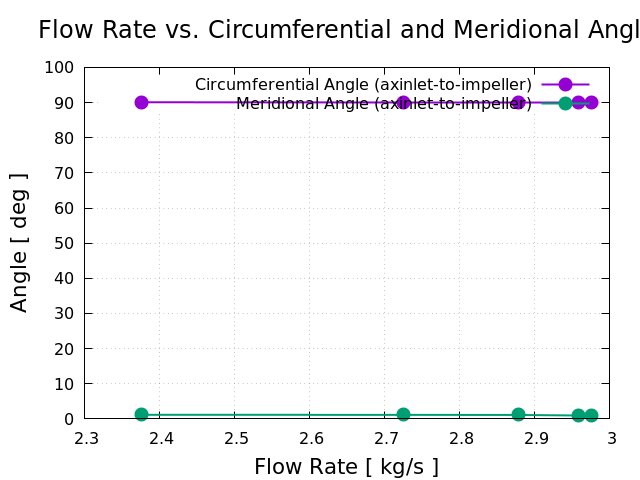

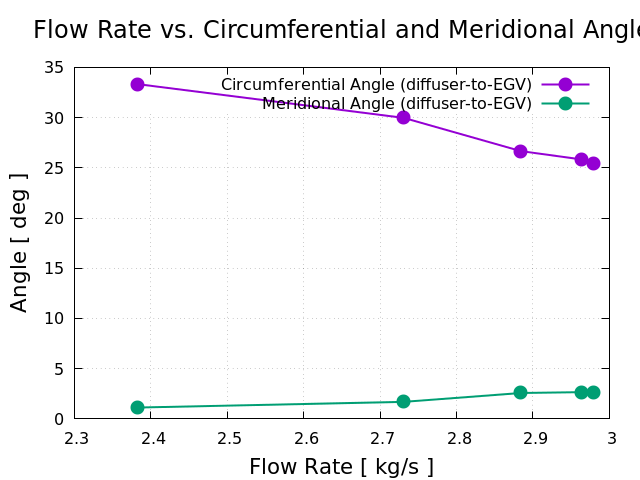

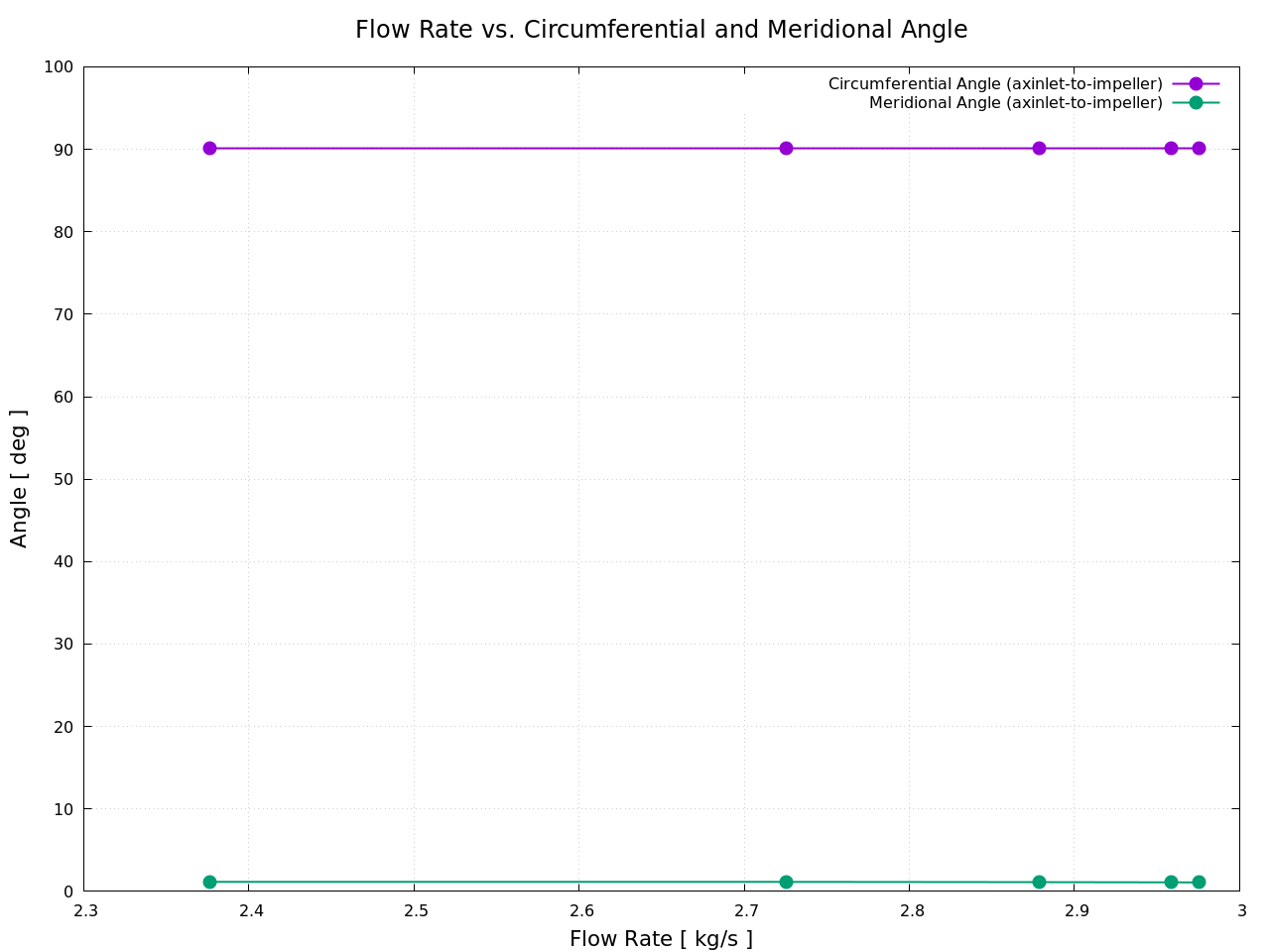

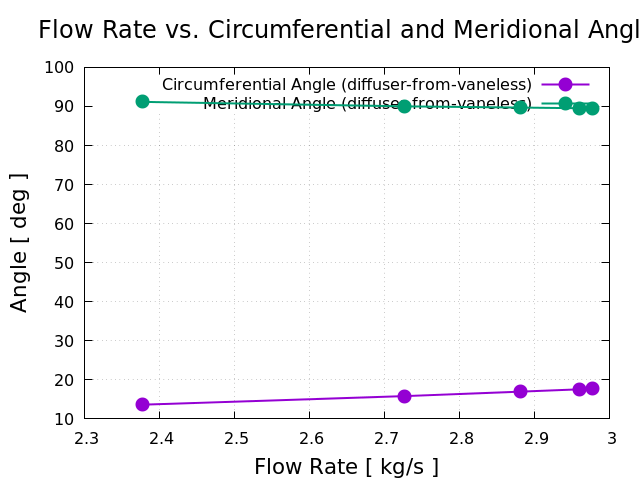

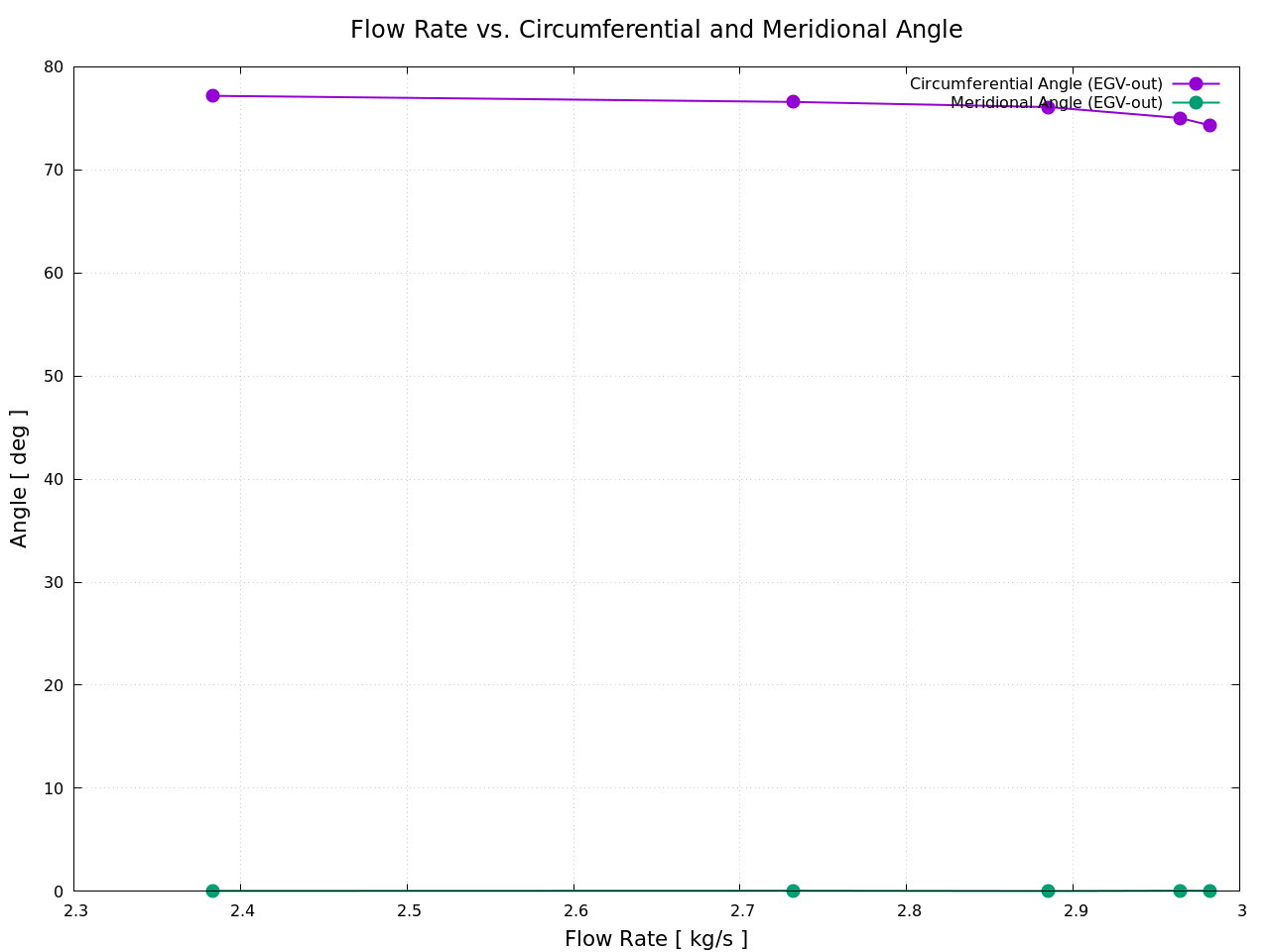

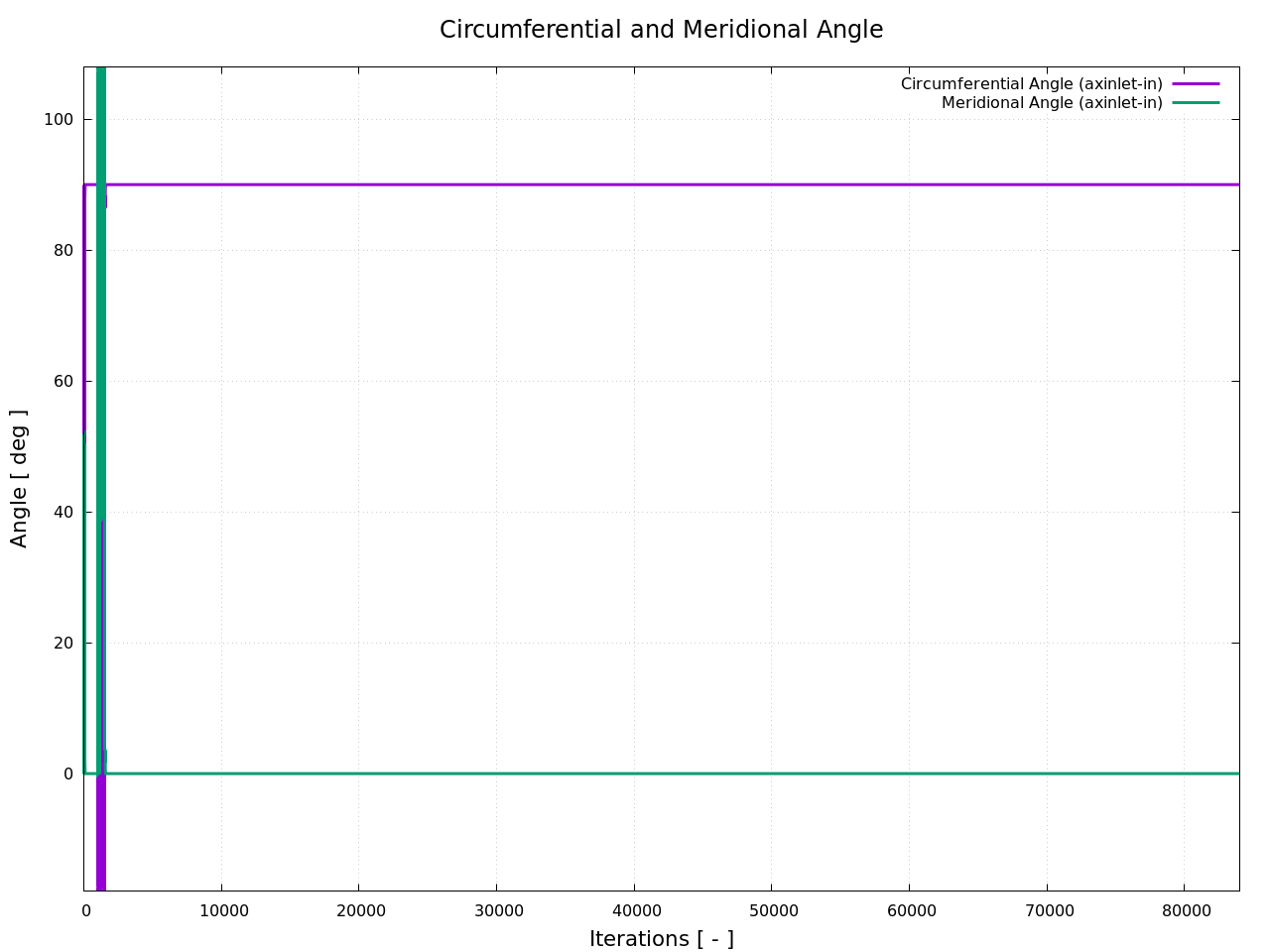

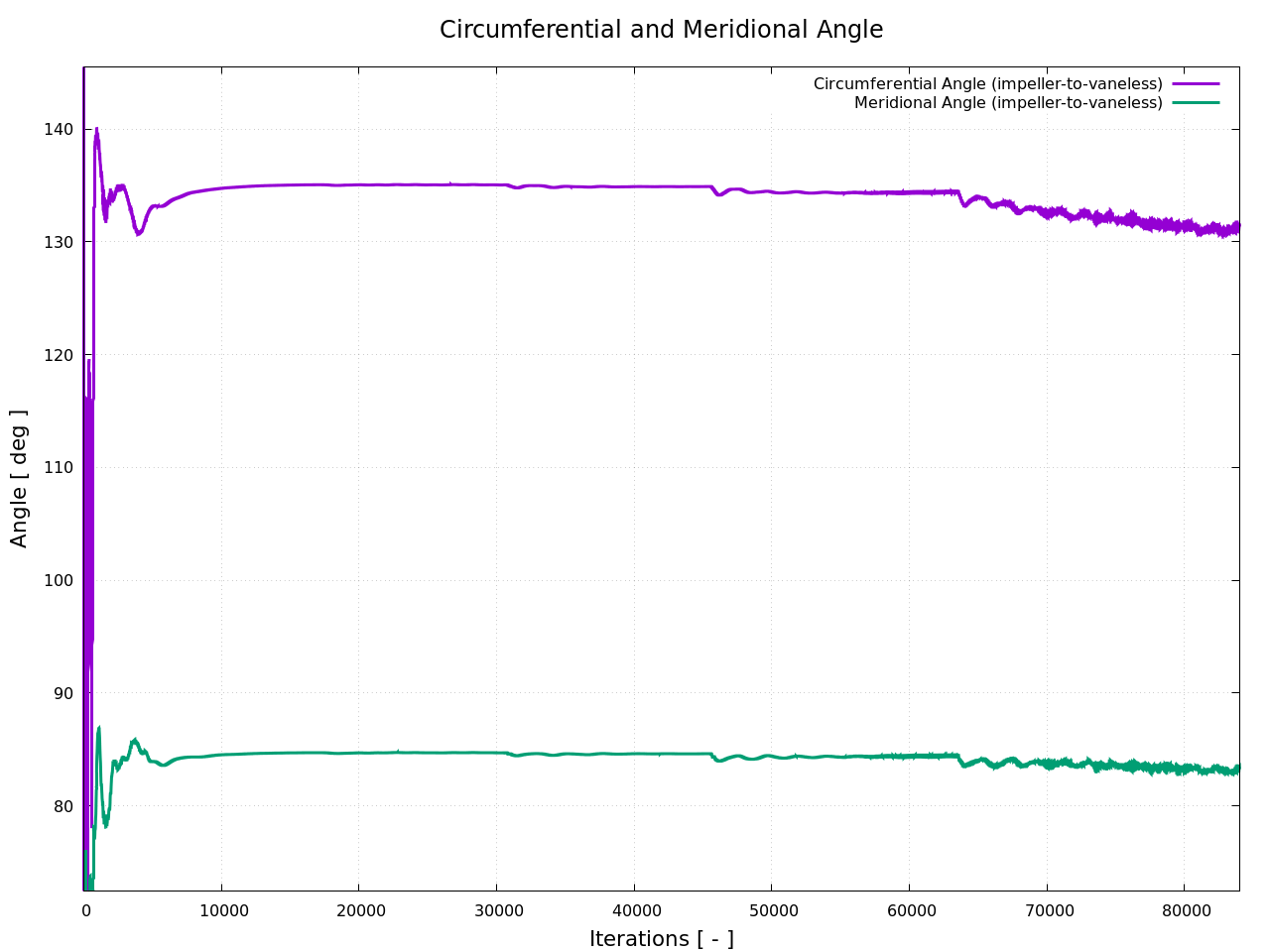

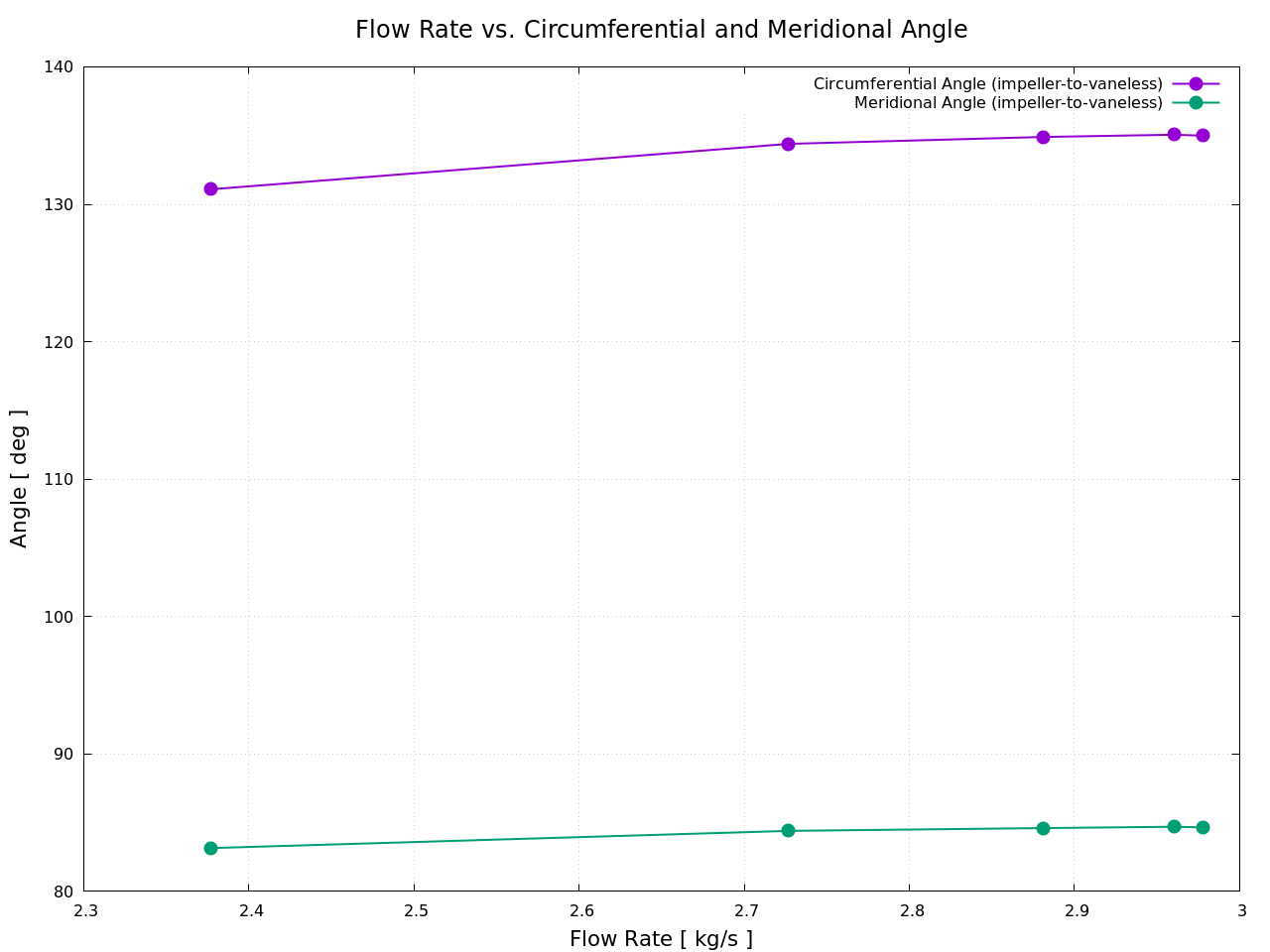

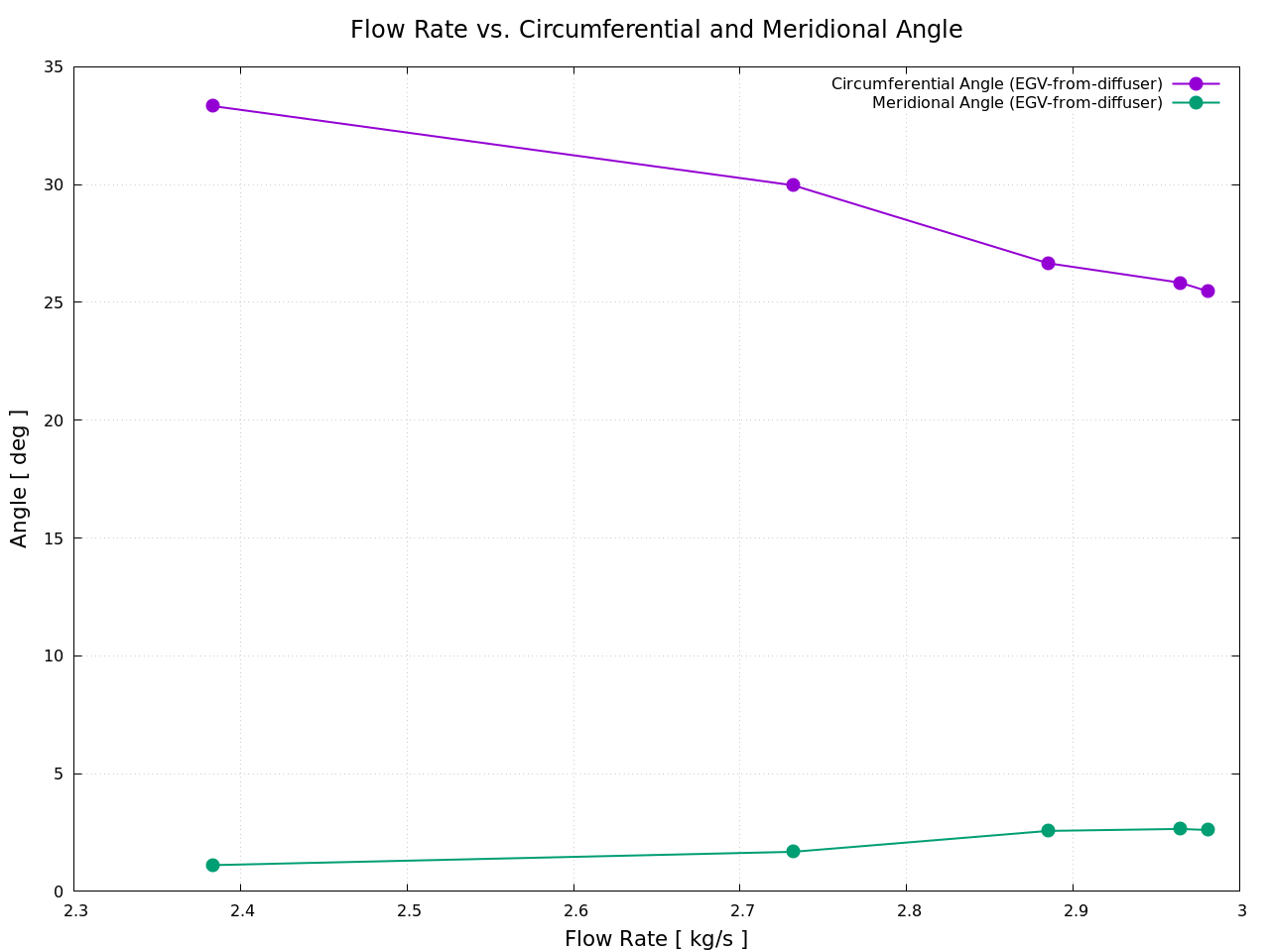

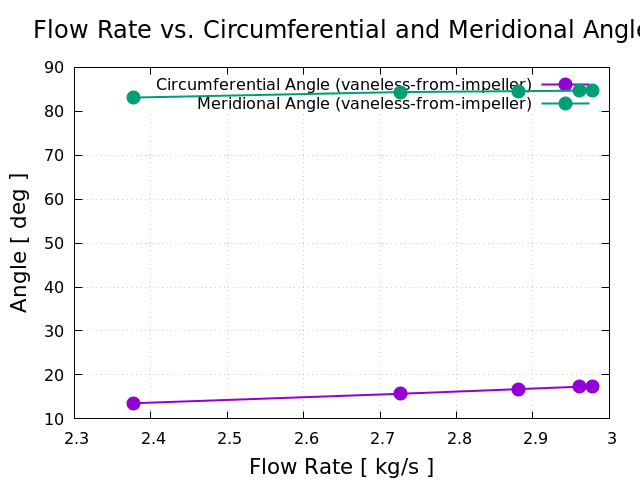

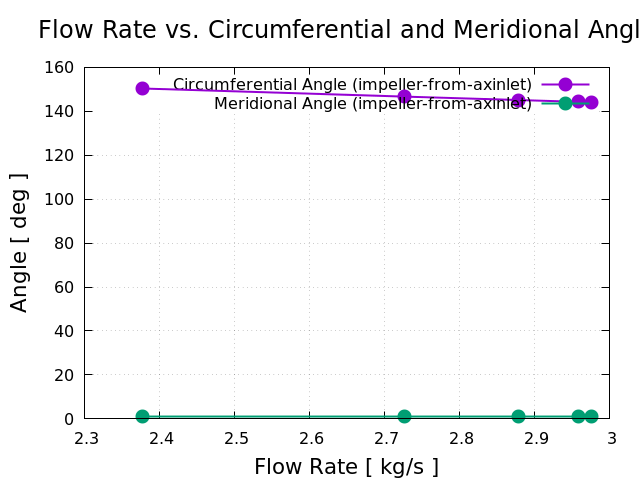

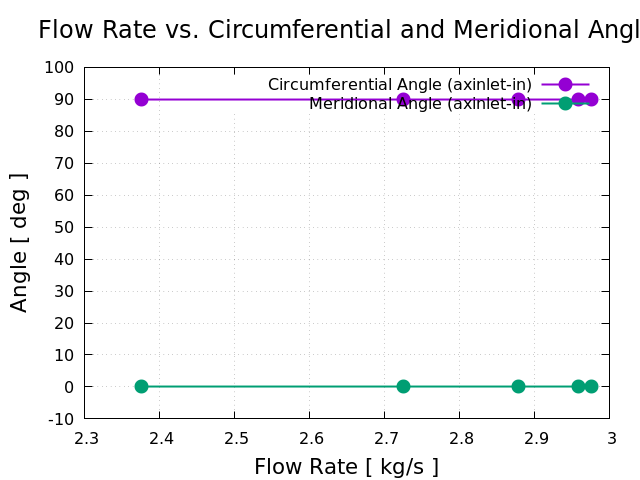

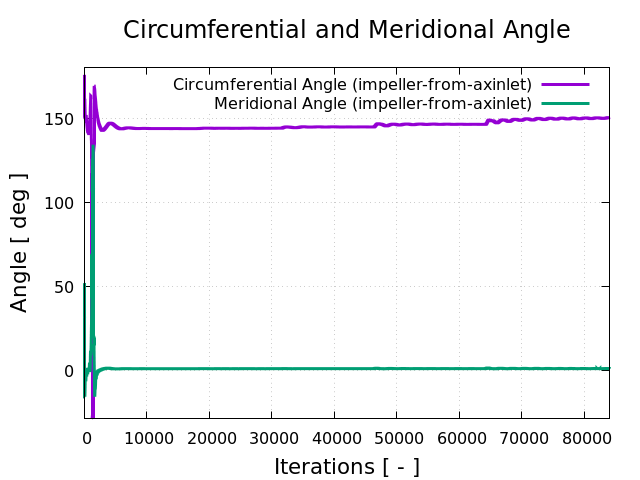

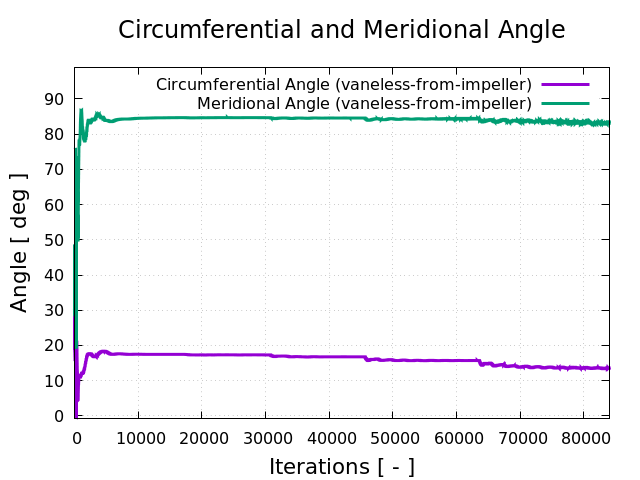

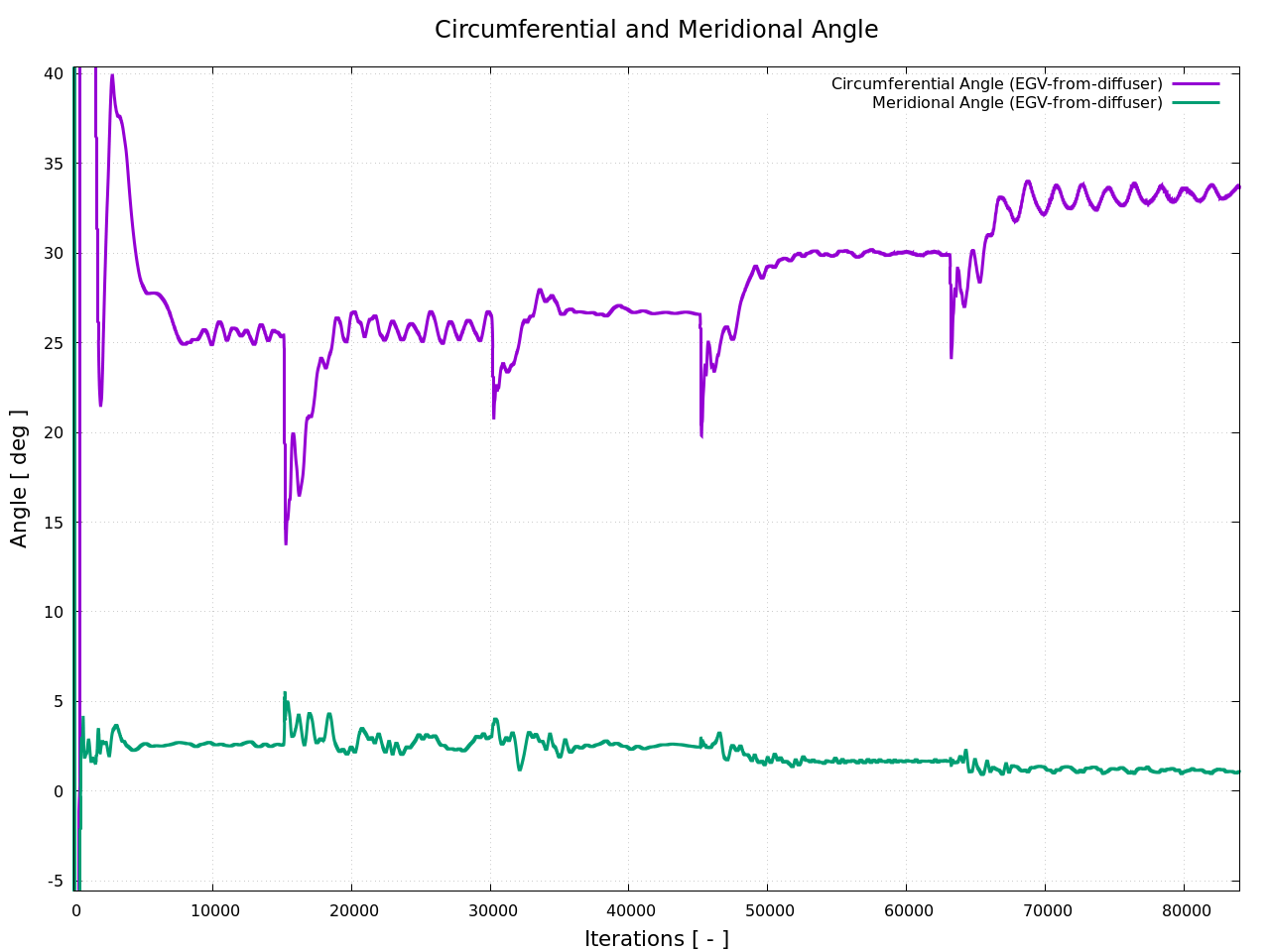

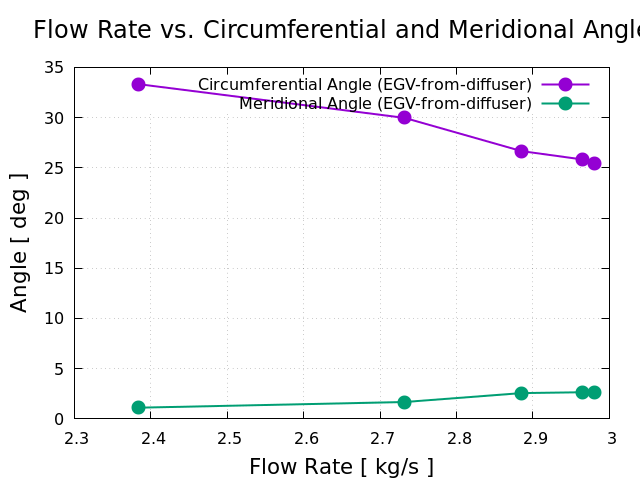

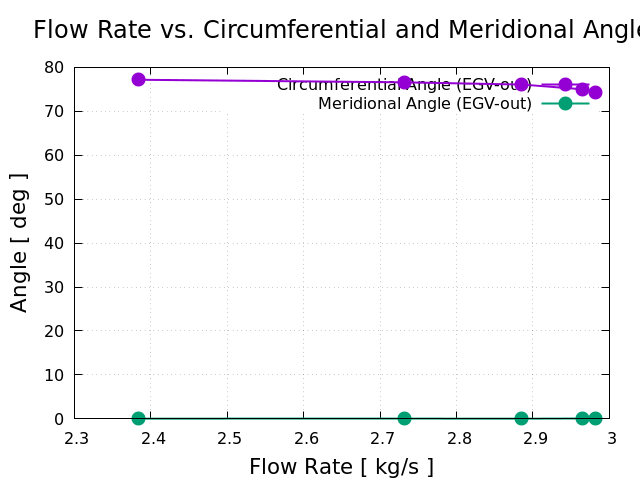

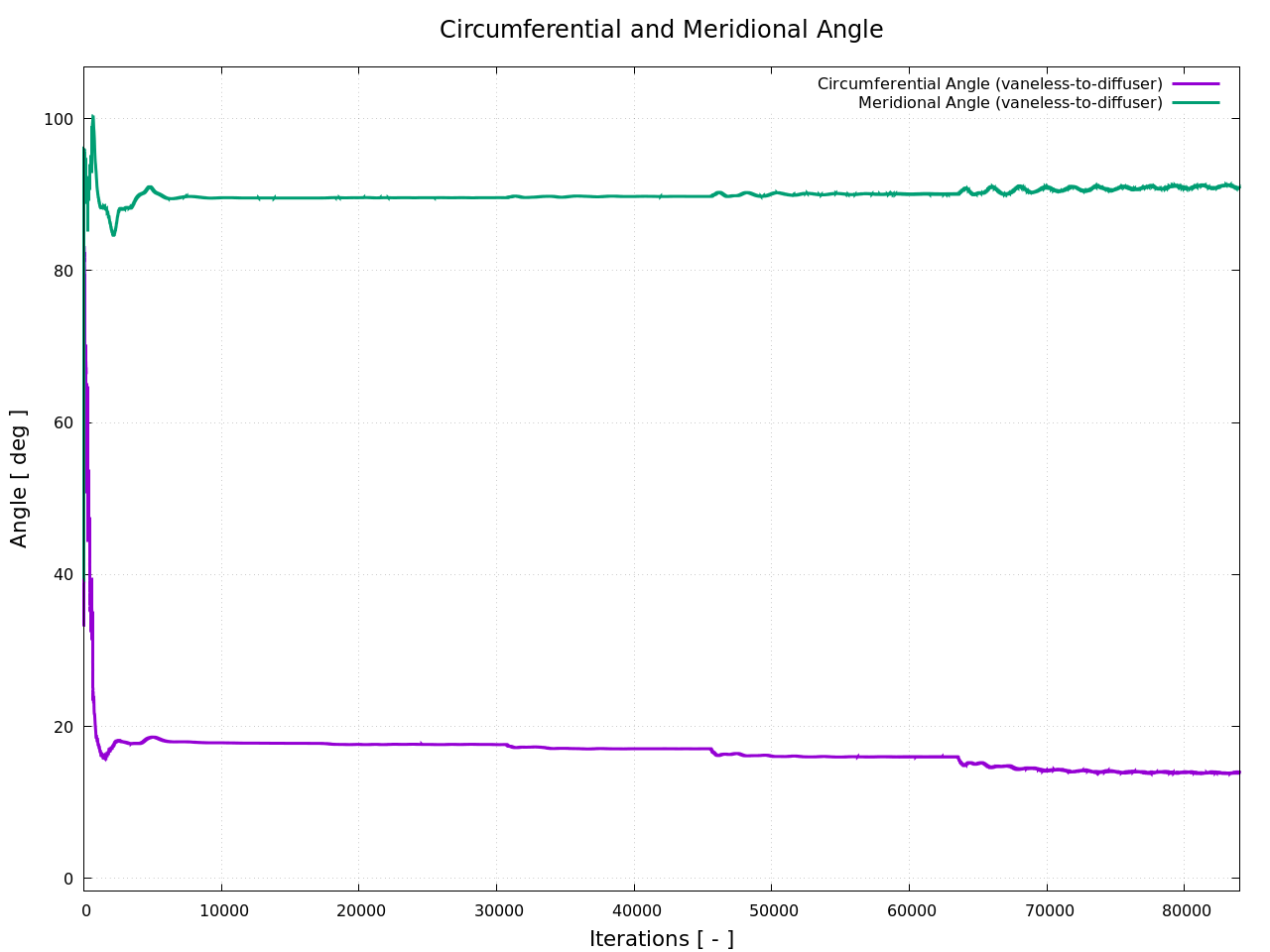

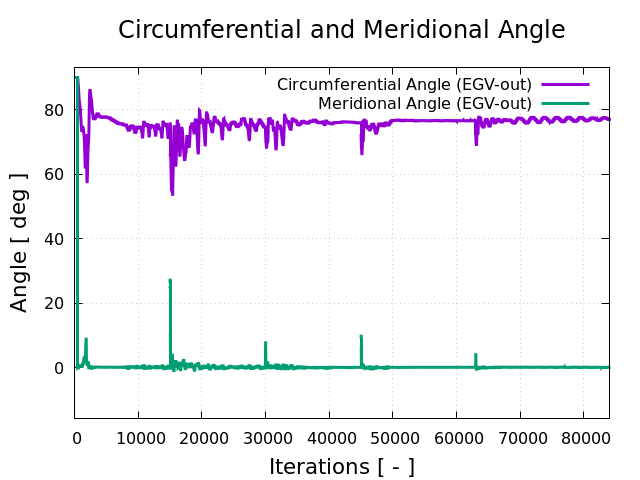

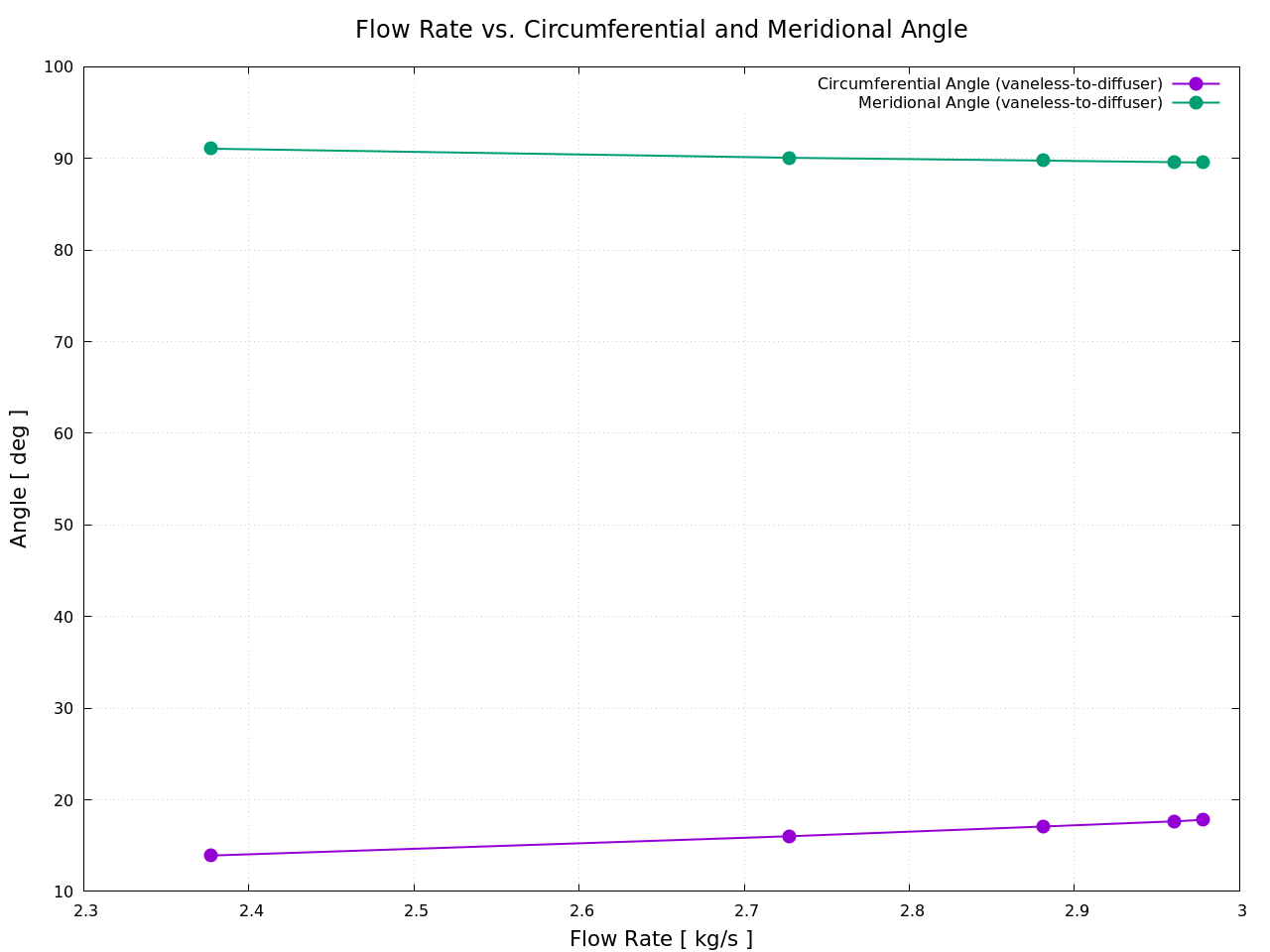

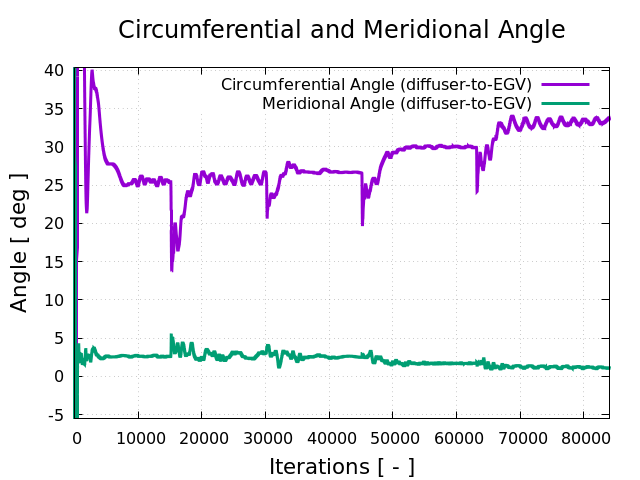

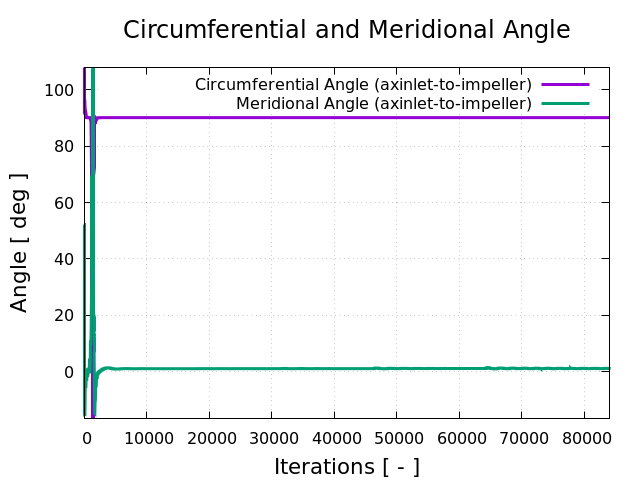

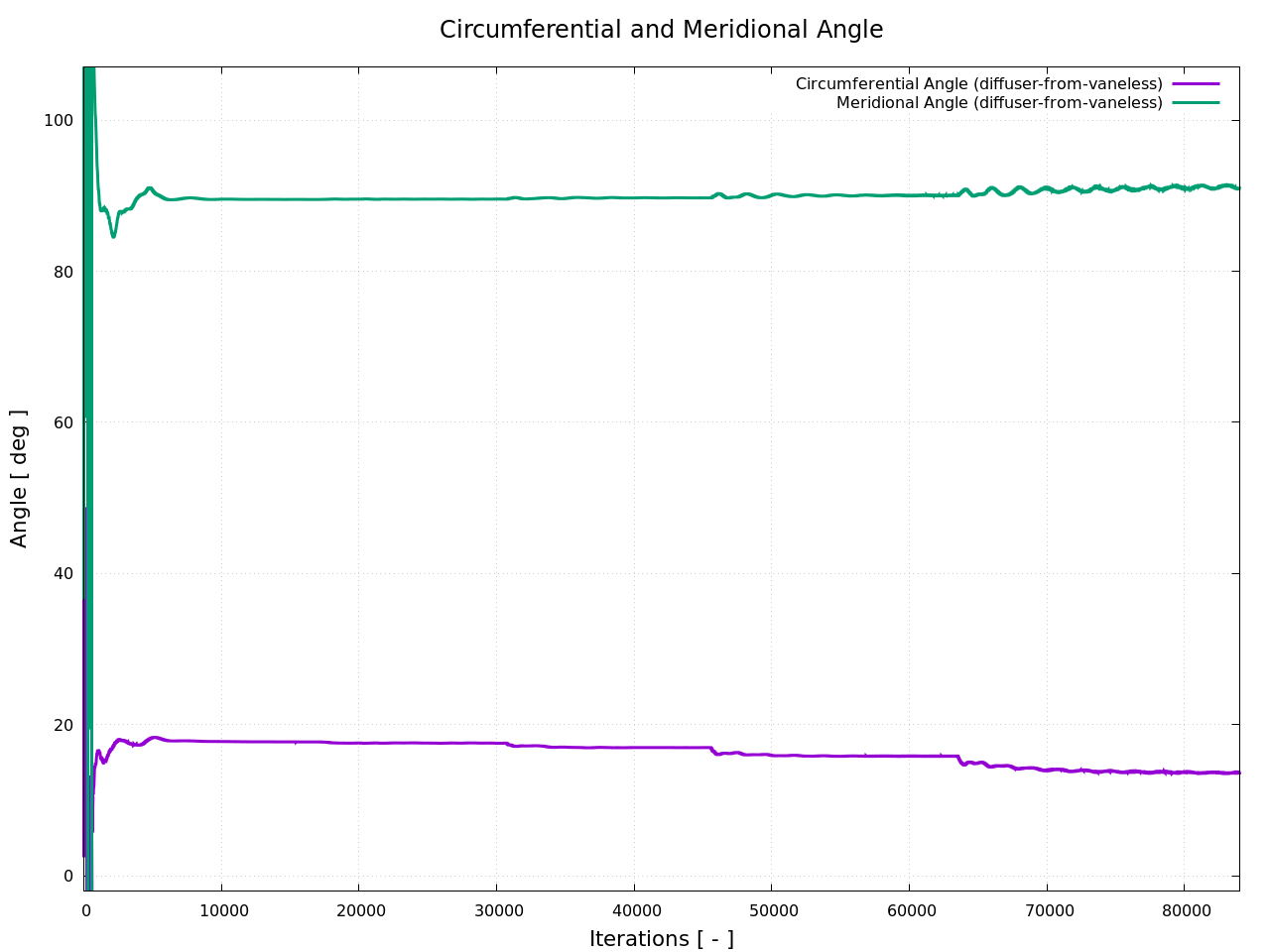

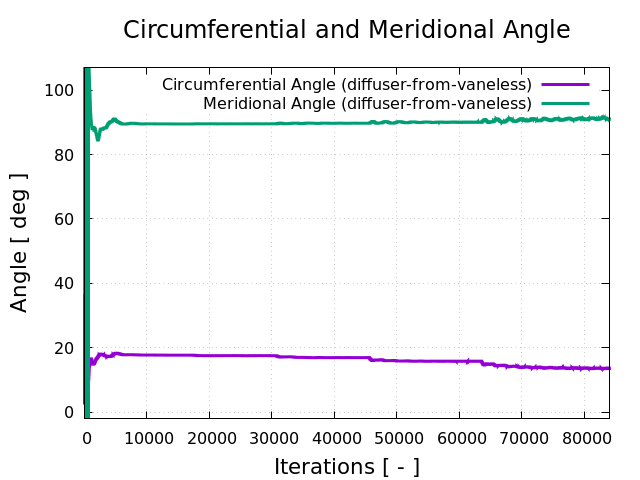

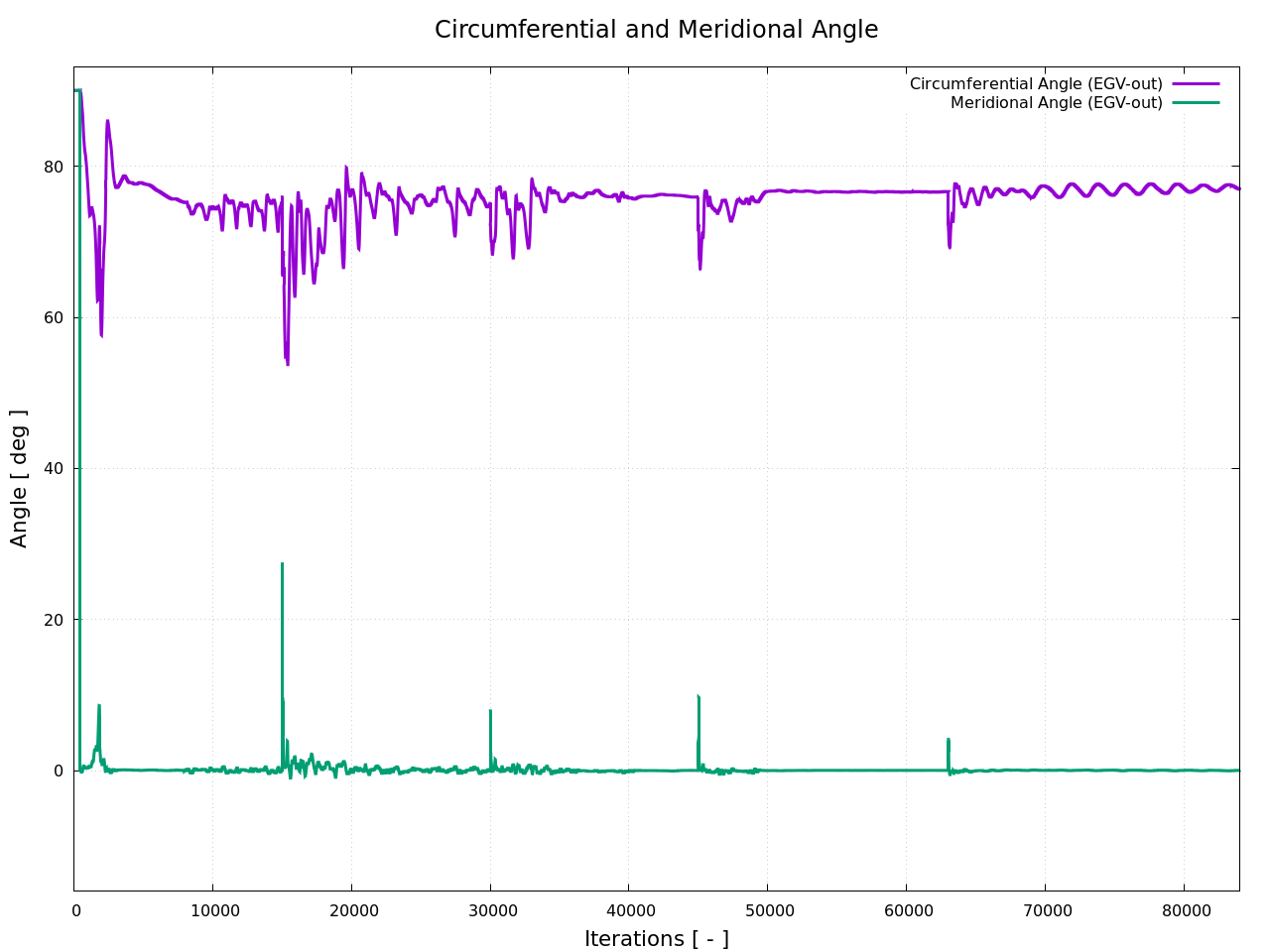

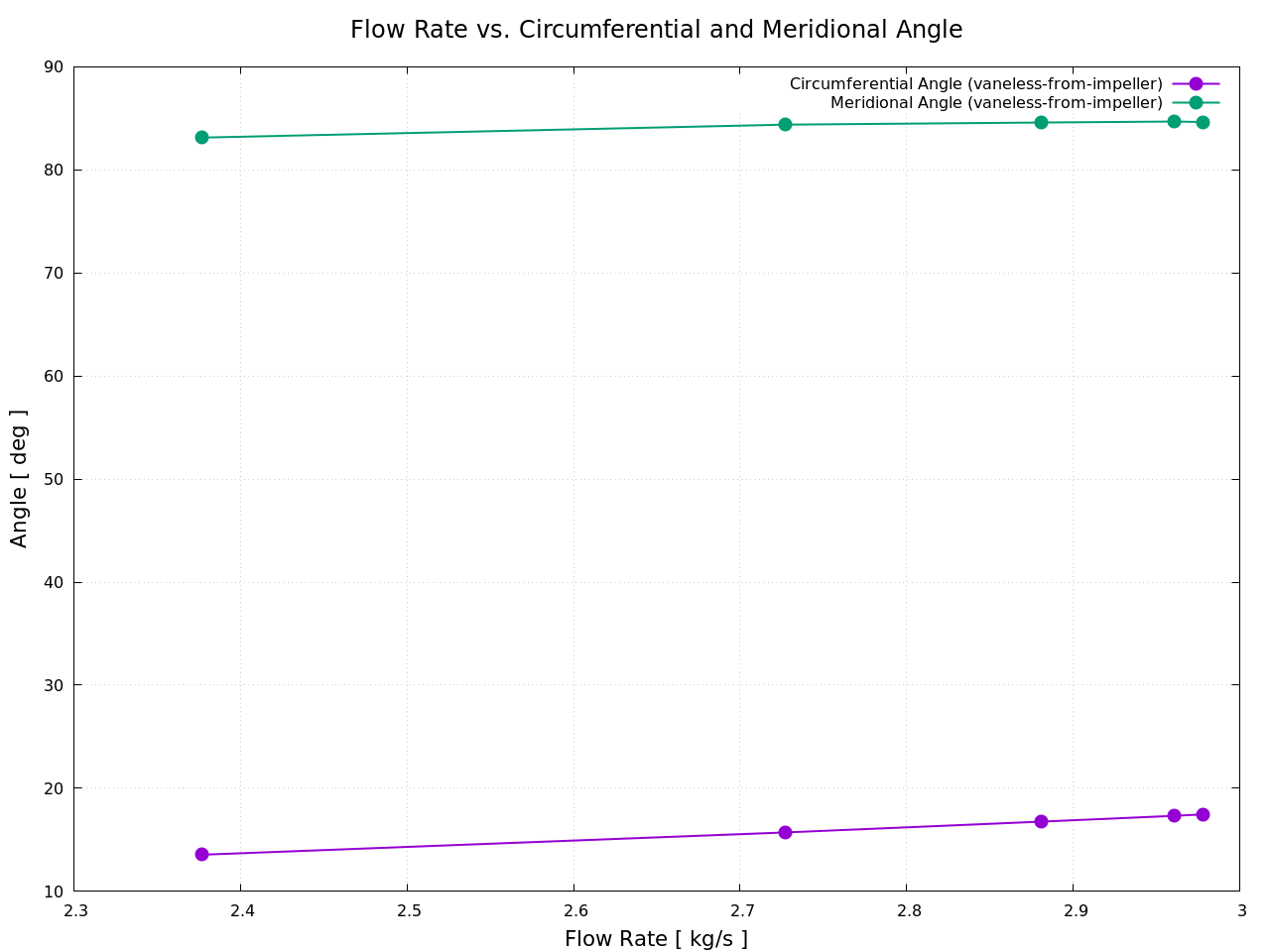

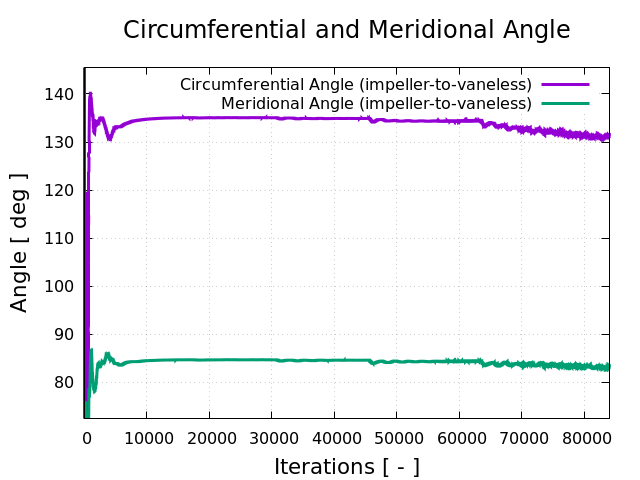

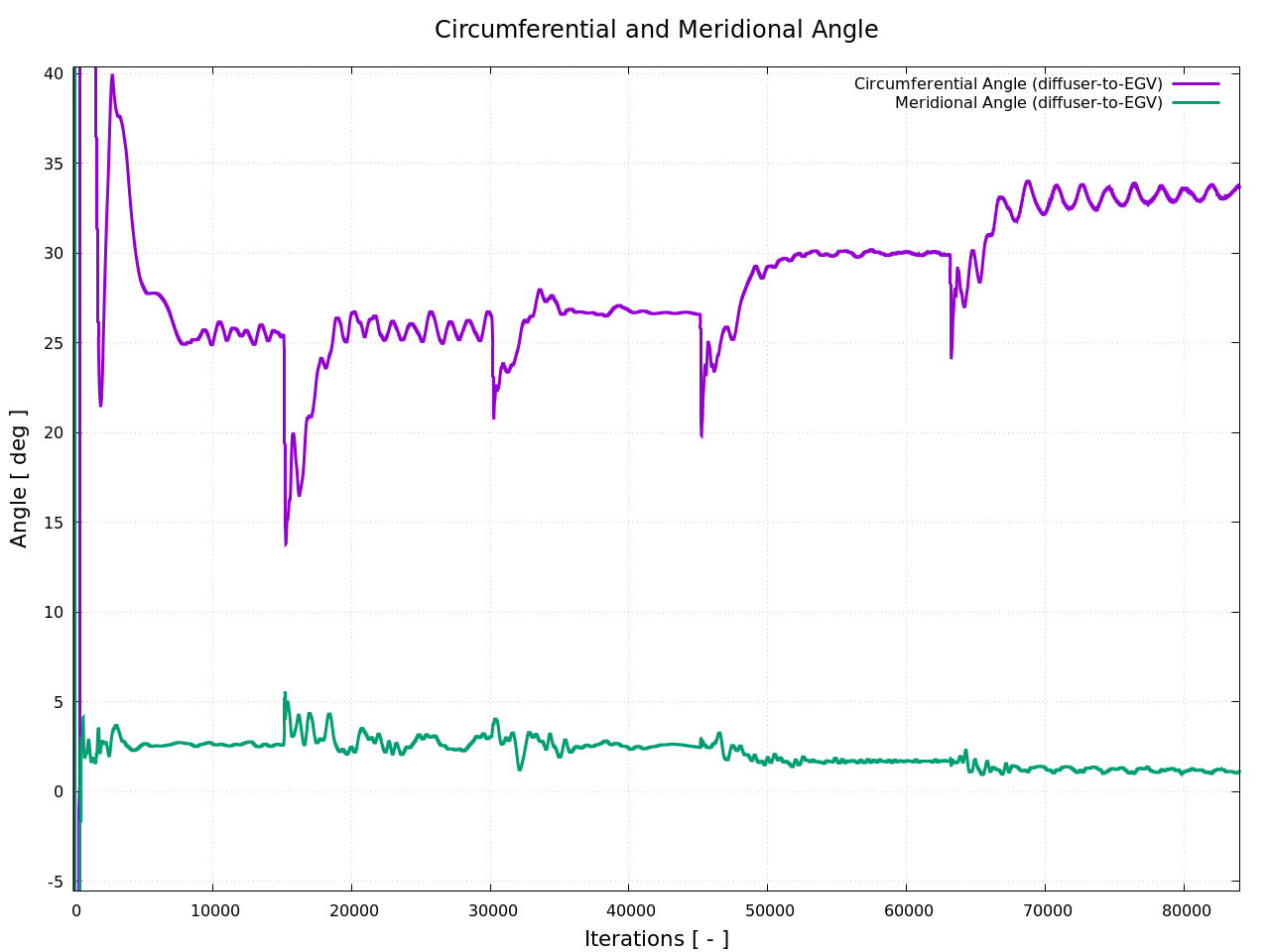

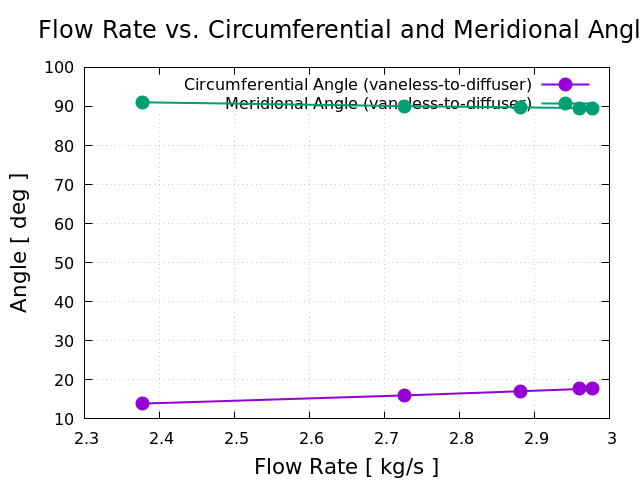

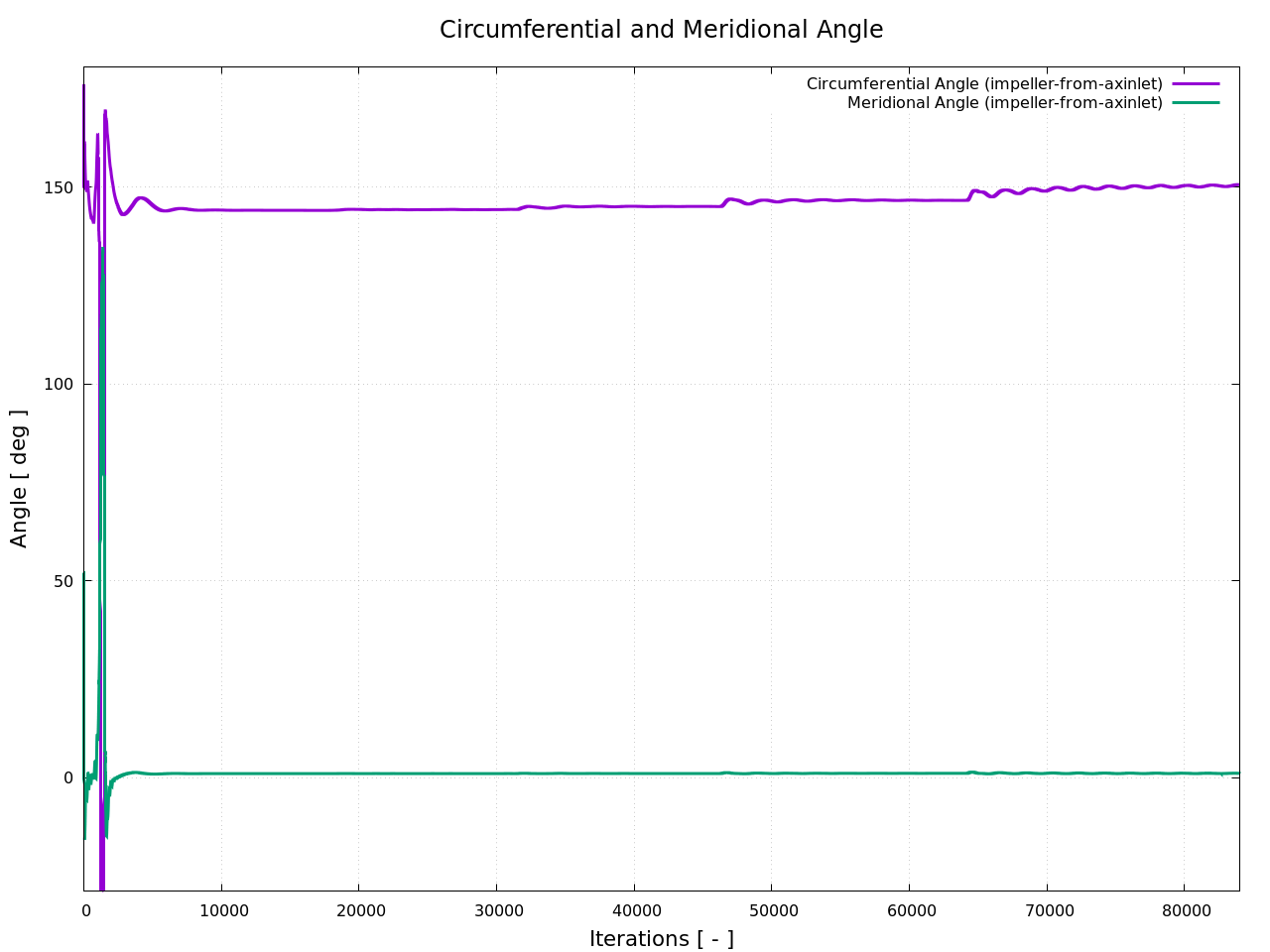

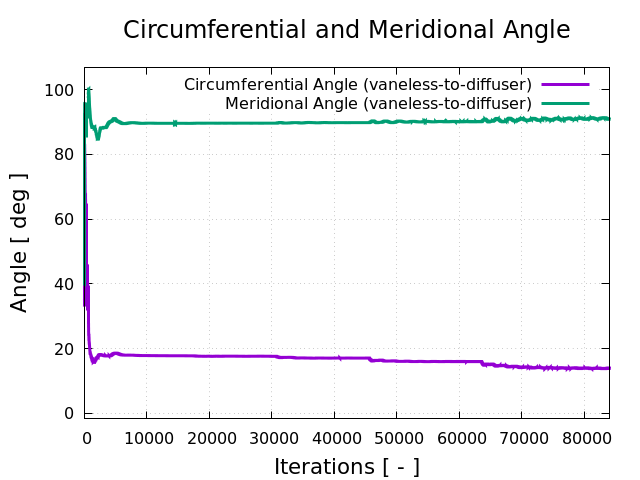

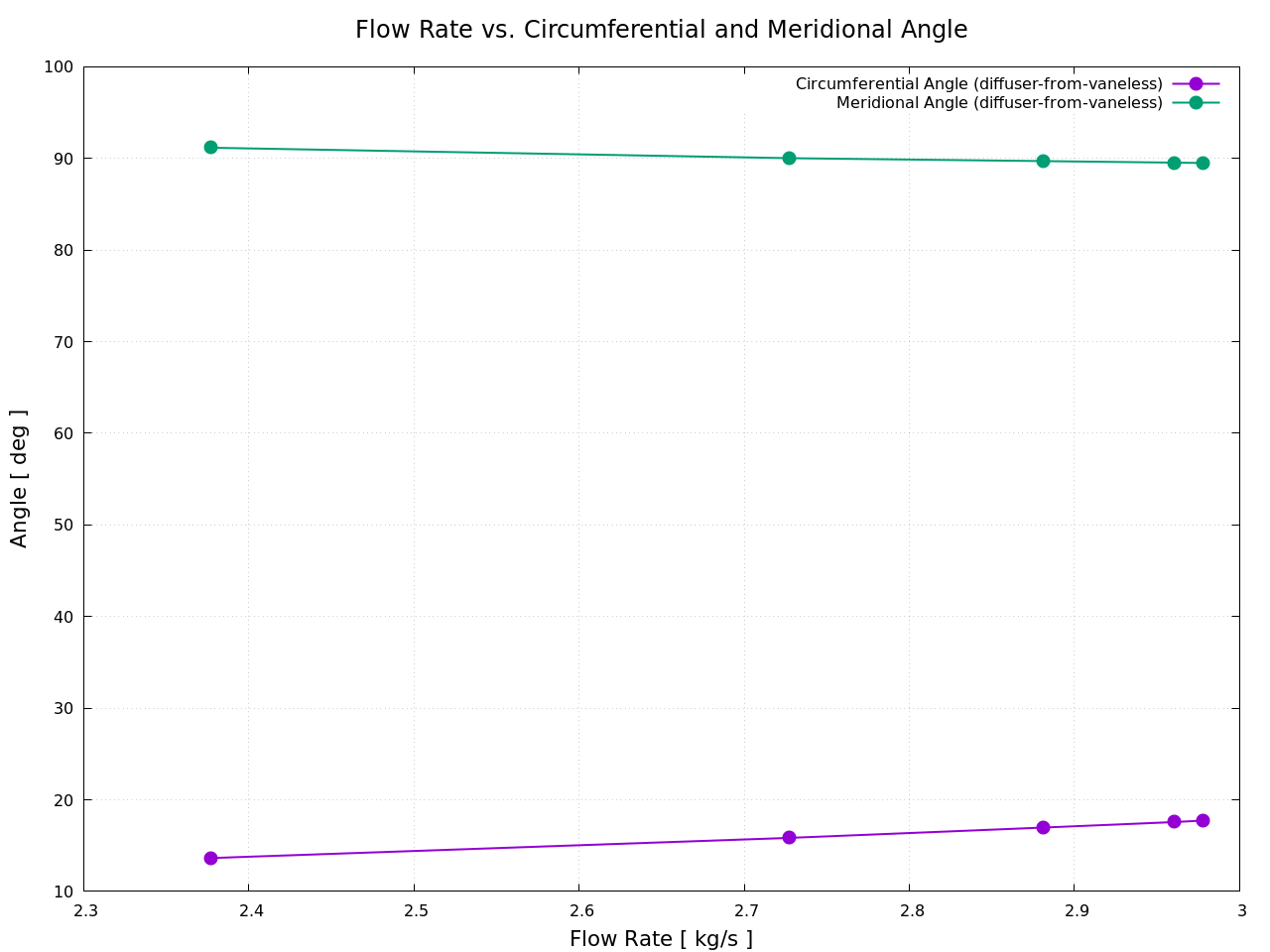

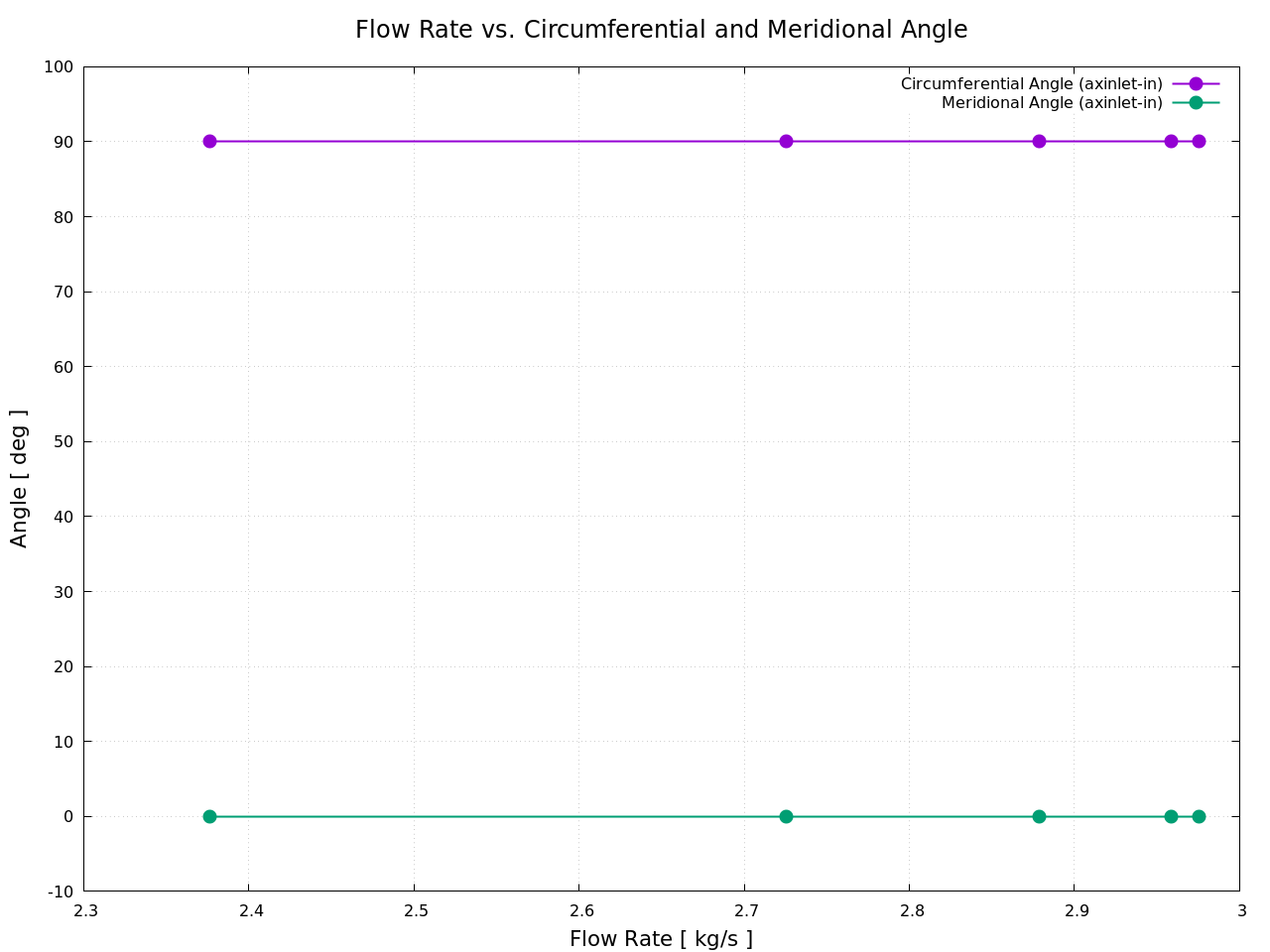

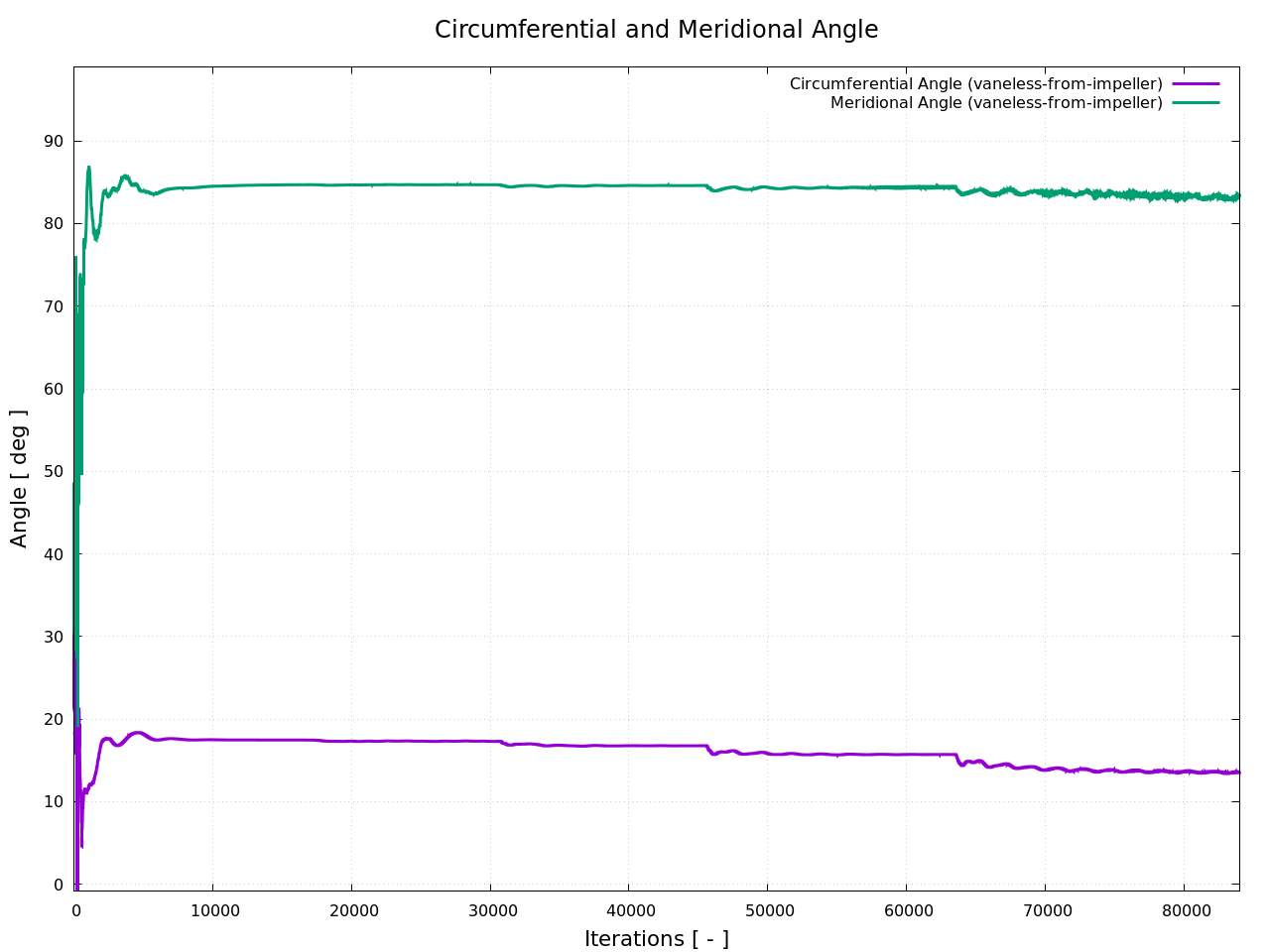

Circumferential and Meridional Angle

Point Nr.	Interface Name	Flow Rate [ kg/s ]	Circumferential Angle [ deg ]	Meridional Angle [ deg ]
1	axinlet-in	2.97558	90.0009	-4.11175 × 10^-6
1	axinlet-to-impeller	2.97557	90.0737	1.09422
1	impeller-from-axinlet	2.97588	144.161*	1.06849*
1	impeller-to-vaneless	2.97795	134.990*	84.6582*
1	vaneless-from-impeller	2.97794	17.4726	84.6473
1	vaneless-to-diffuser	2.97807	17.8125	89.5574
1	diffuser-from-vaneless	2.97805	17.7355	89.5083
1	diffuser-to-EGV	2.97974	25.4750	2.61789
1	EGV-from-diffuser	2.98072	25.4752	2.60450
1	EGV-out	2.98205	74.3279	0.0676588
2	axinlet-in	2.95885	90.0009	-4.11300 × 10^-6
2	axinlet-to-impeller	2.95884	90.0738	1.09960
2	impeller-from-axinlet	2.95917	144.328*	1.07383*
2	impeller-to-vaneless	2.96053	135.062*	84.7065*
2	vaneless-from-impeller	2.96052	17.3311	84.6950
2	vaneless-to-diffuser	2.96062	17.6543	89.5937
2	diffuser-from-vaneless	2.96060	17.5733	89.5448
2	diffuser-to-EGV	2.96350	25.8361	2.66423
2	EGV-from-diffuser	2.96443	25.8366	2.65137
2	EGV-out	2.96428	75.0307	0.0731697
3	axinlet-in	2.87879	90.0009	-4.11916 × 10^-6
3	axinlet-to-impeller	2.87877	90.0744	1.12432
3	impeller-from-axinlet	2.87923	145.135*	1.09831*
3	impeller-to-vaneless	2.88114	134.897*	84.6088*
3	vaneless-from-impeller	2.88115	16.7750	84.5955
3	vaneless-to-diffuser	2.88129	17.0841	89.7636
3	diffuser-from-vaneless	2.88127	16.9728	89.7139
3	diffuser-to-EGV	2.88396	26.6638	2.58119
3	EGV-from-diffuser	2.88484	26.6646	2.56831
3	EGV-out	2.88521	76.0929	0.0401703
4	axinlet-in	2.72572	90.0009	-4.13175 × 10^-6
4	axinlet-to-impeller	2.72572	90.0756	1.15685
4	impeller-from-axinlet	2.72641	146.698*	1.13034*
4	impeller-to-vaneless	2.72690	134.397*	84.4071*
4	vaneless-from-impeller	2.72695	15.7217	84.3905
4	vaneless-to-diffuser	2.72703	16.0155	90.0741
4	diffuser-from-vaneless	2.72701	15.8416	90.0333
4	diffuser-to-EGV	2.73083	29.9708	1.69610
4	EGV-from-diffuser	2.73188	29.9712	1.68071
4	EGV-out	2.73204	76.5927	0.0724182
5	axinlet-in	2.37635	90.0009	-4.16254 × 10^-6
5	axinlet-to-impeller	2.37613	90.0792	1.16154
5	impeller-from-axinlet	2.37734	150.391*	1.13379*
5	impeller-to-vaneless	2.37677	131.088*	83.1526*
5	vaneless-from-impeller	2.37690	13.5610	83.1362
5	vaneless-to-diffuser	2.37690	13.9123	91.0630
5	diffuser-from-vaneless	2.37688	13.6401	91.1668
5	diffuser-to-EGV	2.38221	33.3364	1.13176
5	EGV-from-diffuser	2.38314	33.3364	1.11612
5	EGV-out	2.38374	77.1855	0.0516390

(*) Calculated from the relative velocity.

Hi, this is steady-state CFD simulation report of: simulation-speed085-pTotpStat-5points-8bL-lowRe

Hi, this is steady-state CFD simulation report of:

simulation-speed085-pTotpStat-5points-8bL-lowRe
