Kaplan Turbine - General information (tutorial: kaplan-full-snappy)

kaplan turbine cfd openfoam complete model geometry 2
kaplan turbine cfd openfoam complete model geometry 3

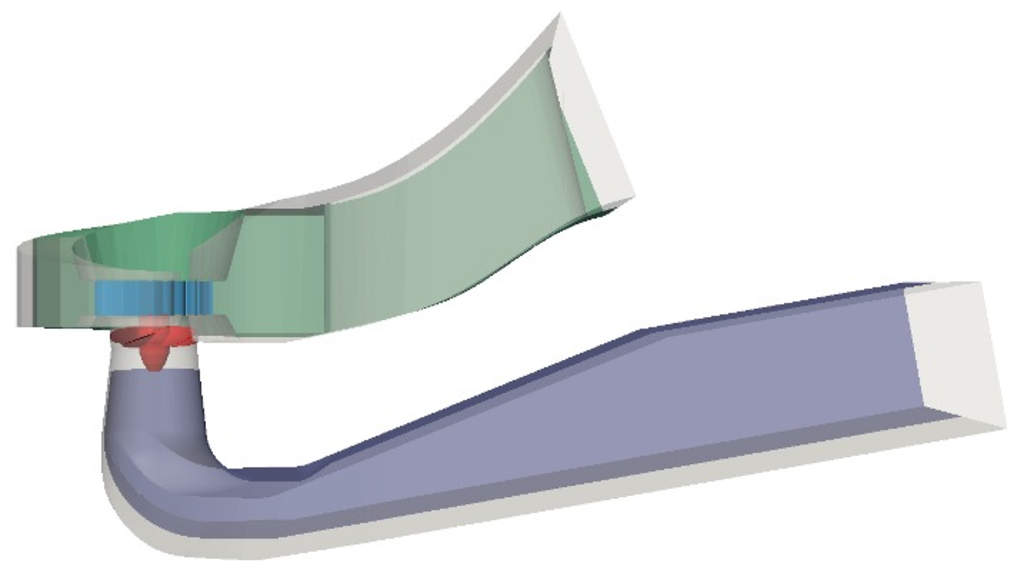

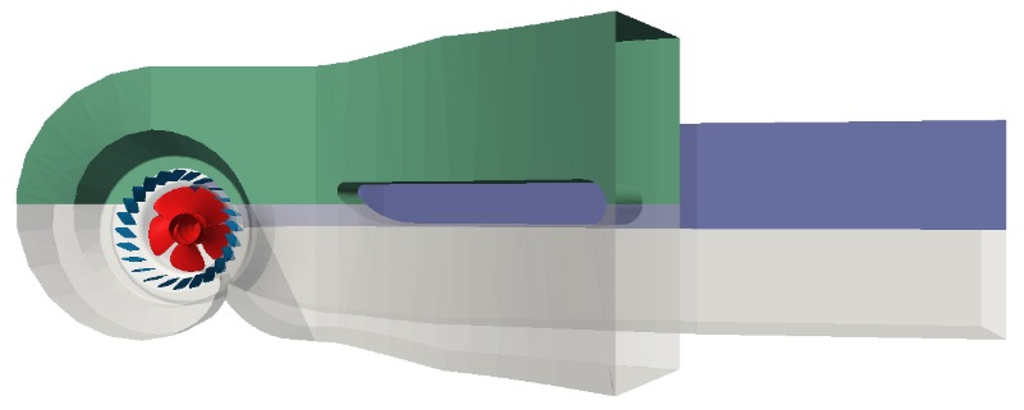

Figure: Preview of the Kaplan water turbine geometry. Three regions here: spiral; rotor; drafttube;

The input for this methodology consists of surface geometry in (.STL) file format11.1. Original files can be found in directory tutorials/kaplan-full-snappy/meshFactory/mesh-rotor/constant/triSurface. STL model can be viewed in paraview by opening following files:

  • align-rot-draft.stl
  • align-rot-guide.stl
  • blade-guide.stl
  • blade-rot.stl
  • hub-guide.stl
  • hub-rot.stl
  • inflow-inlet.stl
  • inflow-stay.stl
  • outflow-drafttube.stl
  • outflow-outlet.stl
  • shroud-guide.stl
  • shroud-rot.stl
